VTUSC6 - Ultrasonic cleaner Perel - Free user manual and instructions

Product type	Ultrasonic cleaner
Brand	Perel
Model	VTUSC6
Tank capacity	6 L
Ultrasonic frequency	35 kHz
Power	310 W
Power supply	220-240 V~, 50 Hz
Temperature range	40°C - 60°C (in 5°C increments)
Timer	1 to 30 minutes
Tank material	SUS304 stainless steel
Housing material	ABS
External dimensions	43.8 x 30.0 x 25.0 cm
Internal dimensions	32 x 20 x 10 cm
Weight (estimated)	Approximately 5.5 kg
Functions	Normal cleaning, degas, heating
Protection	Overheating, dry running
Included accessories	Basket, transparent lid, drain hose
Maintenance	Drain after each use, clean with a soft cloth
Safety	Class 2, do not use without water, do not immerse
Warranty	24 months (consumer)
Usage	Indoor only

Frequently Asked Questions - VTUSC6 Perel

How to use the Perel VTUSC6 ultrasonic cleaner?

Place the objects in the basket, fill the tank with water between the MIN and MAX marks, optionally add detergent, close the lid, plug in the appliance, set the timer (1-30 min) and the temperature (40-60°C) then press the on/off button. The cleaning process ends automatically.

Can I clean jewelry with this device?

Yes, but avoid delicate materials like tortoiseshell, pearls, emerald, ivory, coral or agate. Metal jewelry such as silver, copper or brass is suitable. Ensure they do not touch each other to avoid scratches.

What is the tank capacity and what objects can be cleaned?

The tank has a capacity of 6 litres. It allows cleaning a wide variety of objects: mechanical parts, jewelry, glasses, precision instruments, etc. Do not clean non-waterproof watches, contact lenses, fragile ceramic or wood.

How to adjust the temperature and timer?

Use the Temp button to choose among 5 preset temperatures (40, 45, 50, 55, 60°C). Activate heating with the TC button. For the timer, press Time to increase in 5-minute increments or ∇ to decrease by one minute. The timer is adjustable from 1 to 30 minutes.

What to do if the red light comes on?

The red LED status light indicates a malfunction or overheating. Let the appliance cool down for at least 15 minutes. If the problem persists, check that the water level is sufficient and that the appliance has not run dry.

How to drain dirty water after use?

Turn off and unplug the appliance. Connect the drain hose to the tube, open the drain valve, and let the water flow out. Close the valve after draining. Clean the tank with a soft, non-abrasive cloth.

Can I use chemicals in the tank?

Yes, you can add a mild detergent to the water to improve cleaning. For indirect cleaning, use liquids such as hexane, acetone, pure alcohol or isopropyl alcohol in a separate container. Never pour flammable liquids directly into the tank.

What is the degas function and when to use it?

The degas function removes air bubbles and droplets from the liquid, improving cleaning efficiency. Activate it by pressing the Function button. It lasts about 2 minutes and is recommended for cleaning heavily soiled or greasy objects.

How to maintain the cleaner to extend its life?

Drain the tank after each use to prevent corrosion. Clean the tank and housing with a soft, dry cloth. Never rinse the housing with water. Store the appliance in a dry, cool, well-ventilated place, away from sunlight.

What to do in case of breakdown or damage?

Do not attempt to disassemble the appliance. Contact your dealer or authorized technical service. The 24-month warranty covers manufacturing defects, but not damage due to incorrect use or modification. Keep the receipt as proof of purchase.

USER MANUAL VTUSC6 Perel

Exterior view of a white industrial air purifier with digital display and coiled tubing (no visible text or symbols)

USER MANUAL 5

GEBRUIKERSHANDLEIDING 11

MODE D'EMPLOI 17

MANUAL DEL USUARIO 23

A B C D E F G H I J K L M

4 5 6 7 Doggo Normal Header Actual 28°C 05:88 40°C CD-4860 Digital Ultrasonic Cleaner Time Temp 1 2 3 8 9 10 11 12 13

A

Diagram illustrating a cooking process with a grater, water spray bottle, and digital scale reading 98.99

B

Diagram illustrating a cooking process with a microwave oven, a beaker, and a measuring cup pouring liquid into it.

operation - gebruik - usage - uso - Anwendung - obsługa - funcionamento

care - zorg - soin - cuidado - Pflege - konserwacja - manutenção

Simple line drawing of a refrigerator with a tray and smokestack (no text or symbols)

Illustration of a steaming hot air heater with a leaf inside, no text or symbols present

Illustration of a hand connecting a cable to a device with an arrow indicating cable attachment (no text or symbols present)

Line drawing of a hand cleaning a washing machine with a cloth (no text or symbols)

Illustration of a sun shining on a rolled-up document with a leaf, no text or symbols present

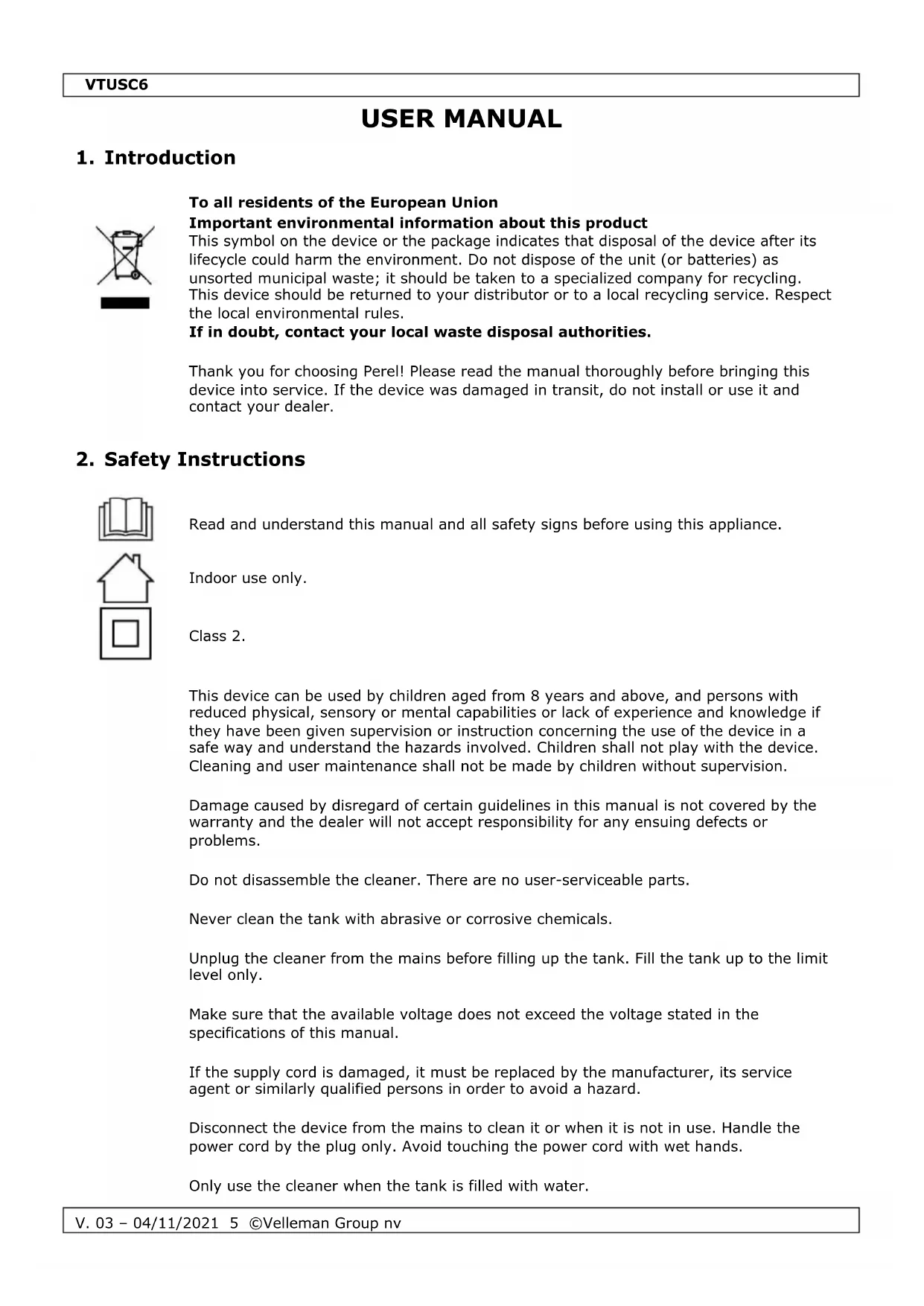

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

Class 2.

This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

Do not disassemble the cleaner. There are no user-serviceable parts.

Never clean the tank with abrasive or corrosive chemicals.

Unplug the cleaner from the mains before filling up the tank. Fill the tank up to the limit level only.

Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Disconnect the device from the mains to clean it or when it is not in use. Handle the power cord by the plug only. Avoid touching the power cord with wet hands.

Only use the cleaner when the tank is filled with water.

Never leave the cleaner unattended when plugged in.

Keep the cleaner away from heat sources such as radiators. Operate on a dry and level surface.

Do not immerse the cleaner.

This cleaner is suited to clean a wide range of materials. However, we recommend not to clean following items:

○ delicate materials such as hawksbill, pearl, emerald, ivory, coral, agate...;
- brittle metals such as solder;
- non water-resistant watches;
o other materials such as wood, contact lenses, ceramic, camera filters...

Note that damage caused by user modifications to the device is not covered by the warranty.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.

Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

General

A	transparent lid
B	LED light
C	stainless steel tank
D	control panel
E	housing
F	handles
G	drainage valve

H	drainage pipe
I	power button
J	power socket
K	hose
L	power cord
M	basket

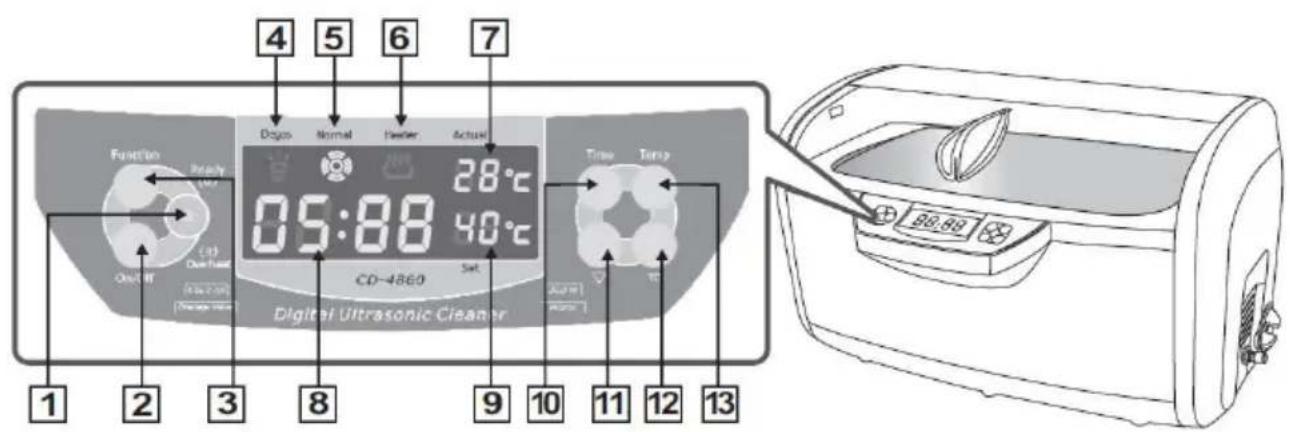

Control Panel

1	status indicator	Green: normal working status, ready.Red: fault condition, overheated. Let the VTUSC6 cool down for at least 15 minutes.
2	on-off button	Press to switch the device on. Default time and temperature settings are shown (5 minutes, 40 °C). Press again to start the cleaning process; it stops automatically when the timer expires. Press the button at any time to interrupt the cleaning process.
3	function button	Press to start degassing function (degas). The indicator [4] will flash during the degas process (± 2 minutes). To interrupt the process, press the button again. See note below the table.
4	degas indicator	Flashing during the degassing process.
5	normal cleaning indicator	Illuminated during normal cleaning process .
6	heater indicator	Illuminated when heater is active.
7	actual liquid temperature	Displays temperature of liquid in the tank.
8	timer display	Countdown timer indicates remaining cleaning time.
9	set temperature	Indicates the selected temperature.
10	quick set time button (Time)	Press to show initial timer (05:00). Press again to increase the timer by 5 minutes.
11	decrease timer button (▽)	Each press decreases the timer by 1 minute.
12	heater on/off button (TC)	Press to switch on the heater; the indicator [6] flashes. When set temperature [9] is reached, the heater switches off automatically.
13	temperature set button (Temp)	Press to select the desired temperature [9]: 40 °C - 45 °C - 50 °C - 55 °C - 60 °C.

Note on the degassing process:

When cleaning heavily soiled or greasy items or silver, copper or brass items, chemical solutions need to be added into the water. The solution might form many small droplets and take a long time to dissolve in the water. Newly added water may generate many air bubbles on the tank walls. These will reduce the cleaning effect in the beginning phase of ultrasonic cleaning.

Turning on the degas function will dissipate the droplets and the air bubbles, usually in 2 minutes, and improve cleaning efficiency.

5. Working Principle

The principle behind ultrasonic cleaning is cavitation.

When the ultrasonic cleaner is switched on, 3-dimensional sound waves of alternating positive and negative pressure are generated and transmitted into the water in the tank. These sound waves created micron-sized bubbles that grow and build up energy during negative pressure and implode at a very high speed during positive pressure (43,000 times per second). These implosions of high energy bubbles create cavities that literally pull contaminants of the surface (at speeds up to 400 km/h). Due to the size of the bubbles, they are effective in removing contaminants from the smallest of crevices but harmless to the substrate itself.

Usually, water is used as cleaning agent as it is inexpensive and environmentally safe.

VTUSC6

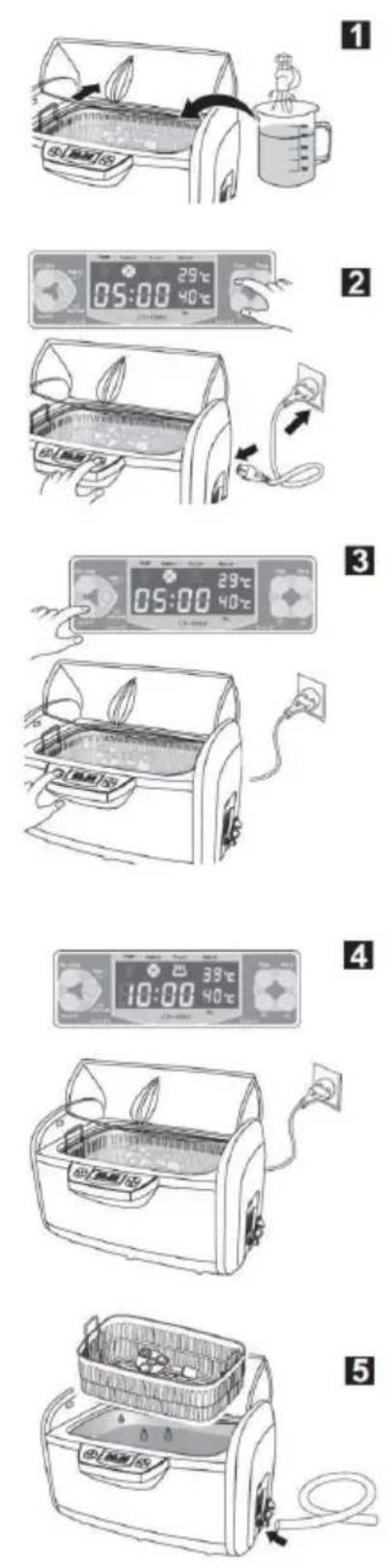

6. Operation

Refer to the illustrations on page 2 of this manual.

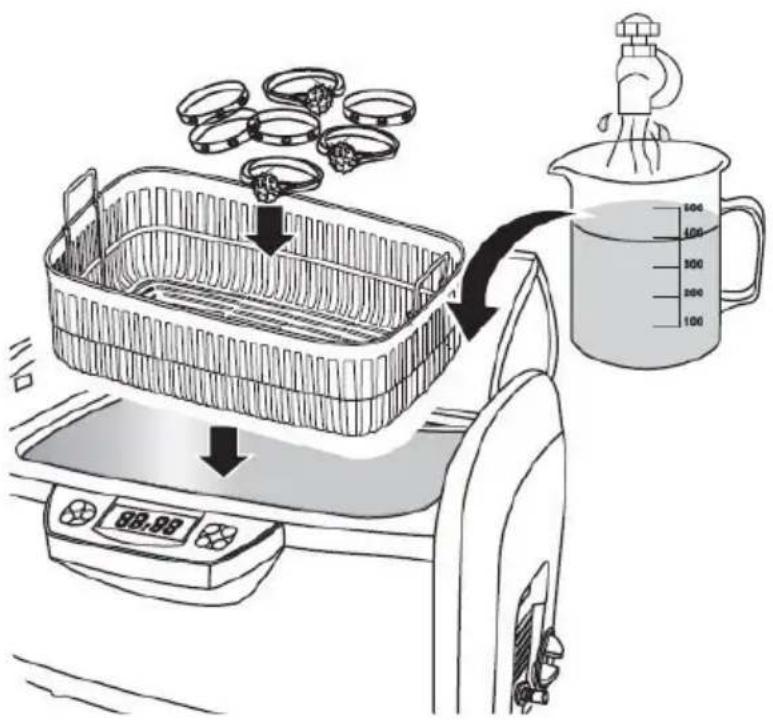

1. Open the lid [A] as illustrated, put the items in the basket [M] then put them in the cleaning tank [C]. Do not overfill the basket and make sure the items don't touch each other to prevent scratches from rubbing.

Add water to a level between MIN and MAX and above the item(s) to be cleaned. When desired, add some dishwashing liquid.

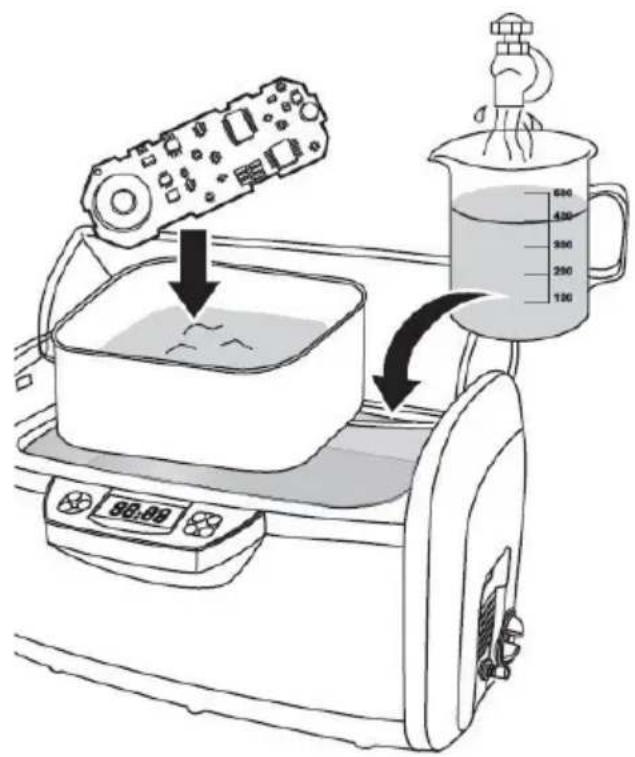

Note on indirect cleaning:

Place the objects in a small container (not included, e.g. glass jar, metal box...) and fill this container with fluid so the items are submerged. Possible fluids include hexane (to dissolve grease), acetone (to dissolve ink), pure alcohol (quick evaporation), watch oil (prevent rust), rubbing alcohol (clean and disinfect)...

The selected container will absorb part of the ultrasonic energy which reduces the cleaning effect:

container	absorbs
plastic	30 %
aluminium	20 %
stainless steel	8 %

Place the small container inside the stainless steel tank [C]. Do not use the basket [M]. Add water making sure the level is above the MIN indication but water does not flow into the small container.

Do not run the device without sufficient water inside the tank to prevent irreversible damage to the VTUSC6.

1. Connect the power cord [L] to a mains outlet and turn the switch [I] on. The status indicator [1] turns green and the LED display shows:

29°C 05:00 40°C

This is the most common timer setting and working state. If the timer needs to be adjusted, press the TIME button [10] and button [11] . The timer can be set between 1 to 30 minutes.

Note on cleaning time:

Do not set the cleaning time too long as this might lead to loosening of screws, cracks or coating peeling off.

1. Press the on-off button [2] to start cleaning. During cleaning, 2 sets of blue LED lights at the two sides of the unit illuminate [B]. A buzzing sound can be heard from the cleaning tank and the normal cleaning indicator [5] is lit, indicating the cleaning is in progress. Closing the lid [A] will reduce the noise level.

The digital timer [8] will count down to show the remaining cleaning time. When it displays 00:00, the cleaning is done. To stop cleaning at any time, press the on-off button [2] . The unit is designed with an overheating protection to avoid extended and continuous operation for too long. When the red light [1] is on, the unit will

not turn on. The unit will idle for about 20 minutes and can be restarted after the green light [1] comes on.

1. When the heater is needed, press the Temp button [13] to select one of the 5 preset temperatures. Press the TC button [12] ; the heater indicator [6] flashes to indicate that the heater is turned on. The actual water temperature is shown in the display [7] . When the water reaches the set temperature, the heater and heater indicator [6] turn off.

Note:

To ensure safe operation, the heater is turned off automatically after 50 minutes.

To speed up mixing and use less solution, use the degas function. Press the Time button [10] to set the timer to 10 minutes then press the function button [3] ; the heater indicator [6] illuminates. Press the on-off button [2] to start degassing.

The VTUSC6 returns to normal cleaning automatically after 2 minutes.

When debris "smoke" is no longer visible, cleaning is done. If additional cleaning is needed, reset the timer and repeat the steps above.

1. When cleaning is completed, switch off the VTUSC6 [I], unplug the power cord [L], open the lid [A] and retrieve the basket [M] and the items. Rinse and dry the items.

Connect the hose [K] to the drainage pipe [H]. Open the drainage valve [G] to drain the dirty water. Clean and wipe the tank dry. Do not use abrasive or corrosive solutions. Close the drainage valve [G].

7. Cleaning and Maintenance

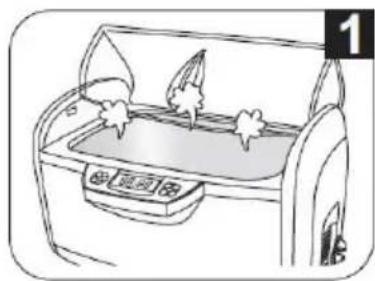

1. Do not turn on the unit without water in the tank.

Even though the unit is designed with multiple protections, if it is turned on for over 15 seconds without water in the tank, it may damage the unit or severely reduce the life of the unit.

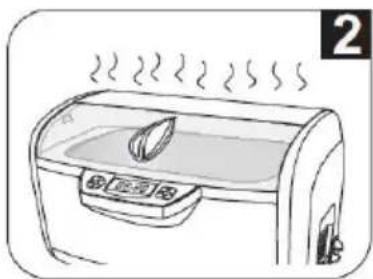

1. Do not run the unit for extended time or continuously.

The unit is designed with overheat protection. If the unit has been running for 45 minutes, it is recommended to stop the unit for about 20 minutes to prolong the life of the unit.

1. Do not keep water in the cleaning tank for a long time.

Remove the water from the tank after each use to prevent the tank from corroding. Clean and wipe the tank dry.

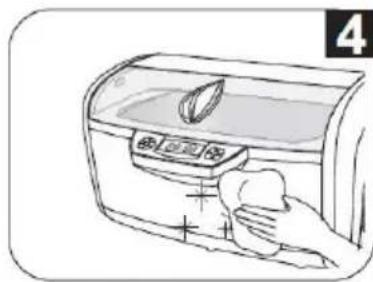

1. Do not spray water over the housing.

Use a towel to wipe the tank and the housing dry.

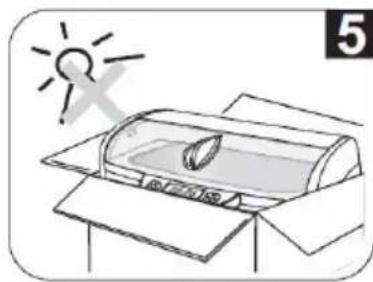

1. Do not expose the unit under direct sunshine for a long time.

Keep the unit in a dry, cool and ventilated place.

VTUSC6

8. Technical Specifications

ultrasonic frequency 35 kHz
temperature settings 40 °C - 45 °C - 50 °C - 55 °C - 60 °C
tank material ...... stainless steel SUS304
housing/holder material ....ABS
tank capacity 6 L
power consumption 310 W
power supply 220-240 V\~, 50 Hz
dimensions
outer 43.8 x 30.0 x 25.0 cm
inner....32 x 20 x 10 cm

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

inhoud reservoir 6 L

verbruik 310 W

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
