USER MANUAL BHFEV182B BLACK & DECKER

ENGLISH(Original instructions)

Intended use Your BLACK+DECKER BHFEV182B, BHFEV182C, BHFEV182CP 4 in 1 cordless vacuum cleaners have been designed for vacuum cleaning purposes. These appliances are intended for household use only. Read all of this manual carefully before operating the appliance. Safety instructions

Warning! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions listed below may result in electric shock, re and/or serious injury. u The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury. u Retain this manual for future reference. Using your appliance u Do not use the appliance to pick up liquids or any materials that could catch re. u Do not use the appliance near water.u Do not immerse the appliance in water.u Never pull the charger lead to disconnect the charger from the socket. Keep the charger lead away from heat, oil and sharp edges.

ENGLISH (Original instructions) u When not in use, the appliance should be stored in a dry place. u Children should not have access to stored appliances. Residual risks Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc. Even with the application of the relevant safety regulations and the implementa- tion of safety devices, certain residual risks can not be avoided. These include: u Injuries caused by touching any rotating/moving parts. u Injuries caused when changing any parts, blades or accessories. u Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks. u Impairment of hearing.u Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.) Chargers Your charger has been designed for a specic voltage. Always check that the mains voltage corresponds to the voltage on the rating plate. Warning! Never attempt to replace the charger unit with a regular mains plug. u Use your BLACK+DECKER charger only to charge the battery in the appliance with which it was supplied. u This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Inspection and repairs Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation. u Do not use the appliance if any part is damaged or defective. u Have any damaged or defective parts repaired or replaced by an authorized repair agent. u Regularly check the charger lead for damage. Replace the charger if the lead is damaged or defective. u Never attempt to remove or replace any parts other than those specied in this manual. Additional safety instructions After use u Unplug the charger before cleaning the charger or charging base.7 ENGLISH(Original instructions) Other batteries could burst, causing personal injury and damage. u Never attempt to charge non- rechargeable batteries. u If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard. u Do not expose the charger to water.u Do not open the charger.u Do not probe the charger.u The appliance/battery must be placed in a well ventilated area when charging. Electrical safety Symbols on the charger

Read all of this manual carefully before using the appliance.

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

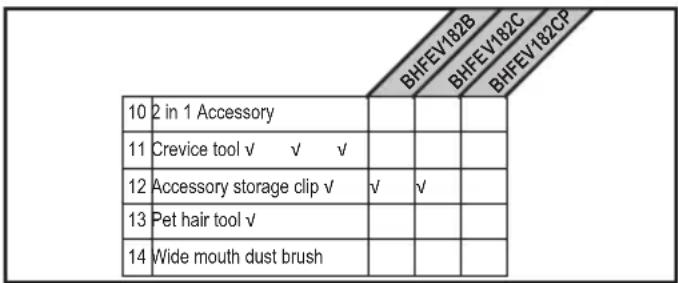

The charging base is intended for indoor use only. Labels on applianceThe following symbols appear on this appliance along with the date code Read all of this manual carefully before using the applianceBHFEV182B, BHFEV182C, BHFEV182CP use charger S010**2400040 / SSC-250040** Features This tool includes some or all of the following features. 1. On/Off button 2. 3 speed power switch2a. Beater bar activation button 3. State of charge indicator 3a. Filter sense S010Q 23 S010**2400040 / SSC-250040** 4. 18V Battery (available with units BHFEV182C, BHFEV182CP) 5. 18V cup charger and charging station (available with units BHFEV182C, BHFEV182CP) 6. Lift away dust canister with lter agitator 7. Dust canister door 8. Floor head 9. Extension tube 10. 2 in 1 Accesssory tool (available to order through service department) 11. Crevice tool (available with units BHFEV182B, BHFEV182C, BHFEV182CP) 12. Accessory storage clip 13. Pet hair tool (available with units BHFEV182CP) 14. Wide mouth dust brush (available available to order through service department) 15. Charge port Charging a Battery BLACK+DECKER chargers are designed to chargeBLACK+DECKER battery packs.Note: To ensure maximum performance and life of lithiumion battery packs:u Charge the battery pack fully before rst use.u Recharge discharged batteries as soon as possible after every use.u Do not discharge batteries fully.The supplied charger offers three possible ways to chargeyour battery.1. Standard cup charging only2. Wall mounted cup charging3. Wall mounted suspended charging

1. Standard cup charging (Fig. A)

u Plug the charger (5) into an appropriate outlet before inserting the battery pack (4).u Insert the battery pack into the cup charger.u When using the the cup charger a green LED will ash indicating that the battery is being charged.u The completion of charge is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this time or left on the charger.u The cup charger can be inserted into the charging station (5a) as shown in gure A.

2. Wall mounted battery charging

u Mark the location of the charging station (5a) screw holes on the wall (within reach of an electrical outlet) for charging the vacuum while it is on the charging station.u Fix the charging station (5a) to the wall using appropriate screws and plugs for the type of wall, and weight of the appliance.u Install the cup charger (5) into the charging station (5a). Ensure it is locked into place before proceeding.8 ENGLISH (Original instructions) Note: To remove the cup charger from the charging base pull out on the retaining tabs and lift the cup charger out. u Plug the charger into an appropriate outlet before inserting the battery pack. u Slide the battery pack onto the charging station.

3. Wall mounted vacuum storage and battery

charging The product can be attached to a wall to provide a convenient storage and charging point for the appliance. When mounting to a wall, make sure the mounting method is suitable for the wall type and is appropriate to the weight of the appliance. u Mark the location of the charging station screw holes on the wall (within reach of an electrical outlet for charging the vacuum while it is on the charging station. u Fix the charging station to the wall using appropriate screws and plugs for the type of wall, and weight of the appliance. u Install the cup charger into the charging station. Ensure it is locked into place before proceeding. Note: To remove the cup charger from the charging base pull out on the retaining tabs and lift the cup charger out. u Plug the charger into an appropriate outlet. u With the battery installed on the vacuum, slide the charge port (15), located on the vacuum base, onto the rails of the charging station (5a). u The white LED (3) on the vacuum will ash indicating that the battery is being charged. u The LED sections increase as the battery is charged - when fully charged the LEDS go out. The pack is fully charged and may be used at this time or left on the charger. Leaving the battery in the charger The charger and battery pack can be left connected with the green LED glowing indenitely. The charger will keep the battery pack fresh and fully charged. To install battery pack (g. B) u Insert battery (4) into tool until an audible click is heard as shown in gure B. u Ensure battery pack is fully seated and fully latched into position. To remove battery pack u Depress the battery release button and pull battery pack (4) out of the tool. Assembly (Fig. C) u Align the top of the extension tube (9) with the vacuum inlet (16) as shown in gure C. u Push the extension tube (9) onto the vacuum inlet (16) so it locks into position. u Align the bottom of the extension tube (9) with the oor head (8) as shown in gure C. u Push the bottom of the extension tube (9) onto the oor head (8) so it locks into position. u To remove an accessory, press the accessory release latch located on the accessory and pull it off. USE This vacuum cleaner can be used in one of four ways. u With the extension tube (9) and the oor brush (8) as shown in gure C. u With the oor brush (8) and the vacuum inlet (16) as shown in gure D. u With the extension tube (9) and an accesssory tool (10), (11), (13) or (14) as shown in gure E. u With an accesssory tool (10), (11), (13) or (14) and the vacuum inlet (16) as shown in gure E. u Accessories not supplied with your unit can be ordered through service department. Switching ON and OFF (Fig. F) u To switch ON, press the On/Off button (1). u For increased power, slide the variable power switch (2) forward. Note: The oor brush (8) will power on when it is attached to the vacuum or extension tube (it can be switched off by pressing the button 2a on the display). The LED worklights on the front of the oor head will illuminate whenever the beater bar activation button (2a) is switched ON (they can be switched off by pressing the button again). Note: The state of charge indicator LEDs (3) will illuminate while the vacuum is ON or during the charging process. u To switch OFF, press the On/Off button (1). u Return the product to the charger immediately after use so that it will be ready and fully charged for the next use. Ensure that the product is fully engaged with the charger plug. Using an Accessory tool (Fig. G) Your vacuum may come with some of the following tools. u 2 in 1 Accesssory tool (10) u Crevice tool (11). u Pet hair tool (13). u Wide mouth dust brush (14). u The accessory tool (10), (11), (13) or (14) can be tted either directly to the extension tube ( 6 ) or to the vacuum inlet (5) as shown in Fig. J. u Align the top of the accessory tool (10), (11), (13) or (14) with the vacuum inlet (16) or extension tube connection (9a) and push into place so it locks into position as shown in gure G.9 ENGLISH (Original instructions) 14 Wide mouth dust brush BHFEV182B BHFE V182C BHFEV 182CP 10 2 in 1 Accessory 11 Crevice tool √√√ 12 Accessory storage clip √√√ 13 Pet hair tool √ u All available through service department Cleaning and emptying the vacuum Filter sense Whenever a lter is Blocked and needs cleaning, the red lter LED (3) in the chassis will illuminate. Filter agitator (Fig. H) With the lift away dust canister (6) off the chassis (17) , rotate the lter agitator wheel 5 - 10 times to remove exces- sive dust from the lter thus increasing its performance. Note: It is recommended that you agitate when the unit is emptied and the prelter removed. Note: Maximum dust collection will only be obtained with clean lters and an empty dust canister. If dust begins to fall back out of the product after it is switched off, this indicates that the dust canister is full and requires emptying. To empty the dust canister (Fig. I, J) u Lift and remove the lift away dust canister (6) from the chassis (17) as shown in gure I. u Place the dust canister over a dust bin and press the dust canister lid release button (6a) to empty the dust canister as shown in gure J. u Close the dust canister lid (7), until it “clicks” rmly into position. u Install the lift away dust canister (6) back onto the chassis (17). Removing pre-lter (Fig. K) u Lift and remove the lift away dust canister (6) from the chassis (17) as shown in gure I. u Place the dust canister over a trash bin and press the dust canister lid release button (6a) to empty the dust canister as shown in gure J. u Use your index nger and thumb to pinch the pre-lter (18), pull the pre-lter (18 ) from the dust canister (6) as shown in gure K. Note: The lter housing ts snuggly in the dust canister and may be difcult to remove at rst. u Empty the dust canister.u Install the pre-lter (18) into the dust canister (6) ensuring the dust canister tab (20) aligns with the prelter slot (19) as shown in gure K. u Install the dust canister onto the vacuum, until it “clicks” rmly into position. Removing lter (Fig. L) u Lift and remove the lift away dust canister (6) from the chassis (17) as shown in gure I. u Place the dust canister over a trash bin and press the dust canister lid release button (6a) to empty the dust canister as shown in gure J. u Grasp the agitator wheel housing (21) and pull up to remove. u Remove the lter (22), from the agitator wheel housing (21) as shown in gure L. u Shake off or lightly brush any loose dust from the lter.u Install the the lter (22), into the agitator wheel housing (21). u Install the agitator wheel housing (21) onto the dust canister, until it “clicks” rmly into position. Cleaning the lters u Once the lter and pre-lter are removed from the dust canister shake off or lightly brush any loose dust from the pre-lter and lter. u Rinse out the dust canister (6) with warm soapy water.u Wash the lters with warm soapy water.u Ensure the lters are completely dry (24 hrs) before retting. u Follow instructions in the “Removing pre-lter and Removing lter” sections for assembly instructions. Note: Maximum dust collection will only be obtained with clean lters and an empty dust canister. If dust begins to fall back out of the product after it is switched off, this indicates that the dust canister is full and requires emptying or that there is a blockage somewhere. u Wash the lters regularly using warm, soapy water and ensure that it is completely dry before using again. The cleaner the lter is, the better the product will perform. u It is very important that the lters are completely dry and correctly in position before use. Removing and clearing the rotary brushes (Fig. M) Warning! To reduce the risk of injury from moving parts, disconnect battery before cleaning or servicing. u To remove the rotary brush (23) from the oor head (8) depress the release button (24) as shown in gure M. u Lift the rotary brush from its locked position.u The rotary brush (23) can now be removed.u Clean the rotary brush, and reinstall. Ensure it is secured in its locked position before operating.10 ENGLISH (Original instructions) Storage The unit can be safely stored using the charging station (5a) as shown in gure N. Maintenance Your BLACK+DECKER cordless appliance has been designed to operate over a long period of time with a minimum of main- tenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. Warning! Before performing any maintenance on cordless appliances: u Remove the battery.u Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning. u Regularly clean the ventilation slots in your appliance/ charger using a soft brush or dry cloth. u Regularly clean the motor housing, using a damp cloth. Do not use any abrasive or solvent-based cleaner. Replacing the filters The lters should be replaced every 6 to 9 months and when- ever worn or damaged. Replacement lters are available from your BLACK+DECKER dealer. u Remove the old lters as described above.u Fit the new lters as described above. Trouble shooting Problem Possible Cause Possible solution Unit will not start. Battery pack not charged. Check battery pack charging requirements. Blockage. Check oorhead tube. Check extension tube. Check between exten- sion tube and bowl Beater bar stops working. Obstruction. The unit is equipped with a beater bar over- load protection feature. Remove and clean the beater bar of all debris and obstructions Battery pack will not charge. Charger not plugged in. Plug charger into a working outlet. Refer to Important Charging Notes for more details. Surrounding air temperature too hot or too cold Move charger and battery pack to a 4 °C or below +40 °C. Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste. Products and batteries contain materials that can be recov- ered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com Technical Data
