USER MANUAL ZU420G MOULINEX

RECYCLAGE DU PRODUIT

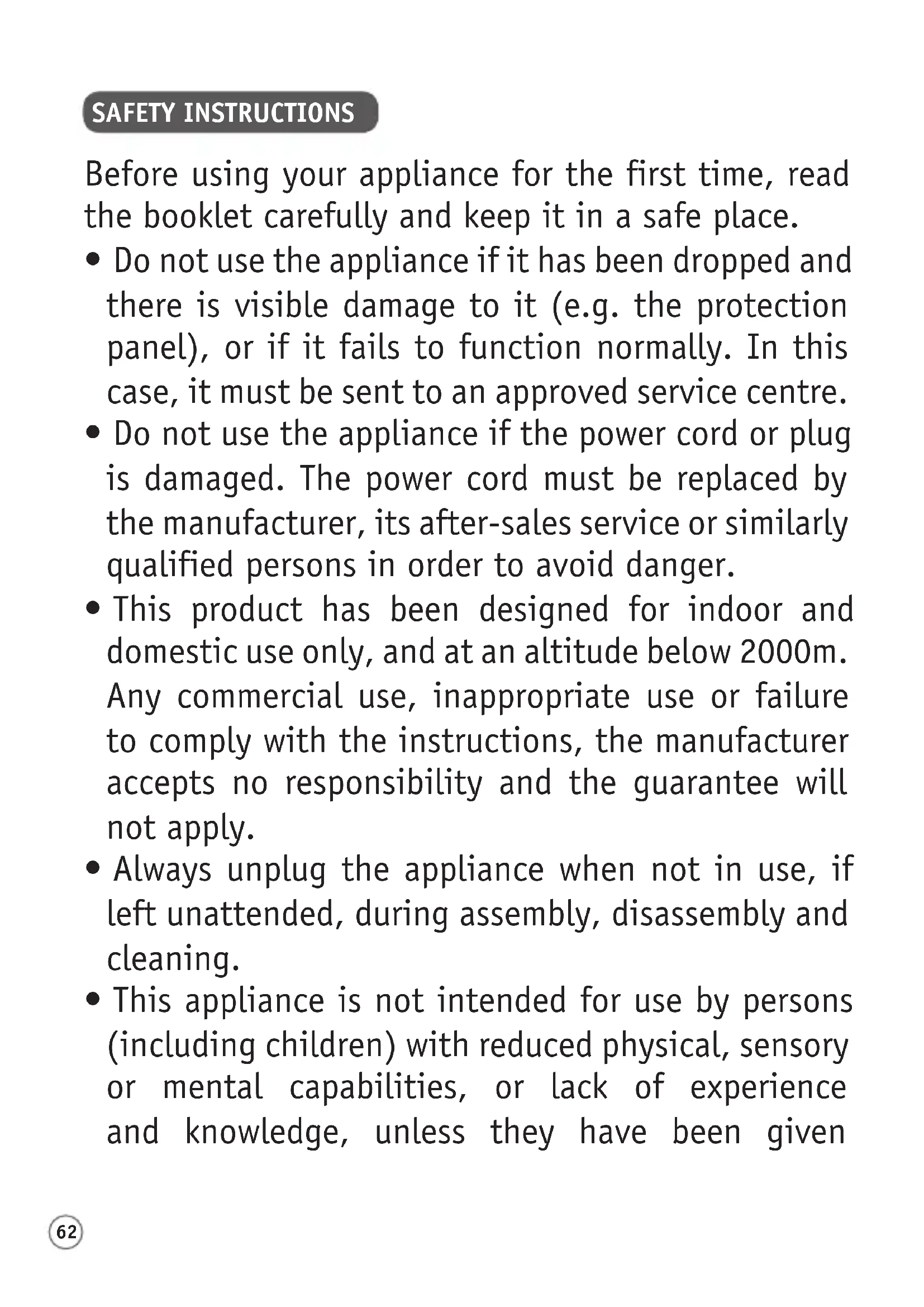

• Do not use the appliance if it has been dropped and there is visible damage to it (e.g. the protection panel), or if it fails to function normally. In this case, it must be sent to an approved service centre.

• Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.

• This product has been designed for indoor and domestic use only, and at an altitude below 2000m. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Always unplug the appliance when not in use, if left unattended, during assembly, disassembly and cleaning.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given63

supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance and do not use it as a toy.

• Do not allow children to use the appliance without supervision.

• Never push food with your fingers, always use the pusher.

• Your appliance is for domestic culinary use only (for use inside the home only). It has not been designed to be used in the following circumstances, which are not covered by the guarantee: in kitchen areas reserved for staff in shops, offices and other professional environments, on farms, by clients of hotels, motels and other residential environments and in guest rooms or similar accommodation.

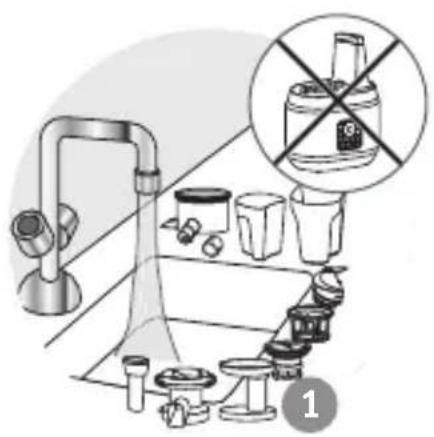

• The parts in contact with food should be cleaned with a sponge and soapy water or in the dishwasher; please consult the instruction manual for the complete cleaning and maintenance of your appliance.

• This appliance should not be used for more than 20 minutes at a time.

• The juicer will stop automatically and go into standby mode after 20 minutes of continuous use.64

• For each setting, when program sensed that power is larger than normal value for 5 sec, it sounds 3 times for user reminder, then continue running 5-10 sec, then stop running. For example, for soft fruit setting, normal power is around 50-60W. When it sensed power than 65W by inserting carrot, it will sound 3 times , then continue running 10 sec, then stop running.

• Cleaning and user maintenance shall not be made by children without supervision.

• The instructions for appliances warn against misuse.

• In the case that, an additional accessory would be proposed, it would be accompanied with its own safety instructions.

• Do not immerse the appliance, power cord or plug in water or any other liquid.

• Do not allow long hair, scarves, ties, etc. to hang over the appliance when it is in use.

EUROPEAN MARKETS ONLY

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• Children shall not play with the appliance.65

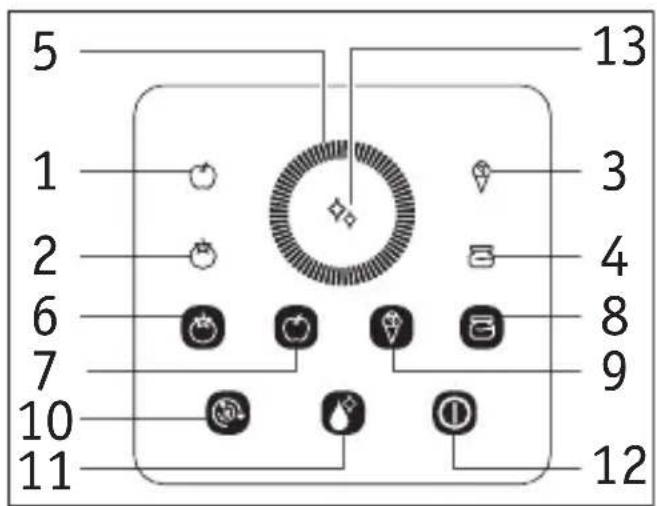

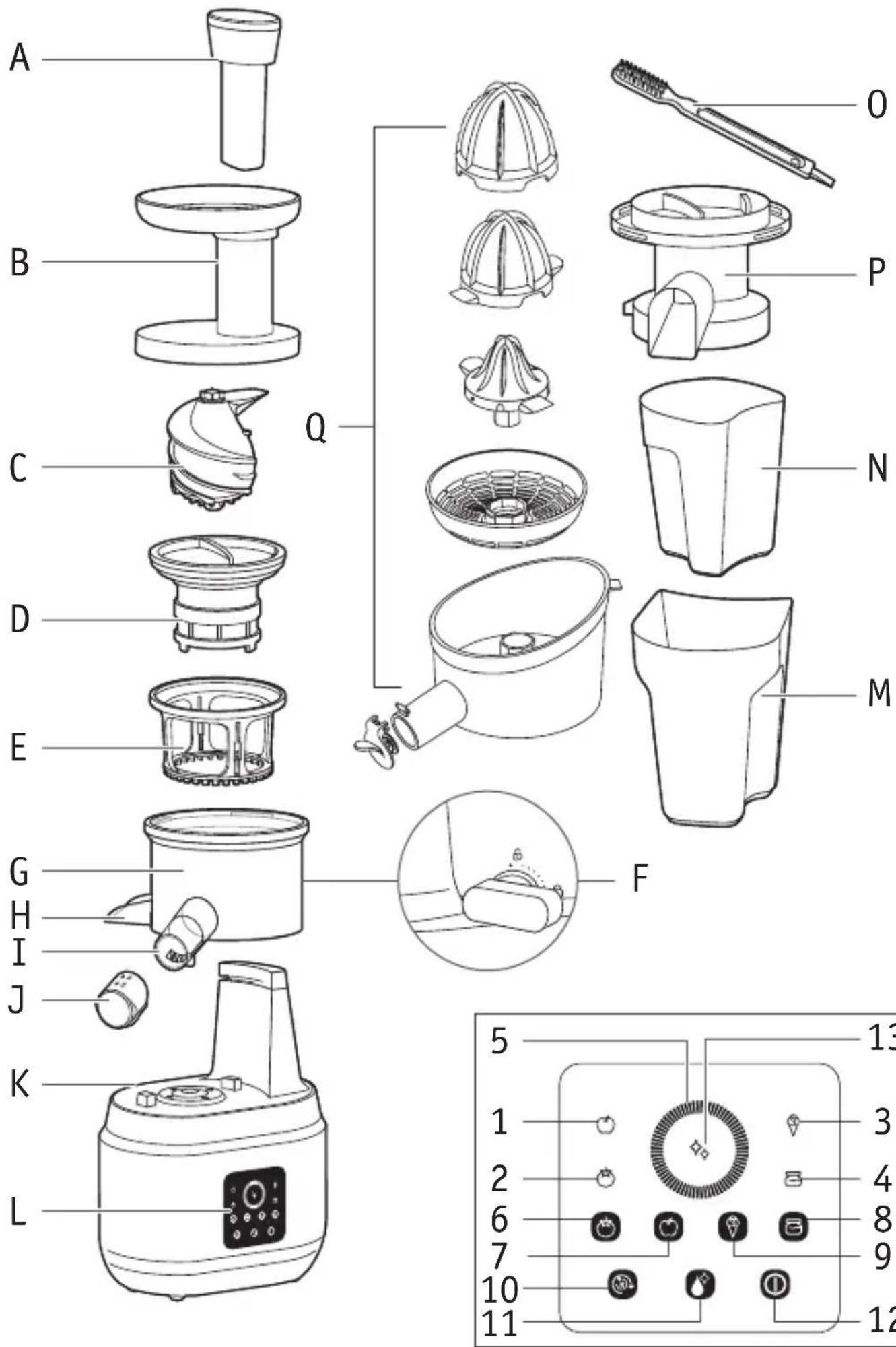

• This appliance may be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, provided they are supervised or have received instruction to use the appliance safely and understand the dangers. DESCRIPTION A Pusher B Lid C Pressing screw D Filter E Rubber scraper F Pulp level control G Bowl H Dry residue exit I Juice exit J Anti-drip K Motor unit L Start/Stop & Reverse button M Juice Jug N Pulp Collector O Cleaning Brush P Ice Cream Filter Q Citrus-press accessory (* Depending on model) DESCRIPTION 1 Hard fruits and vegetables program LED 2 Soft fruits and vegetables program LED 3 Ice-cream program LED 4 Jam and Puree program LED

1- Choose fresh fruits and vegetables and wash them thoroughly.

This machine has been designed to juice fruits and vegetables with high water content, such as: Hard fruits and vegetables: apples, pears, carrots, celery, pineapples, peaches, etc. Soft fruits and vegetables: mandarin oranges, tomatoes, kiwis, oranges, grapes, watermelon, etc. – Hard, fibrous fruits and vegetables must be cut into pieces within 2 to 4 cm in size, and between 1 to 2 cm thick. – For hard fruits and vegetables with long fibres and leafy vegetables (such as celery), stems should be cut into pieces within 2 to 4 cm long, and leaves should be rolled up before juicing. – For fruits and vegetables with thick skins, or hard pits or seeds, the skins, pits and seeds should be removed before juicing. – Frozen fruits and vegetables must be thawed before juicing.

2- For Ice Cream and Coulis functions :

– Fruits that can be made into ice-cream in this machine: Remove the skins from bananas, cut the bananas into pieces of around 2 cm in size, place them in the freezer for at least 4 hours. – Fruits that can be made into jams and purees in this machine: strawberries, tomatoes, chillies.

3- For best juicing results, adjust the juicing strength according to the hardness of the

fruits and vegetables by turning the adjustment lever. For soft fruits and vegetables, turn the lever clockwise to the “Close” position； For hard fruits and vegetables, turn the lever anti-clockwise to the “Open” position.

4- Inserting hard ingredients can block the appliance. If this happens, use the Reverse function

for a few seconds. To use Reverse function, push Reverse button (L) for 4 seconds. If it stays blocked: – Open the cover (B), clean the juicing screw (C) and the filter (D) and then re-assemble – Cut the ingredients into smaller pieces.

5- Add the fruits and vegetables into the juicer sequentially. Add the next batch only after the

previous batch has been processed.

• For better juicing effect, juice low-fibre fruits and vegetables like carrots together with fibrous fruits and vegetables like celery.

• When juicing carrots, cut each carrot lengthwise into 4 pieces.

• Fruits and vegetables that are not entirely fresh have lower water contents, and will produce less juice.

• When juicing fruits and vegetables that have been left in the refrigerator for a few days, soak them in water to allow them to absorb an adequate amount of water before juicing.

• Kudzu, sugar canes and other fruits and vegetables with especially hard fibres cannot be juiced.

• Do not use ice in this machine.

• Do not use this machine for juicing fruits and vegetables with high oil contents.67

Common faults Handling method The machine cannot be turned on Check if the plug has been plugged in properly. Check if the juicing has been fitted properly. The machine will not start, and the indicator lamp flashes Check if the juicing or jam bowl has been fitted properly, and check if the safety lid is properly aligned. The machine stopped suddenly during operation, and alarm is sounded Is the machine is clogged from excessive feeding (too many pieces or pieces too large)? Put the machine into “Reverse” mode and let it run for 5 seconds. Has the machine entered its safety mode after working continuously for more than 20 minutes? Solution: Allow the machine to rest for 30 minutes, then try again. If you are unable to restart the machine, get in touch with our customer service. The auger has been scratched The gap between the auger and screen is very small; do not run the appliance when empty. Very little juice is extracted Water content varies between different fruits and vegetables. Fruits and vegetables also produce less juice when they lose their freshness. When juicing hard fruits and vegetables, check that the adjustment lever is in the “Open” position There is a lot of water in the pulp When juicing soft fruits and vegetables, check that the adjustment lever is in the “Closed” position. The screen wiper basket does not rotate during operation Check if the gear at the base of the juicing bowl has detached.

• Bananas, soft mangoes and other fruits and vegetables that are soft and mushy do not juice well with this machine.

• For better juicing effect, juice soft fruits with high sugar contents together with hard fruits with high water contents. For example, you can juice apples together with pears. Not only does this add a new flavour to the juice, it also makes juicing more effective. For apples, pears and other fruits with soft seeds, seeds don’t need to be removed before juicing.

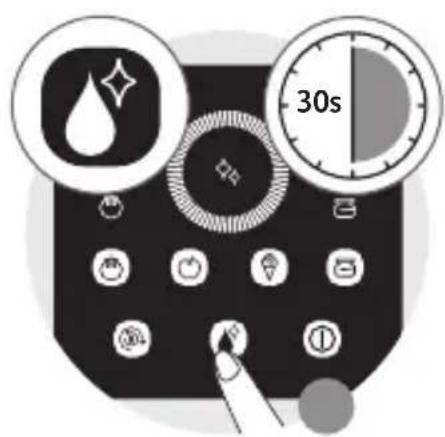

6- After use, it is advisable to clean the appliance as quickly as possible to avoid the accumulation

of dried food in the appliance. To make cleaning easier, you can first rinse it by pouring a glass of water through the feed tube during operation.68 Common faults Handling method The juicing bowl shakes slightly when the machine is turned on Slight shaking of the juicing bowl during operation is normal. The safety lid cannot be opened after juicing There could be too much residual pulp in the machine, or the fruits being juiced may have hard pits, etc. Turn the switch knob to the “Reverse” position and allow the machine to run in the reverse mode for a few cycles, and then try again. If you are unable to resolve the problem after trying the above, get in touch with our customer service. RECYCLING Environment protection first! Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point. End-of-life electrical and electronic products: Your appliance is designed to operate for many years. However, the day you plan to replace it, do not throw it away with normal household rubbish or in a landfill but take it to a suitable collection point provided by your local authority (or to a recycling center if applicable). Environnemental protection first! Your appliance contains numerous materials that can be recovered or recycled. Take it to a collection point for processing.69
