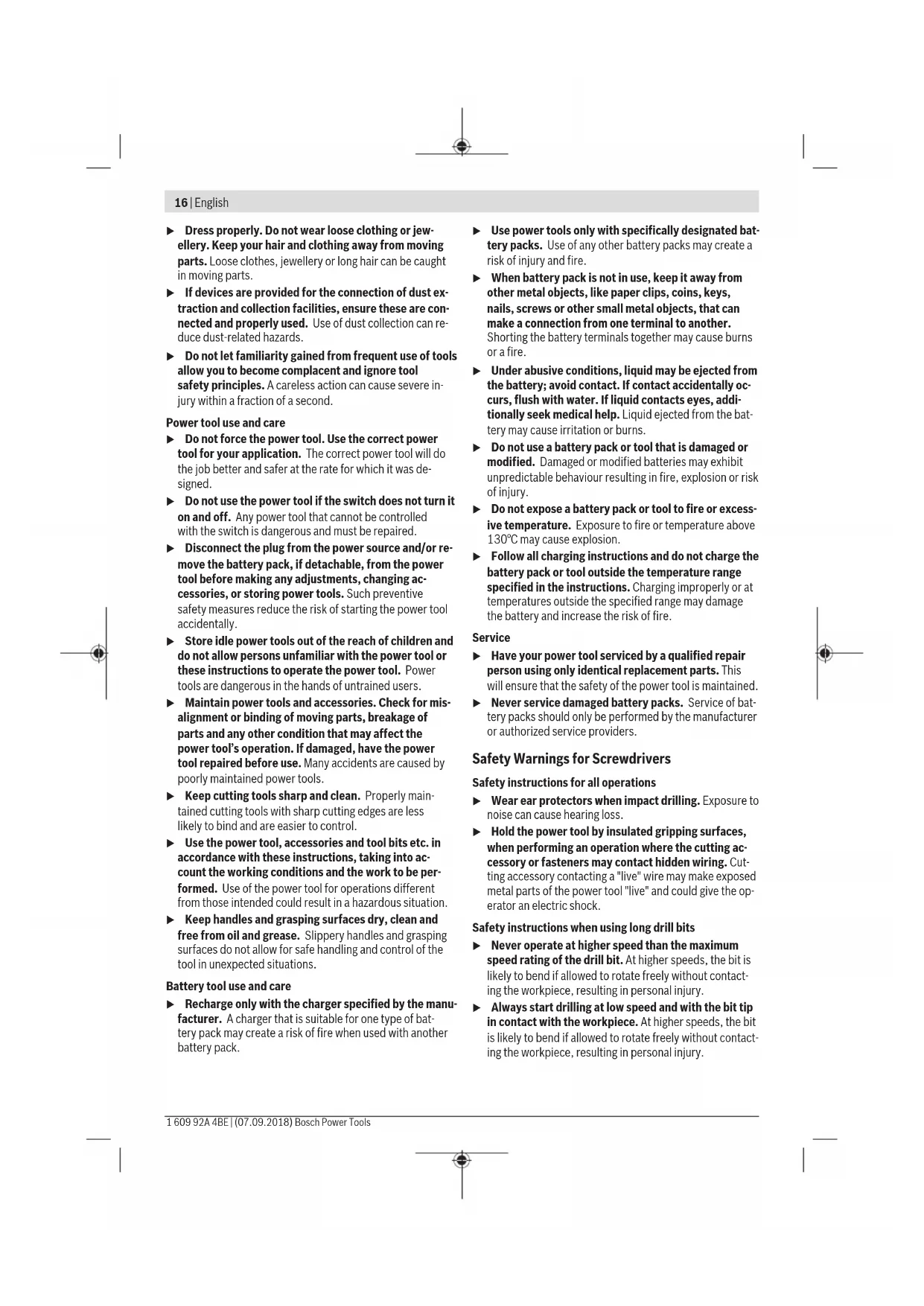

(10) Handle (insulated gripping surface) (11) Magnetic bit holder (12) Light (13) Battery charge indicator (14) On/off switch (15) Magnetic cap (16) Screw holder (17) Angle screw adapter

(19) Off-set angle adapter

(20) Screwdriver bit

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cordless drill/driver AdvancedDrill 18 Cordless combi drill AdvancedImpact 18 Article number 3 603 JB5 0.. 3 603 JB5 1.. Rated voltage V= 18 18 No-load speed English | 17 Bosch Power Tools 1 609 92A 4BE | (07.09.2018)18 | English 1 609 92A 4BE | (07.09.2018) Bosch Power Tools Cordless drill/driver AdvancedDrill 18 Cordless combi drill AdvancedImpact 18 – Screws (first screw phase) rpm 0–430 0–450 – Drilling/impact drilling (second screw phase) rpm 0–1350 0–1500 Impact rate rpm – 0–22,500 Max. torque, hard/soft screwdriving applica- tion according to ISO 5393 Nm 36/24

Max. drilling diameter – Masonry mm – 11 – Steel mm 13 13 – Wood mm 35 35 Tool holder 1.5–13 1.5–13 Max. screw diameter mm 10 10 Weight according to EPTA-Procedure 01:2014 kg 1.0

Permitted ambient temperature – during charging °C 0 to +45 0 to +45 – during operation

and during storage °C –20 to +50 –20 to +50 Recommended batteries PBA 18 V... V

Recommended chargers AL 1815 CV AL 1830 CV AL 1880 CV AL 1815 CV AL 1830 CV AL 1880 CV A) Depends on battery in use B) Limited performance at temperatures <0°C Noise/Vibration Information AdvancedDrill 18 Noise emission values determined according to EN62841-2-1. Typically, the A-weighted sound pressure level of the power tool is less than 70dB(A). Uncertainty K = 3 dB. The noise level when working can exceed 80dB(A). Wear hearing protection Total vibration values ah (triax vector sum) and uncertainty K determined according to EN62841-2-1, EN62841-2-2: Drilling in metal: a

AdvancedImpact 18 Noise emission values determined according to EN62841-2-1. Typically, the A-weighted noise level of the power tool is: Sound pressure level 85dB(A); sound power level 96dB(A). Uncertainty K=3dB. Wear hearing protection Total vibration values ah (triax vector sum) and uncertainty K determined according to EN62841-2-1, EN62841-2-2: Drilling in metal: a

impact drilling in concrete: a

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure detailed in EN 62841 and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The given vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different ap- plication tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping the hands warm, and organising workflows correctly.Fitting Battery charging u Use only the chargers listed on the accessories page. Only these chargers are matched to the lithium-ion bat- tery of your power tool. Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery. The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool no longer rotates. u Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged. Removing the battery To remove the battery , press the battery release button and pull the battery to the rear and out of the power tool. Do not use force to do this. Battery charge indicator When the on/off switch (14) is pressed in halfway or com- pletely, the battery charge-control indicator (13) indicates the charge condition of the battery for several seconds. The indicator consists of three green LEDs. LED Capacity Continuous lighting 3x green ≥ 66% Continuous lighting 2x green 33–66% Continuous lighting 1x green 11–33% Slowly flashing light 1 x green ≤ 10% The three LEDs in the battery charge indicator flash quickly when the temperature of the battery is outside the operating temperature range of –30 to +65 °C and/or the overload protection has been triggered. Changing the Tool Inserting the application tool (seefigureA) Insert the application tool all the way into the tool holder (2). The application tool is held in the tool holder by means of a magnet. Removing Remove the application tool from the tool holder (2). Fitting the adapter (see figure B) Remove the application tool. Insert the adapter into the tool holder (2). The adapter clicks audibly into place. Check that it is seated securely by pulling the adapter. Inserting the application tool into the adapter (see figure

3x ≤66% 2x 33 – 66% 1x 11 – 33% 1x ≥10%

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless Drill/Driver Article number
