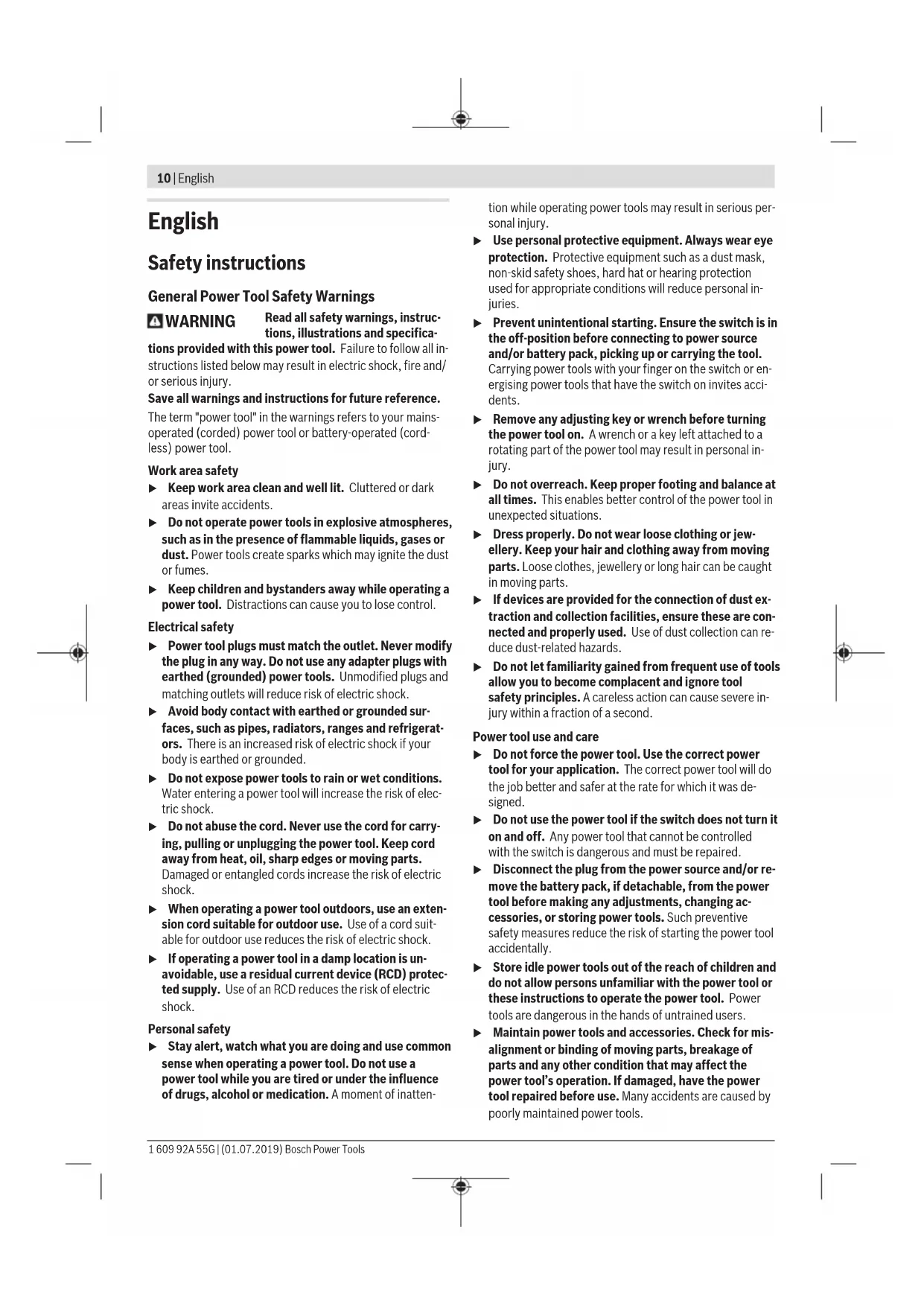

Notice BOSCH GSB 550 Professional - page 10
10 / 151
Manual assistant
Powered by ChatGPT
Waiting for your message
Product information

Brand : BOSCH

Model : GSB 550 Professional

Category : Drill

Product type Hammer drill
Power 550 W
No-load speed 0 - 2,800 rpm
Impact frequency 0 - 44,800 bpm
Drilling capacity in concrete 13 mm
Drilling capacity in steel 10 mm
Drilling capacity in wood 25 mm
Weight 1.8 kg
Dimensions 30.5 x 24 x 8.5 cm
Recommended use Drilling in concrete, steel, and wood
Chuck system 13 mm keyless chuck
Included accessories Additional handle, depth stop
Safety standards Overload protection, overheating protection
Warranty 2 years

Frequently Asked Questions - GSB 550 Professional BOSCH

How do I change the drill bits on the BOSCH GSB 550 Professional drill?
To change the drill bits, unscrew the chuck by turning it counterclockwise. Insert the new drill bit and tighten the chuck by turning it clockwise.
What is the power of the BOSCH GSB 550 Professional drill?
The BOSCH GSB 550 Professional drill has a power of 550 Watts.
How do I adjust the speed of the drill?
The speed of the drill can be adjusted using the trigger. The harder you press, the faster the speed. Make sure to adjust the speed to the material you are drilling.
What should I do if the drill does not start?
Check that the drill is properly plugged in and that the outlet is working. Also, make sure the safety lock is not engaged.
How do I clean and maintain my BOSCH GSB 550 Professional drill?
To clean your drill, use a dry cloth to remove dust and debris. Avoid using harsh chemicals. Regularly check the carbon brushes and replace them if necessary.
Can I use the drill to drill hard materials like metal?
Yes, the BOSCH GSB 550 Professional is suitable for drilling hard materials, including metal, but use appropriate drill bits for this type of material.
What is the drilling capacity in concrete?
The drilling capacity in concrete is about 13 mm with a suitable hammer drill bit.
What should I do if the chuck loosens during use?
If the chuck loosens, check that it is tightened properly. If the problem persists, it may need to be replaced.
Is there a warranty for the BOSCH GSB 550 Professional?
Yes, the BOSCH GSB 550 Professional drill is generally covered by a 2-year warranty. Keep your proof of purchase for any claims.
How do I use the hammer function?
To use the hammer function, activate the hammer mode on the drill, usually by turning the selector. This increases drilling efficiency in hard materials.
Where can I find spare parts for my drill?
Spare parts for the BOSCH GSB 550 Professional can be found at authorized Bosch dealers, hardware stores, or on the Bosch website.

Download the instructions for your Drill in PDF format for free! Find your manual GSB 550 Professional - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GSB 550 Professional by BOSCH.

USER MANUAL GSB 550 Professional BOSCH

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Impact Drill GSB 1300 Article number 3 601 AA1 0.. Rated power input W 550 Power output W 270 No-load speed min

0–2 800 Impact rate at no-load speed min

Spindle collar diameter mm 43 Max. drilling diameter – Masonry mm 13 – Concrete mm 13 – Steel mm 10 – Wood mm 25 Chuck capacity mm 1.5–13 Weight according to EPTA-Procedure 01:2014 kg 1.8 Protection class / II The specifications apply to a rated voltage [U] of 230 V. These spe- cifications may vary at different voltages and in country-specific mod- els. Noise/vibration information Noise emission values determined according to EN62841-2-1. Typically, the A-weighted noise level of the power tool is: Sound pressure level 95dB(A); sound power level 106dB(A). Uncertainty K=5dB. Wear hearing protection Vibration total values a

(triax vector sum) and uncertainty K determined according to EN62841-2-1. Drilling into metal: a

Impact drilling into concrete: a

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Impact Drill Article number
