FR 2455 - Deep fryer SEVERIN - Free user manual and instructions

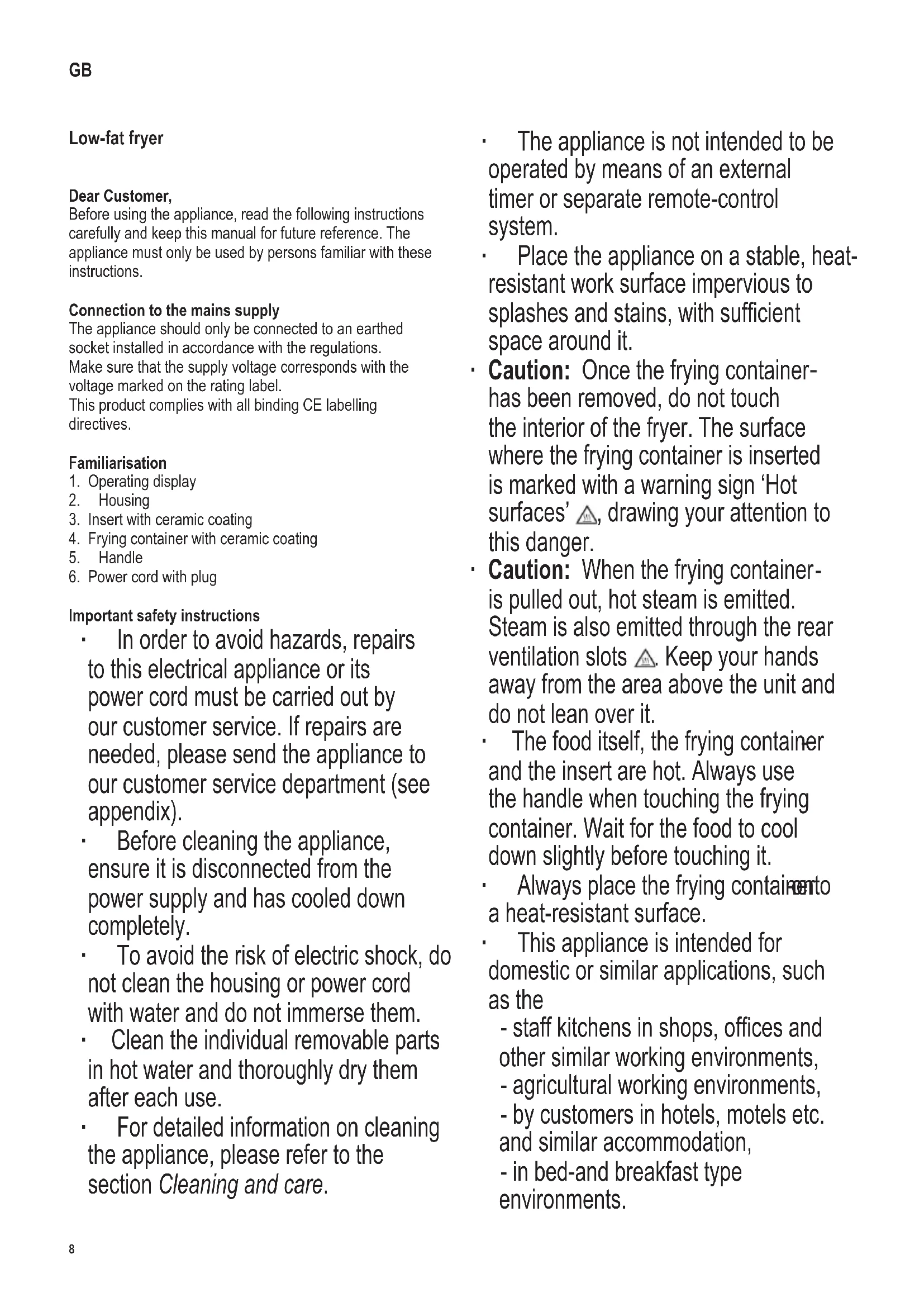

USER MANUAL FR 2455 SEVERIN

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.
Make sure that the supply voltage corresponds with the voltage marked on the rating label.

This product complies with all binding CE labelling directives.

Familiarisation

1. Operating display
2. Housing
3. Insert with ceramic coating
4. Frying container with ceramic coating
5. Handle
6. Power cord with plug

Important safety instructions

In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).
Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
- To avoid the risk of electric shock, do not clean the housing or power cord with water and do not immerse them.
Clean the individual removable parts in hot water and thoroughly dry them after each use.
- For detailed information on cleaning the appliance, please refer to the section Cleaning and care.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.
- Place the appliance on a stable, heat-resistant work surface impervious to splashes and stains, with sufficient space around it.
- Caution: Once the frying container has been removed, do not touch the interior of the fryer. The surface where the frying container is inserted is marked with a warning sign 'Hot surfaces', drawing your attention to this danger.
- Caution: When the frying container is pulled out, hot steam is emitted. Steam is also emitted through the rear ventilation slots. Keep your hands away from the area above the unit and do not lean over it.
The food itself, the frying container and the insert are hot. Always use the handle when touching the frying container. Wait for the food to cool down slightly before touching it.
Always place the frying container into a heat-resistant surface.
This appliance is intended for domestic or similar applications, such as the

• staff kitchens in shops, offices and other similar working environments,
• agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
  Children must not be permitted to play with the appliance.

• The appliance and its power cord must be kept well away from children under 8 at all times.
• Caution: Keep any packaging materials well away from children - such materials are a potential source of danger, e.g. of suffocation.
• Do not leave the deep fryer unattended while in use.
• Do not operate the fryer without the insert fitted in the frying container.
• Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance. In this case, please contact our customer service.
• Do not place the appliance underneath any wall-cupboards or hanging objects, nor directly by a wall or in a corner.
• Ensure that no inflammable materials are stored in the vicinity.
• Caution: Do not cover the ventilation slots.

• Caution: Do not allow the appliance or its power cord to touch hot surfaces or to come into contact with any heat sources. Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance.

• Let the appliance cool down sufficiently before moving it.
  Always remove the plug from the wall socket

-after use,
- in case of any malfunction, and
- before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
• Do not use metal kitchen utensils when adding or removing food, so as to avoid scratching the surface.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Intended use

• This appliance must only be used for cooking food. Any other use must be considered improper and may lead to personal injuries or material damage.
• Unlike conventional deep-fryers, this appliance is not intended to be used with oil or fat.

Before using for the first time

• Before using the appliance for the first time, remove any remaining packaging materials and promotional stickers.
• Heat the appliance for 15 minutes to 200^ without any food. This will lessen the inherent smell of the appliance.
• Ensure adequate ventilation by opening windows or balcony doors.
• Clean the appliance afterwards as described in Cleaning and care.

Operating display

	Display - Cooking / Hot-air
	Display - Temperature
	Display - Remaining running time
	Selector keys - Temperature/Time increase/decrease
	Selector key - On/Off & Start/Stop
	Selector key - Temperature/Time

Preparing the unit

1. Always place the unit on a dry, level, non-slip and heat-resistant surface impervious to contact with the rubber feet.
2. Prepare the food to be air-fried.
3. Insert the plug into the socket.
4. Fit the insert in the frying container.
5. Put the food into the frying container. Fill the container only to about 1cm below the rim, ensuring sufficient air circulation around the food.
6. Install the frying container in the appliance. If it is fitted correctly, a beep signal is heard and the display flashes briefly. The button lights up. Without the frying container fitted, the appliance cannot be operated.
7. Turn the fryer on by pressing the key for 2 seconds. To switch off, press it again for 2 seconds.
8. If the appliance is not being used, it will switch off automatically after a short time.

Air-frying

1. For information on cooking times and temperatures, refer to the table Air-frying recommendations below. These data are recommendations only and may vary depending on the nature of the food and personal taste.
2. Select the desired cooking time (0 - 60 minutes) using the buttons.
3. Press the buttons and to select the desired temperature (80 - 200^)
4. Tap the key.
5. The food is now being cooked. The display changes between temperature and remaining running time. Audible beeps indicate that the pre-set processing time has elapsed.
6. Use the handle to remove the frying container from the fryer.
7. Transfer the cooked food into a heat-resistant container. Be careful with the insert inside the frying container.
8. Allow the frying container and insert sufficient time to cool down.
9. Remove the plug from the wall socket.
10. Clean the frying container and insert as described under Cleaning and care.

Recommendations for air-frying

Symbol Food Tips Temperature Time
	French fries / potato croquettes- Turn 3 x 200 °C 20 - 30 min
	Bacon Turn once 180 °C 16 min
	Chicken parts (fresh) Chicken parts (deep-frozen)	Turn once Turn once	180 °C 20 - 25 min	22 - 25 min, depending on thickness
	Shrimps (fresh) Shrimps (deep-frozen)	Turn once Turn twice	180 °C 12 min	15 - 17 min
	Meat / Meat balls, hamburgers (small)	Turn once 180 °C	10 - 20 min, depending on thickness
	Small cakes in ovenproof cake-tins		200 °C 13 - 17 min
	Vegetables, eg zucchini carrots	Turn once Turn once	160 °C	15 - 17 min 10 - 12 min
	Fish		180 °C 18 min

Useful hints for air-frying

• Note that the cooking times listed are only approximate. Depending on the type of food, the cooking times and temperatures may have to be adjusted.
• With larger quantities, the cooking time increases. We recommend frequent turning of the food.
  If the food turns out too dark, try lowering the temperature first, before shortening the cooking times.
• For nutritious, healthy deep-frying we recommend to use a temperature setting of no higher than 170^ when deep-frying amylaceous food, i.e. food with a higher-than-average starch content. With the reduced frying temperature, and with an equally reduced amount of food in the frying basket, the build-up of substances detrimental to health is limited to a minimum.
  There is a wide range of recipe ideas for your hot-air fryer

or under www.severin.de/Service/recipes

Cleaning and care

• Before cleaning the appliance, ensure that the air fryer disconnected from the power supply and has completely cooled down.
• Caution: To avoid the risk of electric shock, do not clean the outside of the fryer or its power cord with any liquids and do not immerse either of them in water.
• To prevent scratches to the ceramic coating on the insert and the frying container, do not use abrasives or harsh cleaning solutions.
• The insert and frying container should be cleaned with hot soapy water. Wipe thoroughly dry afterwards.
• Caution: Do not put any parts in a dishwasher.
• The exterior of the housing and the surface where the frying container is inserted may be cleaned with a damp, lint-free cloth.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the

environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
