USER MANUAL HF 1000 STEBA

Instructions for use 12

Mode d'emploi 22

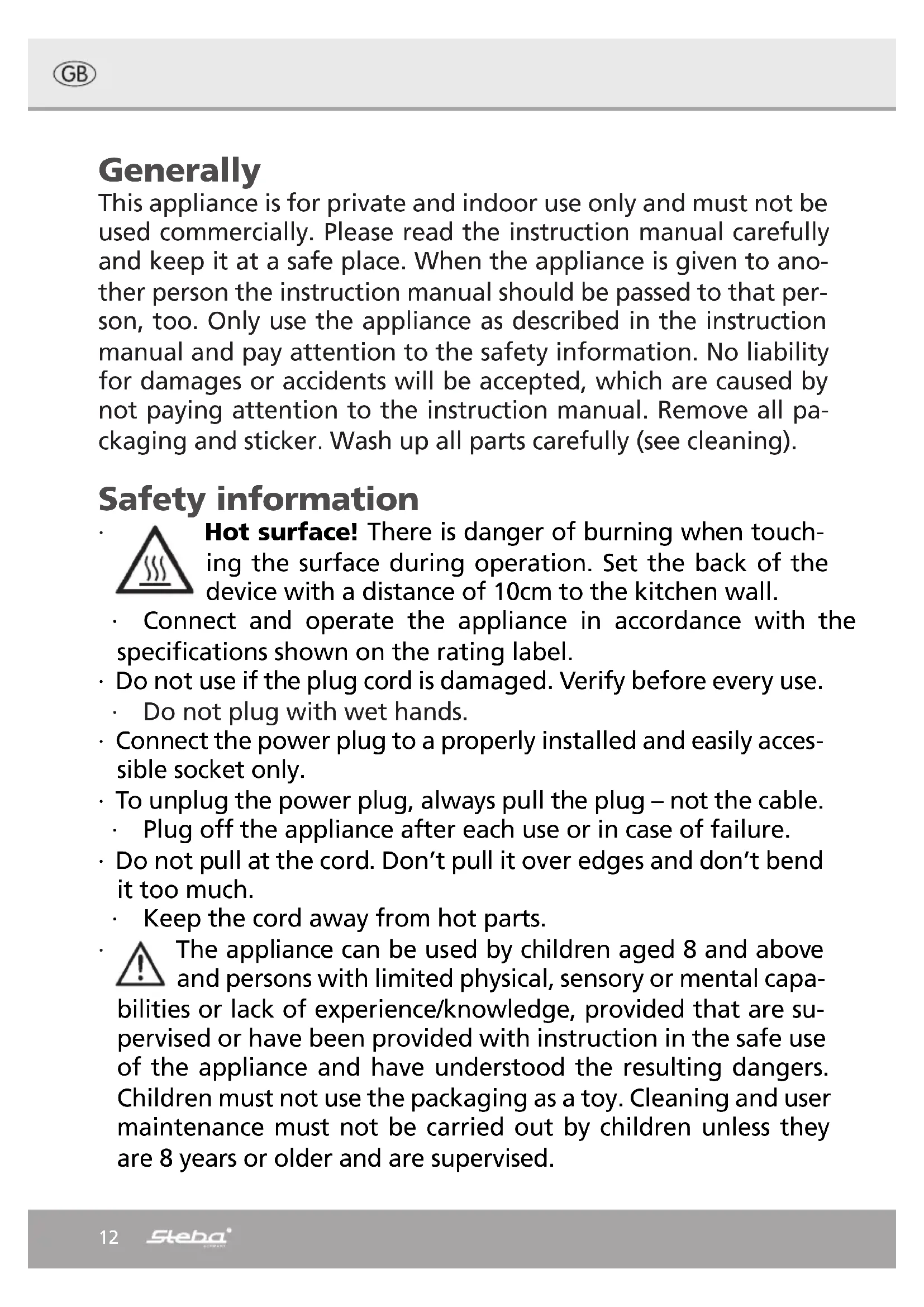

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

Hot surface! There is danger of burning when touching the surface during operation. Set the back of the device with a distance of 10cm to the kitchen wall.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.
• Do not use if the plug cord is damaged. Verify before every use.
• Do not plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
  Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.
  The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

Never place anything on top of the device and do not cover the ventilation slots.

• Never immerse the unit in water.

• Leave a space of about 10cm around the device.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

The device gets hot, only transport if it cooled down.
- Only use the device as described in this manual.

This appliance is not a normal deep fryer. Do not put any oil or fat into the pot. Danger of burns!

• You must not put any materials such as paper, cardboard, plastic etc. into the appliance.
• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: clean all parts carefully and leave to dry. Heat up the device for about 15 min. to eliminate the smell of newness.

Attention! Device gets hot. Danger of burns!

Touchable surfaces will be hot during operation! Place the device on a flat and insensitive surface with and distance of at least 70cm to burnable materials.

• During operation steam emerge. Keep hands and face away. Watch out for steam during cooking and when you pull out the pot. Take appropriate distance to wall cupboards to avoid damage of the veneer.

• If an extension cable is used, it has to have a cross-section of 1.5mm^2

• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.

Hot steam may leave the louvers. Never place any wet food into the device, thaw frozen food slightly.

• Hygiene: Please always clean the device to avoid bacteria and mold formation.

Unplug the device after usage.

Cleaning

Attention! Pull the plug before cleaning and allow the device to cool down.

• Never immerse the unit into water.

• Fat residues must be removed for reasons of hygiene and fire hazard.

• The pot and basket can be cleaned in warm water with usual dishwashing detergents or the dishwasher. Do not use aggressive or abrasive cleaning agents.
• Clean the interior with water and dishwashing detergent, if necessary use oven cleaner. If the heating element is soiled, turn the device upside down in order to clean the heating elements with a brush.
• Place the pot and the basket in the device and leave to dry for 5 minutes at 80^ .

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

Never use the device without the basket. Place the food into the basket and not into the pot.

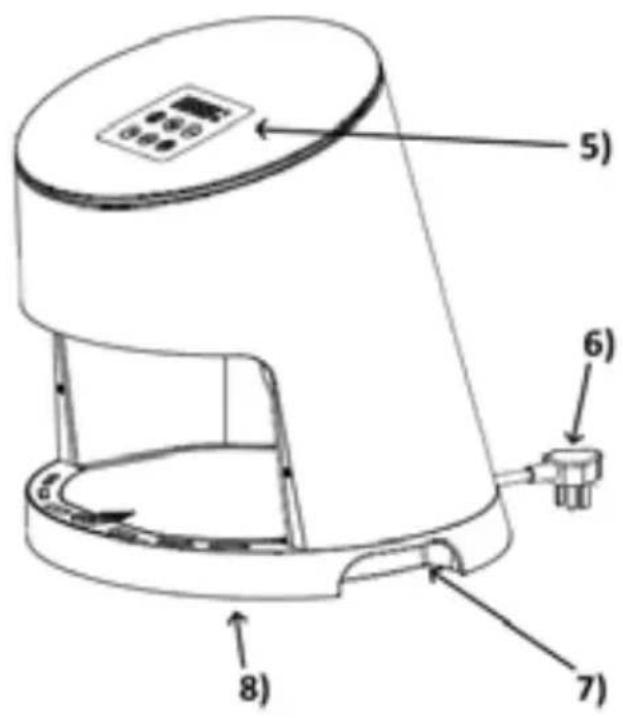

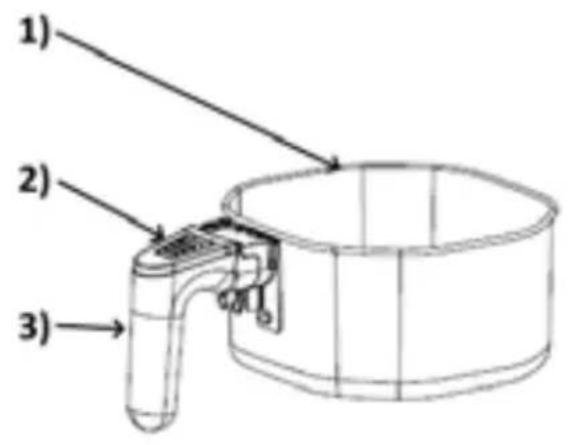

- Clip the basket into the pot and slide both parts into the device. To remove the basket, pull out both parts and place on a heat resistant surface. By pressing the button on the handle, you can separate the basket from the pot.

• Unwind the cable from the cable storage and plug it in. the device beeps and the display shows -- - in blue.
• Pre-heat the device for 2 minutes, fill the basket up with food and insert it to the device.
• Fill the basket up to 34 in order to avoid any burns on the food and leave space to turn the food.
• By pulling out the pot from the device to control the degree of doneness, the heating is interrupted, time is stopped too.
  After the time run out, take out the pot and place it on a heat resisting surface.
• By pressing the basket locking you can detach the basket and take out the food.

If the pot and the basket are used together to take out the food, for seasoning etc., do not press the basket locking in order to achieve an even browning of the food, turn or shake the food. Do not use any metallic objects

for turning the food.

The pot and basket get very hot! Fill the basket only up to the max marking in order to avoid any burns on the food.

Plug in the device, the panel flashes

• Press the power button, the display flashes and the device turns into stand-by mode.

• Press the temperature button, the default setting 180^ C is shown and the temperature symbol is flashing.

• You can set the desired temperature with the buttons +/- from 80^ up to 190^ . By keep pressing you enter the fast mode setting.
• Press the timer button, the default setting 15 minutes is shown and the timer symbol is flashing.
• You can set the desired time with the buttons +/- from 00:01 up to 01:00.
• Press the start/stop button , the program starts running.
• The display alternately shows the set temperature and the remaining time.
• During operation, the temperature and time can be changed by pressing the temperature or timer button. The value shows can be changed with the +/- buttons.
• If the basket is pulled out of the device during operation, the timer stops and restarts again as soon as the basket is inserted again.
• 1 minute before the timer ends, the device beeps and the heating is switched off. The ventilation turns off after 1 minute and the display shows "END".
• If the device is stopped with the start/stop button, the remaining time is shown and start/stop flashes.

Tips:

Less food needs less time.
- Turn the food after half of the time.
- Season fresh fries with oil, some salt and rosemary.
The fat should be removed out of the pot if highly fatty food is used.
All foods usable in a deep fryer can be prepared in this device.
To make crispy fries, use thin fries.

Preparation of food

• Many foods from the deep cooling, such as fries, nuggets, cevacici, breaded vegetables, fish fingers or stuff puff pastry can be prepared in this device.
• Fries can be seasoned in a bowl in advance with a few drops oil, salt, curry or garlic. Mix the fries during the preparation in order to receive an even browning.
• For the preparation of fresh fries, wedges, potatoes cubes etc., dry the cut parts well.
• Scampi in bacon jacket, stuffed mini peppers, stuffed mushrooms, marinated drum-sticks, chicken wings or sausage rolls succeed very well, too.
• Due to the intense heat inside the air fryer, the food must be controlled during the cooking.
  Starchy foody (such as potatoes) should not be cooked hotter than 180^ . Burnt foody are harmful.
  Poultry must always be cooked well because of salmonella.

	Capacity	time (Min.)*	Temp. °C	Shake food
Thin frozen fries	300 – 950gr	10 – 14	180	X
Thick frozen fries 300 –	950gr 14 – 22 180	X
Homemade fries	300 – 950gr	20 – 26	180	X
Potato wedges	300 – 950gr	20 – 24	180	X
Potato cubes	300 – 950gr	14 – 18	180	X
Cheese sticks, frozen 200	– 400gr 8 – 10	180 X
Chicken Nuggets	100 – 850gr	9 – 12	190	X
Fish	100 – 850gr	8 – 10	190
Steak	100gr	10 – 15	190
Pork chops	100gr	10 – 14	180
Hamburger	100 – 550gr	7 – 14	180
Chicken Wings	100 – 550gr	15 – 20 180
Drumsticks	100 – 550gr	18 – 22	180
Chicken breast	100 – 550gr	15 – 20	190

• Approximate values; depending on your taste, type, quality and temperature of the food

Troubleshooting

Dear Client,

Thank you for buying this STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious.

Please check the following list before contacting our customer service.

Problem Reason Suggestion
Device does not work	·It is not connected	·Plug in the device
	·The timer is not set	·Set the timer to the desired time
The food is not cooked	·Too little temperature ·Too little time ·Too much food	·Increase temperature and time and use less food
The food is cooked uneven		·Turn the food into the basket after half of the time
The snacks are not crispy	·You may used food which is suitable for deep frying	·Use snacks suitable for ovens or put some oil to the food
The pot cannot be placed into the device	·Too much food in the basket ·The basket is not placed correctly into the pot ·The basket is jammed into the pot	·Place the basket correctly into the pot
The device smol-ders	·You may used oily food	·Wipe out the pot or dab off the food
Fresh fries are not crispy	·The crispness depends on how much water or oil is on the fries	·Dry the fries before adding some oil ·Cut the fries a little thinner ·Not enough oil

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
