USER MANUAL Perfect Air 7219 Solis

INDICATORE CLEAN MAT

Dimensioni (L x A x P) ca. 39,5 x 38,0 x 18,5 cm

Peso ca.5,7 kg

IMPORTANT SAFETY PRECAUTIONS

Please read through this user manual thoroughly before using your Solis air humidifier Perfect Air, so that you become familiar with your appliance and can use it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner.

For your own safety, please observe the following safety measures when using electrical appliances:

1. To prevent an electric shock, neither the appliance (with exception of the inside of the water tub and the water tank) nor the power cord and the power plug must come into contact with water or other liquids. Risk of electric shock! Should the appliance, the outside of the water tub resp. the power cord or the power plug come into contact with water, use dry rubber gloves to immediately pull the power plug from the socket. Do not start using it again before having it checked for functionality and safety by Solis or a service centre authorized by Solis.
2. Do not operate the appliance resp. pull or connect the plug with wet or moist hands or feet.
3. Before using the appliance, check that the voltage stated on the type plate of your appliance matches your mains voltage. We do not recommend operating the appliance with a multiway plug adapter.
4. Do not make any adjustments to the appliance, cable, plug or accessories.
5. Only use the appliance as described in this manual to humidify the air in living spaces. Do not use the appliance outdoors and protect it from moisture and wetness.
6. Do not leave the power cable hanging over table edges to prevent the appliance from being pulled down. Make sure that neither the appliance nor the power cord or plug comes into

contact with hot surfaces, such as hotplates or a radiator, or that they come into contact with the appliance itself.

1. Install the power cord so that nobody can trip over it. Do not place under rugs. Keep clear of pointed objects.
2. Always fully unwind the power cord before connecting the power plug to the power socket.
3. Never carry the appliance by the power cord and do not place anything on the power cord. Never pull on the power cord to disconnect the appliance from the power mains. Only pull on the plug.
4. We recommend that you do not use an extension cable with this appliance. Do not place the appliance directly underneath a power socket.
5. Keep the appliance away from hot gas, hot ovens and other heat-emitting appliances or heat sources. Never use the appliance on a hot or wet surface. Never place the appliance near moisture, heat and naked flames. Keep the appliance away from moving parts or appliances.
6. The appliance has to be placed on a solid, level, dry, stable and moisture resistant surface during use (deep-pile rugs are not suitable). Place the appliance somewhere it can not be knocked or tipped over. Should the appliance fall over anyway, promptly pull the power plug and have it checked by Solis or a service centre authorised by Solis.
7. Keep a minimum distance of 50~cm between the appliance and walls, curtains or other moisture sensitive materials and objects and make sure that the air around the appliance can circulate freely.

8. Never cover the appliance with cloths or the like while it is in use. The air inlet and outlet openings must never be obstructed. Do not place anything on the air humidifier and under no circumstances sit down on the appliance.

9. Do not use the appliance in wet rooms or in moist surroundings as e.g. a bathroom or a swimming pool. Danger of electric shock and fire! Also, the appliance must not be used in rooms with explosive or aggressive atmospheres, high concentrations of solvents or extremely high dust exposure.

10. The appliance is not designed for outdoor use. The appliance must not come into contact with rain. Do not use in vehicles or on boats.
11. Unplug the appliance when it is not in use or unattended, and before cleaning. We recommend the use of a residual current device (RCD safety switch) to ensure additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30mA maximum. For professional advice consult an electrician.
12. Before pulling the power plug of the appliance out of the power socket, always make sure that the appliance is not in use.
13. Do not make any changes to the appliance, the power cord, the plug or the accessories.
14. Incorrect use may cause injury!
15. Never reach for an appliance that has fallen into water or other liquids. Always use dry rubber gloves to pull the plug before taking it out. Do not start using it again before having it checked for functionality and safety by Solis or a service centre authorized by Solis.
16. Never place the appliance so that it might fall into water or, on its outside, come into contact with water or another liquid.
17. Never submerge the appliance, the outside of the water tub or parts of the appliance like power cord or power plug in water or bring them into contact with water resp. other liquids.

18. Place the appliance so that it is never exposed to direct sunlight. Extremely low temperatures should be avoided as well. The plastic parts might otherwise change color or distort.

19. Never insert any objects or tool into appliance openings. The appliance may become damaged - danger of electric shock!

20. Before adding or removing parts, pull the power plug, remove the water tank and pour the remaining water out of the water tub.
21. Never use the appliance without water. Caution: Only remove the water tank while the appliance is switched off. Only switch on the appliance after the filled water tank has been installed, the appliance has been correctly reassembled and the water tub has been filled with water.
22. Only use fresh, hand warm tap water to fill the water tank (10^ to max. 30^) . Pour the water remaining in the tank away first. It is best to fill the water tank completely with water. Under no circumstances add additives like essential oils or perfumes to the water.
23. Always make sure that the appliance is correctly assembled before connecting it to a power socket and starting to use it.
24. Do not shake or move the appliance while it is in use. Never replace the water-filled, switched-on appliance! Before moving the appliance, you should switch it off, pull the plug and drain the water tub.
25. Only use the appliance as described in this manual. Only use with the provided accessories or accessories recommended by Solis, incorrect accessories or misuse can lead to damage of the appliance, fire, electric shock or personal damage.
26. Never use the appliance with an external timer switch or remote control.
27. Do not operate the appliance on a tilted surface.

28. The appliance is only suited for household use and not for commercial use.

29. Remove and discard all packaging materials and potential stickers or labels (except for the type plate) before using the appliance for the first time.

30. Check your appliance before every use and make sure that the appliance, the power cord and plug are undamaged.
31. To prevent electric shock, do not use the appliance if cord or power plug are damaged or if the appliance has other faults, has fallen down resp. is damaged in any other way or is leaking water. Never attempt repairs yourself but take the appliance to Solis or a service centre authorized by Solis in order to get it inspected, repaired or mechanically and electrically maintained, in order to avoid a hazard.
32. People with limited physical, sensorial or mental capabilities as well as unknowing or inexperienced people and children must not use the air humidifier except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Cleaning and maintenance of the appliance must not be done by unsupervised children. Under no circumstances must the appliance be used or cleaned by children under the age of 8. The appliance and its power cord have to kept away from children under the age of 8.
33. Always keep the appliance and the power cord out of the reach of children and pets during use. Always store it out of the reach of children.
34. Children must be supervised, so that they do not play with the air humidifier.

35. Careful supervision is required when the appliance is used by children (older than the age of 8) or in their vicinity. TO PROTECT AGAINST ELECTRIC SHOCK,DO NOT IMERSE THE HUMIDIFIER, POWER CORD OR POWER PLUG IN WATER OR ALLOW MOISTURE TO COME IN CONTACT WITH THESE PARTS.

36. The air flow of the appliance must never be pointed toward babies, small children or elderly resp. ill persons.

37. The appliance switches off automatically if the water tub is almost empty and the tank has to be refilled.
38. Always switch the appliance off before pulling the plug, otherwise the appliance might be damaged.
39. The water tank must always be correctly placed in the appliance and on the water tub. Do not place anything on the appliance while it is in use or in storage.
40. Pull the plug after every use. Only then, the appliance is fully switched off.
41. When not using the appliance for prolonged periods of time, always pour out the remaining water and also let it dry on the inside. Best store the appliance in a dark, cool place with good air circulation.
42. The appliance has to be cleaned regularly. Please refer to the notes given in the section "Cleaning and maintenance" on page 108 of this manual.
43. Only clean the appliance chassis with a dry or slightly moist cloth. Never use aggressive, abrasive or acidic detergents for cleaning.
44. When lifting or moving the appliance, always grab the air humidifier by its base. Always switch the appliance off, pull the power plug and empty out the water before doing that. Be very careful when moving the appliance and never shake or throw it, it might be damaged and spring a leak. Also, water might spill out of the appliance.

45. Should you notice a strange smell or sound, switch the appliance off and pull the plug. Do not start using it again before having its functionality and safety checked by Solis or a service centre authorised by Solis.

46. The humidity switch built into the appliance measures the air humidity directly at the appliance. A humidity switch placed outside of the appliance might display different values for air humidity.

47. Only fill the water tank as described in the manual. Water must never be poured into the air outlet on the upper side of the appliance.

GB

THE FUNCTIONS AND PERKS OF YOUR SOLIS PERFECT AIR HUMIDIFIER

5 litres water tank
- Humidification power: 350 ml/hour
LED display
Child safety device
- Timer setting between 1 and 12 hours with automatic shutdown and automatic start
Automatic shutdown and alarm if the water tank resp. water tub is drained
3 different ventilation settings and one automatic program
Desired air humidity can be set between 40% and 75% or permanent operation
Adjustable ion function for optimal air quality

Dry air will dry out the mucous membranes, leading to coughs and sneezes, respiratory infections and headaches. Tiredness, lack of concentration as well as cracked lips and dry eyes are often caused by dry air. Also, insufficient humidity might be a burden for people with allergies, pets and indoor plants. It will put music instruments out of tune and increase dust formation and the electrostatic charge of synthetic clothing. You have made a good choice with the Solis air humidifier Perfect Air to counteract all these symptoms. Room air humidity between 40% and 60% is ideal.

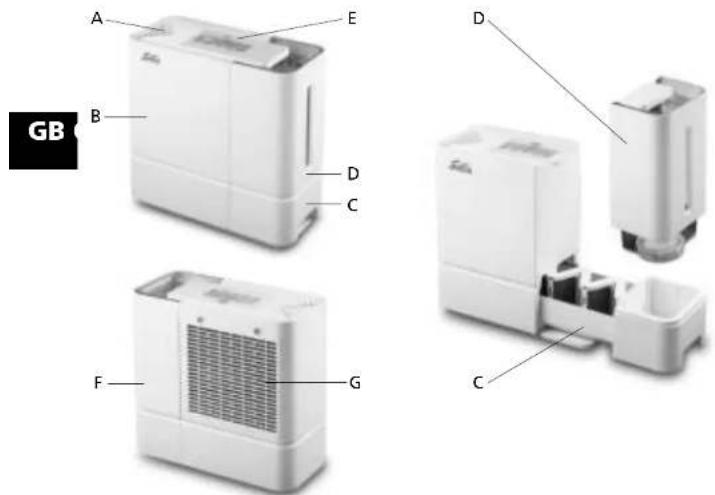

APPLIANCE DESCRIPTION

A Air outlet for humid air
B Appliance front
C Water tub with inlying humidification mat; removable
D Water tank with handle and inspection window; unscrewable tank lid
E Control panel with function buttons and LED display
F Appliance back side
G Air inlet with cover and underlying air filter; removable

THE LED DISPLAY AND THE FUNCTION BUTTONS ON THE APPLIANCE

THE FUNCTION BUTTONS

Timer Button for timer setting

Humidity Button for adjusting the desired air humidity

Mode 1. Button for adjusting ventilation (3 possible settings) resp. the automatic function (Intelli, Speed) 2. Button for activating or deactivating the ion function (press and hold for at least 3 seconds)

Screen Off Button for switching the display and the function lights on or off

ON/OFF 1. Button for switching the appliance on or off 2. Button for switching the child safety device on or off (press and hold for at least 3 seconds)

THE DISPLAY AND THE FUNCTION BUTTONS

GB

The display:

The display indicates the current room air humidity resp. the current setting for desired air humidity during programming resp. the timer (flashes for 3 seconds after programming before returning to indication of current room air humidity).

The functions:

The Mode button allows you to set different ventilation speeds resp. humidification levels, the corresponding function light illuminates:

High Speed for high ventilation/humidification

Normal Speed for medium ventilation/humidification

Sleep Speed

for low ventilation/humidification

ideal for night's rest

Intelli. Speed

for automatic setting, depending on current room air humidity. Intell. Speed aims for an air humidity of 60% ; once air humidity has reached 60% , the appliance stops. The ventilation speed is adjusted to current room air humidity:

If the room air humidity lies below 40% , the appliance switches to High Speed

If the room air humidity lies between 41% and 55% , the appliance switches to Normal Speed

If the room air humidity lies between 56% and 60% , the appliance switches to Sleep Speed

Ionizer The function light illuminates if the ion function has been activated (press and hold Mode button for at least 3 seconds)

Water Empty The warning light illuminates if the water tank resp. water tub is empty and in need of refilling

Clean Mat The warning light illuminates if the humidification mat requires cleaning

Child Lock The function light illuminates if the child safety device has been activated (press and hold ON/OFF button for at least 3 seconds)

In general:

As soon as a certain function is active, the corresponding light switches on.

BEFORE FIRST USE

Before using your air humidifier for the first time, remove all possibly attached advertisement stickers (except for the type plate).
Should the appliance be stored at very low temperatures, you should let it stand at room temperature for approx. 1 hour before starting to use it.
Only use the appliance when the room temperature lies somewhere between 5^ and 40^ . The relative humidity should not exceed 80% . By the way: Relative humidity between 40% and 60% is ideal.
- Place the air humidifier on a stable, solid, dry, level and moisture resistant surface where it can not be knocked over. A deep-pile rug or carpet is not a suitable subsurface. Unimpeded air circulation around the appliance is extremely important for proper humidification. We recommend a minimum distance of 50 cm to walls, heaters and other objects.
Carefully remove the tank by lifting it up by the handle.
Turn the water tank upside down and screw off the tank lid.

Hold the tank opening under a tap and fill it with fresh tap water. It is best to fill the tank completely. You can check the water level through the inspection window. The water should not be completely cold but also not warmer than 30^ .
Caution: Do not mix any additives like essential oils or perfumes into the water! These additives damage the appliance resp. cause discolorations to the plastic. Appliances that are damaged by adding additives are excluded from warranty.
Note: Humidification will be even more effective if the filled water is not very cold. However, the water temperature should not lie above 30^ , as this might damage parts of the appliance. To prevent fast calcification, you can use filtered water if the water is very calciferous.

Pull the water tub out of the appliance. Make sure that the humidification mat is properly placed in its frame in the water tub. Note: The markings on the bottom of the water tub indicate the correct position for the humidification mat and its mounting. Push the water tub all the way back into the appliance.

Screw the lid back onto the water tank and turn the tank upside down.
Place the water tank back in the appliance.

• You should be able to hear the burbling water flow from the tank into the water tub with the humidification mat.
• Connect the power plug to the power socket. Press the ON/OFF button to switch the appliance on. A signal sounds, the display states the current room air humidity and the function light of the standard setting (High Speed) lights up. You can now adjust the performance to your wishes.
  Note: If you have filled the water tank for the first time, the water might smell or change in colour. This is normal and has no negative effect on the functionality of the appliance or your health.

THE FUNCTION BUTTONS

• If you briefly press the function buttons, the chosen setting is made and the corresponding function lights switch on. Each press of a button is followed by a sound signal.

ON/OFF BUTTON

Once the power plug is plugged in, you can switch the air humidifier on with the ON/OFF button. A signal sounds and the display indicates the current room air humidity.
Each time the appliance is switched on with the ON/OFF button the following standard setting is activated: high ventilation (High Speed).
- Press the ON/OFF button another time to switch the appliance off. A signal sounds, the display goes out and the appliance switches off.

ACTIVATING THE CHILD SAFETY DEVICE WITH THE ON/OFF BUTTON

You can activate resp. deactivate the child safety device with the ON/OFF button. To activate the child safety device, press and hold the ON/OFF button for at least three seconds until a signal sounds and the function light next to Child Lock switches on. The buttons (except for the one that will deactivate the child safety device) are now locked. If you wish to deactivate the child safety device, press and hold the ON/OFF button for another three seconds until a signal sounds and the function light next to Child Lock goes out.

MODE BUTTON FOR VENTILATION SPEED

• You can choose between three ventilation speeds and the automatic program with this button:

High Speed for high ventilation speed / humidification Normal Speed for medium ventilation speed / humidification Sleep Speed for low ventilation speed / humidification

Intelli. Speed for automatically adjusted ventilation speed / humidification:

The Intelli. Speed function is set to reach a room air humidity of 60% once the room air humidity reaches 60% ,the appliance stops. The ventilation speed resp. humidification power is adjusted to the current room air humidity:

• If the room air humidity is below 40% , the appliance switches to High Speed.
• If the room air humidity is between 41% and 55% , the appliance switches to Normal Speed.
• If the room air humidity is between 56 % and 60 %, the appliance switches to Sleep Speed.

In general: The higher the ventilation speed, the more intensive the humidifica tion will be, meaning the set value for room air humidity is reached more quickly.
- Pressing the button again in the Intell. Speed setting switches the ventilation speed back to the High Speed setting.

ACTIVATING THE ION FUNCTION WITH THE MODE BUTTON

• You can switch the ion function on or off with the Mode button. To activate the ion function, press and hold the Mode button for at least three seconds until the function light next to Ionizer switches on. If you want to switch the ion function off, press and hold the Mode button for another three seconds until the function light next to Ionizer switches off.

HUMIDITY BUTTON

• With this button, you can set the desired room air humidity. The following settings are possible:
  --% 40% 45% 50% 55% 60% 65% 70% 75%
  Each press of the button increases the value by 5% . If the set value (between 40% and 75% ) is above the current room air humidity, the appliance works in the selected ventilation speed to achieve the set value. Once the set value is reached, the appliance stops and only starts up again after the room air humidity has dropped under the set value. In the -% setting, the appliance works permanently and independently of the current room air humidity.
  In the Intelli. Speed function, the room air is automatically humidified to 60% no actual air humidity value has to be set.
  If you press the Humidity button again after the 75% setting, the -% setting lights up.

TIMER BUTTON

In general: The timer function is disabled in the standard --h setting.
As soon as you press the Timer button, 01h lights up for one hour. By each press of the button, the value can be increased by one hour, until you reach a maximum of 12 hours. After that, --h lights up in the display and the timer is switched off again.
You can use the Timer function to set the number of hours after which you want the appliance to switch on (Automatic start-up) or off (Automatic shutdown).

Automatic start-up

If the air humidifier is plugged in but has not been switched on with the ON/OFF button, you can use the Timer button to set the number of hours after which you want the appliance to switch on. Press the button until the desired number of hours lights up in the display - you can make any setting between 1 and 12 hours at intervals of one hour. After the last press of the button, the set number of hours flashes for three seconds, then the appliance switches back to displaying the current room air humidity. However, the letter "h" is also displayed at the end to indicate that the Timer is activated. Also: You can press the other function buttons in automatic start-up mode to make individual adjustments to the ventilation speed and the room air humidity you desire.
Once the set number of hours has elapsed, the appliance switches on automatically. The "h" in the display goes out.

Automatic shutdown

If the air humidifier is plugged in and has been switched on with the ON/OFF button, you can use the Timer button to set the number of hours you want the appliance to be activated before automatically switching off. Press the button until the desired number of hours lights up in the display - you can make any setting between 1 and 12 hours at intervals of one hour. After the last press of the button, the set number of hours flashes for three seconds, then the appliance goes back to displaying the current room air humidity value. However, the letter "h" is also displayed at the end to indicate that the Timer is activated. Also: Of course, you can use the other function buttons to make individual settings as well.
If the desired humidification time resp. the set number of hours has elapsed, the appliance switches off without a sound signal.

SCREEN OFF BUTTON FOR DEACTIVATING THE DISPLAY RESP. FUNCTION LIGHTS

• You can use the Screen Off button to switch the control panel backlight off completely. This is ideal if you want to use the appliance by night. If you press the button again, the current room air humidity lights up again in the display. The active function displays light up as well.

WATER EMPTY DISPLAY

Once you switch the appliance on, the air humidifier makes sure that there is enough water in the water tub. If this is not the case, it automatically switches to the protective Water Empty function. This is also the case, if the appliance runs dry during use, the appliance switches off in such a case.
The warning light next to Water Empty lights up as long as there is no water.
Only the ON/OFF button can be operated in the protective Water Empty function.
- Once you switch the appliance on, the air humidifier makes sure that there is enough water in the water tub. If this is not the case, it automatically switches to the protective Water Empty function. This is also the case, if the appliance runs dry during use, the appliance switches off in such a case. - The warning light next to Water Empty lights up as long as there is no water. - Only the ON/OFF button can be operated in the protective Water Empty function.

Filling the water tank with water

• Switch the appliance off with the ON/OFF button. Carefully remove the water tank by its handle and lift it up. Turn the water tank upside down, open the tank lid and fill the water tank with fresh tap water. After that, close the water tank with the lid and place the tank back in the appliance.

CLEAN MAT DISPLAY

1. As soon as the Clean Mat warning light illuminates, you have to switch the appliance off, pull the power plug and remove and clean the humidification mat.
2. Remove the water tank after switching the appliance off and unplugging it.
3. Carefully pull the water tub out of the appliance base, making sure not to spill any water.
4. Take the humidification mat out of the zig-zag mounting.
5. For one hour, place the humidification mat in a 1:1 solution of water and white vinegar. After that, rinse the humidification mat with clear water. Never clean the humidification mat with a descaling agent.
6. After the vinegar has been washed out, place the humidification mat back in the mounting and place the mounting in the water tub. The markings in the bottom of the water tub indicate precisely how the mounting has to be positioned.

1. Before starting to use the appliance again, you have to perform a Reset to make the Clean Mat warning light go out. To do that, press and hold the ON/OFF button and the Screen Off button simultaneously for at least 3 seconds until the warning light goes out.
2. You can now use the appliance as usual.

Automatic shutdown

STARTING UP

If the water tank is filled with fresh tap water and the appliance is correctly assembled (water tub with humidification mat is inserted, water tank is installed) and connected to the power, you can start using it.

Tip: We recommend waiting for a short while after the water has run into the water tub to let the humidification mat soak through. This drastically improves the immediate effects of humidification.

GB

Press the ON/OFF button to switch the appliance on. The current room air humidity lights up in the display as well as the High Speed function light, indicating the highest ventilation speed. Note: The humidity switch built into the appliance measures the air humidity right next to the appliance. Another humidity switch placed outside of the appliance might report a different value for air humidity.

2. CHOOSING THE FUNCTIONS

• Choose the desired functions. Set the ventilation speed with the Mode button and the desired air humidity with the Humidity button (The latter is not required in the "Intelli. Speed" function). If desired, activate the Timer function (Automatic shutdown when the appliance is switched on). Additionally, the child safety device can be activated (press and hold the ON/OFF button for at least three seconds). The ion function can be switched on or off (press and hold the Mode button for at least three seconds) or the function lights and the display can be switched off (press Screen Off button).
  In general, it can be said: The higher the room temperature, the quicker the humidification.
  The appliance switches off automatically when the water tub is not sufficiently filled with water any longer. The Water Empty light switches on and the appliance switches off (see section "Water Empty Display" on page 104).
  Before refilling the appliance with water, please always switch the appliance off with the ON/OFF button first. Then, lift the water tank up and away. You can now fill the water tank with fresh tap water.

AFTERUSE

If you want to switch the appliance off, always press the ON/OFF button first before disconnecting the power cord from the power socket.
If you do not want to use the appliance for more than 2 days, we recommend pouring the water out of the water tub and the water tank and drying the water tank with a dry towel as well as leaving the humidification mat out to air dry in the opened appliance.
In general, we recommend pouring the water remaining in the water tub and the water tank away before filling new water.

DAILY / WEEKLY CARE OF YOUR AIR HUMIDIFIER

1. Change the water in the water tub and the water tank every day. Only use fresh tap water without any additives.
2. Clean the humidification mat, the water tank and the water tub every week.
3. Should you not use the air humidifier for more than 2 days, we recommend pouring the water out of the water tub and the water tank and leaving the appliance open.
4. Should you not want to use your appliance for prolonged periods of time, please clean and dry all parts carefully and store the air humidifier in the original packaging in a dry room.

CLEANING AND MAINTENANCE

The recommended cleaning intervals depend on the air and water quality as well as the operation time and frequency.
Before cleaning, always switch the appliance off and pull the power plug from the socket.
We recommend filling the appliance with fresh water every day.

GB

WEEKLY CLEANING OF THE WATER TUB AND THE WATER TANK AS WELL AS THE HUMIDIFICATION MAT

1. CLEANING THE WATER TUB

Particles of dirt and microorganisms collect in the water tub during use, which is why the tub has to be cleaned regularly, at least once a week. With the water tank removed, carefully pull the water tub with the humidification mat out of the appliance. Remove the mounting with the humidification mat. Emoty out the water tub. Use tap water not warmer than 30^ with some mild detergent and a soft towel resp. a soft sponge to clean the tub.
After this first cleaning cycle, the adherent limestone deposits should be removed. To do this, dip the soft towel / the soft sponge into a solution of descaler suitable for air humidifiers and water. For the correct ratio of water and descaling agent, please refer to the information given on the packaging of the descaling agent. Alternatively, you can use white vinegar. Remove the deposits with the soaked towel / sponge.

After that, rinse the inside of tub thoroughly with water. Dry the inside of the tub with a soft towel and leave it to air-dry with the appliance opened.

2. CLEANING THE WATER TANK

Clean the water tank with a moist towel and rinse the inside with some tap water. After that, empty the tank out completely.
If there are any limestone deposits in the water tank, they should be removed. To do that, dip a soft towel/ a soft sponge into the same descending solution that you used for the water tub. Alternatively, you can use white vinegar. Remove the limestone deposits in the water tank with the soaked towel/ sponge. After that, carefully rinse the water tank with clear water multiple times and pour the water away.
It is absolutely necessary that the air humidifier is completely emptied out and cleaned if the water-filled appliance has not been used for more than a week.

Caution:

The humidification disks and the water tub cannot be cleaned in the dishwasher!

In general, please do not use any aggressive or abrasive detergents or metal sponges, as these might damage the surface.

The correction of defects caused by the use of improper descending agent is excluded from warranty.

3. CLEANING THE HUMDIFICATION MAT

Once a week, but at the latest when the Clean Mat light switches on, the humidification mat needs to be cleaned.
1. With the appliance switched off and unplugged, remove the humidification mat and the mounting from the water tub.
2. Remove the humidification mat from the zig-zag mounting.
3. For one hour, place the humidification mat in a 1:1 solution of water and white vinegar. After that, rinse the humidification mat with clear water. Never clean the humidification mat with a decalaring agent.
4. After the vinegar has been washed out, place the humidification mat back in the mounting and place the mounting in the water tub. The markings in the bottom of the water tub indicate precisely how the mounting has to be positioned.

1. Before starting to use the appliance again, you have to perform a Reset to make the Clean Mat warning light go out. To do that, press and hold the ON/OFF button and the Screen Off button simultaneously for at least 3 seconds until the warning light goes out.
2. You can now use the appliance as usual.

CLEANING THE CHASSIS

Regularly clean the chassis with a slightly moist towel and some mild detergent.
In general, please do not use any aggressive or abrasive detergents or metal sponges for cleaning, as these might damage the surface.

CLEANING THE FILTER

Beneath the air filter cover on the back of the air humidifier, there is a mesh filter. Should too much dust collect on the filter, the efficiency of the air humidifier is impaired, therefore, we recommend cleaning the mesh filter at least once a month.
1. Remove the air inlet cover by pushing the two little flaps down and pulling the cover away.
2. The removable black mesh filter lies beneath it.

1. Clean the mesh filter with a vacuum cleaner set to low power. Alternatively, you can clean the filter with a soft brush.
2. After cleaning, place the filter back in the cover, then install the air inlet cover so that it clicks into place. To do that, first insert the two bottom flaps and then push the cover into the appliance.
3. Caution: Never use the appliance if mesh filter and air inlet cover have not been properly installed.

STORAGE

• Check if the appliance is switched off and the power plug is pulled resp. the power cord is removed. The water has to be drained completely.
• Check if the appliance inside is completely clean and dry. If necessary, let the appliance stand open until the humidification mat and the water tub are dry on the inside.
• Keep the appliance standing upright in a dry, dark spot, best in the original packaging. Do not place anything on the appliance.
  Always keep the appliance and power cord out of the reach of children.

TROUBLESHOOTING

Problem Possible	cause Solution
Little humidification power.	- The function Sleep Speed resp. 40% or 45% has been selected.- The water in the water tub is very cold.	- Select a higher air humidity, e.g. 60% or 70% and a higher ventilation speed, e.g. High Speed or Normal Speed.- Select the air humidity 60% or 70%. Alter some time, the humidification power will increase.
No humidification power.	- The power plug is not connected to the socket.- The warning light Empty Water lights up.	- Firmly connect the power plug to the socket.- Switch the appliance off. Fill the water tank up with fresh tap water, then switch the appliance on again.
An independent humidity switch measures a different humidity value from the display on the appliance.	- Dirt has collected in the air outlet or inlet opening.- The appliance is placed near a window or an open door.	- Clean the air inlet and outlet openings. Note: Even within one room, different values for humidity can be measured. The value on the appliance refers always to the humidity exactly by the appliance.- Place the appliance in a spot free of draft.
The escaping air smells unpleasantly.	- There is old water in the water tub/water tank.	- Drain the water and clean the appliance as described in "Cleaning and maintenance". Fill the water tank with fresh tap water.

TECHNICAL SPECIFICATIONS

Model no. UM 585M, Type 7219

Description Air humidifier

Output 25 watts

Noise level ≤ 53dB (A) (average)

Water tank capacity 5.0 litres

Dimensions (W× H× D) approx. 39.5× 38.0× 18.5cm

Weight approx. 5.7kg

Max. humidification 350 ml/hour

Technical changes reserved.

DISPOSAL

EU 2012/19/EU

Information for correct disposal of the product in accordance with the European Directive EU 2012/19/EU.

At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.

Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time.

SOLIS HELPLINE

This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require. The contact addresses can be found at the end of this manual.

Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary.

APPPARAATBESCHRIJVING

KNOP VOOR VENTILATIESNELHEID MODE

WEERGAVE WATER EMPTY (GEEN WATER)

1. APPARAAT INSCHAKELEN

Solis customer service

Please contact us in advance of sending in products for return or repair. We will gladly give you the respective address. Alternata

solis.com.

Solis Klantendienst Helpline

Address for return shipment of

Address for return shipment of
goods differs - please refer to
www.solis.com

[phone]
@ [e-mail]
www.solis.com
