Product type	Tile cutter
Brand	Einhell
Model	TCTC 618
Motor power	600 W (S2 10 min)
Rotation speed	2950 rpm
Voltage / Frequency	230 V ~ 50 Hz
Protection class	I
IP protection rating	IP 54
Cutting length	Unlimited
Cutting height at 90°	35 mm
Cutting height at 45°	22 mm
Table dimensions	330 x 360 mm
Diamond cutting disc	∅ 180 x ∅ 25.4 mm
Weight	7.9 kg
Cooling	By water (removable tank)
Mitre cutting capacity	Up to 45° (Jolly cut)
Sound pressure level LpA	93 dB
Sound power level LwA	106 dB
Included parts	Diamond disc, parallel stop, disc guard, riving knife, wrenches

Frequently Asked Questions - TCTC 618 EINHELL

How to change the diamond cutting disc?

Unplug the machine, remove the water tray and side cover. Lock the motor shaft with an 8 mm wrench, then unscrew the locking nut with a 19 mm wrench. Replace the disc and retighten the nut. Pay attention to the rotation direction.

How to adjust the mitre cut (Jolly)?

Loosen the knurled screws under the table, tilt the table to the desired angle (max 45°) and retighten. Place the tile with the glazed side against the work surface. Make sure the disc does not touch the glaze.

Why must water be used?

Water cools the diamond cutting disc and reduces dust. Fill the tank before each cut. The water level must cover the diamond part of the disc. Never cut dry.

What is the maximum cutting height?

Cutting height at 90°: 35 mm. At 45°: 22 mm. These values apply to ceramic tiles. Do not exceed these limits.

How to clean the tile cutter?

Unplug the device. Use a damp cloth with a little soap. Do not use harsh products. Clean the ventilation slots regularly.

What to do if the machine does not start?

Check that the plug is properly connected and that the disc rotates freely. If the switch is blocked, contact after-sales service. Do not force the switch.

What are the mandatory safety equipment?

Wear safety glasses, a dust mask and hearing protection. Always use the disc guard and the riving knife. Never remove safety devices.

Can other materials than ceramic be cut?

No, this machine is designed exclusively for ceramic tiles, stoneware and similar. It is forbidden to cut wood or metal.

How to replace the water tank?

The tank is a removable basin located under the table. To remove it, slightly lift the machine. Empty and clean the tank after each use.

Where to find spare parts?

Order parts via the website www.isc-gmbh.info, specifying the device type, article number and identification number. Use only original parts.

USER MANUAL TCTC 618 EINHELL

Labeled diagram of a device with numbered parts, showing internal components and an inset view of a device casing.

Mechanical device with a circular component mounted on a flat base, labeled '17' and marked with number '2' (no readable text or symbols beyond labels)

3 15 18 16

-2.

-3-

D

Two grayscale color swatches with no text or symbols, showing alternating dark and light shades (no text or symbols)

D

Garantiebestimmungen

Warning - It is vital to read the operating instructions in order to reduce the risk of injury

Wear ear-muffs. The impact of noise can cause damage to hearing.

Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the tool to work on any materials containing asbestos!

Wear safety goggles. Sparks generated during work or splinters, chips and dust emitted by the equipment can cause loss of sight.

Important! Risk of injury through cutting

Segmented diamond cutting wheels must not be used

15

GB

⚠️ Important!

When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well. We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

1. Safety information

The corresponding safety information can be found in the enclosed booklet.

Caution!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout

1. Miter stop
2. Parallel stop
3. Wheel guard
4. Cutting table
5. Water trough
6. Housing
7. Knurled screw for setting the angle
8. Scale for miter cut
9. Knurled screw
10. Thumb screw
11. Holder for splitter
12. On/Off switch
13. Switch housin
14. Cable holder
15. Diamond cutting wheel
16. Outer fl ange
17. Side cover
18. Nut
19. Splitter
20. Fastening screws for splitter holder

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the nearest branch of the DIY store where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the warranty provisions at the end of the operating instructions.

- Open the packaging and take out the equipment with care.

• Remove the packaging material and any packaging and/or transportation braces (if available).
  • Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

IMPORTANT

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Original operating instructions
• Safety information

3. Technical data:

Motor rating: 600 W S2 10 min Motor speed: 2950 rpm

AC motor 230 V \~ 50 Hz

Insulation material class ....Class B

Protection type IP 54

Protection class ....I

Cut length: .... Unlimited

Jolly length: .... Unlimited

Cutting height 90°: 35 mm

Cutting height 45°: 22 mm

Cutting table-Dimensions ..... 330 mm x 360 mm

Diamond cutting wheel ..... 0 180 x 0 25.4 mm

Weight: 7,9 kg

A load factor of S2 10 min (intermittent periodic duty) means that you may operate the motor continuously at its nominal power level (600 W) for no longer than the time stipulated on the specifications label (10 minutes ON period). If you fall

GB

to observe this time limit the motor will overheat. During the OFF period the motor will cool again to its starting temperature.

Idle speed

L_ A sound pressure level .....93 dB L_/A sound power level .....106 dB

Warning!

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
  • Switch the appliance off when it is not in use.
  • Wear protective gloves.

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

4. Important information

Please read the operating instructions carefully and observe the information provided. It is important to consult these instructions in order to acquaint yourself with the equipment, its proper use and safety regulations.

Important!

For safety reasons, the tile cutting machine is not to be used by children, young people under 16 years of age, or any other persons who are not acquainted with these operating instructions.

• Portable tile cutting machine for medium-sized tiles.
  • Cutting with the diamond cutting wheel.
  • Making jolly cuts with the tiltable work surface (max. 45 degrees).
  • Wheel cooling with water.
• Stop rail and angle stop.
• Removable trough as cooling water tank. (The machine must be lifted off in order to remove the trough.
• If the cutting wheel becomes jammed, switch off the equipment and disconnect it from the power supply; only then are you to remove the workpiece

5. Intended use

The tile cutting machine is designed for the standard cutting of small and medium-size tiles (glazed tiles, ceramic tiles or similar) which can be accommodated by the size of the machine. It should never be used for cutting wood or metal. The machine should be used exclusively for its intended purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be held liable for damage and/or injuries of any kind that result from such misuse. The machine is to be operated only with suitable cutting-off wheels. Saw blades should never be used. Compliance with the safety instructions, the assembly instructions, and advice and instructions on operation contained in the operating instructions also falls under the terms of intended use. All persons who use and service the equipment have to be acquainted with this manual and must be informed about the machine's potential hazards. In addition, strict compliance with the accident prevention regulations in force in your area, as well as all other general rules of health and safety at work, is impera-

-17-

GB

tive. The manufacturer's liability shall be deemed void if the machine is modified in any way and the manufacturer shall therefore accept no liability for any damages arising as a result of modifications. Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors. The following hazards may arise in connection with the machine's construction and design:

• Contact with the diamond cutting wheel whe-
• Contact with the diamond cutting wheel while it is turning.
  • Defective diamond tips flying off the cutting wheel.
• Kick-back of workpieces and parts of workpieces due to improper handling.
• Damage to hearing if ear-muffs are not used as necessary.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

6. Before starting the equipment

• The machine has to be set up where it can stand firmly, e.g. on a work bench, or it must be bolted to a strong base.
• All covers and safety devices have to be properly fitted before the machine is switched on.
• It must be possible for the diamond wheel to run freely.
• Before you actuate the ON/OFF switch, make sure that the diamond wheel is correctly fitted and that the machine's moving parts run smoothly.
  Before you connect the machine to the power supply, make sure the data on the rating plate is the same as that for your mains.
• Before using the machine, check all of the parts for damage and replace any parts that are damaged. When replacing any parts or accessories, always carefully follow the instructions in this manual.
• For optimum performance and maximum safety, keep the machine clean at all times.
• Check the machine cable at regular intervals.
• While the machine is running, check the wea-ring parts and the fastenings of parts which

may have become loose and check that all accessories are correctly fitted.

• Important! The tile cutting machine is designed for use with water.

- Check that the water level is high enough to cover the diamond part of the wheel each time before you start a cutting operation and keep checking it during cutting as well. Fill/ refill the cooling water directly into the trough.

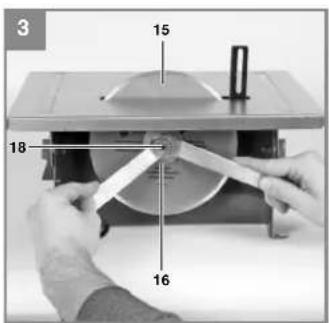

6.1 Changing the diamond cutting wheel (Fig. 2/3)

To replace the wheel when worn, proceed as follows:

• Pull out the power plug first.
• Take out the water trough (5).
- Remove the side cover (17).
- Apply an 8 mm counterholder to block the motor shaft.

- Unscrew the lock nut (18) on the wheel flange (16) with a 19 mm wrench.

- Clean the wheel flange thoroughly once the wheel has been removed.

Take out the worn diamond cutting wheel (15) and fit the new one to the flange, then fit the outer flange (16) and tighten with the nut (18).

• Fasten the side cover (17) again.

• Important! Check that the diamond wheel (4) rotates in the correct direction!

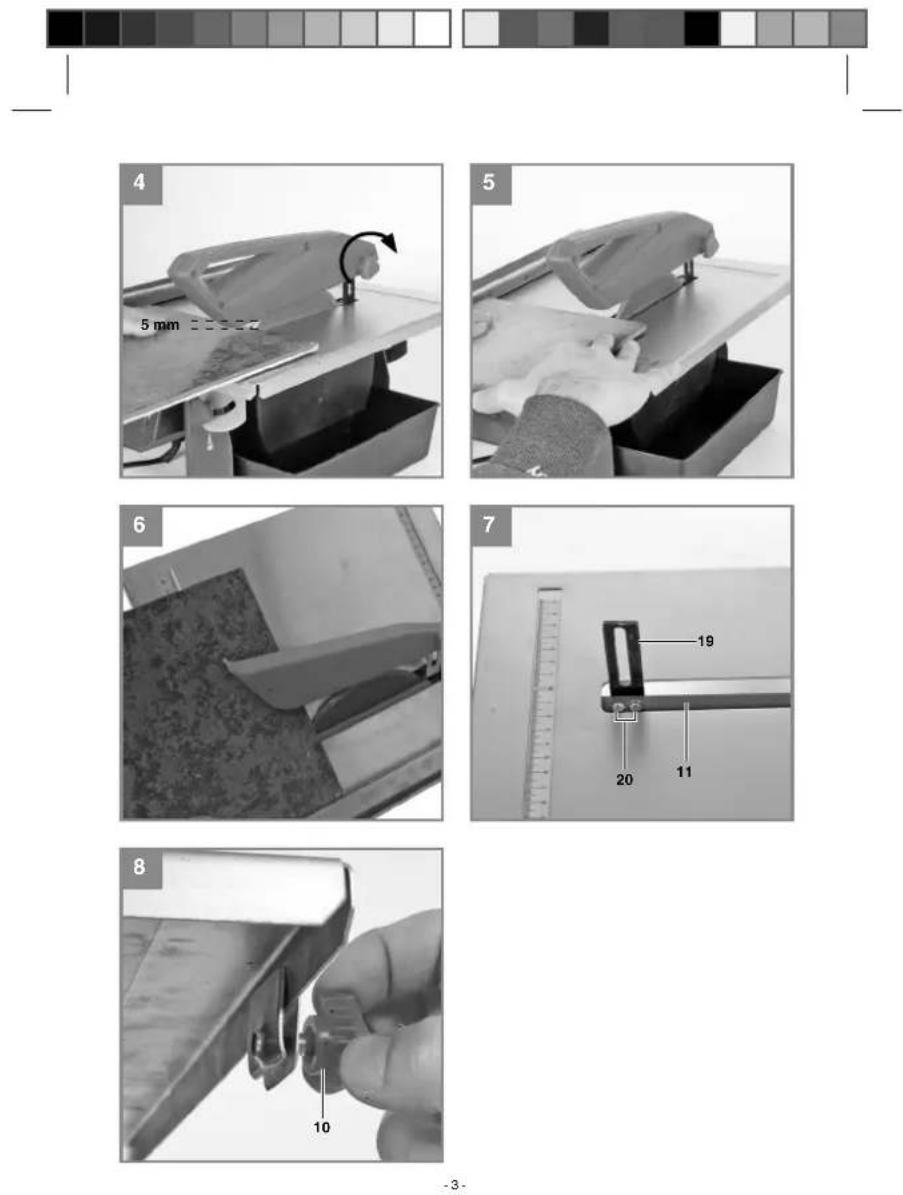

6.2 Adjusting the top wheel guard Fig. 1/7)

• Insert the splitter (19) through the table and into the holder (11) from above and fasten with the screws (20).
• Move the wheel guard to approximately 5 mm above the tile you wish to cut. Lock the wheel guard (3) in position with the knurled screw (9) as shown in Fig. 1.
• Important! The machine is fitted with a cutting wheel with a non-segmented edge.

7. Operation

7.1 Even cutting (Fig. 1/5/8)

• Set the cutting width with the parallel stop (2) and lock in position with the thumb screws (10). The width of the workpiece can be read on the scale.
• Fig. 5 shows the correct position for your hands during even cutting. The rate of advance must not exceed the cutting capacity of the wheel. This is to make sure that no material comes off, as this may cause accidents or injuries.

GB

Important! Keep a constant check on the water level

7.2 Making 45° miter cuts (jolly cuts) (Fig. 1/6)

• Position the table as shown in Fig. 6 and lock in position with the handles (7). Position the tile with the glazed side on the work surface and make sure that the diamond wheel does not touch the glaze on the tile. Correct the
• Fig. 6 shows the correct position for your hands during miter cutting to 45^ . The right hand holds the workpiece in contact with the diamond wheel while the left hand pushes the workpiece forward. The rate of advance must not exceed the cutting capacity of the wheel. This is to make sure that no material comes off, as this may cause accidents or injuries.

7.3 On/Off switch (Fig. 1)

• To switch on, press the „I“ on the On/Off switch (12).
- To switch off, press the „0“ on the On/Off switch (12).

8. Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment.

8.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.3 Ordering replacement parts

Please quote the following data when ordering replacement parts:

• Type of machine

-19-

• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

10. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

11. Transport

If you want to move the equipment to a different place, disconnect the equipment from the power supply and set it up in the new position you want to use it in.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the ISC GmbH.

Subject to technical changes

GB

Warranty provisions

iSC GmbH or the DIY store where you made you purchase guarantees the repair of defects or replacement of the equipment in accordance with the overview below. Statutory guarantee claims are unaffected.

Category Example Warranty
Defect with regard to material or construction		24 months
Wear parts* 6 months
Consumables* Cutting wheel Warranty only in case of an im-		mediate defect (24 hours after purchase / date on the bill)
Missing parts 5 work days

* Not necessarily included in the scope of delivery!

For consumables, wear parts and missing parts iSC GmbH guarantees the correction of defects or a new delivery only if the defect is reported within 24 hours (consumables), 5 work days (missing parts) or 6 months (wear parts) after purchase and the purchase date is verified with the bill.

In case of defects concerning the material or construction, we kindly request you to submit the equipment together with the fully completed warranty card supplied with the equipment. It is important that you enter an exact description of the defect.

To do so, answer the following questions:

• Did the equipment work at all or was it defective from the beginning?
- Did you notice anything (symptom or defect) prior to the failure? - What malfunction does the equipment have in your opinion /mo
- What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction.

-21-

Two horizontal grayscale color swatches with no text or symbols, showing contrast between dark and light shades (no text or symbols)

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.

2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered null and void if any attempt is made to tamper with the device.

3. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

4. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts/consumables and missing parts as set forth in the warranty conditions in these operating instructions.

·22·

F

7.1 Coupe plane (fi g 1/5/8)

Two horizontal bar segments with grayscale shades and a central line, no text or symbols present.

Two horizontal bar segments with grayscale shades and a central line, no text or symbols present.

Two horizontal grayscale color swatches with no text or symbols, arranged horizontally (no text or symbols)

DK/N

Advarsel Læs beljeningsvejledningen for at reducere risikoen for personskade

Two horizontal grayscale color swatches with no text or symbols, showing contrast between dark and light shades (no text or symbols)

DK/N

Garantibevis

Kære kunde!

Two grayscale color swatches with no text or symbols, showing alternating dark and light shades (no text or symbols)

S

Garantibestämmelser

Two horizontal grayscale color swatches with no text or symbols, arranged horizontally (no text or symbols present)

HR/BIH

Two horizontal grayscale color swatches with no text or symbols, showing contrast between dark and light shades (no text or symbols)

HR/BIH

Two grayscale color swatches with no text or symbols, showing alternating dark and light shades (no text or symbols)

HR/BIH

Jamstvene odredbe

Firma iSC GmbH odnosno nadležna trgovina jamči uklanjanje nedostataka odnosno zamjenu u jamstvenom roku u skladu s niže navedenim pregledom, pri čemu se ne dira pravo na zakonske zahtjeve za reklamacijom.

Two horizontal grayscale color swatches with no text or symbols, arranged horizontally (no text or symbols)

HR/BIH

Jamstveni list

Poštovani kupče,

naši proizvodi podliježu strogoj kontroli kvalitete. Žao nam je ako bi ipak došlo do toga da uređaj ne funkcionira besprijekorno i zamolili bismo Vas da se u tom slučaju obratite na adresu naše servisne službe navedenu ispod ovog jamstva. Također smo Vam na raspolaganju na dolje navedenom telefonskom broju servisne službe. Za traženje jamstvenog zahtieva vrijedi sliedeće:

Two horizontal grayscale color swatches with no text or symbols

RS

Garantne odredbe

Firma iSC GmbH odnosno nadležna prodavnica garantuje uklanjanje nedostataka odnosno zamenu u garantnom roku, u skladu sa niže pomenutim pregledom, pri čemu se ne zadire u pravo na zakonske zahteve za reklamaciju.

Kategorija Primer Garancija
Nedostatak na materijalu ili konstrukciji		24 meseca
Brzoabajući delovi* 6 meseci
Potrošni materijal/ potrošni delovi*	Rezna ploča Garancija samo u slučaju trenutnog kvara (24 časova nakon kupovine / datum na računu)
Neispravni delovi 5 radnih dana

^ Nije obavezno da se nalazi u sadržaju isporuke!

S obzirom na brzoabajuće delove, potrošni materijal i neispravne delove firma ISC GmbH garantuje uklanjanje nedostatka odnosno dodatnu isporuku samo ako se nedostatak predoči u roku od 24 sata (potrošni materijal), 5 radnih dana (neispravni delovi) ili 6 meseci (brzoabajući delovi) nakon kupovine i dokaže datumom kupovine na računu.

Two horizontal grayscale color swatches with no text or symbols

CZ

⚠ Pozor!

Two horizontal grayscale color swatches with no text or symbols, arranged horizontally (no text or symbols)

SK

⚠ Pozor!

Two horizontal grayscale color swatches with no text or symbols

SK

Záručné podmienky

Two horizontal grayscale color swatches with no text or symbols, showing contrast between dark and light shades (no text or symbols)

SK

Záručný list

90/396/EC_2009/142/EC

89/686/EC_96/58/EC

x2011/65/EC

2006/42/EC

□ Annex IV Notified De

Notified Body Notified Body

Req. No :

2000/14/EC_2005/88/EC

□Annex V

Annex VI

Noise: measured L_w = dbS (A); guaranteed L_w = dbS (A)

F = RN, LD = Notill or Roxy

2004/26/EC

Emission No.:

Standard references: EN 61029-1; EN 12418;

EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

subject to change without notice

Archive-File/Record: NAPR006018

Documents registrar: Daniel Proischka

Moschney 22, D-94403 Lancadural

Blank lined notebook page with a pencil icon and a color palette bar at the top

-89-

Blank lined notebook page with a pencil icon and a color palette bar at the top

-90-

Blank lined notebook page with a pencil icon and a color palette bar at the top

-91-

Two horizontal grayscale color swatches with no text or symbols, showing contrast between dark and light shades (no text or symbols)

EH 02/2013 (01)

Anl_TH_TC_618_SPK1.indb 92

21.02.13 13:41
