USER MANUAL AC1600 TP-LINK
Wireless DSL Modem Router
TP-Link Technologies Co., Ltd.
Specifications are subject to change without notice. 密 = 密 is a registered trademark of Tf-Link Technologies Co. Ltd. Other brands and product names are trademarks or registered trademarks of Tf-Link Technologies Co. Ltd.
No part of the specifications may be reproduced in any form or by any means or uses to make any use of this work without written permission. The rights reserved are not reserved for electronic transmission, IP-Link Technologies Co., Ltd. Copyright © 2020 TPL-Nk Technologies Co., Ltd. All rights reserved.
For technical support, replacement services, user guides and other information please visit https://www.tp-link.com/support, or simply scan the QR code. 716869813. D5F2C0
CONTENTS
1 / English
6 / Espanol
11 / François
16 / Portugues

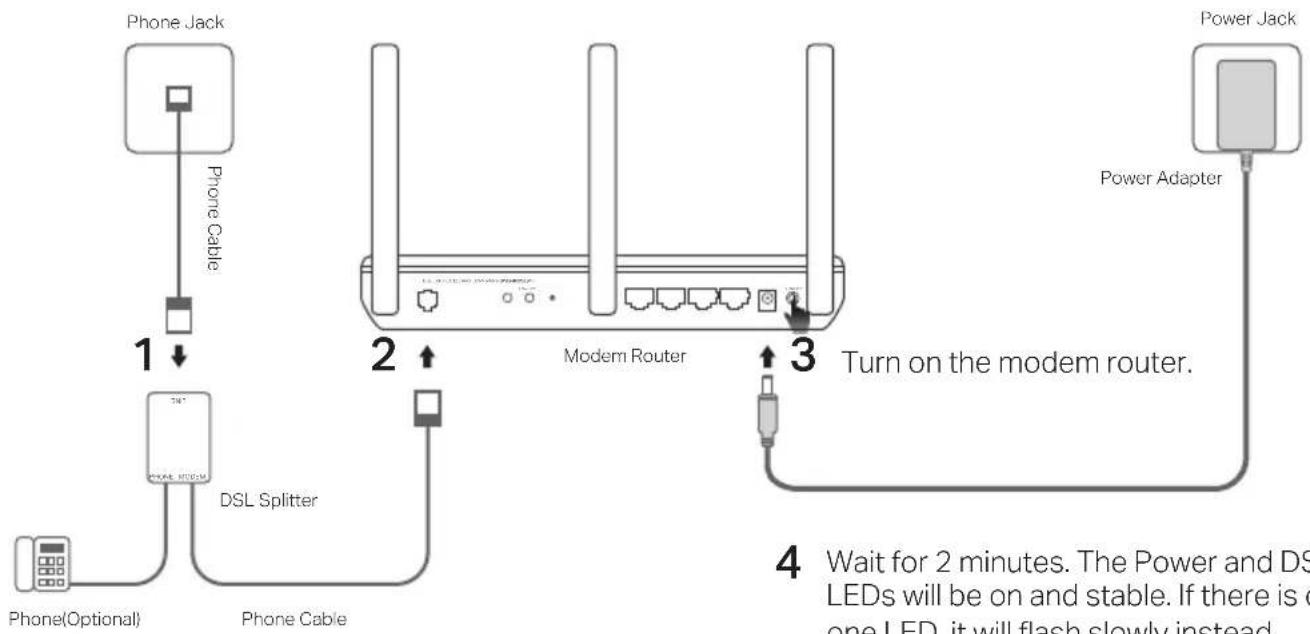

Connect the Hardware
If you don't need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.
* Image may differ from actual product.
4 Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only one LED, it will flash slowly instead.
Note: If the LED status is different, please refer to FAQ > Q2.
Configure via Web Browser
1 Connecting your computer to the modem router via a wired or wireless connection
Wired
Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable.
Wireless
Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router.
2 Configuring the modem router via a web browser
A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.
Note: If the login page does not appear, please refer to FAQ >Q1.
B Create a password for future login attempts, or use admin for both username and password for some routers.
C Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration.
Now you can enjoy your internet.
Already Have a Modem?
If you already have a modem or your internet comes directly from an Ethernet wall outlet, you can switch to Wireless Router mode. Follow the steps below and set up.
1 Connect your computer to the router (LAN 1/2/3 port) via a wired or wireless connection. Note: The SSIDs (network names) and wireless password are printed on the product label.
2 Configure the modem router via a web browser.
A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.
Note: If the login page does not appear, please refer to FAQ >Q1.
B Create a password for future login attempts, or use admin for both username and password for some routers.
C Go to Advanced > Operation Mode page and switch to Wireless Router Mode, wait until the restart finished.
3 Connect the modem to the router's LAN4/WAN port via an Ethernet cable.
4 Go to Basic > Internet to finish the setup.
Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link's official website at www.tp-link.com.
Tether App
The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more.
Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.
Note: Tether is not supported by some routers. Please check the app description before downloading.
FAQ (Frequently Asked Questions)
Q1. What can I do if the login page does not appear?
A1. If the computer is set to a static or fixed IP address, change the settings to obtain an IP address automatically from the modem router.
A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.
A3. Use another web browser and try again.
A4. Reboot your modem router and try again.
A5. Disable and enable the active network adapter.
Q2. What can I do if the LED status is not correct?
A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.
A2. Restore your modem router to its factory default settings.
A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then reconfigure the modem router by following the instructions in this Quick Installation Guide.
A4. Contact your ISP to verify if the DSL line is in good status.
A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.
English
Q3. What can I do if I cannot access the internet?
A1. Make sure the telephone and Ethernet cables are plugged in correctly.
A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router.
A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again.
A4. Restore the modem router to its factory default settings and reconfigure the modem router by following the instructions in this Quick Installation Guide.
A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.
Q4. What can I do if I forget my password?
Web management page password:
A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.
- Wireless network password:
A1. The default Wireless Password/PIN is printed on the product label of the modem router.
A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your wireless password.
Q5. How do I restore the modem router to its factory default settings?
A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious change of LEDs, and then release the button.
A2. Log in to the web management page of the modem router and go to the system management page to restore the modem router.
