USER MANUAL Archer NX200 TP-LINK

Quick Installation Guide

5G CPE Router

For technical support, the user guide and more information, please visit https://www.tn-link.com/support.

CONTENTS

01 / Deutsch
05 / English
09 / Espanol
13 / Eληνικό
17 / Français
21 / Italiano
25 / Portugues
29 / Suomi
33 / Netherlands
37 / Svenska
41 / Norsk
45 / Dansk

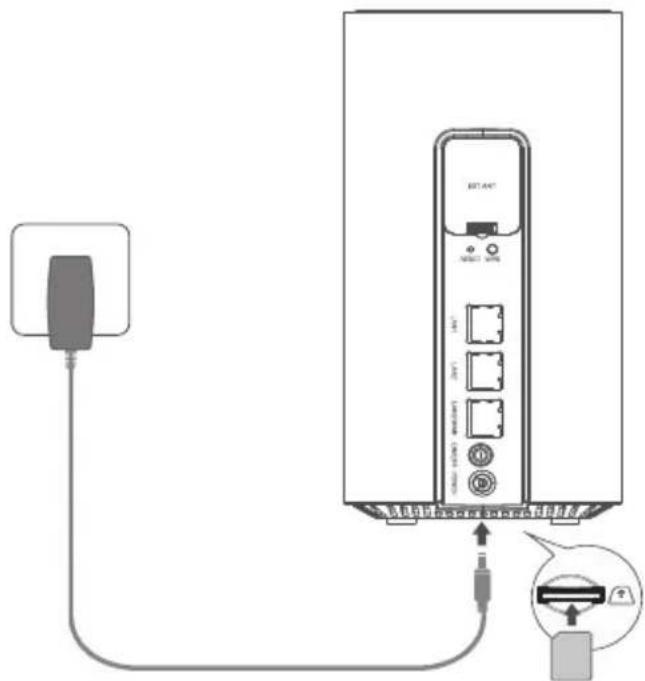

Connect the Hardware

Note: Images are for demonstration only.

1 Insert the SIM card into the slot until you hear a click.
2 Connect the power adapter and turn on the router.
3 Make sure the Internet LED is on, indicating the router is connected to the internet successfully. If it is not, Please refer to FAQ > Q2 in this guide.

Enjoy the Internet!

Connect your device to the router (wired or wireless).

The default SSID and password are printed on the product label at the bottom of the router.

English

Customize the 5G/4G+ Router

1 Make sure your computer is connected to the router (via wired or wireless).
2 Enter http://tplinkmodem.net or http://192.168.1.1 in the address bar of a web browser. Based on the actual web management login page: use the default admin for both username and password or create a new password to log in.
3. Follow the step-by-step instructions on the Quick Setup page to complete the initial configuration.

Note: The router can also be used (or configured) in wireless router mode for Cable connections. For more information, please refer to the User Guide at www.tp-link.com.

FAQ(Frequently Asked Questions)

Q1. What should I do if I cannot access the web management page?

• Verify that the computer is set to obtain an IP address automatically from the router.
• Verify that http://tplinkmodem.net or http://192.168.1.1 is correctly entered in the web browser.
• Use another web browser and try again.
• Reboot your router and try again.
• Disable and then enable the active network adapter and try again.

Q2. What can I do if I cannot access the internet?

• Verify that your SIM card is a 5G/4G or WCDMA card.
• Verify that your SIM card is in your ISP's service area.
• Verify that your SIM card has sufficient credit.
• Check the LAN connection:

Enter http://tplinkmodem.net or http://192.168.1.1 in the address bar of a web browser. If the login page does not appear, refer to FAQ > Q1 and then try again.

• Check your ISP parameters:

1 Open a web browser and log in to the web management page.
2 Verify the parameters provided by your ISP are correctly entered. If the parameters are incorrect, create a new profile with the correct parameters.

• Check the PIN settings:

1 Open a web browser and log in to the web management page.
2 Verify if PIN is required. If it is, enter the correct PIN provided by your ISP.

• Check the Data Limit:

1 Open a web browser and log in to the web management page.
2 Verify if the total used data exceeds the total allowance. If it does, correct the total allowance and set the total used data to 0, or disable the data limit.

• Check the Mobile Data:

1 Open a web browser and log in to the web management page.
2 Enable the mobile data to access the internet.

English

• Check the Data Roaming:

1 Confirm with your ISP if you are in a roaming service area. If you are, open a web browser and log into the web management page.
2 Enable the data roaming to access the internet.

Q3. How to restore the router to its factory default settings?

• With the router powered on, press and hold the RESET button on the rear panel of the router until the Power LED starts flashing. The router will restore and reboot automatically.
• Log in to the web management page of the router to restore the router to its factory defaults.

Q4. What can I do if I forget the password of the web management page?

• Refer to FAQ>Q3 to restore the router and use admin for both username and password or create a new password to log in.

Q5. What can I do if I forget my wireless network password?

• The default wireless password is printed on the product label of the router.
• If the default wireless password has been changed, log in to the router's web management page and retrieve or reset your password.

Note: For more troubleshooting help, please refer to FAQ on our website: https://www.tp-link.com.

Conecte el hardware

• Controller dataoaming:

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.
  Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Espanol:

Tapakaoue Eikovwnoe paic

• Antofoyete tn xphon xalaoevou optiatn kawdiou USB yia n option tnc ouakeunc
  Anopuyete n xpon aawv poptawv ktoc ano touc ouviotwevouc.
  Anopuyete n xpon tnc ouakeunc oepn onou anayopeuetah xpnoauppatw ouakeuw.
  To tropoobotoko a npentv aovdeBc Kovta otn oukeun kai v x evat ekoal npooa
  Papakaojue diaaote kai aokouhote tic npaoxw npnopopieac xaoaiaxc kata n xpian tnc oukeunc.
  Dev npoapeu v ax c yeyunoue oti de th ax utapouov atxuneta 10 bax npayatotoinane Lxovn cxontn sounkeunc Papakaojue v npaojioote te n oukeun ppoektka kui duk ac euvn

Français

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU. The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.

Espanol:

op https://www.tp-link.com/en/support/ce/.

Svenska:

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS. TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Espanol

https://www.tp-link.com/fi/support

TAMATAKUUMYONTAA KAYTTAJALLE TETTYJA LAILLISIA OIKEUKSIA,JA HANELLA VOI OLLAMUITA OIKEUKSIAJOTKA

VAIHTELEVATMAAKOHTAISESTI.

SIINÁ MAÄRIN KUIN LAKI SEN SALLII, TÁMÁ TAKUU JA SEN MUKAISET KORJAUSKEINOT OVAT YKSINOMAISIA JA KORVAAVAT KAIKKI MUUT TAKUUT, KORJAUSKEINOT JA EHDOT.
