Product Type	5G/4G+ Router
Brand	TP-Link
Model	Archer NX600
Mobile Technology	5G SA/NSA, 4G LTE, WCDMA
Frequency Bands	5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79; 4G: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43
Wireless Speed	Up to 3.6 Gbps (5G), up to 1.6 Gbps (4G)
WiFi	802.11 a/b/g/n/ac/ax, dual band 2.4 GHz and 5 GHz
Ports	1 Gigabit WAN/LAN port, 1 Gigabit LAN port, 1 USB 3.0 port
Power Supply	12V / 2.5A power adapter
Dimensions	142 x 142 x 38 mm (excluding antennas)
Weight	350 g (net)
Antennas	3 internal antennas for LTE/5G
Power Consumption	12 W (max)
Operating Temperature	0°C to 40°C
Key Features	High-speed 5G/4G+ internet access, WiFi hotspot, wired router mode, parental controls, guest network, Quality of Service (QoS)
Security	WPA2/WPA3, SPI firewall, MAC and IP filtering, DMZ, VPN passthrough
Installation	Insert SIM card, connect power adapter, connect devices; configuration via web interface or TP-Link Tether app
Configuration	Web interface at http://tplinkmodem.net or 192.168.1.1, quick setup wizard
Maintenance and Cleaning	Disconnect before cleaning; use a soft, dry cloth; do not use chemicals
Spare Parts and Repairability	No user-serviceable parts; contact TP-Link support for repairs
Warranty	2 years (depending on country) from date of purchase
General Information	CE, RoHS certifications; declaration of conformity available at www.tp-link.com

Frequently Asked Questions - Archer NX600 TP-LINK

How do I access the router's web management page?

Enter http://tplinkmodem.net or 192.168.1.1 in the address bar of a web browser. Use the default username and password (usually admin for both) or create a new password on first login.

What should I do if I cannot access the Internet after installation?

Check that your SIM card is 5G/4G compatible, is within your ISP's service area, and has credit. Make sure the Internet LED is on. Log in to the management page and check the APN settings, PIN code, data limit, and enable mobile data.

How do I restore factory default settings?

With the router powered on, press and hold the RESET button on the back for about 5 seconds until the power LED blinks. The router will automatically restart with factory settings.

What should I do if I forgot the WiFi password?

The default WiFi password is printed on the label on the bottom of the router. If it has been changed, log in to the web management page (using the admin password) and find it in the wireless settings, or reset it.

What should I do if I forgot the admin password for the management page?

You need to restore the router to factory settings using the RESET button (see previous question). After that, use the default credentials (admin/admin) or create a new password on login.

How do I customize the router settings?

Log in to the web management page via tplinkmodem.net. Follow the quick setup wizard or manually change settings like SSID, WiFi password, 5G options, parental controls, etc. You can also use the TP-Link Tether app.

Can the router be used without a SIM card?

Yes, the router has a WAN/LAN Ethernet port. In wired router mode, you can connect it via Ethernet cable to a modem or network outlet for a wired Internet connection.

How can I improve WiFi coverage?

Place the router in a central, elevated location away from obstacles. Avoid interference from electronic devices. You can also adjust WiFi channels in the settings or enable the 5 GHz band for higher speed.

What are the LED indicators and their meanings?

The power LED (PWR) is on during normal operation. The Internet LED (5G/4G) indicates mobile connection status: solid = connected, blinking = searching, off = no connection. The WiFi and LAN LEDs are on when devices are connected.

Where can I find the complete user manual?

The complete user manual is available for download on the TP-Link website: https://www.tp-link.com/fr/support/download/archer-nx600/. You will also find FAQs, firmware updates, and warranty information.

USER MANUAL Archer NX600 TP-LINK

Quick Installation Guide

5G CPE Router

For technical support, the user guide and more information, please visit https://www.to-link.com/support/. © 2024 TP-Link 7103511769 REV1.D.T

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

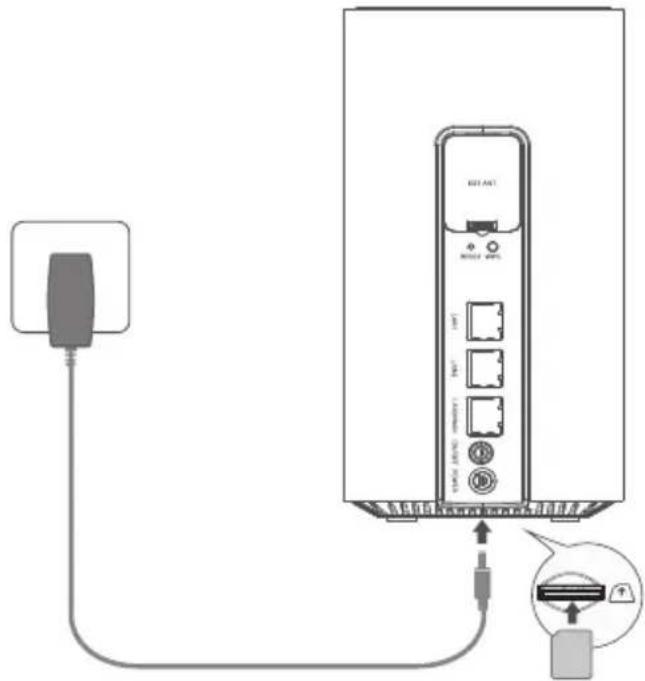

Connect the Hardware

Note: Images are for demonstration only.

1 Insert the SIM card into the slot until you hear a click.
2 Connect the power adapter and turn on the router.
3 Make sure the Internet LED is on, indicating the router is connected to the internet successfully. If it is not, Please refer to FAQ > Q2 in this guide.

Enjoy the Internet!

Connect your device to the router (wired or wireless).

The default SSID and password are printed on the product label at the bottom of the router.

English

Customize the 5G/4G+ Router

1 Make sure your computer is connected to the router (via wired or wireless).
2 Enter http://tplinkmodem.net or http://192.168.1.1 in the address bar of a web browser. Based on the actual web management login page: use the default admin for both username and password or create a new password to log in.
3 Follow the step-by-step instructions on the Quick Setup page to complete the initial configuration.

Note: The router can also be used (or configured) in wireless router mode for Cable connections. For more information, please refer to the User Guide at www.tp-link.com.

FAQ(Frequently Asked Questions)

Q1. What should I do if I cannot access the web management page?

• Verify that the computer is set to obtain an IP address automatically from the router.
• Verify that http://tplinkmodem.net or http://192.168.1.1 is correctly entered in the web browser.
• Use another web browser and try again.
• Reboot your router and try again.
• Disable and then enable the active network adapter and try again.

Q2. What can I do if I cannot access the internet?

• Verify that your SIM card is a 5G/4G or WCDMA card.
• Verify that your SIM card is in your ISP's service area.
• Verify that your SIM card has sufficient credit.
• Check the LAN connection:

Enter http://tplinkmodem.net or http://192.168.1.1 in the address bar of a web browser. If the login page does not appear, refer to FAQ > Q1 and then try again.

- Check your ISP parameters:

1 Open a web browser and log in to the web management page.
2 Verify the parameters provided by your ISP are correctly entered. If the parameters are incorrect, create a new profile with the correct parameters.

- Check the PIN settings:

1 Open a web browser and log in to the web management page.
2 Verify if PIN is required. If it is, enter the correct PIN provided by your ISP.

- Check the Data Limit:

1 Open a web browser and log in to the web management page.
2 Verify if the total used data exceeds the total allowance. If it does, correct the total allowance and set the total used data to 0, or disable the data limit.

- Check the Mobile Data:

1 Open a web browser and log in to the web management page.
2 Enable the mobile data to access the internet.

English

- Check the Data Roaming:

1 Confirm with your ISP if you are in a roaming service area. If you are, open a web browser and log into the web management page.
2 Enable the data roaming to access the internet.

Q3. How to restore the router to its factory default settings?

• With the router powered on, press and hold the RESET button on the rear panel of the router until the Power LED starts flashing. The router will restore and reboot automatically.
• Log in to the web management page of the router to restore the router to its factory defaults.

Q4. What can I do if I forget the password of the web management page?

- Refer to FAQ>Q3 to restore the router and use admin for both username and password or create a new password to log in.

Q5. What can I do if I forget my wireless network password?

• The default wireless password is printed on the product label of the router.
• If the default wireless password has been changed, log in to the router's web management page and retrieve or reset your password.

Note: For more troubleshooting help, please refer to FAQ on our website: https://www.tp-link.com.

Conecte el hardware

Merk: Bilder er kun for demonstrasjon.

Norsk

- Keep the device away from water, fire, humidity or hot environments.

- Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

- Do not use damaged charger or USB cable to charge the device.

- Do not use any other chargers than those recommended.

- Do not use the device where wireless devices are not allowed.

- Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Español:

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU. The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.

Español:

op https://www.tp-link.com/en/support/ce/.

Svenska:

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit

https://www.tp-link.com/en/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
