Product type	5G/4G+ router with WiFi hotspot
Brand	TP-Link
Model	Archer NX210
Dimensions (Length x Width x Height)	Approximately 150 x 150 x 30 mm
Weight	Approximately 300 g
Power supply	Power adapter 12 V / 1.5 A
Wireless standard	Wi-Fi AC1200 (2.4 GHz + 5 GHz)
Network interface	1 Gigabit Ethernet LAN port
SIM card slot	Yes, for nano SIM card 5G/4G/WCDMA
Main functions	Internet connection via 5G/4G+ mobile network, WiFi sharing, wired router mode, management via web interface
Wireless security	WPA2/WPA3 encryption, parental control via interface
PIN settings	Manage SIM card PIN code in web interface
Data limit	Configurable in web interface
Data roaming	Activable in web interface
Maintenance and cleaning	Wipe with a dry, soft cloth; do not use liquids
Safety instructions	Keep away from water, fire, humidity; do not disassemble
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% non-condensing
General information	Warranty as per packaging; CE certified; EU compliance

Frequently Asked Questions - Archer NX210 TP-LINK

How to access the router's web management page?

Connect your computer to the router (WiFi or cable). Open a browser and enter http://tplinkmodem.net or http://192.168.1.1. Use the default username and password (admin/admin) or create a new password if prompted.

What to do if I cannot access the web management page?

Make sure your computer is set to obtain an IP address automatically. Check the entered URL (http://tplinkmodem.net or http://192.168.1.1). Try another browser, restart the router, or disable/re-enable the network card.

How can I connect to the internet using a SIM card?

Insert the SIM card into the slot until it clicks. Plug in the adapter and turn on the router. Make sure the Internet LED is on. If not, check coverage, credit, and PIN settings in the web interface.

What to do if I forgot the WiFi password?

The default WiFi password is printed on the label at the bottom of the router. If it has been changed, log into the web management page (http://tplinkmodem.net) to retrieve or reset it.

How to restore factory settings on the router?

With the router on, press and hold the RESET button on the back until the power LED blinks. The router will restart with factory settings. You can also do this from the web interface.

What to do if I forget the web management page password?

Use the RESET button to restore factory settings (see previous question). Then log in with the default username and password (admin/admin) or create a new password.

How to configure the data limit?

Log into the web interface (http://tplinkmodem.net). Go to mobile data settings, enable the limit, set the total allocation, and reset the data used if necessary.

Can I use the router without a SIM card?

Yes, the router can work in wired router mode: connect an Ethernet cable to the LAN port and configure it as a wireless router via the web interface.

How to enable data roaming?

Log into the web interface, go to mobile data settings and enable the Data roaming option. Make sure your operator supports roaming in your area.

Where to find the complete user manual?

The complete guide is available on the TP-Link website: www.tp-link.com/fr. You can also download the manual from this page.

USER MANUAL Archer NX210 TP-LINK

Quick Installation Guide

5G CPE Router

For technical support, the user guide and more information, please visit https://www.to-link.com/support/. © 2024 TP-Link 7103511769 REV1.D.T

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

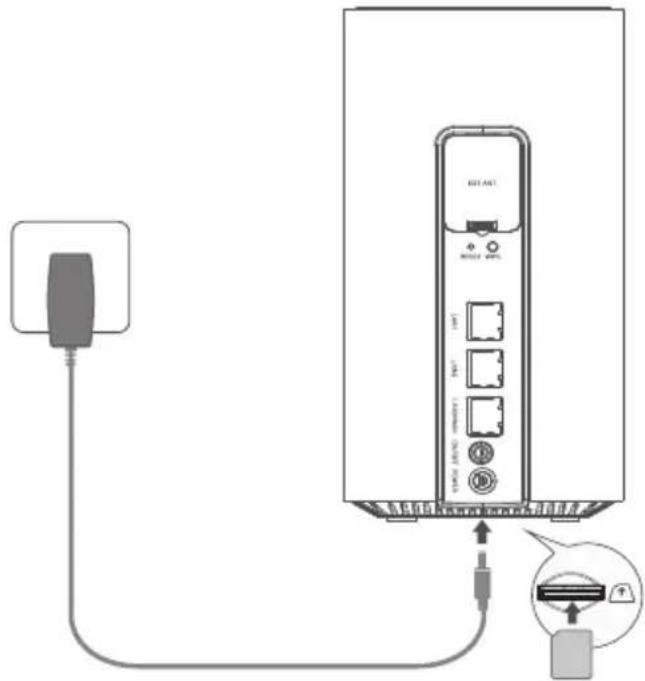

Connect the Hardware

Note: Images are for demonstration only.

1 Insert the SIM card into the slot until you hear a click.
2 Connect the power adapter and turn on the router.
3 Make sure the Internet LED is on, indicating the router is connected to the internet successfully. If it is not, Please refer to FAQ > Q2 in this guide.

Enjoy the Internet!

Connect your device to the router (wired or wireless).

The default SSID and password are printed on the product label at the bottom of the router.

English

Customize the 5G/4G+ Router

1 Make sure your computer is connected to the router (via wired or wireless).
2 Enter http://tplinkmodem.net or http://192.168.1.1 in the address bar of a web browser. Based on the actual web management login page: use the default admin for both username and password or create a new password to log in.
3 Follow the step-by-step instructions on the Quick Setup page to complete the initial configuration.

Note: The router can also be used (or configured) in wireless router mode for Cable connections. For more information, please refer to the User Guide at www.tp-link.com.

FAQ(Frequently Asked Questions)

Q1. What should I do if I cannot access the web management page?

• Verify that the computer is set to obtain an IP address automatically from the router.
• Verify that http://tplinkmodem.net or http://192.168.1.1 is correctly entered in the web browser.
• Use another web browser and try again.
• Reboot your router and try again.
• Disable and then enable the active network adapter and try again.

Q2. What can I do if I cannot access the internet?

• Verify that your SIM card is a 5G/4G or WCDMA card.
• Verify that your SIM card is in your ISP's service area.
• Verify that your SIM card has sufficient credit.
• Check the LAN connection:

Enter http://tplinkmodem.net or http://192.168.1.1 in the address bar of a web browser. If the login page does not appear, refer to FAQ > Q1 and then try again.

- Check your ISP parameters:

1 Open a web browser and log in to the web management page.
2 Verify the parameters provided by your ISP are correctly entered. If the parameters are incorrect, create a new profile with the correct parameters.

- Check the PIN settings:

1 Open a web browser and log in to the web management page.
2 Verify if PIN is required. If it is, enter the correct PIN provided by your ISP.

- Check the Data Limit:

1 Open a web browser and log in to the web management page.
2 Verify if the total used data exceeds the total allowance. If it does, correct the total allowance and set the total used data to 0, or disable the data limit.

- Check the Mobile Data:

1 Open a web browser and log in to the web management page.
2 Enable the mobile data to access the internet.

English

- Check the Data Roaming:

1 Confirm with your ISP if you are in a roaming service area. If you are, open a web browser and log into the web management page.
2 Enable the data roaming to access the internet.

Q3. How to restore the router to its factory default settings?

• With the router powered on, press and hold the RESET button on the rear panel of the router until the Power LED starts flashing. The router will restore and reboot automatically.
• Log in to the web management page of the router to restore the router to its factory defaults.

Q4. What can I do if I forget the password of the web management page?

- Refer to FAQ>Q3 to restore the router and use admin for both username and password or create a new password to log in.

Q5. What can I do if I forget my wireless network password?

• The default wireless password is printed on the product label of the router.
• If the default wireless password has been changed, log in to the router's web management page and retrieve or reset your password.

Note: For more troubleshooting help, please refer to FAQ on our website: https://www.tp-link.com.

Conecte el hardware

Merk: Bilder er kun for demonstrasjon.

Norsk

- Keep the device away from water, fire, humidity or hot environments.

- Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

- Do not use damaged charger or USB cable to charge the device.

- Do not use any other chargers than those recommended.

- Do not use the device where wireless devices are not allowed.

- Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Español:

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU. The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.

Español:

op https://www.tp-link.com/en/support/ce/.

Svenska:

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit

https://www.tp-link.com/en/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
