USER MANUAL HIF1993DBT ROADSTAR

1. USB PORT
2. POWER ON/OFF BUTTON (On the remote press & hold for ON/OFF)
3. VOLUME KNOB
4. FUNCTION BUTTON
5. RECORD BUTTON
6. LCD DISPLAY
7. MENU
8. INFO
9. SCAN
10. PRESET
11. EQUALIZER
12. CD DOOR
13. PLAY / PAUSE: Press to play. When it plays, press to stop playback temporarily and press again to resume playback.
14. STOP: Press when you want to finish playback.
15. SKIP - / REWIND: Press to go to the previous track, press & hold to go back fast.
16. SKIP + / FAST FORWARD: press to go to the next track, press & hold to fast forward.
17. PLAY-MODE: press repeatedly to choose the play-mode (REPEAT, RANDOM)
18. CD DOOR OPEN/CLOSE BUTTON
19. TUNING KNOB / ENTER: (Press to "ENTER")
20. SPEAKERS
21. CASSETTE FFD/EJ
22. CASSETTE MECHANISM
23. ANTENNA SOCKET
24. POWER CORD
25. AUXILIARY INPUT
26. TURNTABLE PLATE
27. TRANSIT SCREW
28. TONE ARM
29. TONE ARM LOCK
30. LIFT LEVER
31. 33/45/78 RPM SPEED SELECTOR

REMOTE CONTROL

1. • / + 10 TRACK
     33.PROGRAM BUTTON
2. DELETE BUTTON
3. MUTE BUTTON

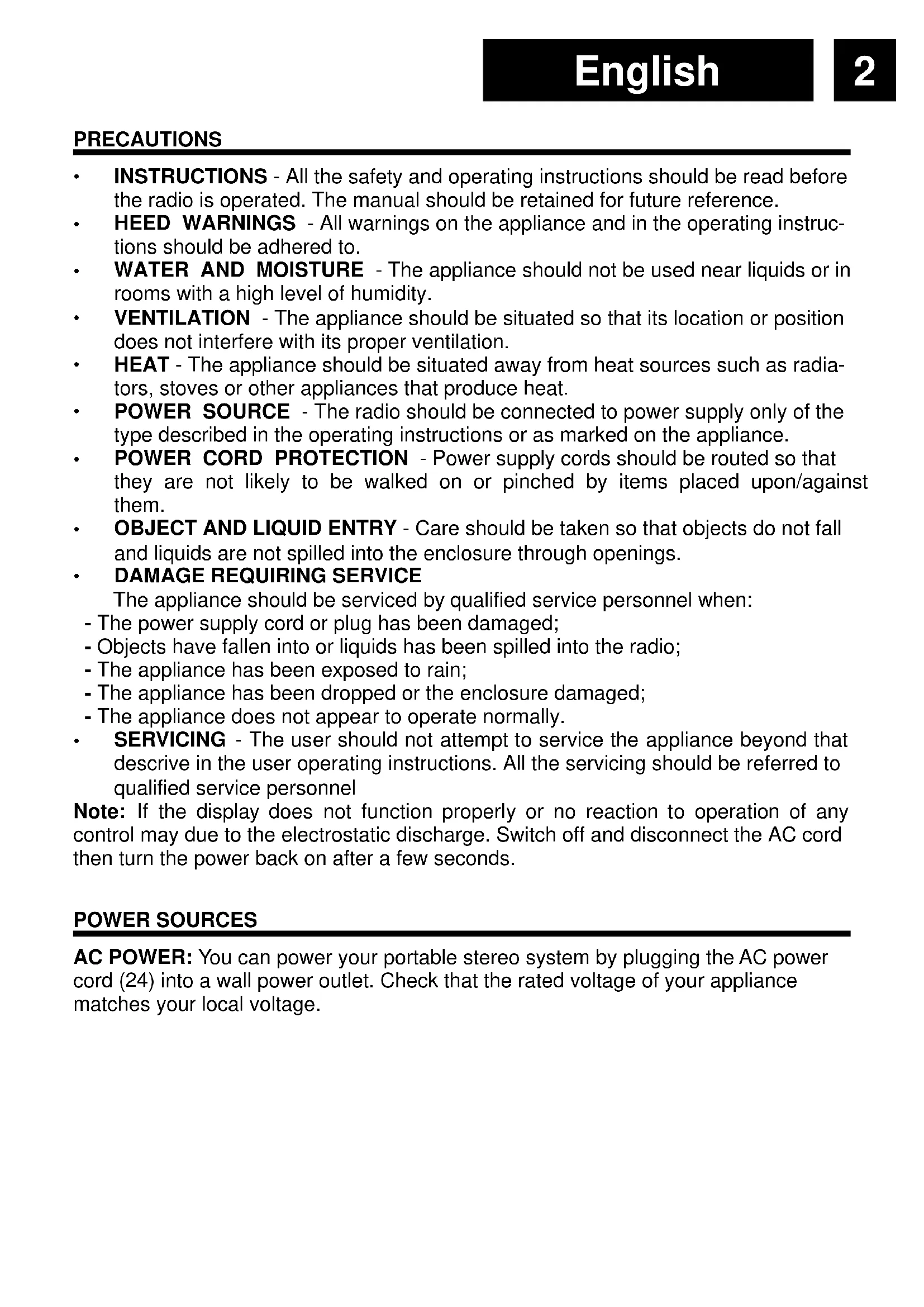

PRECAUTIONS

• INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
  HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
• WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
• VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
• HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
• POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
• POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
  OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
  DAMAGE REQUIRING SERVICE

The appliance should be serviced by qualified service personnel when:

• The power supply cord or plug has been damaged;
• Objects have fallen into or liquids has been spilled into the radio;
• The appliance has been exposed to rain;
• The appliance has been dropped or the enclosure damaged;

• The appliance does not appear to operate normally.

• SERVICING - The user should not attempt to service the appliance beyond that descrive in the user operating instructions. All the servicing should be referred to qualified service personnel

Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the AC cord then turn the power back on after a few seconds.

POWER SOURCES

AC POWER: You can power your portable stereo system by plugging the AC power cord (24) into a wall power outlet. Check that the rated voltage of your appliance matches your local voltage.

TO USE THE RADIO

1. Press the [POWER] button (2) to turn ON the unit;
2. Select the desired audio source by pressing the [FUNCTION] button (4);
3. (Please see detailed instructions for each Source in the following chapters);
4. Adjust the volume with the [VOLUME KNOB] (3) to the desired level;
5. Press and hold the [POWER] button (2) to turn OFF the unit.

Note: When no sound is produced, the unit will switch OFF automat. after 10 minutes.

NAVIGATE INTO THE MENU

In FM / DAB mode there is an option menu.

1. Press [MENU] (7) to access to the options.
2. Turn the [TUNING KNOB] (19) to navigate into the options.
3. Press [ENTER] (19) to select the options.
4. Press [MENU] (7) to exit the menu.

SYSTEM SETTINGS

In FM / DAB mode, press [MENU] (7) and use [SKIP -/+] (15/16) or [TUNING KNOB] (19) to select "SYSTEM";

• Time: To set the desired time option:

• Set Time/Date;

• Auto Update;
• Set 12 / 24 Hours;

• Set Date Format.

• Language: select this option to change the system language.

• Software Upgrade: select this option if a new software version is released.
• SW version: select this oprion to see the current software version.

CLOCK AND DATE SETTING

In DAB / FM mode:

1. press [MENU] (7);
2. Use [SKIP -/+] (15/16) or [TUNING KNOB] (19) to select "SYSTEM";
3. Confirm with the [ENTER] button (19);
4. Use [SKIP - / + ] (15/16) or [TUNING KNOB] (19) to select "TIME";
5. Confirm with the [ENTER] button (19);
6. Use [SKIP -/+] (15/16) or [TUNING KNOB] (19) to select "SET TIME / DATE";
7. Confirm with the [ENTER] button (19);
8. Use [SKIP -/+] (15/16) or [TUNING KNOB] (19) to adjust the hour;
9. Confirm with the [ENTER] button (19);
10. Use [SKIP -/+] (15/16) or [TUNING KNOB] (19) to adjust the minutes;
11. Confirm with the [ENTER] button (19);
12. Repeat steps 10 and 11 to set the date.

DAB RADIO OPERATION

1. Select "DAB" mode by pressing repeatedly the [FUNCTION] button (4);
2. To select the desired radio station press repeatedly the [SKIP -/+] buttons (15/16).

DAB PRESET

You can program a maximum of 20 preset radio stations.

1. Select your favourite station as explained before;
2. Press and hold [PRESET] button (10). "Preset Store" will appear on display;
3. Press [SKIP -/+] (15/16) to select the preset number;
4. Press [ENTER] (19) to confirm.

To recall a preset station press the [PRESET] (10) then press the [SKIP -/+] button (15/16) to choose the preset number and confirm with [ENTER] (19).

DAB MENU

Press [MENU] (7) to access to the options.

• Full Scan: select this option to perform a full scan of the available DAB programs. You can press [SCAN] (9) to perform the same action.
• Manual Tune: select this option to select manually the DAB frequency.
• DRC: select this option to choose between DRC low, DRC high and DRC off.
• Prune: select this option to choose between PRUNE stations on or off.

DABINFO

Repeatedly press [INFO] (8) to see the following informations: NAME / KBPS / DATE / TIME.

FM RADIO OPERATION

1. Select "FM" mode by pressing repeatedly the [FUNCTION] button (4);
2. Turn the [TUNING KNOB] (19) to manually select the frequency or press [SCAN] button (9) to scan the next/previous available station.

FM PRESET

See DAB PRESET instructions.

FM MENU

Press [MENU] (7) to access to the options.

• Scan Setting: select this option to choose between scanning all stations or only the strong stations.
• Audio Setting: select this option to choose between forcing mono audio or allowing stereo sound.

FMINFO

Repeatedly press [INFO] (8) to see the following informations: KIND OF PROGRAM / FREQUENCY / AUDIO / DATE / TIME.

TURNTABLE OPERATION

Note: When using the turntable for the first time, unscrew in clockwise sense the [TRANSPORT SCREW] (27) located on the upper right side of the turntable.

1. Select "PHONO" mode by pressing repeatedly the [FUNCTION] button (4);
2. Place a record on the turntable. Place the EP adapter over the central spindle when playing 45 rpm records;

3. Set the [SPEED SELECTOR] (31) to 33, 45 or 78 rpm according to the record;

4. Release the [TONEARM CLAMP] (29), and remove the stylus protector;

5. Lift up the [TONEARM] (28) with the [LIFT LEVER] (30);
6. Move the [TONEARM] (28) to the beginning of the record;
7. Lift down the [TONEARM] (28) with the [LIFT LEVER] (30);
8. When the record is finished the [TONEARM] (28) will automatically return to the rest support and the [PLATE] (26) will stop turning. To stop manually, lift up the to-tonearm from the record and return it to the rest support.

Note: Do not stop or turn the [PLATE] (26) manually.

When the unit is moved or transported:

Lock the [TONEARM] (28) with the [TONEARM CLAMP] (29);
- Place the protective cap on the stylus (even when not in use);
- Screw the [TRANSPORT SCREW] (27) counterclockwise until you feel resistance (do not screw it completely).

CD-MP3 OPERATION

1. Select "CD" mode by pressing repeatedly the [FUNCTION] button (4);
2. Press [OPEN/CLOSE] (18) to open the [CD DOOR] (12) and place a CD with the label up in the CD compartment.
3. Close the [CD DOOR] (12). Focus search is performed and playback will start automatically from the first track.

PROGRAMMING

Up to 99 tacks (MP3, 20 in CD) can be programmed and play in any order.

1. Stop the playback by pressing [STOP] (14);
2. Press [PLAY MODE] (17), the display (6) will show "P01" and flash;
3. Select desired track by using [SKIP -/+] buttons (15/16);
4. Press [PLAY MODE] (17) again to confirm desired track into the program memory;
5. Repeat step 3 and 4 to enter additional tracks into the program memory.
6. When all the desired tracks have been programmed, press [PLAY] (13) to play the disc in the order you have programmed.

Note: Press [STOP] (14) twice to terminate programmed play.

USB OPERATION

1. Select "USB" mode by pressing repeatedly the [FUNCTION] button (4);
2. Plug an USB stick (max. 32GB) into the [USB_PORT] (1);
3. Playback will start automatically from the first track.

PROGRAMMING

The PROGRAMMING operation is the same as that of CD-MP3.

Notes:

• Some mp3 player may not be able to play via the usb socket. this is not a maulfunction of the system.
• To avoid damage to USB memory, remove it only when the radio is turned off.
  The USB port is not designed for charging smartphones or other devices.

TAPE OPERATION

1. Select "TAPE" mode by pressing repeatedly the [FUNCTION] button (4);
2. Insert a cassette TAPE into the [CASETTE MECHANISM] (22);
3. The system will start playback automatically;
4. Press [TAPE FORWARD/EJECT] button (21) half way during playback to start rapid tape winding in forward direction.
5. Slightly press the [TAPE FORWARD/EJECT] button (21) again to resume playback.
6. Press the [TAPE FORWARD/EJECT] button (21) completely inwards and the cassette tape will be ejected.

BLUETOOTH OPERATION

1. Select "BT" mode by pressing repeatedly the [FUNCTION] button (4);
2. Connect your Bluetooth portable device to the ID Bluetooth tagged as "HIF-1993D+BT";
3. You can now transfer the music to the HIF-1993D+BT.

Note: Music control (play, pause, etc) must be done from your ext. device.

AUX-IN OPERATION

1. Select "PHONO" mode by pressing repeatedly the [FUNCTION] button (4);
2. Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the [AUX-IN SOCKET] (25);

Note: Music control (play, pause, etc) must be done from your external device.

DIRECT USB ENCODING

Remark:

• Recording speed is 1:1.
• No song title will be recorded during encoding mode.
• To avoid damage to USB memory, remove it only when the radio is turned off.

ENCODE FROM DAB RADIO, PHONO, CASSETTE, BLUETOOTH AND AUX-IN:

1. Plug the USB stick into the [USB_PORT] (1);
2. Perform normal playback of the source you want to encode & record;
3. Press the [RECORD] button (5) twice to start encoding. On the display will flash "USB";
4. Once the record is finished, press the [STOP] button (14) to stop recording.

ENCODE FROM CD:

1. Plug the USB stick into the [USB_PORT] (1);
2. Perform normal playback of the CD you want to encode & record;
3. After focus search is completed, press the [RECORD] button (5);

4. Press repeatedly the [SKIP -/+] button (15/16) during the playback to select the desired encoding option:

5. REC-1: Select to record only the current track;
   REC-F: Select to record the whole folder;

REC-A: Select to record all the tracks of the CD.

1. Press the [RECORD] button (5) to confirm;
2. The playback will stop and restart automatically and on the display (6) "REC" will flash. Encoding is performing now;
3. Press the [STOP] button (14) to finish recording.

Note: After completing of encoding, unit will stop playback and encoding automatically.

DELETE TRACKS FROM USB

1. Perform normal playback of the track you want to delete;
2. During playback of the track you want to delete, press the [DELETE] button (34) on the remote control twice.

TECNICAL SPECIFICATIONS

Power

Power Supply: AC 230V ~ 50Hz.

Radio Frequency Coverage

DAB+/ DAB: BAND III 174.928MHz - 239.200MHz.

FM: 87.5 - 108 MHz.

Speaker

Output Power: 2 × 5 Watt rms.

Max. Output Power: 2 × 40 Watt

General

BT Maximum radiated Power: 2.5 mW (4 dBm).

USB Port Version: USB 3.0 / 200 mA

Specifications and design are subject to possible modifications without notice due to improvement.

WARNING

The exclamation point within the triangle is a warning sign alerting the user of important instrucinstructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

9

Deutsch

LAGE DER BEDIENELEMENTE

Nota: Whenever you are in the area, you will have to wait for a few minutes.

NAVIGAZIONE DEL MENU

Hereby, Roadstar Management SA declares that the radio equipment type HIF-1993D+BT is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://roadstar.com/images/ce/HIF-1993D+BT.pdf

or by scanning the following QR Code.

http://roadstar.com/images/ce/HIF-1993D+BT.pdf

http://roadstar.com/images/ce/HIF-1993D+BT.pdf

http://roadstar.com/images/ce/HIF-1993D+BT.pdf

http://roadstar.com/images/ce/HIF-1993D+BT.pdf

http://roadstar.com/images/ce/HIF-1993D+BT.pdf

http://roadstar.com/images/ce/HIF-1993D+BT.pdf

Roadstar Management SA, via Passegiata 7 CH 6883 Novazzano (Switzerland)
