USER MANUAL IR 210 MICROLIFE

Microlife IR 210 IR 210Guarantee Card

microlife

Microlife Ear Thermometer IR 210

Measuring system: The Kramble thermometer is a high quality probe incorporating the inner technology and used in accordance with international standards. With the unique technology, the device can provide a precise measurement of the temperature in all cases without requiring any further measurements. The device provides an ideal way to measure the amount of gas in the atmosphere or in a range that has been specified for each measurement. The thermometer has been specially designed to be able to measure the amount and receiving of heat from the atmosphere. It is intended for use on people's hands. The thermometer has been clinically proven and proven to be useful in conjunction with equipment in the operating instructions manual. Pressure and flow through these instruments are easily controlled by you, which enables accurate and safe information. Table of Contents: 1. The Advantages of this Thermometer - Measurement in Feet - Measurement in Foot - Correct pressure indication - Correct pressure indication - Measured temperature - Record method - Record the test Instructions - Measured temperature (oC) / girth - Measured temperature to low - Ambient temperature to high - Ambient temperature to too low - Room and room temperature - Book display - Flat table - Order/Time - Besper function setting - Racking for the battery - Storage container - Price per unit - How to refill a new probe unit - Read the instructions carefully before using this device. Type BF applied cold

EN

Nannn nnnnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nannn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn annn nn ann

Date of Publication / Issue / editorial date
doi:10.1097/ucp-0b0c254368124440000000000000000000000000000000000000000000000000000000000000000000000000000000

Spearman's Detergent and Statistical Inequalities in Logistic Functions: an Introduction to the Theory of Decision Processes in Business Ethics, pp. 139-152.

microlife

1. Battery Replacement
2. Guarantee
3. Technical Specifications
4. www.microlife.com Guarantee Card (see Back Cover)

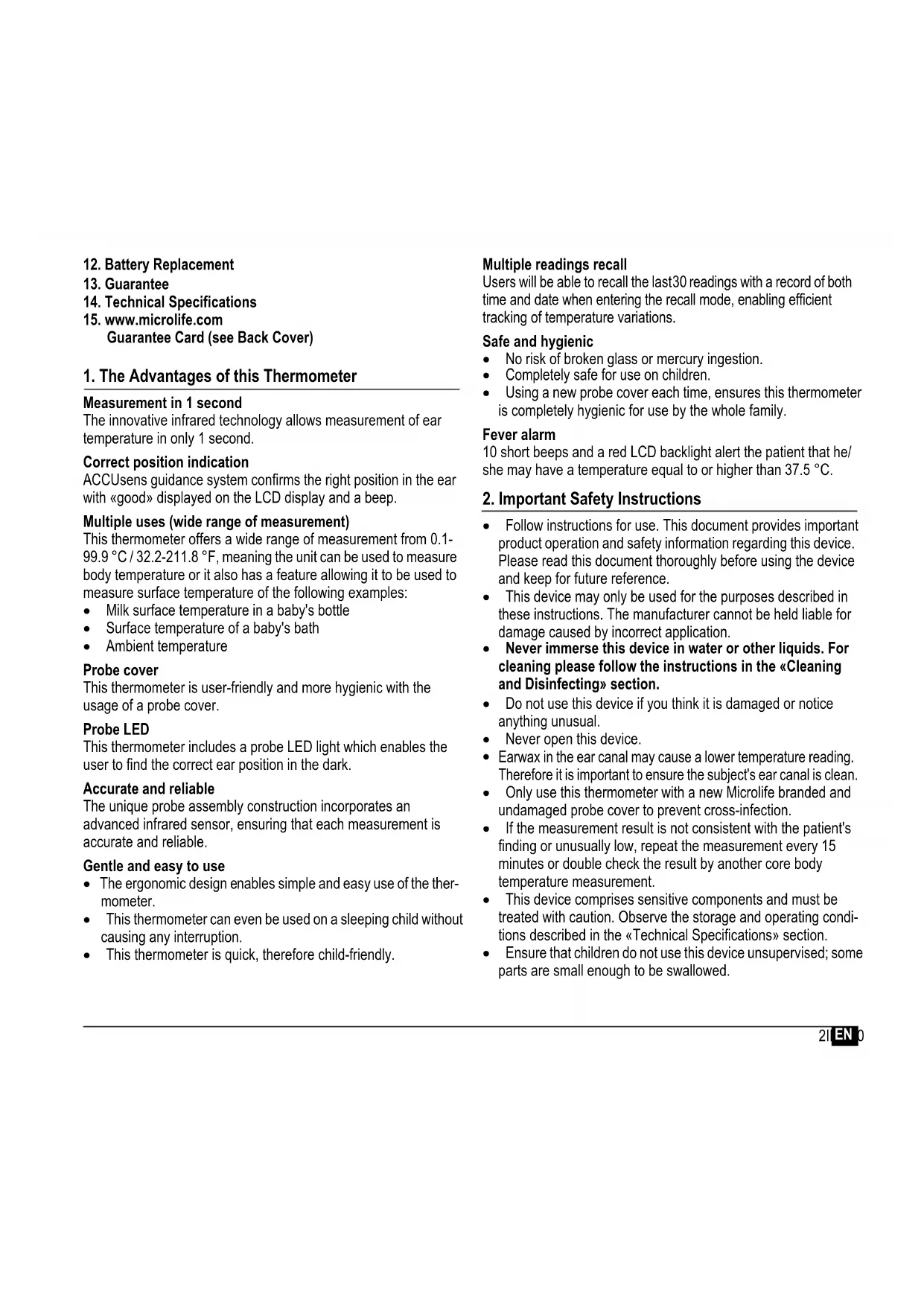

1. The Advantages of this Thermometer

Measurement in 1 second

The innovative infrared technology allows measurement of ear temperature in only 1 second.

Correct position indication

ACCUsens guidance system confirms the right position in the ear with «good» displayed on the LCD display and a beep.

Multiple uses (wide range of measurement)

This thermometer offers a wide range of measurement from 0.1- 99.9^ / 32.2 - 211.8^ , meaning the unit can be used to measure body temperature or it also has a feature allowing it to be used to measure surface temperature of the following examples:

Milk surface temperature in a baby's bottle
Surface temperature of a baby's bath
- Ambient temperature

Probe cover

This thermometer is user-friendly and more hygienic with the usage of a probe cover.

Probe LED

This thermometer includes a probe LED light which enables the user to find the correct ear position in the dark.

Accurate and reliable

The unique probe assembly construction incorporates an advanced infrared sensor, ensuring that each measurement is accurate and reliable.

Gentle and easy to use

• The ergonomic design enables simple and easy use of the thermometer.
• This thermometer can even be used on a sleeping child without causing any interruption.
• This thermometer is quick, therefore child-friendly.

Multiple readings recall

Users will be able to recall the last30 readings with a record of both time and date when entering the recall mode, enabling efficient tracking of temperature variations.

Safe and hygienic

• No risk of broken glass or mercury ingestion.
• Completely safe for use on children.
• Using a new probe cover each time, ensures this thermometer is completely hygienic for use by the whole family.

Fever alarm

10 short beeps and a red LCD backlight alert the patient that he/she may have a temperature equal to or higher than 37.5^

2. Important Safety Instructions

• Follow instructions for use. This document provides important product operation and safety information regarding this device. Please read this document thoroughly before using the device and keep for future reference.
• This device may only be used for the purposes described in these instructions. The manufacturer cannot be held liable for damage caused by incorrect application.
• Never immerse this device in water or other liquids. For cleaning please follow the instructions in the «Cleaning and Disinfecting» section.
• Do not use this device if you think it is damaged or notice anything unusual.
• Never open this device.
• Earwax in the ear canal may cause a lower temperature reading. Therefore it is important to ensure the subject's ear canal is clean
• Only use this thermometer with a new Microlife branded and undamaged probe cover to prevent cross-infection.
• If the measurement result is not consistent with the patient's finding or unusually low, repeat the measurement every 15 minutes or double check the result by another core body temperature measurement.
• This device comprises sensitive components and must be treated with caution. Observe the storage and operating conditions described in the «Technical Specifications» section.

• Ensure that children do not use this device unsupervised; some parts are small enough to be swallowed.

• Do not use this device close to strong electromagnetic fields such as mobile telephones or radio installations. Keep a minimum distance of 3.3m from such devices when using this device.

• Protect it from:

• extreme temperatures

• impact and dropping
• contamination and dust

• direct sunlight
  -heat and cold

• If the device is not going to be used for a prolonged period the battery should be removed.

WARNING: The measurement results given by this device is not a diagnosis. It is not replacing the need for the consultation of a physician, especially if not matching the patient's symptoms. Do not rely on the measurement result only, always consider other potentially occurring symptoms and the patient's feedback. Calling a doctor or an ambulance is advised if needed.

3. How this Thermometer measures Temperature

This thermometer measures infrared energy radiated from the eardrum and the surrounding tissue. This energy is collected through the lens and converted to a temperature value. The measured reading obtained directly from the eardrum (Tympanic Membrane) ensures the most accurate ear temperature. Measurements taken from the surrounding tissue of the ear canal generate lower readings and may result in misdiagnosis of fever.

To avoid an inaccurate measurement

1. Fit a new Microlife branded and undamaged probe cover 31 on the measuring sensor ①.
2. Switch on the thermometer by pressing the START/IO button 6
3. After one beep is heard (and the temperature scale icon is flashing), straighten the ear canal by gently pulling the middle of the ear back and up.
4. Place the probe ① firmly into the ear canal. Good will be displayed with a short beep to confirm the device has detected the correct position. Press the START/IO button ⑥ and keep the probe in the ear until the thermometer beeps to signal the completion of the measurement.

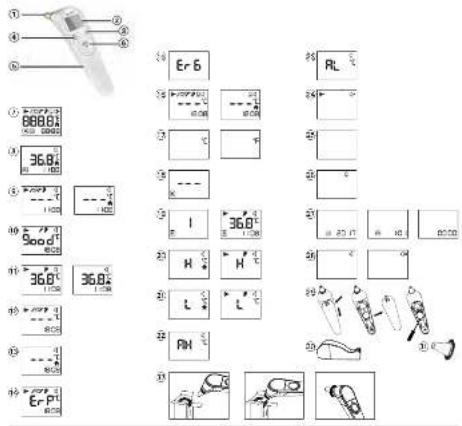

4. Control Displays and Symbols

• All segments displayed ⑦: Press the START/IO button ⑥ to turn on the unit; all segments will be shown for 1 second.

• Ready for measurement (9): When the unit is ready for measurement, the «°C» or «°F» icon will keep flashing. The probe LED light is activated and will keep flashing.

• Correct position indication: The probe LED light will stop flashing (stays illuminated) and «good» will be displayed on the LCD, when the measuring sensor detects an appropriate position.

• Measurement complete ①: The reading will be shown on the display ② with the «°C» or «°F» icon; the unit is ready for the next measurement, when the «°C» or «°F» icon is flashing again.
• Low battery indicator ⑥: When the unit is turned on, the «battery» icon will keep flashing to remind the user to replace the battery.

5. Setting Date, Time and Beeper Functions

Setting the date and time

1. After the new battery is fitted, the year number flashes in the display 27. You can set the year by pressing the M-button 3. To confirm and then set the month, press the MODE button 4.
2. Press the M-button ③ to set the month. Press the MODE button ④ to confirm and then set the day.
3. Follow the previously mentioned instructions to set the day, hours and minutes.
4. Once you have set the minutes and pressed the START/IO button 6, the date and time are set and the time is displayed.

If no button is pressed for 20 seconds, the device automatically switches to ready for measuring (9).

Cancel time setup: Press the START/IO button 6 during time setup. The LCD will show Date/Time icons with - After that press the START/IO button 6 to start the measurement. If no further action is taken within 60 seconds, the device will automatically turn off.

Change current date and time: Press and hold the MODE button 4 for approx. 8 seconds until the year number starts to flash 27. Now you can enter the new values as described above.

Setting the beeper

1. Press and hold the MODE button 4 for 3 seconds to set the beeper 28.

2. Press the M-button ③ to either turn the beeper on or off. The beeper is activated when the beeper icon ②8 is shown without a cross.

When the beeper setting has been chosen, press the START/IO button 6 to enter the ready for measuring mode; otherwise the device automatically switches to ready for measuring after 10 seconds 9.

6. Changing between Body and Object Mode

1. Press the START/IO button ⑥. The display ② is activated to show all segments for 1 second.
2. The default mode is body mode 12. Press the MODE button 4 to switch to object mode 13. For switching back to body mode, press the MODE button again.

7. Directions for Use

Measuring in body mode

Important: Before each measurement, fit a new undamaged probe cover 31 on the measuring sensor. Failure to do so will result in incorrect temperature measurements. How to correctly fit a new probe cover 32 is pictured at the beginning of this instruction.

1. Press the START/IO button ⑥. The display ② is activated to show all segments for 1 second.
2. When the or icon is flashing, a beep sound is heard and the thermometer is ready for measuring 9
3. The probe LED light is activated and will keep flashing.

4. Straighten the ear canal by pulling the ear up and back to give a clear view of the eardrum.

5. For children under 1 year; pull the ear straight back.

6. For children of 1 year to adult; pull the ear up and back.

Also refer to the short instructions at the front.

1. While gently pulling the ear, insert the probe snugly into the ear canal.
2. The probe LED light will stop flashing (stays illuminated) and «good» will be displayed on the LCD, when the measuring sensor detects an appropriate position.
3. Immediately press the START/IO button 6. Release the button and wait for the beep sound. This indicates the end of the measurement.
4. Remove the thermometer from the ear canal. The display shows the measured temperature (1).

5. Replace the probe cover 31 before starting a new measurement.

6. For the next measurement wait until the «°C»/«°F» icon is flashing and follow steps 5-7 above.

7. Press and hold the START/IO button 6 for 3 seconds to turn off the device; otherwise the device will automatically switch off after approx. 60 seconds.

Measuring in object mode

Important: Remove the probe cover before each measurement in object mode. Failure to do so will result in incorrect temperature measurements.

1. Press the START/IO button ⑥. The display ② is activated to show all segments for 1 second.
2. Press the MODE button 4 to switch to object mode.
3. Aim the thermometer at the center of the object you want to measure with a distance of no more than 5cm . Press the START/IO button ⑥. After 1 second a long beep will verify the completion of measurement.
4. Read the recorded temperature from the LCD display.
5. For the next measurement wait until the «°C»/«°F» icon is flashing and follow steps 3-4 above.

NOTE:

Patients and thermometer should stay in similar room condition for at least 30 minutes.

• To ensure accurate readings, wait at least 30 sec. after 3-5 continuous measurements.
• It is essential that a new undamaged probe cover 31 is used for each measurement. Therefore, this device reminds the user to take off the used probe cover when turning off the device. The «probe cover» icon 24 is displayed and the probe LED light will flash for 3 seconds. For cleaning, follow the instructions in the «Cleaning and Disinfecting» section.
• After cleaning the measuring sensor ① with alcohol, wait 5 minutes before taking the next measurement, in order to allow the thermometer to reach its operating reference temperature.
• 10 short beeps and a red LCD backlight alert the patient that he/she may have a temperature equal to or higher than 37.5^ .
• For an infant, it is best to have the child lying flat with his/her head sideways so the ear is facing upwards. For an older child or adult, it is best to stand behind and slightly to the side of the patient.

• Always take the temperature in the same ear, since the temperature readings may be different from ear to ear.

• In the following situations it is recommended that three temperatures in the same ear be taken and the highest one taken as the reading:

• New born infants in the first 100 days.

• Children under three years of age with a compromised immune system and for whom the presence or absence of fever is critical.

• When the user is learning how to use the thermometer for the first time until he/she has familiarized himself/herself with the device and obtains consistent readings.

• If the measurement is surprisingly low.

• Don't take a measurement while or immediately after nursing a baby.

• Don't use the thermometer in high humidity environments.
• Patients should not drink, eat or exercise before/while taking the measurement.
• Doctors recommend rectal measurement for newborn infants within the first 6 months, as all other measuring methods might lead to ambiguous results.
• Readings from different measuring sites should not be compared as the normal body temperature varies by measuring site and time of day, being highest in the evening and lowest about one hour before waking up.

Normal body temperature ranges:

-Axillar:34.7-37.3 ^ C /94.5-99.1°F
- Oral: 35.5 - 37.5 °C / 95.9 - 99.5 °F
- Rectal: 36.6 - 38.0 °C / 97.9 - 100.4 °F
-Microlife IR 210:35.4-37.4°C/95.7-99.3°F

8. Changing between Celsius and Fahrenheit

This thermometer can display temperature readings in either Fahrenheit or Celsius. To switch the display between ^ C and ^ F , press and hold the MODE button 4 for 3 seconds; the beeper icon is shown on the display. Press the MODE button again; the current measurement scale ( «°C » or «°F » icon) will be shown on the display 17. Change the measurement scale between ^ C and ^ F by pressing the M-button 3. When the measurement scale has been chosen, press the START/IO button 6 to enter the «ready for measuring» mode; otherwise the device automatically switches to ready for measuring after 10 seconds 9.

9. How to recall 30 readings in Memory Mode

This thermometer can recall the last 30 readings with a record of both time and date.

• Recall mode 18: Press the M-button 3 to enter recall mode when the power is off. The memory icon «M» will flash.
• Reading 1 - the last reading (19): Press and release the M-button (3) to recall the last reading. Number «1» and a flashing «M» are displayed.

Pressing and releasing the M-button ③ after the last 30 readings have been recalled will resume the above sequence from reading 1.

10.Error Messages

Measured temperature too high 20: Displays H when measured temperature is higher than 43^ / 109.4^ in body mode or 99.9^ / 211.8^ in object mode.
- Measured temperature too low (21): Displays «L» when measured temperature is lower than 32^ / 89.6^ in body mode or 0,1^ / 32,2^ in object mode.
- Ambient temperature too high (2): Displays «AH» when ambient temperature is higher than 40.0^ / 104.0^ .
- Ambient temperature too low 23: Display «AL» when ambient temperature is lower than 10.0^ / 50.0^ .
Incorrect location indication 14: The probe is not correctly inserted in the ear canal. Please insert the probe as described in this manual.
- Error function display 15: The system has a malfunction.
- Blank display ②5: Check if the battery has been loaded correctly. Also check polarity (<++) and <->) of the battery.
- Flat battery indication 26: If only the «battery» icon is shown on the display, the battery should be replaced immediately.

11.Cleaning and Disinfecting

Use an alcohol swab or cotton tissue moistened with alcohol (70% Isopropyl) to clean the thermometer casing and the measuring sensor. Ensure that no liquid enters the interior of the device. Never use abrasive cleaning agents, thinners or benzene for cleaning and never immerse the device in water or other cleaning liquids. Take care not to scratch the surface of the sensor lens and the display.

12.Battery Replacement

This device is supplied with one lithium battery, type CR2032. The battery needs replacing when only the «battery» icon ②6 is shown on the display.

Remove the battery cover 29 by sliding it in the direction shown. Insert the new battery with the ^+ at the top.

Batteries and electronic devices must be disposed of in accordance with the locally applicable regulations, not with domestic waste.

13.Guarantee

This device is covered by a 5 year guarantee from the date of purchase. During this guarantee period, at our discretion, Microlife will repair or replace the defective product free of charge. Opening or altering the device invalidates the guarantee.

The following items are excluded from the guarantee:

• Transport costs and risks of transport.
• Damage caused by incorrect application or non-compliance with the instructions for use.
• Damage caused by leaking batteries.
• Damage caused by accident or misuse.
• Packaging/storage material and instructions for use.
• Regular checks and maintenance (calibration).
• Accessories and wearing parts: Battery.

Should guarantee service be required, please contact the dealer from where the product was purchased, or your local Microlife service. You may contact your local Microlife service through our website:

www.microlife.com/support

Compensation is limited to the value of the product. The guarantee will be granted if the complete product is returned with the original invoice. Repair or replacement within guarantee does not prolong or renew the guarantee period. The legal claims and rights of consumers are not limited by this guarantee.

14. Technical Specifications

Type: Ear Thermometer IR 210

Measurement Body mode: 32.0-43.0 °C / 89.6-109.4°F

range: Object mode: 0.1-99.9 °C / 32.2-211.8 °F

Resolution: 0.1^ / ^

Measurement Body mode:

accuracy ±0.2°C, 35.0~42.0°C/±0.4°F, 95.0~107.6°F

(Laboratory): ±0.3 °C, 32.0 ~ 34.9 °C and 42.1 ~ 43.0 °C /

±0.5°F, 89.6 ~ 94.8°F and 107.8 ~ 109.4°F Object mode:

± 1.0^,0.1 99.9^ / ± 2^,32.2 211.8^

Display: Liquid Crystal Display, 4 digits plus special icons

Acoustic: The unit is turned ON and ready for the measurement: 1 short beep.

Complete the measurement: 1 long beep. System error or malfunction: 3 short beeps Fever alarm: 10 short beeps.

Memory: 30 readings recall in the memory mode with a record of both time and date.

Backlight: The display light will be GREEN for 1 second, when the unit is turned ON. The display light will be GREEN for 5 seconds, when a measurement is completed with a reading less than 37.5^ / 99.5^ . The display light will be RED for 5 seconds, when a measurement is completed with a reading equal to or higher than 37.5^ / 99.5^ .

Operating 10 - 40 °C / 50.0 - 104 °F

conditions: 15 - 95 % relative maximum humidity

Storage -25-+55°C/-13-+131°F

conditions: 15 - 95% relative maximum humidity

Automatic Approx. 1 minute after last measurement has been Switch-off: taken.

Battery: 1 x CR2032 battery 3V

Battery

lifetime: approx. 800 measurements (using a new battery)

Dimensions: 159 × 43 × 60 mm

Weight: 60 g (with battery), 58 g (w/o battery)

IP Class: IP22

Reference to EN 12470-5: ASTM E1965

standards: IEC 60601-1; IEC 60601-1-2 (EMC); IEC 60601-1-11

Expected

service life: 5 years or 12000 measurements

This device complies with the requirements of the Medical Device Directive 93/42/EEC.

Technical alterations reserved.

According to the Medical Product User Act a biennial technical inspection is recommended for professional users. Please observe the applicable disposal regulations.

15. www.microlife.com

Detailed user information about our thermometers and blood pressure monitors as well as services can be found atwww.microlife.com.

www.microlife.com/support

± 0.5^,89.6 94.8^ and 107.8 109.4^

Modo de objeto:

± 1.0^, 0.1 99.9^ / ± 2^, 32.2 211.8^

±0.5°F, 89.6 ~ 94.8°F and 107.8 ~ 109.4°F

Mode objet:

± 1.0^,0.1 99.9^ / ± 2^,32.2 211.8^

stockage: Humidite relative 15 - 95% max.

Arret

www.microlife.com/support

Etnavapopa TnAaTawv tnpoeWv

OxnoTeC exouv T duvaTOnTa va eTavaepouv Tc 30 TEautaiec mepnoeic otav evpyoToiouov T aeitoupyia ETTAVAPOpAc, TPOKEIeVou VA TnapaKoauHouov aTOTeAeOaTiká Tc diakmuavcIg ePpokpaiaç.

Pnpoi touc kavovcs aopaaiaos Kai uyieivns

• Uπápxéi Kivduvoç katantoanç σπaσévou yuaiaou n uδpapyúpu.
• Evτελως ασφαλες για φρηση σε παιδί.
  XpoIIOIoVvTc eva veo kalumpa puyxouc kahe opapa, diaopalizE to Tepueto evai atoluta uyieivo yia xpno an oan tnv oikoyevia.

PnoEioiOn TnpTeOu

10 ouvtoua mTTKai o Kokkivoc WTIOOc TnC OboVNC LCD 8oTIOOUv TOAOTNt Nt EePOKpOia Tou/TnC EvExEiA iOn n uynlotepn Tou 37,5°C.

φωη με EN 12470-5; ASTM E1965; IEC 60601-1; IEC

TpóTuα: 60601-1-2 (EMC); IEC 60601-1-11

Avaevovn

DiaPkeia

Zwns: 5Xpovia n12000muTnOeic

H oukeun oumuoppwveai e touc kavovioouc latpiikwv Suokeuwv, ouqwva e nV obnyia 93/42/EEC.

H eiaepia biatnpie To dikaiwma yia aalayn Tov TxviKwXapaKtnpiotikwv.

Compensation is limited to the value of the product. The guarantee will be granted if the complete product is returned with the original invoice. Repair or replacement within guarantee does not prolong or renew the guarantee period. The legal claims and rights of consumers are not limited by this guarantee.

JL 1
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL J
JL

IR 210

1
2
(0S)M- j ③
(）MODEj ④
（5
（/START）j/ A
（7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

alglj jolj cajai .2

jyai li yjia.1

Jg 10000000000000000000000000000000000000000000000000000000000000000000000000000000000

jiaaii 5 jiai jiai i

Clll l 150 Microlife .Li

Lil

jiaaii juiy o jiu jieji

jolaiill joi tll iill joliall

Jall jblao, jll a

aaii iie 1

y

piai i 8

1. p25 11 10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

(5)

(1) (2)

y

Microlife 1

iuiyilie liiyu Jia jia

www.microlife.com/support

glll glll jnllll iinaii.

Jaaal Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa Jaa

Iulalall juaial 12a Juaia y laayj gl aaiil s iit u!

1

4.1.11.12.13.14

30 1

g 30 Jj j j j j j j j j j j j j j j j j j j j j j j j

1

107.6~95.0,°0.4±/°42.0~35.0,°0.2±

143.0～42.1,34.9～32.0,0.3±

109.4~107.8, 94.8~89.6, 0.5±

一 ^ 2 1 1 . 8 3 2 . 2 , 一 ^ 2 ± / _ 一 ^ 9 9 . 9 0 . 1 , 一 ^ 1 . 0 ±

a 4 a

:

11

7.70)

y 1

y j 10

1 37.5 no 00 00 wlll poe pae

99.5

Jn Jn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

137.5 1yglaoe jay aal aai

99.5

0°104 50.0/40°10

95-15

130° 130°+55° -25

95-15

:

：

= ( x1,y1) = ( x2,y2)

:

：

800

60x43x159

:

：

:IP

Lbbs

EN 12470-5; ASTM E1965; IEC 60601-1;

IEC 60601-1-2 (EMC); IEC 60601-1-11

12000 5

m : x = 1 或 3x + 4y + 1 = 0

gall

aill 0 jzly iolalll gill llaia 128

.93/42/EEC a a a a a a a a a a a

auii 1
