USER MANUAL Aquaria Slim 14 P OLIMPIA SPLENDID

Caution: risk of fire

1. The appliance contains R290 gas (A3 flammability classification)
2. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. The appliance must be installed, used and stored in a room with a floor surface in compliance with the minimum sizes indicated in the chart at page 9. This appliance contains a quantity of refrigerant gas R290 equal to the one indicated in the data label located on the appliance.
3. This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be applicable for the European Countries).
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (be applicable for other countries except the European Countries).
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. To prevent any electrocution risk, it is essential to disconnect the plug from the power socket before performing any maintenance operation on the appliance.
7. For the correct operation of the appliance, observe the minimum distances and the indications written in this manual (see figure 1).

8. For the correct electrical connection of the appliance, follow the indications in paragraph 2.3.

9. L'appareil contient du gaz R290 (classement d'inflammabilité A3)

10. L'appareil doit être stocké dans une piece bien ventilée où la taille de la piece correspond aux mesures indiquées pour l'utilisation de l'appareil. L'appareil doit être installé, utilisé et range dans une piece dont la surface respecte les dimensions minimales indiquées dans le tableau de la page 9.

1 -DESCRIPTION OF THE APPLIANCE 16

1.1- FEATURES 16

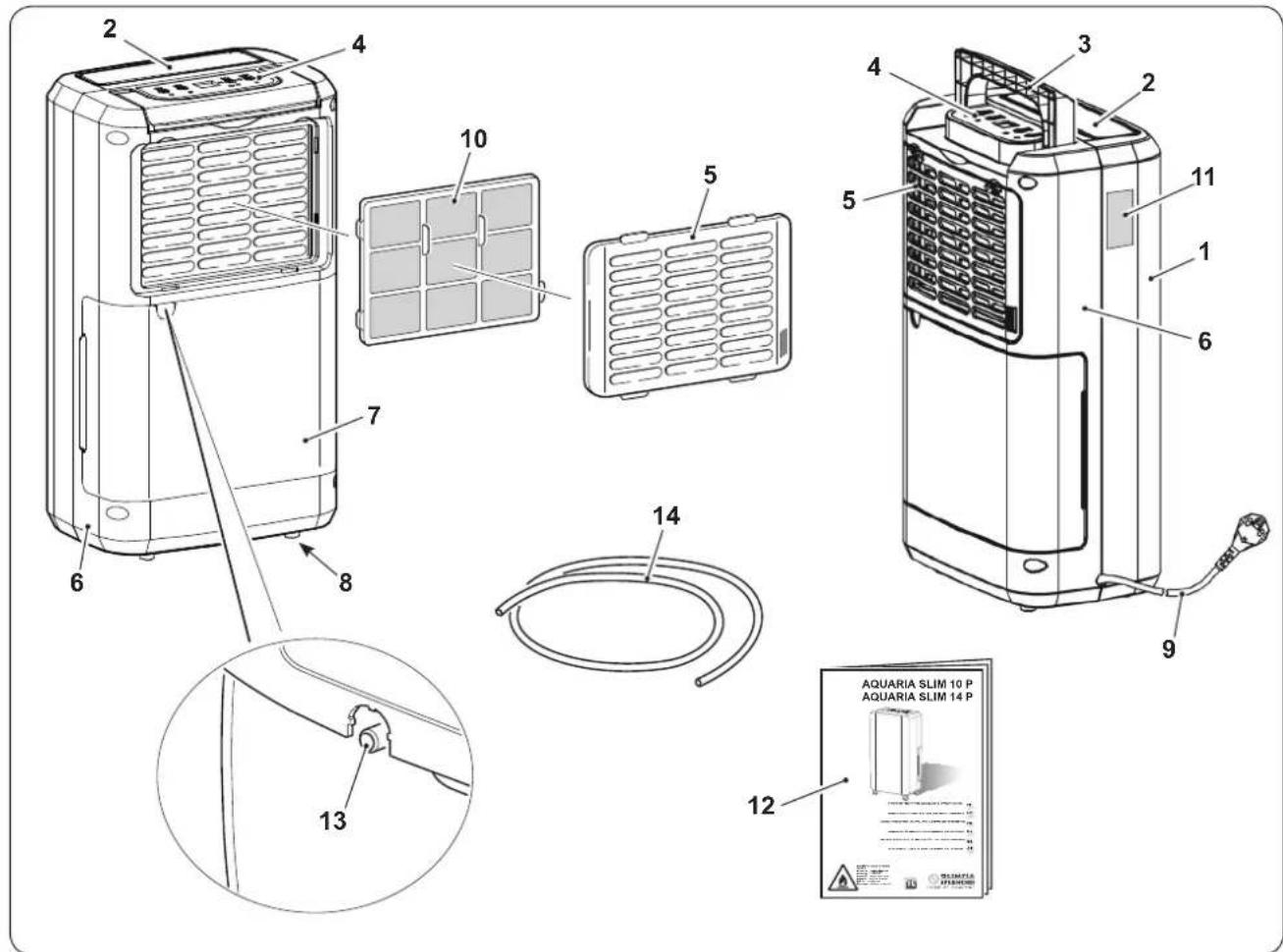

1.2- IDENTIFICATION OF THE MAIN COMPONENTS 16
1.3- INSTALLATION OF THE APPLIANCE 17
1.4 - CONTROL PANEL 17

2-INSTALLATION 18

2.1 - APPLIANCE TRANSPORT 18
2.2 - WARNINGS 18
2.3 - ELECTRICAL CONNECTION 19

3 - USE OF THE APPLIANCE 19

3.1- BLACKOUT 20
3.2 - WATER UNLOADING 20

3.2.a - Emptying the tank 20
3.2.b - Continuous water unloading 20

4 - MAINTENANCE AND CLEANING 21

4.1 - CLEANING 21
4.1.a - Cleaning the appliance 21
4.2 - AIR FILTER CLEANING 21
4.3 - TANK CLEANING 22

5 - PRESERVATION OF THE APPLIANCE 22

6-TECHNICAL DATA 22

7-TROUBLESHOOTING 23

DISPOSAL

This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances.

Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incorrect disposal.

Further information about the recycling of this product can be obtained from your local town hall, your refuse collection service, or in the store at which you bought the product.

This regulation is valid only in EU member states.

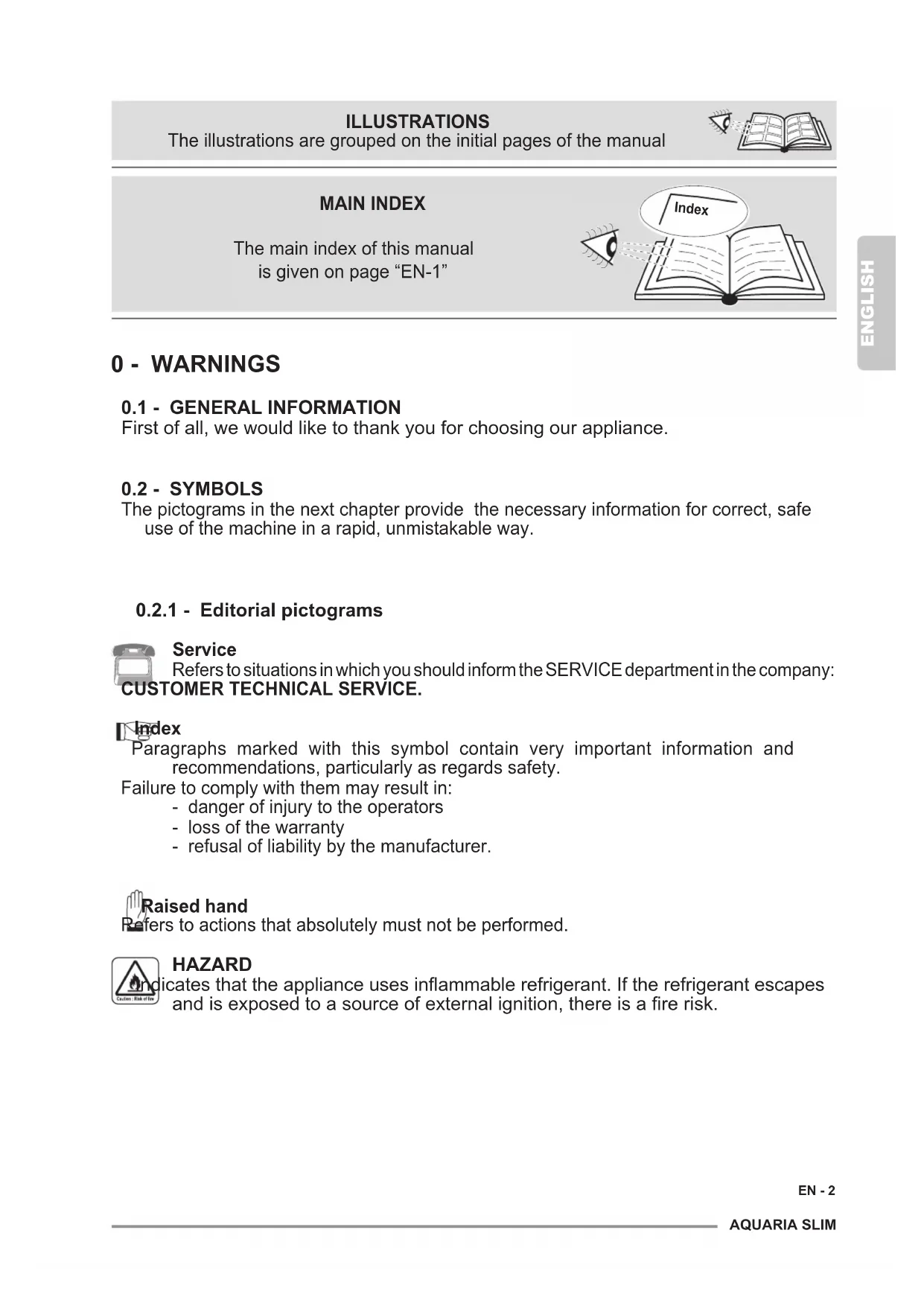

0 - WARNINGS

0.1 - GENERAL INFORMATION

First of all, we would like to thank you for choosing our appliance.

0.2 - SYMBOLS

The pictograms in the next chapter provide the necessary information for correct, safe use of the machine in a rapid, unmistakable way.

0.2.1 - Editorial pictograms

Service

Refers to situations in which you should inform the SERVICE department in the company:

CUSTOMER TECHNICAL SERVICE.

Index

Paragraphs marked with this symbol contain very important information and recommendations, particularly as regards safety.

Failure to comply with them may result in:

• danger of injury to the operators
• loss of the warranty
• refusal of liability by the manufacturer.

Raised hand.

Refers to actions that absolutely must not be performed.

HAZARD

cates that the appliance uses inflammable refrigerant. If the refrigerant escapes

and is exposed to a source of external ignition, there is a fire risk.

s to the personnel that the operation described could cause electrocution if not performed according to the safety rules.

GENERIC DANGER

It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage.

DANGER DUE TO HEAT

It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of burns due to contact with components at very high temperatures.

DO NOT COVER

cates to the personnel concerned, that it is prohibited to cover the appliance, to prevent over-heating.

ATTENTION

indicates that this document must be read carefully before installing and/or using the appliance.

• Indicates that the assistance personnel must handle the appliance following the installation manual.

ATTENTION

indicates that there may be additional information in attached manuals.

• Indicates that information is available in the user manual or in the installation manual.

ATTENTION

states that the assistance personnel must handle the appliance following the installation manual.

0.3 - GENERAL WARNINGS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED IN ORDER TO REDUCE RISKS OF FIRE, ELECTRIC SHOCKS AND INJURY, INCLUDING THE FOLLOWING:

This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID.

Our machines are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.

2 Read this manual carefully before performing any operation (installation, maintenance, use) and follow the instructions contained in each chapter.
3. Keep the manual carefully for future reference.

1. After removing the packaging, check that the appliance is in perfect condition. The packaging materials must not be left within reach of children as they can be dangerous.
2. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.
3. The manufacturer reserves the right to make any changes it deems advisable to its models, although the essential features described in this manual remain the same.

The maintenance of appliances for air dehumidification such as this may result dangerous since, inside this appliance, an under pressure refrigerant gas and live electrical components are present.

For this reason, possible maintenance interventions (with the exception of filters cleaning) must be performed exclusively by authorized and qualified personnel.

1. Failing to comply with the instructions contained in this manual, and using the unit with temperatures exceeding the permissible temperature range will invalidate the warranty.

2. Routine maintenance of the filters and general external cleaning can be done by the user as these operations are not difficult or dangerous.

3. During assembly and at each maintenance operation, it is necessary to respect the precautions indicated in this manual and on the labels located inside or on the appliance, as well as to take all the precautions suggested by common sense and by the Safety Regulations in force in the country of installation.

1. In case of replacement of parts, use only original OLIMPIA SPLENDID parts.

1. If the unit is unused for a long period, or no-one uses the climate-controlled room, it is recommended to disconnect the electric power supply in order to prevent accidents.

1. Do not use liquid or corrosive detergents to clean the unit, do not spray water or other liquids onto the unit, since they could damage the plastic components or even cause electric shocks.

1. Do not get the appliance wet.
   rt circuits or fires may occur.

Do not immerse the appliance in water or in other liquids.

1. In case of functioning anomalies (for example: abnormal noise, bad smell, smoke, abnormal increase in temperature, electrical dispersions, etc.), immediately switch off the appliance and disconnect the plug from the power socket.

For repair work contact solely the technical service centres authorised by the manufacturer and ask for original spare parts to be used. Failure to do this can affect the safety of the appliance.

1. Do not leave the appliance active if there are opened doors or windows.

1. Do not disconnect the power plug during functioning or electrical shocks hazard.

2. Do not place heavy or hot objects on top of the appliance. Do not sit or get on the appliance.

3. Before electrically connecting the appliance, make sure the plate data correspond to those of the distribution network. The power socket must be equipped with a Ground System. The data plate (11) is located on the side of the appliance (Fig.2).

4. Install the appliance according to the manufacturer's instructions. An incorrect installation can cause damage to people, animals or property for which the manufacturer accepts no responsibility.

o not let the appliance work in enclosed areas such as a cabinet since it could cause a fire.

1. If the appliance's plug is incompatible with the socket, have the socket replaced with a suitable one by a qualified technician, who must ascertain that the section of the socket cables is compatible with the power absorbed by the appliance. We do not recommend using adaptors and/or extension

EN-5

cables. If they cannot be avoided, however, they must comply with current safety regulations and their ampacity (A) must not be below the maximum ampacity of the appliance.

1. This appliance is NOT intended to be run via an external timer or with a separate remote control system.
2. Always and only use the appliance in a vertical position.
3. Do not obstruct the air inlet and outlet grids in any manner.
4. Do not insert extraneous items in the air inlet and outlet grids as this will create the risk of electrical shocks, fire or damages to the appliance.

5. Do not use the appliance:

6. with wet or damp hands;
   barefoot.

7. Do not pull the power cable or the appliance itself to remove the plug from the socket.
8. Do not use this product under direct sunlight or near a heat source such as a stove, heater or radiator (Fig.3).
9. Do not use the appliance near gas equipment (Fig.3).
10. Do not activate the appliance near curtains since they can be sucked in the air vents (Fig.5)
11. Always place the appliance on a stable, plane and levelled surface.
12. Leave at least 20cm of free space on the sides and behind the appliance and leave at least 30cm of free space above the appliance (Fig.1).
13. Do not place the appliance near a power socket (Fig.4).
14. The socket must be easily accessible so that the plug can be removed easily in an emergency.
15. Do not handle the plug with wet hands.
16. Do not excessively bend, twist, pull or damage the power cord.
17. Do not run the cord under carpeting, throw rugs or runners etc. Arrange cord away from traffic areas so that it will not be tripped over.

18. Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.

19. Do not use the appliance outdoors or on wet surfaces. Avoid dropping liquids on the appliance. Do not use the appliance near sinks and taps.

20. Do not tilt the appliance to any side since water which may leak could damage it.

41a. Empty water which has been recovered in the tank.

If installed, the exhaust pipe must be downhill in order to ensure that condensing water is continuously unloaded.

1. Clean the appliance with a damp cloth; do not use abrasive products or materials. See the appropriate paragraph for the filters cleaning.
2. The most common cause of overheating is dust or lint deposit in the appliance. Regularly remove these accumulations by disconnecting the appliance from the power socket and vacuuming the grids.
3. Do not use the appliance in environments subject to significant temperature changes as condensation could form inside the appliance itself.
4. Install the appliance at at least 2 meters from other electronic devices (TV, radio, computer,DVD player, etc.) in order to avoid disturbances (Fig.6).
5. Do not use the appliance if insecticide gas has just been sprayed in the room or in the presence of burning incenses, chemical vapours or oily residues.
6. Do not use the appliance if the filters are not positioned correctly.
7. Disassembly, repair or reconversion performed by an unauthorized person could cause heavy damages and will cancel the manufacturer warranty.
8. Do not use the appliance in case of malfunctioning or faults, if the cord or plug are damaged, or if it has been dropped or damaged in any manner. Turn the appliance off, disconnect the plug from the socket and let it be checked by professionally qualified personnel.
9. Neither disassemble nor modify the appliance.

1. In the presence of gas leaks from other equipment, ventilate the room well before activating the appliance.
2. Use the appliance in environments with a temperature between 5^ and 35^ .

3. Repairing the appliance by yourself is extremely dangerous.

4. If you no longer wish to use this appliance, it must be made inoperative by cutting the power supply cable after removing the plug from the power socket. Hazardous parts of the appliance must be rendered harmless, especially as there is a risk of children playing with it.

EN-7

1. Do not leave the appliance exposed to atmospheric agents (rain, sun, etc.).
2. Do not use the appliance in the immediate vicinity of a bathtub, a shower or of a pool.

Details of type and rating of fuses: AT; 5A

0.4 - PROPER USE

• The appliance must be used exclusively as fan or dehumidifier with the sole purpose of making the room where you're staying comfortable.
• This appliance is only intended for a domestic use or similar.
• An improper use of the appliance with possible damages caused to people, things or animals releases OLIMPIA SPLENDID from any responsibility.

• The dehumidifiers must not be installed in environments with the presence of inflammable gases, explosive gases, in very humid environments (laundries, greenhouses, etc.), or in places with other machines that generate a strong heat source, in proximity of a sources of salt water or sulphurous water.

DO NOT use gas, gasoline or other inflammable liquids near to the appliance.

This product must be used exclusively according to the specifications indicated in this manual. Use different to that specified, could cause serious injuries.

THE MANUFACTURER IS NOT LIABLE FOR INJURY/Damage TO PERSONS/OBJECTS DERIVING FROM FAILURE TO COMPLY WITH THE REGULATIONS CONTAINED IN THIS MANUAL.

0.6 - WARNINGS FOR R290 REFRIGERANT GAS

1. THE APPLIANCE CONTAINS R290 GAS (FLAMMABILITY CLASSIFICATION A3).

2. THE APPLIANCE SHALL BE STORED IN A WELL-VENTILATED AREA WHERE THE ROOM SIZE CORRESPONDS TO THE ROOM AREA AS SPECIFIED FOR OPERATION.

3. THE APPLIANCE MUST BE INSTALLED, USED AND STORED IN A ROOM WITH A FLOOR SURFACE HIGHER THAN THE ONE INDICATED IN THE CHART.

Quantity of R290 gas in Kg (see data label on the appliance)	Minimum size of the site for use and storage m2
0,045 4
0,050 4
0,055 4
0,060 4
0,065 5
0,070 5
0,075 5
0,080 5
0,085 6

1. THIS APPLIANCE CONTAINS A QUANTITY OF REFRIGERANT GAS R290 EQUAL TO THE ONE INDICATED IN THE DATA LABEL LOCATED ON THE APPLIANCE.

2. THE APPLIANCE SHALL BE STORED IN A ROOM WITHOUT CONTINUOUSLY OPERATING IGNITION SOURCES (FOR EXAMPLE: OPEN FLAMES, AN OPERATING GAS APPLIANCE OR AN OPERATING ELECTRIC HEATER).

3. Do not pierce or burn.

4. Be aware that the refrigerants may not contain an odour.
5. R290 is a refrigerant gas in compliance with the European directives on environment. Do not pierce any part of the refrigerant circuit.
6. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
7. Do not use tools different from those recommended by the manufacturer when defrosting and cleaning the appliance.
8. If the appliance is installed, used or stored in a non-ventilated area, the room must be designed to prevent the accumulation of refrigerant leaks with the consequent fire or explosion hazard due to the refrigerant combustion caused by electrical heaters, stoves or others sources of ignition.
9. Compliance with national gas regulations shall be observed.

EN-9

1. Keep ventilation openings clear of obstruction.
2. The appliance shall be stored so as to prevent mechanical damage from occurring.
3. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.

1. Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

2. TRANSPORT OF EQUIPMENT CONTAINING FLAMMABLE REFRIGERANTS See transport regulations.

3. MARKING OF EQUIPMENT USING SIGNS See local regulations.
4. DISPOSAL OF EQUIPMENT USING FLAMMABLE REFRIGERANTS See national regulations.
5. STORAGE OF EQUIPMENT/APPLIANCES The storage of equipment should be in accordance with the manufacturer's instructions.
6. STORAGE OF PACKED (UNSOLD) EQUIPMENT Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

22. INFORMATION ON SERVICING

a) Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

b) Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

c) General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out.

Work in confined spaces shall be avoided.

The area around the workspace shall be sectioned off.

Ensure that the conditions within the area have been made safe by control of flammable material.

d) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres.

Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

e) Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available at hand.

Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

f) No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion.

All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, disposal, during which flammable refrigerant can possibly be released to the surrounding space.

Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. No Smoking signs shall be displayed.

g) Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.

A degree of ventilation shall continue during the period that the work is carried out.

The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

h) Checks to the refrigeration equipment

Where electrical components are being changed, they shall purpose and to the correct specification.

At all times the manufacturer's maintenance and service guidelines shall be followed.

If in doubt consult the manufacturer's technical department for assistance.

The following checks shall be applied to installations using flammable refrigerants:

The charge size is in accordance with the room size within which the refrigerant containing parts are installed; The ventilation machinery and outlets are operating adequately and are not obstructed; If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; Marking to the equipment continues to be visible and legible.

Markings and signs that are illegible shall be corrected; Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

i) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used.

This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: That capacitors are discharged; this shall be done in a safe manner to avoid possibility of sparking; That there no live electrical components and wiring are exposed while charging, recovering or purging the system; That there is continuity of earth bonding.

23. REPAIRS TO SEALED COMPONENTS

a) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
b) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected.

This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.

Ensure that apparatus is mounted securely.

Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

24. REPAIR TO INTRINSICALLY SAFE COMPONENTS

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

25. CABLING

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

26. DETECTION OF FLAMMABLE REFRIGERANTS

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.

A halide torch (or any other detector using a naked flame) shall not be used.

27. LEAK DETECTION METHODS

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.

Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area).

Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used

Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed.

Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.

If a leak is suspected, all naked flames shall be removed/ extinguished.

If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.

Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

28. REMOVAL AND EVACUATION

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used.

However, it is important that best practice is followed since flammability is a consideration.

The following procedure shall be adhered to:

• Remove refrigerant;
• Purge the circuit with inert gas;
  Evacuate;
• Purge again with inert gas;
• Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe.

This process may need to be repeated several times.

Compressed air or oxygen shall not be used for this task.

Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum.

This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place.

This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

29. CHARGING PROCEDURES

In addition to conventional charging procedures, the following requirements shall be followed.

Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.

Cylinders shall be kept upright.

Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.

Label the system when charging is complete (if not already).

Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN.

The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

30. DECOMMISSIONING

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely.

Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:

• Mechanical handling equipment is available, if required, for handling refrigerant cylinders;
• All personal protective equipment is available and being used correctly;
  The recovery process is supervised at all times by a competent person;
• Recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80% volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

31. LABELLING

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant.

The label shall be dated and signed.

Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

32. RECOVERY

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.

When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed.

Ensure that the correct number of cylinders for holding the total system charge is available.

All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order.

Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.

In addition, a set of calibrated weighing scales shall be available and in good working order.

Hoses shall be complete with leak-free disconnect couplings and in good condition.

Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release.

Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged.

Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flange refrigerant does not remain within the lubricant.

The evacuation process shall be carried out prior to returning the compressor to the suppliers.

Only electric heating to the compressor body shall be employed to accelerate this process.

When oil is drained from a system, it shall be carried out safely.

1 - DESCRIPTION OF THE APPLIANCE

1.1 - FEATURES

The appliance is packaged singularly in a cardboard packaging.

Store the packaging in vertical position.

The dehumidifier powerfully removes moisture from the air to decrease the humidity level of the room and keep the indoor air dry and comfortable.

It is possible to select the desired level of humidity by means of the digital humidistat.

Thanks to the timer, it is possible to set the automatic switching on and off of the appliance.

1.2 - IDENTIFICATION OF THE MAIN COMPONENTS

1. Front shell
2. Air outlet grid
3. Handle
4. Control panel
5. Air inlet grid
6. Back shell

7. Water tank

8. Wheels

9. Supply cord
10. Filter
11. Data plate
12. Instruction booklet
13. Condensation drain connection
14. Hose for continuous condensation drain

EN-16

1.3 - INSTALLATION OF THE APPLIANCE

After removing the packaging, check that the appliance is in perfect condition; in case of doubts do not use it and refer to professionally qualified personnel.
- Install the appliance on a rigid and levelled floor while keeping the room ventilated.
- Place the appliance in a suitable environment.
Make sure that curtains or other objects don't obstruct the air flow (Fig. 5).
- Leave at least 20cm of free space on both sides and behind the appliance and leave at least 30cm of free space above it (Fig. 1).
- Remove the tank (7) and uncoil the supply cord (9).
- Correctly reposition the tank (7) in the appliance body.
- Insert the plug in the power socket; the appliance emits a "beep" and the display shows the percentage of humidity in the room.

1.4 - CONTROL PANEL

21 8AND BY key (ON/ OFF)

Press this key to start/ switch off the appliance.

22 DOWN key

Press this key to lower the settable value or to scroll back the selectable modes.

23 key

Press this key to increase the settable value or to scroll forwards the selectable modes.

24 IMERkey

Press this key to enter the appliance start/switch off programmation mode.

25 Tmer" led

This led switches on in green when the timer function is active.

26 Defrosting" led

This led switches on in green when the defrosting function is active.

27 Compressor status" led

This led switches on in green when the compressor is active.

28 Water tank full" led

This led switches on in red when the water tank is full; the appliance emits a "beep" and switches off.

29 Display Has various funct

• When the appliance is electrically powered or it is running, the display shows the percentage of humidity in the room.
• During the percentage of humidity setting ("UP" and "DOWN" keys), it shows the percentage of humidity you desire to set (if no key is pressed within 5 seconds, the display returns to show the percentage of humidity in the room).
• When programming the start and switch off time ("Timer" function), the display shows the set hours or those remaining before the appliance start or switch off.
• When the level of humidity in the room is below 35% , the display shows the "LO" message.
• When the level of humidity in the room is above 95% , the display shows the "HI" message.

2 - INSTALLATION

2.1 - APPLIANCE TRANSPORT

• Transport and handling of the appliance must be carried out in vertical position.

If it is transported in a horizontal position, wait at least one hour before starting it.

• Before moving or transporting the appliance, completely drain condensation by working as described in paragraph 3.2.a

CAUTION

Transporting the appliance on delicate floors (for instance: wooden floors):

• Completely drain condensation.
• Pay particular attention while moving the appliance since the wheels may mark the floor.

Although the wheels are made from a rigid material and are swivelling, they could get damaged by use or excessive dirt. It is recommended to check that the wheels are clean and that they can move freely.

2.2 - WARNINGS

A failure to respect what follows may cause damages to the appliance.

a. Install the appliance on flat, stable and on floor level surfaces.
b. Only connect the appliance to outlets equipped with a ground system.
c. Make sure that curtains or other objects do not obstruct the air suction filters (Fig.5).
d. Make sure to keep a minimum distance of 20 / 30~cm between the appliance and the adjacent objects (Fig.1).

EN-18

e. The appliance must always be activated paying attention that there are no obstacles for air suction and output.
f. The appliance must not be used in laundry rooms.
g. Only install the appliance in dry rooms.
h. The appliance must not be started in the presence of dangerous materials, vapours or liquids.
i. Clean the air filters at least once a week.

2.3 - ELECTRICAL CONNECTION

The appliance is fitted with a power cable with plug. Before connecting the appliance, make sure that:

• The voltage and power frequency values match those specified on the appliance plate data.
• The power supply line is equipped with an efficient ground connection and that it is correctly dimensioned for the maximum absorption of the appliance.
• The appliance's power network must be equipped with a suitable omnipolar disconnection device compliant with national installation regulations.
• The appliance is powered solely through a socket compatible with the plug provided.

CAUTION

Any replacement of the power cable must be carried out solely by Olimpia Splendid technical support or by similarly qualified personnel.

3 - USE OF THE APPLIANCE

Before starting the appliance, kindly open the air outlet.

NOT insert anything (fingers, hands, objects, etc.) in the air outlet in order to avoid damaging the appliance.

Cuts or wounds hazard!

a. Appliance start/switch off

Press this key one to start the appliance in "RUN" mode.

Press it again to stop the appliance operation. The appliance switches to STANDBY mode; the compressor, the fan motor and the display are switched off.

b. Humidity level setting

In "RUN" mode, press UP or DOWN to select the desired level of humidity in the room.

The settable value must be included between 30% and 90% with 5% intervals.

After a certain period of operation, when the percentage of humidity in the room is lower than the set value, the compressor stops temporarily; the led "Compressor status" blinks in green.

When the percentage level of humidity in the room is equal or higher than the minimum set value, after three minutes (compressor protection time), the compressor restarts; the led "Compressor status" switches steady on in green. If a humidity value lower than 30% is set by pressing the DOWN key, the display shows "Co". In this condition, the appliance works continuously independently from the level of humidity in the room. Periodically, when the appliance is working (RUN mode), dehumidification can be temporarily interrupted in order to defrost the heat exchanger; the led "Defrosting" switches on in green.

c. Timer setting

Press the "TIMER" key to set the delay time for "RUN" (start) or "STANDBY" (switch off) modes.

In "RUN" mode, press the "TIMER" key once or more; the display shows the delay time for the appliance switch off in hours (0, 1, 2....23, 24, 0, 1,...).

Once the desired value has been selected, wait a few seconds to allow the memorization of the set value after which the appliance switches off (STANDBY); the "Timer" led switches on in green.

In "STANDBY" mode, press the "TIMER" key once or more; the display shows the delay time for the appliance start in hours (0, 1, 2....23, 24, 0, 1, ...).

Once the desired value has been selected, wait a few seconds to allow the memorization of the set value after which the appliance starts (RUN); the "Timer" led switches on in green.

To cancel the Timer function programming, press the "TIMER" key once or more until selecting "0" or press the "STANDBY" key.

3.1 - BLACKOUT

In case of blackout, the appliance restarts to work in the previously selected conditions when power is restored.

3.2 - WATER UNLOADING

3.2.a - Emptying the tank

• When the led (28) switches on, the appliance stops, the buzzer rings and it is necessary to empty the tank (7)
• Remove the tank (7) from the appliance body working with both hands (Fig.7).
• Empty the tank (7) (Fig.8).

Do not remove the float (7b) from the water tank (7). full water sensor won't be able to correctly detect water level anymore.

• Correctly reposition the tank (7) in the appliance body, otherwise the led (28) remains turned on and the appliance doesn't work.

3.2.b - Continuous water unloading

• If desired, it is possible to connect the supplied hose (14) to the connection (13) to continuously drain water collected by dehumidification.
• Switch off the appliance and disconnect the plug from the power socket.
• Connect the rubber hose (14) with an internal diameter of 10 mm to the connection (13) (Fig. 9).
  It is advised to fix the hose (14) to the connection (13) using a clamp (not supplied).
• Correctly reposition the tank (7) in the appliance body making the hose (14) pass in specific seat located in the tank (7). If this operation is not completed, the led (28) remains on and the appliance doesn't work.

Make sure the rubber hose (14) doesn't exceed the exhaust joint height, otherwise water will remain in the appliance and could cause a malfunction, damage it and/or cause dangerous work conditions.

During operation with continuous unloading, do not remove the water tank.

Possible problems caused by the external water drain are not detected by the full tank alarm.

An efficient supervision is necessary in order to prevent malfunctions, damages to the appliance and/or dangerous work conditions.

4 - MAINTENANCE AND CLEANING

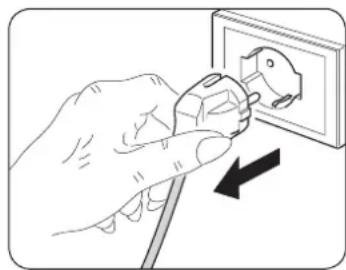

Before performing any cleaning or maintenance intervention on the appliance, disconnect the plug from the power socket and wait for the fan to stop completely.

4.1 - CLEANING

4.1.a - Cleaning the appliance

• Use a dry cloth to clean the appliance.
• If the appliance is very dirty, it is possible to use a cloth dampened with warm water (max 50^ ) and a mild detergent to clean its external parts. Dry with a dry cloth.

Make sure the appliance is completely dry before reconnecting the plug to the power socket.

• Do not use a chemically treated or antistatic cloth to clean the appliance.
• Not use petrol, solvents, polishing pastes or similar.

These products could break or deform the plastic surface.

Do not use oils, chemical substances or abrasive products to clean the appliance.

Neither wash nor immer the appliance with/in water.

Use a vacuum cleaner to remove dust from the air inlet/outlet grids.

In case of an appliance malfunction, do not try to disassemble it but instead refer to the retailer or to the technical assistance service.

4.2 - AIR FILTER CLEANING

It is advised to clean the air filter every two weeks of operation.

• Switch the appliance off and disconnect the plug from the power socket.
• Remove the grid (5).
• Remove the air filter (10) (Fig.10).
• Slightly vacuum on the filter surface to remove dirt (Fig. 11).

If the filter (10) is exceptionally dirty, wash it with warm water and with a non-aggressive detergent (Fig. 11), then completely dry it.

Provide for the filter (10) replacement if it is damaged.

• Make sure the filter (10) has dried completely.
• Correctly reposition the filter (10) in its specific seat.
• Suck possible fluff from the grid (5).

• Wait for the filter (10) to be dry before repositioning it.
• Not use the appliance without the grid (5) and/or the filter (10) or if the latter is damaged.

4.3 - TANK CLEANING

• If the drainage tank is dirty, wash it with cold or lukewarm water.
• Switch the appliance off and disconnect the plug from the power socket.
• Remove the tank (7).
• Work as described in paragraph "3.2.a".

Do not use detergent, scouring pads, chemically treated dust cloths, gasoline, benzene, thinner or other solvents, as these can scratch and damage the tank and cause water leakage.

5 - PRESERVATION OF THE APPLIANCE

If you do not intend to use the appliance for a particularly long period of time or if operations which could produce a lot of dust must be performed, it is advised to store the appliance as follows:

• Switch the appliance off and disconnect the plug from the power socket.

• Empty any water remaining in the tank.

• Wrap the supply cord and position it in the water tank (after making sure that the tank is completely dry).
• Clean the air filter.
• Store in a fresh and dry place away from humidity.

6 - TECHNICAL DATA

Consult the data plate applied to the product (Fig. 2) for the technical data listed below:

Supply voltage
- Absorbed power
- Insulation class
- Appliance weight

7 - TROUBLE SHOOTING

BEFORE CALLING FOR SERVICE

Before contacting professional service, consult this list.

This list includes common occurrences that are not the result of a defect in workmanship or materials.

PROBLEM POSSIBLE CAUSES ADVISED SOLUTIONS
The unit doesn't operate	The supply cord is disconnected Insert the plug in the power socket and make sure there's electrical voltage
	The tank full warning led is turned on (tank full or not correctly positioned)	Drain water tank and reset your setting, or replace the water tank to right place
	Room temperature exceeding the maximum work conditions of the appliance	Self-Protection designed to protect the unit. Can not work under such temperature
	Compressor protection is active (the unit cannot work)
The dehumidifying function doesn't work or the unit turn on / off frequently	Air filter is clogged Clean the air filter
	Door or window open Close the door and/or the window
	The air inlet/outlet grilles are clogged Remove the obstruction or clean the air inlet/outlet grilles
	The room is too large or there's too much humidity	If possible, remove or reduce the level of humidity
Operation is noisy	The unit is tilted or unsteady Place the appliance on an even, solid surface (less vibration).
	Air filter is clogged Clean the air filter
The display shows E1 Temperature sensor faulty Call the service center

Low temperature operation with Auto Defrost function

The appliance is equipped with an automatic defrost function (indicated by the specific led "26" switching on) which, thanks to opportune timed intervals and by checking room temperature, adjust the machine operation.

TABLE DES MATIÈRES GÉNÉRALE

0-MISES EN GARDE 2

0.1 - INFORMATIONS GENE RALES 2
0.2 - SYMBOLOGIE 2

Utilice detectores de escapes electrónicos para refrigerantes inflamables, except that the system is able to detect and eliminate all of the gases in the atmosphere. This allows for the removal of all harmful gases, including methane, nitrogen, sulfur dioxide, sulfur dioxide gas, sulfur dioxide oxide, sulfur dioxide hydrogen sulfide, sulfur dioxide hydrogen peroxide, sulfur dioxide hydrogen peroxide oxide, sulfur dioxide hydrogen peroxide oxide oxide, sulfur dioxide hydrogen peroxide oxide oxide oxide, sulfur dioxide hydrogen peroxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxide oxigeno (OFN) and oxigeno (OFN) in the system after a certain time.

28. REMOCION Y VACIAMIENTO

1. MEOAOI ANIXNEYΣH ΣIAPPOΩN

21 Rytpo STAND BY (ON/OFF)

PnntoTo nKtpo Yia va EKIVnoeI/OTa μatnoEIN OQKEuñ.

22 NnKtpo DOWN

NATnote TO NAnktpo VIA VA MEIOWeTE TIV TImn n va DIATpeTe TIOW OTIC ETIIAOyEc.

23 TKTpo UP

NATnOte TO NAnKtpo YIA VA aUcNoTe TIV TImn n va DiatpeEe TIOw OTIC ETIIAOyEc

24 MTPO TIMER

Pntane to nKpo yia va uite otic eiloyec npoypaumou Ekkivnnc/abnoipato ts oukeunc.

25 Led "XpovobiaKoTTn

Exi diaqopecs Aetoupyies:

Otauuoukeun tropoodoteiata nAektpika n eivai oAeitoupyia, Tpoaalaa to Tnooortnuc ypaiaac tou utapxie 0to xwpo.
Kata t n diapkeia tns puthetaionc tou nooostou uypaaic (nAnktpa "UP" kai "DOWN") npoBaalto nooosto uypaiaac Tou eTIOUeite va puthetaiae (av dEv npatnoetkantoio nAnkpto Evtoc 5. deutepoAETIW n oovn EITIOptpei otnv ppoBoI n ts napouaaugpaaiaos tox wpo).
Otav npoypaumatiotxpoovc evapnc kai nngs eitoupyiac (eitoupyia «Timer) n oovn deixvei Tc kaopioevc wpcn TTc utloantouvec wpc sya tvv evapn n tnaen aeitoupyiac Tns ouakeunc.
- Otav to επιπεδούρασίας στο περβάλλουν εἰναι κατω από 35% η oθόνη δείχενι «LO».
- Otav to επιπεδό υρασίας στο περβάλλου εἰναι πάνω από 95% ηοθόνη δείχνει《HI》.

2 - EΓΚΑΤΑΣΤΑΣH

2.1 - METAKINHSH THS ΣYΣKEYHΣ

21 shAND-BY-knapp (ON/OFF)
