USER MANUAL NNS29KSMEPG PANASONIC

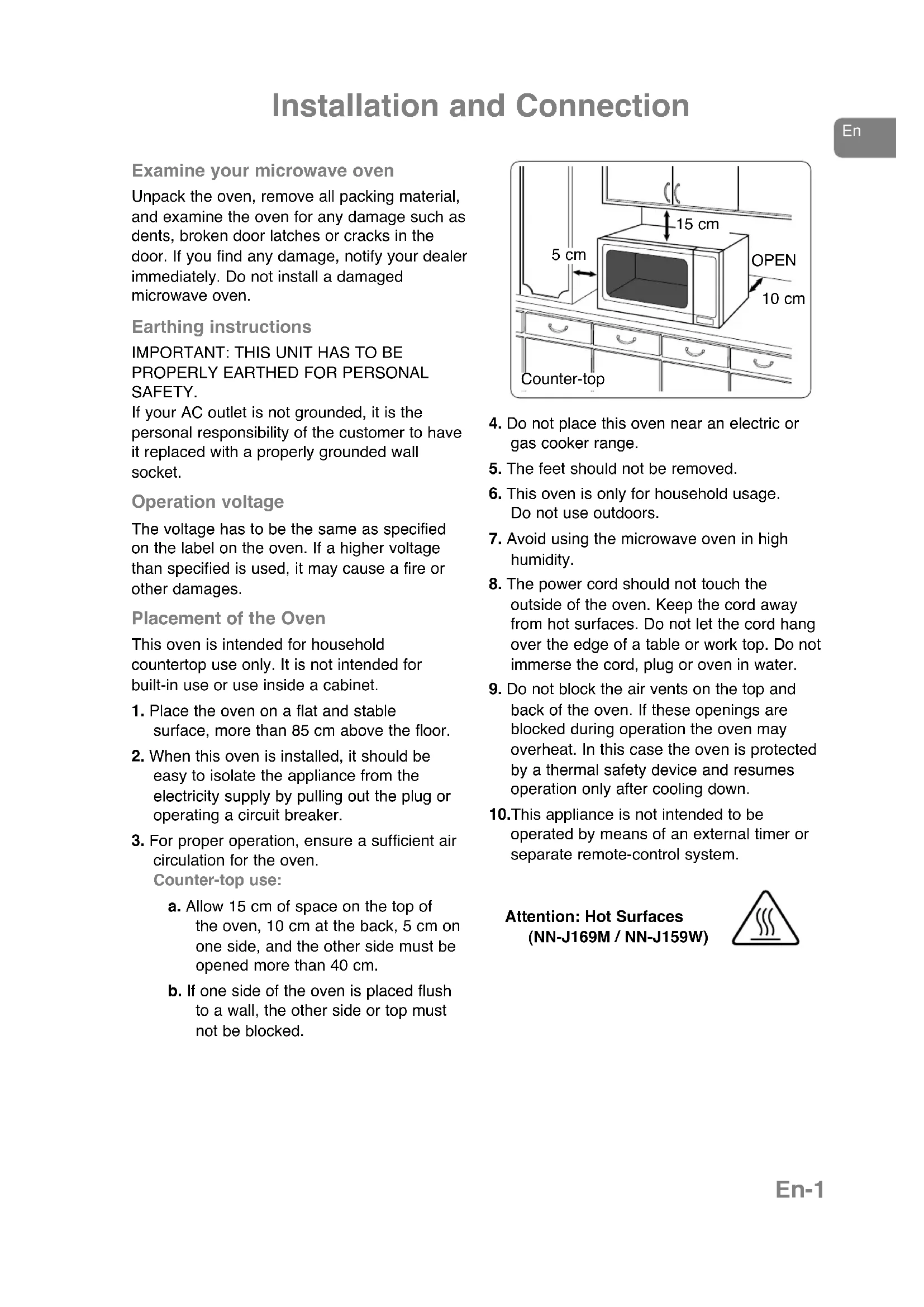

Examine your microwave oven Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven. Earthing instructions

IMPORTANT: THIS UNIT HAS TO BE

PROPERLY EARTHED FOR PERSONAL

SAFETY. If your AC outlet is not grounded, it is the personal responsibility of the customer to have it replaced with a properly grounded wall socket. Operation voltage The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages. Placement of the Oven This oven is intended for household countertop use only. It is not intended for built-in use or use inside a cabinet.

1. Place the oven on a flat and stable

surface, more than 85 cm above the floor.

2. When this oven is installed, it should be

easy to isolate the appliance from the electricity supply by pulling out the plug or operating a circuit breaker.

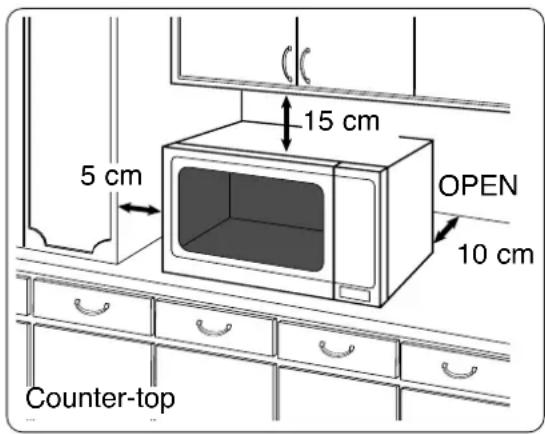

3. For proper operation, ensure a sufficient air

circulation for the oven. Counter-top use: a. Allow 15 cm of space on the top of the oven, 10 cm at the back, 5 cm on one side, and the other side must be opened more than 40 cm. b. If one side of the oven is placed flush to a wall, the other side or top must not be blocked.

4. Do not place this oven near an electric or

5. The feet should not be removed.

6. This oven is only for household usage.

Do not use outdoors.

7. Avoid using the microwave oven in high

8. The power cord should not touch the

outside of the oven. Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water.

9. Do not block the air vents on the top and

back of the oven. If these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down. 10.This appliance is not intended to be operated by means of an external timer or separate remote-control system. 15 cm 10 cm OPEN 5 cm Counter-top Installation and Connection Attention: Hot Surfaces (NN-J169M / NN-J159W)En-2 WARNING Important Safety Instructions

1. The door seals and seal areas should be

cleaned with a damp cloth. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

2. Do not attempt to tamper with or make any

adjustments or repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be done by a qualified service person.

3. Do not operate this appliance if it has a

damaged CORD OR PLUG, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.

4. If the supply cord is damaged, it must be

replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.

5. Only allow children to use the oven without

supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. Liquids and other foods must not be heated

in sealed containers since they are liable to explode.

7. This appliance is not intended for use by

persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Installation and ConnectionSafety Instructions En-3

1. Do not use the oven for any reason other

than the preparation of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products.

2. Before use, check that utensils/containers

are suitable for use in microwave ovens.

3. Do not attempt to use this microwave oven

to dry newspaper, clothing or any other materials. They may catch on fire.

4. When the oven is not being used, do not

store any objects other than oven accessories inside the oven in case it is accidentally turned on.

5. The appliance shall not be operated by

IN THE OVEN. Operation in this manner may damage the appliance.

6. If smoke or a fire occurs in the oven, press

Stop/Cancel button and leave the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at the fuse or the circuit breaker panel. Heater operation (NN-J169M / NN-J159W)

1. Exterior oven surfaces, including air vents

on the cabinet and the oven door will get hot during COMBINATION and GRILLING, take care when opening or closing the door and when inserting or removing food and accessories.

2. The oven has two heaters situated in the

top of the oven. After using the COMBINATION and GRILL function, these surfaces will be very hot. Care should be taken to avoid touching the heating elements inside the oven. N.B: After cooking by these modes, the oven accessories will be very hot.

3. The accessible parts may become hot when

the grill is in use. Children should be kept away.

4. When the appliance is operated in the

combination mode, children should only use the oven under supervision due to the temperatures generated. Oven Light When it becomes necessary to replace the oven light, please consult your dealer. Accessories The oven comes equipped with a variety of accessories. Always follow the directions given for use of the accessories. Glass Tray

1. Do not operate the oven without

the roller ring and the glass tray in place.

2. Never use another type of glass tray than

the one specially designed for this oven.

3. If the glass tray is hot, let it cool before

cleaning or placing in water.

4. The glass tray can turn in either direction.

5. If the food or cooking vessel on the glass

tray touches the oven walls and stops the tray rotating, the tray will automatically rotate in the opposite direction.This is normal.

6. Do not cook foods directly on the glass tray.

1. The roller ring and the oven floor should be

cleaned frequently to prevent noise and build-up of remaining food.

2. The roller ring must always be used for

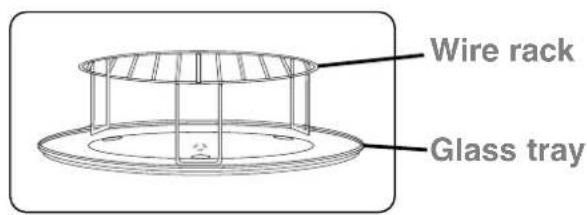

cooking together with the glass tray. Wire rack (NN-J169M / NN-J159W)

1. The Wire Rack is used to facilitate browning

of small dishes and help with the good circulation of the heat.

2. Do not use any metal container directly on

the Wire Rack in COMBINATION with MICROWAVE.

• The cooking time depends on the condition, temperature, amount of food and on the type of cookware.

• Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer. N.B.: If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

2. Small Quantities of Foods

• Small quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

• Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs may explode, even after the microwave heating has ended.

• Food with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

• Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer when using MICROWAVE or COMBINATION because it may cause sparking.

• When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken: a. Avoid using straight-sided containers with narrow necks. b. Do not overheat. c. Stir the liquid before placing the container in the oven and again halfway through the cooking time. d. After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container.

• When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated.

• Do not use recycled paper products (e.g. Kitchen Roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires during use.

• Remove wire twist-ties from roasting bags before placing the bags in the oven.

• Do not heat any closed cans or bottles because they might explode.

• Metal containers or dishes with metallic trim should not be used during microwave cooking. Sparking will occur.

• If you use any aluminium foil, meat spikes or metalware the distance between them and the oven walls and door should be at least 2 cm to prevent sparking.

9. Feeding Bottles/Baby Food Jars

• The top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven.

• The contents of feeding bottles and baby food jars are to be stirred or shaken.

• The temperature has to be checked before consumption to avoid burns. En-4Outline Diagram

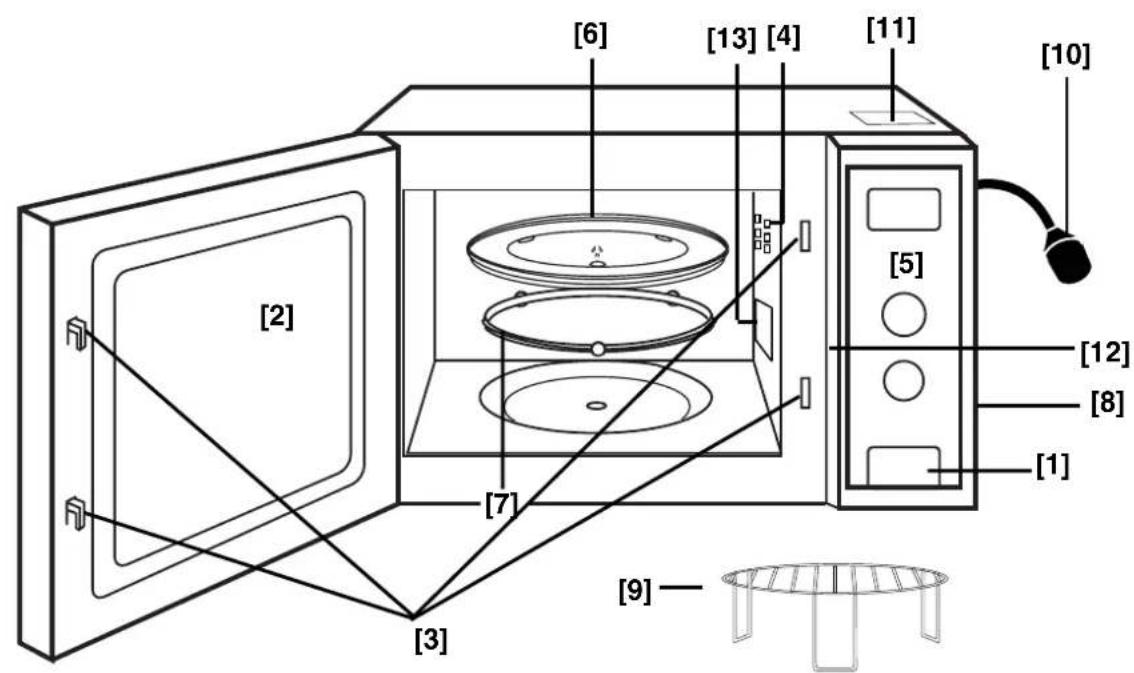

1. Door Release Button

Press to open the door. When you open the oven door during cooking, the cooking is stopped temporarily without clearing earlier made settings. The cooking is resumed as soon as the door is closed and Start Button pressed. The oven lamp lights as soon as the oven door is opened.

12. Identification Label

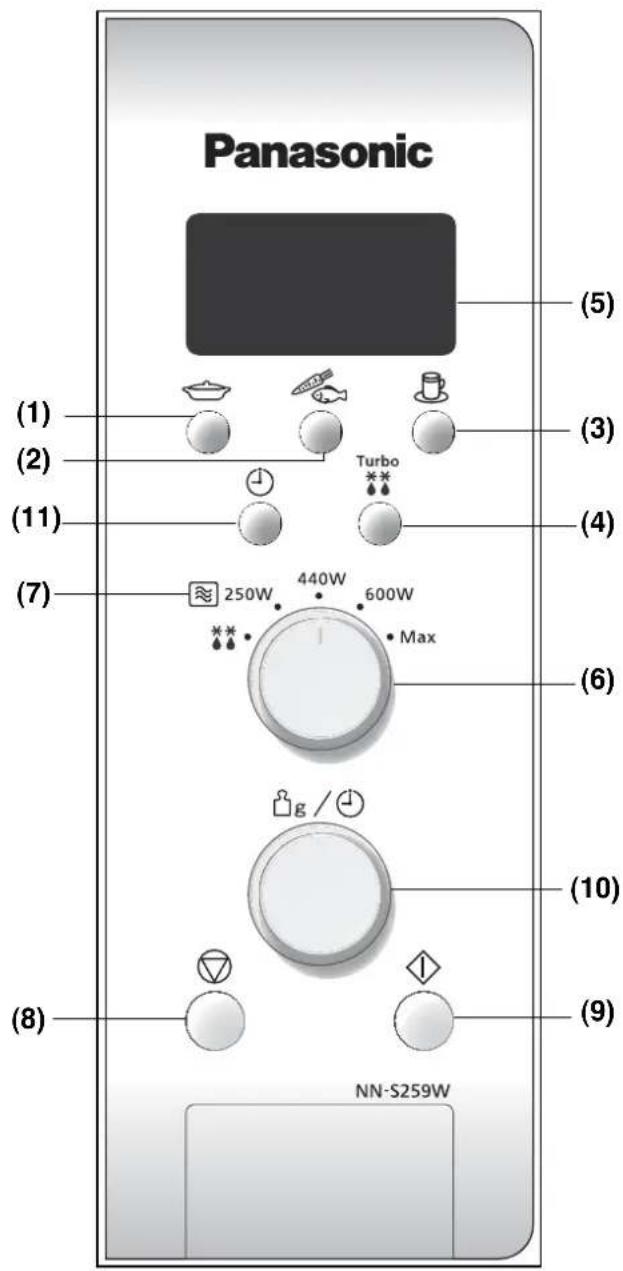

En-5 [4] [13]Control Panels (1) Auto Weight Reheat (2) Auto Weight Cook (3) Auto Weight Combination (4) Auto Weight Defrost (5) Display Window (6) Mode Selector Dial (7) Microwave Power (8) Grill Power (9) Combination Power (10) Time/Weight Dial (11) Stop/Cancel Button: Before cooking: one press clears your instructions. During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display. (12) Start Button: Press to start operating the oven. If during cooking the door is opened or Stop/ Cancel Button is pressed once, Start Button has to be pressed again to continue cooking. (13) Clock/Timer Button (1) (3) (9) (8) (13) NN-J169M / NN-J159W* (4) (5) (7) (11) (6) (12) (10) (2)

• N.B. The design of your control panel may vary from the panel displayed (depending on colour), but the functionality will remain the same. Beep Sound: A beep sounds when a button is pressed. After completion of cooking, five beeps sound and ʻEndʼ appears in the display. En-6(1) (3) (5) (4) (10) (9) (7) (2) (6) (8) (11) (1) Auto Weight Reheat (2) Auto Weight Cook Vegetables/Fish (3) Auto Reheat Cup/Bowl (4) Auto Weight Defrost (5) Display Window (6) Mode Selector Dial (7) Microwave Power (8) Stop/Cancel Button: Before cooking: one press clears your instructions. During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display. (9) Start Button: Press to start operating the oven. If during cooking the door is opened or Stop/ Cancel Button is pressed once, Start Button has to be pressed again to continue cooking. (10) Time/Weight Dial (11) Clock/Timer Button

• N.B. The design of your control panel may vary from the panel displayed (depending on colour), but the functionality will remain the same. Beep Sound: A beep sounds when a button is pressed. After completion of cooking, five beeps sound and ʻEndʼ appears in the display. NN-S269M / NN-S259W* Control Panels En-7 EnClock Setting: Example: To set 14:25

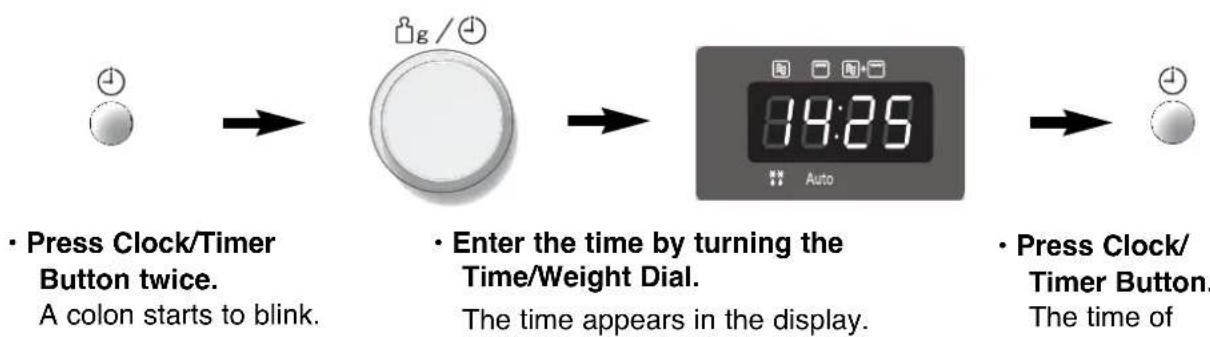

• Press Clock/Timer Button twice. A colon starts to blink.

• Enter the time by turning the Time/Weight Dial. The time appears in the display.

• Press Clock/ Timer Button. The time of day is entered. NOTE:

1. To reset the time of day repeat all the above steps.

2. The time of day is displayed, unless the power supply is interrupted.

3. This clock has a 24 hour display.

Child Safety Lock: Using this system will make the oven controls inoperable; however, the door can be opened. Child Lock can be set when the display shows a dot or the time. To Set: To Cancel:

• Press Start Button three times. The time of day will disappear. Actual time will not be lost. ʻ––––ʼ is indicated in the display.

• Press Stop/Cancel Button three times. The time of day will reappear in the display. Controls and operation procedure En-8Microwave cooking and defrost There are 4 (NN-J169M / NN-J159W) and 5 (NN-S269M / NN-S259W) different microwave power levels available. The chart below shows the approximate wattage for each power level. Use of accessory:

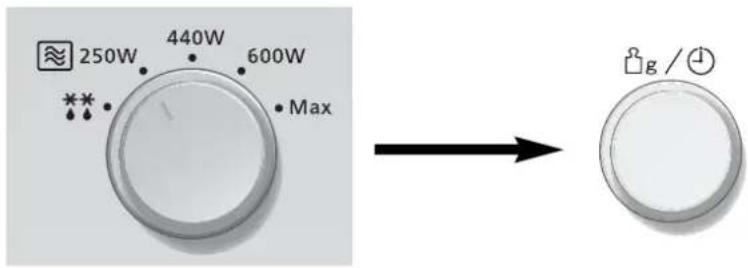

• Turn Mode Selector Dial to your desired power level.

• Set the cooking time using the Time/Weight Dial (HIGH power: up to 30 minutes Other powers: up to 90 minutes).

• Press Start Button. NOTE:

1. You can change the cooking time during cooking, if required. Turn Time/Weight Dial to increase

or decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking. Glass tray NN-J169M / NN-J159W NN-S269M / NN-S259W Power Level Wattage MAX (HIGH) Power 700W MEDIUM Power 600W LOW Power (NN-S269M/ NN-S259W) 440W SIMMER Power 250W MIN (DEFROST) Power 270W En-9 EnGrilling (NN-J169M / NN-J159W) The Grill provides 1 Grill setting of 1000W.

• Turn Mode Selector to Grill setting.

• Set the cooking time using the Time/Weight Dial (up to 90 minutes).

• Press Start Button. NOTE:

1. The Grill will only operate with the oven door closed.

2. You can change the cooking time during cooking, if required. Turn Time/Weight Dial to

increase/decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking. Wire rack Glass tray Use of accessory: En-10Combination cooking (NN-J169M / NN-J159W) There are 3 combination settings. The following chart shows the approximate wattage for each power level.

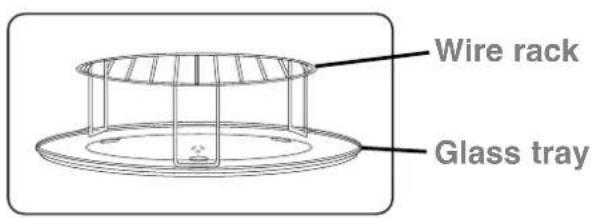

• Turn Mode Selector to desired Combination setting.

• Set the cooking time using the Time/Weight Dial (up to 90 minutes).

• Press Start Button. NOTE:

1. The Combination mode will only operate with the oven door closed.

2. You can change the cooking time during cooking, if required. Turn Time/Weight Dial to

increase/decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking. Wire rack Glass tray Use of accessory: Combination Microwave Grill Setting 1 250W 640W 2 325W 540W 3 400W 430W En-11 EnAuto defrost With this feature you can defrost frozen foods according to the weight. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category.

• Select the desired Auto Defrost Program. 1 press for small pieces 2 presses for big pieces 3 presses for bread/cake The auto program number appears in the display.

• Set the weight of the frozen food by using the Time/Weight dial. Turn clockwise, weight counts-up in 10g increments. Turn anti-clockwise, weight counts-down in 10g increments.

• Press Start Button. NOTE:

1. When defrosting time is over 60 minutes the time will appear as Hours and Minutes.

2. The shape and size of the food will determine the maximum weight the oven can accommodate.

Hints Small pieces of meat, escallop, sausages, minced meat, fish fillets, steaks, chops (each 100g to 400g). Turn/stir at beeps Big pieces of meat, roast, whole chicken, big piece of fish. Turn at beeps. For bread (whole or slices) and cakes. Cream cakes and iced cakes are unsuitable for this program. Turn at beeps. Program Min/Max. Weight

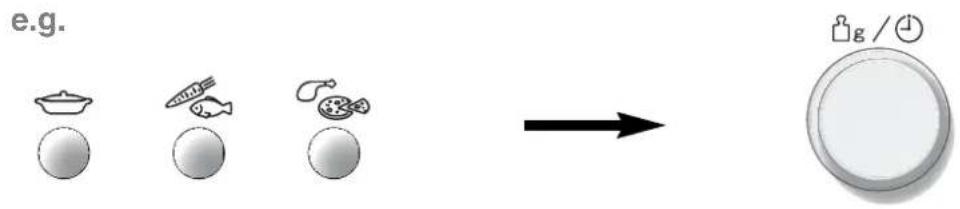

En-12e.g. Auto weight programs This feature allows you to cook most of your favourite foods by setting the weight only. The oven determines Microwave power level, Grill power (NN-J169M / NN-J159W) and cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category. NOTE:

1. When cooking time is over 60 minutes, the time will appear as Hours and Minutes.

2. Follow the charts overleaf for the recommended weight and accessories to be used.

• Select the desired Auto Weight Program. See pages En-14- En-16. The auto program number appears in the display.

• Set the weight of the food by using the Time/Weight Dial. Turn clockwise weight counts-up in 10g increments. Turn anti-clockwise, weight counts down in 10g increments.

• Press Start Button. En-13 EnREHEAT WEIGHT COOK To reheat a fresh plated meal or casserole. All foods must be pre-cooked. Foods should be at refrigerator temperature approx.

5°C. Stir at beeps. Allow a few minutes standing time. Ensure food is piping hot before serving. Large pieces of fish / meat in a thin sauce, may require longer cooking. To cook fresh vegetables. Place prepared vegetables into a suitable sized container. Sprinkle with 1 tbsp water per 100g vegetables. Cover with pierced cling film or a lid. Turn / stir at beeps. For cooking fresh fish. Place in a suitable sized container, add 2 tbsp (30ml) water. Cover with pierced cling film or a lid. 1 Press 1 Press 2 Presses FRESH MEAL FRESH VEGETABLES FRESH FISH Program Display 4 Display 6 Display 5

Category Instructions Accessory Auto weight programs En-14 NN-J169M / NN-J159W Recommen- ded WeightFor reheating and browning the top of frozen (NOT Fresh) purchased pizza. Remove all packaging and place the pizza on Wire Rack on Glass Tray. For reheating, browning and crisping the top of pre-cooked frozen gratin. This program is suitable for frozenlasagne, cannelloni, potato topped dishes, pasta bakes. Remove all packaging and place frozen gratin in heatproof dish on wire rack on glass tray. For cooking fresh chicken pieces. eg. breasts, thighs, drumsticks and quarters. Place in a heatproof dish on Wire Rack on Glass Tray. Turn at beeps. 1 Press 2 Presses FROZEN PIZZA FROZEN GRATIN WEIGHT COMBI Program Display 7 Display 8 3 Presses FRESH CHICKEN PIECES Display 9

150 ml 300 ml Category REHEAT COOK VEGETABLES / FISH REHEAT CUP/BOWL 1 Press FRESH MEAL Display 4 1 Press Reheat Cup Display 7 2 Presses Reheat 1 Bowl Display 8 1 Press 2 Presses FRESH VEGETABLES Display 5 FRESH FISH Display 6 To reheat a fresh plated meal or casserole. All foods must be pre- cooked. Foods should be at refrigerator temperature approx.

5°C. Stir at beeps. Allow a few minutes standing time. Ensure food is piping hot before serving. Large pieces of fish / meat in a thin sauce, may require longer cooking. To cook fresh vegetables. Place prepared vegetables into a suitable sized container. Sprinkle with 1 tbsp water per 100g vegetables. Cover with pierced cling film or a lid. Turn / stir at beeps. For cooking fresh fish. Place in a suitable sized container, add 2 tbsp (30ml) water. Cover with pierced cling film or a lid. For reheating a cup of hot drink (e.g tea, coffee, milk and soup). Select reheat cup, enter weight (150 ml), press start button. For reheating one bowl of hot drink. Select reheat bowl, enter weight (300 ml), press start button. Instructions Recomme- nded Weight Auto weight programs En-16 NN-S269M / NN-S259W Hints for reheating cup and bowl.

1. Stir the liquid before heating (Heated liquids can erupt if not mixed with air).

2. Do not cover hot drinks such as tea or coffee. Cover soup with a saucer to avoid any risk of

3. After heating, stir again and allow to stand for a short time.En-17

Timer By using the Clock/Timer button, you can program the oven as a minute timer.

• Press Clock/Timer Button once.

• Set desired amount of time by using the Time/Weight Dial (up to 90 minutes).

• Press Start Button. If the oven door is opened when the Minute Timer is in operation, the time in the display window will continue to count down. NOTE:En-18 Care of your oven

1. Turn the oven off before cleaning.

2. Keep the inside of the oven, door seals

and door seal areas clean. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended.

3. The outside oven surface should be

cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. If the Control Panel becomes dirty, clean it

with a soft, dry cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel, leave the oven door open to prevent the oven from accidentally turning on. After cleaning touch Button to clear the display window.

5. If steam accumulates inside or around the

outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

6. It is occasionally necessary to remove the

glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.

7. The roller ring and oven cavity floor should

be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affects the bottom surface or roller ring wheels. After removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.

8. When using the GRILL or COMBINATION

mode, (NN-J169M / NN-J159W) some foods may inevitably splatter grease on to the oven walls. If the oven is not cleaned occasionally, it may start to “smoke” during use.

9. A steam cleaner is not to be used for

10. This oven should only be serviced by

qualified personnel. For maintenance and repair of the oven contact the nearest authorized dealer.

11. Failure to maintain the oven in a clean

condition could lead to deterioration of surfaces that could affect the life of the appliance and possibly result in a hazardous situation.

12. Keep air vents clear at all times. Check

that no dust or other material is blocking any of the air vents on the top, bottom or rear of the oven. If air vents become blocked this could cause overheating which would affect the operation of the oven and possibly result in a hazardous situation.

13. NN-J169M / NN-J159W models. Do not

use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.En-19

Q: There are humming and clicking noises from my oven when I cook by COMBINA- TION. What is causing these noises? Questions and answers Q: Why wonʼt my oven turn on? A: When the oven does not turn on, check the following:

1. Is the oven plugged in securely? Remove

the plug from the outlet, wait 10 seconds and reinsert.

2. Check the circuit breaker and the fuse.

Reset the circuit breaker or replace the fuse if it is tripped or blown.

3. If the circuit breaker or fuse is all right, plug

another appliance into the outlet. If the other appliance works, there probably is a problem with the oven. If the other appli- ance does not work, there probably is a problem with the outlet. If it seems that there is a problem with the oven, contact an authorized Service Center. A: Some radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. A: The oven is designed not to accept an incorrect program. For example, the oven will only accept one stage cooking (excluding Delay Start), and will not accept an Auto Weight Program after Delay Start. A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking. A: Only when you are using GRILL cooking mode (NN-J169M / NN-J159W). The metal in some thermometers may cause arcing in your oven and should not be used on MICROWAVE and COMBINATION cooking modes. A: The noises occur as the oven automatically switches from MICROWAVE power to GRILL to create the combination setting. This is normal. A: After repeated use, it is recommended to clean the oven and then run the oven without food, glass tray, and roller ring on Grill for 5 minutes. This will burn off any food, residue or oil which may cause an odour and/or smoking. Q: My microwave oven causes interference with my TV. Is this normal? Q: The oven wonʼt accept my program. Why? Q: Sometimes warm air comes from the oven vents. Why? Q: Can I use a conventional oven thermometer in the oven? Q: My oven has an odour and generates smoke when using the COMBINATION and GRILL function. Why? (NN-J169M / NN-J159W)En-20 NN-J169M / NN-J159W Power Source: 230 V, 50 Hz Power Consumption: Maximum; 1100 W Microwave; 1100 W Grill; 1000 W Output: Microwave; 700 W (IEC-60705) Grill Heater; 1000 W Outside Dimensions: 433 (W) x 327 (D) x 258 (H) mm Oven Cavity Dimensions: 292 (W) x 297 (D) x 185 (H) mm Uncrated Weight: 12.0 kg Noise: 46dB NN-S269M / NN-S259W Power Source: 230 V, 50 Hz Power Consumption: Microwave; 1100 W Output: Microwave; 700 W (IEC-60705) Outside Dimensions: 433 (W) x 327 (D) x 258 (H) mm Oven Cavity Dimensions: 292 (W) x 297 (D) x 216 (H) mm Uncrated Weight: 10.5 kg Noise: 46dB Specifications subject to change without notice. Technical specifications This product is an equipment that fulfills the European standard for EMC disturbances (EMC = Electromagnetic Compatibility) EN 55011. According to this standard this product is an equipment of group 2, class B and is within required limits. Group 2 means that radio-frequency energy is intentionally generated in the form of electromagnetic radiation for warming up of foods. Class B means that this product may be used in normal household areas.En-21
