USER MANUAL Imageview 111210 BUSHNELL

LIT. #: 98-0507/11-04

CONTENTS

ENGLISH. 1

FRANÇAIS 15

ESPANOL 33

DEUTsCH 51

ITALIANO. 69

PORTUGUES. 87

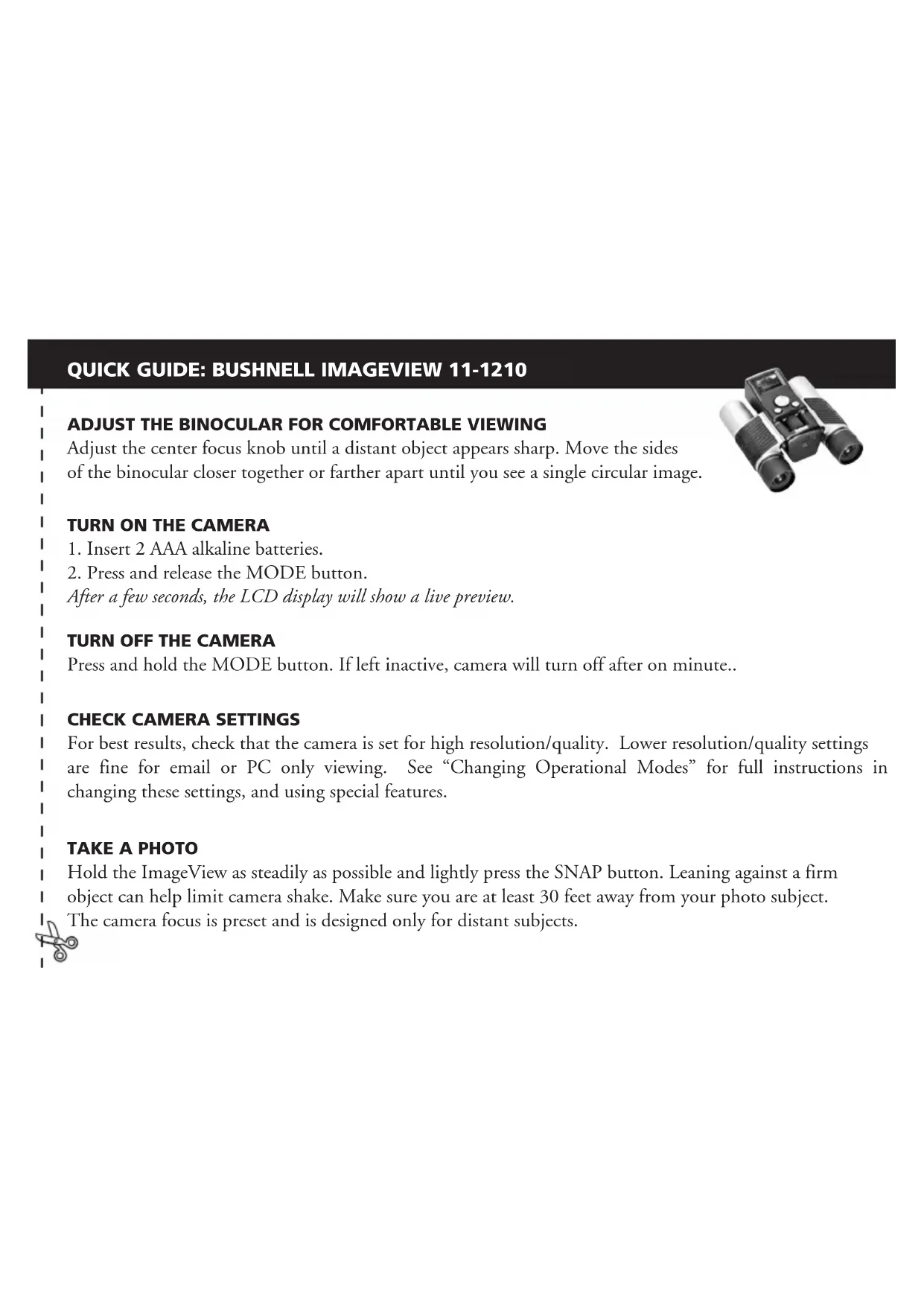

QUICK GUIDE: BUSHNELL IMAGEVIEW 11-1210

ADJUST THE BINOCULAR FOR COMFORTABLE VIEWING

Adjust the center focus knob until a distant object appears sharp. Move the sides of the binocular closer together or farther apart until you see a single circular image.

TURN ON THE CAMERA

1. Insert 2 AAA alkaline batteries.
2. Press and release the MODE button.

After a few seconds, the LCD display will show a live preview.

TURN OFF THE CAMERA

Press and hold the MODE button. If left inactive, camera will turn off after on minute..

CHECK CAMERA SETTINGS

For best results, check that the camera is set for high resolution/quality. Lower resolution/quality settings are fine for email or PC only viewing. See "Changing Operational Modes" for full instructions in changing these settings, and using special features.

TAKE A PHOTO

Hold the ImageView as steadily as possible and lightly press the SNAP button. Leaning against a firm object can help limit camera shake. Make sure you are at least 30 feet away from your photo subject. The camera focus is preset and is designed only for distant subjects.

REVIEWING AND DELETING STORED IMAGES

You can review all images by pressing Slide (left button). The stored photos will cycle automatically. Images cannot be deleted during a slide show. To exit Slide, press MODE. To review a single image, press the UP or DO WN button on the 4-way switch. Press again to advance to the next photo. To quickly erase an image while it is displayed, press SNAP. You will hear rapid alert beeps-press SNAP again during this alert to delete the photo. Press MODE to exit the image review.

USING THE IMAGEVIEW WITH YOUR COMPUTER

BEFORE CONNECTING THE IMAGEVIEW TO A COMPUTER, first install the driver from the CD-ROM as directed in "Software Installation". After the driver has been installed, you may install Roxio PhotoSuite 5. Follow the on-screen instructions. Then connect the ImageView to computer using the supplied USB cable. Read "Downloading Photos to Your Computer" for detailed instructions on transferring photos to a PC using PhotoSuite.

Congratulations on your purchase of a BushnellImageView binocular. Before using the product, please read these instructions and take time to familiarize yourself with the different parts and features of the product.

BINOCULAR INSTRUCTIONS

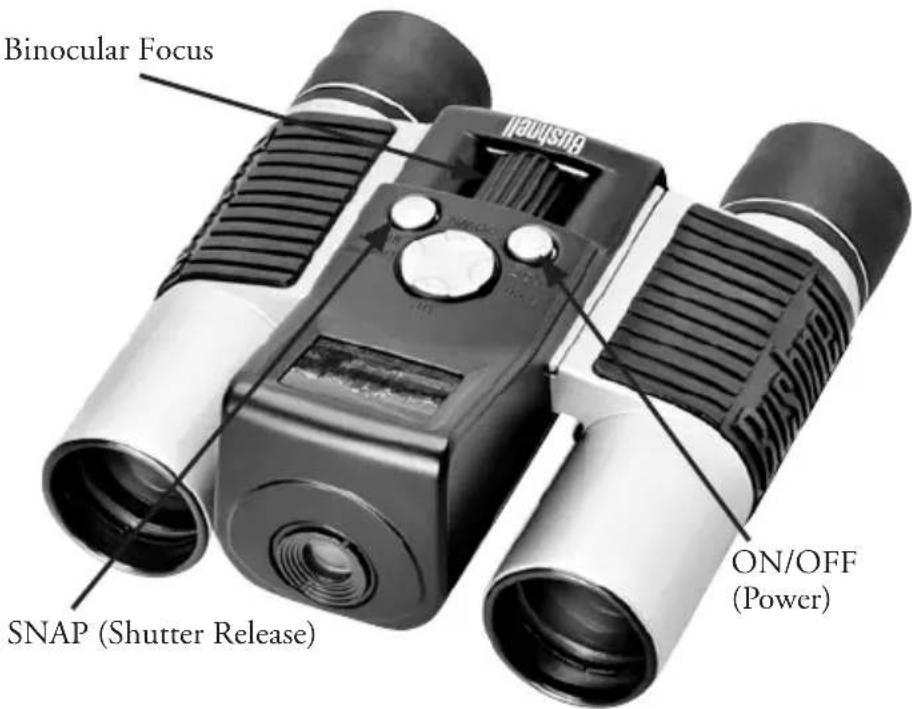

TURNING THE CAMERA ON AND OFF

Insert 2 AAA alkaline batteries as indicated inside the battery compartment, located at the bottom of the camera. Turn the camera on by pressing and holding the MODE button until the red power LED lights and the camera beeps once. After several seconds, the LCD display will show a live preview from the camera lens. Note: this STN type of LCD display is primarily intended to review photos after you have taken them, but can also serve as an aid

to check the camera aim and focus before taking a new photo. To turn the unit off, press and hold the MODE button until the display goes out and the camera beeps 3 times. The camera will turn itself off automatically to save batteries if it is left inactive for one minute. When connected to a PC for downloading photos, the camera draws power from the USB port.

TURING THE DISPLAY ON AND OFF

Press the Display button (right side of the large 4-way switch) to turn the display off. Turning the display off when it is not needed will save power and extend the useful life of the batteries. To turn the display back on, press Display again.

TAKING A PICTURE

With the camera turned on, press the SNAP button to take a new photo. For best results, hold the ImageView steady using both hands. Lightly press down the SNAP button using the flat end of your finger, then release it. Avoid "punching" the SNAP button rapidly with a fingertip, resulting in shaky photos. You will hear two quick beeps to confirm a photo was taken, and briefly see a screen displaying the remaining photo capacity (now one less), battery indicator, and resolution setting (1 or 3 stars).

REVIEWING AND DELETING STORED PICTURES

You may review previous images currently stored in the camera's memory by either scrolling through them one at a time, or seeing a "slide show" which automatically displays and changes images. To see individual images, just press the UP (mostrecent to oldest photo) or DOWN (oldest photo first) buttons on the 4-way switch. If you see a photo you wish to delete, press SNAP. You will hear a rapid

series of alarm beeps. Press SNAP a second time before the alarm sound ends to confirm you intend to delete that photo. If you do not press SNAP during the alarm, the photo will remain in memory and not be erased. When you are done reviewing images, press MODE to exit and return to preview mode, ready to take new pictures. To view a slide show of stored images, press the Slide button (left side of the 4-way switch). The photos will continuously cycle at 3-second intervals. Images cannot be deleted in slide show mode. (See "Changing Operational Modes" below for instructions on deleting the last or all stored images). To exit the slide show, press MODE at any time.

CHANGING OPERATIONAL MODES

Pressing the MODE button briefly will cycle through several special camera modes and settings. A corresponding icon or symbol (indicated in parentheses below) will be displayed on the LCD for each mode as you cycle through them by tapping the MODE button. A battery meter and counter showing the remaining photo capacity are also displayed in each mode screen. To activate the shooting mode or change the setting, briefly press the SNAP button. If no button is pressed for more than 5 seconds, the camera will return to normal operation. The modes/settings are shown as you cycle through them in the following order:

• Sequential Shot ( : Takes rapid series of 3 consecutive photos, approx. 1 second apart. When the Sequential Shot icon is displayed, a single press of the SNAP button will take a rapid series of 3 consecutive photos. After the series has been shot, the camera returns to normal shooting mode, and the counter will indicate that 3 photos were taken (remaining photo capacity is reduced by 3). This is a great feature for sports action shots.

• Timer () : selects the self-timer, which will then take a photo after a 10 second delay when you press the SNAP button. The camera will beep more rapidly right before the photo is taken. After one photo has been taken in timer mode, the counter indicates one less photo remaining, and the camera returns to normal shooting mode.

• Delete All Images (_A) : When this icon is displayed, pressing SNAP once will cause the photos remaining counter to blink (this is a safety precaution-if you accidentally enter this mode and don't want to delete all, simply wait for 5 seconds and no photos will be lost). If you proceed by pressing SNAP a second time while the counter is still blinking, the all photos currently stored in the camera's memory will be erased, and the counter will show the maximum photo capacity. "Delete All" is a quick way to clear the memory following a download of your photos to a computer, so that the camera is ready to hold as many new photos as possible.
• Delete Last Image (): Pressing SNAP when the "Delete Last" icon is displayed will delete (erase) only the last (most recent) photo you took from the camera's memory. The counter will go up by one number to indicate the amount of "reclaimed" photo memory, and the camera will return to normal mode, ready to shoot a new photo.
• High/Low Resolution ( / ): When the "three stars" icon is displayed, the camera is set to take high resolution images (640x480 pixels). Pressing SNAP will change the camera setting to low resolution (320x240 pixels), indicated by a "one star" icon in the display. To change back to high resolution, press MODE again until you get to the "one star" icon, then press SNAP ("three stars" will again be displayed). When the resolution is changed, the counter will also change to indicate the amount of

photo storage capacity remaining. Setting the resolution to High will produce better quality photos, setting the resolution to Low will allow you to store more photos (of lower quality) in the memory before you stop to download.

• High/Low Quality (LQ): This also affects the amount of space each photo takes up in the memory by changing the degree of file compression that is used. The default is high quality, pressing SNAP when the high quality icon (six dots stacked) is displayed will change the setting to low quality (sixteen dots stacked). Repeat the procedure to return to high quality again. As with resolution above, the counter will reflect the increased or decreased photo storage remaining. Refer to the table below to see how the resolution and quality settings affect the maximum photo capacity. Note: The actual number of photos the memory will hold may vary slightly, based on subject detail, lighting, etc.

RESOLUTION QUALITY MAX. PHOTOS
High (640x480)	High 48
High (640x480)	Low 98
Low (320x240)	High 186
Low (320x240)	Low 374

• Power Frequency Setting: (60 / 50Hz) : This sets the correct electrical frequency to avoid any "flickering" in the camera's output. The normal default is 60Hz (cycles), as used in the United States. If you are using the camera in a country with 50Hz power frequency, press SNAP when "60" is displayed to change it to "50".

OTHER DISPLAY ICONS

• Battery Indicator ( : Shows the amount of battery life left. When the battery icon begins to blink, the battery is low and should be replaced soon. If you do not see a live preview when you turn on the camera, or cannot playback stored images, replace the batteries. Be sure to bring an extra set of batteries on a long trip or for important events.

WARNING:

Make sure you download all photos (see directions below) from the camera before removing or changing the batteries. The camera memory is battery dependant, and your photos will be lost if you take the batteries out, or if the batteries are allowed to become completely dead.

• Photo Counter (###): Indicates the photo storage capacity left in the memory. The display will count down as you take photos so you are able to see how much memory remains in terms of the number of photos you can still take before it is full. You will need to stop and download your photos from the camera to your PC when the memory is filled (counter indicates "000" photo storage space remaining). After downloading, you can delete all photos from the memory and start over with the counter at maximum capacity (determined by resolution and quality settings).

USING THE IMAGEVIEW WITH YOUR COMPUTER

SYSTEM REQUIREMENTS:

Pentium II 266 or equivalent minimum

(Recommended Pentium III 500 MHz)

Windows 98/ME/Windows 2000/XP

Minimum 64MB of RAM

USB Port (do not connect the camera through a USB hub)

CD-ROM driver

Super VGA monitor and video card

Minimum 200 MB of hard drive space, with additional 65MB for IE and Direct X

SOFTWARE INSTALLATION

DO NOT CONNECT THE IMAGEVIEW CAMERA TO THE COMPUTER BEFORE INSTALLING THE DRIVER SOFTWARE

To load software, insert the supplied CD into your CD-ROM drive and it will self-start. If your computer does not have an auto play function and does not automatically launch the CD install screen, open the CD (open "My Computer" and double click the "ImageView" pencil icon) and click "Install Driver". The CD contains the PhotoSuite software, as well as the driver that will allow your computer to recognize your camera. Even if you have photo-imaging software on your computer and do not need the PhotoSuite software, you will still need to install the driver for the camera.

Follow the on screen instructions. After drivers are successfully installed first, return to the CD install screen, and click on "Roxio PhotoSuite 5" to install the photo imaging software. If you have questions about using yourImageView, including the downloading process, help is available at www.bushnell.com or call Bushnell customer service at [phone]. For the quickest response, contact customer service via email at: [e-mail]. Please include the following information:

• YourImageView model #
• Your Windows operating system (98/98SE, 2000, ME. XP)
• The specific error message, if any, that you encounter.

For PhotoSuite software technical support, go to the Roxio website at: www.roxio.com and click "Support", then select your PhotoSuite version and search the online knowledge base. Note that PhotoSuite has an extensive Help menu, so be sure to reference that first.

DOWNSLOADING PHOTOS TO YOUR COMPUTER:

1. Connect the USB cable from the computer to the camera.
2. You may have a brief wait for the process as Windows "builds a driver information database" and confirms that the PC matches the correct software to the attached hardware device.
3. Open the program PhotoSuite 5
4. Click "Transfer" in the left frame area under "Home Page"
5. Select "Transfer from new device"

6. Under (#1) "Select a device from the list", click "DigiCam", then click "Next" at the bottom of the left frame area.

7. You may now name the group of photos if you wish (#2), or accept the default "Captured (current date). Note that your photos will also be added to your hard drive in a folder of the same name, located in C:/My Documents/My Pictures.

8. Click the "Transfer Photos" button (#3).
9. After several seconds, the driver screen will appear. Click on the "Download photos" button (pink camera round icon on bottom left) to start the download from theImageView to your computer.
10. When the download is finished, you should see "thumbnail" preview frames showing your photos in the driver window.
11. Next, click the second button from the right at the bottom of the driver window, to "select all photos in this page", if you want to transfer all the photos to your PC. Or, click on the thumbnail frames to select just the photos you want to work with (click again to deselect one), then click "Transfer photos" (second button from left) at the bottom of the driver window. You are then returned to the PhotoSuite transfer screen, and should see all of your transferred photos, identified by the date and file number (beginning with 00000).
12. Click "Next", then "Done" at the bottom of the left frame area.

You may now wish to edit (click Edit & Create, then Edit), or print (click Print & Share, then Print) your photos. For detailed instructions for using these and other PhotoSuite features, please refer to "Roxio PhotoSuite Help", available by selecting the Help menu at the top of your screen. When you have finished transferring and working with your photos, you may disconnect the camera from the USB cable. After your photos have been successfully transferred to your PC, you may clear the previous contents from the camera's memory (see "Delete All Images" under "Changing Operational Modes"), and begin taking new photos.

BINOCULAR INSTRUCTIONS

Your Bushnell binocular is a precision instrument designed to provide many years of pleasurable viewing. This portion of the booklet will help you achieve optimum performance by explaining how you can adjust the binocular to your eyes, and how to care for this instrument. Read the instructions carefully before using your binocular.

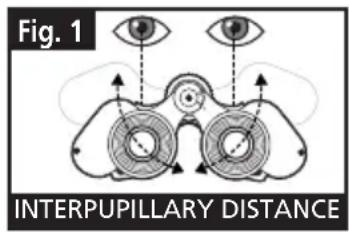

EYE ADJUSTMENTS (Figure 1)

How to Adjust For Distance Between Your Eyes

The distance between the eyes, called "interpupillary distance," varies from person to person. To achieve perfect alignment of lens to eye, follow these simple steps.

1. Hold your binocular in the normal viewing position.
2. Grasp each barrel firmly. Move the barrels closer together or further apart until you see a single circular field. Always re-set your binocular to this position before using.

How to Adjust For Individual Eye Strength

As individual eyesight varies from one person to another, Bushnell binoculars have a diopter setting feature which allows you to fine-tune the binocular to your vision. Follow the focusing instructions below for your binocular.

FOCUSING

1. Adjust interpupillary distance. (Figure 1)

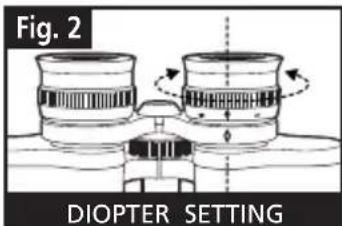

2. Set the "diopter setting" (Figure 2) to zero and view a distant object.
3. Keep both eyes open at all times.
4. Using a lens cover or your hand, cover the objective (front) lens of the same side of the binocular that has the "diopter setting." This is usually the right side.
5. Using the center focus wheel, focus on a distant object with fine detail (e.g., brick wall, tree branches, etc.) until it appears as sharp as possible.
6. Uncover the objective lens on the diopter side, cover the other objective lens, then view the same object.
7. Using the "diopter setting" adjustment ring, focus the same object being viewed. Caution should be used as over turning or forcing the diopter eyepiece can cause damage or cause the eyepiece to break away from the chassis.
8. Your binocular should be adjusted for your eyes. Focus at any far or near distances can now be attained simply by turning the center focus wheel. Make a note of the diopter setting for your eyes for future reference.

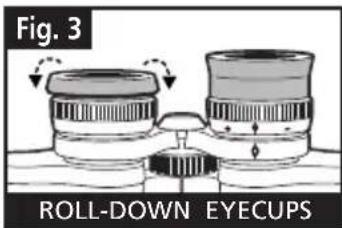

EYECUPS (Figure 3)

Your Bushnell binocular is fitted with rubber roll-down eyecups designed for your comfort and to exclude extraneous light. If you wear sun/eyeglasses, roll down the eyecups. This will bring your eyes closer to the binocular lens thus providing improved field of view.

INSTRUCTIONS FOR CARE OF BINOCULARS

Your Bushnell binocular will provide years of trouble-free service if it receives the normal care you would give any fine optical instrument. Non-waterproof models should not be exposed to excessive moisture.

1. If your binocular has roll-down, flexible eyecups, store it with the eyecups up. This avoids excessive stress and wear on the eyecups in the down position.

2. Avoid banging and dropping.

3. Store in a cool, dry place.

4. DANGER: Never look directly at the sun or any bright light through the binocular. Serious harm, including loss of vision, can result.

1. Never expose your ImageView binocular to any type of excessive of liquid or fluid, as the binocular is not water/fogproof.

2. Take the batteries out of your ImageView if you are not going to use it for a long period of time. (Make sure you download any pictures from your camera before you remove the batteries from the camera.)

CLEANING

1. Blow away any dust or debris on the lens (or use a soft lens brush).
2. To remove dirt or finger prints, clean with a soft cotton cloth rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. A "microfiber" cleaning cloth (available at most photo dealers) is ideal for the routine cleaning of your optics.
3. For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth - never directly on the lens

WARRANTY / REPAIR

TWO-YEAR LIMITED WARRANTY

Your Bushnell® product is warranted to be free of defects in materials and workmanship for two years after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.

Any return made under this warranty must be accompanied by the items listed below:

1) A check/money order in the amount of $10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Date Purchased
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the address listed below:

IN

U.S.A. SEND TO:

IN CANADA SEND TO:

Bushnell Performance Optics

Optics Bushnell Performance Optics

Attn.: Repairs Attn.: Repairs

8500 Marshall Drive 25A East Pearce Street, Unit 1

Lenexa, Kansas 66214 Richmond Hill, Ontario L4B 2M9

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also contact Bushnell at: BUSHNELL Performance Optics GmbH

European Service Centre

MORSESTRASSE 4

D-50769 KOLN

GERMANY

Tel: [phone]

Fax: [phone]

This warranty gives you specific legal rights.

You may have other rights which vary from country to country.

©2004 Bushnell Performance Optics
