USER MANUAL TC3 50w VISION

TECHCONNECT AMPLIFIER OWNERS MANUAL

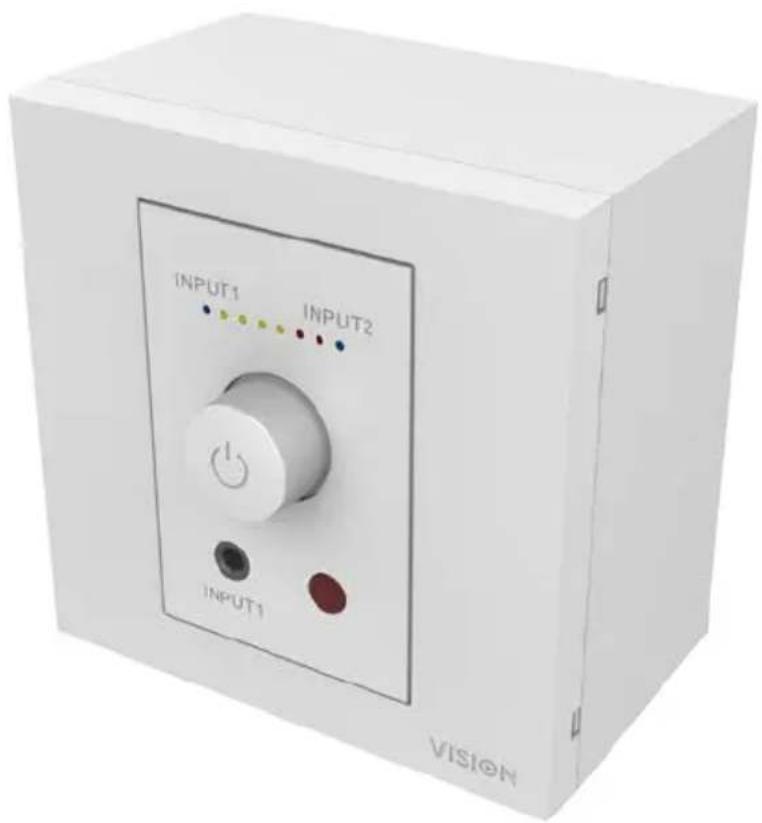

White industrial control box with two inputs and a red button, labeled 'VISION' at bottom (no other text or symbols)

www.visionaudiovisual.com/techconnect/tc3-amp

DECLARATION OF CONFORMITY

Where applicable Vision products are certified and comply with all known local regulations to a 'CB Certification' standard. Vision commits to ensure all products are fully compliant with all applicable certification standards for sale in the EU and other participating countries.

The product described in this owner manual is in compliance with RoHS (EU directive 2002/95/EC), and WEEE (EU directive 2002/96/EC) standards. This product should be returned to the place of purchase at the end of its useful life for recycling.

WARNINGS

Black triangular warning symbol with a lightning bolt inside, indicating electrical hazard (no text or numbers present)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with an exclamation mark (no text or numbers)

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

All products are designed and imported into the EU by 'Vision' who is wholly owned by 'Azlan Logistics Ltd.', Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. WEEE Registration: GD0046SY

RoHS 2002/95/EC TÜV SUD CE

DECLARATION OF ORIGIN

All Vision products are made in the People's Republic of China (PRC).

USE ONLY DOMESTIC AC OUTLETS

Connecting the unit to an outlet supplying a higher voltage may create a fire hazard.

HANDLE THE POWER CORD WITH CARE

Do not disconnect the plug from the AC outlet by pulling the cord; always pull the plug itself. Pulling the cord may damage it. If you do not intend to use your unit for any considerable length of time, unplug the unit. Do not place furniture or other heavy objects on the cord, and try to avoid dropping heavy objects on it. Do not tie a knot in the power cord. Not only could the cord be damaged, but a short circuit could also be caused with a consequent fire hazard.

PLACE OF INSTALLATION

Avoid installing this product under the following conditions:

• Moist or humid places
• Places exposed to direct sunlight or close to heating equipment
  • Extremely cold locations
• Places subject to excessive vibration or dust
• Poorly ventilated places

Do not expose this product to dripping or splashing. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS PRODUCT!

MOVING THE UNIT

Before moving the unit, be sure to pull out the power cord from the AC outlet and disconnect the interconnection cords with other units.

WARNING SIGNS

If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision.

PACKAGING

Save all packing material. It is essential for shipping in the event the unit ever needs repair.

IF ORIGINAL PACKAGING IS NOT USED TO RETURN THE UNIT TO THE SERVICE CENTRE, DAMAGE IN TRANSIT WILL NOT BE COVERED BY WARRANTY.

WATTS

The most consistent standards for measuring watts are “Program Power” and “RMS” because these measure average sustained levels.

Amplifier power output changes depending on how many loudspeakers are connected. Professional manufacturers typically quote output based on 8 ohms. Less reputable manufacturers quote at 4 ohms to make their product seem more powerful.

This amplifier has an output of:

2 x 25w (sometimes referred to as 50w) @ 8 ohms (two loudspeakers connected)
2 x 50w (sometimes referred to as 100w) @ 4 ohms (four loudspeakers connected)

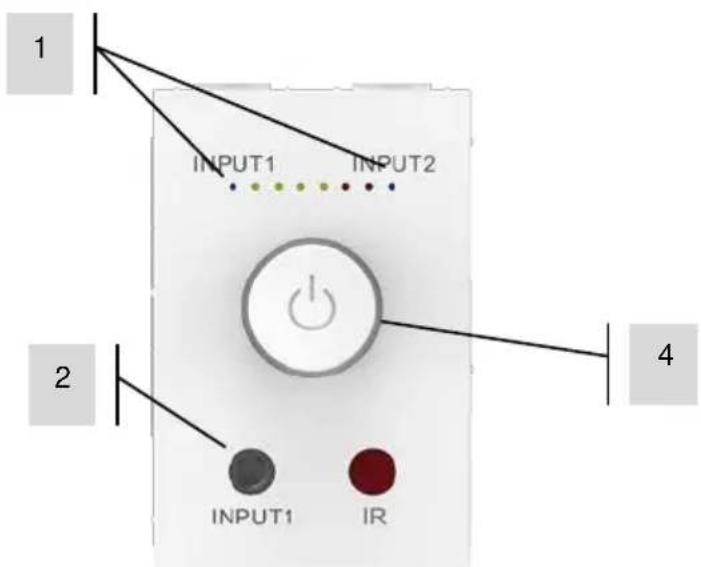

FRONT PANEL

1 INPUT1 INPUT2 2 INPUT1 IR 4

1. Active input indicators (Blue LED)
2. Input 1 3.5mm Minijack socket
3. Volume (rotate) / Input selection (short push) / Standby (long push)

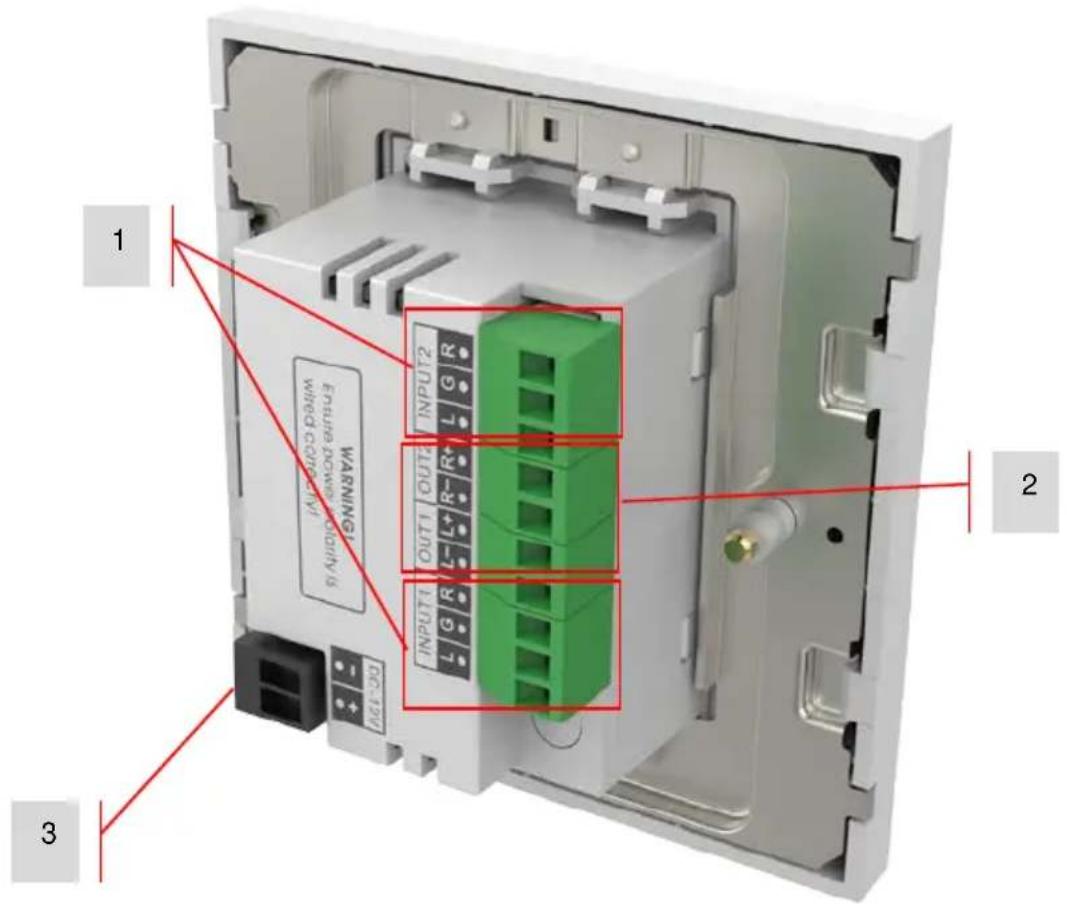

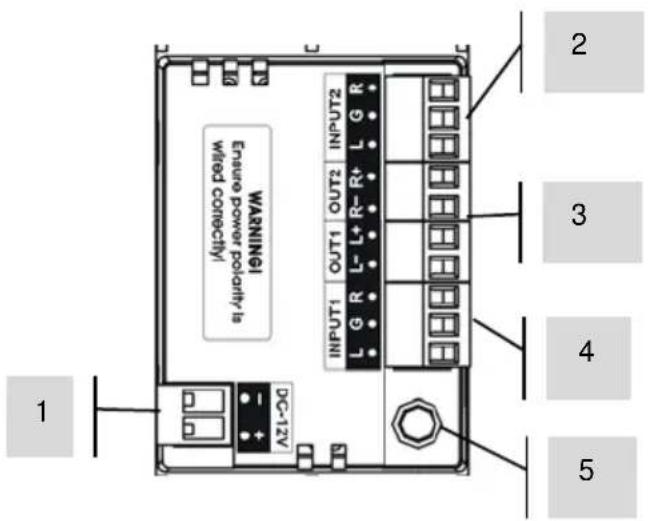

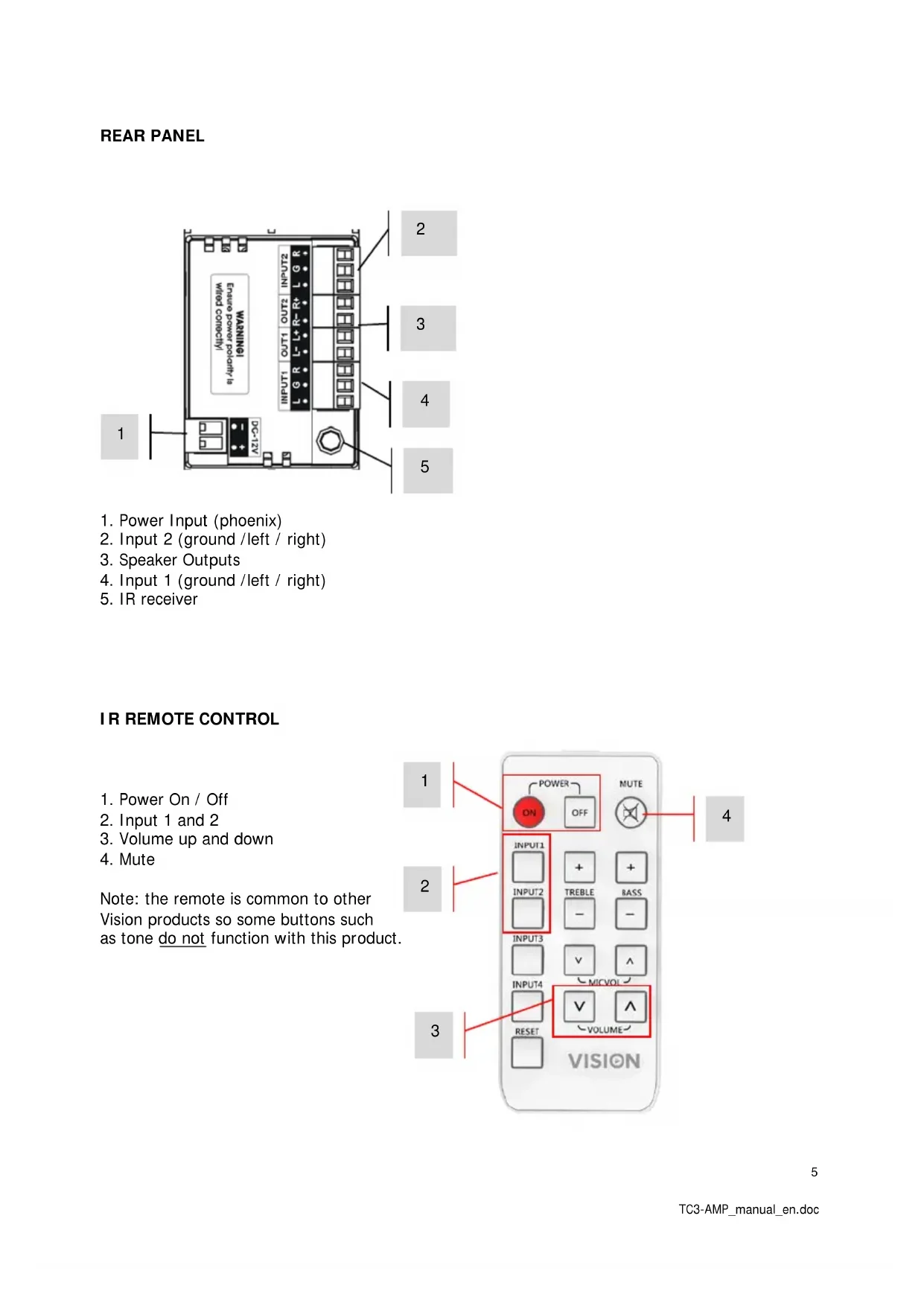

REAR PANEL

WARNING Enable connectivity in DC-12V INPUT1 OUT1 L+R-R+ INPUT2 L+R LGR OUTPUT2 INPUT2 OUTPUT1 OUTPUT2 OUTPUT1 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2 OUTPUT2

1. Power Input (phoenix)
2. Input 2 (ground /left / right)
3. Speaker Outputs
4. Input 1 (ground /left / right)
5. IR receiver

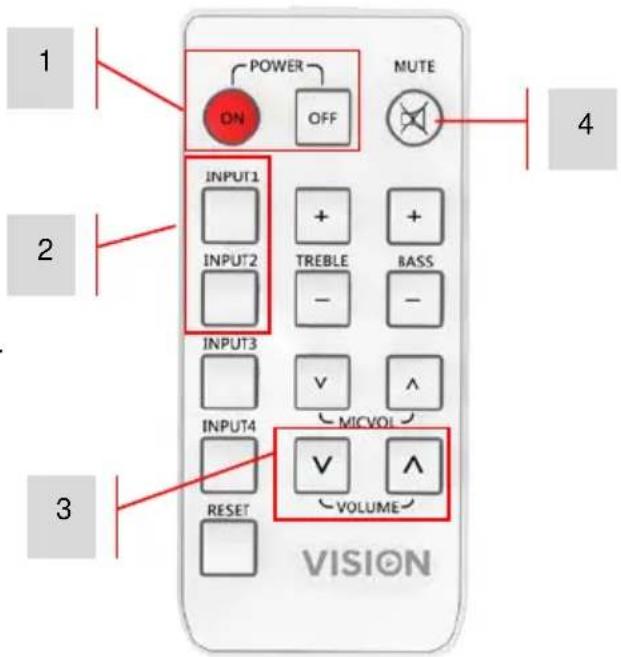

I R REMOTE CONTROL

1. Power On / Off
2. Input 1 and 2
3. Volume up and down
4. Mute

Note: the remote is common to other Vision products so some buttons such as tone do not function with this product.

POWER ON OFF MUTE INPUT1 + + INPUT2 TREBLE BASS - INPUT3 V ^ MICVOL INPUT4 V VOLUME RESET VOLUME VISION

INSTALLATION INSTRUCTIONS

This amplifier module can be fixed as a stand-alone product or integrated into a Techconnect connectivity faceplate.

Using as a stand-alone product:

1. CONNECT INPUTS If you have a 2-phono cable twist the two ground wires together

2. CONNECT OUTPUTS Connect up to two speakers to each output (four total)

The speaker cable must be unshielded with a gauge of no less than 0.75mm. THE WARRANTY WILL BE VOID IF YOU USE UNSUITABLE SHIELDED CABLE E.G. PHONO CABLE.

1. CONNECT POWER

WARNING FIRE RED COLD 1 OUTPUT2 L G R OUT1 OUT2 L+ L+ R+ R+ INPUT1 L G R OUTPUT1 G R 3

NOTE: THIS IS A LOW-IMPEDANCE AMPLIFIER. DO NOT ATTEMPT TO CONNECT 100V LINE SPEAKERS (Normally any speakers with "t" in the part code)

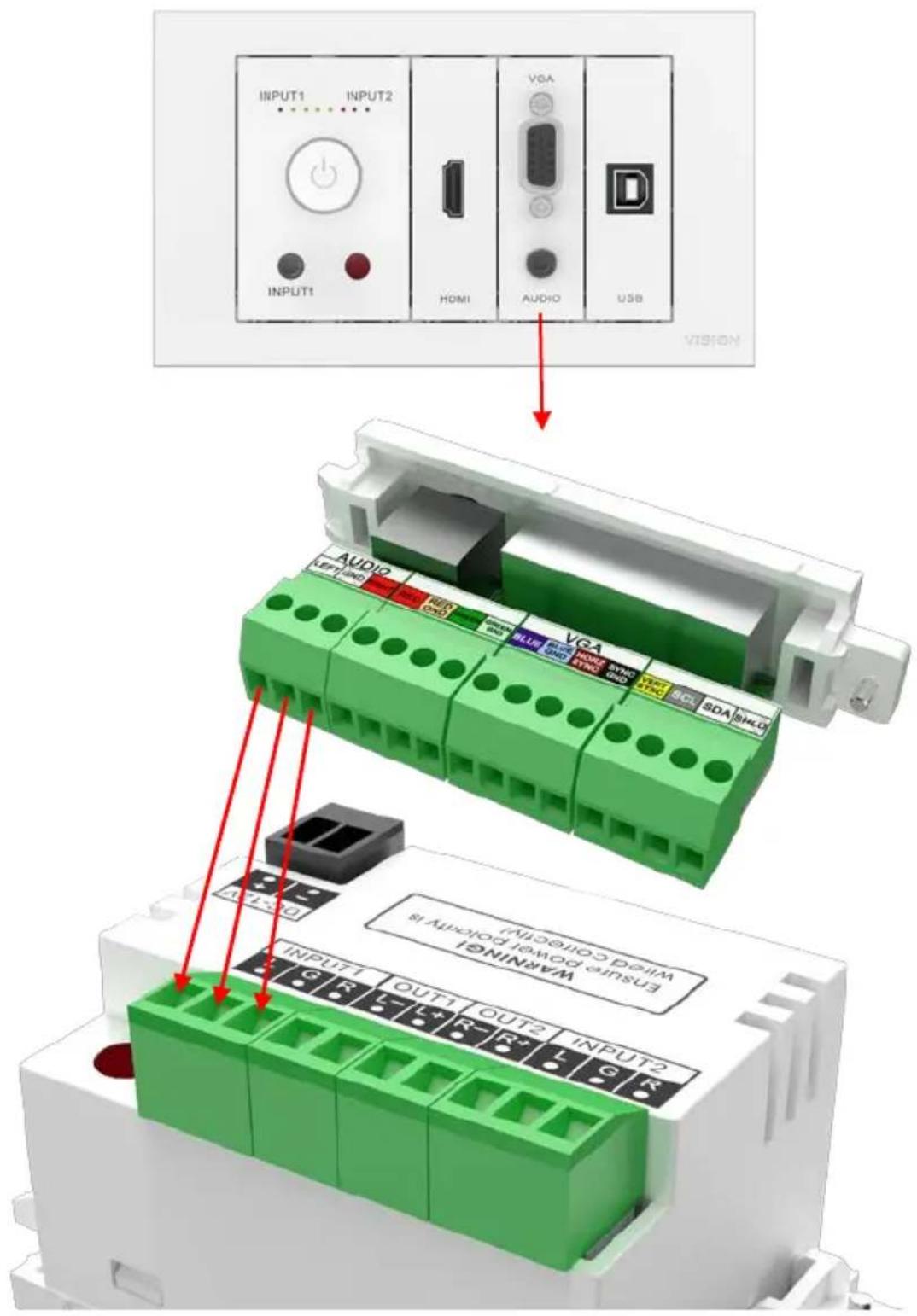

Integrating into connectivity faceplate:

The example below shows how to connect an adjacent module. A short cable is included with the amplifier to make this connection.

INPUT1 INPUT2 HOMI VGA AUDIO USB VISION AUDIO LEFT/IND HDMI Blue VGA SYNC SCL SDA/SHG WRITE CORNER CNTN WARNING INPUT1 OUT1 R- OUT2 INPUT2 G R L G R A-1-0

PROGRAMME MEMORY

By default power is turned on the amplifier resumes last input and volume level.

To change this so that it always comes on at a fixed input and volume level:

1. With amplifier in standby, press and hold the rotary dial for 10 seconds. Keep holding it down.
2. After 10 seconds the Input LEDs will flash alternately. Release the dial when the Input 2 LED is on.
3. Select input and set volume. Long-press the rotary dial to set amp to standby. This will save the settings to memory.

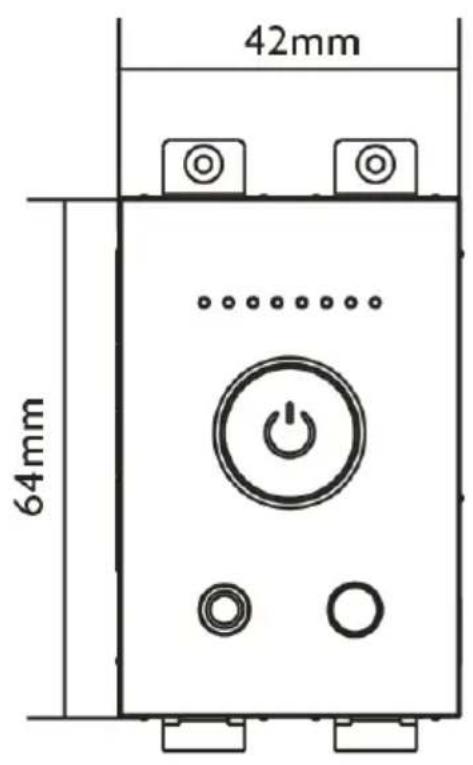

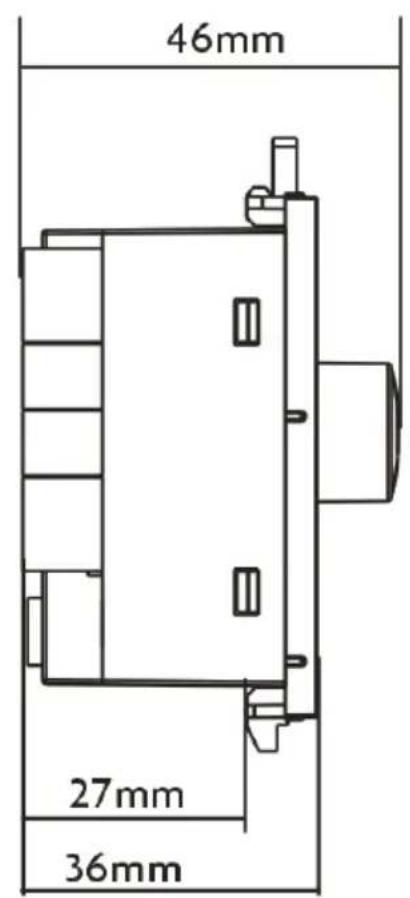

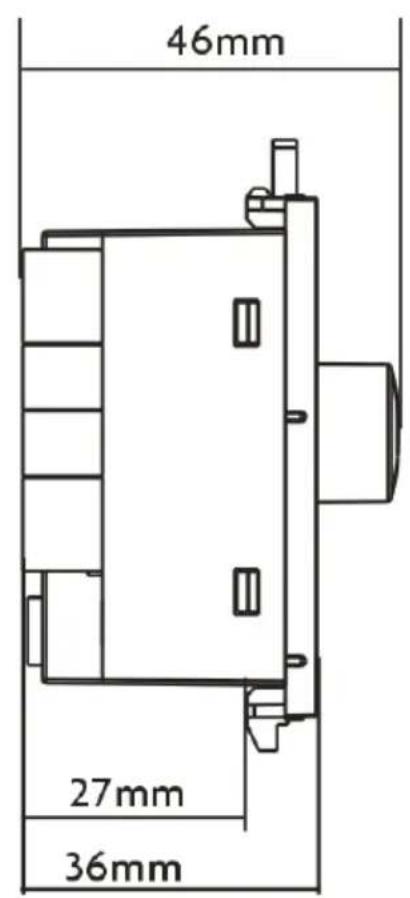

DIMENSIONS

42mm 64mm

46mm 27mm 36mm

TROUBLESHOOTING

If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately.

Problem	Correction
No Sound	Turn off and check connections.Check output level from sources. For example, laptop volume.The amplifier chip has temperature and overload protection. This means if the chip temperature is too extreme (outside - 40°C-50°C) or the chip is overloaded, the chip will temporarily mute itself. When normal conditions return, it will resume working.
No Power light	Check power connections
Distortion	Volume too highLoudspeakers may be worn or damaged
Sound only coming out one side	Turn off and switch output connections.If the side changes the amplifier is okay.Switch input connections and check input cabling.

SPECIFICATIONS

AMPLIFIER MODULE DIMENSIONS: 42 x 64 x 36mm / 1.65" x 2.8" x 1.57"

BACKBOX DIMENSIONS: 86 x 86 x 45mm / 3.39" x 3.39" x 1.77"

SURROUND DIMENSIONS: 86 x 86 x 8mm / 3.39" x 3.39" x 0.31"

CARTON DIMENSIONS: 240 x 205 x 63mm / 9.45" x 8.07" x 2.48"

AMPLIFIER WEIGHT: 63 grams / 0.14 lb

PACKAGED WEIGHT: 1.1kg / 2.4 lb

COLOUR: White

INPUTS: 2 x Stereo inputs via removable phoenix connectors

TC2-AMP3+TC2 BACKBOX2GTTECHNICAL DETAILS:

2 x 25w @ 8 ohms

Total Harmonic Distortion: less than or equal to 1% (20Hz\~22kHz)

Frequency response (line in): 80Hz\~22kHz(±2dB)

Signal to noise ratio (line in): more than or equal to 98dB (A-weighted)

Rating input level/impedance: Line in 500mV/50k Ω

Power consumption (rating condition): less than or equal to 50W

ACCESSORIES INCLUDED:

1 x Single-gang Backbox

1 x Single-gang Surround

2 x 150mm (5.9") input cables

2 x Unshielded Speaker cable 5m (16.4 ft) long

1 x Remote Control with batteries

POWER SUPPLY: 100-240v 50/60Hz AC External Power Supply - 15 volt / 4 amp.

Laptop-style transformer. Includes 4 x 0.5m (13.1 ft x 1.6 ft) figure-8 power cables: UK/EU/US/AU. DC tail length: 4m (13.1 ft).

Transformer dimensions: 108 x 50 x 33mm / 4.1" x 2" x 1.3"

WARRANTY: Lifetime return-to-base

2 years onsite (UK only)

COMPLIANCES: RoHS, WEEE, CE/EMC, RCM, FCC

LIFETIME RETURN-TO-BASE WARRANTY

This product comes with a lifetime return to base warranty. If you have a problem you are required to provide a DETAILED DESCRIPTION of the fault.

Some Vision products are very technical and require troubleshooting all elements of the installation as it may not be the Vision product at fault. Because of this the manufacturer may refuse to replace the item if an adequate description is not provided.

• This warranty applies only to the original purchaser and is not transferable.
• This warranty protects you against the following:

o Failure of any components, including the power supply.
o Damage when the product is first removed from its packaging if reported within 24 hours of purchase.

- If the product is DOA (dead on arrival), you have 21 days from purchase date to notify the national distributor via your AV reseller.

- The original purchaser is responsible for shipment of the product to the Vision's appointed service centre.

- The liability of Vision is limited to the cost of replacement of the faulty unit under warranty except for death or injury (EU85/374/EEC).

• If the product is end of line (EOL) the Vision will provide a credit instead of replacement.

- This warranty does not protect this product against faults caused by abuse, misuse, incorrect installation, unstable or faulty power input, or modification.

Vision aims to send a replacement item within 5 working days however this may not always be possible, in which case it will be sent as soon as practicably possible. UK End users and resellers can request support at http://www.visionaudiovisual.com/support

LEGAL DISCLAIMER: Because we are committed to improving our products, the details above may change without prior warning. This User Manual is published without warranty and any improvements or changes to the User Manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made at any time and without notice. Such changes will be incorporated into new editions of the User Manual.

TECHCONNECT AMPLIFIER

BEDIENUNGSANLEITUNG

INPUT1 INPUT2 INPUT1 VISION

www.visionaudiovisual.com/de/techconnect-de/tc3-amp/

Black triangular warning symbol with a lightning bolt inside, indicating electrical hazard (no text or numbers present)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

RoHS 2002/95/EC TÜV SÜD CE

URSPRUNGSERKLÄRUNG

WARNING Ersuite power bolt (dotarity is wired co-actv) 1 2 3

42mm 64mm

46mm 27mm 36mm

FEHLERBEHEBUNG

KONFORM MIT: RoHS, WEEE, CE/EMC, RCM, FCC

Black triangular warning symbol with a white lightning bolt inside, indicating electrical hazard (no text or numbers present)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

FORSIGTIG: RISIKO FOR ELEKTRISK ST∅D MÅ IKKE ÅBNES

ADVARSEL: FOR AT REDUCERE RISIKOEN FOR ELEKTRISK ST∅D MÅ DÆKSLET IKKE FJERNES (ELLER BAGBEKLÆDNINGEN). DER ER INGEN DELE INDENI DER KAN VEDLIGEHOLDES AF BRUGEREN. VEDLIGEHOLDELSE SKAL UDF∅RES AF KVALIFICERET SERVICEPERSONALE.

RoHS 2002/95/EC TÜV SÜD CE

OPRINDELSESERKLÆRING

WARNING Ensurs down, 120V is wired CO (3V) DC-12V INPUT1 L G R L+ L+ R- R+ R- R+ L G R OUTPUT2 INPUT2 L G R L+ L+ R- R+ R- R+ L G R 1 2 3

42mm 64mm

46mm 27mm 36mm

FEJLFINDING

1 x Single-gang bagboks

1 x Single-gang surround

OVERHOLDELSER: RoHS, WEEE, CE/EMC, RCM, FCC

LIVSLANG GARANTI MED RETURRET TIL FORHANDLER

Black triangular warning symbol with a lightning bolt inside, indicating electrical hazard (no text or numbers present)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

RoHS 2002/95/EC TÜV SÜD CE

WARNING Ergure Power Polarity is wired on CHN 1 2 3

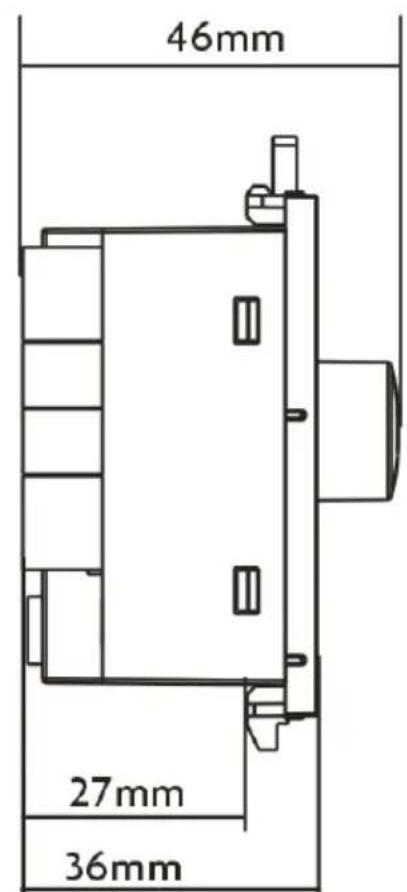

42mm 64mm

46mm 27mm 36mm

DÉCLARATION DE CONFORMITÉ

Black triangular warning symbol with a lightning bolt inside, indicating electrical hazard (no text or numbers present)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

ATTENTION: RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR

ATTENTION : AFIN DE LIMITER LES RISQUES DE CHOC ÉLECTRIQUE, NE RETIREZ JAMAIS NI CAPOT NI CACHE ARRIÈRE. AUCUNE PIÈCE INTERNE N'EST RÉPARABLE PAR L'UTILISATEUR. POUR LA MAINTENANCE, ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ.

RoHS 2002/95/EC TÜV SUD CE

INPUT1 INPUT2 HDMI VGA AUDIO USB VISION AUDIO LED Gate RGB GND Blue LED GND SAND GND SCL SOA SHLG VGA LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate

PROGRAMMATION DE LA MÉMOIRE

42mm 64mm

46mm 27mm 36mm

DÉPANNAGE

Black triangular warning symbol with a white lightning bolt inside, indicating electrical hazard (no text or numbers present)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

ATTENZIONE: PERICOLO DI SCOSSE ELETTRICHE NON APRIRE

ATTENZIONE: PER RIDURRE IL PERICOLO DI SCOSSE ELETTRICHE, NON RIMUOVERE IL COPERCHIO (O IL PANNELLO POSTERIORE). ALL'INTERNO NON SONO PRESENTI PARTI RIPARABILI DALL'UTENTE. PER LA MANUTENZIONE RIVOLGERSI A PERSONALE TECNICO QUALIFICATO.

RoHS 2002/95/EC TÜV SÜD CE

DICHIARAZIONE DI ORIGINE

WARNING Ensurg DOW POLYNE WHOD COLD DC-12V 1 2 3

INPUT1 INPUT2 HDMI VGA AUDIO USB VISION AUDIO LED Gate RGB GND Blue LED GND SAND GND SCL SOA SHLG VGA LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate LED Gate

MEMORIA PROGRAMMI

42mm 64mm

46mm 27mm 36mm

CONFORMITÀ: RoHS, WEEE, CE/EMC, RCM, FCC

GARANZIA A VITA CON SPEDIZIONE AL CENTRO ASSISTENZA

Black triangular warning symbol with a white lightning bolt inside, indicating electrical hazard (no text or numbers present)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

WAARSCHUWING: RISICO OP ELEKTRISCHE SCHOK NIET OPENEN

WAARSCHUWING: OM HET RISICO OP EEN ELEKTRISCHE SCHOK TE VERMINDEREN, MAG DE BEHUIZING (OF ACHTERPLAAT) NIET VERWIJDERD WORDEN ER ZIJN GEEN ONDERDELEN DIE DE GEBRUIKER ZELF KAN ONDERHOUDEN. LAAT ONDERHOUD AAN GEKWALIFICEERD PERSONEEL OVER.

RoHS 2002/95/EC TÜV SÜD CE

VERKLARING INZAKE OORSPRONG

PLAATS VAN INSTALLATIE

HET APPARAAT VERPLAATSEN

WAARSCHUWINGSSIGNALEN

1 WARNING Enquire open polatry in wired GND/CN 2 OUTPUT L+ L+ R- R+ L G R 2-INPUT L+ L+ R- R+ L G R 3

NB: DIT IS EEN VERSTERKER MET LAGE IMPEDANTIE. SLUIT GEEN '100V LIJN'-LUIDSPREKERS AAN (normaliter alle luidsprekers met 't' in de onderdeelcode)

42mm 64mm

46mm 27mm 36mm

PROBLEMEN OPLOSSEN

MEEGELEVERDE ACCESSOIRES:

Black triangular warning symbol with a white lightning bolt inside, indicating electrical hazard (no text)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

RoHS 2002/95/EC TÜV SÜD CE

DEKLARACJA POCHODZENIA

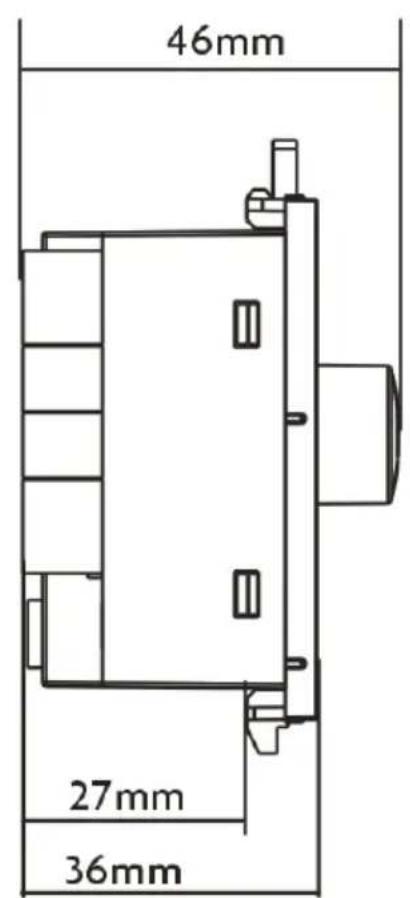

WARNING Ensure Power, Battery's Wired or CNTM1 1 2 3

42mm 64mm

46mm 27mm 36mm

ROZWIĄZYWANIE PROBLEMÓW

WYMIARY OBUDOWY: 86 x 86 x 8 mm

WYMIARY KARTONU: 240 x 205 x 63 mm

MASA WZMACNIACZA: 63 g

MASA W OPAKOWANIU: 1,1 kg

KOLOR: Biały

Black triangular warning symbol with a lightning bolt inside, indicating electrical hazard (no text or numbers present)

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

CUIDADO: RISCO DE CHOQUE ELÉCTRICO NÃO ABRIR

CUIDADO: PARA REDUZIR O RISCO DE CHOQUE ELÉTRICO, NÃO RETIRE A TAMPA (OU COBERTURA POSTERIOR). NÃO CONTÉM PEÇAS NO INTERIOR QUE NECESSITEM DE MANUTENÇÃO POR PARTE DO UTILIZADOR. SOLICITE ASSISTÊNCIA A PESSOAL QUALIFICADO.

RoHS 2002/95/EC TÜV SOD CE

42mm 64mm

46mm 27mm 36mm

CONFORMIDADE: RoHS, WEEE, CE/EMC, RCM, FCC
