USER MANUAL LBL 2 Kärcher

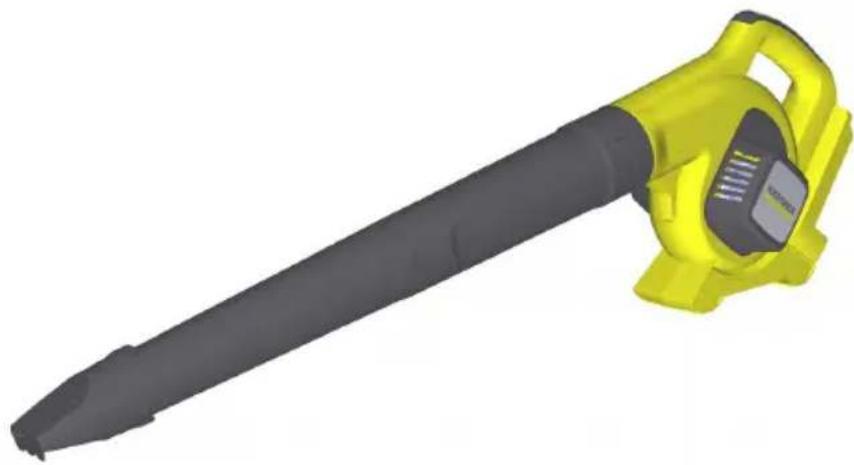

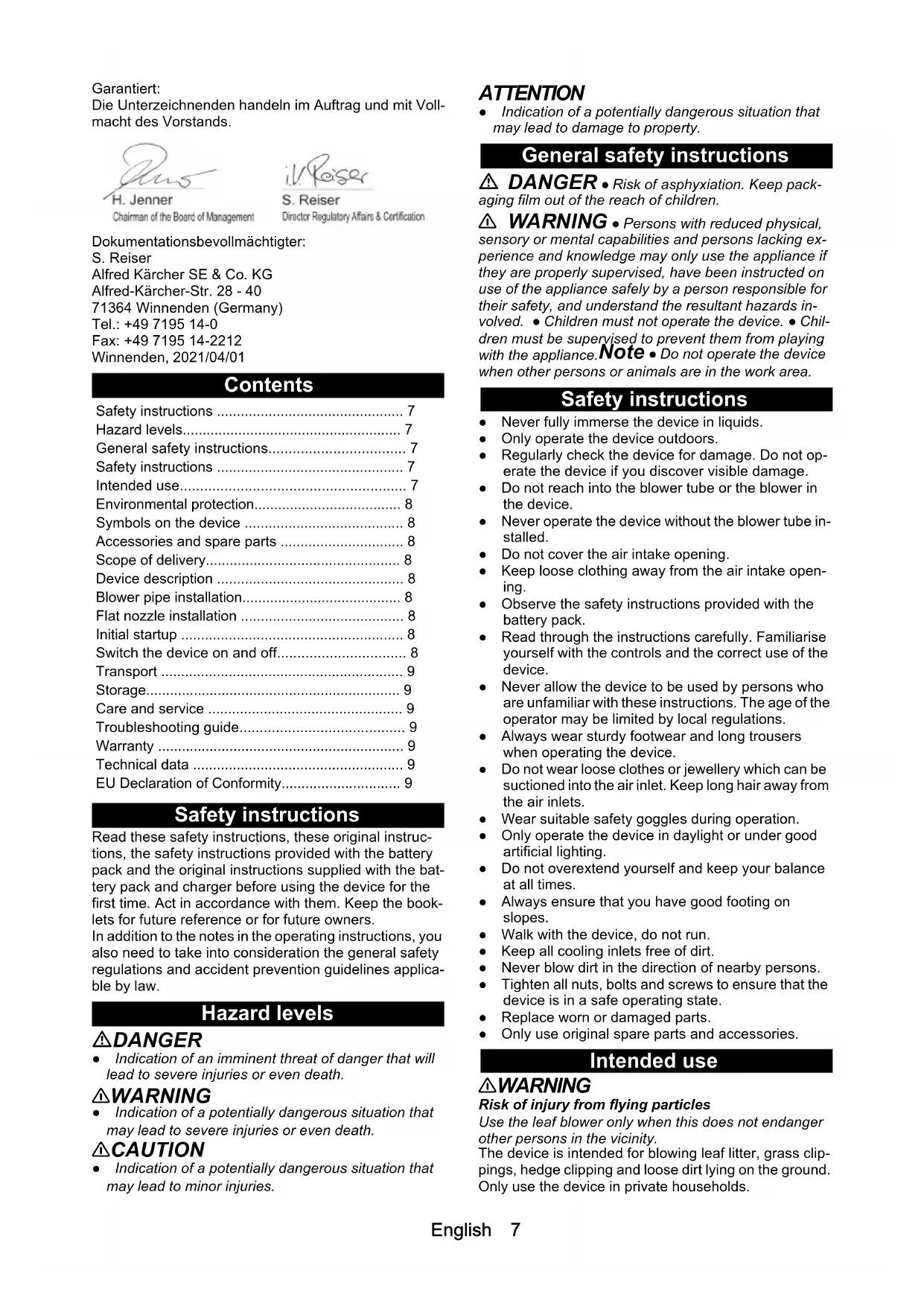

• dB(A) 88 96English 7 Garantiert: Die Unterzeichnenden handeln im Auftrag und mit Voll- macht des Vorstands. Dokumentationsbevollmächtigter: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Tel.: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2021/04/01 Contents Safety instructions Read these safety instructions, these original instruc- tions, the safety instructions provided with the battery pack and the original instructions supplied with the bat- tery pack and charger before using the device for the first time. Act in accordance with them. Keep the book- lets for future reference or for future owners. In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applica- ble by law. Hazard levels DANGER ● Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING ● Indication of a potentially dangerous situation that may lead to severe injuries or even death. 몇 CAUTION ● Indication of a potentially dangerous situation that may lead to minor injuries. ATTENTION ● Indication of a potentially dangerous situation that may lead to damage to property. General safety instructions DANGER ● Risk of asphyxiation. Keep pack- aging film out of the reach of children. 몇 WARNING ● Persons with reduced physical, sensory or mental capabilities and persons lacking ex- perience and knowledge may only use the appliance if they are properly supervised, have been instructed on use of the appliance safely by a person responsible for their safety, and understand the resultant hazards in- volved. ● Children must not operate the device. ● Chil- dren must be supervised to prevent them from playing with the appliance. Note ● Do not operate the device when other persons or animals are in the work area. Safety instructions ● Never fully immerse the device in liquids. ● Only operate the device outdoors. ● Regularly check the device for damage. Do not op- erate the device if you discover visible damage. ● Do not reach into the blower tube or the blower in the device. ● Never operate the device without the blower tube in- stalled. ● Do not cover the air intake opening. ● Keep loose clothing away from the air intake open- ing. ● Observe the safety instructions provided with the battery pack. ● Read through the instructions carefully. Familiarise yourself with the controls and the correct use of the device. ● Never allow the device to be used by persons who are unfamiliar with these instructions. The age of the operator may be limited by local regulations. ● Always wear sturdy footwear and long trousers when operating the device. ● Do not wear loose clothes or jewellery which can be suctioned into the air inlet. Keep long hair away from the air inlets. ● Wear suitable safety goggles during operation. ● Only operate the device in daylight or under good artificial lighting. ● Do not overextend yourself and keep your balance at all times. ● Always ensure that you have good footing on slopes. ● Walk with the device, do not run. ● Keep all cooling inlets free of dirt. ● Never blow dirt in the direction of nearby persons. ● Tighten all nuts, bolts and screws to ensure that the device is in a safe operating state. ● Replace worn or damaged parts. ● Only use original spare parts and accessories. Intended use 몇 WARNING Risk of injury from flying particles Use the leaf blower only when this does not endanger other persons in the vicinity. The device is intended for blowing leaf litter, grass clip- pings, hedge clipping and loose dirt lying on the ground. Only use the device in private households. Safety instructions p. 7
• Hazard levels p. 7
• General safety instructions p. 7
• Safety instructions p. 7
• Intended use p. 7
• Environmental protection p. 8
• Symbols on the device p. 8
• Accessories and spare parts p. 8
• Scope of delivery p. 8

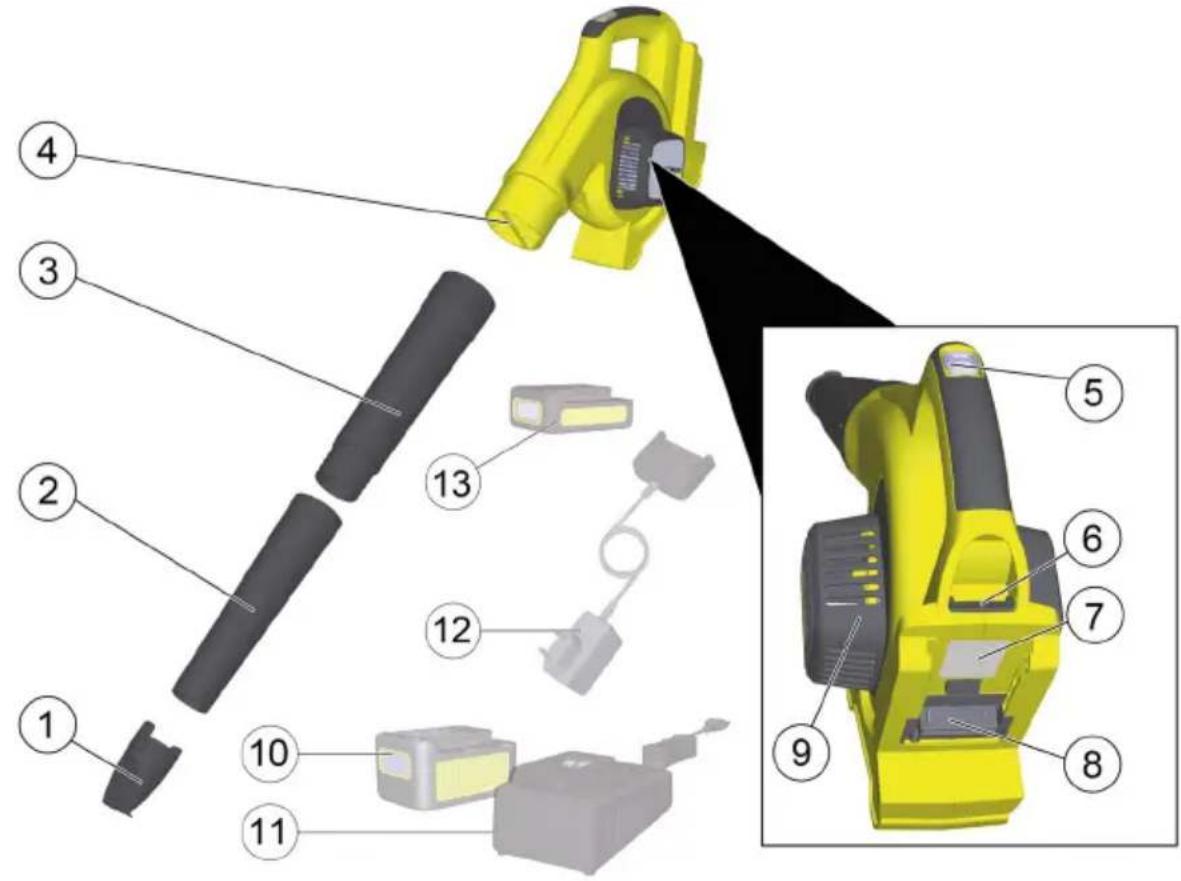

• Device description p. 8
• Blower pipe installation p. 8
• Flat nozzle installation p. 8
• Initial startup p. 8
• Switch the device on and off p. 8
• Transport p. 9
• Storage p. 9
• Care and service p. 9
• Troubleshooting guide p. 9
• Warranty p. 9
• Technical data p. 9
• EU Declaration of Conformity English Foreseeable misuse Any type of improper use is prohibited. The operating personnel are liable for damage resulting from incorrect use. Environmental protection The packing materials can be recycled. Please dispose of packaging in accordance with the en- vironmental regulations. Electrical and electronic devices contain valua- ble, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the envi- ronment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.de/REACH Symbols on the device Leaf blower LBL 2 / LBL 4 Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your deal- er. Device description Illustration A 1 Flat nozzle with integrated scraper edge 2 Blower tube lower section 3 Blower tube upper section 4 Air outlet 5 Power switch 18 V: On/Off 36 V: Off, Level 1, Level 2 6 Battery pack unlocking button 7 Type plate 8 Mount for Battery Power battery pack (+) 9 Air intake opening 10 * Battery Power 36/25 battery pack 11 * Battery Power 36 V Quick Charger 12 * Battery Power 18 V Standard Charger 13 * Battery Power 18/25 battery pack p. 98

• Option, not included in the scope of delivery Blower pipe installation

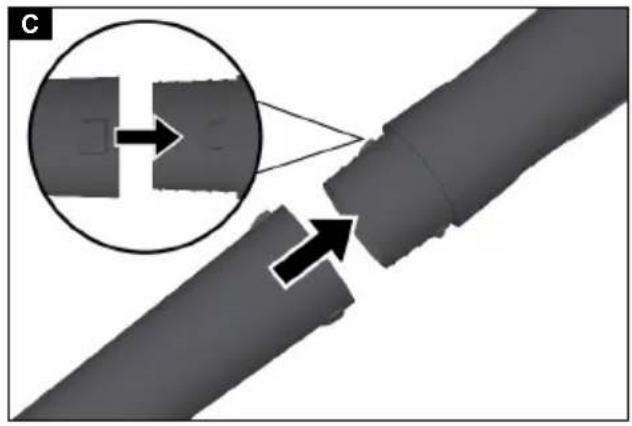

1. Plug the blower tube lower section onto the blower

tube upper section. Illustration C

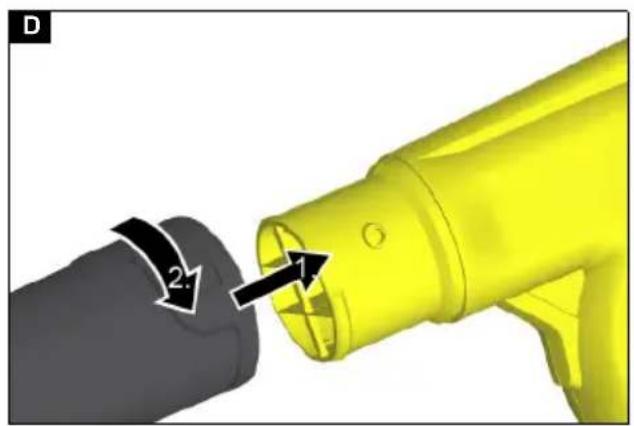

2. Turn the blower tube clockwise to lock in position

(bayonet lock). Illustration D Turn the blower tube anticlockwise to unlock and re- move. Flat nozzle installation

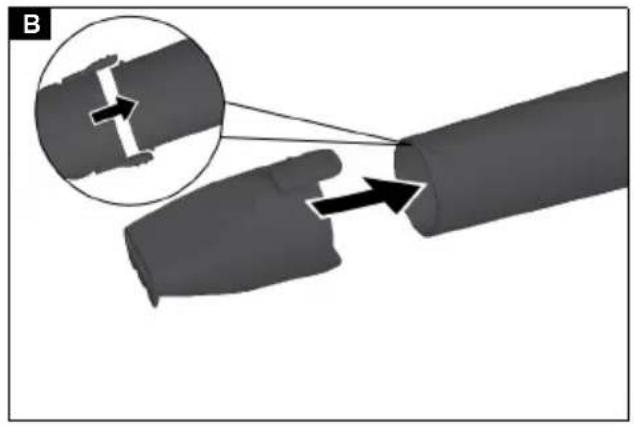

1. Plug the flat nozzle onto the blower tube lower sec-

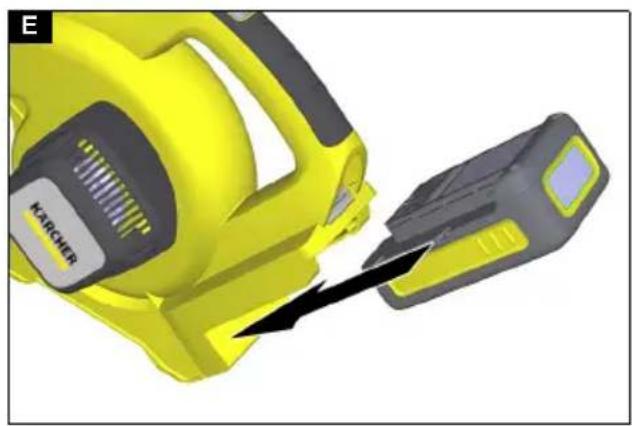

tion. Illustration B Initial startup Inserting the battery pack ATTENTION Dirty contacts Damage to the device and battery Check the battery mount and the contacts for soiling and clean them as necessary before inserting the bat- tery. Illustration E

1. Push the battery into the mounting in the device until

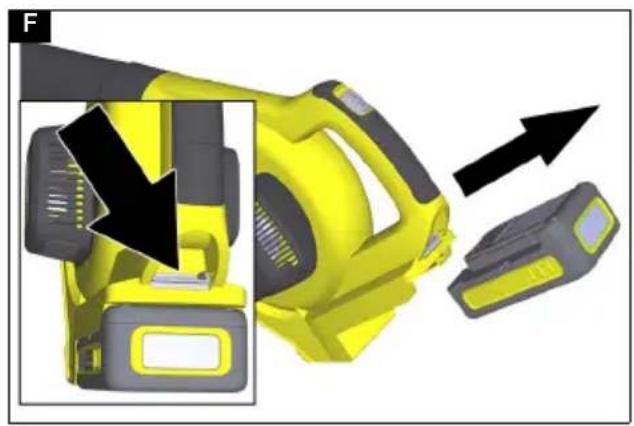

it audibly latches into place. Removing the battery 몇 WARNING Uncontrolled startup Risk of injury Remove the battery pack from the device during work breaks and before carrying out any service or care work. Illustration F

1. Press the unlocking button.

2. Remove the battery from the device.

Switch the device on and off Use the power switch to switch the device on and off.

1. Slide the power switch forwards to position "1" or "2"

(LBL 4 battery only). The device starts up.

2. Slide the power switch backwards.

Warning of flying objects. Keep other persons away from the work area. Wear suitable hearing protection and safety goggles when operating the de- vice. Protect the device from rain and spray water.English 9 The device stops. Transport 몇 CAUTION Risk of injury and damage! Injury or damage due to non-observance of the weight. Be aware of the weight of the device during transport and storage. Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. Note Always store the device in a dry place and remove the battery pack. Care and service The device is maintenance-free. Troubleshooting guide Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service. As the battery pack ages, even if it is looked after, its ca- pacity reduces such that the full run time will no longer be reached when fully charged. This does not indicate a defect. Type plate The major device information is specified on the type plate. The location of the type plate on the device is specified in the "Device description" chapter. Faults on the device The device does not start up The battery pack is not inserted correctly.

1. Push the battery pack into the mounting in the de-

vice until it audibly latches into place. The battery pack is discharged.

1. Charge the battery pack.

The battery pack is in sleep mode.

1. Press and hold the power switch longer or press the

power switch a second time. The battery pack is defective.

1. Replace the battery pack.

The device stops during operation The battery has overheated Stop working and allow the battery to cool down to the permissible temperature range. This can take a few minutes. Warranty The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possi- ble malfunctions on your appliance within the warranty period free of cost, provided that a material or manufac- turing flaw is the cause. In a warranty case, please con- tact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address) Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads". Technical data Subject to technical modifications. EU Declaration of Conformity We hereby declare that the machine described below complies with the relevant basic safety and health re- quirements in the EU Directives, both in its basic design and construction as well as in the version placed in cir- culation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Leaf blower Type: LBL 2 Type: LBL 4 Currently applicable EU Directives 2000/14/EC 2006/42/EC (+2009/127/EC) 2011/65/EU 2014/30/EU Harmonised standards used EN 60335-1 EN 50636-2-100 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015 EN 62233: 2008 EN IEC 63000: 2018 Conformity evaluation procedure used 2000/14/EC: Annex V Sound power level dB(A) LBL 2 Measured: 86 Guaranteed: 88 LBL 2 Batter

/h 220 330 Working voltage of the bat- tery V18 36 Speed control - Yes Speed levels - 2 Battery pack included - - Battery charger type - - Dimensions and weights Weight kg 2,0 2,2 Length x width x height mm 975 x 170 x

Determined values in acc. with EN 60335-2- 79 * Measurements were made with the flat nozzle Hand-arm vibration value m/s

Risk of injury and damage! Injury or damage due to non-observance of the weight. Be aware of the weight of the device during transport and storage.
