Product type	Touchscreen tablet
Brand	Prestigio
Model	MultiReader PER5474BC
Dimensions (approx.)	190 x 120 x 10 mm
Weight (approx.)	300 g
Processor	ARM Cortex A8 1 GHz
RAM memory	512 MB DDR3
Operating system	Android 4.1 (Jelly Bean)
Screen	7 inch TFT LCD capacitive multi-touch
Screen resolution	800 x 480 pixels
Storage capacity	4 GB flash memory (approx. 2.4 GB accessible)
Storage expansion	Micro SD/SDHC up to 32 GB
Connectivity	Wi-Fi 802.11 b/g/n, Micro USB 2.0, 3.5 mm headphone jack
Power supply	Built-in rechargeable battery, 5V/1.5A charger
Main functions	Music/video playback, photo gallery, internet browsing, email, voice recorder, file manager
Maintenance and cleaning	Clean with a soft, dry cloth; avoid moisture and extreme temperatures
Safety	Use only the provided charger, do not expose to water, do not cover while charging
Spare parts and repairability	Built-in battery not user-replaceable; professional repair recommended
General information	Warranty included, AC adapter, USB cable provided

Frequently Asked Questions - MultiReader PER5474BC PRESTIGIO

How to turn the Prestigio MultiReader PER5474BC tablet on and off?

To turn on, press and hold the Power button until the boot screen appears. To turn off, hold the Power button until you see the 'Power off' option, then tap it and confirm with 'OK'.

How to charge the tablet battery?

Use only the provided AC adapter (5V/1.5A). Connect the USB cable to the tablet and the charger. It is recommended to charge when the battery is below 15% and avoid using the tablet while charging to extend battery life.

How to insert a micro SD memory card?

Insert the Micro SD card into the slot with the connector facing forward and the printed side facing back. To remove, gently press the edge of the card to unlock it and pull it out.

How to transfer files from a computer?

Connect the tablet to the computer with the provided USB cable. Enable USB storage on the tablet. Two removable drives will appear (internal memory and SD card). Copy your files as you would on a normal USB drive.

How to connect to the internet via Wi-Fi?

Go to Settings > Wi-Fi, turn on the switch. The tablet scans for available networks. Select your network, enter the password if required, and tap 'Connect'. Once connected, the Wi-Fi icon appears at the top.

What to do if the tablet freezes or stops responding?

Press and hold the Power button for about 10 seconds to force a restart. If the problem persists, you can use the Reset button (small hole) with a paperclip.

How to unlock the tablet screen?

Slide the lock icon to the right on the lock screen. If you have set a pattern or PIN code, enter it after sliding.

How to add a widget or shortcut to the home screen?

Tap the Applications icon to show all apps. Press and hold an app or widget, then drag it to the desired home screen page. Release to place it.

How to uninstall an installed application?

Go to Settings > Applications, select the app to remove, then tap 'Uninstall'. You can also press and hold the icon on the home screen and drag it to the trash can.

Does the tablet support APK files?

Yes, the tablet can install applications in .apk format. Before installation, go to Settings > Security and check 'Unknown sources' to allow installation from sources other than the Play Store.

USER MANUAL MultiReader PER5474BC PRESTIGIO

Transferring Files 4

Power On/Off 5

Unlocking the Screen 5

Prestigio Wizard....5

Home Screen....6

Tips of touching screen 8

Accessing Internet....9

Using the Virtual Keyboard 10

Playing Music....10

Playing Video....11

Viewing Photos 12

Using the Sound Recorder 13

Exploring Files 13

Sending/Receiving E-mails 14

Other Applications 15

Managing Apps 15

Managing Tasks 16

Troubleshooting 16

Specifications....17

Accessories

1. Prestigio Multi-Reader
2. Legal and Safety Notices

3. Quick Start Guide

4. AC Adapter

5. USB Cable
6. Warranty Card

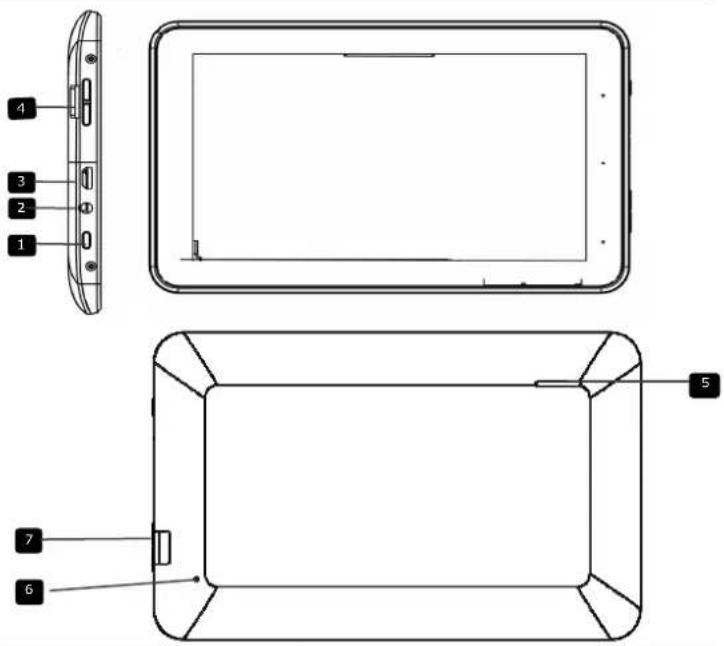

Buttons & Ports

1 Power

Turn on/off the device; Suspend/Activate the device

2 Earphone Jack Earphones connection.
USB port USB connection.
4 Vol +\ Vol - Button Adjust the volume level.
Speaker Emit sound, voice or music
6 Reset Reset the device if it fails to operate correctly
7 Micro SD Card Slot Insert Micro SD card.

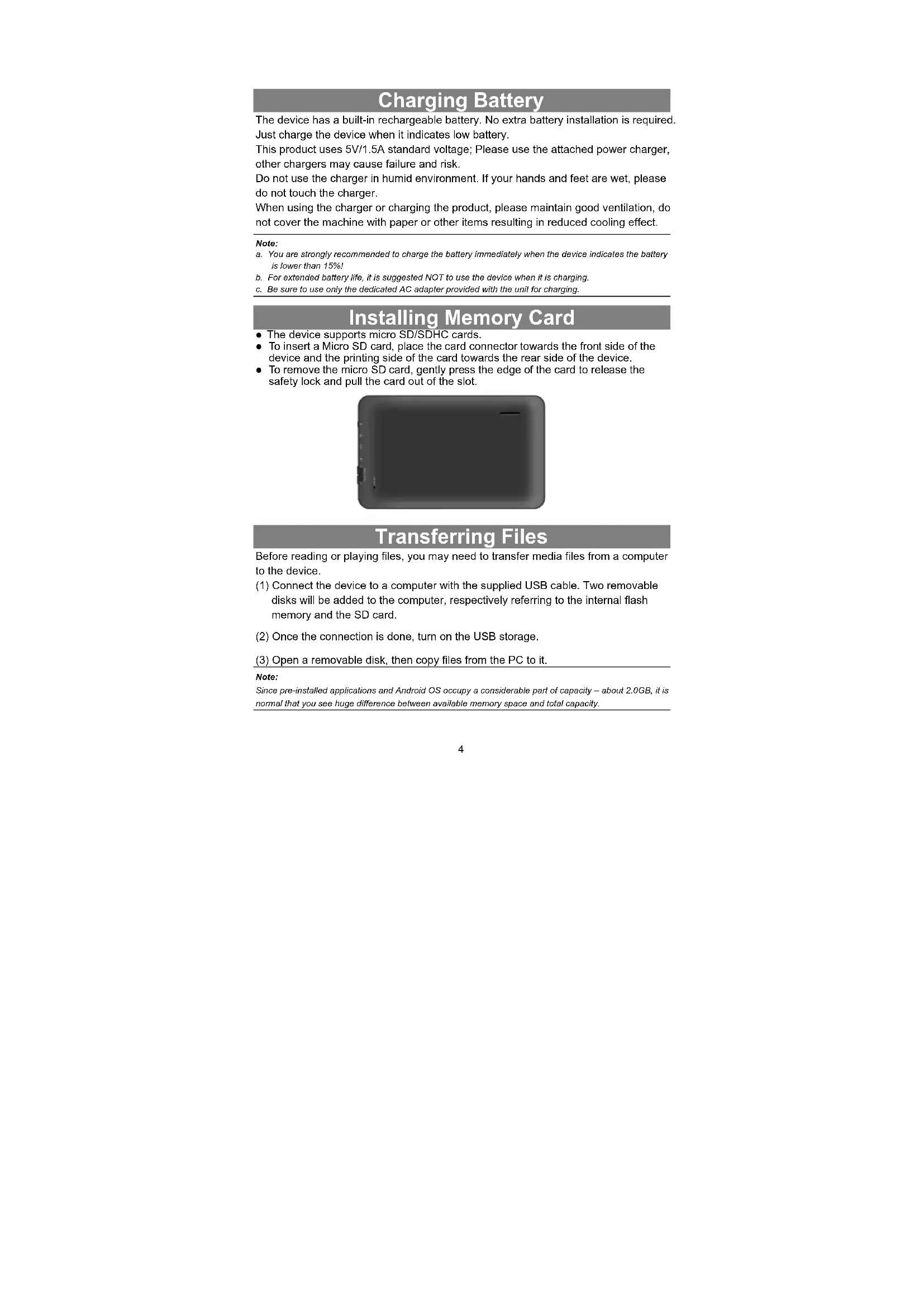

Charging Battery

The device has a built-in rechargeable battery. No extra battery installation is required. Just charge the device when it indicates low battery.

This product uses 5V/1.5A standard voltage; Please use the attached power charger, other chargers may cause failure and risk.

Do not use the charger in humid environment. If your hands and feet are wet, please do not touch the charger.

When using the charger or charging the product, please maintain good ventilation, do not cover the machine with paper or other items resulting in reduced cooling effect.

Note:

a. You are strongly recommended to charge the battery immediately when the device indicates the battery is lower than 15%!

b. For extended battery life, it is suggested NOT to use the device when it is charging.

c. Be sure to use only the dedicated AC adapter provided with the unit for charging.

Installing Memory Card

- The device supports micro SD/SDHC cards.

- To insert a Micro SD card, place the card connector towards the front side of the device and the printing side of the card towards the rear side of the device.

- To remove the micro SD card, gently press the edge of the card to release the safety lock and pull the card out of the slot.

Dark rectangular object with a small horizontal line and vertical markers on the left side (no text or symbols)

Transferring Files

Before reading or playing files, you may need to transfer media files from a computer to the device.

(1) Connect the device to a computer with the supplied USB cable. Two removable disks will be added to the computer, respectively referring to the internal flash memory and the SD card.

(2) Once the connection is done, turn on the USB storage.

(3) Open a removable disk, then copy files from the PC to it.

Note:

Since pre-installed applications and Android OS occupy a considerable part of capacity – about 2.0GB, it is normal that you see huge difference between available memory space and total capacity.

Power On/Off

To turn on the device, press and hold the Power button on the unit until you see the boot-up screen then release.

To turn off the device, press and hold the Powerbutton until you see the option "Power Off", tap on "Power Off" and then tap on "OK".

Tip: For the sake of power saving, this device may sleep with the screen display locked when there is no touch action for a while (depending on the actual setting of Display-Sleep). You can briefly press the Power button to wake it up.

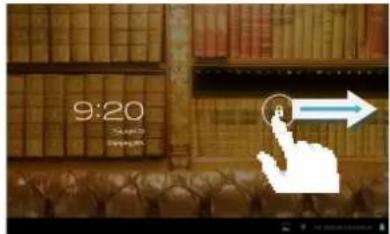

Unlocking the Screen

The screen will be locked after the device is idle for a few seconds. You need to unlock the screen by dragging the lock icon ⑧ rightwards before you continue to use the device.

Prestigio Wizard

• When using the device for the first time (or after resetting all users' personalized settings) the device will automatically launch the Startup Wizard.
• The Startup wizard interface will offer to choose the system language from the language list and the Time Zone, etc.

Home Screen

The Home Screen consists three separate screens for positioning the shortcuts, widgets etc... Slide your finger left or right on the screen to go to the extended screens.

Main Screen

Text search icon Tap the icon for Google search with input keywords
Voice search icon	Tap the icon for Google search with voice recorder
APP menu Tap the icon to show all the APPs installed.
APP shortcut icon Tap each corresponding icon to run the APP
Widget Tap each corresponding icon to run the APP
Back Tap it to back the previous menu
Home Tap it to back the home page
Current App Tap the icon to show currently running APP
Volume+/- Increase volume or decrease volume
Notice/Quick setting	Tap it to show the notification or some quick settings like WIFI,brightness

Customizing Home Screen Items

- To add a Home Screen item (shortcut, widget etc.), you can tap the application icon to display all applications and widgets, then hold your tap on an item to place it on the home page.

Hold down

Note: If current page of Home Screen has no enough room for a shortcut or widget, you will be prompted that there is no more room.

• To move a Home Screen item, hold your finger onto it to highlight it, then drag it to the desired location, and release it.
• To remove a Home Screen item, hold your finger onto it to highlight it, drag it to the recycle bin symbol "X" and then release your finger.

Display all Applications and widgets

The device has many useful applications and widgets pre-installed. You can tap the Application Tab to display them.

Tip : Holding your finger on an item can add it to the desktop as a shortcut.

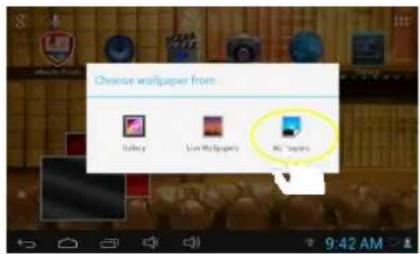

Changing the wallpaper

Hold your tap on the Home screen until a menu appear. Tap on "Wallpaper" and then choose a picture as the desktop wallpaper.

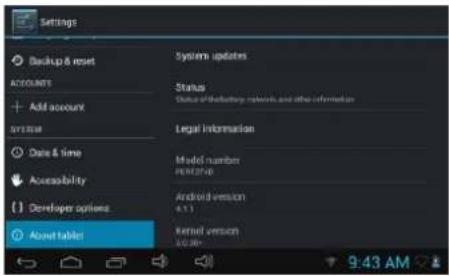

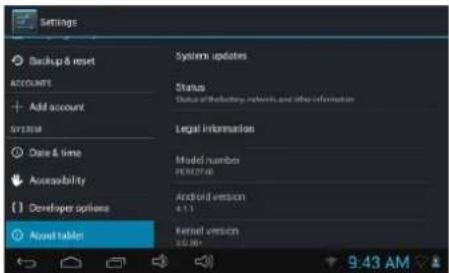

Changing the System Settings

Tap the Setting icon 📋 on the Home Screen to open the settings menu and change relevant settings for your device if necessary.

Tips of touching screen

- When watching a video or listening to music, you can tap on the progress bar to play any designated section of the file. You can drag the cursor of the progress bar to any other elapsed time point of the file.

- In different browsers (File, Music, etc.), you can hold your finger on the screen and then drag up and down to scroll the file list up and down.

- In some browsers (File, Music etc.), you may hold your finger on an item to display options.

Accessing Internet

This device features connection of WiFi networks that provide you easy access to the Internet.

For Wi-Fi application, you need to configure a Wi-Fi network first, and you will have to stay in a Wi-Fi service zone. Whenever it is within the coverage of a Wi-Fi network you have configured, the device will attempt to make a connection.

Make WI-FI Connection

Before launching an Internet application such as the web browser, you first need to activate the Wi-Fi and configure a Wi-Fi network.

(1) Tap the Setting icon 📄 on the Home Screen to open the settings menu.
(2) Select "WIFI" and slide the toggle switch to "ON" to turn on WIFI.
(3) The device will scan automatically for available WiFi networks and display them in the right panel. The list of available networks shows all the wireless networks in range of your device.
(4) Choose a network from the list and then tap "Connect" to connect. Some network may be secured with password, enter the password before connecting. If the connection is successful, the message connected to... (Wi-Fi Network Name) will appear under the WIFI Setting.

Note:

1. The available network list is constantly refreshed automatically.
2. When the Wi-Fi is enabled, the device will connect automatically to your configured networks when they are in range.

Launching the Web browser

To launch the Web browser, you tap the Browser icon

in the Home screen.

To display context menus, tap

• You can scroll the screen up and down by tapping on the page and dragging it up or down (be careful not to tap a link until you are ready!).
  • To open a link, simply tap it.

• To go back to the previous page that you browsed, tap the Back icon
• To display the available menu items, t ap the Menuicon
• To go back directly to the Home screen, tap the Home icon

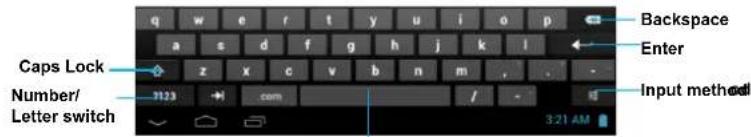

Using the Virtual Keyboard

Tapping on any text input field can open the virtual board. With the virtual keyboard, you can enter a website address or any text required.

Space

Playing Music

Tap the Music icon in the Apps page to launch the music player.

Music Library

You should enter the music library once you start the music player. The Music Library shows your music files sorted by categories (Artist, Album, etc.) if your music files contain these song information tags.

• You can drag your finger up and down on the file list to scroll through it.
• Tap a song to play.

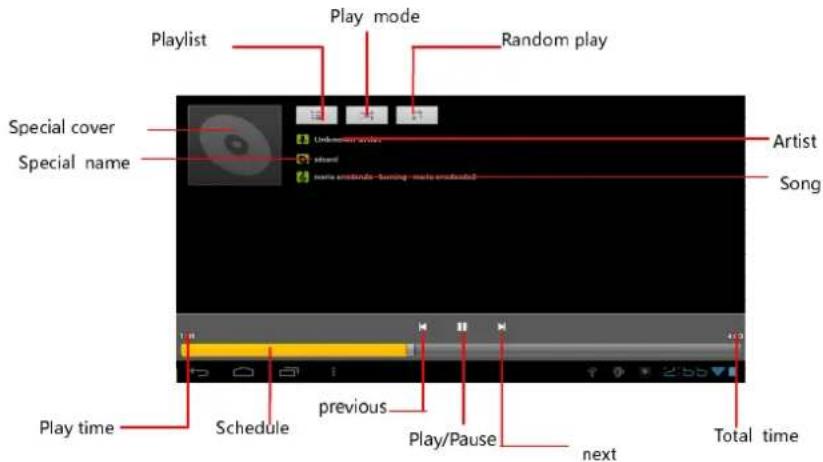

Music Playback Screen

During playback of a music file, tap on the MENU icon ☐ to pop up a context menu:

Library— return to music library menu.

Party Shuffle – select Party Shuffle mode.

Add to playlist – add a song to the playlist.

Delete – delete a song.

Sound Effects – Set the sound effects for the music playback.

Playing Video

Tap the Movie Player icon in the Home or Apps page to launch the video player.

Navigate through Video Files

Find the video files/folders under correct directory after you enter the video player.

• You can drag your finger up and down on the video list to scroll through it.
• Tap a video to start playing.

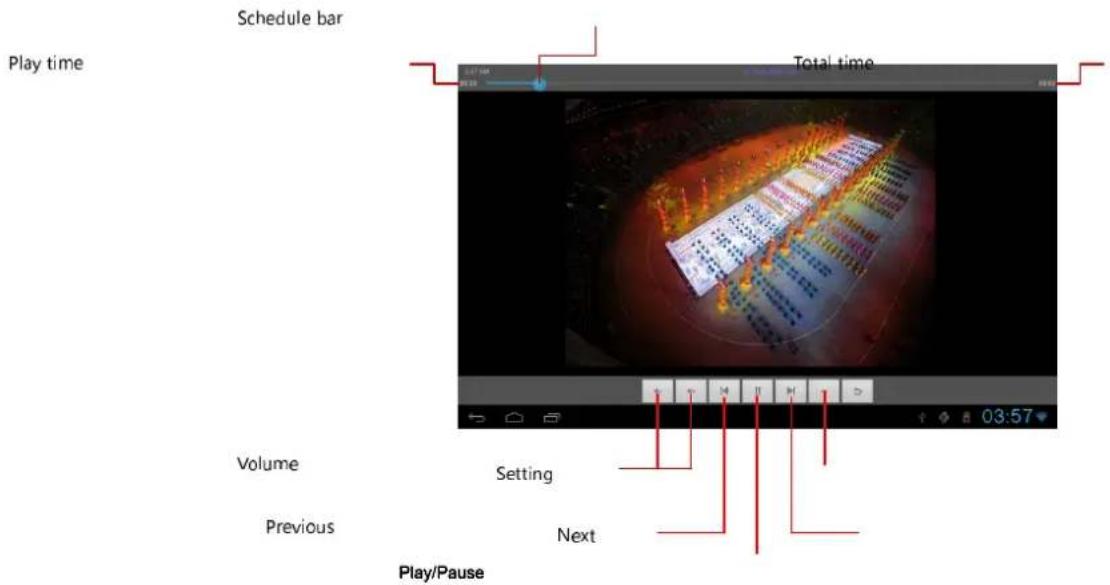

Vedio Playback Screen

Viewing Photos

Tap the Gallery icon in the Apps page to launch the Photo Gallery.

Viewing Photos

(1) Photos should be listed in thumbnail. You can slide your finger on the screen left or right to browse photos.

Collage of nature photos including iris, autumn, water, and sky (no text or symbols)

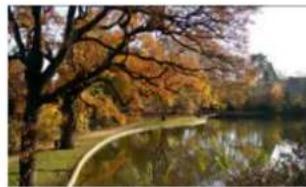

(2) Tap a photo thumbnail to view the photo in full screen.

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

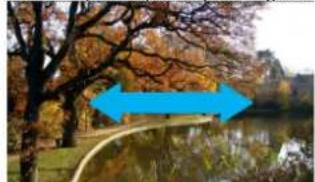

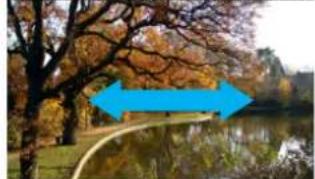

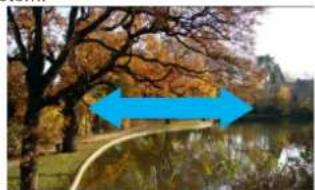

(3) To display the previous/next picture, slide your finger on the screen horizontally.

Autumn landscape with a curved path, trees, and a lake in the background (no text or symbols visible)

(4) To zoom in or out the picture, pinch your finger on the picture.

Hand holding a glass pyramid sculpture with yellow arrows pointing to it, in front of the Louvre (no text or symbols visible)

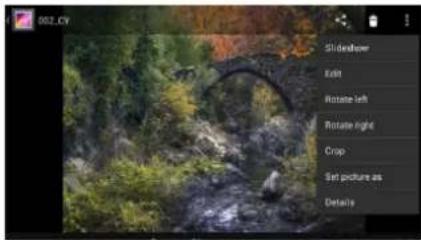

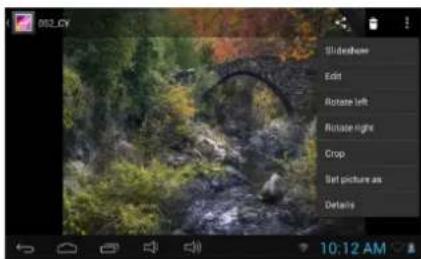

Display Menu

When you are viewing the picture, you can tap on the screen or the Menu icon to show a menu.

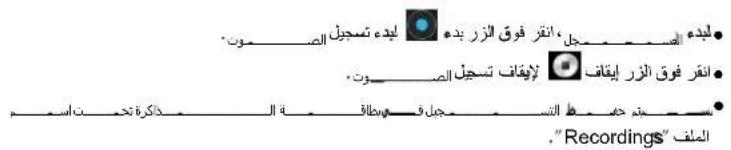

Using the Sound Recorder

Tap the Sound Recorder in the apps page to launch the sound recorder.

• To start making recorder, tap on the Start button to start sound recording.
• Tap on the Stop button to stop sound recording
• The recorder will be saved in memory card under file name "Recordings".

Exploring Files

You can explore files and folders with File Manager application.

Using the File Manager

Navigate through Files and Folders

• Tap the File Manager icon in the application page to launch the application.
• You can drag your finger up and down to scroll the file list up and down.
• Tap the corresponding icons in front of the page to view the file under internal storage, external SD card, USB, Image, Video.
• Tap to open a file or folder.
• You can go back one level in the interface by tapping on the icon ↩ or

Sending/Receiving E-mails

This device has an E-mail application pre-installed. You can send or receive e-mails from the Internet at any time with this device. Make sure you have an Internet connection before using the email service.

In the Home Screen, tap the - to display all applications and then tap the Email icon to launch the e-mail application.

Setup Email Account

First you need to setup an E-mail account for receiving or sending emails.

(1) Start up the email application by tapping the Email application icon and you are prompted to setup an account.
(2) Input your email address and login password. You can set the account as default by selecting the option "Send email from this account by default".
(3) Tap "Manual Setup" to set the email server information.
(4) Choose the server type from POP3, IMAP or Exchange for incoming emails. To know what type of your email server is, you can consult the service provider, network administrator or search for information in the Internet.
(5) Input required information (server, port etc.). You can obtain the information from the service provider, network administrator or the Internet.
(6) Choose the server type for outgoing emails, and input required server information.
(7) Click "Next" to continue. Your tablet will check the server settings. When it prompts you that "Your account is set up, and email is on its way", your account is set up successfully.
(8) Input your name and then tap on "Done" to finish.

Note: If you have more than one account, every time when you start up the email application, you enter the default email account.

Manage Accounts

You can setup more than one account and manage these accounts by checking information about the account, adding another account or deleting an account.

Add another Account

Following these steps to add another account if you want.

(1) Launch the email application and then tap on the Menu icon 📄 to display the

menu item. Choose "Accounts" to display accounts.

(2) Tap on the Menu icon 📄 display the menu item, and then choose "Add account".
(3) Follow the steps of setting up a Email Account to add an account.

Delete an Email Account

(1) When you are in the email box, tap on the Menu icon 📄 to display the menu items.
(2) Tap on "Accounts" to display all email accounts.
(3) Hold your tap on the account that you want to delete until a menu pop up.
(4) Tap on "Remove Account", and then tap on "OK" to confirm.

Check the Account Setting

(1) When you are in the email box, tap on the Menu icon to display the menu items.
(2) Tap on "Accounts" to display all email accounts.
(3) Hold your tap on the account that you want to check until a menu pop up.
(4) Tap "Account settings", and then you should see all setting information about the account. You can edit these settings as you want.

View Emails

You should enter your mailbox when you start up the email application.

• In the mailbox, you can slide your finger up and down to scroll through the email list.
• Tap on an email to open it.
• Holding your tap on the email can display a menu. With the menu, you can open, reply, forward or delete the email.

Other Applications

Some useful small apps have been preinstalled in this device, such as Calculator, Calendar, Sound Recorder, Office Suite etc.. They are easy to use, thus no detailed instructions are necessary for these apps. Please always follow the actual operation of your device.

Managing Apps

You can manage your applications of the device easily.

There are numbers of useful apps pre-installed in the device as it is produced at the factory, and you can copy some from other resources, download or purchase them from the Internet.

Install Applications

You can install applications following these steps:

(1) Open the File Manager application, then find the app you want to install.
(2) Tap the app to start installing. However, for the sake of security, the device may prompt you that there is possibility of attack risk if you install and run some apps whose sources are not guaranteed. In this case, you shall turn to the Settings menu and select Security to check the "Unknown sources" before you go on with the installation.
(3) Once the installation is completed, you can find the icon of the app in the Apps screen. It is ready for running.

Uninstall Applications

(1) Tap the Settings shortcut in the Home Screen to display setting menus.
(2) Select "Apps".
(3) Tab on the application that you want to uninstall.
(4) Tab on "Uninstall" to uninstall the application.
(5) You can simply tap and hold on an app icon to jump to the Home Screen, and then drag it to the dustbin icon to uninstall it.

Note:

1. You cannot uninstall the pre-installed applications, but you can deactivate or stop them.
2. Make sure all apps you have copied or downloaded to your device are in the .apk format.

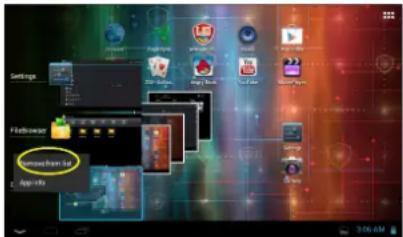

Managing Tasks

Your device can handle multiple tasks at the same time. For example, you can view photos while listening to music. Multitasking is helpful but inefficient if too many tasks are running. In order to save system memory and enhance system performance, you can end some tasks that you don't use at the moment.

(1) Tap t□splay applications that are running currently.
(2) Hold your tap on the application that you want to stop, and then select "Remove from list".

Troubleshooting

Reset this device

- In the event that the device freezes, you can reset the device by pressing and holding the Power button for about 10 seconds.

Specifications

Technical Specifications

Processor High performance ARM Cortex A8 at 1GHz

RAM 512MB DDR3

OS Android 4.1 (Jelly Bean)

Display 7" TFT LCD, Capacitive multi-touch

Resolution 800 x 480 pixels

Storage capacity 4 GB flash memory (about 2.4GB are accessible by user), Memory card slot supports micro SDHC card up to 32 GB

Interfaces Micro USB 2.0, Micro SD (micro SDHC compatible)

Communications WiFi (802.11 b/g/n)

Battery 3200 mAh Li-Pol battery

Dimensions 192 x 116 x 10.7mm (L x W x H) (appro.)

Weight 320 g (appro.)

Black rectangular device with a small black icon on the left side (no visible text or symbols)

Передача файлов

Collage of six nature photos including iris, waterfall, lake, and tree (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake (no text or symbols visible)

Scenic autumn landscape with a calm lake, bare trees, and a blue arrow pointing to a distant bridge (no text or symbols)

Hand holding a glass pyramid with yellow arrows pointing to it, next to the Louvre Pyramid (no text or symbols visible)

Просмотр фото

Диктофон

Blank gray rectangular device with a small black icon on the left side (no text or symbols visible)

Failide teisaldamine

Prestigio viisard

WiFi-ühenduse loomine

Collage of nature photos including iris, autumn, lake, and garden (no text or symbols)

Autumn park scene with a calm lake reflecting autumn trees and golden-brown leaves (no text or symbols visible)

Scenic autumn landscape with a calm lake, bare trees, and a blue arrow overlay (no text or symbols)

Hand holding a glass dome structure with yellow arrows pointing to it, against a blue sky background (no text or symbols)

Menüü kuvamine

Helisalvesti kasutamine

Veaotsing

Seadme lähtestamine

Front view of a dark gray electronic device with a small inset showing a small black component (no visible text or symbols)

Prenos datotek

Pred branjem ali predvajanjem datotek, boste morda morali prenesti datoteke iz računalnika na napravo.

(1) Povežite napravo z računalnikom s priloženim USB kablom. Na računalniku bosta dodana dva izmenljiva diska, ki prikazujeta notranji bliskovni pomnilnik in SD kartico.
(2) Ko je povezava vzpostavljena, vključite USB shrambo.
(3) Odprite izmenljivi disk, nato nanj kopirajte datoteke iz računalnika.

Opomba:

Prestigio Čarovnik

Grid of nature photos including autumn trees, water, and distant buildings (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Autumn park scene with a lake, trees, and a blue arrow pointing to a path (no text or symbols)

(4) Za povečanje/ pomanjšanje slike, stisnite prsta nazaslonu.

Hand holding a glass dome structure with yellow arrows pointing to it, next to a building labeled 'Museum' (no text or symbols on the structure itself)

Meni za prikaz

Scenic outdoor scene with a stone bridge over a stream, surrounded by greenery and trees (no visible text or symbols)

Uporaba snemalnika za zvok

Tapnitesnamlnik za zvok na strani aplikacij za zagon snemalnika zvoka

• Za zagon snemalnika, tapnite na tipkoStart
  • Tapnite na tipkoStop a ustavitev snemalnika zvoka.
• Posnetek se bo shranil na pomnilniško kartico pod imenom "Posnetki".

Iskanje datotek

Съветник Prestigio

Wi-Fi свързване

Collage of nature photos including flowers, autumn trees, water, and landscapes (no text or symbols visible)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Autumn landscape with a calm lake, bare trees, and a blue arrow pointing to a small bridge (no text or symbols)

Hand pointing at a glass pyramid structure with yellow arrows pointing to it, set against a blue sky (no text or symbols visible)

Екранно меню

Blank gray rectangular panel with no visible text, symbols, or markings

Přenos souborů

Collage of nature photos including a sun, waterfall, bridge, and forest (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake (no text or symbols visible)

Autumn landscape with a winding path, autumn trees, and a calm lake (no text or symbols visible)

Hand holding a museum glass pyramid with yellow arrows pointing to it, against a blue sky (no text or symbols visible)

Nabídka zobrazení

Front view of a dark gray rectangular device with a small icon on the left side (no visible text or symbols)

Assistant Prestigio

pour les afficher.

Collage of nature photos including a flower, autumn foliage, water, and distant trees (no text or symbols visible)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Autumn landscape with trees, a pond, and a blue double-headed arrow indicating direction (no text or symbols)

Hand holding a glass pyramid with yellow arrows pointing to it, next to a museum building (no visible text or symbols)

Menu d'Affichage

Specifications techniques

Communication WiFi (802.11 b/g/n)

Batterie 3200mAh BatterieL' Polymer

Dimensions 192 x 116 x 10.7mm (LxWxH) (appro.)

Polds 320 g (appro.)

PTúΛψΣGΣBςΔULψΣTúADúTς

PER5474BC

Οδηγός Prestigio

Collage of nature photos including a iris, autumn, bridge, waterfall, and water reflection (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Autumn park scene with trees reflected in a calm lake, featuring two blue arrows pointing to the right side (no text or symbols)

Exterior view of the Louvre Pyramid and Great Saint Joseph, with a hand pointing at it (no signage or text visible)

Μενού οθόνης

Front view of a dark gray rectangular device with a small black icon on the left side (no visible text or symbols)

Prijenos datoteka

Prije čitanja ili reprodukcije datoteka, možda ćete trebati prebaciti datoteke s računala na uređaj.

(1) Spojite uređaj na računalo s priloženim USB kabelom. Dva prijenosna diska bit će dodana u računalo, za internu memoriju i za SD karticu.
(2) Kada ste sve spojili, uključite USB pohranu.
(3) Otvorite prijenosni disk, zatim na njega kopirajte datoteke s računala.

Napomena:

S obzirom da aplikacije i Android OS zauzimaju velik dio memorije – oko2.0GB, normalno je da vidite veliku razliku između dostupne memorije i ukupnog kapaciteta.

Prestigio Wizard

- Kada koristite uređaj po prvi puta (ili nakon resetiranja korisničkih postavki) uređaj će automatski pokrenuti program Startup Wizard.

- Startup wizard sučelje će ponuditi izbor jezika s popisa i vremensku zonu, itd.

•

Početni zaslon

Početni zaslon sastoji se od tri odvojena zaslona za postavljanje prečaca, Widgeta, itd. Povucite prstom lijevo ili desno po zaslonu za prelazak na dodatne stranice.

Glavni zaslon

Ikona pretraživanja tekstom	Dodirnite ikonu za Google pretraživanje unosom teksta
Ikona pretraživanja glasom	Dodirnite ikonu za Google pretraživanje snimačem zvuka
APP izbornik Dotaknite	ikonu za prikaz svih instaliranih aplikacija.
APP ikona prečaca Dotaknite željenu ikonu za pokretanje određene aplikacije.
Widget Dotaknite željenu ikonu za pokretanje određene aplikacije.
Natrag Dotaknite za povratak na prethodni izbornik
Početna Dotaknite za povratak na početnu stranicu
Trenutna APP Dotaknite ikonu za prikaz aplikacije koje se upravo izvršava
Glasnoća +/- Pojačajte ili stišajte glasnoću
Obavijesti i brze postavke	Dotaknite za prikaz obavijesti ili za brze postavke poput WIFI i osvjetljenja

Prilagođavanje predmeta početnog zaslona

- Za dodati predmet na početni zaslon (prečac, Widgete, itd.), možete dotaknuti ikonu aplikacija za prikaz svih aplikacija i Widgeta, zatim ju držite kako bi je postavili na početni zaslon.

Hold down

Savjet : Držanjem prsta na predmetu, možete ga dodati kao prečac.

Izrada WI-FI veze

Prije pokretanja Internetske aplikacije, poput preglednika, prvo morate aktivirati Wi-Fi i konfigurirati/Mi-Fi mrežu.

• Možete pomicati zaslon gore ili dolje dodirom na zaslon i povlačenjem gore/dolje (pazite da ne dotaknete poveznicu ako to ne želite).
• Za otvaranje poveznice, jednostavno ju dotaknite.
• Za povratak na stranicu koju ste prethodno gledali, dotaknite na ikonu Natrag
• Za prikaz dostupnih predmeta izbornika, dotaknite na ikonu izbornika
• Za povratak ravno na početni zaslon, dotaknite ikonu

Grid of nine nature photos including iris, waterfall, and lake, displayed in a photo editing interface (no text or symbols on the images themselves)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

(3) Za prikaz prethodne/sljedeće slike, povucite vodoravno prstom po zaslonu.

Autumn park scene with a blue arrow pointing to a calm lake, surrounded by autumn-colored trees (no text or symbols visible)

(4) Za povećavanje ili smanjivanje slike, uhvatite sliku prstima.

Hand holding a glass pyramid with yellow arrows pointing to it, next to a museum building (no visible text or symbols)

Izbornik prikaza

Kada gledate sliku, možete dotaknuti na zaslon ili ikonu izbornika za prikaz izbornika.

Forest scene with a stone bridge over rocks, surrounded by greenery and foliage (no visible text or symbols)

• Za snimanje, dotaknite tipku Start za početak snimanja.
• Dotaknite tipkuStop na prekid snimanja.
• Zapis će biti pohranjen na memorijskoj kartici u datoteci "Snimke".

Pretraživanje datoteka

Možete pretraživati datoteke programomFile Manager.

Korištenje programaFile Manager

Pretraživanje kroz datoteke i mape

• Dotaknite ikonu programaFile Manager na zaslonu aplikacija za pokretanje.
• Možete povući prstom gore dolje za pregled popisa datoteka.
• Dotaknite potrebnu ikonu na zaslonu za pregled datoteke u unutarnjoj pohrani, vanjskoj SD kartici, USB, Slike, Video.
• Dotaknite za otvaranje datoteke ili mape.
• Možete se vratiti jednu razinu dodirom na ikonu

Slanje/Primanje e-pošte

Uređaj ima instaliranu aplikaciju e-pošte. Možete u bilo koje vrijeme slati ili primati e-poštu putem interneta s ovim uređajem. Provjerite da imate internetsku vezu prije korištenja usluge e-pošte.

Na početnom zaslonu, dodirnite na za prikaz svih aplikacija i zatim na ikonu E-pošte za pokretanje aplikacije.

Postavljanje računa e-pošte

Prvo morate postaviti račun za slanje ili primanje e-pošte.

(1) Pokrenite aplikaciju e-pošte dodirom na ikonuEmail aplikacije i tražit će vas da postavite račun.
(2) Unesite svoju e-mail adresu i lozinku. Možete postaviti račun kao zadan, odabirom opcije "Šalji e-poštu s ovog računa".
(3) Dotaknite "Ručne postavke" za unos informacija o serveru.
(4) Odaberite jedan od tipova servera, POP3, IMAP ili Exchange za dolaznu poštu. Kako bi znali koji je server u pitanju, provjerite sa svojim pružateljem usluga, mrežnim administratorom, ili potražite informacije na internetu.
(5) Unesite potrebne informacije (server, port, itd.). Možete dobiti informacije od pružatelja usluge, mrežnog administratora ili s interneta.
(6) Odaberite tip servera za odlaznu poštu, i unesite potrebne informacije o serveru.
(7) Kliknite "Sljedeće" za nastavak. Uređaj će provjeriti postavke servera. Kad se pokaže obavijest „Račun je postavljen i pošta je u dolasku“, vaš je račun uspješno postavljen.
(8) Unesite svoje ime i dotaknite „Gotovo“ za kraj.

Napomena: Ako imate više od jednog računa, svaki put kada pokrenete aplikaciju e-pošte, otvorit će se zadani račun.

Upravljanje računima

Možete postaviti više od jednog računa i možete njima upravljati pregledom informacija i računu, dodavanjem računa ili brisanjem računa.

Dodavanje računa

Pratite ove upute ako želite dodati još jedan račun.

(1) Pokrenite aplikaciju e-pošte i dotaknite ikonu izbornika prikaz opcija. Odaberite „Računi“ za prikaz računa.
(2) Dotaknite ikonu izbornika prikaz opcija i zatim odaberite „Dodati račun“.
(3) Pratite upute za postavljanje računa e-pošte za dodavanje novog računa.

Brisanje računa e-pošte

(1) Kada ste u aplikaciji e-pošte, dotaknite ikonu izbornika prikaz opcija.
(2) Dotaknite na "Računi" za prikaz svih računa e-pošte.
(3) Držite prst na računu koji želite izbrisati dok se ne pojavi dodatni izbornik.
(4) Dotaknite na "Brisanje računa" i zatim na "U redu" za potvrditi.

Rješenja problema

Resetiranje uređaja

Gray rectangular device with a small black icon on the left side (no visible text or symbols)

Fájlok átvitele

Prestigio Varázsló

Collage of nature photos including iris, trees, water, and a lake (no text or symbols visible)

Autumn park scene with a calm lake, golden-brown trees, and a curved path (no text or symbols visible)

Scenic autumn landscape with a calm lake, bare trees, and a blue arrow overlay (no text or symbols)

Hand holding a glass pyramid and a dome-shaped structure, with yellow arrows pointing to them (no text or symbols visible)

Menü megjelenítése

(Capacitive multitouch)

Gray rectangular device with a small black icon on the left side (no visible text or symbols)

Failų perkėlimas

Collage of nature photos including iris, bridge, waterfall, and tree (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Scenic autumn landscape with a curved path, trees, and a calm lake under clear sky (no text or symbols)

Hand holding a glass pyramid with yellow arrows pointing to it, next to the Louvre (no text or symbols visible)

Ekrano meniu

Diktofono naudojimas

Trikčių šalinimas

Front view of a dark gray tablet device with a small icon on the right side (no visible text or symbols)

Failu pārkopēšana

Prestigio vednis

Autumn park scene with golden-brown trees reflected in a calm lake (no text or symbols visible)

Collage of nature photos including a iris, waterfall, bridge, and water reflection (no text or symbols)

Autumn landscape with a blue arrow pointing to a calm lake, surrounded by trees and autumn foliage (no text or symbols)

Hand pointing at a glass pyramid structure with yellow arrows pointing to it, set against a blue sky background (no text or symbols)

Displeja izvēlne

•Lai säktu ierakstu, pieskarieties starta pogai

Vol +\ Vol - knop Volumeregeling.

Gray rectangular object with a small black square and a horizontal line on the top right corner (no text or symbols visible)

Bestanden overbrengen

Systeeminstellingen veranderen

Collage of nature photos including a iris, autumn trees, and water bodies (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Autumn landscape with a calm lake, bare trees, and a blue arrow pointing to a small bridge (no text or symbols)

Hand holding a glass pyramid with yellow arrows pointing to it, next to a building with a dome structure (no visible text or symbols)

Weergavemenu

(2) Selecteer 'Apps'.

Problemen oplossen

Processor High performance ARM Cortex A8 op 1 GHz

RAM 512MB DDR3

OS Android 4.1 (Jelly Bean)

Beeldscherm 7" TFT LCD, capacitief multi-touch

Resolutie 800 x 480 pixels

Opslagcapaciteit 4 GB flash geheugen (circa 2,4GB is

Gray rectangular device with a small black icon on the left side (no visible text or symbols)

Kopiowanie plików

Collage of nature photos including iris, bridge, waterfall, and grass under a lake (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Scenic autumn park scene with a calm lake, golden-brown trees, and a blue arrow overlay (no text or symbols)

Hand holding a glass pyramid and a historic building with yellow arrows pointing to it (no text or symbols visible)

Menu wyświetlacza

1 Vypínač

Sprievodca Prestigio

Tip: Ak podržite prst na položke, môžete ju pridat' na plochu vo forme odkazu.

Zmena tapety

Grid of nine nature photos including a iris, bridge, water, and globe, displayed in a photo editing interface (no text or symbols on the images themselves)

Autumn park scene with colorful trees reflected in a calm lake (no text or symbols visible)

Scenic autumn landscape with a curved path, trees, and a calm lake (no text or symbols visible)

Hand pointing at a glass pyramid with yellow arrows pointing to it, next to a museum building (no visible text or symbols)

Zobrazenie menu

1 Power

Dugme za uključivanje/isključivanje uređaja; zaustavljanje/aktivaciju uređaja

Top-down view of a dark gray rectangular device with a small black icon on the left side (no visible text or symbols)

Prebacivanje datoteka

Pre čitanja ili puštanja datoteka, može biti potrebno da se medijske datoteke prebace sa računara na uređaj.

(1) Povežite uređaj sa računarom koristeći priloženi USB kabl. Dva uklonjiva diska biće dodata na računaru, koji će se odnositi na internu fleš memoriju i na SD karticu, tim redosledom.
(2) Kada se ostvari veza, uključite USB memoriju.
(3) Otvorite uklonjivi disk, a zatim prekopirajte datoteke sa računara na njega.

Napomena:

S obzirom da unapred instalirane aplikacije i Android operativni sistem zauzimaju značajan deo kapaciteta memorije – oko 2.0GB, normalno da je vidite ogromnu razliku između raspoloživog i ukupnog kapaciteta memorije.

Savet: Za smanjivanje potrošnje baterije, ovaj uređajmože da uđe u režim pavanja sa zaključanim ekranom nakon što se uređaj neko vreme ne koristi (u zavisnosti od podešavanja izvršenih za Ekran – Režim spavanja). Za buđenje uređaja, dovoljno je jednom kratko pritisnuti dugme Power.

Otključavanje ekrana

Promena sistemskim podešavanja

Kliknite na ikonicu Podešavanja 🚪na Početnoj strani da olvorite meni za podešavanja i promenite ona koja su neophodna vašem uređaju.

Uspostavljanje bežične veze

Delete –brisanje pesme

Sound Effects – zapodešavanjezvučnihefekatareprodukcije

Collage of nature photos including iris, bridge, waterfall, and forest (no text or symbols visible)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

(3) Za pregled prethodne/naredne fotografije, predite prstom preko ekrana horizontalnim pokretom.

Scenic autumn landscape with a curved path, trees, and a lake in the background (no text or symbols visible)

(4) Za uvećanje ili smanjivanje slike, rastavite ili skupite prste po ekranu.

Hand holding a glass pyramid with yellow arrows pointing to the structure, next to a museum building (no visible text or symbols)

Prikazivanje menija

Dok gledate fotografiju, možete kliknuti na ekran ili ikonicu menija da bi vam se prikazao meni.

Korišćenje aplikacije za snimanje zvuka

• Da biste počeli snimanje, kliknite na dugme Start
  • Da prekinete snimanje, kliknitena dugme Stop
• Snimljen materijal će biti sačuvan na memorijskoj kartici pod imenom "Recordings".

Pretraživanje fajlova

Fajlove i foldere možete pretraživati korišćenjem aplikacije File Manager (Upravljanje datotekama).

Korišćenje aplikacijeFile Manager

Rešavanje problema

Resetovanje uređaja

1 Güç

Gray rectangular object with a small black square and horizontal line on top, no visible text or symbols.

Collage of nature photos including iris, autumn, water, and distant trees (no text or symbols)

Autumn landscape with golden-brown trees reflected in a calm lake, no visible text or symbols

Scenic autumn landscape with a curved path, trees, and a calm lake (no text or symbols visible)

Hand holding a white object pointing at the Louvre Pyramid glass building under clear sky (no text or symbols visible)

Gösterim Menüsü

Sorun Giderme

Gray rectangular object with a small protrusion at the bottom right corner (no visible text or symbols)

Передача файлів

Prestigio Wizard

Collage of nature photos including a iris, bridge, waterfall, and lake, displayed within a photo editing interface (no text or symbols on the images themselves)

Autumn park scene with a calm lake, golden-leafed trees, and a winding path (no text or symbols visible)

Autumn landscape with a calm lake, golden-brown trees, and a blue arrow overlay (no text or symbols)

Hand holding a glass dome structure with yellow arrows pointing to it, against a blue sky background (no text or symbols)

Меню Дисплея

Collage of nature photos including a flower, bridge, waterfall, and landscape (no text or symbols visible)

الشاشة

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Scenic autumn landscape with a calm lake, trees, and a blue arrow overlay (no text or symbols)

Hand holding a glass pyramid and a dome structure, with yellow arrows pointing to them (no text or symbols visible)

قانفقطالعرض

استخدام مسجل الصوت

الكُمْلَ خَلَالِ الْمُفَاتِ وَالْمُجْلِدِات

Gray rectangular object with a small black mark on the top right corner (no visible text or symbols)

Prestigio Wizard

Collage of nature photos including iris, waterfall, and lake views (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Autumn landscape with trees reflected in a calm pond, featuring two blue arrows pointing left (no text or symbols)

Hand holding a glass pyramid with yellow arrows pointing to it, next to a building (no text or symbols visible)

Menü anzeigen

Fehlersuche

Display 7" TFT LCD, Capacitive multi-touch

Grid of nature photos including iris, waterfall, and lake with no visible text or symbols

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Scenic autumn landscape with a curved path, trees, and a calm lake (no text or symbols visible)

Hand holding a glass pyramid and a dome structure, with yellow arrows pointing to them (no text or symbols visible)

Dark rectangular object with a small horizontal line and faint vertical markings on the left side (no readable text or symbols)

Collage of nature photos including a iris, autumn, bridge, and globe (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Autumn park scene with trees, a pond, and a curved path (no text or symbols visible)

Hand holding a glass pyramid next to a domed building under blue sky (no text or symbols visible)

Blank gray rectangular device with no visible text, symbols, or markings

Dicas de Toque de Tela

Collage of nature photos including iris, autumn, bridge, lake, and tree (no text or symbols)

Autumn park scene with colorful trees reflected in a calm lake (no text or symbols visible)

Scenic autumn landscape with a calm lake, bare trees, and a blue arrow pointing to a bridge (no text or symbols)

Hand holding a white object with yellow arrows pointing to a glass pyramid and the Louvre Museum building (no text or symbols visible)

Menu de exibição

Utilizando o Gravador de Som

Interfaces Micro USB 2.0, Micro SD (micro SDHC

compatível)

Gray rectangular device with a small black indicator light on the left side (no visible text or symbols)

Överföra filer

Prestigio-guiden

Tips om pekskärmen

Collage of nature photos including iris, autumn, bridge, lake, and forest (no text or symbols)

Autumn park scene with golden-brown trees reflected in a calm lake, no visible text or symbols

Autumn landscape with golden-brown trees and a calm lake, featuring two blue arrows pointing to a bridge (no text or symbols)

Hand holding a glass pyramid with yellow arrows pointing to the structure, next to a museum building (no visible text or symbols)

Visa menyn
