USER MANUAL Foodoo Joovy

Abstract black-and-white graphic with a large number 8 and a circular shape containing a heart-like symbol (no text or symbols present)

OPEN & ASSEMBLE

White baby boom chair with gray backrest and white seat, no visible text or symbols

Foodoo

High Chair & Booster

Instruction Manual

High Chair & Booster

Table of Contents

English

Configurations 2

Safety and Warnings 3

Parts List 5

Assembly and Usage....6

Care and Maintenance 10

Team 432....11

Francais

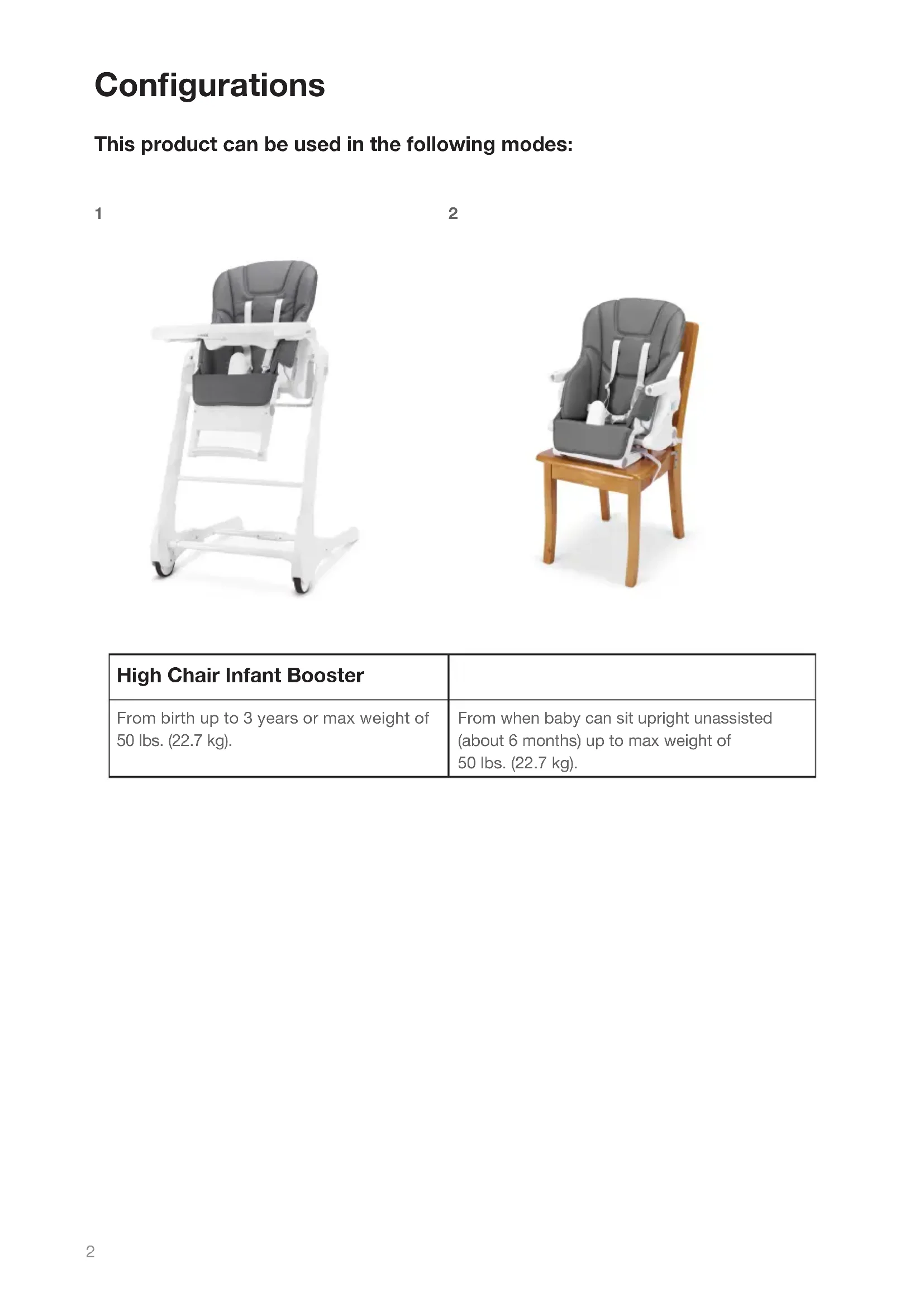

Configurations....13

This product can be used in the following modes:

1

2

White baby boom chair with gray seat and side panel, no visible text or symbols

Wooden baby seat with gray and white bedding, no visible text or symbols

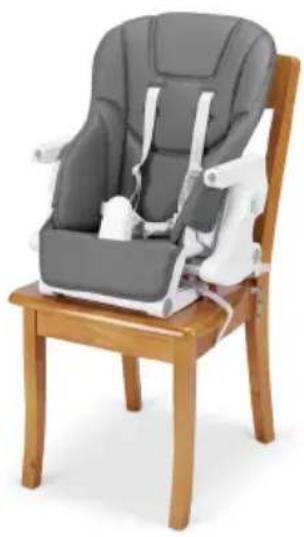

High Chair Infant Booster
From birth up to 3 years or max weight of 50 lbs. (22.7 kg).	From when baby can sit upright unassisted (about 6 months) up to max weight of 50 lbs. (22.7 kg).

WARNING

IMPORTANT! KEEP FOR FUTURE REFERENCE

Please read these instructions carefully before use and keep them for future reference.

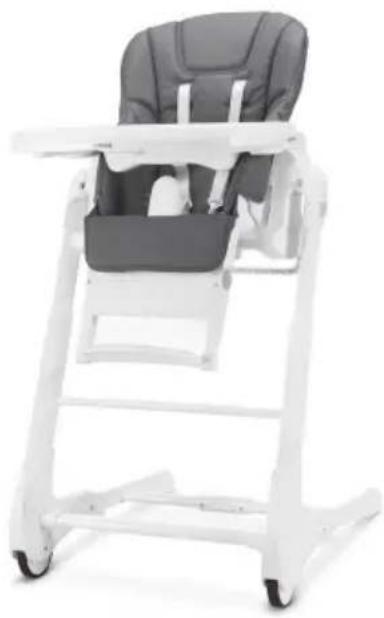

High Chair Mode (No. 1)

FALL HAZARD: Children have suffered severe head injuries including skull fractures when falling from high chairs. Falls can happen suddenly if child is not restrained properly.

• Always use restraints, and adjust to fit snugly.
- Tray is not designed to hold the child in the chair.
- Stay near and watch child during use.
• Always use high chair on a flat, smooth surface.

- Never use near stairs.

- Never allow child to use footrest to climb in or out of the high chair.

- The child should be secured in the high chair at all times by the restraint system, both in the reclined and upright positions. The tray is not designed to hold the child in the chair.

- It is recommended that the high chair be used in the upright position only by children capable of sitting upright unassisted.

- It is recommended that the tray not be used on the high chair when it is occupied by a child who cannot sit upright unassisted.

- NEVER use in any location where hanging cords can be reached by child.

- ALWAYS keep child in view while in high chair.

- The maximum weight for the high chair is 50 lbs. (22.7 kg). Excessive weight may result in a hazardous unstable condition.

- The maximum age for the high chair is 3 years.

- The total weight that can be placed in the seat back pockets should be less than 2.2 lbs. (1 kg).

- Do not use the high chair unless all components are correctly fitted and adjusted.

- Check your high chair for any parts that may be broken, torn or missing before use and on a regular basis. Discontinue use of the high chair should it malfunction or become damaged.

- Discard all packaging materials properly. Do not allow children to play with them.

WARNING

Children have suffered head injuries, including skull fractures, after falling with or from booster seats.

• Check that infant booster seat is securely attached to adult chair before each use.
• Always use restraints until child is able to get in and out of booster seat without help. Adjust to fit snugly.
• Never allow child to push away from table.
• Never lift and carry child in booster seat.
• Stay near and watch your child during use.
• ALWAYS use infant booster in the upright position on an adult chair.
• Never use infant booster seat on the floor as a floor seat.
• Place infant booster seat ONLY on an adult chair that has a backrest.
• Ensure that the booster seat fits flat onto the adult chair seat.
• ALWAYS attach BOTH sets of straps to the adult chair. Ensure straps are tightly secured.

• If booster seat does not fit flat onto the adult chair seat or cannot be securely attached to the adult chair, DO NOT use seat with that chair.

• Use this product only for children capable of sitting upright unassisted.

• Prevent serious injury or death. Do not use in motor vehicles.
• Until child is able to get in and out of the booster seat without help (about 2 12 years old), the child should be secured in the booster seat at all times by the restraining system. The tray is not designed to hold the child in the chair.
• The maximum weight for the Infant booster seat is 50 lbs. (22.7 kg). Excessive weight may result in a hazardous unstable condition.

Please do not return this product to the store.

If you experience any difficulty with the assembly or use of this product, or if you have a question regarding these instructions, please contact Team 432 (page 11).

Please note: Styles and colors may vary.

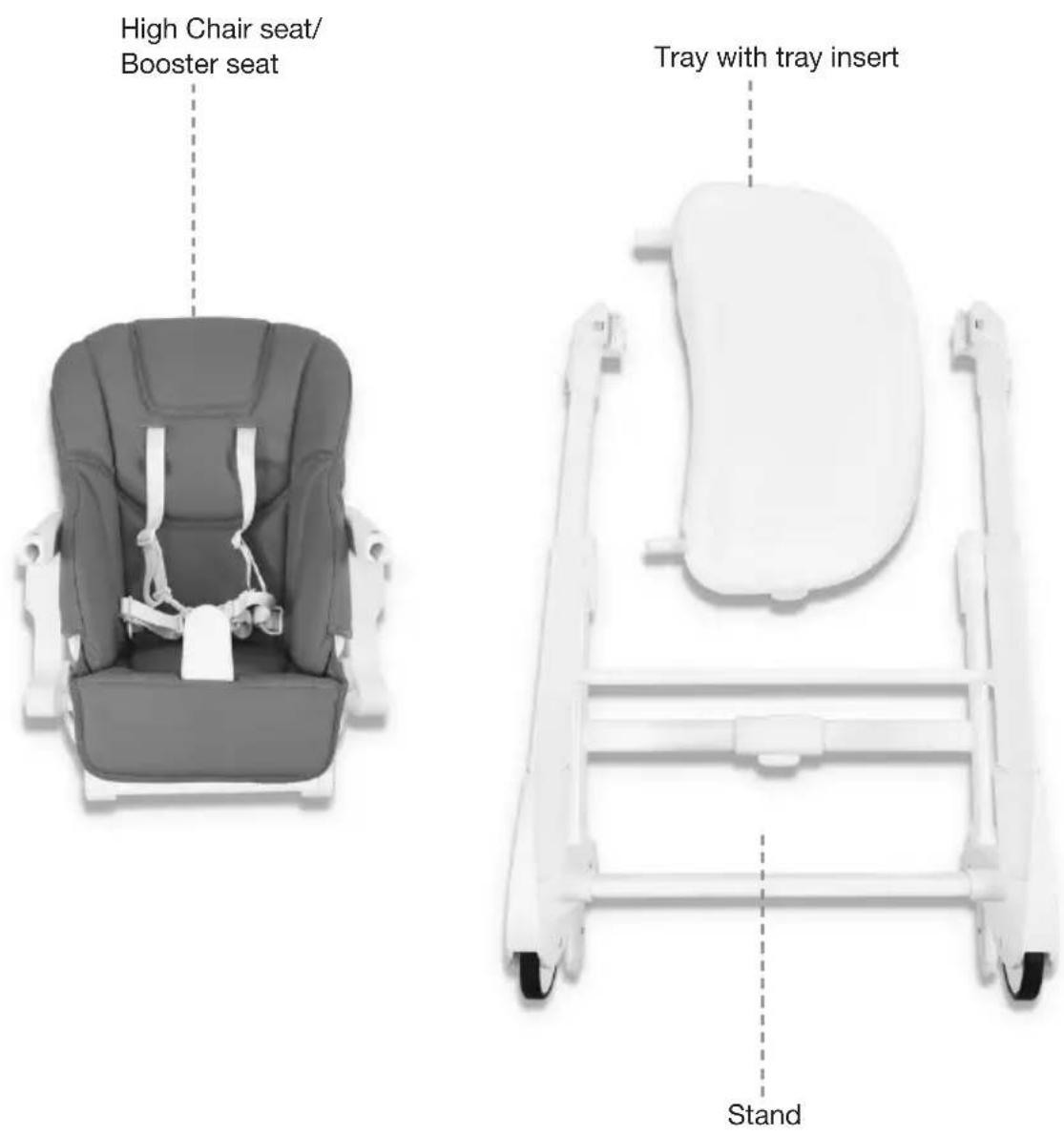

Parts List

Assembly and Usage

IMPORTANT NOTE: Please refer to the end of this manual for all photos that are referenced in parentheses in the instructions below.

Unpacking the Product

• Remove everything from the box – Stand, High Chair/Booster seat, Tray with tray insert and documents (not shown).
• Discard all packaging materials properly including plastic coverings.
• DO NOT allow children to play with any packaging materials.

WARNING

Adult assembly is required for this product. No tools required.

Attaching High Chair Seat to Stand Mode (No. 1)

• Open the stand by rotating the rear legs toward the floor until they lock into place. (1)
• Make sure BOTH adjustable legs are locked in the lowest position. (2)

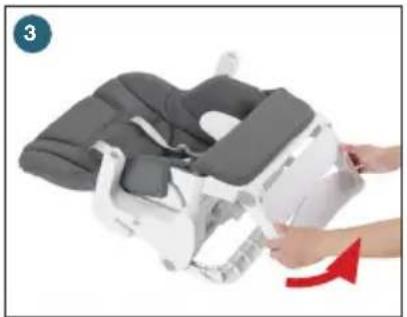

• Unfold the footrest by rotating it toward the front of the seat until it locks into place. (3)
• The high chair seat can be attached to the stand ONLY in one direction– facing forward. (4)

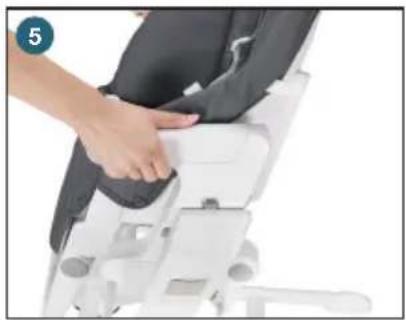

• Align the slots on each side of the high chair seat with the male brackets on the adjustable legs of the stand. (5)
• Push the high chair seat down until it locks into place. (6)

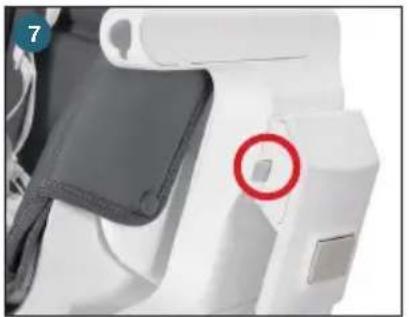

• Ensure that the release buttons on BOTH sides of the adjustable legs are in the OUT position. (7)
• Pull up on the high chair seat to ensure it is secure.

Detaching the High Chair Seat

• To detach the high chair seat from the stand, press the release buttons on BOTH sides of the stand. (8)
• Grasp the high chair seat and pull it up off the adjustable legs. (9)

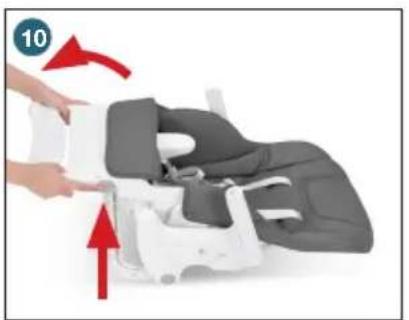

• For storage or travel, press in the release buttons on both sides of the footrest and rotate it to its closed position. (10)

Installing/Removing and Operating the Tray

• To install the tray, press and hold down the release lever on the underside of the tray, then pull the locking mechanism toward the front of the tray. (11)
• Insert the two posts into the slots on the side arms of the high chair. (12)
• Push the tray all the way back toward the seatback. (13)
• Release the locking mechanism and pull on the tray to ensure it is locked in place.
• The tray can be adjusted into two positions. Press and hold down the release lever, pull the locking mechanism toward the front of the tray, then slide the tray to adjust it to the desired position. (14)
• Ensure that BOTH sides of the tray are located in the same position.
  • Gently pull on the tray to ensure it is secure.
• To remove the tray, press and hold down the release lever, pull the locking mechanism toward the front of the tray, then pull the tray away from the high chair.
• Use caution when installing or repositioning the tray while a child is in the high chair.

WARNING

It is recommended that the high chair be used in the upright position only by children capable of sitting upright unassisted.

Using the Tray Insert

The tray insert is removable and dishwasher safe.

• To remove the insert, pull outward and upward on the hook attachments on both sides of the tray insert. (15)
• To reattach the insert, fit the insert into the tray until the hook attachments on both sides snap into place.

Adjusting the High Chair Seat Height

The high chair is adjustable to five different heights.

• To adjust the high chair to a lower position, simultaneously press the gray buttons on both sides of the adjustable legs of the stand and push downward until they lock into the desired position. (16)
• To adjust the high chair to a higher position, simply pull up on both adjustable legs of the stand until they lock into the desired position. (17)
• Ensure that BOTH adjustable legs are at the same height position and secure.

Securing the Child in the Seat

There are 2 height adjustment positions for the shoulder straps. Adjust the height of these straps to the closest height above your child's shoulders.

• To detach the shoulder straps, turn the plastic ends sideways and push them through the slots in the seatback. (18)
• Remove the seat fabric from the top of the seatback to expose the shoulder straps. (19)

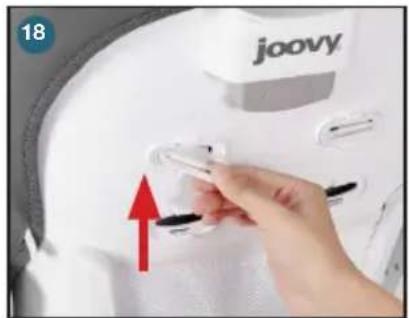

• Turn the plastic ends of the straps sideways and push them through the slots in the fabric. (20)
• Move BOTH shoulder straps to the desired height and insert the plastic ends of each strap through the slots in the fabric. (21)

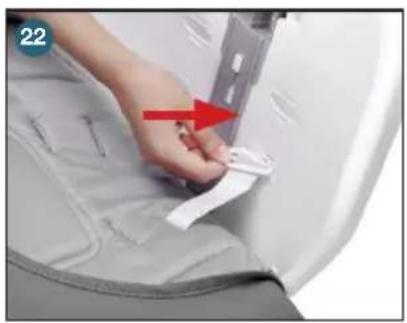

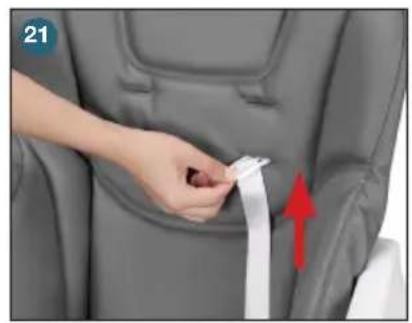

• Insert the plastic ends of each strap through the slots in the seatback and turn the plastic ends so that they are secured in place. (22)

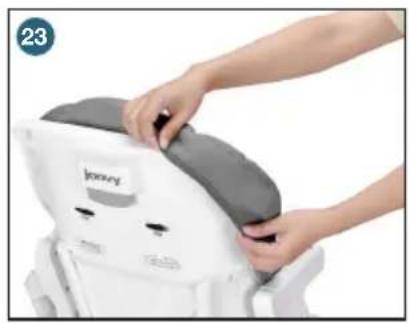

• Replace the seat fabric over the top of the seatback. (23)
• Ensure both straps are at the same height.

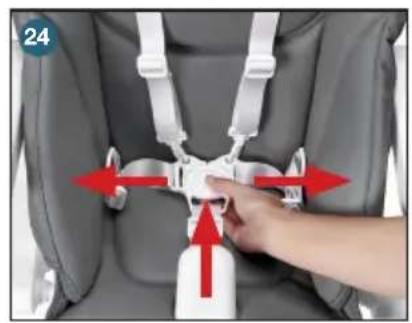

• To unlatch the restraint system buckle, press the center button and remove the male ends of each buckle. (24)
• Carefully place the child in the seat with the shoulder straps over their shoulders and chest. Then place the crotch strap between the child's legs.

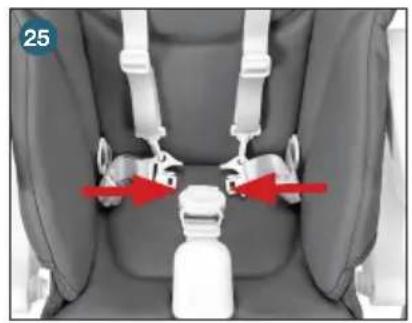

• Push the shoulder/waist latch posts into the crotch buckle until they snap into place. (25)
• Tighten the waist belt to be snug around the child's waist.
• The shoulder, waist, and crotch straps may be adjusted using the sliding plastic rings on these straps.

WARNING

The child should be secured in the high chair at all times by the restraint system, both in the reclined and upright positions.

FALL HAZARD: Children have suffered severe head injuries including skull fractures when falling from high chairs. Falls can happen suddenly if child is not restrained properly. Always use restraints, and adjust to fit snugly. Tray is not designed to hold the child in the chair. Stay near and watch child during use.

Seat Recline Positioning

There are four recline positions for the seat.

• To adjust the recline angle of the seat, squeeze the release mechanism on the back of the seat. (26)
- Tilt the seat to the desired position and let go of the release mechanism. (27)
- Ensure that the seat is secure in its locked position before placing your child in the seat.

WARNING

It is recommended that the high chair be used in the upright position only by children capable of sitting upright unassisted.

Using the Footrest

The footrest can be adjusted to a more upright position if desired for a small child.

• To adjust it, press the release buttons in on both sides of the footrest and rotate it upwards to a horizontal position until it locks into place. (28)
• Grasp the lower footrest panel and pull it out so that it is vertical. (29)
• To use the footrest in the lower position, press the release buttons in on both sides and rotate the footrest downward until it locks into place.

Folding the High Chair

• Keep children away from high chair while folding.
• Simultaneously press the gray buttons on both sides of the adjustable legs of the stand and move the legs to their lowest position. (30)
• While grasping the high chair with one hand, use the other hand to slide the secondary lock on the lower leg frame to the side and then squeeze the folding button on this leg frame. (31)

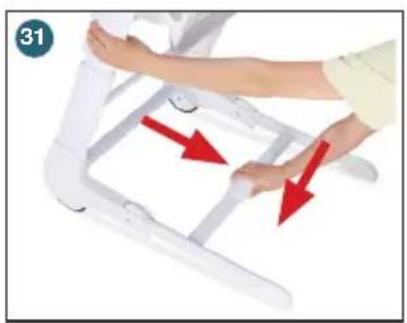

• Continue to squeeze the folding button and rotate the rear legs toward the high chair until they lock into place. (32)
• Release the folding button and then gently pull on the legs to ensure they are secure. Note that the high chair can be folded with the seat installed.

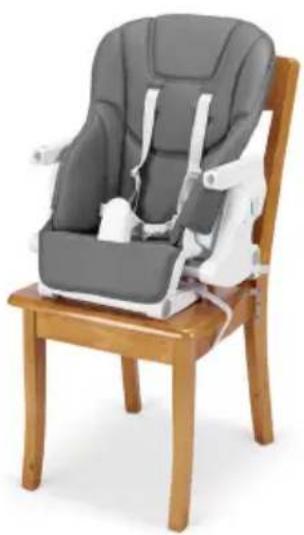

Infant Booster - Using High Chair Seat on Adult Chair Mode (No. 2)

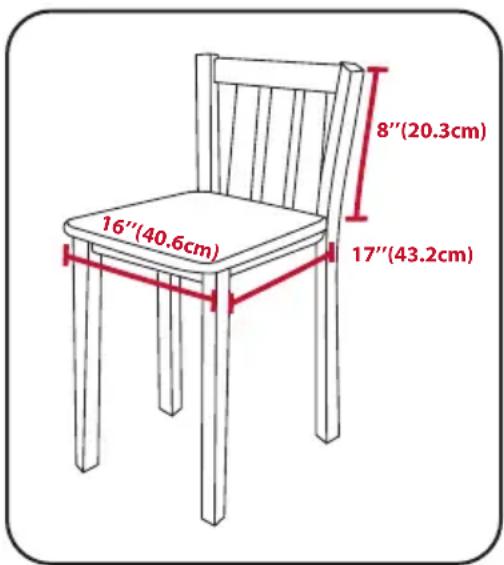

IMPORTANT NOTE: Refer to the diagram below. Use the high chair seat as an infant booster ONLY on an adult chair that has the following MINUMUM dimensions:

Chair seat minimum width: 16" (40.6 cm)

Chair seat minimum depth: 17" (43.2 cm)

Chair backrest minimum height: 8" (20.3 cm)

8"(20.3cm) 16"(40.6cm) 17"(43.2cm)

Adult chair MINIMUM dimensions for use of high chair seat as a booster.

• Detach the high chair seat from the stand following “Detaching the High Chair Seat” instructions above.

• Turn the seat upside down and locate the rear frame support. (33)

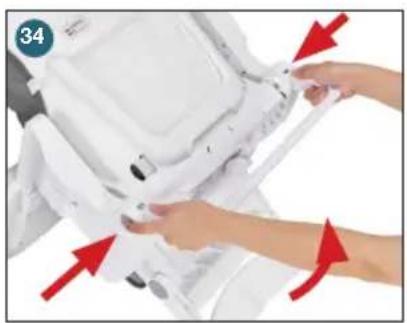

• Press the buttons on BOTH sides of the rear frame support and rotate the support toward the back of the seat. (34)

• Open the storage bag on the bottom of the seat and remove the two straps. (35)
• Unbuckle both straps. Allow the straps to hang down freely on the side of the seat with one matching pair of straps oriented toward the front of the seat and the other pair toward the rear. (36)
• Rotate the lower footrest panel to its closed position.

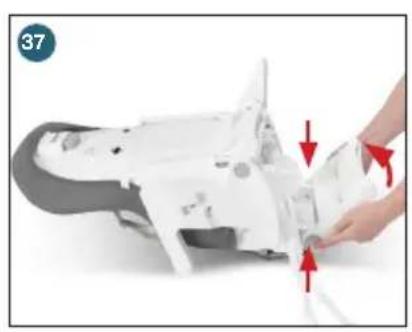

• Press in the buttons on both sides of the footrest and rotate it to its closed position. (37)
• Place the seat on an adult chair, being careful not to tangle the straps. (38)
• Wrap the straps that are closest to the front of the seat around the bottom of the adult seat and attach the buckle ends together. Tighten by pulling on the loose strap. (39)

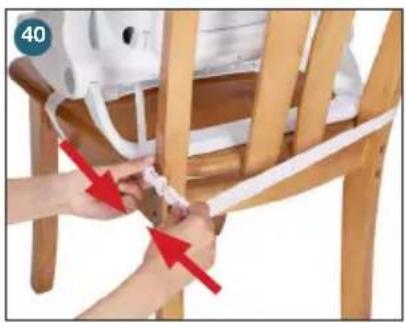

• Wrap the straps that are closest to the back of the seat around the back of the adult seat and attach the buckle ends together. Tighten by pulling on the loose strap. (40)
• Ensure the seat is securely attached by moving it from side to side and front to back.
  The tray can be used on the infant booster seat by following the instructions above for “Installing/Removing and Operating the Tray” and also “Using the Tray Insert.”

WARNING

ALWAYS use this booster in the upright position on an adult chair. NEVER use booster seat on the floor as a floor seat.

Care & Maintenance

Maintenance

All of the locking mechanisms, snaps, rivets, and other hardware and plastic parts on the high chair should be inspected periodically to ensure that they are secured properly and not damaged or malfunctioning. The restraint system, as well as all other fabric items and their stitching should also be inspected periodically to ensure that they are secured properly and not loose, torn or otherwise damaged. All moving parts should also be checked periodically to ensure they are operating properly.

Any missing, broken, or worn components should be replaced immediately, and the high chair should not be used until they are replaced. Only original manufacturer's components should be used. If needed, please contact Joovy (USA) or Elfe Juvenile Products (Canada) at our toll-free phone number.

Cleaning

The fabric material on the seat can be cleaned using mild household soap or detergent and warm water on a sponge or clean cloth. Always allow the fabric to completely air dry before using or storing this seat.

Alternatively, the seat fabric can be machine washed cold and air dried. DO NOT dry in a dryer.

Removing and Reinstalling the High Chair Seat Fabric

• To remove the seat fabric, first detach the tray and put it aside.

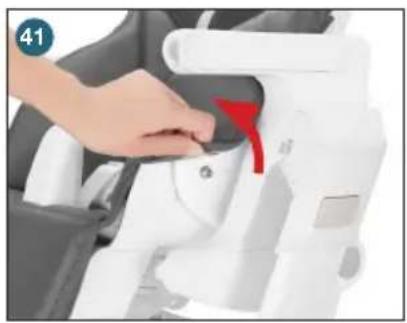

• Unsnap the snaps on BOTH sides of the seat. (41)

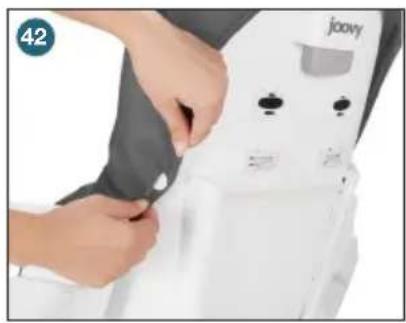

• Unhook the seat fabric from the seatback on BOTH sides. (42)

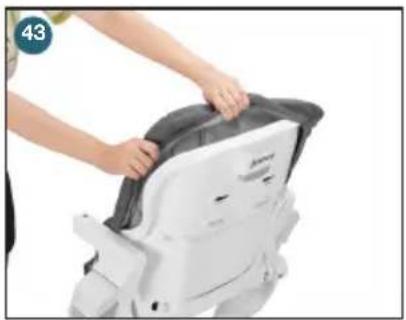

  • Pull the top of fabric off the seat back. (43)

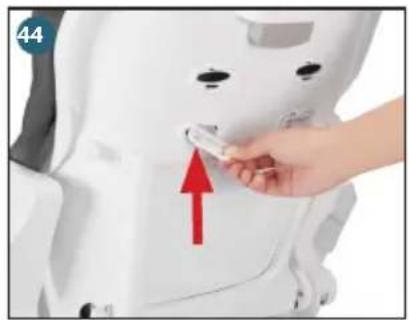

• Turn the plastic ends of BOTH shoulder strap sideways and push them through the slots in the seatback. (44)
• Do the same for the plastic ends of BOTH waist straps. (45)

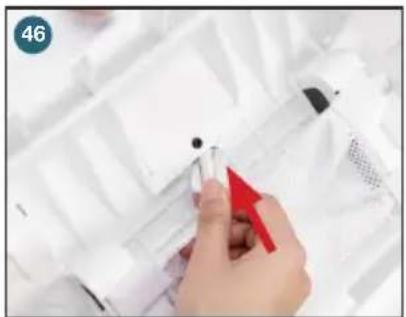

• Reach underneath the high chair and do the same for the plastic end of the crotch strap. You may want to gently tip over the high chair to do this. (46)
• Remove the fabric from the high chair.
• Now you can remove all the straps from the seat fabric by turning each plastic end sideways and pushing it through the fabric.

REMOVE ALL STRAPS AND BUCKLES BEFORE WASHING THE FABRIC.

- After washing and air drying the fabric seat, reinstall it by following the above directions in the reverse order. Ensure that all plastic ends of the straps are secure by pushing them through their slots and turning them sideways to lock them into position.

Team 432

Please do not return this product to the store.

If you experience any of difficulty with the assembly or use of this product, or if you have a question regarding these instructions, please contact Team 432:

United States

Joovy

[phone], 8:30 am – 5:00 pm Central Time

joovy.com LiveChat, 8:30 am – 9:00 pm Central Time

[e-mail]

@joovy

Canada

Elfe Juvenile Products

[phone], 8:30 am – 5:00 pm Eastern Time

[e-mail]

Configurations

White baby boom chair with gray seat and side panel, no visible text or symbols

Wooden baby seat with gray and white bedding, no visible text or symbols

Top-down view of a baby car seat with white straps and gray upholstery (no text or symbols visible)

White plastic medical chair with adjustable legs and seat, no visible text or symbols

Support

8''(20.3cm) 16''(40.6cm) 17''(43.2cm)

Elfe Juvenile Products

White baby boom chair with gray seat and side arm, no visible text or symbols

Wooden baby seat with gray and white backrest, no visible text or symbols

8''(20.3cm) 16''(40.6cm) 17''(43.2cm)

Elfe Juvenile Products

[phone], 8:30 am – 5:00 pm Hora del Este

[e-mail]

構成

本製品は、以下のモードで使用できます。

1

2

White baby boom chair with gray seat and side panel, no visible text or symbols

Wooden baby seat with gray and white backrest, no visible text or symbols

8''(20.3cm) 16''(40.6cm) 17''(43.2cm)

Elfe Juvenile Products

Silhouettes of various tree shapes including a leaf, tree trunk, and multiple small plants (no text or symbols)

Illustration of a hand holding a white ergonomic chair with a red arrow indicating the motion (no text or symbols)

White plastic mechanical component with a curved arm and base, shown against a plain white background (no text or symbols visible)

Person using a medical or rehabilitation device to adjust the backrest area (no text or symbols visible)

Person using a baby boom chair (no text or symbols visible)

Person adjusting a baby seat chair, no visible text or symbols

Side view of a baby boom chair with black backrest and red downward arrow indicating compression (no text or symbols)

Close-up of a medical device with a red circle highlighting a small circular feature, no visible text or symbols.

Person adjusting a black seatbelt on a white chair, with red arrow indicating force (no text or symbols visible)

Person using a white high chair to lift a black seat, with a red upward arrow indicating motion (no text or symbols)

Person adjusting a gray and white baby seat with red arrows indicating motion (no text or symbols)

White baby seat with red arrows indicating hand placement, no text or symbols present

Side view of a white babyhood chair with black seat and red directional arrows indicating movement (no text or symbols)

Side view of a white baby chair with black legs and a red arrow indicating movement (no text or symbols)

Side view of a baby height chair with a hand pointing to the seat (no text or symbols visible)

Close-up of a baby in a white height vest with hand pressing down on the seat, showing red arrows indicating movement (no text or symbols)

Person assembling a baby seat with red arrows indicating movement (no text or symbols)

Person seated in a white high chair with black backrest, showing a red upward arrow indicating motion (no text or symbols visible)

18 joovy

Side view of a person wearing a gray and black seatbelt, viewed from the side (no text or symbols visible)

Close-up of a hand adjusting a small electronic device on a gray car seat cover (no text or symbols visible)

Close-up of a person's hand adjusting a white cable buckle on a gray car seat (no text or symbols visible)

Close-up of a hand inserting a white plastic clip into a gray garment, with a red arrow pointing to the clip (no text or symbols visible)

Close-up of hands operating a white massage machine with a gray cushion (no visible text or symbols)

Close-up of a car seatbelt with white harnesses and red directional arrows indicating movement or force (no text or symbols)

Interior view of a car seat with white seatbelt straps and red directional arrows indicating movement or pressure points (no text or symbols)

26 joavy

Mechanical device with black and white body, showing a hand pressing down on the seat (no text or symbols visible)

Close-up of hands holding a white electronic device with a gray scroll wheel (no visible text or symbols)

Close-up of a white robotic device with a hand interacting with a small component, showing a red arrow indicating motion (no text or symbols visible)

Person assembling a baby seat with red arrows indicating movement (no text or symbols)

Close-up of a baby's leg and hip chair with red arrows indicating movement or pressure points (no text or symbols)

Person using a white robotic device with a red arrow indicating motion (no text or symbols)

Top-down view of a white robotic car with a red arrow indicating motion or force (no text or symbols)

Close-up of hands installing or adjusting a white mechanical component with red arrows indicating motion (no text or symbols visible)

Person assembling a white baby chair with a hand pulling the cable (no text or symbols visible)

Front view of a baby seat with black headrest and white seat, no visible text or symbols

Close-up of a white plastic mechanical component being adjusted by hand, with red arrows indicating movement (no text or symbols visible)

Exterior view of a baby boom chair with gray seat and white overhead tray (no text or symbols)

Person using a printer to press a small object, with red arrows indicating motion (no text or symbols visible)

Close-up of hands adjusting a wooden chair seat with red arrows indicating the mechanism (no text or symbols visible)

Close-up of a hand inserting a small component into a white car seatbelt device (no text or symbols visible)

Close-up of hands installing or adjusting a white device with buttons and a logo (no readable text or symbols)

Person adjusting a baby care seat using a white and black device (no visible text or symbols)

Close-up of a white robotic device with a hand inserting a small object, showing a red arrow pointing upward (no text or symbols visible)

Hand holding a white plastic bag with a red arrow pointing to the handle (no text or symbols visible)

Hand holding a pen and red arrow pointing to a white plastic container (no text or symbols visible)

Simple line drawing of a landscape with a sun, tree, and hill (no text or symbols)

Protect Nature

Simple line drawing of a person wearing sunglasses inside a circle with a heart above (no text or symbols)

Be Kind

Simple circular icon with a three chasing arrow symbol inside, representing recycling or reuse (no text or numbers)

Recycle Daily

joovy team 432

USA 1-877-456-5049 CANADA 1-800-667-8184
