USER MANUAL Kooper X2 Joovy

Safety and Warnings 4

Parts List 6

Stroller Assembly 7

Stroller Operation 9

Care and Maintenance 17

Customer Service 18

Francais

Please read these instructions carefully before use and keep them for future reference.

• Failure to follow these instructions could result in serious injury or death.
• Never leave child unattended.
• Ensure that all the locking devices are engaged before use.
• Avoid serious injury from falling or sliding out.
• Always use restraint system and ensure that children are positioned according to these instructions.
• Be certain that the stroller is fully opened, locked securely into position, and the wheel brakes are on before allowing children near the stroller.
• The parking device should always be engaged during the loading and unloading of children.
• The seats are not suitable for a child under 3 months.
• The maximum height of a child the product is designed to carry is 44 in (111.8 cm).
• The maximum weight of a child the product is designed to carry is 50 lbs. (22.7 kg) in each seat.
• Use of the stroller with a child weighing more than 50 lbs. (22.7 kg), or two children totaling more than 100 lbs (45.4 kg) will cause excessive wear and stress on the stroller and may cause a hazardous unstable condition.
• Never use this stroller to carry more than two children at the same time.
• Never allow a child to step on the leg support or footrest to get into or out of the stroller.
• Do not use the stroller on stairways or escalators.
• Do not add any attachment not specifically recommended by Joovy.
• Keep children away from the stroller when folding or unfolding.
• Any load attached to the handle affects the stability of the stroller. Hanging purses, shopping bags, parcels, diaper bags or other accessory items from handle bars or any other parts of the stroller may change the balance of the stroller and cause a hazardous unstable condition.
• The maximum weight that can be placed in each parent pocket should be less than 2 lbs. (0.9 kg).
• The maximum weight that can be carried in the each cup holder is 1 lb. (0.45 kg).
• Never carry hot beverages or open containers in the cup holders.

• The maximum weight that can be carried in the storage basket is 22 lbs. (10 kg). Excessive weight may result in a hazardous unstable condition.

• Never allow your stroller to be used as a toy.

• Do not let your child play with this product.
  • This product is not suitable for running or skating.
• Discard all packaging materials properly. Do not allow children to play with them.
• Check your stroller for loose rivets, snaps, worn parts, and torn material or stitching on a regular basis.
• Discontinue use of the stroller should it malfunction or become damaged.

CAUTION: While unfolding the stroller, be careful to keep your fingers from being pinched by moving parts.

Please do not return this product to the store.

If you experience any of difficulty with the assembly or use of this product, or if you have a question regarding these instructions, please contact our Customer Service Department (page 18).

Please note: Styles and colors may vary.

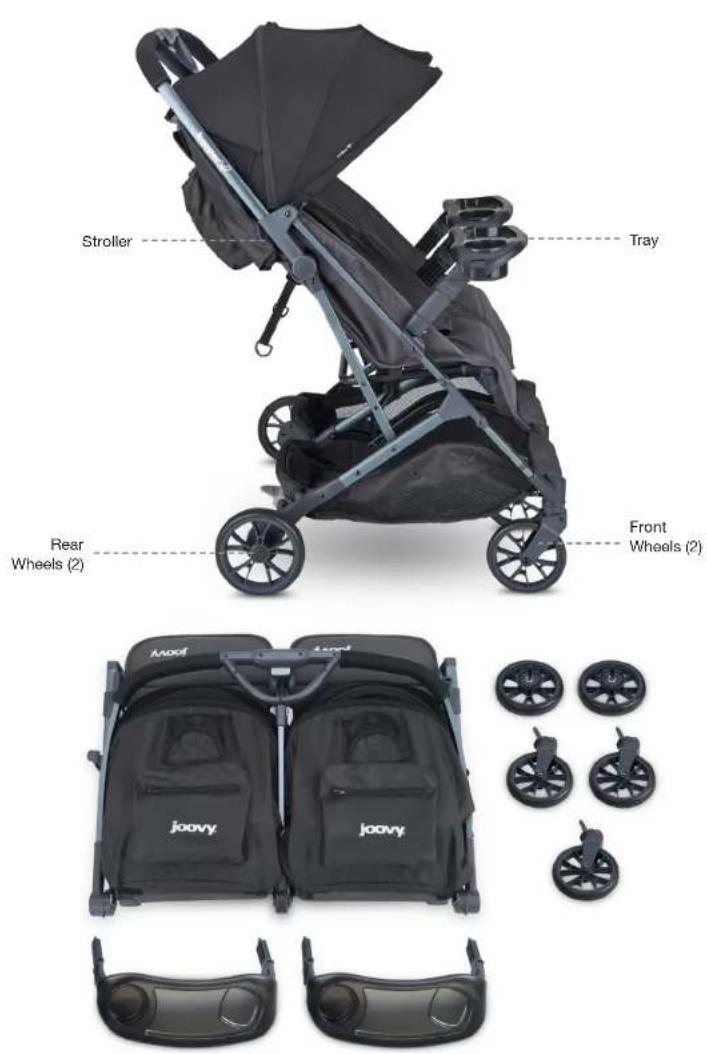

Parts List

Stroller Tray Rear Wheels (2) Front Wheels (2) Joovy Joovy

Stroller Assembly

⚠ WARNING: Adult assembly is required for this product. No tools required.

Unfolding the Stroller

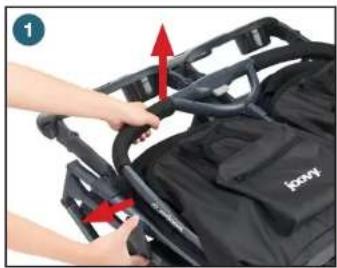

• Orient the stroller with the handle facing upward. Release the safety latch located on the left side of the stroller. (1)

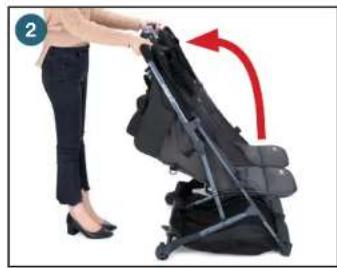

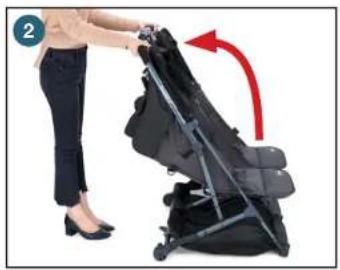

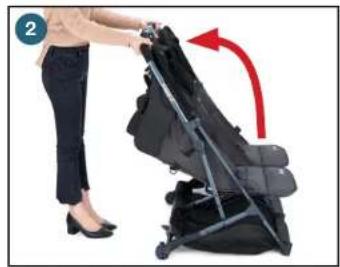

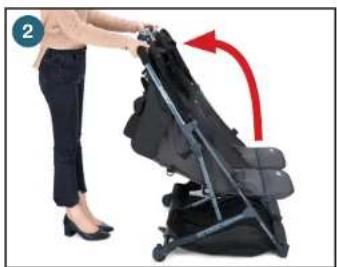

• Pull upwards on the handle. (2) Keep pulling until the stroller is fully erected and the folding hinge on each side engages.
• Visually check and gently push downward on the handle to ensure that the stroller is completely opened and locked before ANY use of the product.

WARNING: Keep children away from stroller while unfolding. ALWAYS ensure the folding mechanism on each side of the handlebar is fully engaged when the stroller is in the opened position. This action will prevent collapse of the stroller. Possible pinching hazard – Be careful when unfolding the stroller.

Close-up of a person adjusting a black children's stroller seat with red arrows indicating motion (no text or symbols visible)

Person pushing a black stroller with a red arrow indicating motion (no text or symbols)

Installing/Removing the Front Wheels

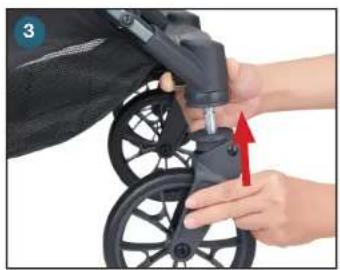

• Slide one front wheel into the front wheel housing until it clicks into place. (3) Repeat for the other two wheels. Pull on the wheels to ensure they are installed properly.

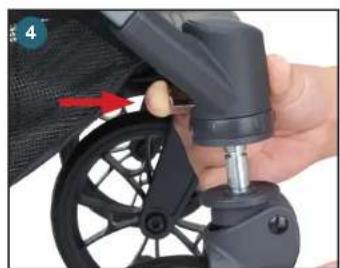

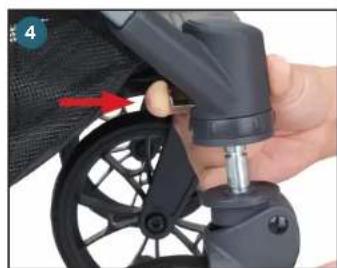

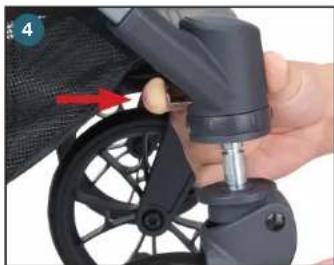

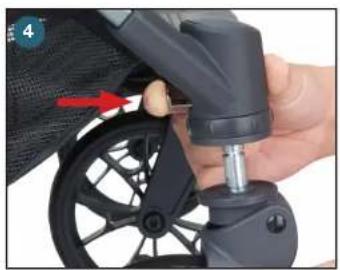

  • To remove, press the metal release button on the back of the front wheel housing and pull away from the stroller. (4)

Close-up of hands installing a black bicycle wheel assembly with a red arrow indicating the motion (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a black bicycle wheel (no text or symbols visible)

Installing/Removing the Rear Wheels

• Install a rear wheel by sliding the axle into the hole in the wheel hub until it clicks into place. (5) Repeat for the other wheel. Pull on the wheels to ensure they are installed properly.
  • To remove, push the release button on the rear wheel hub and pull the wheels from the stroller. (6)

Close-up of a hand holding a black bicycle seat with a handle, no visible text or symbols

Close-up of hands adjusting a black tire with a red arrow pointing to the handle (no text or symbols visible)

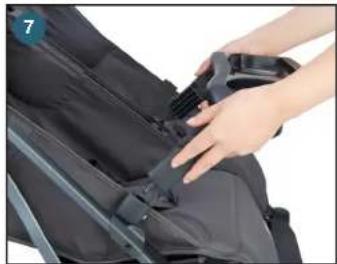

Installing/Removing the Tray

• Remove the safety caps from the seat mount points by pressing the release button and pulling each cap off.

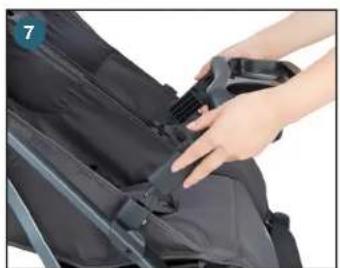

• To attach the tray, insert the male fittings on the tray into the female fittings located on both sides of each seat until it snaps into place. (7) Pull outward on the tray to ensure it is secure.
• To remove, press the buttons located on the underside of both female fittings inward and pull the tray away from the seat. (8)
• When using the stroller without the tray, always replace the safety caps.

WARNING: For use ONLY on the Joovy Kooper X2 Stroller. The tray is not a restraint device. ALWAYS secure your child with the restraint system. NEVER lift the stroller by the tray. Use caution when attaching the tray when there is a child seated in the stroller. The maximum weight that can be carried in each tray is 2 lbs. (0.9 kg).

Close-up of a person adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a dark seatbelt buckle (no text or symbols visible)

Stroller Operation

Rear Wheel Brakes

• Always engage rear wheel brakes before placing a child in or removing a child from the stroller.

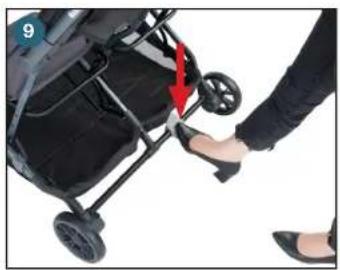

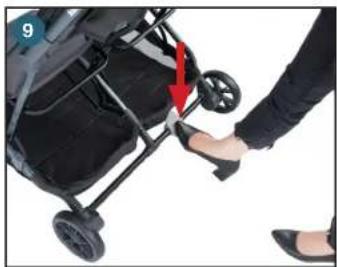

• To engage, push down on the brake lever. (9)

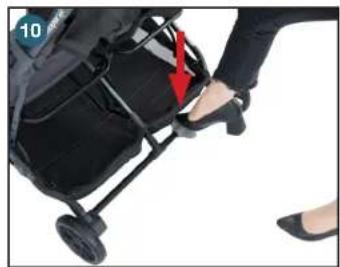

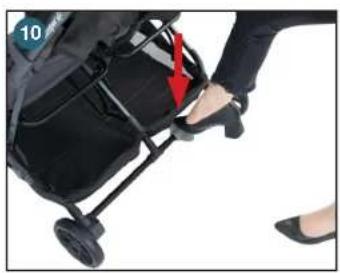

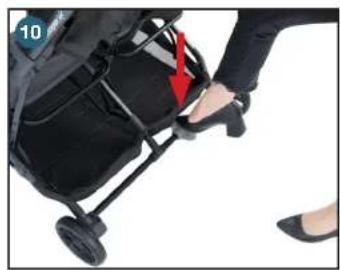

• To release, push down on the back of the brake lever. (10)
NOTE: Gently push the stroller back and forth to ensure the brake is fully engaged.

WARNING: Always make sure the wheel brakes are engaged when the stroller is not being pushed so that the stroller will not roll away. Never leave stroller unattended, especially on a hill or incline, as the stroller may tip over or slide.

Person pushing a stroller with a red arrow indicating motion (no text or symbols visible)

Close-up of a person's lower body and legs in a stroller, showing black plastic bags and a red arrow pointing to the seat area (no text or symbols visible)

Securing the Seated Child

• There are three height adjustment positions for the shoulder harness. Adjust the height to the closest height above your child's shoulders.
• To remove the shoulder harness, turn the plastic ends sideways and push them through the slots in the backrest. Reattach the harness at the proper height by reinserting the plastic ends through the slots. (11) Ensure both straps are the same height.

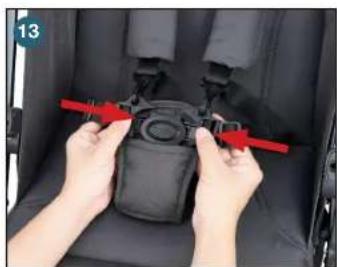

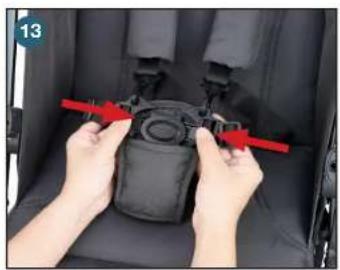

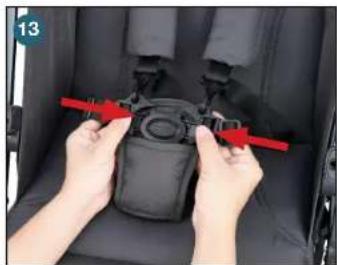

• To unlatch the buckle, press the center button and remove the male ends of each side. (12)
• Carefully place the child in the seat with the shoulder straps and pads over their shoulders and chest. Then place the crotch strap between the child's legs.
• Push the shoulder/waist buckles into the crotch buckle until all parts snap into place. (13)
• Tighten the waist belt to be snug around the child's waist.
• The shoulder, waist, and crotch straps may be adjusted using the sliding plastic rings.
• NEVER allow a child to step onto or sit on the footrest. This may cause the stroller to tip over.

⚠ WARNING: The seats are not suitable for a child under 3 months. The maximum height of a child the product is designed to carry is 44 in (111.8 cm). The maximum weight of a child the product is designed to carry is 50 lbs. (22.7 kg) in each seat. Use of the stroller with a child weighing more than 50 lbs. (22.7 kg), or two children totaling more than 100 lbs (45.4 kg) will cause excessive wear and stress on the stroller and may cause a hazardous unstable condition. Never leave child unattended. Avoid serious injury from falling or sliding out. Always use the restraint system.

Close-up of a hand adjusting a dark gray car seatbelt in a car interior (no text or symbols visible)

Close-up of a car seatbelt buckle being adjusted, with a hand adjusting the belt (no text or symbols visible)

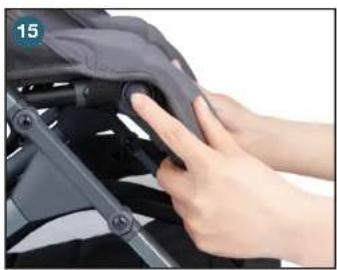

Adjusting the Seat

• Each seat can be adjusted to any position from upright to fully reclined. To adjust, grasp the recline mechanism with one hand and the plastic D-ring on the strap with the other. Squeeze the recline mechanism and either push or pull to the desired position. (14)

WARNING: ALWAYS

make certain that the recline mechanism is engaged before placing the child in the seat, whether the seat is upright or reclined.

Adjusting the Footrest

• To adjust the footrest, press the two buttons on both sides and place the footrest into the desired position. (15)

WARNING: NEVER allow a child to step onto or sit on the leg support or footrest. This may cause the stroller to tip over and injure the child.

Close-up of hands adjusting a black camera seatbelt with red straps (no text or symbols visible)

Close-up of hands adjusting a black cable clip on a car wheel (no text or symbols visible)

Close-up of hands adjusting a dark-colored athletic jacket (no visible text or symbols)

Canopy

• The canopy can be adjusted to be fully opened or closed.

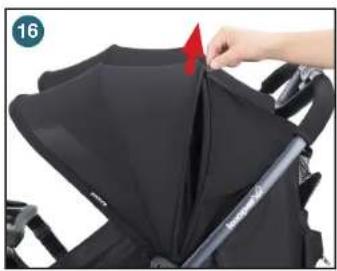

- The canopy can be made larger by unzipping the extension zipper and pulling the canopy open. (16)
- The mesh window can be left opened or closed. Unfold the fabric flap on the back of the canopy for the opened position. (17) Fold the fabric flap over the mesh for the closed position.

WARNING: Possible pinching hazard – Be careful when closing and opening the side hinges so as not to pinch your fingers.

Close-up of a hand placing a red arrow onto a black fabric or cushion, with no visible text or symbols.

Close-up of a black athletic suit with handle and seat (no visible text or symbols)

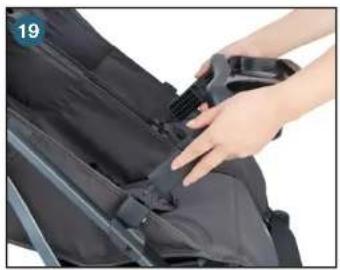

Tray

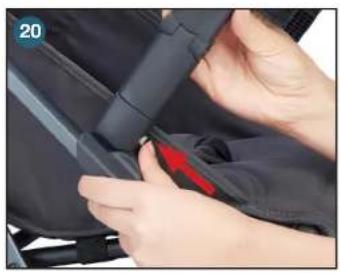

• Remove the safety caps from the seat mount points by pressing the release button and pulling each cap off. (18)

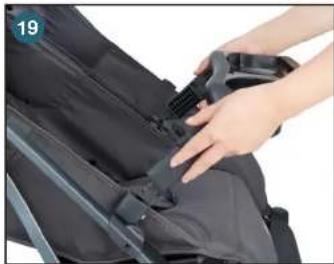

• To attach the tray, insert the male fittings on the tray into the female fittings located on both sides of each seat until it snaps into place. (19) Pull outward on the tray to ensure it is secure.
• To remove, press the buttons located on the underside of both female fittings inward and pull the tray away from the seat. (20)

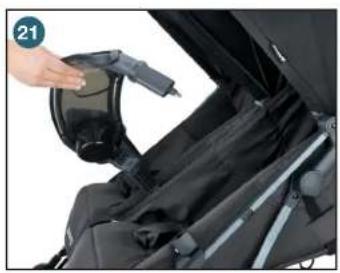

• To use the tray's swing arm, release one side of the tray by pressing the release button and rotate the tray upward. (21)

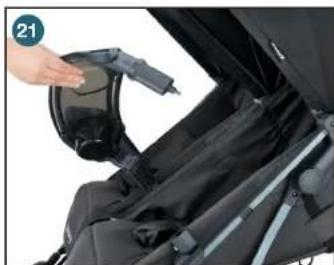

• The tray insert is removable and dishwasher safe. To remove the tray insert, push the buttons on the tray frame and pull the tray side latch upward. (22)
  • To attach the tray insert, fit the tray insert into the tray until both sides snap into place.
• When using the stroller without the tray, always replace the safety caps.

WARNING: For use ONLY on the Joovy Kooper X2 Stroller. The tray is not a restraint device. ALWAYS secure your child with the restraint system. NEVER lift the stroller by the tray. Use caution when attaching the tray when there is a child seated in the stroller. The maximum weight that can be carried in each tray is 2 lbs. (0.9 kg). This product is not a toy. DO NOT allow children to play with it.

Basket

- The storage basket should not be removed.

WARNING: The maximum weight that can be carried in the storage basket is 22 lbs. (10 kg). Excessive weight may result in a hazardous unstable condition.

Close-up of hands adjusting a black seatbelt buckle with a red arrow pointing to the buckle (no text or symbols visible)

Close-up of a person adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a black seatbelt buckle (no text or symbols visible)

Close-up of a hand holding a camera lens over a black seatbelt, no visible text or symbols

Close-up of a hand adjusting a black seatbelt device (no visible text or symbols)

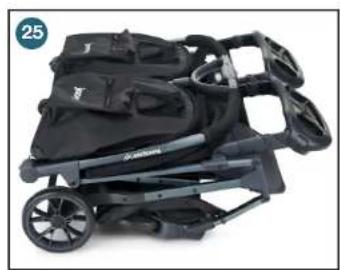

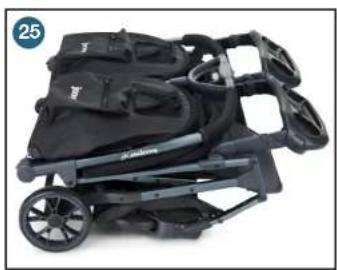

Folding the Stroller

• Keep children away from the stroller while folding.
• Rear wheel brake lever MUST be engaged before folding the stroller.
• Close both canopies.
• Push the secondary lock on the handle to the left and squeeze the button on the inside of the handle in. (23)

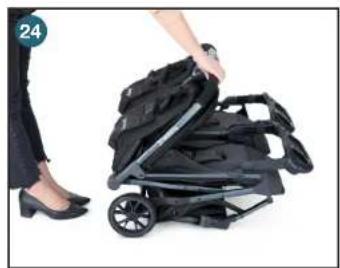

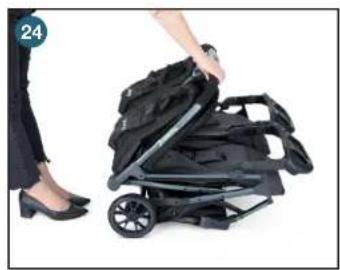

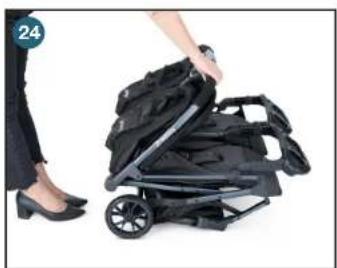

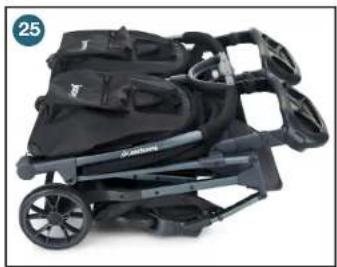

• Push the handle forward and slowly guide it towards the rear wheels. (24) The stroller should automatically lock into place. (25) DO NOT force the stroller closed.
• Pull up on the handle to ensure the safety latch is secure.

CAUTION: While folding the stroller, be careful to keep your fingers from being pinched by moving parts.

WARNING: Rear wheel brakes MUST be engaged before folding the stroller. DO NOT force the stroller closed. ALWAYS keep children away from the stroller when folding. Possible pinching hazard - Be careful when folding the stroller.

Close-up of a hand holding a black ergonomic device with a handle, no visible text or symbols

Person pushing a black stroller with a hand adjusting the seat (no visible text or symbols)

Black stroller with black seat cover and wheels, no visible text or symbols

Seat Fabric

• The seat fabric is removable for washing.
- Adjust the leg supports to the upright position.
- Undo the snaps and Velcro® along the canopy apron. (26 and 27)

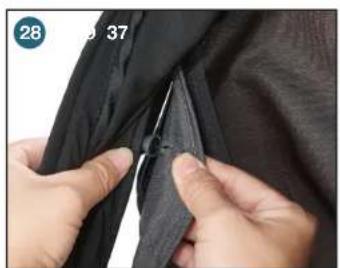

- Unfasten the seat fabric from the two pegs on the side seat panel. (28) Repeat for the other side.
- Release the strap from the metal D-ring on the folding hinge. (29) Repeat for the other side.

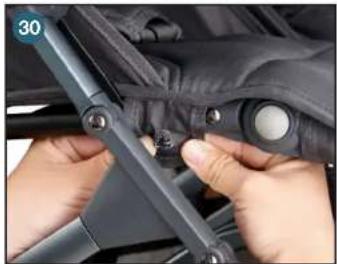

- Unfasten the seat fabric from the peg beneath the side of each seat. (30) Repeat for the other side.
- Release the strap from the plastic D-ring beneath each seat. (31)
- Undo the Velcro® beneath the footrests and pull the seat fabric free from the stroller frame. (32)
- Remove the shoulder and waist straps by turning the plastic ends sideways and pushing them through the slots in the seatback. (33 and 34)
- Remove the crotch strap by turning the plastic end sideways and pushing it through the slot in the fabric. (35)
- Open the zipper pocket at the back of each seat. Remove the plastic board. (36)
- Open the Velcro® pocket underneath each seat. Remove the plastic board. (37)
• The seat fabric is ready for washing,
- To reassemble, simply reverse the disassembly steps.
- Ensure all zippers, snaps, and straps are securely closed.

Close-up of hands adjusting a black bicycle seatbelt mechanism (no visible text or symbols)

Close-up of hands installing or adjusting a black plastic bag on a car trunk (no visible text or symbols)

Close-up of a hand pressing down on the back of a car hood (no visible text or symbols)

Close-up of a hand inserting a button into a black backpack (no text or symbols visible)

Close-up of a hand adjusting a black jacket with a button, showing no text or symbols

Close-up of a hand adjusting a black jacket with a white cable, no visible text or symbols

Close-up of a hand adjusting a black athletic belt buckle (no text or symbols visible)

Close-up of a hand inserting a black belt into a dark jacket (no text or symbols visible)

Close-up of hands adjusting a dark fabric garment with a zipper (no text or symbols visible)

Close-up of hands adjusting a camera clip on a tripod (no visible text or symbols)

Close-up of hands installing or adjusting a black fabric piece on a dark surface (no text or symbols visible)

Close-up of hands adjusting a black garment with a zipper (no visible text or symbols)

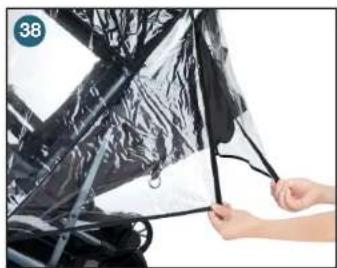

Rain Cover (Optional)

• The rain cover is sold separately.
- Make sure the canopy is in the open position. Carefully open the rain cover to its fullest.
- Place the rain cover over the stroller with the long flap toward the front of the stroller. Make sure the front seam is over the front edge of the canopy.
- Tuck the rear apron between the back of the canopy and the handle. Attach the Velcro® on the rear apron of the rain cover to the rear sides. (38) Start near the handle and work your way down the sides.

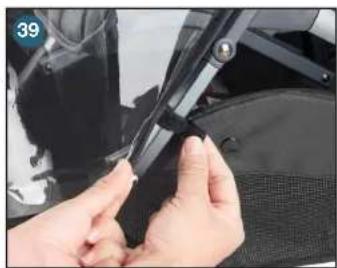

- Attach the Velcro® straps on the bottom of the rain cover to the stroller frame near the front wheels. (39)

WARNING: For use ONLY on the Joovy Kooper X2 stroller. Never leave this cover in place with child in stroller when exposed to direct sun or high temperature, as temperature inside may be excessive. This product is not a toy. DO NOT allow children to play with it.

Close-up of hands adjusting a black plastic cover with ropes and rings (no visible text or symbols)

Close-up of hands installing or adjusting a mechanical component (no visible text or symbols)

Care & Maintenance

Maintenance

All of the fittings, snaps, locks, rivets, and other hardware and plastic parts on the stroller should be inspected periodically to ensure that they are secured properly and not damaged or malfunctioning. The safety harness, as well as all other straps and fabric items and their stitching should also be inspected periodically to ensure that they are secured properly and not loose, torn or otherwise damaged. All moving parts, such as wheels, brakes, and hinges should also be checked periodically to ensure they are operating properly.

Any missing, broken, or worn components should be replaced immediately, and the stroller should not be used until they are replaced. Only original manufacturer's components should be used. If needed, please contact Joovy at our toll-free phone number.

Cleaning

The fabric material on this stroller can be cleaned using mild household soap or detergent and warm water on a sponge or clean cloth. Seat fabric is machine-washable. Remove the metal frame and PE boards from the seat before washing. Do not use solvents, caustic or abrasive cleaning materials. To minimize shrinkage, simply reattach the seat to the frame to dry. Do not press, iron, dry clean, tumble dry or wring the fabric. Always allow the fabric to completely air dry before using the stroller.

The frame and wheels should always be kept clean and free of dirt and foreign matter, especially after operating the stroller in rain, snow, or other harsh environments. Use a sponge or cloth dampened with warm water and a mild detergent cleaner to clean the wheels after such use.

See the Seat Fabric section for information on removing the seat fabric for washing (page 14).

Storage

Direct sunlight may fade fabric and dry out wheels. Store stroller indoors to prolong its appearance. DO NOT store outdoors. Ensure that the stroller is dry before storing for prolonged periods. Always store the stroller in a dry environment. Store the stroller in a safe place when not in use (i.e. away from children). DO NOT place heavy objects on top of the stroller. DO NOT store the stroller near a direct heat source such as a radiator or open fire.

Customer Service

Please do not return this product to the store.

If you experience any of difficulty with the assembly or use of this product, or if you have a question regarding these instructions, please contact our Customer Service Department:

United States

Joovy

[phone], 8:30 am – 5:00 pm Central Time

joovy.com LiveChat, 8:30 am – 9:00 pm Central Time

[e-mail]

@joovy

Canada

Elfe Juvenile Products

[phone], 8:30 am - 5:00 pm Eastern Time

[e-mail]

Korea

Joy Partners Limited Korea

(822) 2248-3384, 9:00 am - 6:00 pm GMT+9

Close-up of hands installing a black trolley seatbelt with red arrows indicating adjustment (no text or symbols visible)

Person pushing a black stroller with a red arrow indicating motion (no text or symbols)

Close-up of hands using a small bicycle to adjust the wheel rim (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust the wheel rim (no text or symbols visible)

Close-up of hands using a black plastic bag to lift a small cylindrical component (no text or symbols visible)

Close-up of hands adjusting a black tire with a red arrow pointing to the handle (no text or symbols visible)

Close-up of a person adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a black seatbelt buckle (no text or symbols visible)

Close-up of a hand inserting a belt into a car seat cover (no text or symbols visible)

Close-up of a car seatbelt buckle with a hand adjusting the belt (no text or symbols visible)

Close-up of hands installing a camera seatbelt component on a black vehicle chassis (no text or symbols visible)

Person pushing a stroller with a red arrow indicating motion (no text or symbols visible)

Close-up of a person pushing a black stroller with a red arrow pointing to the seat area (no text or symbols visible)

Réglage du siège

Close-up of hands adjusting a black cable or connector on a dark vehicle chassis (no visible text or symbols)

Close-up of hands installing or adjusting a dark-colored safety seat component (no visible text or symbols)

Close-up of a hand placing a black troller seatbelt with a red arrow, no visible text or symbols

⚠ MISE EN GARDE: Risqu

Close-up of a black athletic suit seat with visible grip and seatbelt (no text or symbols)

Plateau

Close-up of hands adjusting a black car seatbelt with a red arrow (no text or symbols visible)

Close-up of a person adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a dark seatbelt buckle with a red arrow indicating the buckle (no text or symbols visible)

Close-up of a person adjusting a black plastic bag with a hand pointing to it (no visible text or symbols)

Close-up of a hand adjusting a black car seatbelt device (no text or symbols visible)

Close-up of a hand holding a black ergonomic chair handle, no visible text or symbols

Person holding a black stroller with wheels, next to a pair of black shoes (no text or symbols visible)

Black stroller with black backpack and wheels, no visible text or symbols

Tissu de siège

Close-up of hands adjusting a black bicycle seatbelt mechanism (no visible text or symbols)

Close-up of hands installing or adjusting a black plastic bag on a car trunk (no visible text or symbols)

Close-up of a hand pressing down on the hood of a car window (no visible text or symbols)

Close-up of a hand inserting a button into a black backpack (no text or symbols visible)

Close-up of a hand adjusting a black jacket with a button, showing no text or symbols visible.

Close-up of a hand adjusting a black jacket with a white cable, no visible text or symbols

Close-up of a hand adjusting a black athletic belt buckle (no text or symbols visible)

Close-up of a hand inserting a black belt into a dark jacket (no text or symbols visible)

Close-up of hands adjusting a dark fabric garment with a zipper (no text or symbols visible)

Close-up of hands adjusting a camera clip on a person's arm (no visible text or symbols)

Close-up of hands installing or adjusting a black fabric piece on a dark surface (no text or symbols visible)

Close-up of hands adjusting a black garment with a zipper (no visible text or symbols)

Close-up of hands adjusting a transparent plastic cover over a black metal frame (no text or symbols visible)

Close-up of hands installing or adjusting a mechanical component on a dark surface (no visible text or symbols)

Elfe Juvenile Products

Joy Partners Limited Korea

(822) 2248-3384, 9h00 - 18h00 GMT+9

Close-up of a person adjusting a black athletic vest with red arrows indicating movement (no text or symbols visible)

Person pushing a black stroller with a red arrow indicating motion (no text or symbols)

Close-up of hands adjusting a black bicycle wheel with a handle, showing the wheel being adjusted (no text or symbols visible)

Close-up of a hand using a mechanical tool to adjust a black bicycle wheel (no text or symbols visible)

Close-up of hands using a black plastic seatbelt to lift a small circular component (no text or symbols visible)

Close-up of hands adjusting a black tire with a red arrow indicating the adjustment (no text or symbols visible)

Close-up of a person adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a dark mechanical component with a red clip (no visible text or symbols)

Uso del cochecito

Close-up of a hand inserting a belt into a car seat cover (no text or symbols visible)

Close-up of a hand adjusting a car seatbelt buckle, with a red arrow pointing to the buckle (no text or symbols visible)

Close-up of hands installing a camera seatbelt component on a black vehicle chassis (no text or symbols visible)

Person pushing a stroller with a red arrow indicating motion (no text or symbols visible)

Close-up of a person pushing a black stroller with a red arrow pointing to the seat area (no text or symbols visible)

Ajuste del asiento

Close-up of hands adjusting a black cable or connector on a dark vehicle chassis (no visible text or symbols)

Close-up of hands adjusting a dark-colored seatbelt component (no visible text or symbols)

Close-up of a black stroller with a hand adjusting the seat area, showing a red arrow pointing to the seat (no text or symbols visible)

Close-up of a black athletic suit seat with visible grip and seatbelt (no text or symbols)

Bandeja

Close-up of hands adjusting a black car seatbelt with a red arrow (no text or symbols visible)

Close-up of a person adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a dark seatbelt buckle with a red arrow indicating the buckle (no text or symbols visible)

Close-up of a person adjusting a black plastic bag with a camera, no visible text or symbols

Close-up of a hand adjusting a black car seatbelt device (no text or symbols visible)

Close-up of a hand holding a black ergonomic chair handle, no visible text or symbols

Person holding a black stroller with wheels, next to a pair of black shoes (no text or symbols visible)

Black stroller with black backpack and wheels, no visible text or symbols

Tela del asiento

Close-up of hands adjusting a black bicycle seatbelt mechanism (no visible text or symbols)

Close-up of hands installing or adjusting a black plastic bag on a car trunk (no visible text or symbols)

Close-up of a hand pressing down on the hood of a car window (no visible text or symbols)

Close-up of a hand inserting a button into a black backpack (no text or symbols visible)

Close-up of a hand adjusting a black jacket with a button, showing no text or symbols

Close-up of a hand adjusting a black jacket with a white cable, no visible text or symbols

Close-up of a hand adjusting a black athletic belt buckle (no text or symbols visible)

Close-up of a hand inserting a black belt into a dark jacket (no text or symbols visible)

Close-up of hands adjusting a dark fabric garment with a zipper (no text or symbols visible)

Close-up of hands adjusting a camera clip on a person's arm (no visible text or symbols)

Close-up of hands installing or adjusting a black fabric piece on a dark surface (no text or symbols visible)

Close-up of hands adjusting a black garment with a zipper (no visible text or symbols)

Close-up of hands adjusting a black plastic cover with ropes and straps (no visible text or symbols)

Close-up of hands installing or adjusting a mechanical component (no visible text or symbols)

Elfe Juvenile Products

[phone], 8:30 am - 5:00 pm Hora del Este

Corea

Joy Partners Limited Korea

(822) 2248-3384, 9:00 am - 6:00 pm GMT+9

安全と警告

警告

Close-up of a person adjusting a black athletic backpack with red arrows indicating motion (no text or symbols visible)

Person pushing a black stroller with a red arrow indicating motion (no text or symbols)

ホイールの取り付け/取り外し

Close-up of hands installing a black bicycle wheel assembly with a red upward arrow (no text or symbols visible)

Close-up of a hand adjusting a black bicycle wheel component with a red arrow indicating the motion direction (no text or symbols visible)

リア・ホイールの取り付け/取り外し

Close-up of hands using a black mechanical device to lift a circular component (no text or symbols visible)

Close-up of hands adjusting a black tire with a red arrow pointing to the component (no text or symbols visible)

トレイの取り付け/取り外し

Close-up of a person adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands installing a black seatbelt on a vehicle (no text or symbols visible)

ベビーカーの操作

リア・ホイール・ブレーキ

Close-up of a person pushing a stroller with a red arrow indicating motion (no text or symbols visible)

Close-up of a person pushing a stroller with a red arrow pointing to the seat area (no text or symbols visible)

座っている子供の固定

Close-up of a hand adjusting a dark seatbelt inside a car cab (no text or symbols visible)

Hand placing a red arrow on a gray car seatbelt component inside a vehicle (no text or symbols visible)

Close-up of hands installing a black camera module on a dark vehicle seat (no text or symbols visible)

シートの調整

Close-up of hands adjusting a black cable or connector on a dark vehicle chassis (no visible text or symbols)

Close-up of a hand adjusting a black seatbelt component (no visible text or symbols)

キャノピー

Close-up of a hand placing a black plastic bag with a red arrow, next to a stroller (no text or symbols visible)

Close-up of a black athletic suit with a strap and seat (no visible text or symbols)

トレイ

Close-up of hands adjusting a black seatbelt with a red arrow pointing to the seat (no text or symbols visible)

Close-up of a hand adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a black seatbelt buckle with a red accent (no text or symbols visible)

Close-up of a person adjusting a black seatbelt device, no visible text or symbols

Close-up of a hand adjusting a black car seatbelt device (no visible text or symbols)

ベビーカーの折り畳み

Close-up of a hand holding a black ergonomic chair handle, no visible text or symbols

Person pushing a black stroller with a hand adjusting the seat (no visible text or symbols)

Black stroller with black backpack and wheels, no visible text or symbols

シート布

Close-up of hands adjusting a black bicycle seatbelt with a circular dial (no visible text or symbols)

Close-up of hands installing or adjusting a black plastic bag on a car trunk (no visible text or symbols)

Close-up of a hand pressing down on the hood of a car window (no visible text or symbols)

Close-up of a hand inserting a button into a black backpack (no text or symbols visible)

Close-up of a hand adjusting a black jacket with a button (no visible text or symbols)

Close-up of a hand adjusting a black jacket with a visible zipper (no text or symbols)

Close-up of a hand adjusting a black athletic belt buckle (no text or symbols visible)

Close-up of a hand inserting a black plastic clip into a dark jacket (no text or symbols visible)

Close-up of hands adjusting a dark fabric garment with a zipper (no text or symbols visible)

Close-up of hands adjusting a black cable clip on a person's shoulder (no text or symbols visible)

Close-up of hands installing or adjusting a black fabric panel (no visible text or symbols)

Close-up of hands adjusting a black garment with a zipper (no visible text or symbols)

62 63

レイン・カバー（オプション）

Close-up of hands adjusting a transparent plastic cover over a black frame (no text or symbols visible)

Close-up of hands installing or adjusting a mechanical component with a tool (no visible text or symbols)

保存取り扱い

メンテナンス

Elfe Juvenile Products

Joy Partners Limited Korea

Close-up of a person adjusting a black athletic vehicle seatbelt with red arrows indicating movement (no text or symbols visible)

Person pushing a black stroller with a red arrow indicating motion (no text or symbols)

앞바퀴 설치/분리

Close-up of hands installing a black bicycle seatbelt using a tool, with a red upward arrow indicating the mechanism (no text or symbols visible)

Close-up of a hand adjusting a black bicycle wheel component with a red arrow pointing to the wheel (no text or symbols visible)

뒷바퀴 설치/분리

Close-up of hands using a black plastic seatbelt to lift a small black wheel (no text or symbols visible)

Close-up of hands adjusting a black tire with a red arrow pointing to the component (no text or symbols visible)

트레이 설치/분리

Close-up of a person adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a seatbelt component (no visible text or symbols)

유모차 운전

뒷바퀴 브레이크

Person pushing a stroller with a red arrow indicating motion (no text or symbols visible)

Close-up of a person pushing a black stroller with a red arrow indicating motion (no text or symbols visible)

시트에 아동을 앉혀서 고정시키기

Hand inserting a button into a car seatbelt (no text or symbols visible)

Close-up of a car seatbelt buckle with a hand adjusting the seatbelt (no text or symbols visible)

Person assembling a black plastic device in a car seat, no visible text or symbols

시트 조정

Close-up of hands adjusting a black plastic clip on a dark vehicle chassis (no text or symbols visible)

Close-up of hands adjusting a dark gray athletic jacket with a handle (no visible text or symbols)

캐노피

Close-up of a hand placing a black fabric item with a red arrow, next to a stroller (no text or symbols visible)

Close-up of a black athletic suit seatbelt with handle and seat rack (no visible text or symbols)

트레이

Close-up of hands adjusting a black seatbelt with a red arrow pointing to the seat (no text or symbols visible)

Close-up of a hand adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a black seatbelt buckle (no text or symbols visible)

Close-up of a black athletic jacket with a hand adjusting its seat cover (no visible text or symbols)

Close-up of a hand adjusting a black athletic device component (no visible text or symbols)

유모차 접기

Close-up of a hand holding a black ergonomic chair handle, no visible text or symbols

Person pushing a black stroller with a hand adjusting the seat (no visible text or symbols)

Black stroller with black seat cover and wheels, no visible text or symbols

시트 원단

Close-up of hands adjusting a black mechanical component with a circular lens (no visible text or symbols)

Close-up of hands installing or adjusting a black plastic bag on a car trunk (no visible text or symbols)

Close-up of a hand pressing down on the back panel of a car hood (no visible text or symbols)

Close-up of a hand adjusting a black backpack with a button (no visible text or symbols)

Close-up of a hand adjusting a dark jacket with a button, showing no text or symbols visible.

Close-up of a hand adjusting a black jacket with a metal clip (no visible text or symbols)

Close-up of a hand adjusting a black athletic belt buckle (no text or symbols visible)

Close-up of a hand inserting a black plastic clip into a dark fabric or leather component (no text or symbols visible)

Close-up of hands adjusting a dark fabric garment with a zipper (no text or symbols visible)

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

Close-up of hands installing or adjusting a black fabric panel on a dark surface (no text or symbols visible)

Close-up of hands adjusting a black fabric piece with a zipper (no text or symbols visible)

유모차 방수 덧개(옵션)

Close-up of hands adjusting a transparent plastic cover over a black object (no visible text or symbols)

Close-up of hands installing or adjusting a mechanical component with a tool (no visible text or symbols)

관리 및 유지 방법

유지하기

Elfe Juvenile Products

Joy Partners Limited Korea

Close-up of a person adjusting a black stroller with red arrows indicating movement (no text or symbols visible)

Person pushing a black stroller with a red arrow indicating rotation (no text or symbols)

安装和/或拆除前轮

Close-up of hands installing a bicycle wheel component with a red arrow indicating motion (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust the wheel rim (no text or symbols visible)

安装和/或拆除后轮

Close-up of hands using a black mechanical device to lift a circular component (no text or symbols visible)

Close-up of hands adjusting a black tire with a red arrow pointing to the component (no text or symbols visible)

安装和/或拆除垫座

Close-up of a person adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a seatbelt component (no visible text or symbols)

婴儿车操作

后轮闸

Person pushing a stroller with a red arrow indicating motion (no text or symbols visible)

Close-up of a person pushing a black stroller with a red accent, hands visible adjusting the seat (no text or symbols)

固定坐车儿童

Close-up of a hand inserting a button into a car seat panel (no text or symbols visible)

Close-up of a car seatbelt buckle with a hand adjusting the seatbelt (no text or symbols visible)

Close-up of hands adjusting a black camera seatbelt with red straps (no text or symbols visible)

调节座椅

Close-up of hands adjusting a black cable clip on a car seat (no visible text or symbols)

Close-up of hands adjusting a black athletic seatbelt component (no visible text or symbols)

遮篷

Close-up of a person placing a red arrow on a black troller seat (no text or symbols visible)

Close-up of a black athletic suit seatbelt with handle and seat (no visible text or symbols)

垫座

Close-up of hands adjusting a black seatbelt with a red arrow pointing to the seat (no text or symbols visible)

Close-up of a hand adjusting a black seatbelt device (no visible text or symbols)

Close-up of hands adjusting a black seatbelt buckle with a red accent (no text or symbols visible)

Close-up of a person adjusting a black seatbelt device, no visible text or symbols

Close-up of a hand adjusting a black car seatbelt device (no visible text or symbols)

折叠婴儿车

Close-up of a hand holding a black ergonomic chair handle, no visible text or symbols

Person pushing a black stroller with a hand adjusting the seat (no visible text or symbols)

Black stroller with black cover and wheels, no visible text or symbols

座椅织物

Close-up of hands adjusting a black mechanical component with a circular lens (no visible text or symbols)

Close-up of hands installing or adjusting a black plastic bag on a car trunk (no visible text or symbols)

Close-up of a hand pressing down on the back panel of a car hood (no visible text or symbols)

Close-up of a hand adjusting a black backpack with a button (no visible text or symbols)

Close-up of a hand adjusting a dark jacket with a button, showing no text or symbols visible.

Close-up of a hand adjusting a black jacket with a metal clip (no visible text or symbols)

Close-up of a hand adjusting a black athletic belt buckle (no text or symbols visible)

Close-up of a hand inserting a black plastic clip into a dark fabric or leather component (no text or symbols visible)

Close-up of hands adjusting a dark fabric garment with a zipper (no text or symbols visible)

Close-up of hands adjusting a black mechanical component (no visible text or symbols)

Close-up of hands installing or adjusting a black fabric panel on a dark surface (no text or symbols visible)

Close-up of hands adjusting a black fabric piece with a zipper (no visible text or symbols)

防雨罩（可选购）

Person adjusting a transparent plastic cover with ropes, no visible text or symbols

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

保养与维护

维护

Elfe Juvenile Products

Joy Partners Limited Korea
