USER MANUAL Balloon Joovy

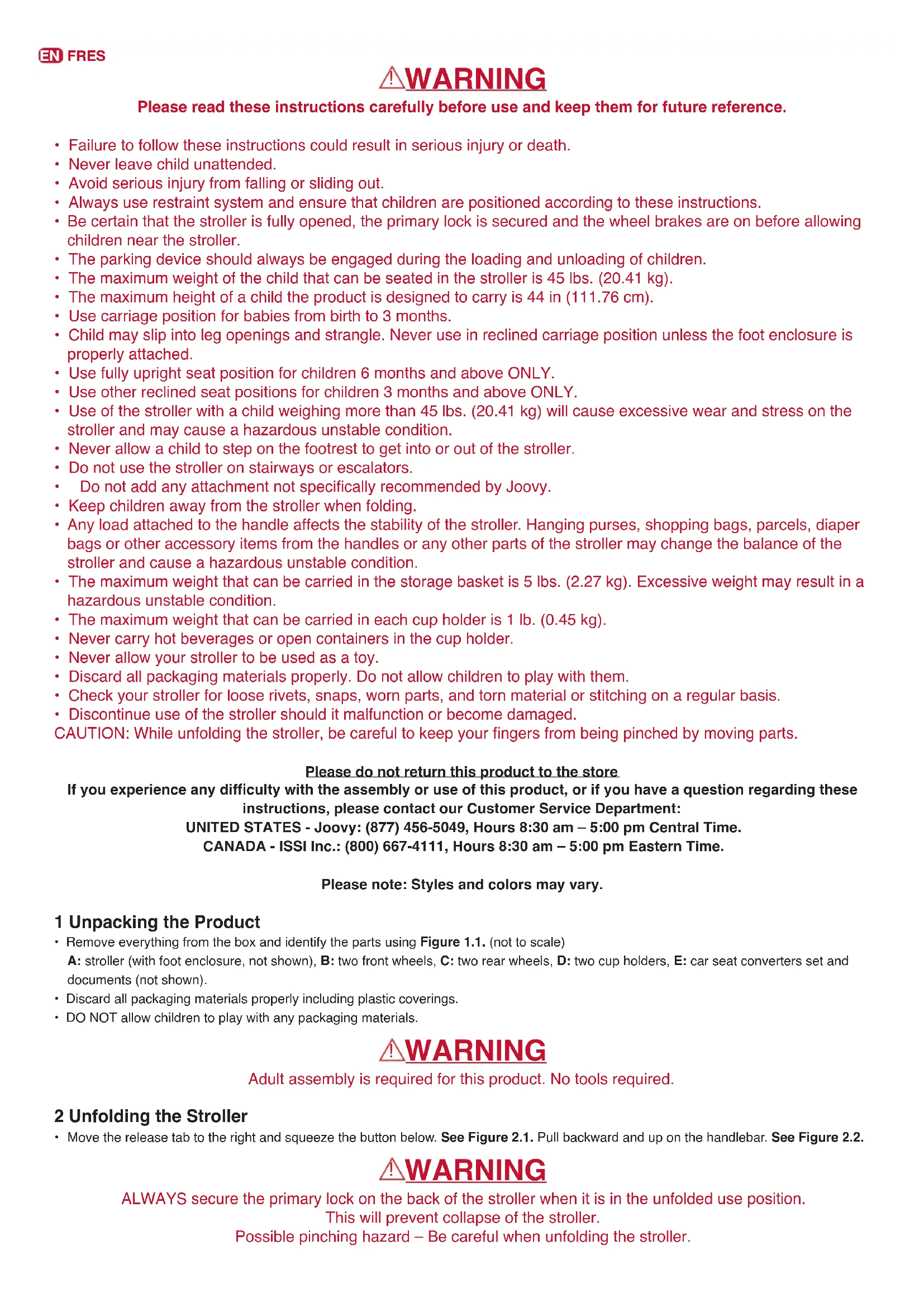

WARNING Please read these instructions carefully before use and keep them for future reference.

• Failure to follow these instructions could result in serious injury or death.

• Never leave child unattended.

• Avoid serious injury from falling or sliding out.

• Always use restraint system and ensure that children are positioned according to these instructions.

• Be certain that the stroller is fully opened, the primary lock is secured and the wheel brakes are on before allowing children near the stroller.

• The parking device should always be engaged during the loading and unloading of children.

• The maximum weight of the child that can be seated in the stroller is 45 lbs. (20.41 kg).

• The maximum height of a child the product is designed to carry is 44 in (111.76 cm).

• Use carriage position for babies from birth to 3 months.

• Child may slip into leg openings and strangle. Never use in reclined carriage position unless the foot enclosure is properly attached.

• Use fully upright seat position for children 6 months and above ONLY.

• Use other reclined seat positions for children 3 months and above ONLY.

• Use of the stroller with a child weighing more than 45 lbs. (20.41 kg) will cause excessive wear and stress on the stroller and may cause a hazardous unstable condition.

• Never allow a child to step on the footrest to get into or out of the stroller.

• Keep children away from the stroller when folding.

• Any load attached to the handle affects the stability of the stroller. Hanging purses, shopping bags, parcels, diaper bags or other accessory items from the handles or any other parts of the stroller may change the balance of the stroller and cause a hazardous unstable condition.

• The maximum weight that can be carried in the storage basket is 5 lbs. (2.27 kg). Excessive weight may result in a hazardous unstable condition.

• The maximum weight that can be carried in each cup holder is 1 lb. (0.45 kg).

• Never carry hot beverages or open containers in the cup holder.

• Never allow your stroller to be used as a toy.

• Discard all packaging materials properly. Do not allow children to play with them.

• Check your stroller for loose rivets, snaps, worn parts, and torn material or stitching on a regular basis.

• Discontinue use of the stroller should it malfunction or become damaged. CAUTION:Whileunfoldingthestroller,becarefultokeepyourngersfrombeingpinchedbymovingparts. Please do not return this product to the store If you experience any difculty with the assembly or use of this product, or if you have a question regarding these instructions, please contact our Customer Service Department: UNITED STATES - Joovy: (877) 456-5049, Hours 8:30 am – 5:00 pm Central Time. CANADA - ISSI Inc.: (800) 667-4111, Hours 8:30 am – 5:00 pm Eastern Time. Please note: Styles and colors may vary. 1 Unpacking the Product
• Remove everything from the box and identify the parts using Figure 1.1. (not to scale) A: stroller (with foot enclosure, not shown), B: two front wheels, C: two rear wheels, D: two cup holders, E: car seat converters set and documents (not shown).• Discard all packaging materials properly including plastic coverings.• DO NOT allow children to play with any packaging materials.

WARNING Adult assembly is required for this product. No tools required. 2 Unfolding the Stroller

• Move the release tab to the right and squeeze the button below. See Figure 2.1. Pull backward and up on the handlebar. See Figure 2.2.

WARNING ALWAYS secure the primary lock on the back of the stroller when it is in the unfolded use position. This will prevent collapse of the stroller. Possible pinching hazard – Be careful when unfolding the stroller.EN FR ES 3 Installing Rear Wheels

• Turn stroller upside down.
• Place the rear wheels onto the rear wheel posts until they click in place. See Figure 3.1. The brakes should be facing the rear.
• Pull on the wheels to ensure they are installed properly. 4 Installing Front Wheels
• Tilt the stroller so it is resting on the rear wheels and the handle bar.• Place the front wheels onto the front wheel posts until they click in place. See Figure 4.1.• Pull on the wheels to ensure they are installed properly. 5 Front Wheel Locks The front wheels can be set to swivel or lock.
• To lock the front wheels, lift the locking lever located between the wheels until a click is heard. See Figure 5.1. Rotate the wheel set until it locks automatically in the straight position.• To unlock the wheels (swivel mode) push down on the locking lever. 6 Operating the Canopy
• The canopy can be adjusted to be fully opened or closed. See Figure 6.1.
• To remove, recline the seat fully. Press the release buttons and pull up on the canopy. See Figure 6.2.
• To install, line up the tabs with the slots on the stroller and push them in until the canopy clicks into place.

WARNING Possible pinching hazard – Be careful of the side hinges when opening and closing the canopy. 7 Rear Wheel Brakes

• Always engage rear brakes before placing child in or removing a child from the stroller.
• To engage the brakes, push down on both of the brake levers until the brake snaps in place. See Figure 7.1.
• Check that BOTH wheel brakes are properly engaged.• To release the brakes, lift up on the brake lever. See Figure 7.2.

WARNING Always make sure the wheel brakes are engaged when the stroller is not being pushed so that the stroller will not roll away. Never leave stroller unattended, especially on a hill or incline, as the stroller may tip over or slide. 8 Adjusting the Leg Support

• To adjust the leg support, locate the tab underneath the leg support, pull the tab forward and place the leg support into the desired position. See Figure 8.1.

WARNING NEVER allow a child to step onto or sit on the leg support or footrest. This may cause the stroller to tip over and injure the child. 9 Seat Back Position and Carriage Position Theseatcanbeadjustedtoanypositionfromuprighttofullyreclined.Usecarriage(at)positionforbabiesfrombirthto3months(foot enclosure must be installed). Use fully upright seat position for children 6 months and above ONLY. Use other reclined seat positions for children 3 months and above ONLY.• Locate the recline mechanism on the back of the seat.

• To recline the seat, grasp the recline mechanism, squeeze on both sides, and gently pull toward the rear of the stroller until the seat is in the desired position. See Figure 9.1.
• To adjust the seat to a more upright position, pull both straps at the end of the recline mechanism outward until the seat is in the desired position. See Figure 9.2. To Use the Carriage (Flat) Position for Infants from Birth to 3 Months
• Fully recline the seat.• Adjust the leg support to the uppermost position.
• Locate the foot enclosure in the pocket beneath the leg support. Attach the foot enclosure over the leg support by securing the loop around the peg on BOTH sides of the stroller. See Figure 9.3.• When not in use, store the foot enclosure in the pocket beneath the leg support.EN FR ES

WARNING Child may slip into leg openings and strangle. Never use in reclined carriage position unless the foot enclosure is properly attached. Use carriage position for babies from birth to 3 months. Use fully upright seat position for children 6 months and above ONLY. Use other reclined seat positions for children 3 months and above ONLY. 10 Installing/Removing the Bumper Bar

• Position the bumper bar so that the buttons face downward. Then line up the holes on the bumper bar with the posts on the stroller and push them in until the bumper bar clicks into place. See Figure 10.1.• Pull on the bumper bar to ensure it is secure.
• To remove the bumper bar, press the buttons underneath either side of the bar simultaneously. See Figure 10.2. Then pull the bumper bar away from the stroller

WARNING The bumper bar is not a restraint device. ALWAYS secure your child with the restraint system. NEVER lift the stroller by the bumper bar. Use caution when attaching the bumper bar when there is a child seated in the stroller. 11 Securing the Child

• Therearethreeheightadjustmentpositionsfortheshoulderharness.Adjusttheheighttotheclosestheightaboveyourchild’sshoulders.

• To remove the shoulder harness, turn the plastic ends sideways and push them through the slots in the seatback. Reattach the harness at the proper height by reinserting the plastic ends through the slots. See Figure 11.1. Ensure both straps are the same height.

• To unlatch the buckle press the center button and remove the male ends of each buckle. See Figure 11.2.

• Carefully place the child in the seat with the shoulder straps over their shoulders and chest. Then place the crotch strap between the child’slegs.
• Push the shoulder/waist latch posts into the crotch buckle until all parts snap into place. See Figure 11.3.
• Tightenthewaistbelttobesnugaroundthechild’swaist.• The shoulder, waist, and crotch straps may be adjusted using the sliding plastic rings on these straps.

WARNING Avoid serious injury from falling or sliding out. Always use the restraint system. 12 Adjusting the Handlebar The handlebar can switch from front to back position.

• To adjust the handlebar direction, pull up on the release levers on both sides of the handle. See Figure 12.1. Push the handle to desired direction until it snaps into place. See Figure 12.2. 13 Storage Basket The maximum weight that can be carried in the storage basket is 5 lbs. (2.27 kg). 14 Attaching/Removing the Cup Holders

• Attach the cup holder by sliding it down onto either peg on the outside of the handlebar. See Figure 14.1. The cup holder can be adjusted to the desired angle. Repeat on the other side if desired.• Slide the cup holder up to remove.

WARNING For use ONLY on the Joovy Balloon stroller. The total weight that can be placed in the cup holder should be less than 1 lb. (0.45 kg). NEVER carry hot beverages or open containers in this product. 15 Folding the Stroller

• Keep children away from stroller while folding.• Make sure both rear wheel brakes are set to their locked positions.• Make sure the handle is directed towards the BACK of the stroller.
• Move the release tab to the right and squeeze the button below. See Figure 15.1. Push down and forward on the handlebar. See Figure 15.2.

WARNING ALWAYS keep children away from the stroller when folding. Possible pinching hazard – Be careful when folding the stroller.EN FR ES 16 Using the Stroller with an Infant Car Seat (OPTIONAL) NOTE: Seeinsertforalistofspeciccompatiblecarseatmodels.• Fully recline the seat.• Remove the bumper bar if it is attached.

• Position each car seat converter so that the button faces downward. Then line up the hole in the converter with the post on the bumper bar bracket and push the converter in until it clicks into place. See Figure 16.1.• Pull on each converter to ensure it is secure.
• Place the car seat onto the stroller so that it is in a REAR FACING POSITION. See Figure 16.2. Ensure the car seat is level.

• Stretch the strap of one converter over the car seat handle pivot point and position it between the car seat handle and the car seat. See Figure 16.3.
• Loop the strap around the peg on the side of the stroller. See Figure 16.4. Ensure this loop is secure to the peg.
• Repeat for the other converter.
• Buckle the restraining straps over the LOWEST part of the car seat (the straps are located in the pockets on the side of the stroller seat). AdjustthestrapssotheyaretightaroundthecarseatbutAWAYfromthechild’sneck.Pulluponthecarseattoensureitissecure.See Figure 16.5.
• To remove the car seat, unlock the restraining strap buckle by pressing the two side releases. See Figure 16.6. Return the restraining straps to their storage pockets.
• Remove the strap of one converter from the peg. Detach the converter by pushing the button on the underside and pulling it off the bracket. See Figure 16.7. Repeat for the other converter.

WARNING Strangulation Hazard: When not in use to secure a car seat, keep converters out of reach of children. ALWAYS install the infant car seat so that the child is facing toward the rear (handle) of the stroller with the restraining straps secured. NEVERpositiontherestrainingstrapsonornearthechild’sneckasthismayresultinstrangulation. TheinfantcarseatconvertersareforuseONLYwithspecicinfantcarseatmodels.Seeinsertforspecicmodels. DO NOT use other infant car seat models. Maintenance Allofthettings,snaps,locks,rivets,andotherhardwareandplasticpartsonthestrollershouldbeinspectedperiodicallytoensurethat they are secured properly and not damaged or malfunctioning. The restraint system, as well as all other straps and fabric items and their stitching should also be inspected periodically to ensure that they are secured properly and not loose, torn or otherwise damaged. All moving parts, such as wheels, brakes, and hinges should also be checked periodically to ensure they are operating properly. Any missing, broken, or worn components should be replaced immediately, and the stroller should not be used until they are replaced. Only originalmanufacturer’scomponentsshouldbeused.Ifneeded,pleasecontactJoovyatourtoll-freephonenumber. Cleaning The fabric material on this stroller can be cleaned using mild household soap or detergent and warm water on a sponge or clean cloth. Always allow the fabric to completely air dry before using the stroller. The frame and wheels should always be kept clean and free of dirt and foreign matter, especially after operating the stroller in rain, snow, or other harsh environments. Use a sponge or cloth dampened with warm water and a mild household soap or detergent to clean the wheels after such use. SATISFACTION GUARANTEED We want you to be completely satised with your purchase of this product. Should you experience any difculty in assembling or using this product, or if you have any questions, please contact our Customer Service Department: UNITED STATES - Joovy: (877) 456-5049, Hours 8:30 am – 5:00 pm Central Time. CANADA - ISSI Inc.: (800) 667-4111, Hours 8:30 am – 5:00 pm Eastern Time. Please log onto www.joovy.com to register your new Joovy product.EN
