USER MANUAL Boot X2 Joovy

Safety andWarnings 4
Parts List 5
Assembly 7
Operation 8
Care and Maintenance 11
Team 432 12

Francais

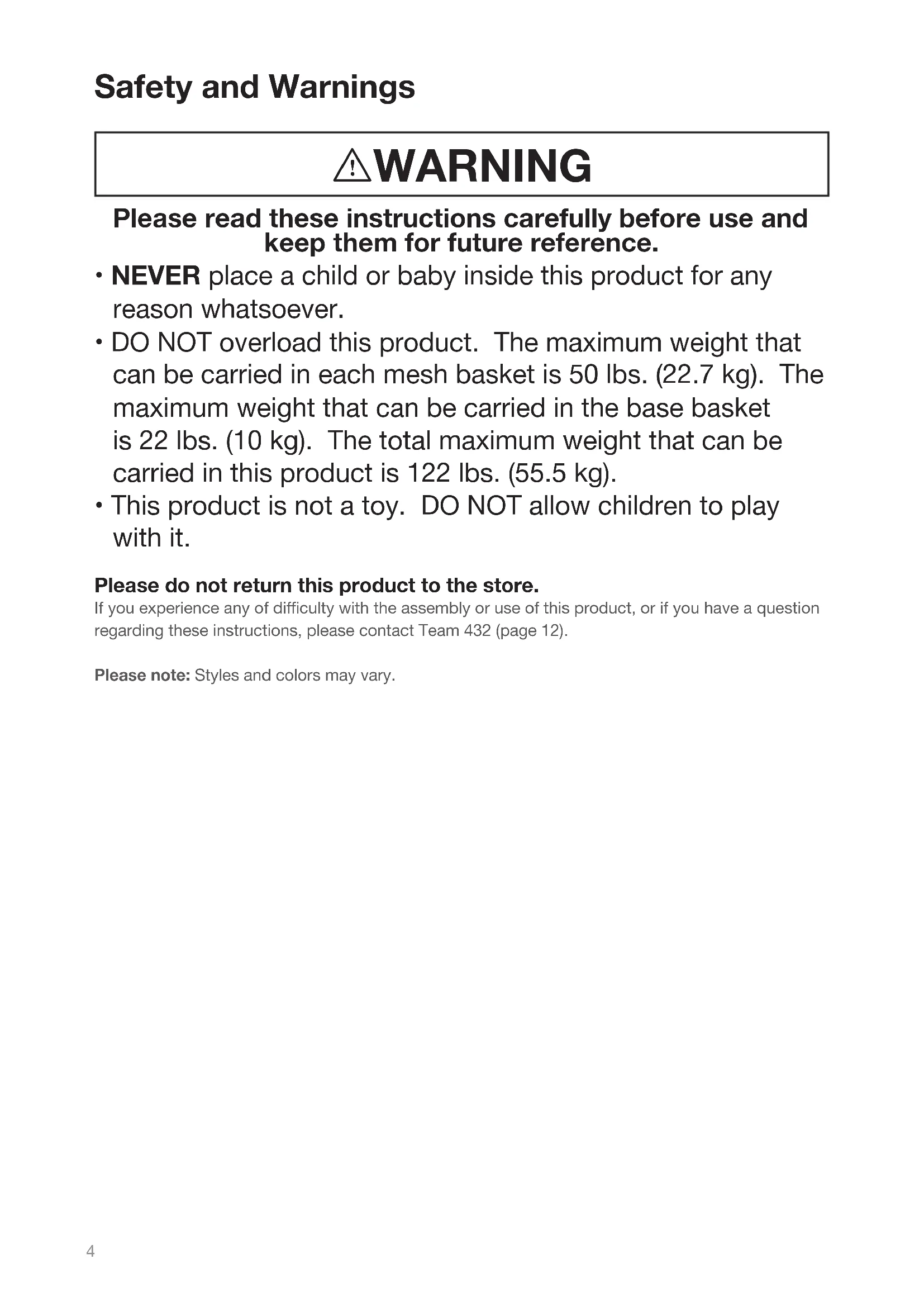

Please read these instructions carefully before use and keep them for future reference.

• NEVER place a child or baby inside this product for any reason whatsoever.
• DO NOT overload this product. The maximum weight that can be carried in each mesh basket is 50 lbs. (22.7 kg). The maximum weight that can be carried in the base basket is 22 lbs. (10 kg). The total maximum weight that can be carried in this product is 122 lbs. (55.5 kg).
• This product is not a toy. DO NOT allow children to play with it.

Please do not return this product to the store.

If you experience any of difficulty with the assembly or use of this product, or if you have a question regarding these instructions, please contact Team 432 (page 12).

Please note: Styles and colors may vary.

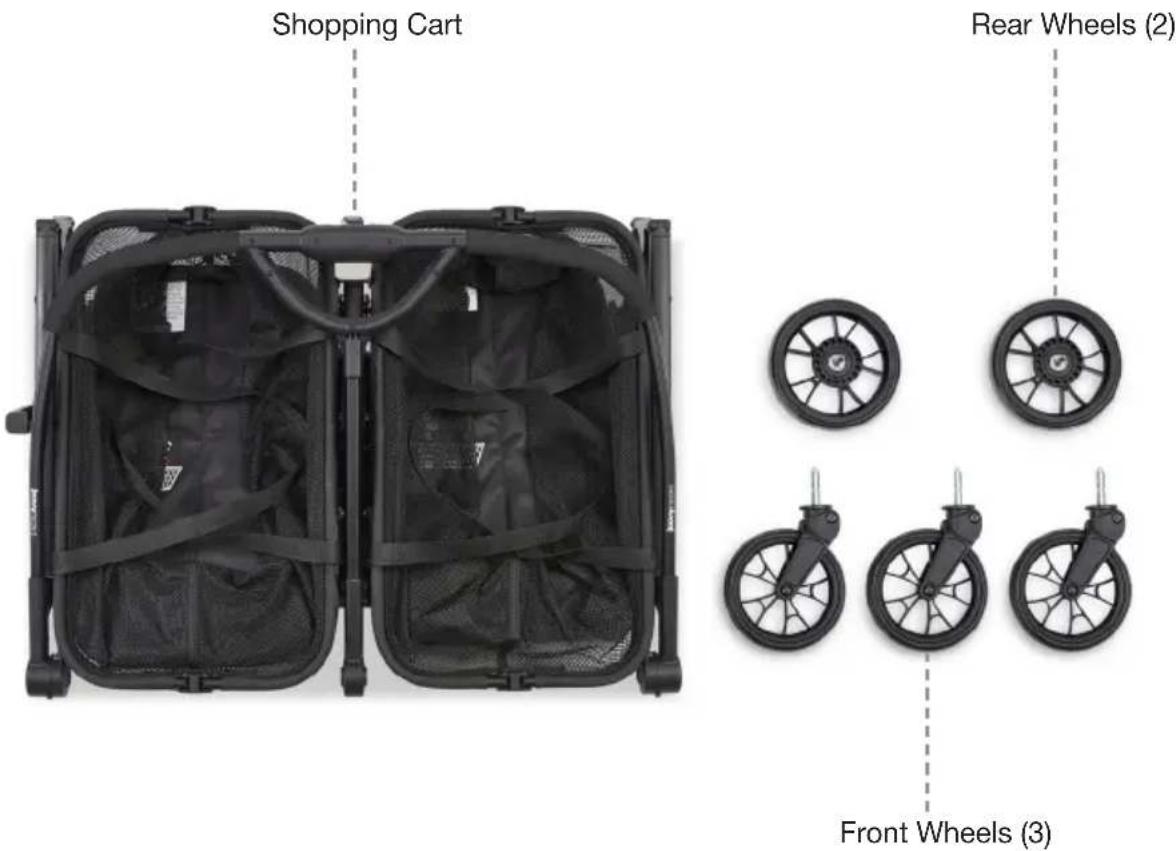

Parts List

Additional Accessories (sold separately)

Customize your Boot with a number of optional accessories for added functionality. All accessories are sold separately.

Insulated Bag

Large storage space

• Holds up to 55 lbs.

• Can be used as a carry bag

• Two side mesh pockets

Replacement Bag

Large storage space

• Holds up to 55 lbs.

• Can be used as a carry bag

Durable mesh

Magnetic clips

Assembly

WARNING: Adult assembly is required for this product. No tools required.

Unfolding the Shopping Cart

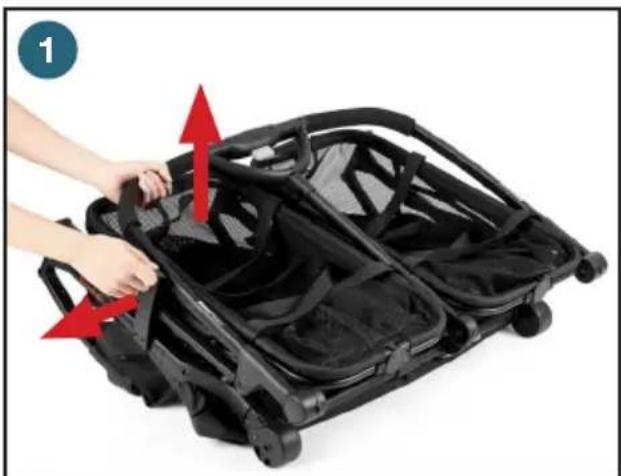

• Orient the shopping cart with the handle facing upward. Release the safety latch located on the left side of the shopping cart. (1)

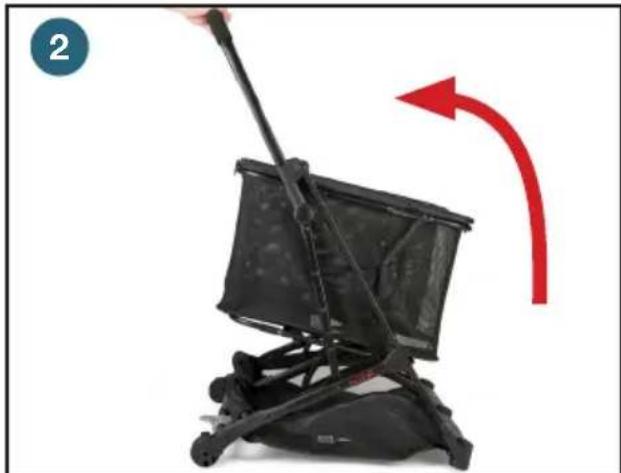

• Pull upwards on the handle. (2) Keep pulling until the shoping cart is fully erected and the locking mechanism has fully engaged.
• Gently push downward on the handle to ensure that the shopping cart is completely opened and locked before ANY use of the product.

WARNING: Keep children away from shopping cart while unfolding. ALWAYS ensure the locking mechanism is fully engaged when the shopping cart is in the opened position. This action will prevent collapse of the shopping cart. Possible pinching hazard – Be careful when unfolding the shopping cart.

Installing/Removing the Front Wheels

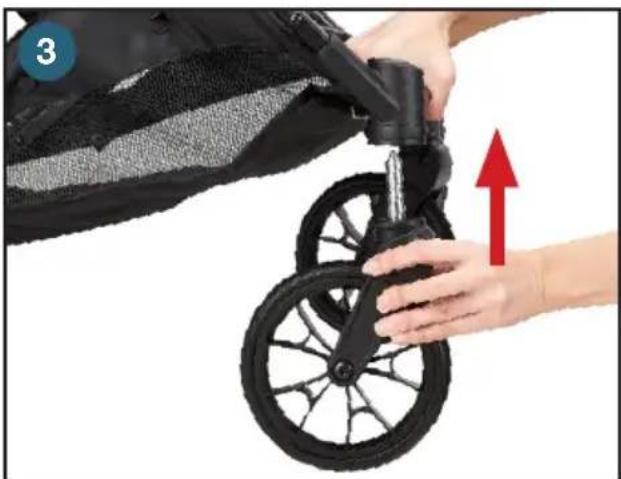

• Slide one front wheel into the front wheel housing until it clicks into place. (3) Repeat for the other two wheels. Pull on the wheels to ensure they are installed properly.

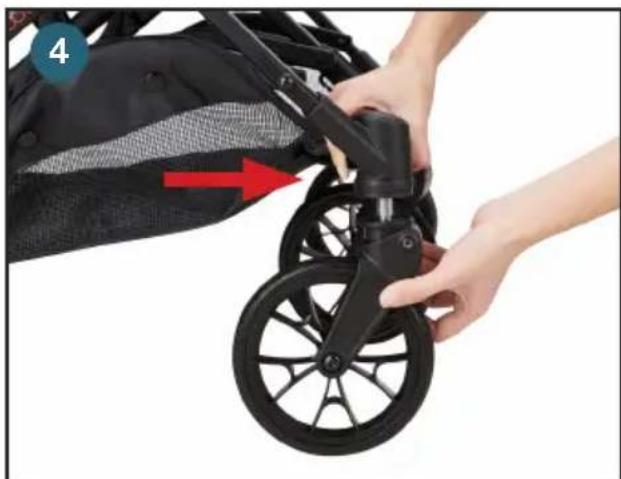

• To remove the wheel, press the metal release button on the back of the front wheel housing and pull the wheel away from the shopping cart. (4)

Installing/Removing the Rear Wheels

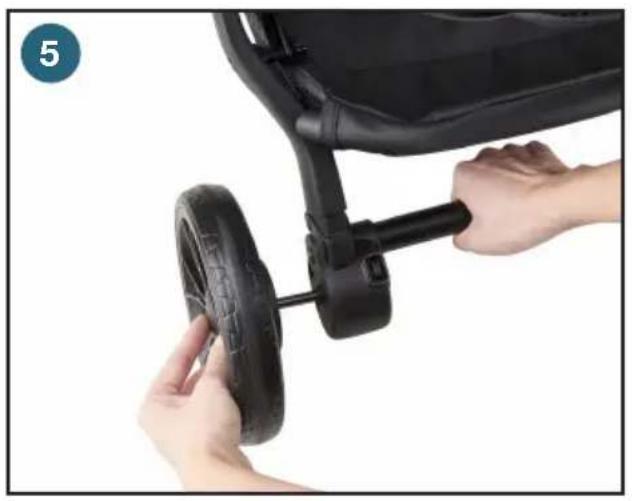

• Install a rear wheel by sliding the axle into the hole in the wheel hub until it clicks into place. (5) Repeat for the other wheel. Pull on the wheels to ensure they are installed properly.

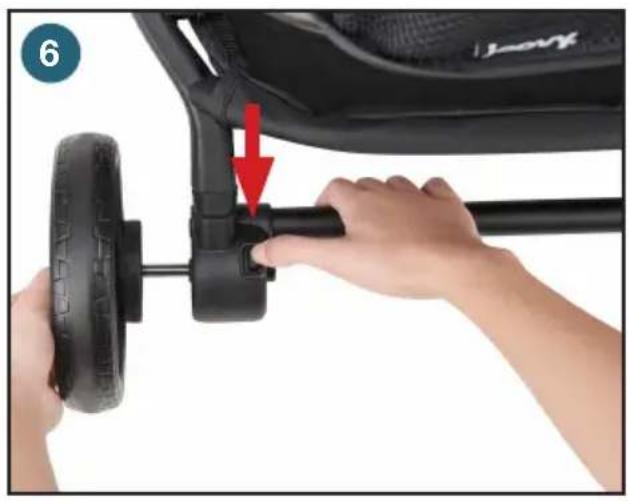

• To remove the wheel, push the release button on the rear wheel hub and pull the wheel from the shopping cart. (6)

Operation

Rear Wheel Brakes

Always engage the rear wheel brakes when not pushing the shopping cart.

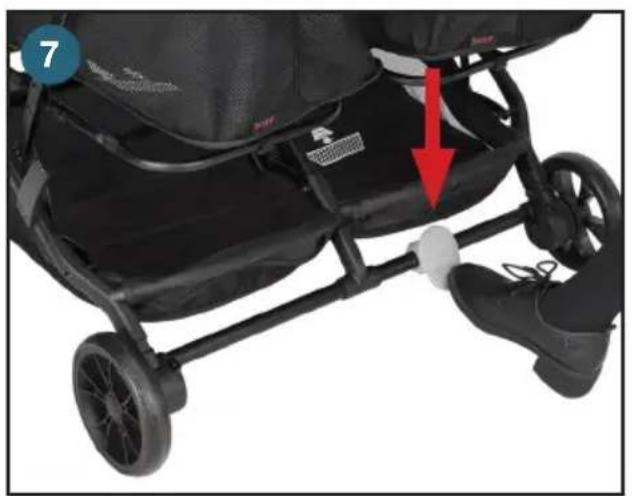

To engage, push down on the brake lever. (7)
Gently push the shopping cart back and forth to ensure the brakes are fully engaged.

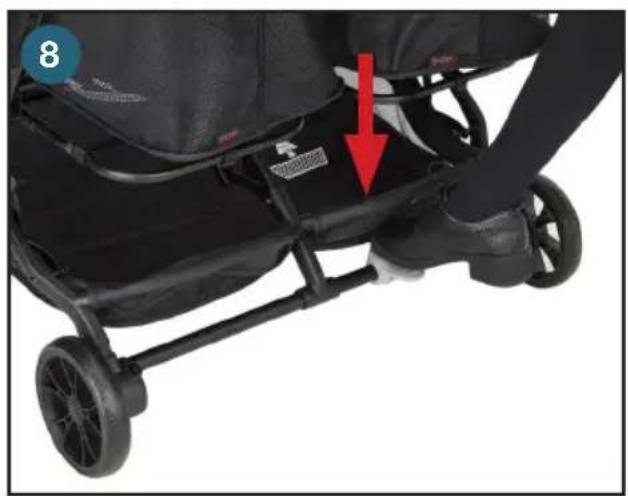

To release, push down on the back of the brake lever. (8)

WARNING: Always make sure the wheel brakes are engaged when the shopping cart is not being pushed so that the shopping cart will not roll away. Never leave shopping cart unattended, especially on a hill or incline, as the shopping cart may tip over or slide.

Baskets

• The mesh baskets can be removed to be used as a carry bag.

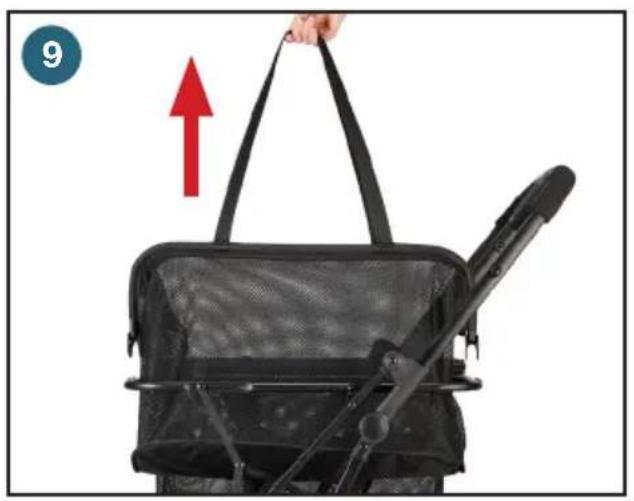

  To remove each basket, hold the two straps and lift it up until it is completely out of the frame. (9)

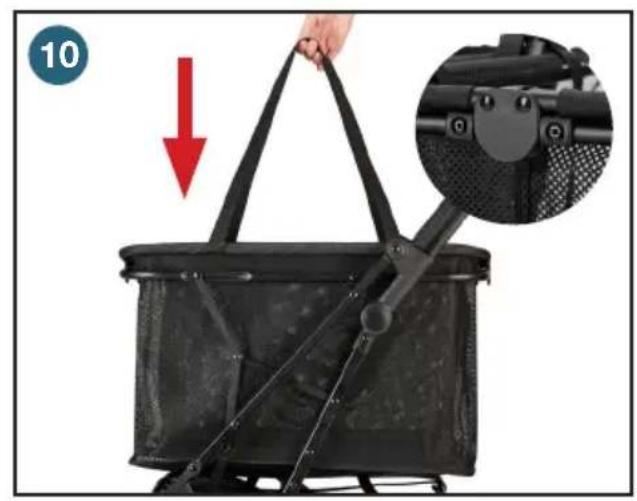

  To reattach each basket, hold the two side straps and place the basket into the frame until the

center clamp fits onto the bracket on both ends. (10)

• Ensure that the magnetic attachments on both ends of each basket are engaged onto the frame.
• The base basket should never be removed.

WARNING: DO NOT overload this product. The maximum weight that can be carried in each mesh basket is 50 lbs. (22.7 kg). The maximum weight that can be carried in the base basket is 22 lbs. (10 kg). The total maximum weight that can be carried in this product is 122 lbs. (55.5 kg).

Folding the Shopping Cart

• Keep children away from the shopping cart while folding.
• All baskets must be empty before folding the product.
• The rear wheel brakes MUST be engaged before folding the shopping cart.

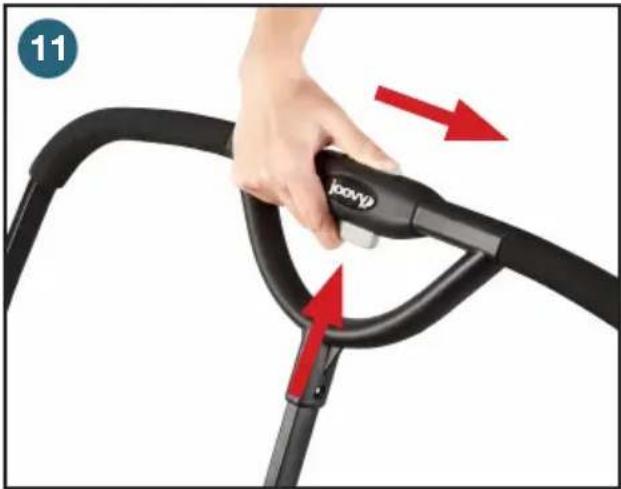

• Push the folding release lock on the handle to the left and squeeze the button on the inside of the handle in. (11)

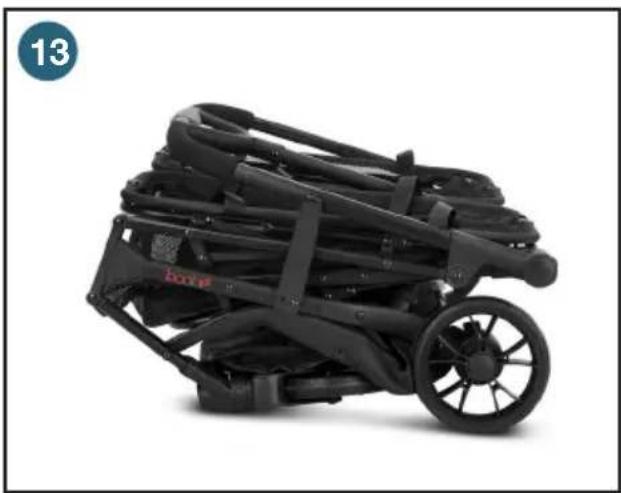

• Slowly push the handle forward until the product is completely folded (12) and the safety latch has automatically engaged. (13)

DO NOT force the shopping cart closed.

• Pull up on the handle to ensure the safety latch is secure.

CAUTION: While folding the shopping cart, be careful to keep your fingers from being pinched by moving parts.

WARNING: Rear wheel brakes MUST be engaged before folding the shopping cart. DO NOT force the shopping cart closed. ALWAYS keep children away from the shopping cart when folding. Possible pinching hazard – Be careful when folding the shopping cart.

Care & Maintenance

Maintenance

All of the fittings, snaps, locks, rivets, and other hardware and plastic parts on the shopping cart should be inspected periodically to ensure that they are secured properly and not damaged or malfunctioning. All straps and fabric items and their stitching should also be inspected periodically to ensure that they are secured properly and not loose, torn or otherwise damaged. All moving parts, such as wheels, brakes, and hinges should also be checked periodically to ensure they are operating properly.

Any missing, broken, or worn components should be replaced immediately, and the shopping cart should not be used until they are replaced. Only original manufacturer's components should be used. If needed, please contact Joovy at our toll-free phone number.

Cleaning

The frame and wheels should always be kept clean and free of dirt and foreign matter, especially after operating the shopping cart in rain, snow, or other harsh environments. Use a sponge or cloth dampened with warm water and a mild detergent cleaner to clean the wheels after such use.

Storage

Direct sunlight may fade fabric and dry out wheels. Store shopping cart indoors to prolong its appearance. DO NOT store outdoors. Ensure that the shopping cart is dry before storing for prolonged periods. Always store the shopping cart in a dry environment. Store the shopping cart in a safe place when not in use (i.e. away from children). DO NOT place heavy objects on top of the shopping cart. DO NOT store the shopping cart near a direct heat source such as a radiator or open fire.

Team 432

Please do not return this product to the store.

If you experience any of difficulty with the assembly or use of this product, or if you have a question regarding these instructions, please contact Team 432:

United States

Joovy

[phone], 8:30 am - 5:00 pm Central Time

joovy.com LiveChat, 8:30 am - 9:00 pm Central Time

[e-mail]

@joovy

Canada

Elfe Juvenile Products

[phone], 8:30 am - 5:00 pm Eastern Time

[e-mail]
