Product type	Immersion blender
Brand	Ufesa
Model	BP4560
Use	Household
Power supply	Mains (voltage as per label)
Speed types	Low, high speed, turbo
Beaker material	Plastic
Included accessories	Mixing blade, chopper, whisk, beaker with lid and non-slip base
Mixing function	Yes (sauces, soups, milkshakes, etc.)
Chopping function	Yes (meat, vegetables, etc.)
Whisking function	Yes (egg whites, cream)
Max operating time mixing	1 minute
Max operating time chopping	15 seconds (low speed), 10 seconds (turbo)
Max operating time whisking	90 to 120 seconds
Cleaning main unit	Soft cloth, do not immerse
Cleaning mixing blade	Rinse with water, do not immerse, not dishwasher safe
Cleaning beaker	Dishwasher safe
Cleaning whisk	Dishwasher safe
Cleaning chopper	Dishwasher safe
Cleaning whisk	Do not immerse, not dishwasher safe
Safety	Unplug before assembly/disassembly/cleaning; do not run mixing blade empty; sharp blades
Warranty	2 years
Repairability	Repair by authorized service center only

Frequently Asked Questions - BP4560 UFESA

How to use the mixing blade?

Cut food into cubes smaller than 5 mm, place them in the beaker with a little water or milk. Insert the mixing blade into the beaker, plug in the appliance and press the desired speed button. Move the main unit up and down for even mixing. Continuous operating time should not exceed 1 minute.

What foods can be prepared with the chopper?

The chopper is ideal for chopping meat (lean beef, boneless pork), ginger, garlic, carrots, or making granules and sauces. Cut meat into pieces of 2x2x6 cm, use turbo speed for about 10 seconds for optimal results.

How to whip egg whites with the whisk?

Place the whites of 4 to 5 eggs in the beaker, insert the whisk, plug in the appliance and press the high speed button. Whisk for 90 to 120 seconds until the whites are stiff (do not flow when the beaker is turned upside down). Then unplug.

What are the maximum operating times of the accessories?

The maximum times are: mixing blade: 1 minute; chopper: 15 seconds on low speed, 10 seconds on turbo; whisk: 90 to 120 seconds. Do not exceed these times to avoid overheating.

How to clean the main unit?

Always unplug the appliance before cleaning. Use a slightly damp soft cloth to wipe the main unit. It is strictly forbidden to wash it with water or immerse it.

Can I wash the whisk in the dishwasher?

No, the whisk (or beater) should not be washed in the dishwasher. Clean it by hand with soapy water and rinse thoroughly. Do not immerse the main unit.

What to do if the appliance does not work?

First check that the appliance is properly plugged in and that the mains voltage matches. Make sure the accessories are correctly assembled. If the problem persists, unplug the appliance and contact an authorized service center. Do not attempt to repair it yourself.

Is the appliance suitable for hot liquids?

Yes, but with caution. When pouring hot liquid into the beaker, there may be sudden vaporization. Pour slowly and do not overfill. Use the mixing blade with hot liquid only if necessary.

How to change accessories?

Make sure the appliance is unplugged. To remove an accessory, unlock it by turning or pulling depending on the model. To install, align and snap into place until secure. Never operate the appliance without an accessory.

What is the warranty of this appliance?

This appliance has a 2-year warranty against conformity defects. For any repair, contact the point of sale or an authorized service center. Keep the invoice or receipt to validate the warranty.

USER MANUAL BP4560 UFESA

Product photo of a blender with a whisk, beaker, and kitchen utensil (no visible text or symbols)

Technical diagram of a mechanical device with numbered components and labeled parts

6 7 8

9 10

11 12

FIG. 1 F

Technical line drawing of a handheld device with a vertical double-headed arrow indicating compression or displacement (no text or symbols present)

Line drawing of a micrometer with a rotary knob and base, no text or symbols present

FIG. 3 F

Line drawing of a digital brush in a beaker with liquid and a lid, no text or symbols present

Diagram of a digital brush in a beaker with liquid level indicator and directional arrow, showing measurement setup.

Diagram of a laboratory filtration or distillation setup with a vertical funnel and beaker (no text or labels)

Diagram of a digital brush in a beaker with liquid and granular material, no text or symbols present

FIG. 5

FIG. 6

FIG. 7 F

Diagram showing a device being processed from a base to a second, with no visible text or symbols.

FIG. 9

Diagram illustrating DNA replication process with a pipette and test tube, showing DNA strands being added to a test tube.

ATENCIÓN

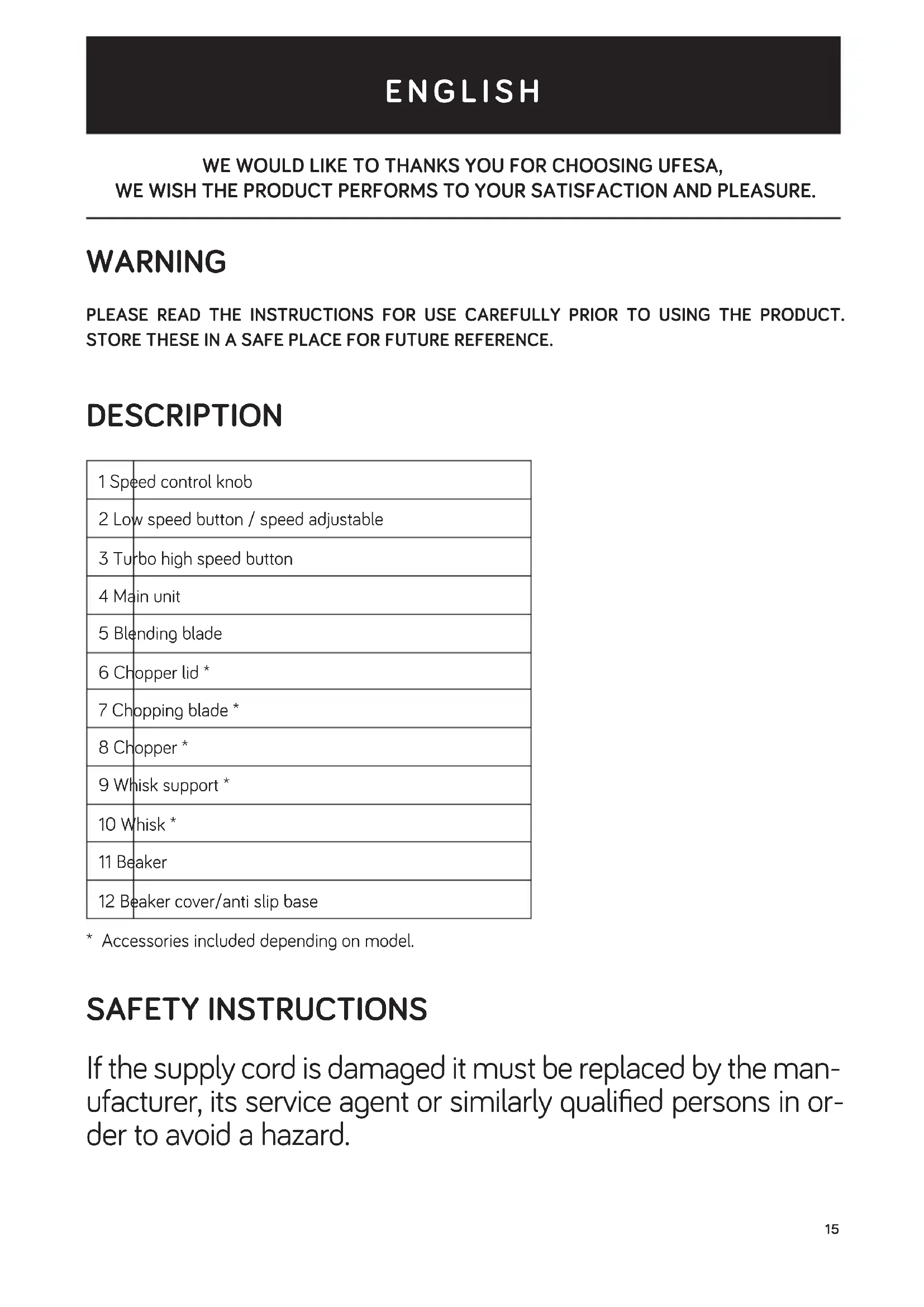

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1 Speed control knob

2 Low speed button / speed adjustable

3 Turbo high speed button

4 Main unit

5 Blending blade

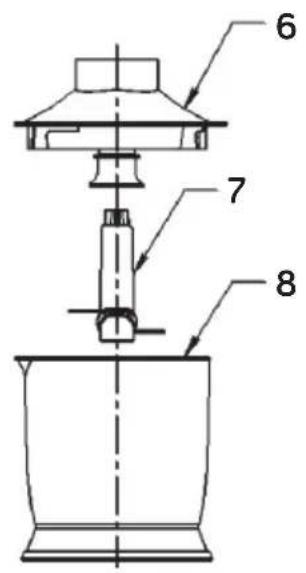

6 Chopper lid *

7 Chopping blade *

8 Chopper *

9 Whisk support *

10 Whisk *

11 Beaker

12 Beaker cover/anti slip base

* Accessories included depending on model.

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Respect the operating times of the accessories indicated in their specific sections of the manual.

Proceed according to maintenance and cleaning section of this manual for cleaning.

Warning: potential injury from misuse!

Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

Always disconnect the blender from the supply if it is left un-attended and before assembling, disassembling or cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the

product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without load.

Do not pull on the connection cord in order to unplug it or use it as a handle

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

BLENDING WITH SPEED KNOB

This accessory is special suitable for processing dip, sauce, soup, mayonnaise, baby or aged people food and mixed drinks, milk shake, etc.

1- Installing the blending blade turn-lock clasp on the main unit (Fig. 1)

2- Cutting the food into cubic block that no more than 15 mm, then put them into beaker and add some cold boiled water, or drinking water, milk, water, milk, etc. (Fig. 2)

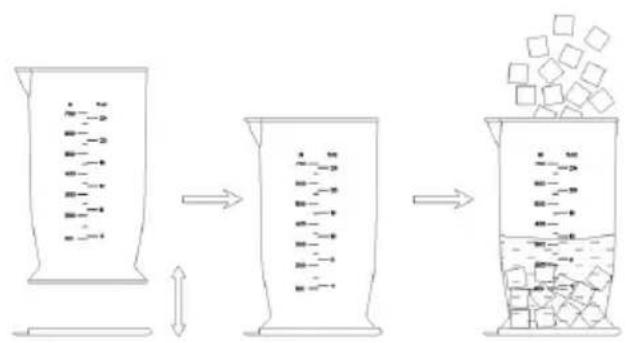

Place the cup mat under the beaker add food and water into beaker

3- plug the power cord into power socket

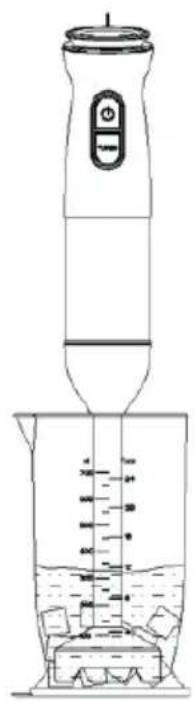

4- Put the blending blade into beaker (Fig. 3)

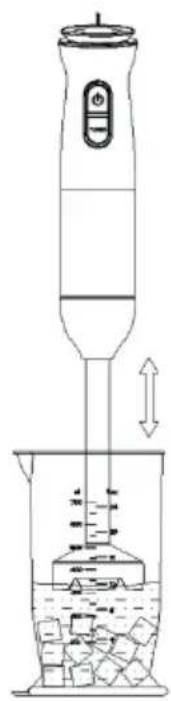

5- The product will continue to work by pressing on high or low speed button. In order to blend the food well and quickly, please use your one hand to hold the beaker, the other hand to hold the main unit to do up and down reciprocating movement. If you want to stop this product, just press on the switch button. (Fig. 4)

6- Pull the plug out of the power socket after working.

Attention

• The accessories continuous working time should less than 1 minute.
• In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without immersing into liquids.

HOW TO USE THE CHOPPER

This accessory is special suitable for chopping meat, ginger, garlic, and making carrot granule, chili sauce, etc.

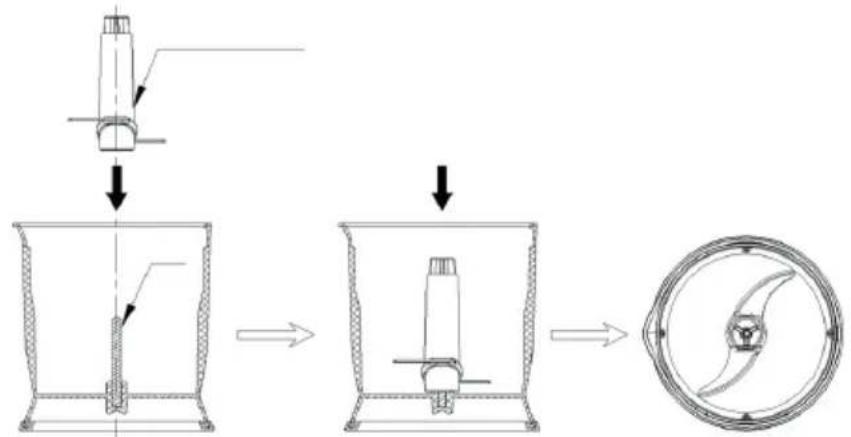

1- Setting the chopping blade into chopper shaft (Fig. 5)

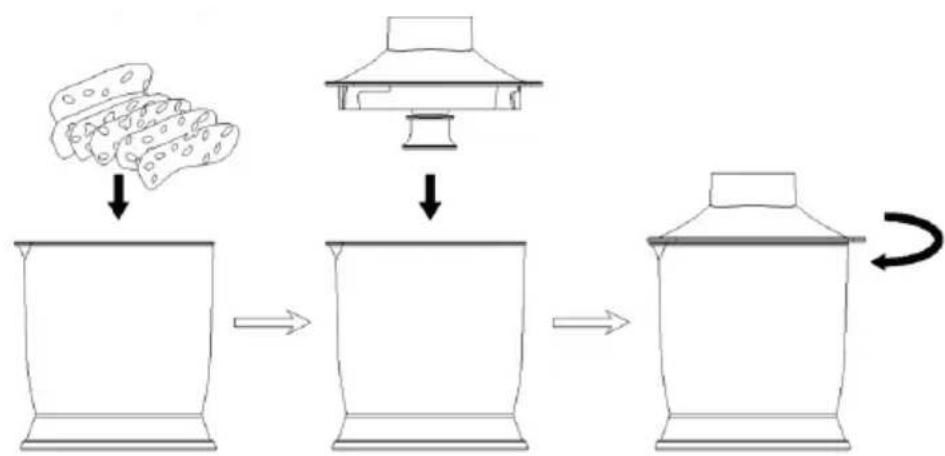

2- Cutting the food material into appropriate shape and size. For example: cut meat into 2cm^2cm^ 6cm size; cut onion into 4-6 disc, etc. Put the ready food into chopper and lock the chopper lid. (Fig. 6)

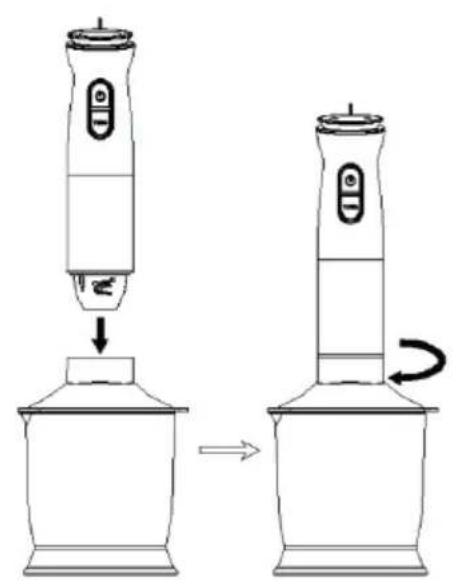

3- Let the main unit turn-lock clasp to the chopper lid, and then plug in and press the switch button. Once the food material chopped to your expected effect, just hand off the switch button, and the product will stop working. Finally, you should unplug the power cord firstly and then pour out the processed food. (Fig. 7)

Some operation tips:

High speed button should be used when meat chopping, especially the turbo function, as it only takes about 10 second and the meat foam taste better.

It is recommended to use low speed button when chopping carrots, ginger, garlic and pepper particles. Turn to the low speed to work around 15 seconds can get better effect.

The best food material to process meat: Lean beef without tendon, lean pork without pigskin and bone. The proportion of fat meat should not exceed one fifth of the whole piece of chopping meat, otherwise it will affect the chopping effect.

HOW TO USE THE WHISK

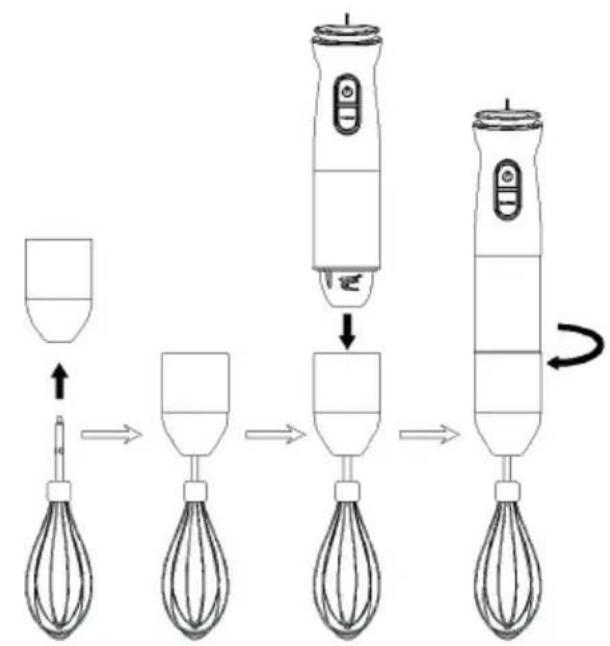

1- Inserting the whisk into egg white beating components, and then lock it to the main unit. (Fig. 8)
2- Adding egg whites of 4-5 eggs into beaker, and then put the whisk into it. Plug in and use high speed button to work. Once the egg white formed foam, hand off the switch button and the product will stop working. Finally, unplug the power cord. (Fig. 9)

Warm prompt:

The optimum efficiency after mixing: Put the cup upside down, and there is no egg white liquid flow out.

MAINTENANCE AND CLEANING

You should unplug the power cord plug before cleaning.

Do not touch the sharp blade.

Please use dry dishcloth to wipe the product body. And it is strictly prohibited to let the main unit rinse with water or immerse to the water.

Please do not use metal brush, nylon brush, household cleanser, diluent and other similar cleaning supplies to clean this product, as they may damage the product surface structure.

Please use soft dry cloth to wipe the dirt on the power cord.

The cleaning requirements of each functional accessories.

The cleaning requirements of each functional accessories

Accessories & Cleaning Scrubbing Rinsing		Immersion cleaning	Dishwasher Remark
Blending blade	✓ ✓ × ×
Beaker	✓ ✓ ✓ ✓
egg white beating components	✓ × × ×
whisk	✓ ✓ ✓ ✓
Chopper lid	✓ × × ×
Chopper	✓ ✓ ✓ ✓
Chopping blade	× ✓ ✓ ✓

Table of récipes

Load Time Speed Accesory
Soaked carrot: 280g - Water: 420g	10”	MAX	Blender
Dice meat: 200g	10”	MAX	Chopper
Egg white: 4-5eggs	90-120”	MAX	Whisk
Cream: 250ml	60-75”	MAX	Whisk

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.
