USER MANUAL Fomini Crema 1656 CASO

CASO® DESIGN

Exterior view of a black and silver Cosu Design air purifier with digital display (no text or symbols on body)

Exterior view of a modern cosine design device with black textured panel and control buttons (no readable text or symbols)

(Garantiegeber)

CASO GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

Homepage: www.caso-design.de

4.2 Typenschild....20

13.3 Warning notices....28

13.4 Limitation of liability 29

13.5 Copyright protection ......29

14 Safety 29

14.1 Intended use....30

14.2 General Safety information ....30

14.3 Danger of fire....32

14.4 Danger of burns 32

14.5 Dangers due to electrical power....33

15Commissioning 33

15.1 Safety information ....33

15.2 Delivery scope and transport inspection....34

15.3 Unpacking....34

15.4 Disposal of the packaging....34

15.5 Setup location requirements: 34

15.6 Electrical connection....35

16Function 35

16.1 Overview: 36

16.2 Rating plate 36

17Operation and Handing 36

17.1 Before the first use ....36

17.2 Operation....37

18Hints and Tips ....38

19 Serving suggestions....39

20Cleaning and Maintenance....39

20.1 Safety information ....39

20.2 Cleaning....39

21 Troubleshooting....40

21.1 Security advices....40

21.2 Troubleshooting....40

22 Disposal of the Old Device....40

23 Guarantee ....41

24Technical Data....41

Technical line drawing of a mechanical component with labeled part '8' (no text or symbols beyond label)

Diagram of a mechanical assembly with a coiled spring and a numbered label '9' (no text or symbols on the diagram itself)

MAX MAX MIN

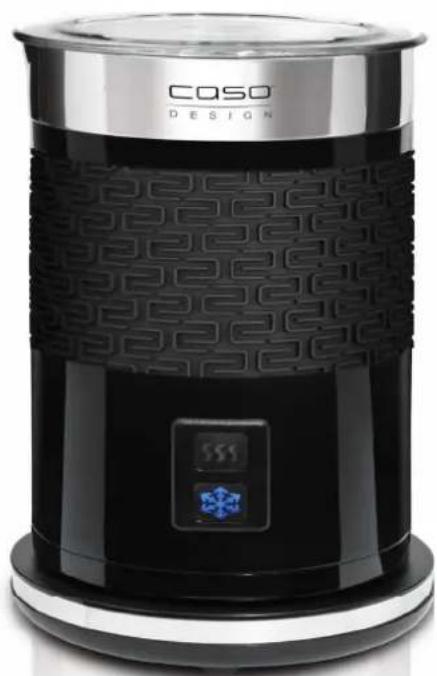

Instant frothy coffee

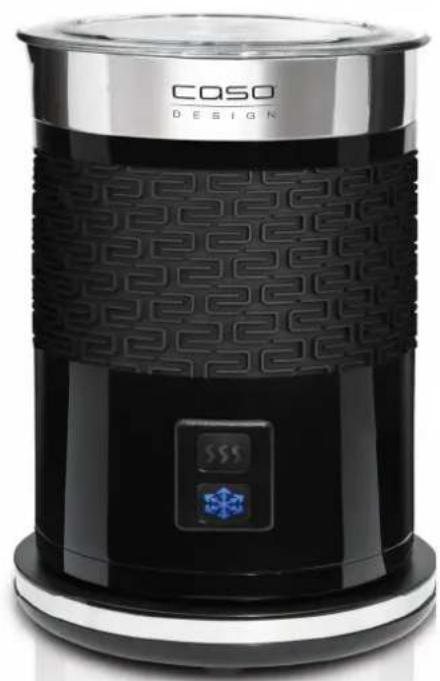

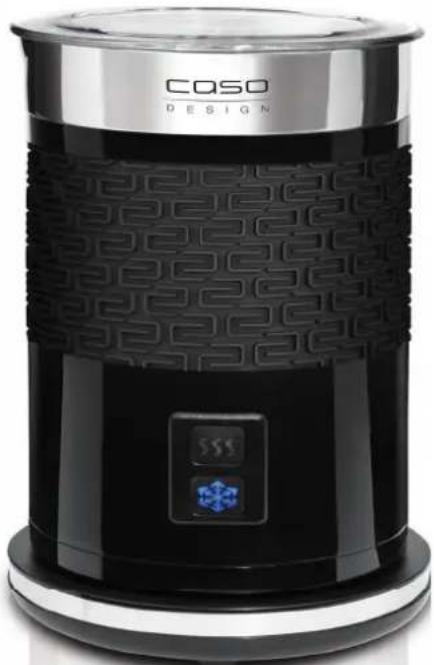

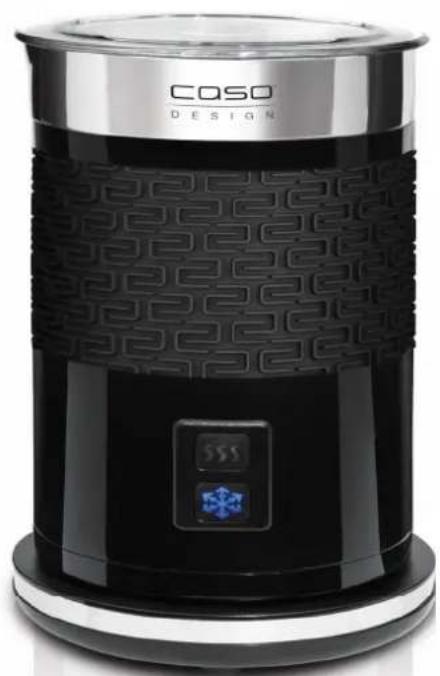

Instant milky coffee

Original Operating Manual

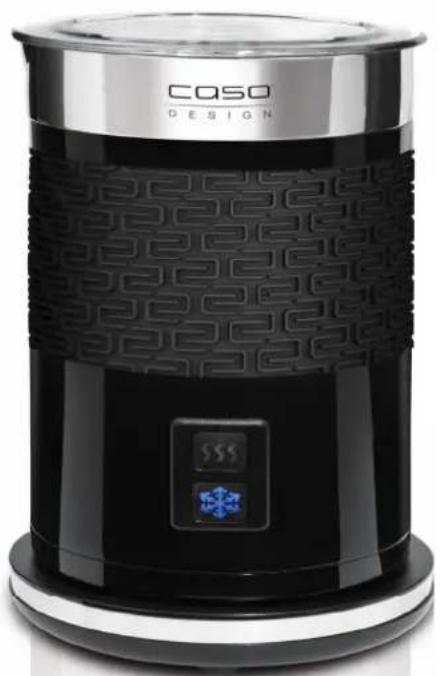

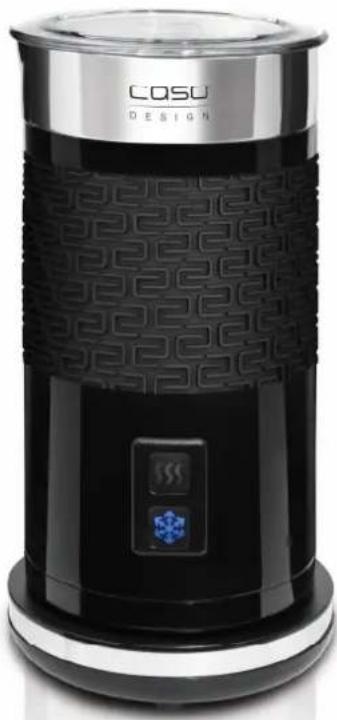

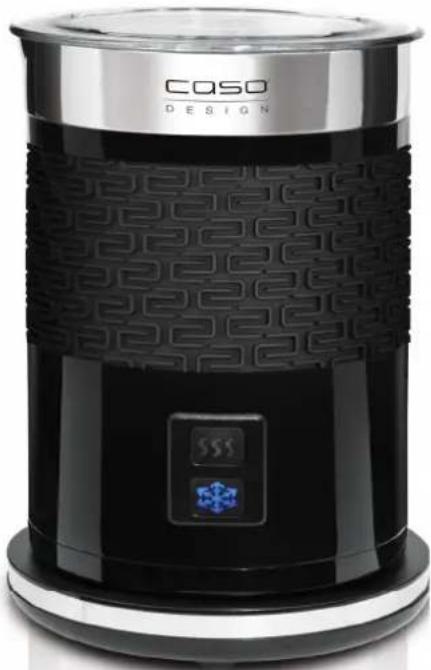

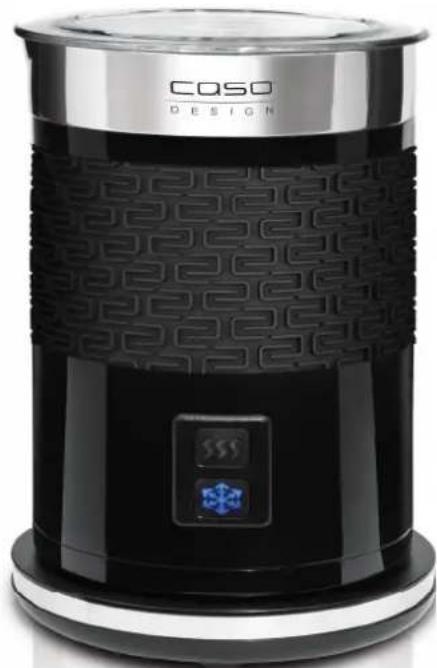

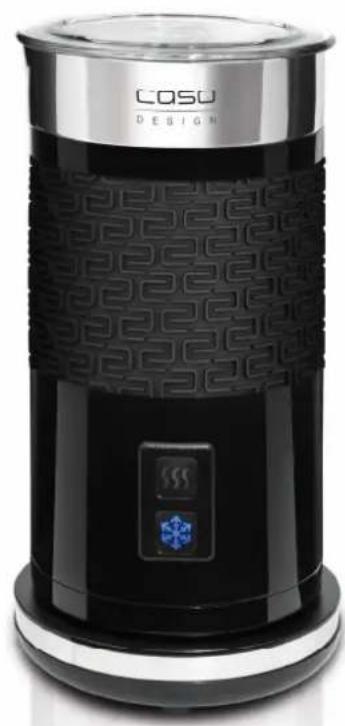

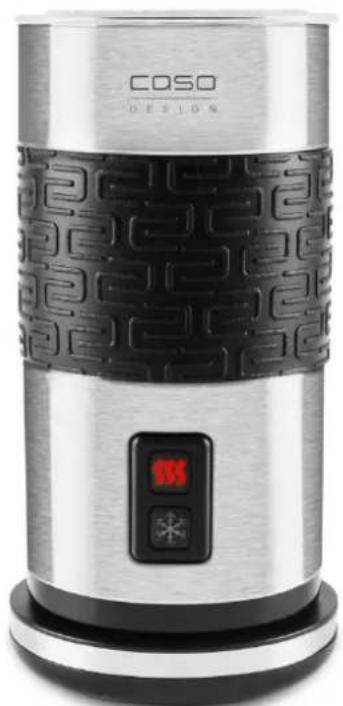

Milkfrother Fomini Crema (1656) Fomini Crema Inox (1662)

Exterior view of a black and silver Cosu design water heater with digital display (no text or symbols on body)

Exterior view of a black and silver QSO design water heater with a digital display (no text or symbols on the device itself)

CE

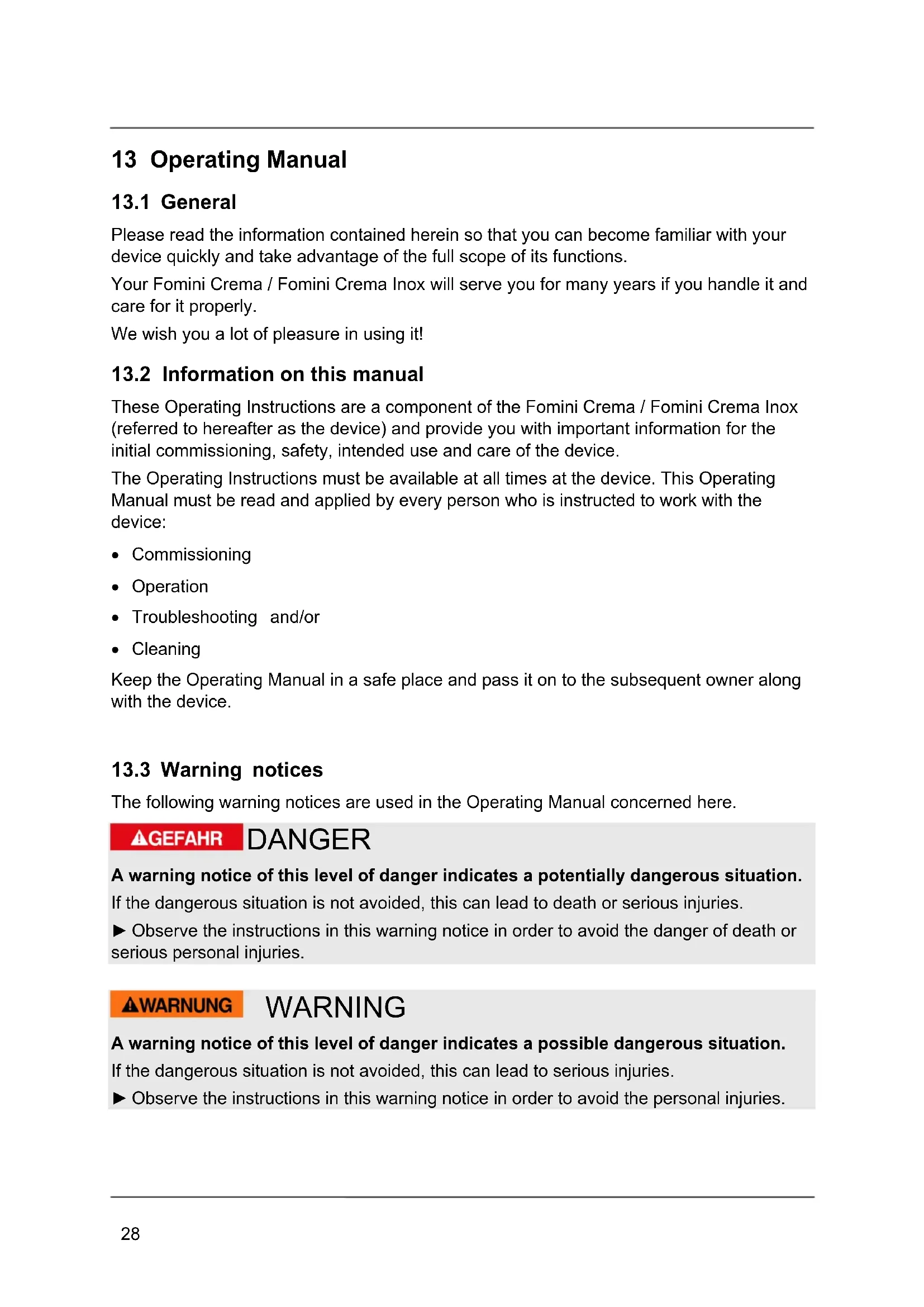

13 Operating Manual

13.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your Fomini Crema / Fomini Crema Inox will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

13.2 Information on this manual

These Operating Instructions are a component of the Fomini Crema / Fomini Crema Inox (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning
• Operation
• Troubleshooting and/or
• Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

13.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

AGEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

13.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual.

The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
• Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

13.5 Copyright protection

This document is copyright protected.

CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

14 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

14.1 Intended use

This device is only intended for use in households in enclosed spaces for making milk foam and heating milk. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; • in B&Bs,
  • in agricultural estates;
• by customers in hotels, motels and other residential establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

WARNING

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

14.2 General Safety information

HINWEIS

PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Read all these instructions before using the appliance.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ Do not place the device on a polished wood surface, it could damage the wood.
▶ Unplug your appliance as soon as you stop using it or to clean it.
▶ Unplug the device when you change the accessories (whisk 1 or 2).
▶ Allow the device to cool down before cleaning the device or changing the accessories.

HINWEIS

Please note

▶ This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
▶ The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Do not use or store the appliance outdoors.
▶ Do not operate without milk in the jug.
▶ Never touch rotating parts, risk of injury!
▶ By exceeding the filling capacity he jug may overflow.
▶ The device should be used only in conjunction with the basis provided.
▶ Never operate appliance on uneven surfaces.
▶ Do not insert any objects and/or fingers in the appliance apertures.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

HINWEIS

Please note

▶ Device is not intended to be operated by means of an external timer or separate remote-control system.
▶ For your own safety, only use manufacturer accessories and spare parts suited to your machine.

14.3 Danger of fire

⚠️WARNUNG

Warning

There is a danger of fire due to the event the device is not used properly.

Observe the following safety notices to avoid dangers of fire:

▶ Do not set up the device near flammable material.
- Keep this appliance away from sources of heat (gas, electric, burner, heated oven).

14.4 Danger of burns

⚠GEFAHR

DANGER

The heated milk in the milk frother and the interior of the jug can get very hot. Observe the following safety instructions and be careful not to burn or scald yourself or others:

▶ When the milk is heated, the interior of the jug gets very hot!
▶ Always check the temperature of the milk, before drinking it.
▶ When you are heating the milk, keep the lid closed.
▶ Do not touch hot surfaces.
▶ Do not touch the metal parts, or the housing of the device when the device is in use, as this may cause burning or scalding.
▶ Do not remove the lid during operation, as this could cause scalding.

14.5 Dangers due to electrical power

▲GEFAHR DANGER

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not put the machine, power cord or plug in water or any other liquid.
▶ Do not touch the appliance or the mains plug with wet hands.
▶ Do not leave the power cord hanging within children's reach.
▶ The power cord must never be near or in contact with the hot parts of the machine, near a source of heat or over a sharp edge.
▶ Do not let the power cord come into contact with oils.

15 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

15.1 Safety information

▲WARNUNG WARNING

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

15.2 Delivery scope and transport inspection

As a rule, the Fomini Crema / Fomini Crema Inox is delivered with the following components: • Fomini Crema / Fomini Crema Inox • Lid

• Power base with cord
• Whisk for frothing
• Whisk for heating
• Operating Instructions

HINWEIS

PLEASE NOTE

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

15.3 Unpacking

Unpack your device as follows:

• Take out the device from the box and remove the interior and exterior packaging.
- You can find the whisk for frothing in the lid and the whisk for heating on the attachment for the whisks in the jug.
- Clean the appliance thoroughly before the first use. (see chapter Cleaning and maintenance)

15.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS

PLEASE NOTE

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

15.5 Setup location requirements:

• In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

15.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• Do not use extension cables. The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the milk frother or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
  The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

16 Function

In this chapter, you'll find important information on the function of the device.

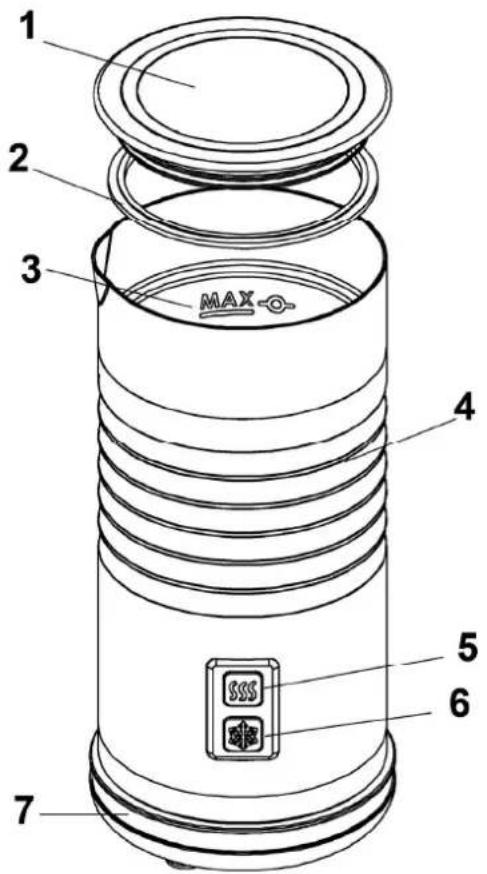

16.1 Overview:

1 2 3 MAX 4 5 6 7

Diagram of a coiled cable with a small component labeled '8' (no text or symbols beyond the number)

Illustration of a mechanical device with a central knob and coiled spring (no text or symbols)

1 transparent lid
2 silicon ring
3 marks for different functions
4 jug
5 button for warm milk froth and heating milk
6 button for cold milk froth
7 power base with cord

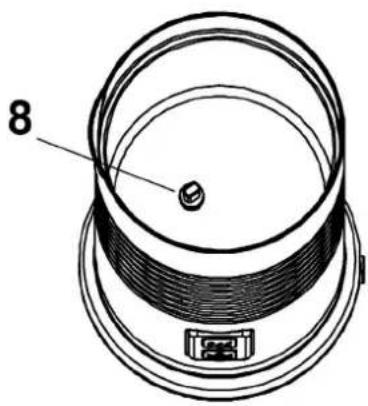

8 attachment for the whisks
9 whisk for frothing milk
10 whisk for heating milk

16.2 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

17 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

⚠️WARNUNG

WARNING

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

17.1 Before the first use

Before using the appliance for the first time please clean the jug and the accessories, as described under the chapter cleaning and maintenance to remove dust or production residues.

17.2 Operation

With the Fomini Crema / Fomini Crema Inox you can heat cold as well as warm milk froth.

MAX MAX MIN

The appliance has got three markings for the filling:

MIN: Fill milk at least up to that marking

MAX (bottom) Fill milk up to that maximum marking to make milk froth.

MAX (top): When you want to heat milk but not froth it, you can fill milk up to that maximum marking.

HINWEIS

PLEASE NOTE

▶ Please note the maximum markings. Please use for milk froth only the bottom MAX-marking. Otherwise so much foam will be made that the lid would lift and milk would overflow.

You can make warm as well as cold milk froth.

Settings:

Whisks Functions Max capacities Completion Time
	Frothing cold milk 100ml	60s
	Frothing & Heating 100ml	65-80s
	Heating(with a small amount of froth)	200ml	110s-130s

Scheme of buttons

Button	Function
	Warm milkfroth and heating milk.
	Cold milkfroth.

The operation can be canceled with both buttons.

Handling

1. Choose the appropriate whisk and set it inside the jug on the attachment for the whisk.(See the functions above for reference.)

2. Pour the milk into the jug below the mark.(See the max capacities above for reference)

3. Push the appropriate button to start the machine:
   a) Frothing & Heating / Heating: The indicator light will on after pushing the upper button. After finishes working, the indicator light keeps flashing for 30s.
   b) Frothing the cold milk: Pour the cold milk into the jug and push the under button then the indicator light on. After 60s the machine finishes working, the indicator light off and keeps flashing for 30s.

HINWEIS

PLEASE NOTE

▶ Please pour out the milk and the milk froth. By using a metal spoon or another object with sharp edges you risk damaging the coating of the pot.
▶ Only fill milk into the appliance.

18 Hints and Tips

• Always use your frother first to froth or heat your milk. While it is operating prepare your coffee or hot chocolate and serve immediately.
  • Use milk with fat content ≥ 1,5 % for best results.
• Cold milk can be frothed with this frother. But it doesn't mean you can cool down the milk with it. The frother works in normal temperature in this condition.
• Milk heats to approximately 65+/-5°C. This is the ideal temperature to ensure the flavor of your coffee is not impaired and so you don't have to wait too long until you can start sipping on your drink.
• Keep the whisks in a safe place. They are small and can easily be lost.
• After frothing or heating allow 2 minutes for the thermostat to reset and the frother to be ready for use again. To shorten this time, rinse with water and wipe dry after each use.
• The frother is designed to heat and froth milk. If you add flavorings, coffee granules or chocolate powder into the frother, ensure it is cleaned immediately and thoroughly after using.

19 Serving suggestions

Here is a selection of quick and easy drinks you can make using the frother.

With frothed milk

Cappuccino

1/3 espresso

Add 2/3 frothed milk

Top with cocoa powder.

With hot milk

Caffè Latte

1/3 espresso shot

Add 2/3 heated milk and stir.

10

Latte Macchiato

Pour frothed milk in a tall glass

Add espresso carefully along rim of the glass.

Hot Chocolate

Pour heated milk in to a large mug

Add chocolate powder and stir to mix.

Instant frothy coffee

Make instant coffee

Add frothed milk.

Instant milky coffee

Place instant coffee granules in a cup

Add hot milk and stir to mix.

20 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

20.1 Safety information

▲VORSICHT ATTENTION

Please observe the safety instructions, before cleaning your milk frother.

▶ Before cleaning switch off the unit and take the power plug out of the outlet.
▶ Clean the unit with a soft cloth.
▶ Don't clean the milk frother with inflammable detergents.
▶ Clean the milk frother again thoroughly when the machine hasn't been used for a long time.

20.2 Cleaning

Remove the jug from the power base before cleaning. Separate the lid and the silicon ring from the jug. Never immerse the jug or the base into water.

Never use sharp cleaning agents, hard nylon brush or metal brush to avoid scratches on the stainless steel surface! Never clean with metal objects and never use abrasives.

THE JUG: Clean immediately after each use. Flush and clean the inner walls with using warm soapy water and a non-abrasive cloth. Then wipe dry with a soft cloth.

HINWEIS

Please note

For better cleaning you can fill water with a splash of rinsing agent until the min-marking and use the device with the function for warm milkfroth. After that clean the jug with clear water and dry it.

THE LID: Separate the lid with the silicon ring from the jug. Wash it out with water directly.

THE WHISKS: Remove from the jug and wash with warm water. Dry and store in a safe place. Do not use the dishwasher.

Jug, lid, whisks and the basis with cable are not suitable for dish washer.

21 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

21.1 Security advices

▲VORSICHT

ATTENTION

▶ Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

21.2 Troubleshooting

Error Possible cause	Problem solving
The appliance doesn't work.	Mains plug is not connected correctly.	Please check that the mains plug of the appliance is connected correctly.
	Electronic defect. Please contact customer support.

HINWEIS

Please note

▶ If above mentioned steps don't solve the problem, please contact your customer service.

22 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

PLEASE NOTE

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.

▶ Ensure that your old device is stored safely away from children until it is taken away.

23 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use. In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded. When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

24 Technical Data

Device Milkfrother
Name Fomini Crema / Fomini Crema Inox
Item No.: 1656 / 1662
Mains data 220-240V 50/60Hz
Power consumption 400 W
Capacity frothing	Min: 60 ml, Max: 100 ml
Capacity warming	Min. 60 ml, Max: 200 ml
External measurements	Diameter: 10 cm; Height: 19,8 cm
Net weight 0,69 kg

Mode d'emploi

Mousseur à lait

Fomini Crema (1656)

Fomini Crema Inox (1662)

Exterior view of a black and silver Cosu design water heater with a digital display (no text or symbols visible on the device body)

Exterior view of a black and silver QASO design water heater with digital display (no text or symbols on body)

CE

25 Mode d'emploi

25.1 Généralités

MAX MAX MIN

Exterior view of a black and silver Cosu Design digital water heater with a digital display (no text or symbols on the device itself)

Exterior view of a black and silver CASO DESIGN portable device with a digital display (no text or symbols on the device itself)

CE

36 Istruzione d'uso

36.1 In generale

Technical line drawing of a coiled cable or wire component with a numbered label (8), no readable text or symbols present.

Diagram of a mechanical spring-loaded component with a looped top and base (no text or symbols)

MAX MAX MIN

Instant frothy coffee

Exterior view of a black and silver Cosu design water heater with digital display (no text or symbols on body)

Exterior view of a black and silver CosO design water heater with a digital display (no text or symbols on the device itself)

CE

MAX MAX MIN

Instant frothy coffee

Instant milky coffee

Exterior view of a black and silver Cosu Design digital water heater with a digital display (no text or symbols on the device itself)

Exterior view of a black and silver Coso Design digital water heater with a digital display (no text or symbols on the device itself)

CE RECOCONSTRUCTION HOUSE

⚠️WARNUNG WAARSCHUWING

⚠️WARNUNG WAARSCHUWING

▲WARNUNG WAARSCHUWING

Diagram of a mechanical spring-loaded component with a numbered label '9' (no text or symbols on the diagram itself)

1 transparant deksel

2 siliconen ring

MAX MAX MIN

Instant frothy coffee

Instantkoffie maken

Instant milky coffee

Exterior view of a black and silver COSU design water heater with digital display (no text or symbols on body)

Exterior view of a black and silver QASO design water heater with digital display (no text or symbols on body)

CE

Technical line drawing of a mechanical component with a central knob and coiled spring (no text or symbols)

MAX MAX MIN

Exterior view of a black and silver QOSU design water heater with a digital display (no text or symbols on the device itself)

Exterior view of a black and silver CosO design water heater with a digital display (no text or symbols on the device itself)

CE

Diagram of a coiled cable or wire component with a labeled part (8), no text or symbols present.

Illustration of a mechanical device with a coiled spring and a suspended weight (no text or symbols)

MAX MAX MIN

Instant frothy coffee

Instant milky coffee
