Crema Latte & Choco 1663 - Milk frother CASO - Free user manual and instructions

Product type	Electric milk frother
Brand	CASO
Model	Crema Latte & Choco 1663
Dimensions (L x W x H)	12 x 12 x 20 cm
Weight	0.8 kg
Power supply	220-240 V / 50 Hz
Power	500 W
Jug capacity	250 ml
Main functions	Hot milk froth, cold milk froth, hot chocolate
Jug material	Brushed stainless steel
Heating base	With non-stick coating
Removable whisk	Yes, stainless steel
Level indicator	Minimum and maximum markings
Automatic shut-off	Yes, after operation
Cleaning	Jug and whisk dishwasher-safe
Maintenance	Clean after each use; descale regularly
Safety	Dry boil protection; overheat protection
Accessories included	Whisk for froth, whisk for chocolate, measuring spoon
Spare parts available	Jugs, whisks, seals (via CASO Service)
Repairability	Repairability index: 7.5/10
Warranty	2 years

Frequently Asked Questions - Crema Latte & Choco 1663 CASO

What is the maximum capacity of the jug?

The maximum capacity is 250 ml. Do not exceed the maximum mark to avoid overflow.

Can I use plant-based milk (soy, almond)?

Yes, the frother works with plant-based milk. However, the foam may be less firm than with cow's milk. Choose a milk rich in protein.

How to clean the jug after use?

Rinse the jug immediately with warm water. The whisk and jug are dishwasher-safe (top rack). Wipe the base with a damp cloth.

What to do if the appliance no longer heats?

Check that the jug is properly engaged. If the indicator does not light up, the automatic shut-off may have been triggered. Let it cool for 5 minutes before using again.

Can I heat chocolate directly in the jug?

Yes, use the dedicated chocolate whisk (large). Add chocolate pieces to the milk, do not exceed the max level. Stir with a spoon if necessary.

How to descale the appliance?

Use a food-grade descaling agent (diluted white vinegar or citric acid). Fill the jug to the max level, run a hot cycle, then rinse thoroughly. Do this every 2 months.

The whisk turns but the foam does not rise. Why?

Make sure the milk is very cold (4°C) for better foam. Check that the whisk is properly installed. Milk that is too hot or low in protein produces less foam.

The appliance turns off by itself during operation. Is this normal?

Yes, it is the automatic shut-off function that prevents overheating. If this happens too early, check that the jug is not empty or that the sensor is not dirty.

Where to find spare parts?

Spare parts (jug, whisks, seals) are available on the CASO Service website or from authorized dealers. Specify model 1663 when ordering.

Can I use the appliance to make hot milk without foam?

Yes, select the 'hot' program without frothing (if available) or remove the whisk. Otherwise, use the large whisk and stop as soon as the desired temperature is reached.

USER MANUAL Crema Latte & Choco 1663 CASO

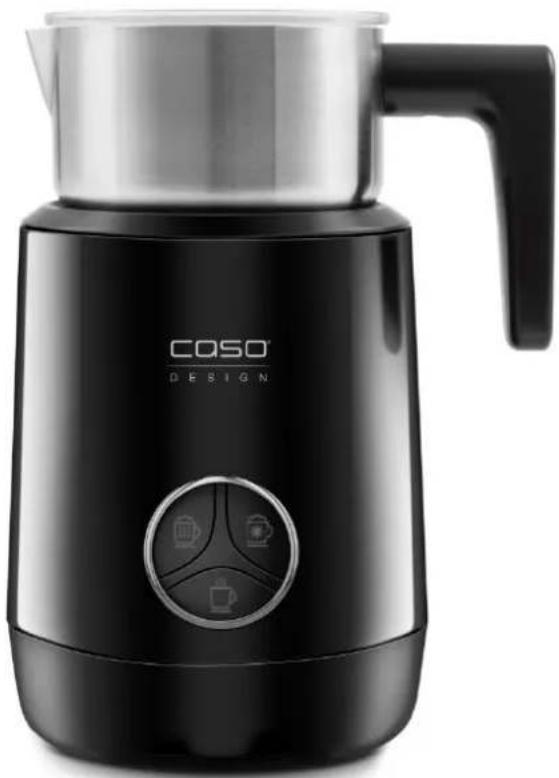

Black and silver Coso Design coffee maker with glass lid and control buttons (no visible text or symbols on device body)

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

14 Operating Manual....22

15 Warning notices....22

16 Safety 22

16.1 Intended use....22

16.2 General Safety information 23

16.3 Danger of burns 24

16.4 Dangers due to electrical power....24

17 General 25

17.1 Information on this manual....25

18 Limitation of liability 25

18.1 Copyright protection....26

19 Commissioning....26

19.1 Safety information....26

19.2 Delivery scope and transport inspection....26

19.3 Unpacking....26

19.4 Disposal of the packaging....27

19.5 Setup location requirements: 27

19.6 Electrical connection....27

20 Function....28

20.1 Overview: 28

20.2 Rating plate 28

21 Operation and Handing 28

21.1 Operation....28

22 Cleaning and Maintenance....31

22.1 Safety information....31

22.2 Cleaning 31

23 Troubleshooting....31

23.1 Security advices....32

23.2 Troubleshooting....32

24 Disposal of the Old Device....32

25 Guarantee 32

26 Technical Data....33

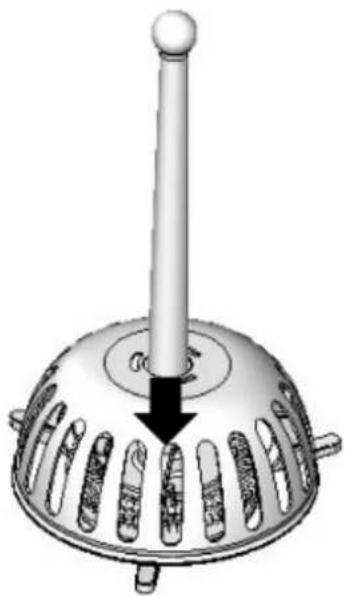

3D rendering of a metallic cylindrical device with a vertical rod inserted into a circular base, showing internal compartments (no text or symbols)

Two identical mechanical pendulum stand designs, shown from different angles (no text or symbols)

Reinigung

Black and white photo of a Coso Design coffee maker with handle and control panel (no visible text or symbols on device body)

CE

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

16 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

16.1 Intended use

This device is only intended for use in households in enclosed spaces for

• making milk foam and heating milk
• melting of little chocolate pieces during heating of milk

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

⚠️WARNUNG

WARNING

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

16.2 General Safety information

HINWEIS

PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children without supervision.
▶ Keep the appliance and its cord out of reach of children less than 8 years.
▶ Do not leave the device unsupervised when it is in operation.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.

HINWEIS Please note

▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Do not use other liquids than milk.
▶ You can read the details for cleaning in “cleaning and maintenance”.

16.3 Danger of burns

AGEFAHR DANGER

The heated milk in the milk frother and the interior of the jug can get very hot. Observe the following safety instructions and be careful not to burn or scald yourself or others:

▶ When the milk is heated, the interior of the jug gets very hot!
▶ Always check the temperature of the milk, before drinking it.
▶ When you are heating the milk, keep the lid closed.
▶ The surface of heating element can be hot after use, be careful.

16.4 Dangers due to electrical power

▲GEFAHR Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.

▲GEFAHR DANGER

▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Never immerse the device, cord or plug in water or other liquids and do not place in the dishwasher.

17 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your Crema Latte & Choco will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

17.1 Information on this manual

These Operating Instructions are a component of the Crema Latte & Choco (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the

device:

- Commissioning

- Operation

- Troubleshooting and/or

- Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

18 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: • Non-observance of the manual

• Uses for non-intended purposes
• Use of unauthorized spare parts
• Improper repairs
• Technical alterations, modifications of the device

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

18.1 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

19 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

19.1 Safety information

▲WARNUNG WARNING

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

▶ Packaging materials may not be used for playing. There is a danger of suffocation.

19.2 Delivery scope and transport inspection

As a rule, the Crema Latte & Choco is delivered with the following components:

• Crema Latte & Choco
• Whisk for frothing
• Operating Instructions
• Basket for melting of little chocolate pieces

HINWEIS PLEASE NOTE

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

19.3 Unpacking

Unpack your device as follows:

• Take out the device from the box and remove the interior and exterior packaging.
• Clean the appliance thoroughly before the first use. (see chapter Cleaning and maintenance)

19.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS

PLEASE NOTE

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

19.5 Setup location requirements:

• In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity. Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

19.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
  The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

20 Function

In this chapter, you'll find important information on the function of the device.

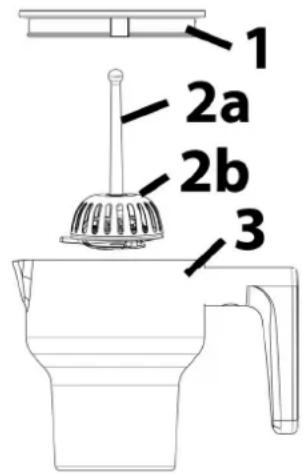

20.1 Overview:

1 Lid 2a Holder with magnetic whisk
2b Basket for melting of little chocolate pieces
3 Jug 4 Base (with power cable) 5 Buttons

20.2 Rating plate

The rating plate with the connection and performance data can be founded beneath the device.

21 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

▲WARNUNG WARNING

▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

21.1 Operation

With the Crema Latte & Choco you can heat cold as well as warm milk froth. The appliance has got three markings for the filling:

MAX (top): When you want to heat milk but not froth it, you can fill milk up to that maximum marking.

MAX (bottom): Fill milk up to that maximum marking to make milk froth.

MIN: Fill milk at least up to that marking

HINWEIS

PLEASE NOTE

▶ Please note the maximum markings. Please use for milk froth only the bottom MAX-marking. Otherwise so much foam will be made that the lid would lift and milk would overflow.

You can make warm as well as cold milk froth

HINWEIS

PLEASE NOTE

▶ Please touch the power button with your finger in such a manner that you can still see the different settings.

Cold milk froth

Please put the whisk for frothing into holder. Maximum capacity for cold milk froth: 150 ml. Do not use the basket for chocolate pieces.

Press the button. The button lights up in white. The stainless steel jar will not be but the whisk frothes the milk. The device will work round about 120 seconds +- 10 seconds, then the motor stops the rotation and the LED turns off, you can hear a signal tone and can remove your milk froth.

You can interrupt the operation by pressing

again. All other buttons are locked.

Warm milk froth

Please put the whisk for frothing into holder. Maximum capacity for hot milk froth: 150 ml. Do not use the basket for chocolate pieces.

Press the button. The button lights up in white. The stainless steel jug will be heated with induction technology and the whisk will froths the milk.

The device will work round about 200 seconds, then the heating process and the motor will stop and the LED turns off, you can hear a signal tone and can remove your milk froth.

You can interrupt the operation by pressing

again. All other buttons are locked.

Heating milk

Please put the whisk for frothing into holder. Do not use the basket for chocolate pieces. Maximum capacity for warm milk: 250 ml.

Press the button twice, it will light in blue and the milk will be heated.

The whisk rotates with reduced speed in order to ensure even heat distribution and prevent the milk from burning.

The device will work for round about 200 second (with 67^ + - 5^ ) then the heating process and the motor will stop and LED light will turn off. You can hear a signal ton and can remove your heated milk.

You can interrupt the operation by pressing again. All other buttons are locked.

Hot chocolate

3D rendering of a mechanical device with a cylindrical rod inserted into a perforated circular base, showing internal components (no text or symbols)

Please put the whisk for frothing into holder. Place the basket for chocolate pieces over the holding of the whisk.

Maximum capacity for hot milk: 250 ml.

Add maximal 37,5 g cocoa or 37,5 g chocolate in little pieces.

Press the button, it will light in red and the milk will be heated.

The stainless steel jug will be heated with induction technology and the whisk will froth the milk.

The device will work for round about 260 second (with 77°C +- 5 °C) then the heating process and the motor will stop and LED light will turn off. You can hear a signal ton and can remove your cocoa.

You can interrupt the operation by pressing again. All other buttons are locked.

Settings:

Setting power button: Milk:
lights	Cold milk froth
lights	Warm milk froth
lights red	Hot chocolate

lights blue

Hot milk

HINWEIS

PLEASE NOTE

▶ Please pour out the milk and the milk froth.
▶ Only fill milk into the appliance.

22 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

22.1 Safety information

▲VORSICHT ATTENTION

Please observe the safety instructions, before cleaning your device:

▶ Before cleaning switch off the unit and take the power plug out of the outlet.
▶ Clean the unit with a soft cloth.
▶ Don't clean the device with inflammable detergents.
▶ Clean the device again thoroughly when the machine hasn't been used for a long time.
▶ Cleaning and user maintenance shall not be made by children without supervision.

22.2 Cleaning

Three mechanical components: a three-pronged lever, a four-pronged lever with a knob, and a circular base (no text or symbols visible)

• Take off the lid with the whisk. You can remove the magnetic whisk from the side from its holder.
- Clean the lid and the whisk, the basket as well as the jug of the milk frother with diluted detergent, with warm water and a soft sponge or a cloth.
- Clean the lid and the whisk with lukewarm water, if wanted you can clean the jug in the dishwasher. The base is no suitable for dishwasher. Do not immerse base in water or other liquids.

23 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

23.1 Security advices

▲VORSICHT ATTENTION

▶ Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

23.2 Troubleshooting

Error Possible cause	Problem solving
The appliance doesn't work.	Mains plug is not connected correctly.	Please check that the mains plug of the applicance is connected correctly.
	Electronic defect. Please contact customer support.

▲VORSICHT ATTENTION

▶ If above mentioned steps don't solve the problem, please contact your customer service.

24 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.

Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS PLEASE NOTE

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
  ▶ Ensure that your old device is stored safely away from children until it is taken away.

25 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device.

Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

26 Technical Data

Device Milkfrother
Name Crema Latte & Choco
Item No.: 1663
Mains data 230 V, 50 - 60Hz
Power consumption 550 W
Capacity frothing Max: 150 ml
Capacity warming Max: 250 ml
External measurements	Diameter up 11 cm, bottom 13 cm, Height 22 cm, Depth 17 cm
Net weight 1288 g

Mode d'emploi

Mousseur à lait

Caso Crema Latte & Choco

Black and white photo of a Coso Design coffee maker with glass lid and control buttons (no visible text or symbols on device body)

27 Mode d'emploi

3D illustration of a mechanical device with a cylindrical rod and perforated base (no text or symbols)

Three mechanical components: a cylindrical rod with flutes, a circular base with a knob, and a circular plate with a handle (no text or symbols visible)

Black and silver CO2O design coffee maker with handle and control knob (no visible text or symbols on body)

40 Istruzione d'uso

3D illustration of a mechanical device with a lever and perforated base (no text or symbols)

Three mechanical components: a three-pronged lever with a handle, a four-pronged lever with a handle, and a circular base (no text or symbols visible)

Black and white photo of a Coso Design coffee maker with handle and control buttons (no visible text or symbols on the device itself)

3D rendering of a metallic cylindrical device with a vertical rod inserted into a circular base, showing internal compartments (no text or symbols)

Three mechanical components with cylindrical rods and a circular base, no visible text or symbols

Black and white photo of a Coso Design coffee maker with handle and control panel (no visible text or symbols on device body)

▲WARNUNG WAARSCHUWING

▲WARNUNG WAARSCHUWING

▲WARNUNG WAARSCHUWING

3D illustration of a metal bell pepper with a vertical rod inserted into the center, showing six blades (no text or symbols)

Three mechanical components with no visible text or symbols: a pole with curved arms, a circular base with a knob, and a separate circular component (no text or symbols present)
