ES2058 - Epilator PANASONIC - Free user manual and instructions

Brand	Panasonic
Model	ES2058
Type	Rechargeable wet/dry epilator
Power supply	220-240 V, 50-60 Hz
Charging time	12 hours (first charge or after inactivity >6 months: 20 hours)
Run time	Approximately 30 minutes
Weight	185 g (with epilation head) / 170 g (with shaving head)
Noise level (leg/arm epilation)	69 dB(A)
Noise level (underarm/bikini epilation)	67 dB(A)
Noise level (shaving)	63 dB(A)
Included heads	Leg/arm epilation head, underarm/bikini line epilation head, shaving head
Features	Dry and wet epilation, shaving, retractable trimmer, bikini comb
Battery type	Built-in Ni-MH
Included accessories	Charger (RE7-44), cleaning brush, pouch
Maintenance	Rinseable with soapy water, clean with brush
Use	Body only (legs, arms, underarms, bikini)
Safety	Do not use on damaged, irritated skin, varicose veins, diabetes, etc.
Replaceable parts	Outer foil, inner blade, epilation and shaving heads
Operating temperature	5 to 40 °C
Charging consumption	Approximately 1 W

Frequently Asked Questions - ES2058 PANASONIC

How to charge the Panasonic ES2058 epilator?

Plug the charger into the epilator and a wall outlet. Charge for 12 hours (20 hours for first use or after more than 6 months of inactivity). The charging light remains on even after 12 hours.

What is the run time after a full charge?

After 12 hours of charging, the epilator operates for approximately 30 minutes.

Can I use the epilator in the shower?

Yes, the epilator is designed for wet use (shower symbol). You can use it in the shower or bath. Use liquid soap to create foam.

How to clean the epilator?

Turn off and unplug the device. Remove the frame, apply liquid soap to the discs, turn on and rinse with water. Wipe with a dry cloth. You can also use the included cleaning brush.

What types of heads are included with the ES2058?

The set includes a leg/arm epilation head, an underarm/bikini line epilation head, and a shaving head.

How to replace the outer foil of the shaving head?

Gently press on the foil and release the plastic panel with a fingernail. Insert the new foil by aligning the frame hooks with the holes. Replace the foil every year and the inner blade every two years.

What to do if the epilator does not turn on?

Make sure the battery is charged (charge for at least 12 hours). Check that the switch is in position 1 or 2. If the problem persists, contact an authorized service center.

Can the epilator be used on the face?

No, the device is intended for body use only (legs, arms, underarms, bikini). Do not use on the face, genitals, warts, or irritated areas.

How to remove the battery for recycling?

Unplug the device, fully discharge the batteries by running the epilator, then disassemble it with a screwdriver in the order indicated in the manual. Do not short-circuit the batteries. Take them to a recycling center.

What is the lifespan of the batteries?

The built-in Ni-MH rechargeable batteries are not user-replaceable. Their lifespan depends on use (memory effect possible). If run time decreases, contact an authorized service center.

USER MANUAL ES2058 PANASONIC

Operating Instructions Epilator

Model No. ES2056/ES2058

Contents

English 2 Suomi 82

Deutsch 10 Polski 90

Francais 18 Cesky 98

Italiano 26 Slovencina 106

Espanol 34 Romana 114

Before operating this unit, please read these instructions completely and save them for future use.

Before use

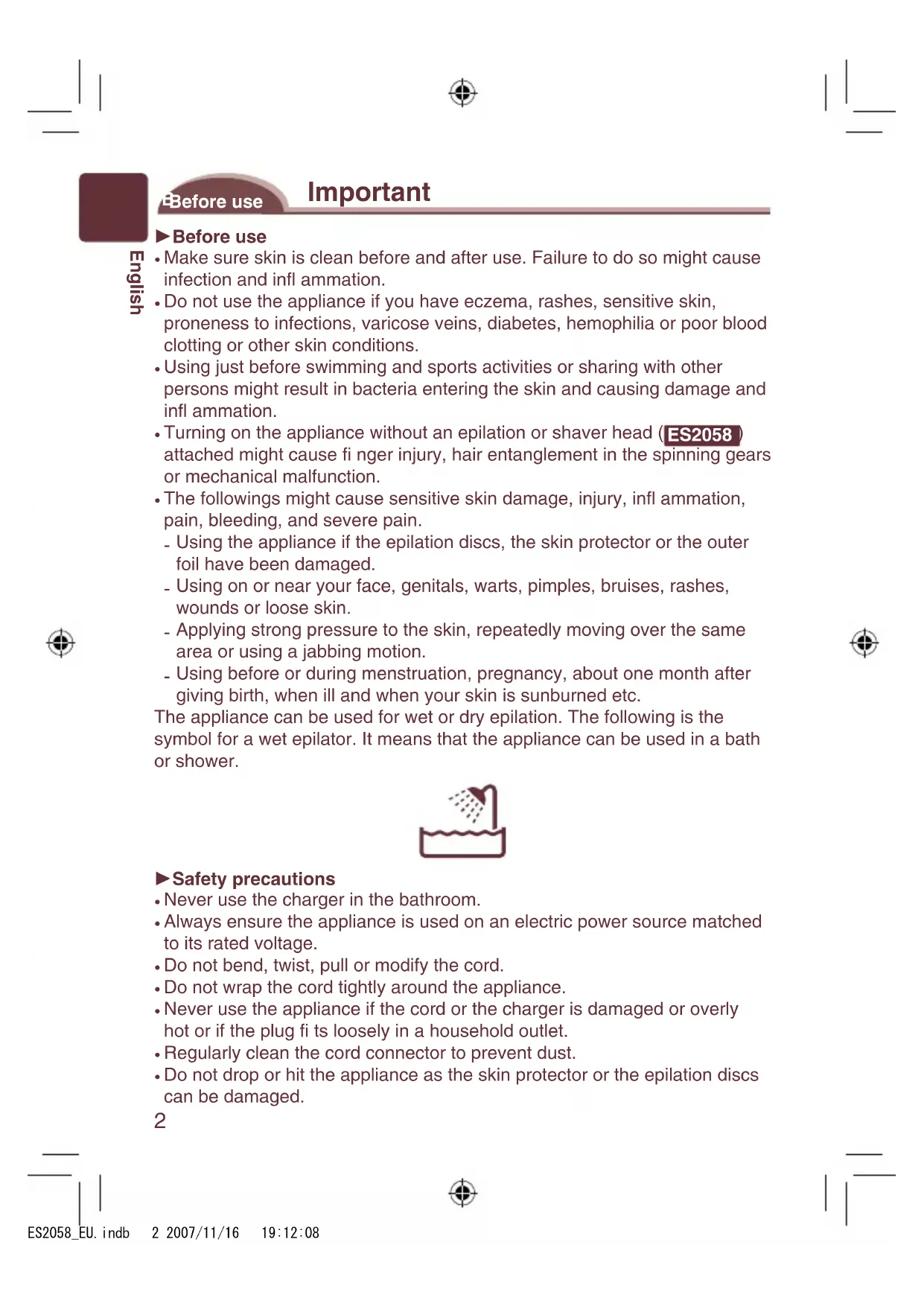

Important

Before use

• Make sure skin is clean before and after use. Failure to do so might cause infection and inflammation.
• Do not use the appliance if you have eczema, rashes, sensitive skin, proneness to infections, varicose veins, diabetes, hemophilia or poor blood clotting or other skin conditions.
• Using just before swimming and sports activities or sharing with other persons might result in bacteria entering the skin and causing damage and inflammation.
• Turning on the appliance without an epilation or shaver head (ES2058) attached might cause finger injury, hair entanglement in the spinning gears or mechanical malfunction.
• The following might cause sensitive skin damage, injury, inflammation, pain, bleeding, and severe pain.
• Using the appliance if the epilation discs, the skin protector or the outer foil have been damaged.
• Using on or near your face, genitals, warts, pimples, bruises, rashes, wounds or loose skin.
• Applying strong pressure to the skin, repeatedly moving over the same area or using a jabbing motion.
• Using before or during menstruation, pregnancy, about one month after giving birth, when ill and when your skin is sunburned etc.

The appliance can be used for wet or dry epilation. The following is the symbol for a wet epilator. It means that the appliance can be used in a bath or shower.

Safety precautions

• Never use the charger in the bathroom.
• Always ensure the appliance is used on an electric power source matched to its rated voltage.
• Do not bend, twist, pull or modify the cord.
• Do not wrap the cord tightly around the appliance.
• Never use the appliance if the cord or the charger is damaged or overly hot, or if the plug fits loosely in a household outlet. Regularly clean the cord connector to prevent dust.
• Do not drop or hit the appliance, as the skin protector or the epilation discs can be damaged.

2

The movement of the discs makes some noise, but this is perfectly normal. Keep the appliance out of the reach of children or invalids. Do not leave the appliance near sinks, bathrooms, or other high-humidity areas where it could be exposed to water and moisture after use. The following might cause mechanical malfunction.

• Using nail polish remover, benzine, alcohol, etc. to clean the appliance.
• Leaving the appliance where it will be exposed to high temperatures or direct sunlight.
• Contact an authorized service center if the epilator or the cord gets damaged.

Before use

Changing the head

1. Remove the head while holding the head release button.
2. Push the head until it clicks.

Charging

Charging the appliance

1. Plug the charger into the epilator (a) and a household outlet (b).
2. Charge the appliance for approximately 12 hours. (The charging light stays on even after 12 hours.)

The epilator can be used for approximately 30 minutes after 12 hours charge.

• When the appliance is being charged for the first time or when it has not been used for over 6 months, charge for approximately 20 hours.
• The charge light may not come on after a few minutes in some cases. However, it will come on eventually if you continue charging.
• The appliance can be left plugged in after it is fully charged without deteriorating the battery life.
• If the appliance is repeatedly charged before the batteries are completely discharged, battery life may deteriorate. (Memory effect)
• Charge and use the appliance in a temperature between 5 - 40 °C.
• The charger can be positioned in a vertical or horizontal position.

3 Using

Wet/foam epilation

Do not use the epilation head for legs/arms to epilate your underarms and bikini-line.

• Trim your hair before epilating for the first time or if you have not epilated for a long time.
• If you use the appliance in temperature of 15°C or less, the operating time might be reduced.
• Wet your skin.
• Remove the cap and attach the head you wish to use.
• Wet the discs and place a small quantity of liquid body soap on the discs.
• Turn the switch on to the 1 or 2 position and then epilate. (1=low speed epilation/2=high speed epilation)
• Foam makes the epilator slide better, so you can move it fast. Always wash the discs well after use to remove any residual soap.

Dry epilation

You can also epilate without wetting your skin or the discs.

Using

For best epilation results

Apply the epilator at a right angle to your skin and press gently while moving it slowly against the hair growth.

• When using the appliance, pull your skin taut where the area is prone to sagging (on the inside of the knees and elbows).
• Rub your skin to lift short hair.
• Move the epilator with the side that has the foam keeper facing the front.
• Do not remove the frame of the epilation head.
• Do not use if your hair is longer than 5 mm.
• Reddening might appear for your first use. A cool towel will help if you feel pain or there is a rash.
• We recommend regular use of massage sponges or exfoliation to prevent ingrown hair.

Moving the appliance correctly

(1) Legs: Upwards from the bottom of the leg. (2) Arms: Inwards from the outside of the arm. (3) Upper arms: Upwards from the bottom of the upper arms. Underarms: Move in several directions as underarm hair grows in different directions.

1

(3)

(2)

(4)

B

Shaving

Wet/foam shaving ES2058

1. Attach the shaver head.

2. Wet your skin.

• Shaving with soap lather makes the skin slippery for a closer shave.
• Do not use shaving cream, skin cream or skin lotion as it will clog the blades.

3. Turn the switch on to the 1 or 2 position.

(1=low speed shaving/2=high speed shaving) - Hair removal is easier and less painful when the hair is short. - Slide the pop-up trimmer switch up to cut long hair. - Press gently so that the whole of the blade is in close contact with the skin and the surface of the blade does not move up and down.

Shaving the bikini line with the bikini comb

Place the bikini comb onto the shaver head and slide trimmer up.

• When the bikini comb is in place, make sure the comb is in close contact with the skin.

Dry shaving

You can also shave without wetting your skin or the discs.

3 Cleaning

Cleaning the epilator

Switch off and unplug the appliance before cleaning.

• Always unplug the charger from a household outlet and from the epilator before cleaning the appliance.
• Wipe the main body only with a dry cloth. The use of alcohol etc. might cause discoloration or deformation of the main body.
• Always attach the caps when storing the epilator.

Washing your epilator

Always clean the frames and discs after use to keep them in a hygienic state.

• Take care not to damage the skin protector during cleaning.

1

2-4

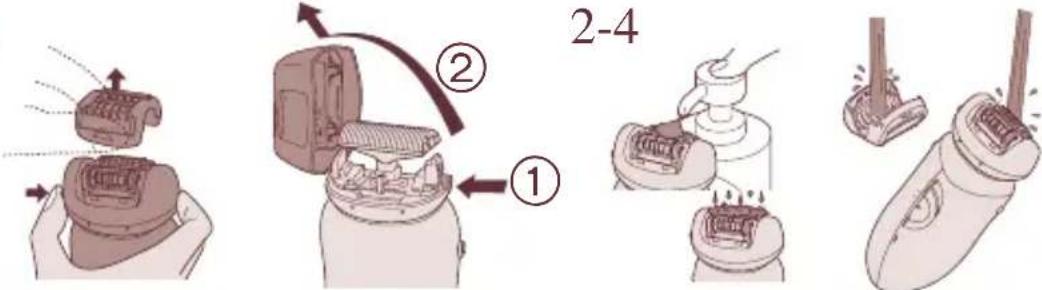

1. Remove the frame by pushing the frame release button.
2. Apply liquid hand soap to the discs and blade.
3. Turn the switch on and then wet the discs to create foam.
4. Wash the head with water to clean hair.
5. Do not use hot water.
6. If soap is not completely washed away, then a white deposit can accumulate and prevent the blades from moving smoothly.
7. Turn the switch off, wipe the appliance with a dry cloth and dry it well.

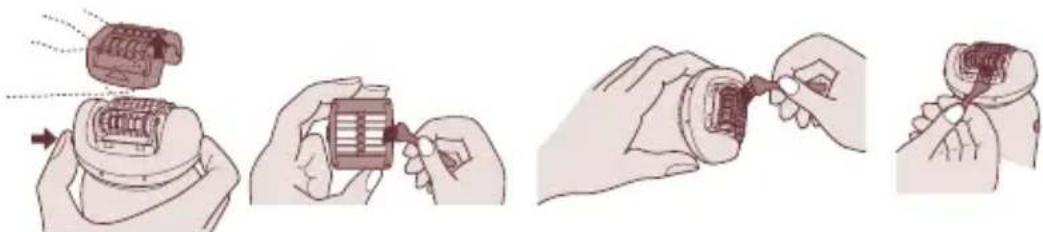

Cleaning your epilator with the supplied brush

You can also clean the epilation head and the shaver head (ES2058) with the cleaning brush.

6

3Replacing

Replacing the outer foil ES2058

Replace the shaving foil and the inner blade when you notice reduced shaving performance. Never remove the outer foil of the shaver head for any other reason than to change it.

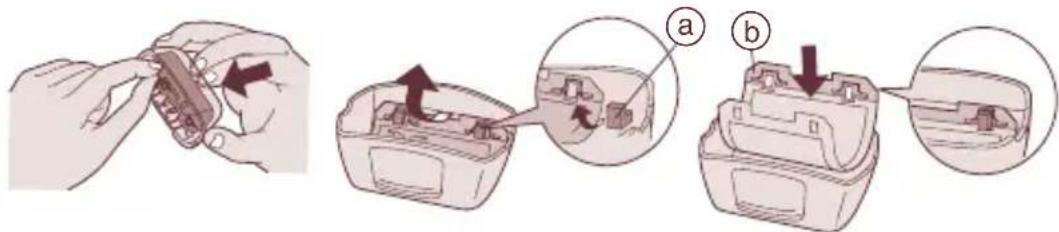

Removing the outer foil

While pushing the outer foil gently with the fingers, use a fingernail to release the plastic panel (6) on the blade from the catches (4) on the inside of the frame.

Fitting the new outer foil

Hold the outer foil so that the surface with the plastic panel (i.e. the surface that will come into contact with the inner blade) faces upward and then insert it into the frame so that the catches on the frame fit into the holes on the foil.

• We recommend replacing the outer foil every year and the inner blade every two years.

For environmental protection and recycling of materials

This epilator contains Ni-MH batteries.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Removing the built-in rechargeable batteries

The batteries in this epilator are not intended to be replaced by consumers. However, they can be replaced at an authorized service center.

The procedure below shows how to remove the batteries so that they can be disposed of.

• Unplug the charger from the epilator before disassembling it.

• Turn the switch on to the 1 or 2 position until the batteries are completely discharged.
• Using a screwdriver, disassemble the unit in the following order.
• Please take care not to short-circuit the batteries.

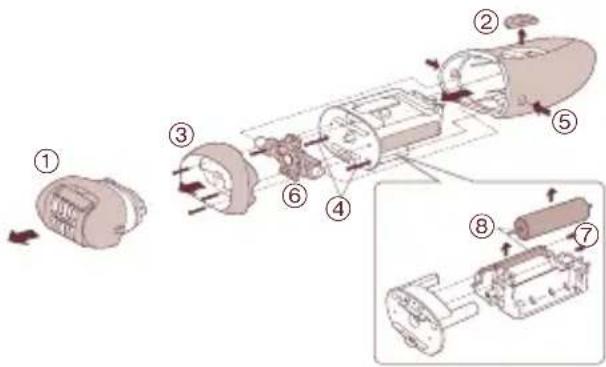

Perform steps ① to ⑧ to disassemble the epilator.

Specifications

Power supply AC 220 - 240 V, 50-60 Hz

Charging time 12 hours

Batteries Ni-MH

Power consumption Approx. 1 W (When charging.)

Weight Epilator

(Approx. 185 g with the epilation head)

(Approx. 170 g with the shaver head) ES2058

Airborne Acoustical Noise

Epilation head for legs/arms: 69 (dB(A) re 1pW)

Epilation head for underarms/bikini-line: 67 (dB(A) re 1pW)

Shaver head: 63 (dB(A) re 1pW) ES2058

Subject to change without notice.

This product is intended for household use only.

READ ALL INSTRUCTIONS BEFORE USE

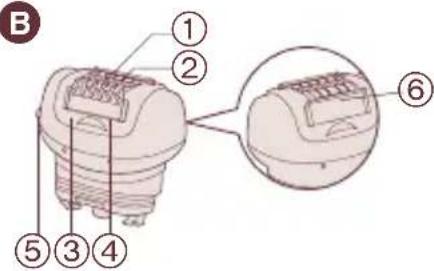

Parts identification

A

B

C 4s116u3

E

F (9)

Protection cap Epilation head for legs/arms

① Epilation discs (inside) ② Skin protector (metal part on the outside) ③ Legs/arms frame ④ Foam keeper ⑤ Frame release button ⑥ Foam wiper

① Main body

⑦ Head release button ⑧ On/off switch ⑨ Charging light

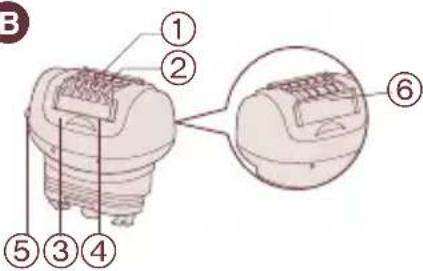

Epilation head for underarms/bikini-line

Epilation discs (inside) ① Skin protector (metal part on the outside) ② Frame release button ③ Foam keeper (on both sides) Underarms frame

Bikini comb ES2058

Shaver head ES2058

15 Outer foil 16 Trimmer ⑦ Frame 18 Pop-up trimmer switch 19 Frame release button

Accessories:

Charger (RE7-44), cleaning brush and pouch

(Please do not use accessories other than the ones provided.)

Replacing the clipper (trimming) head

1. To remove the head from the device, press and hold the locking button. 2. For secure head attachment, press until you hear a click.

Charging

1. Connect the charging device to the clipper (a). Insert the power cord plug into the electrical outlet (b). 2. The device fully charges in approximately 12 hours (during full charge, the device indicator lights up).

Do not use the clipper head for other purposes or use it on other body parts.

• If the clipper is used for the first time or you have not used the clipper for a long time, it is recommended to first shorten the hair.
• If the device is used at a temperature of 15°C or lower, its operating time may change.
• Moisten your skin.
• Remove the cap from the clipper and cover the desired head.
• Moisten the discs and apply a little liquid soap to them.
• Press the switch once or twice to turn on the clipper. (1=normal speed/2=high speed)

The blade ensures better and smoother movement of the clipper. Always rinse the clipper discs well after use to remove any hair from them.

Dry clipper

Do not use this device on wet skin or without hair and discs.

Usage

For best results

Place the epilator at a right angle to the skin, then gently press it against the skin, moving it slowly against the direction of hair growth.

- When using the device on areas with wrinkles (such as elbows or knees), stretch the skin. - Stretch the skin to make short hairs stand up. - Move the epilator with the side that has the exfoliating attachment. - Do not remove the epilator head frame. - Do not use if your hair is longer than 5 mm. - On first use, slight skin irritation may occur. If pain or skin irritation occurs, cool the skin with a cold towel. - To reduce hair growth, regular use of massage sponges is recommended.

Direction of use

① Legs: from the ankle upwards. ② Arms: from the wrist towards the elbow. ③ Upper arms: from the elbow upwards. ④ Underarms: move in several directions, as hair under the arms grows in different directions.

1

(3)

②

(4)

Thickness

Hair/body trimmer ES2058

Wanbao Base Shiguang Road, Panyu District, Guangdong, 511495 CHINA

Panasonic Electric Works Wanbao (Guangzhou) Co., Ltd.

Banhao Bein3 1nryaHr Poa, PanHo DnctpiKr, ryaHxoy, ryaHrdoHr, 511495, KUTAI

Technical characteristics

Voltage 220-240V~, 50-60

Charging time 12 hours

Ni-MH batteries

Power consumption approx. 1.5 W (with charger)

Weight of the device

(approx. 185 g with the head)

(approx. 170 g with the head and handle) ES2058

Sound level

Head for cleaning floors: 69 (with or without brush)

Head for cleaning walls and ceilings: 67 (with or without brush)

Head for cleaning furniture: 63 (with or without brush) ES2058

Technical characteristics may change without prior notice.

The device is intended for household use only.

O3HAIOMTECb I3 DAHOIO IHCTPYKLIIEIO NEPED NOYATKOM BIKOPNCTAHN

152

БуduваEniJaTopa

A

B

C

D E

F

3axnchn KOBnaQOK B EniJIaIciHa roIobKa IJIa HIR/pyK

① EniJIaIciHi dIscKi (BcepeDiHi) ② IpoTeKTop uKipn (MeTaneBaДиЯнka 33OBHi) ③ PamkaДЯнir/pyK ④ПиHoyTBoPIOBau ⑤ KhoNka BmMaHHpaMKn ⑥ Ctipau nHH

Kopnyc

⑦ KHONka BIMMaHHra TOnOBKn ⑧Перемпakay on/off ⑨ IHdNkaTOp 3apAdkn

D EniiaHa roIobKa dna naxb/niHii 6ikHI

10 EniJIaIciHi dIscKi (BcepeDnHi) 11 IpoTeKTop uKipn (MeTaJIeBa DiJHka 33OBHI) ⑫ KhoNka BnMaHHpaMKn ⑬ПиHoYtBOpIOBaU（3O6oxCTopiH) ④ Pamka nna naXB

E Tpe6iHeu6iKiH ES2058

ES2058 power supply unit

15 Power switch 16 Trigger 17 Frame 18 Trigger lever 19 Trigger button

Accessories:

Charging device (RE7-44), power supply unit and bag

(Do not use with any other

accessories other than those included in the set.)

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.

Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the

European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

German

Wanbao Base Shiguang Road, Panyu District, Guangzhou, Guangdong, 511495 CHINA

No.1 EN, GE, FR, IT, SP, DU, PT, NW, SW, DA, FI, PL, CZ, SK, RO, HU, TK, RU, UA

Printed in China
