USER MANUAL S280ME2E5 PANASONIC

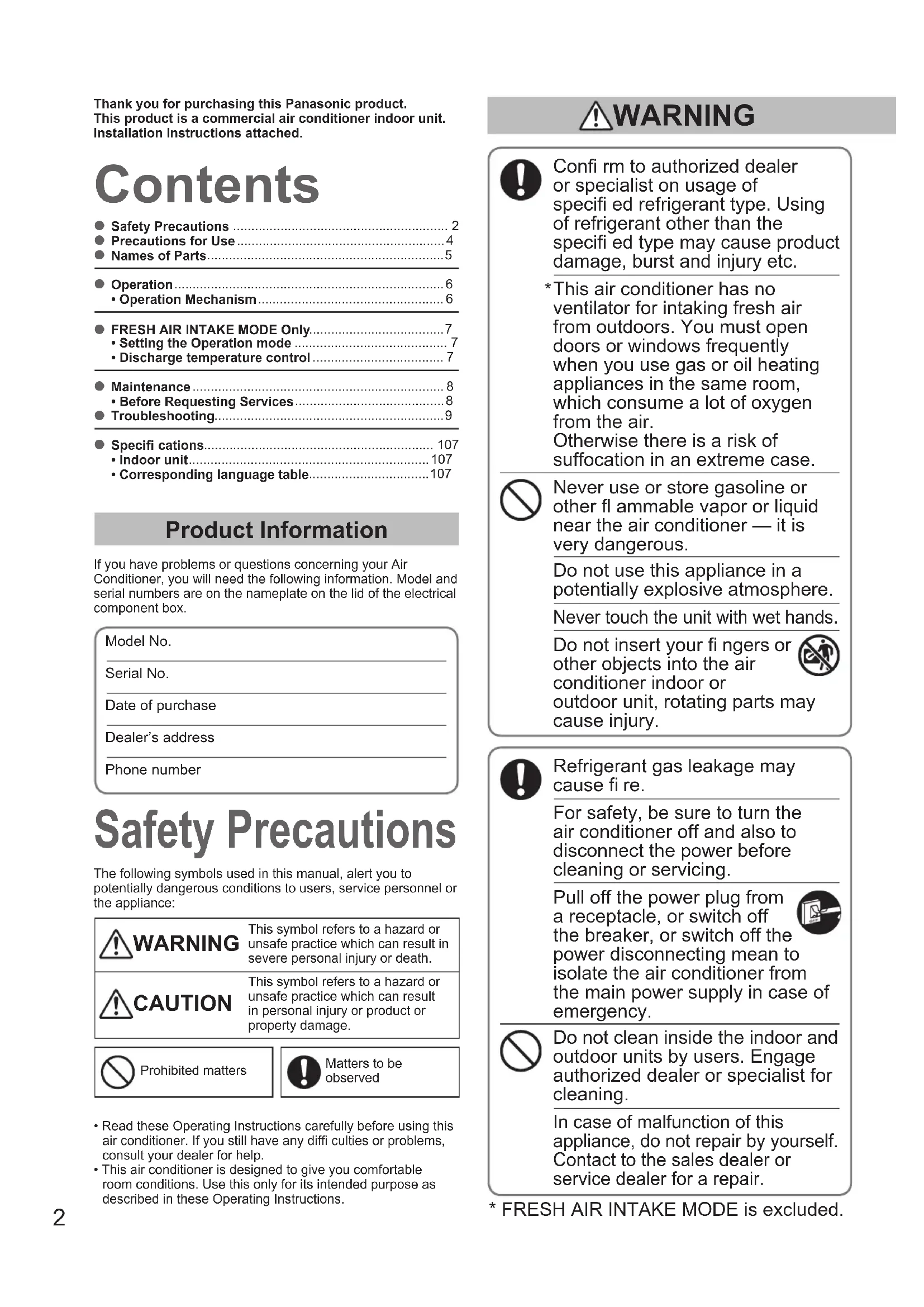

• Safety Precautions p. 2
• Precautions for Use p. 4
• Names of Parts p. 5
• Operation p. 6
• • Operation Mechanism p. 6
• FRESH AIR INTAKE MODE Only p. 7
• • Setting the Operation mode p. 7
• • Discharge temperature control p. 7
• Maintenance p. 8
• • Before Requesting Services p. 8
• Troubleshooting p. 9
• Specifi cations p. 107
• • Indoor unit p. 107
• • Corresponding language table Contents Safety Precautions Product Information If you have problems or questions concerning your Air Conditioner, you will need the following information. Model and serial numbers are on the nameplate on the lid of the electrical component box.Model No. Serial No. Date of purchaseDealer’s addressPhone number Confi rm to authorized dealer or specialist on usage of specifi ed refrigerant type. Using of refrigerant other than the specifi ed type may cause product damage, burst and injury etc. This air conditioner has no ventilator for intaking fresh air from outdoors. You must open doors or windows frequently when you use gas or oil heating appliances in the same room, which consume a lot of oxygen from the air. Otherwise there is a risk of suffocation in an extreme case. Never use or store gasoline or other fl ammable vapor or liquid near the air conditioner — it is very dangerous. Do not use this appliance in a potentially explosive atmosphere. Never touch the unit with wet hands. Do not insert your fi ngers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Refrigerant gas leakage may cause fi re. For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning or servicing. Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency. Do not clean inside the indoor and outdoor units by users. Engage authorized dealer or specialist for cleaning. In case of malfunction of this appliance, do not repair by yourself. Contact to the sales dealer or service dealer for a repair. The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or the appliance: WARNING This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death. CAUTION This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.Prohibited mattersMatters to be observedThank you for purchasing this Panasonic product.This product is a commercial air conditioner indoor unit.Installation Instructions attached.• Read these Operating Instructions carefully before using this air conditioner. If you still have any diffi culties or problems, consult your dealer for help.• This air conditioner is designed to give you comfortable room conditions. Use this only for its intended purpose as described in these Operating Instructions. WARNING p. 107

• FRESH AIR INTAKE MODE is excluded. OI00286020EUall.indb2OI00286020EUall.indb2 2014/09/189:31:382014/09/189:31:383 ENGLISH This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the fi re alarm and the air outlet at least 1.5m away from the unit. Do not cool or heat the room too much if babies or invalids are present. Do not turn the air conditioner on and off from the power mains switch. Use the ON/OFF operation button. Do not stick anything into the air outlet of the outdoor unit. This is dangerous because the fan is rotating at high speed. Do not touch the air inlet or the sharp aluminum fi ns of the outdoor unit. You may get injured. Do not sit or step on the unit. You may fall down accidentally. Do not stick any object into the FAN CASE. You may be injured and the unit may be damaged. Provide a power outlet to be used exclusively for each unit, and a power supply disconnect, Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) for overcurrent protection should be provided in the exclusive line. Provide a power outlet exclusively for each unit, and full disconnection means having a contact separation in all poles must be incorporated in the fi xed wiring in accordance with the wiring rules. To prevent possible hazards from insulation failure, the unit must be grounded. Do not use modifi ed cord, joint cord, extension cord or unspecifi ed cord to prevent overheating and fi re. Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fi re/electric shock) Examples of abnormality/failure:

• The ELCB trips frequently.

• The product sometimes does not start when turned on.

• The power is sometimes disconnected when the cord is moved.

• Burnt odor or abnormal noise is detected during operation.

• The body is deformed or abnormally hot.

• Water leaks from the indoor unit.

• Power cord or plug becomes abnormally hot.

• Fan speed cannot be controlled.

• The unit stops running immediately even if it is switched on for operation.

• The fan does not stop even if the operation is stopped. Contact immediately your local dealer for maintenance/repair. CAUTION
• The compressor may occasionally stop during thunderstorms.This is not a mechanical failure. The unit automatically recovers after a few minutes.• The English text is the original instructions. Other languages are translation of the original instructions. Important Information Regarding The Refrigerant Used This product contains fl uorinated greenhouse gases covered by the Kyoto Protocol. Do not vent gases into the atmosphere.Refrigerant type: R410A GWP (1) value: 1975 (1) GWP = global warming potentialPeriodical inspections for refrigerant leaks may be required depending on European or local legislation. Please contact your local dealer for more information. NOTICE OI00286020EUall.indb3OI00286020EUall.indb3 2014/09/189:31:392014/09/189:31:394 Precautions for Use Installation

This air conditioner must be installed properly by qualifi ed installation technicians in accordance with the Installation Instructions provided with the unit. Before installation, check that the voltage of the electric sup-ply in your home or offi ce is the same as the voltage shown on the nameplate. WARNING Avoid the following locations for installation.

Locations where smoke or combustible gas exists.Also locations of extremely high temperature such as a greenhouse. Locations where excessively high heat-generating ob-jects are placed. Attention:

Avoid installing the outdoor unit where salty sea water can splash directly onto it or in sulphurous air near a spa.(To protect the air conditioner from heavy corrosion) Wiring

All wiring must conform to the local electrical codes.(Consult your dealer or a qualifi ed electrician for details.) Each unit must be properly grounded with a ground (or earth) wire or through the supply wiring. Wiring must be done by a qualifi ed electrician. Operation Preparation Turn the power mains on 5 hours before the start of operation. (For warm-up) Leave the power mains ON for continuous use.

NOTE Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply when not in use for a long time. Operation Condition Use this air conditioner under the following temperature range.Outdoor UnitIndoor temperature rangeOutdoor temperature range2WAY (ME1 type)Cooling 14°C 25°C (*WBT) -10°C 46°C (*DBT)Heating 16°C 30°C (*DBT) -25°C 15°C (*WBT)3WAY (MF2 type)Cooling 14°C 25°C (*WBT) -10°C 46°C (*DBT)Heating 15°C 30°C (*DBT) -20°C 18°C (*WBT)Cooling & Heating― -10°C 24°C (*DBT)*DBT: Dry bulb temperature*WBT: Wet bulb temperature

When used in FRESH AIR INTAKE MODE Outdoor UnitIndoor temperature rangeOutdoor temperature range2WAY (ME1 type)Cooling 14°C 25°C (*WBT) 22°C 46°C (*DBT)Heating 16°C 30°C (*DBT) -5°C 16°C (*DBT)3WAY (MF2 type)Cooling 14°C 25°C (*WBT) 22°C 46°C (*DBT)Heating 15°C 30°C (*DBT) -5°C 16°C (*DBT)Cooling & Heating― -5°C 24°C (*DBT)*DBT: Dry bulb temperature*WBT: Wet bulb temperatureIf the unit is operated for long hours excluding the conditions listed in the table, operation will be stopped and the unit leads to problems. Tips for Energy Saving

Do not block the air intake and outlet of the unit.(If either is obstructed, the unit will not function well, causing malfunction.) During cooling operation, use sunshades, blinds or cur-tains to prevent direct sunlight from entering the room.

Always keep the air fi lter clean.(A clogged fi lter will impair the performance of the unit.)→ “Maintenance” (P.8) To prevent conditioned air from escaping, keep win-dows, doors and any other openings closed. OI00286020EUall.indb4OI00286020EUall.indb4 2014/09/189:31:402014/09/189:31:405 ENGLISH Information for Users on Collection and Disposal of Old Equipment and Used Batteries

hese symbols on the products, packaging, and/ or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Names of Parts INDOOR UNIT Air outlet side duct flange (2 locations) Air intake side duct flange (rear) Water drain Electrical component box Optional High-spec Wired Remote Controller Model No. CZ-RTC3 Wireless Remote Controller Timer Remote Controller Read the operating instructions included with the Remote Controller. Model No. CZ-RTC2 Model No. CZ-RWSK2 Model No. CZ-RWSC3 OI00286020EUall.indb5OI00286020EUall.indb5 2014/09/189:31:402014/09/189:31:406 Operation

It is recommended that the unit be set in automatic cooling and heating mode. (P.7) The fan function of this unit supplies the outdoor air to the indoor space.

Group Control Group control function is suitable for operating the multiple air conditioners in a large single room. Up to 8 units can be connected. Operation of all indoor units in the same mode except for airfl ow direction. Use the indoor unit's temperature sensor.Outdoor unitRemote controllerSignal line NOTE NOTE For details, refer to the Operating Instructions attached to the optional Remote Controller. In the case of FRESH AIR INTAKE MODE, please note the following. Operation Mechanism

Since this air conditioner utilizes outside air for heating, its heating performance deteriorates as outside tempera-ture decreases.(Due to heat pump system)→In that case, use another heating appliance.

This appliance may start defrosting operation to melt frost formed in the outdoor unit.

Defrosting starts : The indoor unit fan stops (or the speed becomes extremely slow).→ “ ” (STANDBY) appears.

Heating operation resumes after several minutes : The indoor unit fan remains stopped (or it will run at a very slow speed) until the indoor heat exchanger coil warms up suffi ciently.→ “” (STANDBY) is shown.

Defrosting is complete : The indoor unit fan starts operation.→ “ ” (STANDBY) disappears.

Once the room temperature reaches the level that was set, the outdoor unit repeats the cycle of turning on and off automatically. When the outdoor unit is turned off, the indoor unit fan will stop, too.(To prevent the humidity in the room from rising again) When the room temperature is more likely to reach the level that was set, the fan speed is set to ‘‘breeze’’ (light wind) automatically. ‘‘DRY’’ operation is not possible if the outdoor tempera-ture is 15 °C or less.

Should the power failure occurs while the unit is running When the unit automatically resumes operation after temporary power failure, it uses the same settings before the power was cut off.

High /Medium /Low /Auto In FRESH AIR INTAKE MODE, Fan speed cannot be selected. OI00286020EUall.indb6OI00286020EUall.indb6 2014/09/189:31:422014/09/189:31:427 ENGLISH Setting the Operation mode Discharge temperature control This product brings outdoor fresh air into the building and adjusts and supplies the air with nearly current indoor temperature.

1. Automatic cooling and heating operation mode

Due to the temperature difference between the outdoor air and preset temperature in remote controller, cooling or heating operation can be automatically selected. In the case of group control, the setting is possible when all of the indoor units in the same refrigerant circuit consist of one group. (P.6)

Cooling operation mode : In case that the outdoor temperature is 5°C higher than the preset temperature in remote controller.

Fan operation mode : In case that the outdoor temperature and preset temperature in remote controller are within ±5°C.

Heating operation mode : In case that the outdoor temperature is 5°C lower than the preset temperature in remote controller. Example: In case that the preset temperature in remote controller set at 20°C (43)4030100

Heating operation modeDischarge temperature setting at 45°C

Cooling operation mode Discharge temperature setting at 18°C

Fan operation mode Discharge temperature setting in a range of15 - 25°C

2. Cooling operation mode

It is recommended that the temperature setting in remote controller be more than 24°C. If the intake air temperature is getting higher than the preset temperature in remote controller, the unit operates in cooling mode. On the contrary, if the intake air temperature becomes lower than the preset temperature, the unit operates in fan mode.

3. Heating operation mode

It is recommended that the temperature setting in remote controller be set at 16°C. If the intake air temperature is getting lower than the preset temperature in remote controller, the unit operates in heating mode. On the contrary, if the intake air temperature becomes higher than the preset temperature, the unit operates in fan mode.

4. Fan operation mode

In the moderate climates, supply of fresh outdoor air can provide as passive cooling. NOTE In general, it is recommended that you set in the automatic cooling and heating operation mode. The setting of discharge temperature is not displayed on the remote controller. Should you wish to make changes in temperature settings, contact the dealer where you purchased. This product controls the discharge temperature. See the discharge temperature setting at shipment as shown below. Cooling operation mode: Discharge temperature is set at 18°C. (The compressor repeats start and stop if the discharge tem-perature becomes lower than 18°C.) Heating operation mode: Discharge temperature is set at 45°C. (The compressor repeats start and stop if the discharge tem-perature becomes lower than 45°C.) FRESH AIR INTAKE MODE Only OI00286020EUall.indb7OI00286020EUall.indb7 2014/09/189:31:432014/09/189:31:438 WARNING

For safety, be sure to turn the air conditioner off and dis-connect the power before cleaning.(Otherwise, electric shock or injury may result because the fan is rotating at high speed.) Do not pour water on the indoor unit.(This may damage the internal components and cause an electric shock hazard.) Maintenance Symptom Cause Action The air conditioner does not operate although the power is turned on. Power failure or after power failure Press the power ON/OFF button on the remote controller.The operation (power) button is turned off.• If the breaker is turned off, turn the power on.• If the breaker has been tripped, consult your dealer without turning it on.Fuse blow out. Contact your dealer. Poor cooling or heating performance The air intake or air outlet of indoor and outdoor units is clogged with dust.Remove the dust.Improper temperature settingsSee “Tips for Energy Saving”. (P.4)The room is exposed to direct sunlight in cooling mode.Doors or windows are open.The air fi lter is clogged. Contact your dealer.Too many heat sources in the room in cooling mode.Use minimum heat sources and in a short time.Too many people in the room in cooling mode.Lower the temperature setting. If your air conditioner does not work properly even after checking each item of “Before Requesting Services” and “Troubleshooting”

Stop the operation immediately and turn the power off. Then contact your dealer and report the serial number and symptom. You also report if the inspection mark and the letters E, F, H, L, P in combination with numbers appear on the LCD of the remote controller. Never repair the air conditioner by yourself since it is very dangerous for you to do so. Before Requesting Services CAUTION

Never use solvents or harsh chemicals. Also, do not wipe plastic parts using very hot water.(This may cause deformation or change in colour.) Some metal edges and fi ns are sharp. Be careful when you clean those parts.(Injury may result.) Use a fi rm stool or ladder when cleaning an indoor unit installed in high locations.Do not attempt to clean inside the unit by yourself.Refer to the section “Care and Cleaning” in the Installation Instructions. OI00286020EUall.indb8OI00286020EUall.indb8 2014/09/189:31:432014/09/189:31:439 ENGLISH Troubleshooting Symptom Cause / Action Indoor unit Noise Sound like streaming water is heard during operation or after operation.

• Sound of refrigerant liquid fl owing inside unit

• Sound of drainage water through drain pipe Cracking noise is heard during operation or when operation stops. Sound due to temperature changes of parts Discharged air smells during operation.

• Indoor odor components, cigarette odor and cosmetic odor accumulated in the air conditioner and its air is discharged.

• The unit inside is dirty. (Contact your dealer.) Dewdrops accumulate near the air outlet during cooling operation.

• Internal moisture is cooled by cool wind and accumulates as dewdrops. Fog occurs during cooling operation.

• If the air conditioner has been installed at places such as restaurants where large amounts of oil mist exist, cleaning is necessary because the unit inside (heat exchanger) is dirty. (Contact your dealer.) Fog occurs during heating operation.

• Defrost operation is in process. The fan is rotating for a while even though operation stops.

• Fan rotation makes operation smooth.

• The fan may rotate to dry the heat exchanger depending on the setting. Dust is discharged.

• Dust accumulated inside the indoor unit is discharged. Outdoor unit No operation (When the power is turned on immediately / When operation is stopped and resumed immediately)

• Operation is not activated for the fi rst approx. 3 minutes because the compressor protection circuit is activated. Noise occurs during heating operation.

• Defrost operation is in process. Steam comes out during heating operation. The fan continues to rotate even after the operation is stopped using the remote controller.

• This is for smooth operation. Check before consulting or requesting services. OI00286020EUall.indb9OI00286020EUall.indb9 2014/09/189:31:432014/09/189:31:4310

• Ini untuk memperlancar pengoperasian. Periksa sebelum menghubungi atau meminta servis. OI00286020EUall.indb105OI00286020EUall.indb105 2014/09/189:33:022014/09/189:33:02106 English Declaration of Conformity with the requirements of Technical Regulation on the Restriction Of the use of certain Hazardous Substances in Electrical and Electronic Equipment (adopted by Order №1057 of Cabinet of Ministers of Ukraine) The Product is in conformity with the requirements of Technical Regulation on the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment (TR on RoHS). The content of hazardous substance with the exemption of the applications listed in the Annex №2 of TR on RoHS:

4. Hexavalent chromium (Cr

6. Polybrominated diphenyl ethers (PBDEs) – not over 0,1wt % or 1000wt ppm.

1. Lead (Pb) – not over 0.1% by weight;

2. Cadmium (Cd) – not over 0.01% by weight;

3. Mercury (Hg) – not over 0.1% by weight;

4. Hexavalent chromium (Cr6+) – not over 0.1% by weight;

5. Polybrominated biphenyls (PBBs) – not over 0.1% by weight;

6. Polybrominated diphenyl ethers (PBDEs) – not over 0.1% by weight.

For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when disposing of this product. Please see the Panasonic website for further information on collection centers, etc. http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html OI00286020EUall.indb110OI00286020EUall.indb110 2014/09/189:33:032014/09/189:33:03111 MEMO OI00286020EUall.indb111OI00286020EUall.indb111 2014/09/189:33:032014/09/189:33:03Panasonic Corporation Website: http://panasonic.net/ Printed in China © Panasonic Corporation 2014
