USER MANUAL PE2350WS Pattfield

Scanned document page with printed items and a red prohibition symbol, hands holding open pages

Pattfield

PRO TOOLS

Manufactured for

Hornbach Bounserkt AG

Hornbachstrahl: 1

10879 Binhemont, Germany

Pattfield

FREE TOOLS

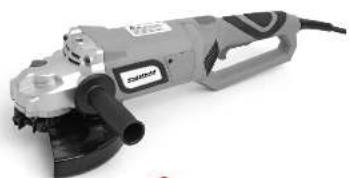

Exterior view of a gray industrial power tool with visible blade and shank (no text or symbols)

PE-2350WS

Scanned document with printed items and a red prohibition symbol, hands holding open pages

DE Ausleppenzen beschränft
EH. Observer les napiés à disifier !
[Unreadable]
1. 2017年1月1日
RL Let op de uibouvapagms!
57 Observa utilksbladen!
02 Vir nuklubesi slanky
Mimatis v. wafadana, skinku
- 1. 2017年公司利润分配方案
III. Amința: la plășate păcătă
60 Observe the following page!

PE-2350M=10.506 #1.0

CE

DE Ümschung der Original Betriebstechnung
ER: Traduction de la pénico originale
1. 2017年1月1日
1. 2017年1月26日 星期五
Veratung am de opazitätliche geschriebstätigkeit
5V Overcoming av originalakonsisning
C7. Pichard rejinslohnii niewo na pozieli
The most information needs an available
on
10. «Россий с молгизионе»
CII Original Instructions

Two-panel image showing a mechanical device with a black handle and red adjustment knobs, no visible text or symbols.

DE Listenunfang
FR Elendue de livraison
II. Malaria: compreso nella familiare
NL Levenegssomfang
5V Leveransomino
07 Bazzah dodzsky
SK Pozsah dodzsky
NO Volumalist
GO Stage of delivery

Vielen Dank!

Pattfield® ERGO TOOLS

2350 W Winkelschleifer PE-2350WS

hergestellt für:

Hornbach Baumarkt AG

Hornbachstraße 11

Pattfield® ERGO TOOLS

Ponceuse d'angle 2350 W PE-2350WS

fabriqué pour :

Pattfield® ERGO TOOLS

Pattfield® ERGO TOOLS

2350 W Haakse slijper PE-2350WS

geproduceerd voor:

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim / Duitsland

Pattfield® ERGO TOOLS

2350 W Vinkelslip PE-2350WS

tillverkad för

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim / Tyskland

Pattfield® ERGO TOOLS

2350 W úhlová bruska PE-2350WS

vyrobeno pro:

Hornbach Baumarkt AG

Hornbachstraße 11

Pattfield® ERGO TOOLS

2350 W uhlová brúska PE-2350WS

vyrobená pre:

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim / Nemecko

Pattfield® ERGO TOOLS

Polizor unghiular PE-2350WS de 2350 W

fabricată pentru:

Hornbach Baumarkt AG

Hornbachstraße 11

76879 Bornheim / Germania

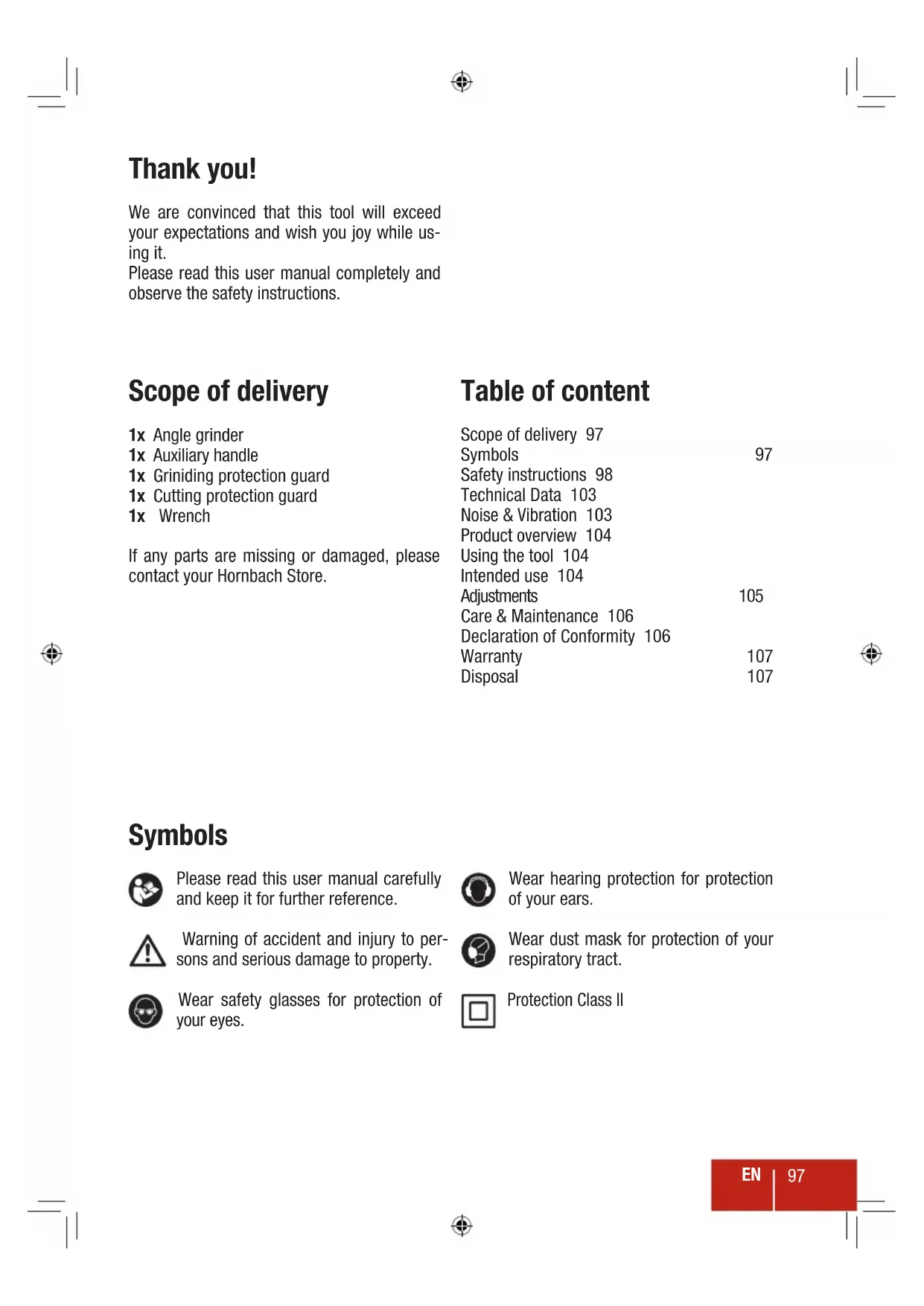

We are convinced that this tool will exceed your expectations and wish you joy while using it.

Please read this user manual completely and observe the safety instructions.

Scope of delivery

1x Angle grinder
1x Auxiliary handle
1x Griniding protection guard
1x Cutting protection guard
1x Wrench

If any parts are missing or damaged, please contact your Hornbach Store.

Table of content

Scope of delivery 97

Symbols 97

Safety instructions 98

Technical Data 103

Noise & Vibration 103

Product overview 104

Using the tool 104

Intended use 104

Adjustments 105

Care & Maintenance 106

Declaration of Conformity 106

Warranty 107

Disposal 107

Symbols

Please read this user manual carefully and keep it for further reference.

Warning of accident and injury to persons and serious damage to property.

Wear safety glasses for protection of your eyes.

Wear hearing protection for protection of your ears.

Wear dust mask for protection of your respiratory tract.

Protection Class II

Safety Instructions

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1 WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2 ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3 PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4 POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5 SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ADDITIONAL SAFETY INSTRUCTIONS FOR ANGLE GRINDERS

a) This power tool is intended to function as a grinder or cutoff tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
b) Operations such as sanding, wire brushing or polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) The arbour size of wheels, flanges, backing pads or any other accessory must properly fit the spindle of the power tool. Accessories with arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will

normally break apart during this test time.

h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

j) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a „live“ wire may make exposed metal parts of the power tool „live“ and could give the operator an electric shock.

k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

1) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

o) Do not operate the power tool near flammable materials. Sparks could ignite these

materials.

p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

KICKBACK AND RELATED WARNINGS

Kickback is a sudden reaction to a pinched or snagged rotating wheel or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners,

sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS:

a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
c) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
d) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
e) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

ADDITIONAL SAFETY WARNINGS SPECIFIC FOR ABRASIVE CUTTING-OFF OPERATIONS:

a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Over-stressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Technical Data

Nominal voltage 230-240 V / \~50 Hz

Rated power 2350 W

Rated speed (n) 6500/min

Size of wheel ∅ 230 mm

Spindle size M14

Protection Class / II

Sound pressure level ( L_pA ) 93 dB(A) / Uncertainty K = 3 dB(A)

Sound power level (LwA) 104 dB(A) / Uncertainty K = 3 dB(A)

Max. vibration emission ( a_h,AG ) 4.89 m/s

^2 / Uncertainty K = 1.5 m/s ^2

The values given are valid for nominal voltages U of 230 V. For lower voltage and models for specific countries, these values may vary.

Please observe the article number on the type plate of the tool. The trade names of the individual tool may vary.

Noise & Vibration

The values given in these instructions have been measured in accordance with a standardized measurement procedure specified in EN 60745 and can be used to compare tools.

It may be used for a preliminary assessment of exposure. The declared vibration data represents the main applications of the tool, but different uses of the tool or poor maintenance can result in different vibration data. This may significantly increase the vibration level over the total working period.

An estimation of the vibration level should also take into account the intervening periods, when the tool is switched off or it running but is not actually in use. This can result in a much lower vibration load over the whole working period.

Additional safety measure can be taken to protect the user from effects of vibration: Maintain the tool and its accessories, keep the hands warm and organize work patterns.

Product overview

1 Rotate handle button
2 Auxiliary handle connector
3 Spindle lock button
4 Clamping flange
5 Lock nut
6 On / Off switch release hook
7 On / Off switch
A Grinding guard
B Cutting guard

Intended Use

The tool is intended for cutting, roughing and grinding of metal and stone materials without the use of water when equipped with a suitable cutting or grinding disc and the appropriate guard.

The tool is not intended for commercial use. Any other use or modification to the tool is considered as improper use and could cause considerable dangers.

Using the tool

1. Make sure your workpiece can not slip.
2. To switch on the tool, press and hold the on / off switch release hook 6 and press the on / off switch 7.
3. Let the tool run at no-load speed for about a minute and check if the installed wheel runs flawlessly.

Grinding:

The best grinding results can be achieved with a 30^ to 40^ approach angle. Move the tool back and forth with moderate pressure.

Caution! Never use cutting discs for grinding.

Cutting:

When cutting, do not press, tilt or oscillate the tool. Gently slide it forward with a speed adapted to the material being worked on.

The tool must always work opposite to the direction of rotation, otherwise there is danger of being pushed out of the cut in an uncontrolled way.

1. To switch off the tool, release the on / off switch 7.

AUXILIARY HANDLE

1 The auxiliary handle can be attached to the auxiliary handle connector 2 on either side or on top of the tool.

Caution! Make sure the tool is switched off and unplugged.

2 Screw the auxiliary handle into the auxiliary handle connector 2.

For safe working conditions, make sure the auxiliary handle is always ed at the tool.

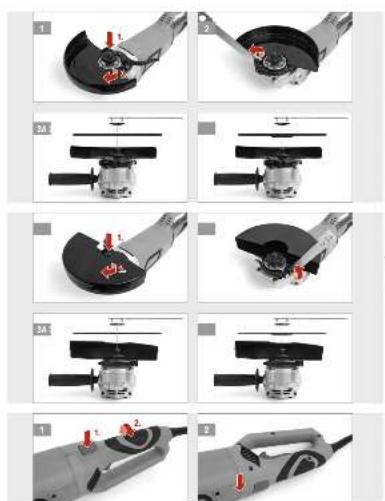

GRINDING

1 Cloatt the group engage are Art of the tool and align it, that the operator is protected from sparking.

Caution! Make sure the tool is switched off and unplugged.

3A

WHEEL THICKNESS: 6 - 8 MM

Install a straight grinding wheel with the lock nut 5 so that the flange points towards the machine.

Press and hold the spindle lock button 3 and tighten the lock nut 5 with the wrench.

2

grinding guard is not securely held in place, the preload of the release lever can be increased by use of the wrench.

3B

WHEEL THICKNESS: 6 - 8 MM

Install a depressed grinding wheel with the lock nut 5 so that the flange points towards the machine.

Press and hold the spindle lock button 3 and tighten the lock nut 5 with the wrench.

CUTTING

1 Cloatt the tger and ttergegaser level to the tool and align it that the operator is protected from sparking.

Caution! Make sure the tool is switched off and unplugged.

3A

WHEEL THICKNESS: 2 - 4 MM

Install a cutting wheel with the lock nut 5 so that the flange points away from the machine.

Press and hold the spindle lock button 3 and tighten the lock nut 5 with the wrench.

2

cutting guard is not securely held in place, the preload of the release lever can be increased by use of the wrench.

3B

WHEEL THICKNESS: 2 - 4 MM

Install a depressed cutting wheel with the lock nut 5 so that the flange points away from the machine.

Press and hold the spindle lock button 3 and tighten the lock nut 5 with the wrench.

ROTATE HANDLE

1 TurPrese thanldea@handheblesired po-re-lease the rear end of the handle.

2

sition, so that the two arrows point at each other.

Caution! Make sure the handle is securely locked in place.

Care & Maintenance

Caution! Make sure the tool is switched off and unplugged.

• Always keep the tool clean, dry and free of oil or grease.
• Wear safety glasses to protect your eyes whilst cleaning.
• For safe and proper working, always keep the machine and ventilation slots clean.
• Regularly check to see if any dust or foreign matter has entered the grills near the motor and around the on/off switch. Use a soft brush to remove any accumulated dust.
• If the body of the tool needs cleaning, wipe it with a soft damp cloth. A mild detergent can be used but nothing like alcohol, petrol or other cleaning agent.
• Never use caustic agents to clean plastic parts.
• Lubricate all moving parts at regular intervals.
• Periodically check all fixings. These could become loose with time due to vibration.

Caution! If the supply cord is damaged, it must be replaced by the acturer or its service agent or similarized person in order to avoid haz-

Declaration of conformity

We declare, that the product described in Technical Data:

Pattfield® ERGO TOOLS

2350 W Angle Grinder PE-2350WS

manufactured for:

Hornbach Baumarkt AG Hornbachstraße 11 76879 Bornheim / Germany

is in conformity with the following directives:

Machinery Directive 2006/42/EC EMC Directive 2004/108/EC

and in accordance to the following applicable harmonized standards:

EN 60745-1:2009+A11:10
EN 60745-2-3:2011
EN 55014-1:2006/+A1:2009/+A2:2011
EN 55014-2:1997/+A1:2001/+A2:2008
EN 61000-3-2:2006/+A1:2009/+A2:2009
EN 61000-3-3:2008

A. Indiana Jale

Andreas Back

Head of Quality Assurance &

Person authorised to compile the technical file

In case of malfunctions, which are pointing out material or manufacturing faults, please contact your Hornbach store:

1. These conditions are ruling additional warranty performances and are free of charge. The warranty rules given by law will remain untouched.

2. The warranty performance is limited on material or manufacturing faults and the elimination of those or alternatively exchange of the product. As our products are not constructed for professional use, we see the warranty contract as not valid, if the product is used under those circumstances. Excluded are warranty claims for transportation damages, damages coming from non-observance of the installation or user manual (like connection to wrong voltage or wrong electricity), unprofessional installation, abuse or incorrect use (like overstressing the product or usage of not approved tools or accessories), non-observance of the maintenance and safety rules, infiltration of foreign objects (like sand, stones or dust), wrong force or man inducted events (like damages by falling down) plus normal accepted attrition (like battery packs, blades and so on). The warranty claim expires if intrusions were already done.

3. The warranty period is three years and is starting with the date of purchase of the product. Warranty claims must be raised within two weeks after realising the defect. Warranty claims coming later are excluded. The warranty period is neither extended after repair or exchange nor a new warranty period is started for the product or possible spare parts.

4. To enforce warranty claims contact your Hornbach store and show your bill as an original or another dated buying proof. Therefore keep your receipt accurately. Explain the reason of your claims as good as

possible. Is the defect part of our warranty performance, you will get a repaired or new product at once.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equip-■ ment (WEEE). Such equipment may contain dangerous and hazardous substances. These tools must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment. Contact your local authorities for more information.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.
