USER MANUAL L1918 DGM

Line drawing of a flat-screen computer monitor with ventilation slots and a stand (no text or symbols)

19" TFT LCD Monitor

User "s Manual

English ....3

繁體中文 11

简體中文 19

Français 27

Deutsh 35

Italiano 43

Español 51

Dutch....59

Português....67

Before You Start 4

Unpacking 5

Hardware Installation....5

Precaution 6

Troubleshooting....6

Warning 6

Cleaning Notices 6

Menu control button 7

OSD (On-Screen Display) Menu Mode....7-9

Display Mode 9

Specification 10

All Information in this manual may change from time to time without prior notice.

Before you start

1.	Load the two holders and the stand together, and make sure they are secure and tie
2.	Put the LCD panel set into the stand, and make sure they are secure and tie
3.	LCD monitor can be lay back 0° ~2° (positive and negative 2°).

Thank you for your purchase of our LCD product. To ensure safety operation of this product, Please read the following menu carefully before using this product.

Unpacking

Our 19" LCD monitor shall be content with these following items. Make sure you get all these set ready, otherwise contact to your dealer or store which you purchased it. At last, feel free to contact us.

19” TFT LCD Monitor

External Univ15 pin D-sub (RGB Analog) Input Signal Cable

Power Cord

Audio Connector : Stereo Phone Jack

DVI Cord

User's Manual

Quick Start Guide

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

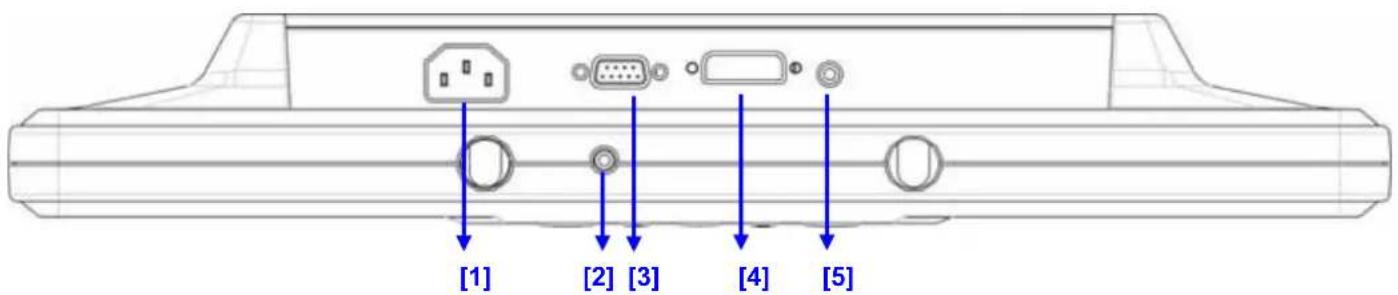

Input

[1] [2] [3] [4] [5]

【1】AC Port: This is for connecting the power cable.
【2】 Earphone Jack : This is for connecting the earphone.
【3】PC In : This can be connected with the D-Sub 15 pin signal Cable.
【4】DVI Port: This can be connected with the DVI signal Cable.
【5】LINE In : This can be connected to the audio-out connector of any sound resource.

Precaution

1. Do not expose the monitor to direct sunlight or heat.
2. Do not spill liquid on the monitor.
3. Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.
4. Do not use your monitor when magnets or electronic products are operating nearby.
5. Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
6. Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
7. Don't use your fingers to touch the LCD Screen, directly. Fingerprint that contains oil and may be difficult to clean.

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

• There is no picture on the screen.

Check:

1. Power saving mode. Press any key and move the mouse to deactivate the mode.
2. Signal cable connector pins. If there are bent or has missing pins, consult your place of purchase.

* Characters look too dark or too light

Check:

1. Using OSD Menu to adjust the Brightness.

* When your monitor shall be adjusted?

Check:

1. If the resolution or refresh rate has been changed.

. The Text appears on the screen are unclear.

Check

1. Make sure the resolution or refresh rate match with the Display Mode.

Warning

1. Make sure that the system power is turned off.
2. Plug the signal cable to the signal connector at the rear of PC.
3. Plug adapter output cable to the jack at the rear of LCD monitor and the power cord to the adapter.
4. Connect the power cord to power source.
5. Turn on the computer and the monitor.
6. For the best picture quality and performance, we suggest you to set resolution base from Display Mode.
7. The lock (on the stand) must be locked during normal operation.

Cleaning Notice

1. Unplug the power cord from the AC outlet before clean the product.
2. Never use any kind of corrosiveness chemical dissolvent to clean the screen, it may hurt your screen surface.
3. We suggest that using a clean camel hair brush or a soft, clean, lint-free cloth to wipe the screen.
4. Don't press or touch directly on the LCD.

Monitor Adjusting

Menu Control Button

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[1]Volume -: Decrease the Volume Value.
[2]Volume +: Increase the Volume Value.
[3]Auto Tune: Auto Tune adjust.
[4]Power: Turn the LCD power on and off.
[5]OSD Menu/Enter: Press the button to access OSD menu.
[6]Select Down: Decrease the option value in OSD menu.
[7]Select Up: Increase the option value in OSD menu.

Switch from DVI operating environment to RGB.

OSD (On-Screen Display) Menu Mode

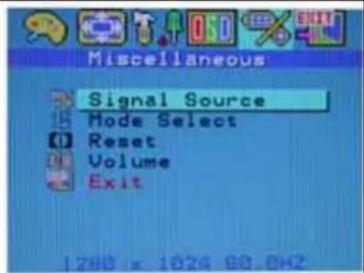

Miscellaneous Signal Source Mode Select Reset Volume Exit

Brightness :

Adjust the brightness of the display.

Color Brightness Contrast Gamma Correct Color Temp. Color Adjust Exit

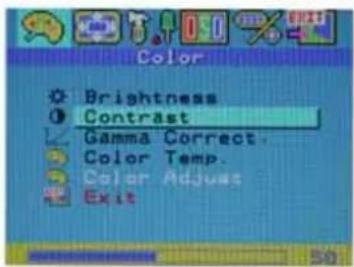

Contrast :

Adjust the difference between light and dark area.

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit

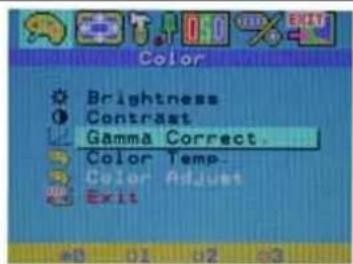

Gamma Correct :

Adjust the gamma curve.

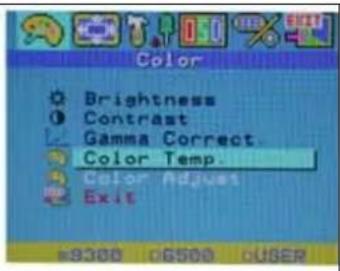

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit =8300 p6500 cUSER

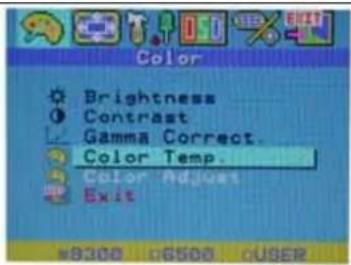

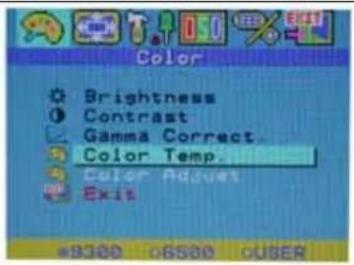

Color Temp :

Adjust the temp of the pixel color.

Color Brightness Contrast Gamma Correct. Color Temp. Exit 1280 x 1024 69.0HZ

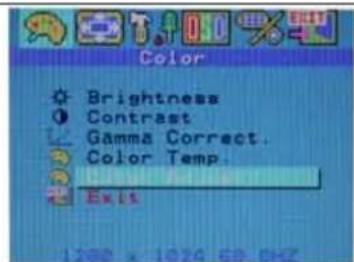

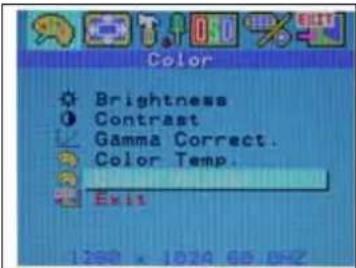

Color Adjust :

Adjust the RGB color.

Color Adjust Red Green Blue Exit

Red :

Adjust the pixel of red pixel.

Green :

Adjust the pixel of green pixel.

Blue :

Adjust the pixel of blue pixel.

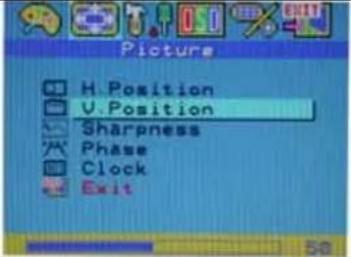

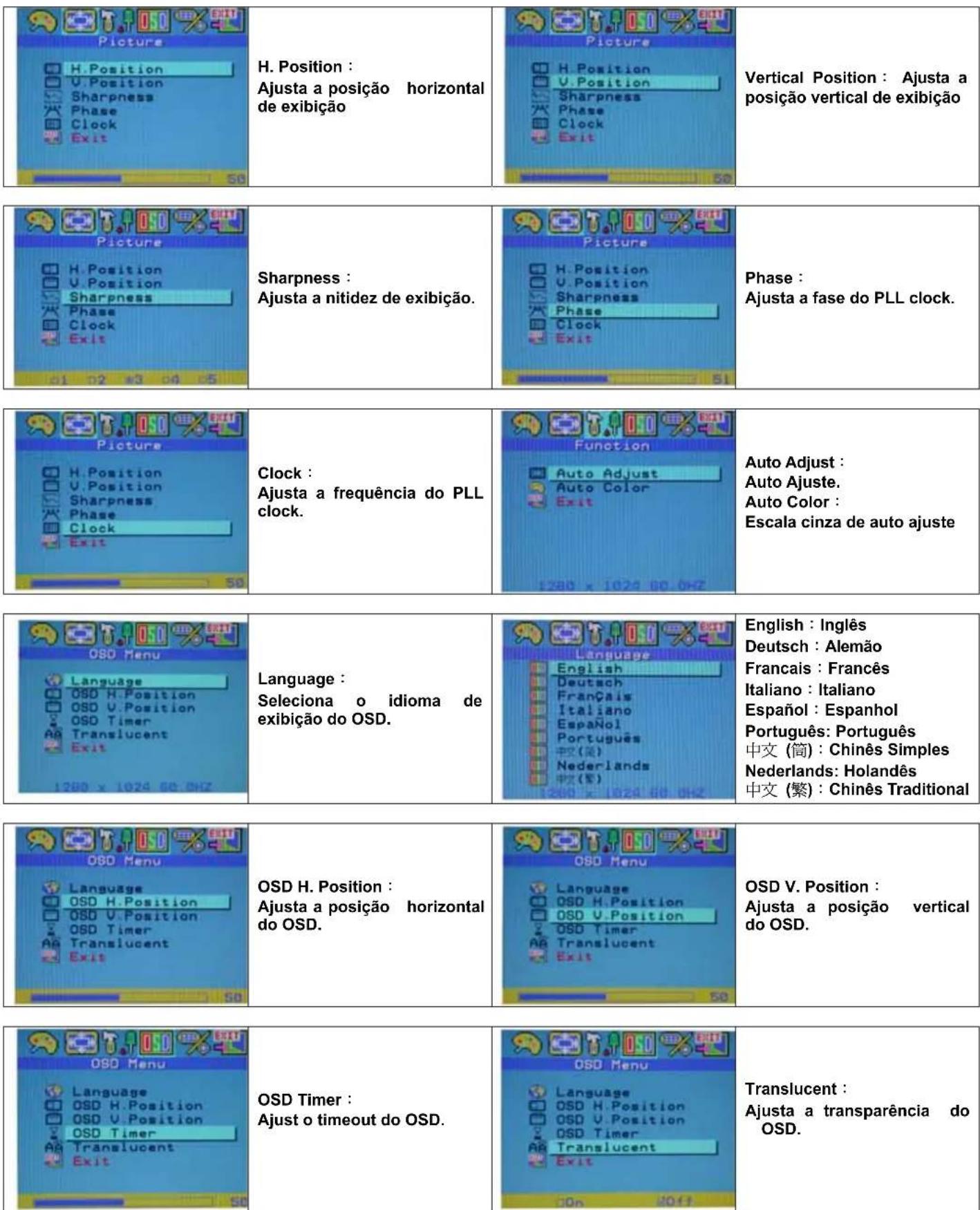

	H. Position: Adjust the horizontal position of the display.		V. Position: Adjust the vertical position of the display.

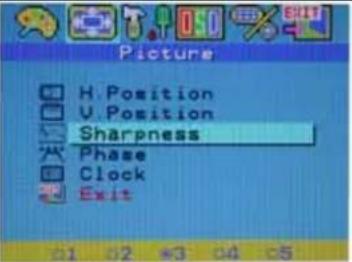

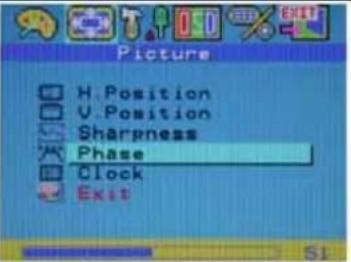

	Sharpness: Adjust the sharpness of display.		Phase: Adjust the phase of PLL clock.
	Clock: Adjust the frequency of the PLL clock.		Auto Adjust: Auto tune. Auto Color: Gray scale auto tune

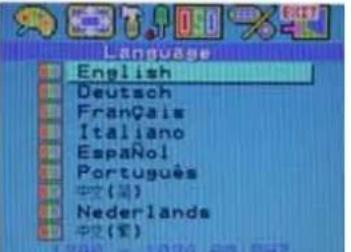

	Language: Select the display language of the OSD.		English: English Deutsch: German Français: French Italiano: Italian Español: Spanish Português: Portuguese 中文(简): Simplified Chinese Nederlands:Dutch 中文(繁): Traditional Chinese

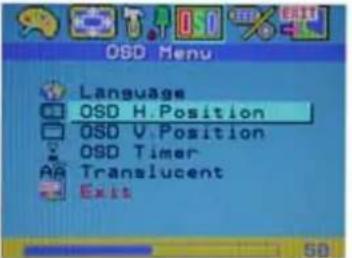

	OSD H. Position: Adjust the horizontal position of the OSD.		OSD V. Position: Adjust the vertical position of OSD.

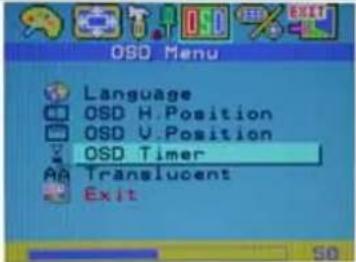

	OSD Timer: Adjust the timeout of OSD.		Translucent: Adjust diaphaneity of the OSD.
	Signal Source :Switch input signalsource.		D-SUB: Analogy RGB signal.DVI: Digital RGB signal.

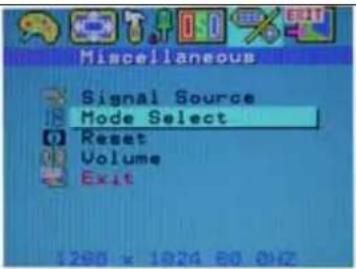

	Mode Select :Switch the display size in DOS mode.		Reset :Recall the default setting.
	Volume :Increase or decrease the sound volume.		Exit :Exit and saving the setting.

DISPLAY MODE

Incoming Display Mode
Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)
640X350	31.475	70.
640X480	31.469	59.
640X480	37.500	75.
720X400	31.469	70.
800X600	37.879	60.
800X600	46.875	75.
1024X768	48.363	60.0
1024X768	60.023	75.0
1280X1024	63.981	60.020
1280X1024	79.976	75.024

1. We offer you 10 available compatible modes with Windows.

2. If any interference occurs on your screen while you modulating your PC or OSD. It is normal.

3. To have best quality, remember to upgrade your video card driver. We strongly recommend you to choose a mode listed in the table.

4. Mode not listed on the table above may not be supported.

5. You may use the power management on your computer. It's good for extension on the product.

Specification

LCD Panel Type	Viewing AngleContrast RatioBrightnessResponse Time(Tr+Tf)Display ColorsMax ResolutionPixel Pitch	19.0” TFT Active Matrix LCD DisplayH:170°, V:170°700 : 1 (Typical)250 (Typical)16 ms16.7M colors1280X1024(SXGA)0.294mm(H)x0.294mm(V)
Input Signals RGB Analog	DVI	Video Level:0.7Vp-p(75Ω)Sync TTL with 75Ω internal pull-up resistorsFrequency FH:30~79KHzF V:56~75 HzSupport digital RGB signal with TMDS signaling type
Compatibility PC Up to 1280X1024@75Hz(Non-interlaced)
Connector	RGBAudioPower	Analog15-pinsStereo Phone Jack, RCA-Jack(L/R)A/C Socket
Power	VoltageConsumptionPower saving mode	100-240V, 50/60Hz(universal) via internal power supplyActive < 48 Watt MaxStandby < 3Watt
Internal Speaker 2Wx2(Stereo) (MAX)
User Interface LED Indicator	Active - Green	Off - Turn offStandby - Orange
Operating Condition Temperature	Air Humidity	5°C~40°C20% ~ 80% R.H.
Dimensions	Physical	463mm(H) x 436mm(W) x 64mm(D)
Net Weight	6.6 Kg
DDC		DDC2B Compliant
Power Management	VESA DPMS
Regulation (Certifications)	CE, FCC, UL/CUL

開始

安裝....12

包裝....13

硬體安裝....13

注意事項....14

簡易故障排除....14

警示 14

清潔要點....14

主要功能鍵 15

OSD 視控模式 15-17

支援顯示模式....17

產品規格表 18

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit

Brightness

(Luminosité):

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit

Contrast (Contraste) :

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit

Gamma Correct

(Correction de gamma):

Ajuste le gamma.

Color Brightness Contrast Gamma Correct Color Temp. Color Adjust Exit 8300 6500 00ER

Color Temp

Color Brightness Contrast Gamma Correct. Color Temp. Exit

Color Adjust

Color Adjust Red Green Blue Exit

Red (Rouge):

Hardware Installation....37

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit

Color Adjust Red Green Blue Exit

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit

Ajustar la Gamma :

Modificar la Curva de gamma

Color Brightness Contrast Gamma Correct Color Temp. Color Adjust Exit *9300 o6500 oUSER

Color de Temp :

Color Adjust Red Green Blue Exit

Rojo :

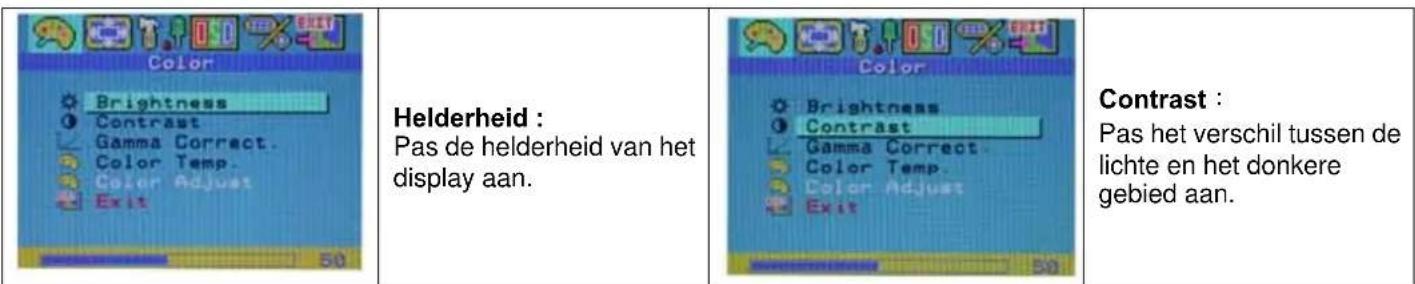

OSD (On-Screen Display) Menu Mode

Color Brightness Contrast Gamma Correct. Color Temp. Color Adjust Exit

Gamma correctie :

Color Brightness Contrast Gamma Correct Color Temp. color Adjust Exit =8300 t6500 cUSER

Color Temp :

Color Brightness Contrast Gamma Correct. Color Temp. Exit

Kleur aanpassen :

Color Adjust Red Green Blue Exit

Rood :

Color Brightness Contrast. Gamma Correct. Color Temp. Color Adjust Exit

Gamma Correct : Ajusta a Curva gamma.

Color Brightness Contrast Gamma Correct Color Temp. Color Adjust Exit ¥9300 06500 OWNER

Color Temp : Ajusta a temp do pixel da cor.

Color Brightness Contrast Gamma Correct. Color Temp. Exit

Color Adjust : Ajusta a cor RGB.

Color Adjust Red Green Blue Exit

Red : Ajusta o pixel do pixel vermelho. Green : Ajusta o pixel do pixel verde. Blue : Ajusta o pixel do pixel azul.
