USER MANUAL L2231WD DGM

22" Wide Screen LCD Monitor

Before You Start

Assembling the base to your monitor step by step.

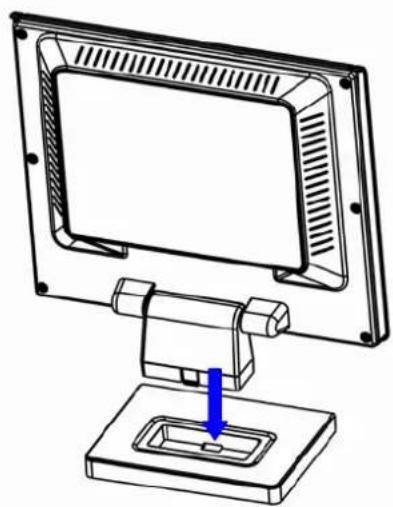

STEP1

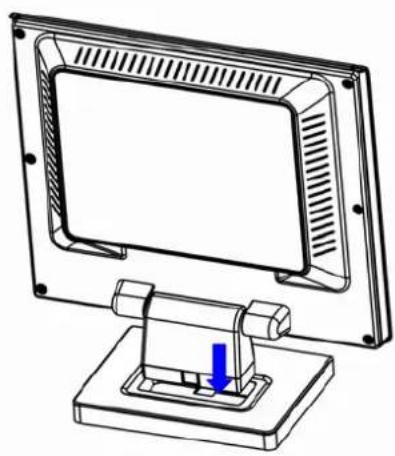

STEP2

Disassembling your monitor and the base step by step.

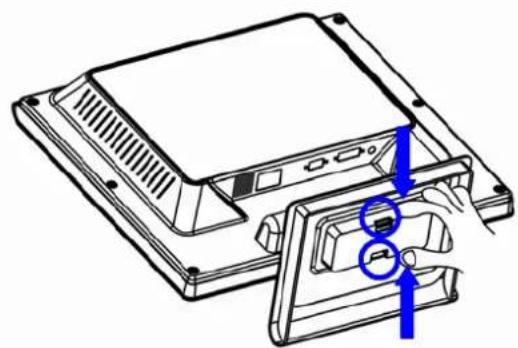

STEP1

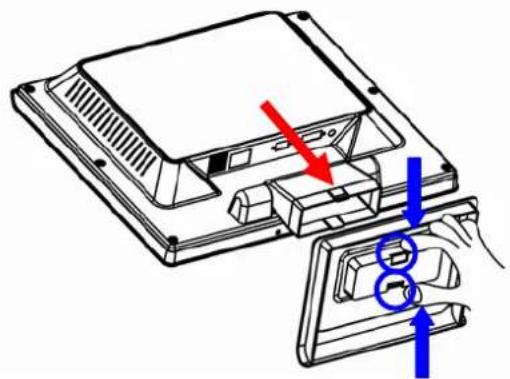

STEP2

Contents

Contents. 1

English 4

Notice 4
Safety Information 4
Precaution. 4

Package Contents 4
Hardware Installation 5
Input 5
Control Buttons 5
OSD (On-Screen Display) Menu Mode 6
Troubleshooting 7
Supported Timing 7
Specification 8

Francais 9

• All Information in this manual may change from time to time without prior notice.
• To ensure safety operation of this product, please read the following menu carefully before using this product.

Safety Information

• Do not place anything wet on the monitor or the power cord.
• Be sure to turn the monitor off before plugging the power cord into the socket.
• Be sure to check the power cord and the other cords are securely and rightly connected.
• Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.

Precaution

• Do not expose the monitor to direct sunlight or heat.
• Do not spill liquid on the monitor.
• Do not use your monitor when magnets or electronic products are operating nearby.
• Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
• Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
• Do not use your fingers to touch the LCD Screen directly. Fingerprint that contains oil and may be difficult to clean.

Package Contents

Our LCD monitor contains these following items. Make sure you get items listed below, otherwise contact to your dealer or store.

1. 22" TFT LCD Monitor
2. Power Cord
3. VGA Cable
4. Audio Cable * Audio function is optional.
5. DVI Cable * DVI cable is optional.
6. User's Manual

Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

Input

AC input : This is for connecting the power cable.

VGA port : This can be connected with the D-Sub 15 pin signal Cable.

DVI port : This can be connected with the DVI signal Cable.

Audio In: This can be connected to the PC audio-out connector of sound resource.

*NOTICE: DVI and Audio functions are optional features.

Control Buttons

There are 5 keys for user to set up the monitor, including "Auto Adjust", "OSD menu", "Power", "Adjust < -> ", "Adjust < +> ". The following descriptions are the introduction of these Keys.

Auto Adjust (Function)

A Function Select Button: This button allows you to select the control functions up in the OSD. Hotkey: Press this button to apply the monitor setting automatically.

Menu (Function)

M Function Select Button: This button allows you to select the control functions down in the OSD. Hotkey: Press this button to get a pop-up OSD menu.

Power: Turn the LCD power on and off. When the power is on, the light is showing blue, Stand by will be flash.

• Adjust < -> : Decrease the option value in the OSD menu.
• Adjust < + > : Increase the option value in the OSD menu.

OSD (On-Screen Display) Menu Mode

Press the OSD button to access menu, and press Increase / Decrease button for adjustment.

BRIGHTNESS	Adjust the brightness of the display.
CONTRAST	Adjust the difference between light and dark area.
PHASE	The phase of the dot clock is adjusted.
CLOCK	The ratio of dividing frequency of the dot clock is adjusted.
H-POSITION	Adjust the horizontal position of the display.
V-POSITION	Adjust the vertical position of display.
RESET	Recall the default setting.
COLOR TEMPERATURE	Adjust the color temperature.
RED	Adjust the Red color temperature.
GREEN	Adjust the Green color temperature.
BLUE	Adjust the Blue color temperature.
LANGUAGE	Select the display language of the OSD Menu.
MISCELLANEOUS	“No” will take you to the exit menu. “Yes” will bring you to the sub menus of the Miscellaneous menu.
EXIT OSD	Saving and Leave.

MISCELLANEOUS

RETURN	Return to main menu.
OSD H-POSITION	Adjust the horizontal position of the OSD.
OSD V-POSITION	Adjust the vertical position of the OSD.
OSD DURATION	Adjust the timing of the OSD menu.
AUTO COLOR	Adjust the color automatically.
VOLUME	Increase or decrease the sound volume.
SOURCE	Select input Video source: VGA or DVI

Notice: Source is optional feature.

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check: 1.Power saving mode. Press any key and move the mouse to deactivate the mode.

1. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

Characters look too dark or too light

Check: Using OSD Menu to adjust the Brightness.

When your monitor shall be adjusted?

Check: If the resolution of frequency is being changed.

. The text appears on the screen are unclear.

Check: Make sure the resolution or refresh rate match with the Display Mode.

Supported Timing

Display Mode
Resolution Vertical	Frequency (Hz) Horizontal Frequency (KHz)
640x350	70.08
640x480	59.94
640x480	75
640x480	72.81
720x400	70.08
800x600	56.25
800x600	60.32
800x600	75
800x600	72.19
1024x768	60
1024x768	70.07
1024x768	75.03
1280x800	60
1280x800	75.2
1280x1024	60
1280x1024	75
1440x900	59.88
1440x900	74.9
1600x1200	60
1680x1050	59.95

Specification

Input Signals	VGA DVI*	VGA compatible analog RGB Composite sync supported DDWG compliant Single Link TMDS Digital Visual Interface (DVI)
Compatibility	PC Up to 1680X1050@60Hz(z(Non-interlaced)
Connector	VGA DVI* Audio* Power	D-sub 15-pins DVI-D* Stereo Phone Jack A/C Input
Power	Voltage Consumption Power saving mode	Built-in universal power supply:100-240 VAC, 50/60 Hz Active < 54 Watt Max. Standby < 3 Watt
Internal Speaker		Speaker x2*
User Interface	LED Indicator Active	Blue Standby - Flash
Operating Condition	Temperature Humidity	Operating: 5°C to 40°C 20% ~ 80% R.H.
Dimensions	Physical 526.2mm(W) x 433	.5mm(H) x 172.7mm(D)
Net Weight		4.6 Kg
DDC		DDC2B
Power Management		VESA DPMS
Regulation (Certifications)	UL/CUL, FCC, CE

Notice: * DVI, Speaker are optional.
