USER MANUAL MJL501 PANASONIC

Operating Instructions

Bedienungsanleitung

Mode d'emploi

Gebruiksaanwijzing

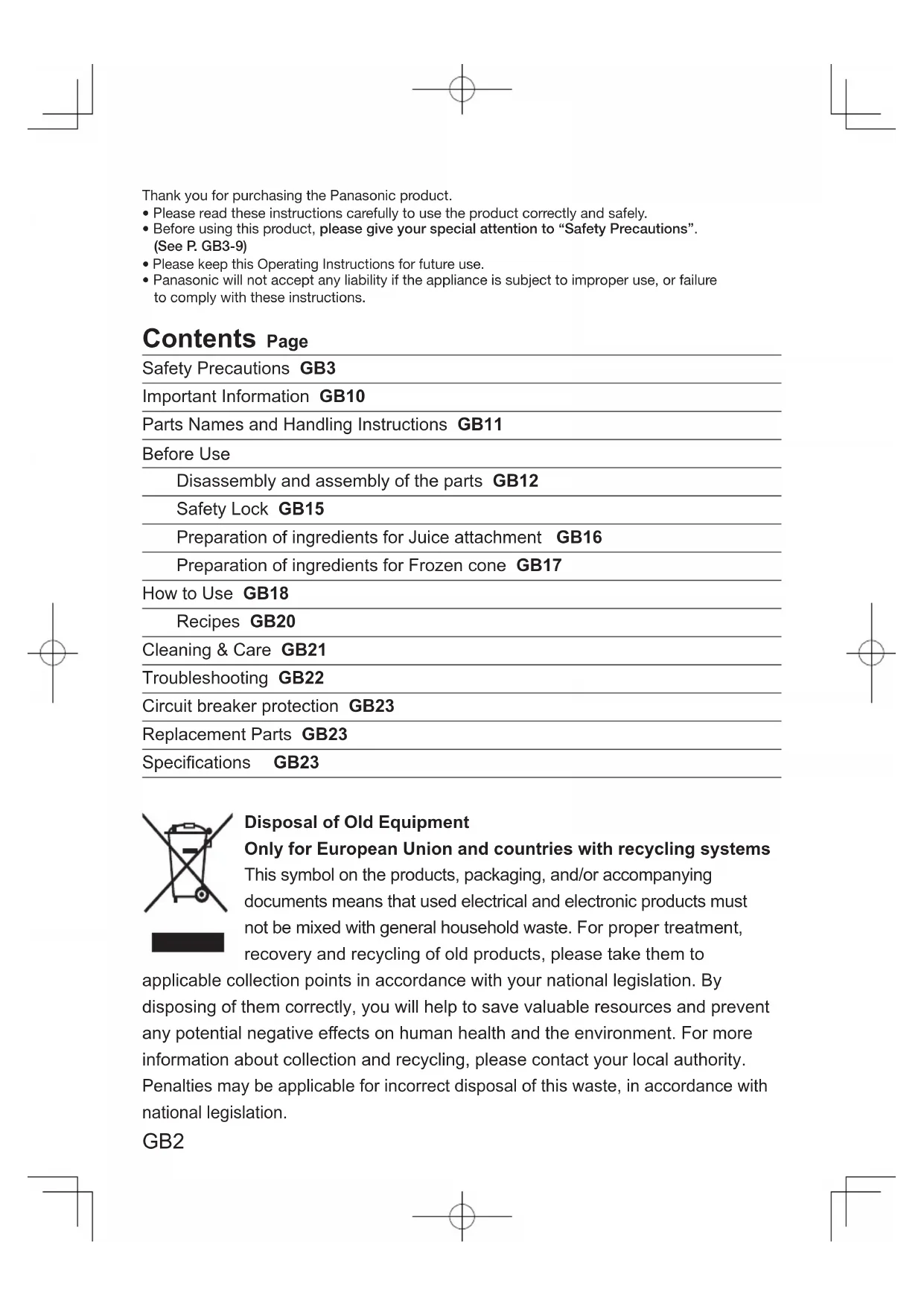

Thank you for purchasing the Panasonic product.

• Please read these instructions carefully to use the product correctly and safely.
  Before using this product, please give your special attention to "Safety Precautions". (See P. GB3-9)
• Please keep this Operating Instructions for future use.
• Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Contents Page

Safety Precautions GB3

Important Information GB10

Parts Names and Handling Instructions GB11

Before Use

Disassembly and assembly of the parts GB12

Safety Lock GB15

Preparation of ingredients for Juice attachment GB16

Preparation of ingredients for Frozen cone GB17

How to Use GB18

Recipes GB20

Cleaning & Care GB21

Troubleshooting GB22

Circuit breaker protection GB23

Replacement Parts GB23

Specifications GB23

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to

applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local authority. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

GB2

Safety Precautions

Please make sure to follow these instructions.

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

The following chart indicates the degree of damage caused by improper operation.

WARNING: Indicates potential hazard that could result in serious injury or death.

CAUTION: Indicates potential hazard that could result in minor injury or property damage.

The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burns or injury.

• Do not disassemble, repair or modify this appliance.

Consult the place of purchase or a Panasonic service centre.

• Do not damage the mains lead or mains plug.

Following actions are strictly prohibited. Modifying, touching on or placing near heating elements, bending, twisting, pulling, pulled over sharp edges, putting heavy objects on top, bundling the mains lead and carrying the appliance by the mains lead.

• Do not plug or unplug the mains plug with wet hands.

Safety Precautions

Please make sure to follow these instructions.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burns or injury.

• Do not use the appliance if the mains lead or mains plug is damaged or the mains plug is loosely connected to the household mains socket.

If the mains lead is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not allow infants and children to play with packaging material.

(It may cause suffocation.)

• Do not let the mains lead hang over edge of table or worktop.
• Do not use the appliance if the squeezing screw, the juicing bowl, the juice cone or the frozen cone is damaged or has visible cracks.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burns or injury.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Always keep the infants and children away from the appliance.

• Children do not realise dangers that are likely to occur due to improper use of appliances.

Make sure the voltage indicated on the label of the appliance is the same as your local supply.

Also avoid plugging other devices into the same household mains socket to prevent electrical overheating. However, if you are connecting a number of mains plugs, make sure the total wattage does not exceed the rated wattage of the household mains socket.

Safety Precautions

Please make sure to follow these instructions.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burns or injury.

• Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

Example for abnormal occurrences or breaking down:

• The mains plug and the mains lead become abnormally hot.
• The mains lead is damaged or the appliance power fails.
• The motor housing is deformed, has visible damage or is abnormally hot.
  There is abnormal turning noise while in use.
• There is unpleasant smell.
  There is another abnormality or failure.
  Unplug the appliance immediately and consult the place of purchase or a Panasonic service centre for inspection or repair.

Insert the mains plug firmly.

Dust off the mains plug regularly.

Unplug the mains plug, and wipe with a dry cloth.

CAUTION

To avoid risk of electric shock, fire, burn, injury or property damage.

• Donot leave the appliance unattended during operation.

When leaving it, turn the power off.

• Do not insert any object in the gaps.

• Especially metal objects such as pins or wires.

• Do not use the appliance in the following locations.

• On uneven surfaces, on carpet or tablecloths etc.

• Places where it may be splashed with water or near a heat source.

• Near any open water such as bathtubs, sinks, or other containers.

• Do not immerse the motor housing in water or splash it with water and/or any liquid.

• Do not hold the appliance by the mains lead.
• Donot put your fingers or utensils such as spoons or forks into the small/large feed inlet while the appliance is operating. If food becomes clogged in the the small/ large feed inlet, use the food pusher or another piece of fruit or vegetable to push it down.

Safety Precautions

Please make sure to follow these instructions.

CAUTION

To avoid risk of electric shock, fire, burn, injury or property damage.

• Do not replace any parts of the appliance with the replacement parts other than this appliance genuine parts.
• Do not place hot ingredients (over 60^ C ) into the small/large feed inlet.
• Do not open the lid or disassemble the juicing bowl during operating.
• Do not get hair, necklace or string of clothes close to the small/large feed inlet. (It may cause injury due to entrainment.)
  Make sure to hold the mains plug when unplugging. Never pull on the mains lead.
• When moving appliance, move the motor housing and juicing bowl separately by holding the bottom of each part with both hands after unplug. Do not move the appliance by holding the lid or juicing bowl.

Juicing bowl

Motor housing

CAUTION

To avoid risk of burns, injury, fire, electric shock or electrical leakage.

Care shall be taken when handling and cleaning the squeezing screw and juice attachment.

• Beware not to tripped over or get caught in the mains lead while in use.
• Place the appliance on a firm, dry, clean flat heatproof worktop.
  Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Switch off the appliance and disconnect from supply before changing attachment or approaching parts that move in use.
• Ensure to operate and rest the appliance as stated on specification table.

(See P. GB23 "Specifications")

• Ensure to clean the appliance especially surfaces in contact with food after use.

(See P. GB21 "Cleaning & Care")

This product is intended for household use only.

Important Information

• Do not place the juice container and pulp container in a microwave.
• Do not drop the appliance to avoid damaging it.
• Do not use the appliance outdoors.
• Do not wrap the mains lead around the motor housing.
  Make sure attachments are set firmly.
• Do not operate empty for more than 30 seconds after turning it on. (It may damage the squeezing screw.) Insert ingredients immediately after the appliance is turned on.
• Do not block the pulp spout and juice spout during operation.

This symbol indicates "Do not move the appliance by holding the lid or juicing bowl."

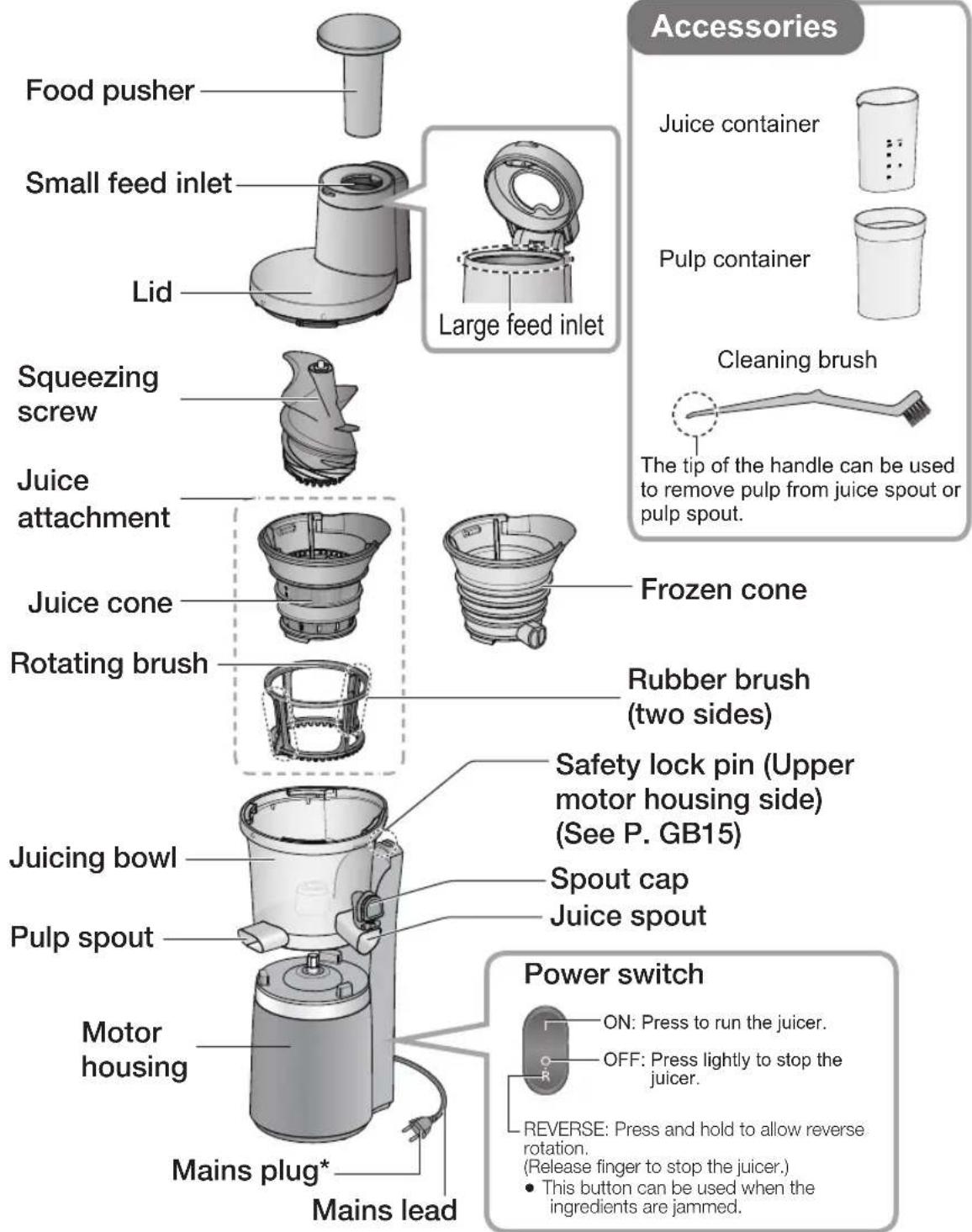

Parts Names and Handling Instructions

• Wash all the detachable parts before using the appliance for the first time or when you have not used it for a while. (See P. GB21)

* The shape of plug may be different from illustration.

Before Use

Disassembly and assembly of the parts

The following steps show how to detach/attach attachments, using the juice attachment as an example.

The frozen cone can be detached/attached in the same method.

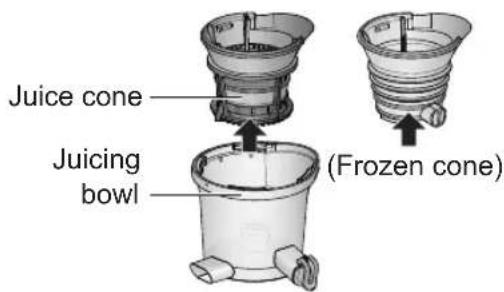

To disassemble the juicing bowl

1 Remove the juicing bowl from the motor housing.

2 Remove the squeezing screw from the juice attachment.

3 Remove the juice cone or frozen cone from the juicing bowl.

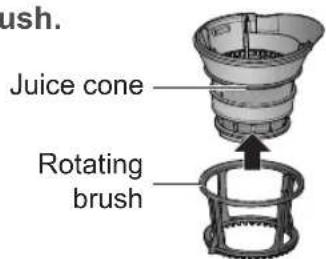

4 Separate the juice cone and rotating brush.

Preparation parts

Make sure the parts are in correct position.

The juicer may not work properly if they are not assembled correctly.

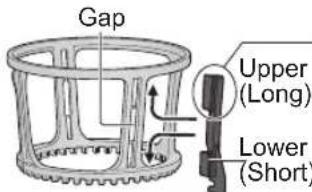

Rubber brushes

Rubber brushes are located on side of the rotating brush.

To detach To attach

Push the rubber brush to the direction indicated by the arrow mark and take the part out from the gap.

Note Do not pull the rubber brush hard.

Insert the upper/lower grooves of the rubber brush into the gap and then slide it all the way up/down both ends.
To avoid damaging the juicer, make sure the upper and lower grooves are in the correct position.

Insert the groove to the projected part.

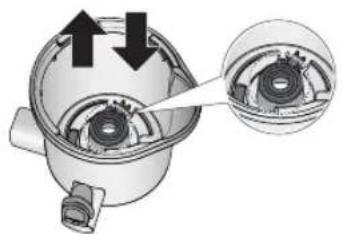

Gasket

Gasket is located in the centre of the juicing bowl (inner side).

To detach

Pull the gasket up.

To attach

Push the gasket into opening as figure below.

Push
Sectional view

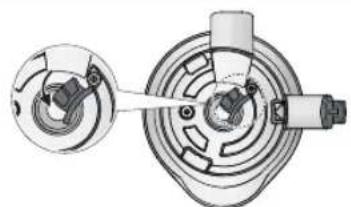

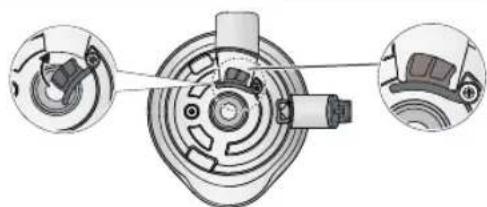

Rubber plug

Rubber plug of outer bottom of the juicing bowl.
- Illustrations are the view from the outer bottom side of juicing bowl.

To detach To attach

Pull the rubber plug out in the direction of the arrow.

Cannot be removed from the juicing bowl.

Push the rubber plug into the opening in the direction of the arrow until there is no gap.

Before Use (Continued)

To assemble the attachments

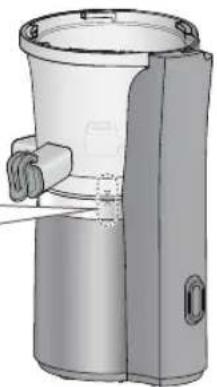

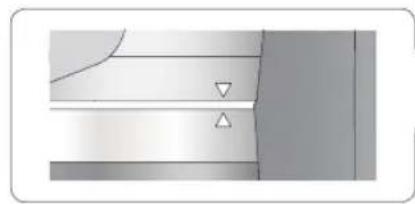

1 Set the juicing bowl on the motor housing.

Align the "△" mark on the motor housing and the "▽" on the juicing bowl.

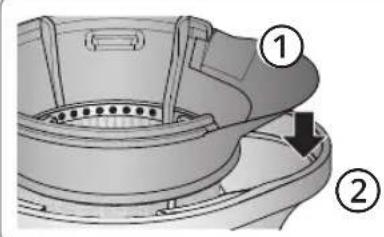

2 Attach the rotating brush and juice cone, then set it on the juicing bowl.

Align ① and ②

(Frozen cone)

3 Mount the squeezing screw.

① Insert the squeezing screw into the centre.
② Rotate the squeezing screw and push it into the hole until it stops.
The lid cannot be closed if the squeezing screw is not pushed down sufficiently.
- Be careful not to get your finger clamped in the gap between the squeezing screw and the juice cone.

①

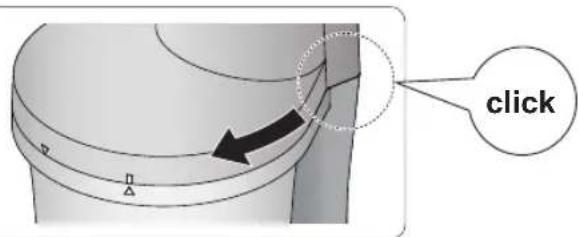

Detaching/Attaching the lid

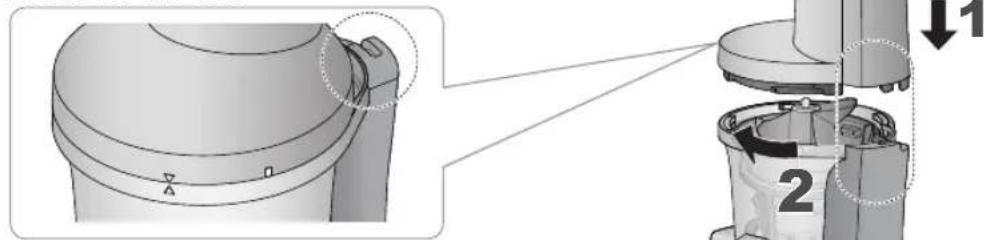

To attach

1 Align the "△" mark on the motor housing and the "▽" mark on the lid.

2 Turn the lid clockwise until you hear a "click" sound.

To detach, follow the reverse steps.

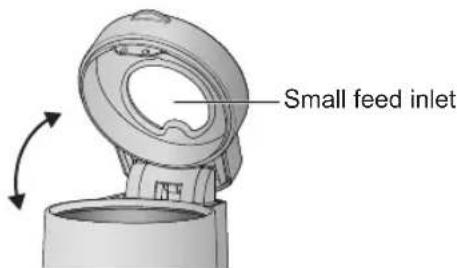

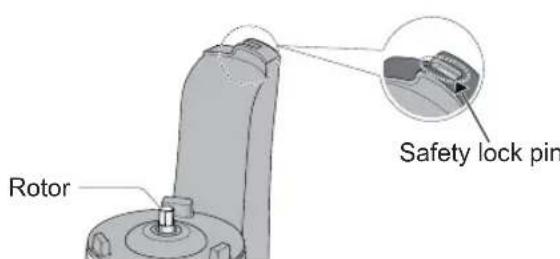

Safety lock

The safety lock has been designed to prevent the juicer from switching on when the parts are not properly in place.

Do not push the safety lock pin with any implement, stick etc.

When opening the small feed inlet, the safety lock pin will be released and stop the machine.

Before Use (Continued)

Preparation of ingredients for Juice attachment

Prohibited ingredients

Ingredients that may cause part damages

Ice and frozen ingredients
Seed of peach, plum, mango, cherries, olives etc.
Persimmon (whose seeds cannot be removed completely)
- Dry foods (soy bean, other beans, grains etc.) - Unheated pumpkin etc.
Sugar cane
Liquor, vegetable oil, other cooking oils Meat, fish etc.
Hot foods or ingredients*

Heated foods which contains large amount of starch

Beans

Potato

Sweet potato

Pumpkin etc.

Sticky ingredients which are not squeezable

• Lotus root
  Okra

Mulukhiya etc.

Oily ingredients*2

Sesame
Walnut
Peanut etc.

1 Cool down to under 60^ before handling.
2 Oily ingredients which can be squeezed with liquid added.

Ingredient preparation

Common

• Cut fruit or vegetables into pieces that are small enough to fall down into the small/large feed inlet.
• Cut stick type ingredients such as carrots, or cucumber into less than 8 cm length.
• When using large feed inlet with carrots, cut it into 5cm length and width or less.

Fruit

• Peel the thick skin and remove large and/or hard core, seeds, and stones from fruit such as pineapple, citrus fruits, peaches, and mangoes.

Vegetable

• Remove stem end and seeds.
• Cut leaf vegetables into approximately 3cm pieces or strips.
• Cut thick fibrous vegetables such as celery into 2 cm length or less.

Tips

Common

• Use fresh fruit and vegetables.
  Taste and extracting amount may vary with freshness and harvesting timing of ingredients.
• When using ingredients with less moisture, add equivalent amount of liquid such as water or milk little by little.
• It is better juicing ingredients which contain a lot of flesh such as bananas, peaches or mangos with moist fruit such as apples or oranges.
• Leaf vegetable is easy to stick to the squeezing screw and/or inside of attachments or easy to jam the pulp spout. Recommend to feed them into the small feed inlet with stems.
  Cooked mushrooms are not recommended.

• Do not put the pulp into the small feed inlet again for extracting.

• When squeezing large amounts of juice

• Juice may not flow well when the pulp clogs and presses against the gear section (depending on ingredients). If the pulp stops releasing or juice does not flow smoothly, stop juicing and wash out the clogged pomace. Ingredients that more easily clog with pulp: Grapes, pineapples, cooked asparagus, broccoli, ginger, etc.

• Juice may not flow because solid fruit content or pulp is blocking juice spout when squeezing low moisture ingredients and cooked vegetables. Use high moisture ingredients or some liquid to make smooth squeezing.

Preparation of ingredients for Frozen cone

• Do not use the large feed inlet when using the frozen cone.

Prohibited ingredients

Ingredients that may cause part damages

Ice cubes and deeply frozen ingredients.

Coffee beans, dry beans, grains etc.

Pumpkin, sweet potato etc. (Frozen when raw or after being boiled)

Bread, rice, noodles, and pasta.

Liquor, vegetable oil, other cooking oils.

Ingredient preparation

① Peel skin and remove large and/or hard seeds and stones etc. from ingredients such as apples, pineapples, oranges and avocado.

For citrus fruit, peel thin skin to have better texture.

For tomatoes, boil them and peel skin.

② Cut ingredients into pieces that are small enough to fall down into the small feed inlet. (Less than 3 cm cubes.)

③ Freeze ingredient. When freezing ingredients, spread them out flat on an aluminium tray avoiding that they touch each other.

(4) Thaw frozen ingredients at room temperature until a fork can penetrate to their centre. (approx. 5-30 minutes)

Tips

• When thawing is insufficient, ingredients are not mixed or they do not become a smooth texture.
• Do not use re-frozen ingredients or ingredients which are stored in a freezer for a long period of time.
• Frozen ingredients should be used within one month.
  If frozen ingredients are used immediately after taking out from a freezer, it may cause a malfunction on the appliance.

How to use

Preparations

① Install parts on the motor housing and attach the lid. (See P. GB12-15)
② Prepare ingredients. (See P. GB16-17)
③ Place containers under the juice spout and pulp spout.

• When using the frozen cone, placing the pulp container is not necessary.

④ Insert the mains plug into a household mains socket.

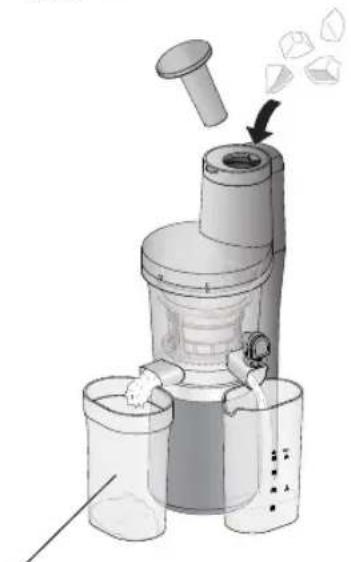

Extracting

Press the "I" (ON) button.

2 Feed ingredients into the small feed inlet slowly and push them down by using the food pusher.

Feed ingredients little by little approximately every 5 seconds.
- When using more than one kind of ingredients, feed them little by little alternately.
- Do not force to push ingredients into the feeding inlet.
In the case of jamming of ingredients or idle running, press and hold the "R" (REVERSE) button for several seconds. (See P. GB11)

3 After extracting is completed, press the "O" (OFF) button and close the spout cap.

• Continue to run until juice pomace or frozen cream is completely extracted. It may cause difficulty for opening the lid.

It is not necessary for frozen recipe.

After use

Pull out the mains plug.
Use the tip of cleaning brush to remove the pulp from juice spout and pulp spout.
- Remove parts and clean them. (See P. GB21) - Do not move the juicer by holding the lid or juicing bowl. (Dropping parts may cause injury.)

Note

Depending on ingredients (especially hard ingredients), their pulp may mix into the juice.
If pulp is disturbing your drink, strain your drink.
- When pulp is not coming out or pulp is accumulating back of the pulp spout and top of the juice attachment, turn the switch off and remove them.

GB18

Extracting (Using large feed inlet with juice attachment)

• When using the frozen ingredients, do not use the large feed inlet.

Press the "O" (OFF) button.
Make sure the power switch is not "I" (ON) position.
Take out the food pusher if it is set.
3 Open the small feed inlet, and put the ingredients into the large feed inlet, then close the small feed inlet.
4 Place the food pusher into the small feed inlet. (Depending on the ingredients.)

Use the food pusher only while the small feed inlet is closed.

The food pusher should be used only through the small feed inlet.

Press the "l" (ON) button and push down the ingredients by using the food pusher.

Each ingredient runs approximately every 10 - 15 seconds.

Depending on the ingredients.)

6 After extracting is completed, return to Step 1.

• Continue to run until juice pomace is completely extracted. It may cause

difficulty for opening the lid or the small feed inlet.

How to use (Continued)

Recipes

Juice cone or Frozen cone

1. Carrot and Orange Juice

(For 2 servings)

Carrot 300g
Banana 120g
Orange 210g
Lemon 10g

2. Carrot and Apple Juice

(For 2 servings)

Carrot 300g
Apple 300g
Lemon 30g

3. Paprika and Tomato Juice

(For 2 servings)

Red paprika 120g
Tomato 200g
- Banana 60 g
Lemon 10g
Apple 200g

4. Apple and Spinach Juice

(For 2 servings)

Apple 400g
Spinach 140g
Banana 100g
Lemon 20g

5. Cabbage and Apple Juice

(For 2 servings)

Cabbage 200g
- Parsley 50 g
Apple 200g
Lemon 30g

6. Blueberry and Banana frozen dish

(For 2 servings)

• Frozen blueberry 100 g
• Frozen banana 180 g

Do not use the large feed inlet.

Cleaning & Care

Clean the appliance after every use.
Unplug before cleaning.
- Do not use benzine, thinner, alcohol, bleach, polishing powder, metal brush or nylon brush, otherwise the surface will be damaged.
Do not clean the appliance with pointed object such as a toothpick or pin.
- Wash with diluted dish soap (neutral) and a soft sponge except motor housing. Then rinse thoroughly with water and dry well.
Some discolouration of parts may occur upon using ingredients like carrot or leaf vegetable etc. Cleaning all parts immediately after each use will help to reduce stains.

NOT dishwasher safe

Food pusher

Squeezing ^*1 screw

Juicing bowl*2

Lid

Rotating brush (See P. GB13)

Motor housing*3

Dishwasher safe

Juice cone*4

Frozen cone

Accessories

Not dishwasher safe parts

1: Use the cleaning brush to clean the bottom surface of squeezing screw.
2: After drying all the parts, attach them correctly.(See P. GB13)

• Use the tip of cleaning brush handle to clean the spouts of the juicing bowl. (The inner surfaces may be scratched if you use the cleaning brush to clear

*3: Wipe with a well-wrung cloth.

Dishwasher safe parts

Before putting the parts into a dishwasher, remove residue on the parts.
- Heat may cause cracking of parts. Always place the parts away from any heater or set a low temperature of heater.

*4: When the juice cone is clogged, use the cleaning brush to clean.

■ About the rubber brushes, gasket and rubber plug (See P. GB13)

After washing, drain off water well and then attach them.

Do not leave them unassembled.

(Otherwise there is a risk of loss, choking on and swallowing of little parts by children, product failure, or leakage of juice.)

Storage

To avoid formation of rust, dry the parts after washing.
To avoid failure, do not place the motor housing up-side down.
To move the juicer, separate the juicing bowl from the motor housing and hold them with both hands. (See P. GB8)
Store the appliance in a place that is beyond the reach of young children.

Troubleshooting

Problem C	se and solution
The juicer does not run after the power is switched on.	● Is the mains plug inserted into a household mains socket? → Insert the mains plug into a household mains socket. ● Set the juicer correctly. → The lid needs to be turned until you hear a “click” sound. If you fail to do so, the juicer will not run after the power is switched on. (See P. GB15) ● The circuit breaker protection is activated. → See “circuit breaker protection”. (See P. GB23) Remove prohibited ingredients from the juicer.
The motor housing is hot.	● The operating time is longer than the rated duration. → Follow the rated duration (up to 15 minutes). To resume operation, please wait for at least 30 minutes. This allows the motor housing to cool down and avoid failure due to overheating of motor.
The juicer stopped suddenly.	● The lid or small feed inlet is open. → Switch off the power, close the lid, and start again. ● The circuit breaker protection is activated. → See “Circuit breaker protection”. (See P. GB23) Remove prohibited ingredients from the juicer. ● Clogging of pulp spout. → Switch off the power and remove residue using the tip of cleaning brush handle.
Noise during operation.	● This is normal. You may hear sound such as squeaking or cracking. ● These are the sound of ingredients being compressed. (Depending on the ingredients, the noise may be quite loud.) ● This is the sound of the rotating brush contacting with juice cone.
Leakage of juice or frozen dish.	● Incorrect assembly of the gasket, rubber brushes and/or rubber plug. → Attach them correctly. (See P. GB12-13)
The juicing bowl or motor housing shakes during operation.	● This is normal. Since the juicing bowl and motor housing are a split type, they may shake when the squeezing screw is rotating. Do not press the lid or juicing bowl. (Doing so may result in failure of the juicer.)
Abnormal noise or vibration.	● The squeezing screw and attachments are not attached correctly. → Attach the squeezing screw and attachments correctly. (See P. GB12-13)

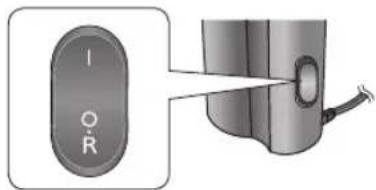

Circuit breaker protection

The motor may stop running when the circuit breaker protection is activated to prevent overload of motor. If the motor stops, please take the following steps:

Switch off the power.

Press the "O" (OFF) button.

2 Press the "R" (REVERSE) button to allow reverse operation for several seconds.
3 Switch off the power and remove ingredients from attachments.
Press the "I" (ON) button.

• Reduce the amount of ingredients being fed in and push them gently into the small/large feed inlet.

Replacement Parts

■ Juice cone

Part number:

JD33-163-K0

Gasket

Part number:

JD27-153

■ Frozen cone

Part number:

JD38-163-A0

Pulp container

Part number:

JD36-153-K1

Rotating brush

Part number:

JD35-153-K0

Rubber brush

Part number:

JD34-163

■ Juice container

Part number:

JD05-163-K1

Specifications

	MJ-L700
Power supply 220 - 240 V	~ 50 - 60 Hz
Power consumption 150 W
Operation rating	2 consecutive cycles of 15 min. ON, then 30 min. OFF
Dimensions (W × D × H) (approx.) 19 ×	20.5 × 42.5 cm
Mass (approx.) 4.0 k	g
Length of the mains lead (approx.) 1.0 m
Airborne Acoustical Noise 63 dB(A) (ref	1 pW)

Carotte 300g
Banane 120g
Orange 210g
·Citron 10g

(Zie p. NL23 "Specifications")

Sesamzaad
Walnoot
Pinda's enz.

2. Carrot and Apple Juice

(Para 2 porciones)

Zanahoria 300g
Manzana 300g
·Limón 30g

3. Paprika and Tomato Juice

(Para 2 porciones)

Paprica roja 120g
Tomates 200g
- Banana 60g
·Limon 10g
Manzana 200g

4. Apple and Spinach Juice

(Para 2 porciones)

Manzana 400g
·Espinacas 140g
Banana 100g
·Limon 20g

5. Cabbage and Apple Juice

(Para 2 porciones)

Col 200g
Perejil 50g
Manzana 200g
- Limón 30g

6. Blueberry and Banana frozen dish

(Para 2 porciones)

Arandanos congelados 100g
Banana congelada 180g

Ziemniaki
Dynia itp.

Able 400g
- Spinat 140 g
- Banan 100g
Citrone 20g

Montera/lossa locket

För montering

Representative in EU :

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Panasonic Taiwan Co., Ltd.

http://www.panasonic.com

© Panasonic Taiwan Co., Ltd. 2019

Printed in China

JZ50G163

DL0119K0
