USER MANUAL Fit 3.0 COMPEX

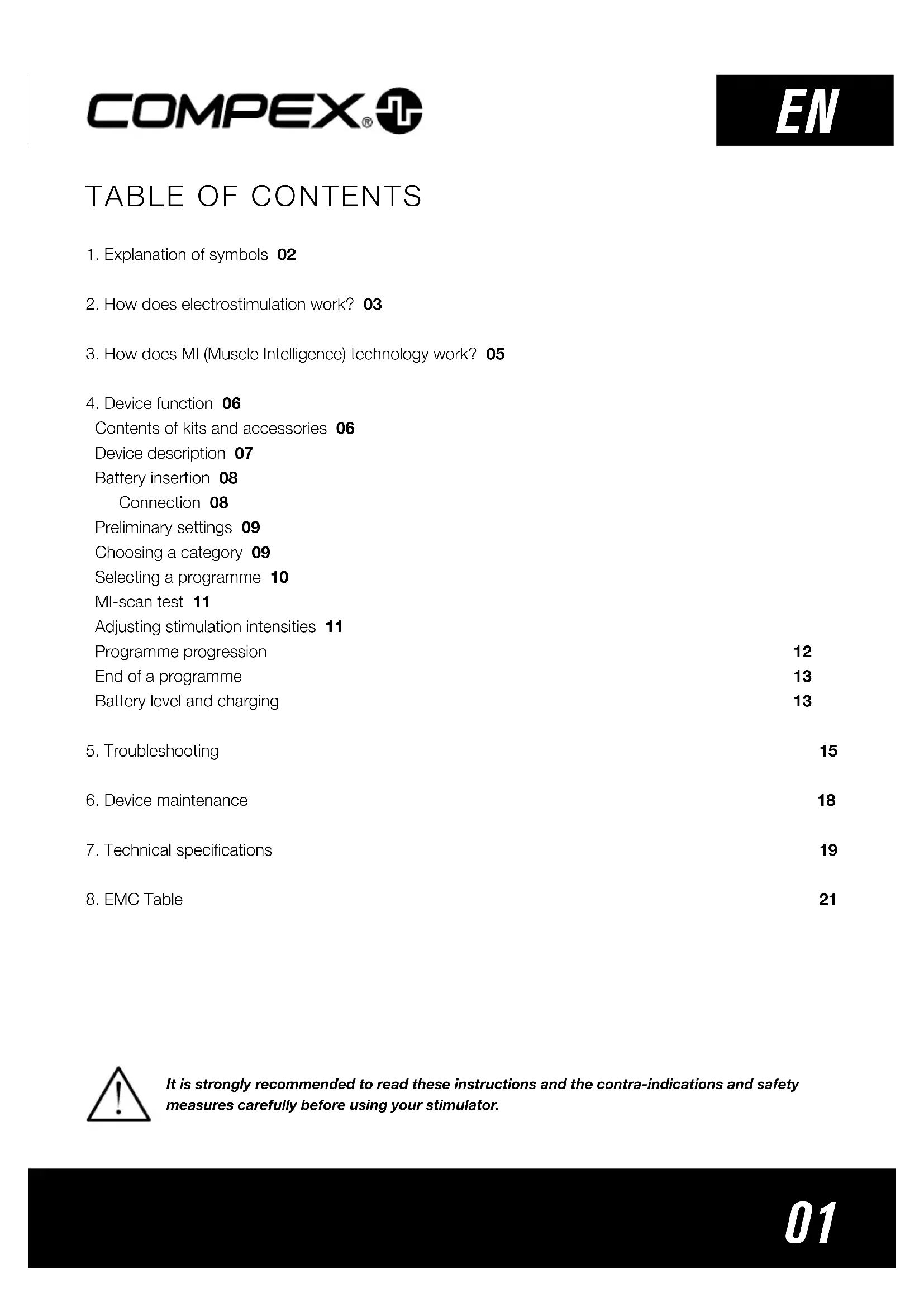

1. Explanation of symbols 02
2. How does electrostimulation work? 03
3. How does MI (Muscle Intelligence) technology work? 05
4. Device function 06

Contents of kits and accessories 06

Device description 07

Battery insertion 08

Connection 08

Preliminary settings 09

Choosing a category 09

Selecting a programme 10

MI-scan test 11

Adjusting stimulation intensities 11

Programme progression

End of a programme

Battery level and charging

1. Troubleshooting 15
2. Device maintenance 18
3. Technical specifications 19
4. EMC Table 21

It is strongly recommended to read these instructions and the contra-indications and safety measures carefully before using your stimulator.

1. EXPLANATION OF SYMBOLS

See the instructions	REF	Reference number
The stimulator is a category II device with built-in power supply and type BF applied parts.	LOT	Batch number
Manufacturer's name and address	MD	Medical device
Name and address of approved representative in the European Union	SN	Serial number
This device must be separated from household waste and sent to special collection facilities for recycling and recovery	UDI	Unique Device Identification
The stand-by button is multi-functional		Best used by
Protect from sunlight		Origin and date of manufacture
Store in a dry place	%	Relative humidity
This is an indication for protection against ingress of water and particulate matter. The mark IP20 on your unit means: your unit is protected against solid foreign objects of 12.5mm dia and greater. Not protected against water		Temperature
IP02 on the case	IP02 on the carrying case means: Protected from the ingress of water droplets from a shower of rain.	Atmospheric pressure
Latex-free	CE 2797	CE mark with notify body number

2. HOW DOES ELECTROSTIMULATION WORK?

Electrostimulation involves stimulating nerve fibres by electrical impulses transmitted by electrodes. The electrical impulses produced by Compex stimulators are high-quality impulses that are safe, comfortable and effective and stimulate various types of nerve fibres:

1. Motor nerves to stimulate a muscular response, referred to as electrical muscle stimulation (EMS).
2. Certain types of sensitive nerve fibres to obtain analgesic effects or pain relief.

1. STIMULATION OF MOTOR NERVES (EMS)

With voluntary activity, the brain orders muscles to contract and a command is then sent to nerve fibres in the form of an electrical signal. This signal is then sent to muscle fibres, which contract. The principle of electrostimulation accurately reproduces the process involved in a voluntary contraction. The stimulator sends an electrical impulse to nerve fibres to excite them. This excitation is then transmitted to muscle fibres and results in a basic mechanical response (= a twitch). This is the basic requirement for muscular contraction. The muscular response is to all intents and purposes identical to the muscular work controlled by the brain. In other words, the muscle does not distinguish between a command sent by the brain or the stimulator.

Programme settings (number of impulses per second, duration of contraction, rest time, total programme duration) subject the muscle to various types of work, depending on the muscle fibre. Various types of muscle fibres can be identified according to their respective contraction speeds: slow, intermediate and fast fibres. A sprinter clearly has more fast fibres and a marathon runner has more slow fibres. With good knowledge of human physiology and full control of stimulation settings of the various programmes, muscular work can be specifically pinpointed to achieve the desired objective (muscular strengthening, increased blood circulation, firming, etc.).

2. STIMULATION OF SENSORY NERVES

Electrical impulses can also excite sensory nerve fibres to obtain analgesic effects or pain relief. Stimulating tactile sensory nerve fibres blocks pain being transmitted to the nervous system. Stimulating another type of sensory fibre increases the production of endorphins and therefore reduces pain. With pain relief programmes, electrostimulation can be used to treat acute or chronic localised pain and muscle pain.

Caution: Do not use pain relief programmes for an extended period without medical advice.

BENEFITS OF ELECTROSTIMULATION

Electrostimulation is a very effective method for making muscles work:

• With a significant improvement in various muscular qualities
• With no cardiovascular or mental fatigue
• With limited stress exerted on joints and tendons. Electrostimulation thereby enables more muscular work than voluntary activity.

For optimum results, Compex recommends supplementing your electrostimulation sessions with other commitments, such as:

• Regular physical exercise
  A balanced and healthy diet
• A balanced lifestyle

3. HOW DOES MI (MUSCLE INTELLIGENCE) TECHNOLOGY WORK?

To access MI functions the MI-sensor cable (not available on all devices) must be connected to the stimulator.

MI-SCAN

Just before starting a work session, the MI-scan function probes the chosen muscle group and automatically adjusts the stimulator settings to the excitability of this area of the body, depending on your physiology.

This function results in a short test sequence at the start of the programme, during which measurements are taken.

At the end of the test, the intensity has to be increased to start the programme.

MI-TENS

The MI-tens function limits unwanted muscle contractions in painful areas.

With each intensity increase applied by the user, a test phase occurs, and if a muscular contraction is detected, the device automatically reduces the intensity of the stimulation.

This function is only accessible in the TENS, Epicondylitis and Tendinitis programmes.

MI-RANGE

The MI-range function indicates the ideal range for adjusting stimulation intensity, to be followed in the following programmes: recovery, massage, capillarisation or even muscle pain.

When the device has detected the ideal intensity range, check mark will appear on the screen. For optimum work, intensity should be kept within this range.

Not all devices have MI technology. The table below shows which functions are available with each device.

	SP 2.0 SP 4.0	FIT 1.0 FIT 3.0
MI-SCAN	✓	✓	-	✓
MI-TENS -		✓	-	-
MI-RANGE -		✓	-	-

4. DEVICE FUNCTION

CONTENTS OF KITS AND ACCESSORIES

	SP 2.0 SP 4.0		FIT 1.0 FIT 3.0
	REF QTY	REF QTY	REF QTY	REF QTY
STIMULATOR 001096	1 001095	1 001098	1 001097	1
CHARGER 6830XX	6830XX	1 6830XX	1 6830XX	1
SET OF 4 SNAP CABLES 00	1119 1 001	119 1 001	119 1 001	119 1 001	19 1
MI-SENSOR CABLE 601	160 1 6011	160 1 N/A N/A	601160 1
BAG OF SMALL 5X5 ELECTRODES	42215-8	1	42215-8	1	42215-8	1	42215-8	1
BAG OF LARGE 5X10 ELECTRODES	42216-4	1	42216-4	1	42216-4	1	42216-4	1
QUICK START GUIDE	885624 1	885624 1	885624 1 885624 1
CARRY CASE	680029 1	680029 1	680029 1 680029 1
BATTERY PACK	94121X 1	94121X 1	94121X 1 94121X 1
ELECTRODE PLACEMENTS POSTER	880310/880311	1	880310/880311	1	880310/880311	1	880310/880311	1
USER MANUAL	4528181	1	4528181	1	4528181	1	4528181	1

Only use this device with cables, electrodes, battery, power adaptor and accessories recommended by Compex.

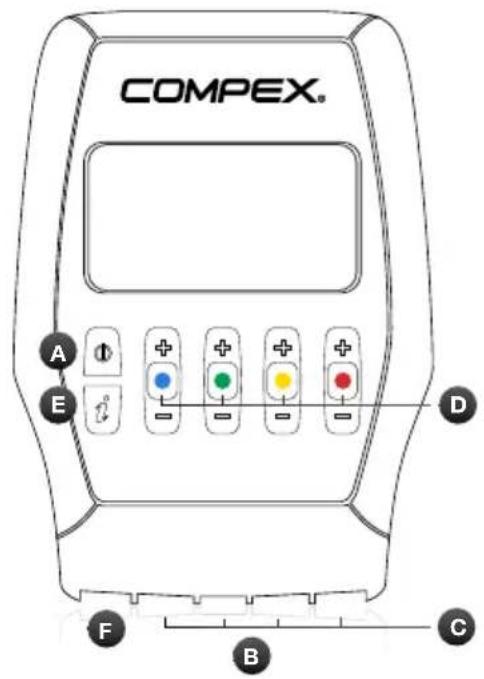

DEVICE DESCRIPTION

A Standby button
B Sockets for the 4 stimulation cables
C Stimulation cables
D +/- buttons for the 4 stimulation channels
E I-button, which allows:

• The intensities to be increased on several channels at the same time
• The last 5 programmes used to be accessed

F Charger socket (slide the red cover to the right to reveal the charger connector)

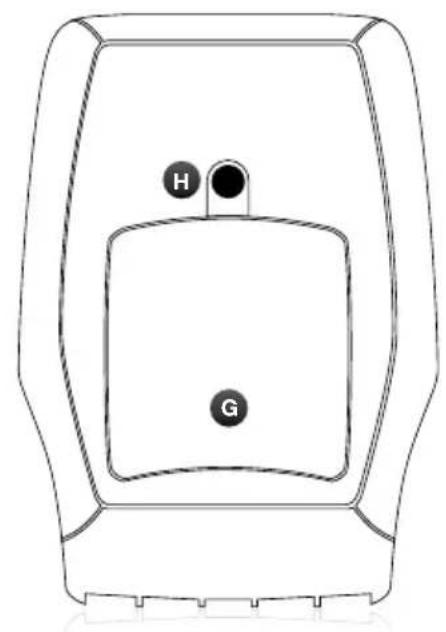

G Battery compartment
H Socket for belt clip

BATTERY INSERTION

Open the battery compartment cover and insert the battery, with the label pointing upwards so that the + and - terminals are opposite the device's contacts. Then replace the cover. If the device is not going to be used for over 3 months, ensure that the battery is fully charged. If the device is not going to be used for over 6 months, ensure that the battery is fully charged and remove it from the stimulator. Switch the stimulator off before removing the battery.

CONNECTIONS

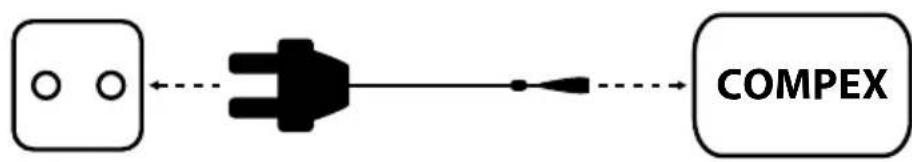

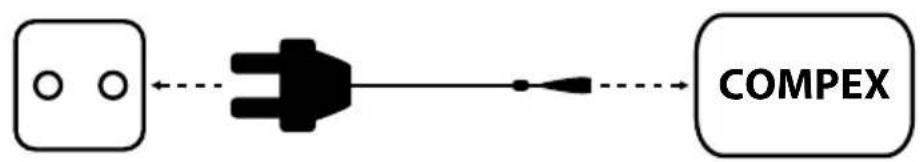

CHARGER CONNECTION

Remove all stimulation cables from the stimulator before recharging it. Connect the charger to a wall socket and connect the stimulator by sliding the red cover to the right to reveal the charger connector. It is strongly recommended to fully charge the battery before its first use to improve its performance and life span.

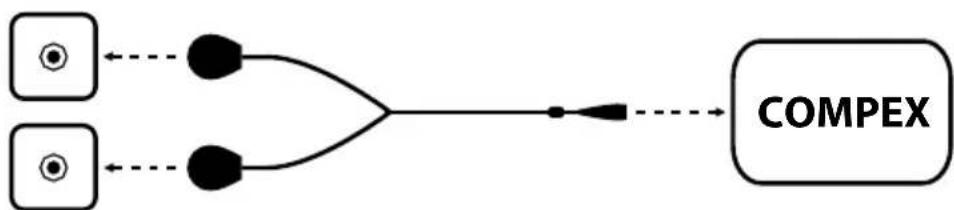

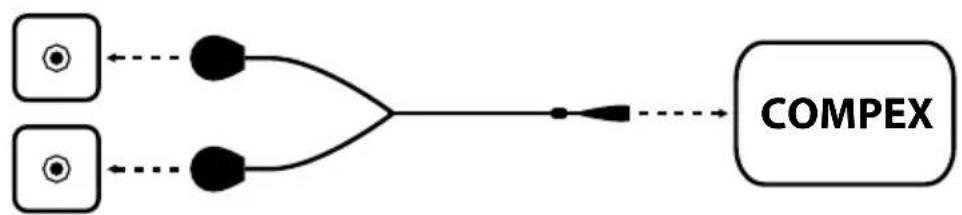

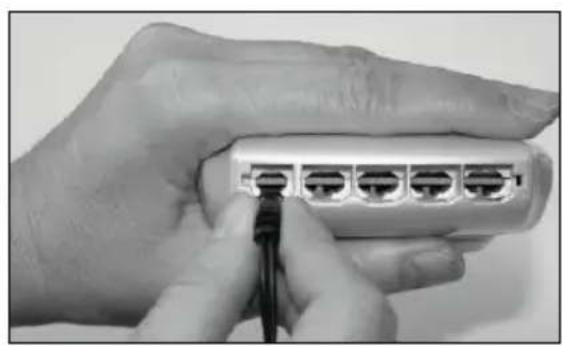

CONNECTING THE CABLES

The cables of the stimulator connect to the 4 sockets at the front of the device. The MI-sensor cable (if available with the device) can be connected to any socket on the stimulator.

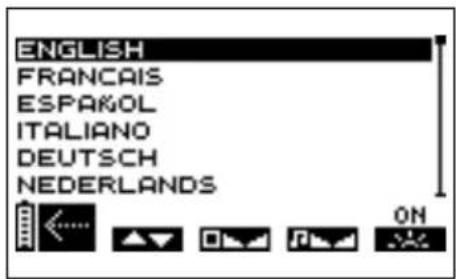

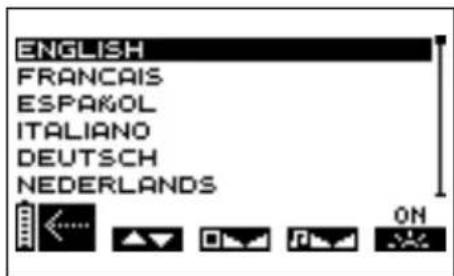

PRELIMINARY SETTINGS

Before your first use, you can define various settings. This options screen can then be displayed by switching the device off and by pressing and holding the on/off button for at least 2 seconds.

ABCDE

B Press the +/- button of channel 1 to select the language to be used.

C Press the + / - button of channel 2 to adjust screen contrast.

D Use the +/- button of channel 3 to adjust the volume.

E Press the + / - button of channel 4 to adjust the backlighting.

ON: backlighting always active.

OFF: backlighting always inactive.

AUTO: backlighting activated every time a button is pressed.

A Press the on/off button to confirm and save your selections. Settings are immediately applied.

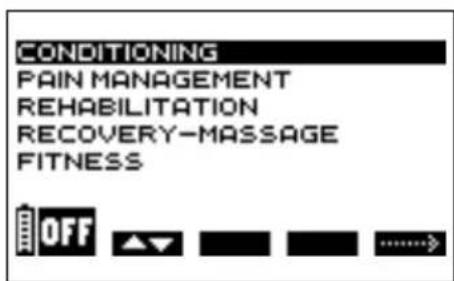

CHOOSING A CATEGORY

N.B. The following screens are generic examples but they work in the same way regardless of the device that you have.

To switch the stimulator on, briefly press the on/off button.

Before selecting a programme, you should select the desired category.

ABE

A Press the on/off button to switch the device off.
B Press the +/- button of channel 1 to select a category.
E Press the + / - button of channel 4 to confirm your selection.

TOP 5

To access the last 5 programmes used press the I-button. From there, select the desired programme and start it.

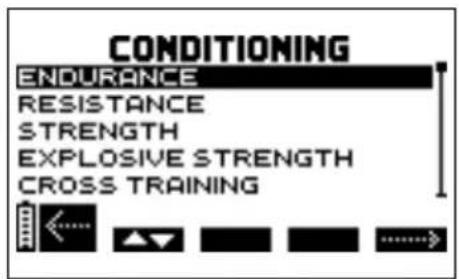

SELECTING A PROGRAMME

ABE

A Press the on/off button to return to the previous screen.
B Press the +/- button of channel 1 to select a programme.
E Press the + / - button of channel 4 to confirm the selection and start the stimulation session.

N.B. After selecting a programme an additional screen may appear, requesting the programme cycle to be selected. Select the desired cycle and then press the +/- button of channel 4 to confirm the selection and start the stimulation session.

It is recommended to start with the 1st cycle and to change cycle when it is complete, normally after 4 to 6 weeks of stimulation based on 3 sessions per week. It is also important to have reached significant stimulation intensities during the sessions before progressing to another cycle.

At the end of the cycle you can either start a new cycle or carry out maintenance training based on one session per week.

MI-SCAN TEST

N.B. See the chapter "How MI technology works".

If the MI-sensor cable is connected, the MI-scan test starts immediately after the programme is selected.

A

A Press the on/off button to stop the test

The + / - buttons of the 4 channels are inactive throughout the test.

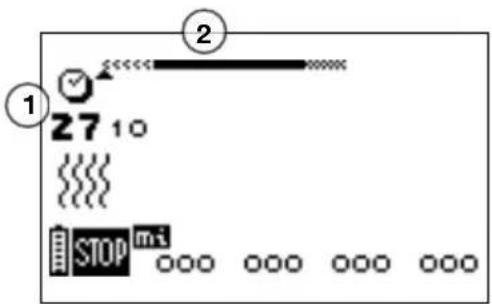

ADJUSTING STIMULATION INTENSITIES

When you start a programme, you are asked to increase the stimulation intensities. This step is essential for a successful session.

ABCDE

1 Programme duration in minutes and seconds
2 Programme progression bar. For details of how it works, see the following paragraph: "Programme progression"

A Press the on/off button to switch the unit into Pause mode.

BCDE The four channels flash, going from + to 000. The stimulation intensity must be increased to be able to start stimulation. For this, press the + buttons of the relevant channels until the desired setting is reached. N.B. To increase the intensities on several channels simultaneously, press the I-button and then increase the intensities. The interdependent channels are displayed in white on a black background.

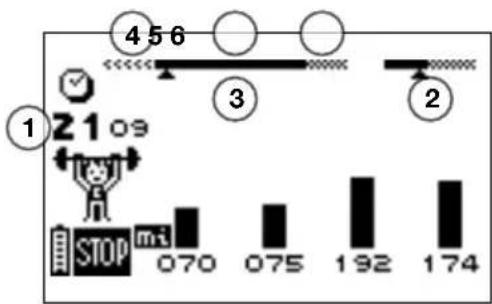

PROGRAMME PROGRESSION

Stimulation starts properly once the stimulation intensity has been increased.

The examples below explain the general rules. Depending on the programme, there may be slight differences.

ABCDE

1 Time remaining (in minutes and seconds) until the end of a programme
2 The duration bar showing the duration of the contraction and duration of active rest is only shown during the work sequence
3 Session sequences
4 Warm-up
5 Work period
6 Relaxation

A Press the on/off button to temporarily interrupt the programme. To resume, simply press the +/- button of channel 4. The session will resume at 80% of the intensity level being used before it was interrupted.

N.B. In pause mode, the button switches directly to the next sequence.

N.B. In pause mode and depending on the programme, usage statistics may be displayed:

MAX = the maximum intensity reached per channel during contraction phases

AVG= the average intensity for all channels applied during the contraction phases

BCDE The various intensities reached during the contraction phase are shown by a series of black vertical bars; the intensities of the rest phase are illustrated by hatched bars.

Please note that the stimulation intensities for the active rest phase are automatically set to 50% of the contraction intensities. They can be changed during the rest phase. Once changed, they are completely independent of the contraction intensities.

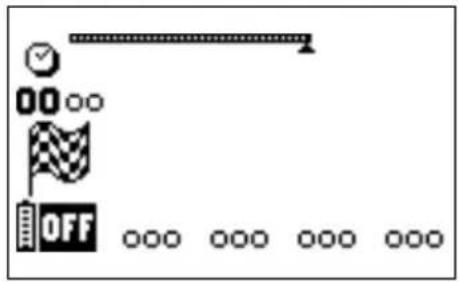

END OF A PROGRAMME

At the end of a session, the following screen is displayed. To stop the stimulator, press the on/off button.

N.B. Depending on the programme, usage statistics may be displayed (see previous chapter "Programme progression").

BATTERY LEVEL AND CHARGING

Battery performance depends on the programme and the stimulation intensity applied. It is strongly recommended to fully charge the battery before its first use to improve its performance and life span. Always use the charger supplied by Compex to recharge the battery.

If the device is not going to be used for over 3 months, ensure that the battery is fully charged. If the device is not going to be used for over 6 months, ensure that the battery is fully charged and remove it from the stimulator. Switch the stimulator off before removing the battery.

BATTERY LEVEL

The battery charge level is shown by a battery icon in the bottom left of the screen. The battery icon flashes when the battery is completely flat. The device can then no longer be used. Recharge it immediately.

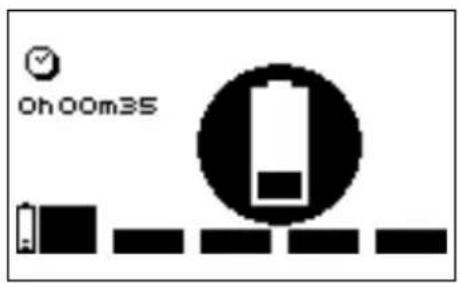

RECHARGING

Remove all stimulation cables from the stimulator before recharging it. Connect the charger to a wall socket and connect the stimulator by sliding the red cover to the right to reveal the charger connector.

The charging menu shown below appears automatically.

The charging duration is displayed on the screen. As soon as charging is complete, the battery flashes. Disconnect the charger: the stimulator will switch off automatically.

5. TROUBLESHOOTING

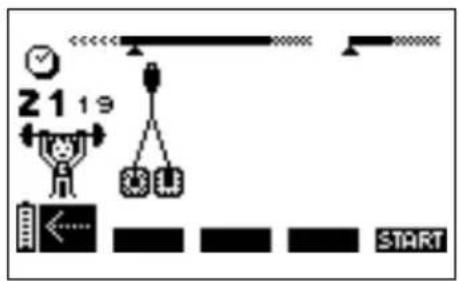

ELECTRODE FAULT

The device emits a tone and alternately displays the pair of electrodes symbol and an arrow pointing towards the channel on which a problem has been detected. In the above example, the stimulator has detected an error on channel 1.

Check that the electrodes are connected to this channel.

If electrodes are old, worn and/or if the contact is poor: try using new electrodes.

Try using the stimulation cable on a different channel. If the cable is still faulty, replace it (www.compexstore.com).

STIMULATION DOES NOT PRODUCE THE USUAL SENSATION

Check that all settings are correct and check electrodes are properly positioned. Change the position of the electrodes slightly.

STIMULATION CAUSES DISCOMFORT

Electrodes lose their adhesive capacity and no longer provide suitable contact with skin.

Electrodes are worn and must be replaced.

Change the position of the electrodes slightly.

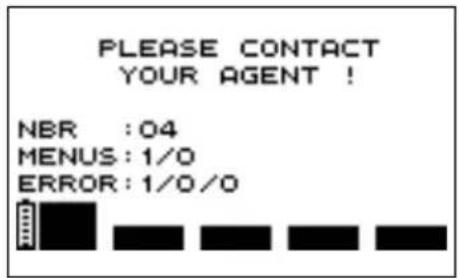

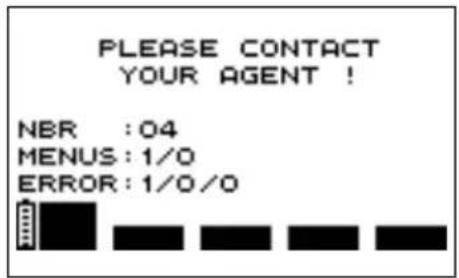

THE STIMULATOR IS NOT WORKING

When an error screen is displayed during use, note the error number (in the example, the error number is 1/0/0) and contact the Compex-approved customer service centre.

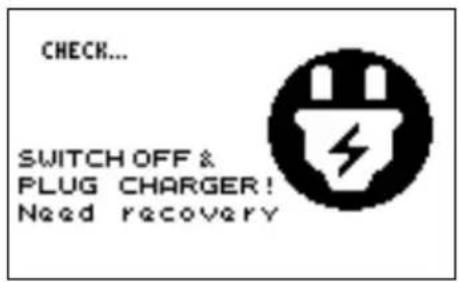

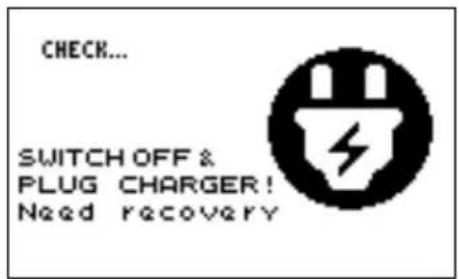

THE BATTERY IS VERY FLAT

If the following screen appears, switch the device off and connect the charger.

If a battery is very flat, a recovery cycle will start, lasting 2 minutes.

When this has finished, if the battery is working properly, it will start charging; in this case, it is strongly recommended to perform a charge/discharge cycle for the battery by pressing on the channel 4 button to launch this cycle, which may take up to 12 hours. If, however, it proves to be faulty, the following screen appears and the battery must be replaced.

REPLACE BATTERY !!!

6. DEVICE MAINTENANCE

GUARANTEE

See the attached leaflet.

MAINTENANCE

Your stimulator does not require neither calibration nor periodic maintenance. However when needed clean with a soft cloth and solvent-free alcohol-based detergent. Use as little liquid as possible to clean the device. Do not disassemble the stimulator or the charger as they contain high-voltage components which could cause electrocution. This must be carried out by Compex-approved technicians or repair services. If your stimulator contains parts that appear to be worn or faulty, please contact the closest Compex customer service centre.

CONDITIONS FOR STORAGE/TRANSPORT AND USE

	STORAGE AND TRANSPORT USE
TEMPERATURE -20°C to 45°C 0°C to 40°C
MAXIMUM RELATIVE HUMIDITY 75% 30% to 75%
ATMOSPHERIC PRESSURE from 700 hPa to 1060 hPa from 700 hPa to 1060 hPa

Do not use in areas at risk of explosion.

DISPOSAL

Batteries must be disposed of in accordance with national regulatory requirements in force. Any product bearing the WEEE label (a crossed-out wheeled bin) must be separated from household waste and sent to special collection facilities for recycling and recovery.

7. TECHNICAL SPECIFICATIONS

GENERAL INFORMATION

94121x rechargeable Nickel-metal hydride (NiMH) battery (4.8V / ≥ 1200mA / h)

Battery chargers: only battery chargers with the part number 6830xx can be used to recharge the batteries supplied with the stimulator.

Product and accessories expected service life: 5 years

Electrode shelf life: refer to electrodes bag

NEUROSTIMULATION

All the electrical specifications are supplied with an impedance from 500 to 1000 ohms per channel.

Channels: four independent and individually adjustable channels, electrically isolated from each other. Impulsion form: constant rectangular current with pulse compensation to eliminate any direct current component to prevent residual polarisation at skin level.

Maximum pulse intensity: 120mA

Pulse intensity increments: manual adjustment of stimulation intensity from 0 to 999 (energy) by minimum increments of 0.5mA .

Pulse amplitude: from 60 to 400~ s

Maximum electrical charge per pulse: 96 microcoulombs (2× 48 C ,compensated).

Standard pulse ramp-up time: 3 s (20% - 80% of maximum current).

Pulse frequency: 1 to 150Hz

INFORMATION ABOUT ELECTROMAGNETIC COMPATIBILITY (EMC)

The stimulator is designed to be used in typical domestic environments approved in accordance with the safety standard EMC EN 60601-1-2.

This device emits very low levels in the radio frequency (RF) interval and is therefore not likely to cause interference with nearby electronic equipment (radios, computers, telephones, etc.).

The stimulator is designed to withstand foreseeable disturbances originating from electrostatic discharge, magnetic fields from the power supply or radio frequency emitters.

However, it is not possible to guarantee that the stimulator will not be affected by powerful RF (radio frequency) fields originating, for example, from mobile phones.

For more detailed information about electromagnetic emissions and immunity, please contact Compex.

STANDARDS

To ensure your safety, the stimulator has been designed, manufactured and distributed in accordance with the requirements of the amended European Directive 93/42/CEE covering medical devices.

The stimulator also complies with the CEI 60601-1 standard covering general safety requirements for electromedical devices, with the CEI 60601-1-2 standard covering electromagnetic compatibility and the CEI 60601-2-10 standard covering special safety requirements for nerve and muscle stimulators.

In accordance with current international standards in force, a warning must be given about applying electrodes to the thorax (increased risk of cardiac fibrillation).

The stimulator also complies with Directive 2002/96/CEE covering waste electrical and electronic equipment (WEEE).

8. EMC TABLE

The Compex stimulator needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided.

Portable and mobile RF communications equipment can affect the Compex stimulator.

The use of Accessories, transducers, and cables other than those specified by the manufacturer, may result in increased Emissions or decreased Immunity of the Compex stimulator.

The Compex stimulator should not be used adjacent to or stacked with other equipment and if adjacent or stacked use is necessary, the Compex stimulator should be observed to verify normal operation in the configuration in which it will be used.

GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC EMISSIONS
The Compex stimulator is intended for use in the electromagnetic environment specified below. The customer or the user of the Compex stimulator should assure that it is used in such an environment.
EMISSION TESTS COMPLIANCE		ELECTROMAGNETIC ENVIRONMENT - GUIDANCE
Radiated Emissions CISPR 11 Group 1		The Compex uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
Conducted Emissions CISPR 11 Class B
Harmonic emissions IEC 61000-3-2 Class A		The Compex is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Voltage fluctuations IEC 61000-3-3 Complies

GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC IMMUNITY
The Compex stimulator is intended for use in the electromagnetic environment specified below. The customer or the user of the Compex stimulator should assure that it is used in such an environment.
IMMUNITY TEST	IEC 60601TEST LEVEL	COMPLIANCE LEVEL	ELECTROMAGNETIC ENVIRONMENT - GUIDANCE
Electrostatic discharge(ESD) IEC 61000-4-2	±6kV contact±8kV air	±6kV contact±8kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%.
Electrical fast transient/burst IEC 61000-4-4	±2kV for power supply lines±1kV for input/output lines	±2kV (power lines)Not Applicable(I/O lines)	Mains power quality should be that of a typical commercial or hospital environment.
Surge IEC 61000-4-5	±1kV Line to Line (or Neutral)±2kV line(s) to earth	±1kV Line to LineNot Applicable(Line to Earth)	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input lines IEC 61000-4-11 a	<5% UT(>95% dip in UT) for 0,5 cycle40% UT(60% dip in UT) for 5 cycles70% UT(30% dip in UT) for 25 cycles<5% UT(>95% dip in UT) for 5 sec	<5% UT(>95% dip in UT) for 0,5 cycle40% UT(60% dip in UT) for 5 cycles70% UT(30% dip in UT) for 25 cycles<5% UT(>95% dip in UT) for 5 sec	Mains power quality should be that of a typical commercial or hospital environment. If the user of the Compex stimulator requires continued operation during power mains interruptions, it is recommended that the Compex stimulator be powered from an uninterrupted power supply or a battery.
Power frequency(50/60Hz) magnetic field IEC 61000-4-8	3 A/m 3 A/m		Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.
a UT is the a.c mains voltage prior to application of the test level.
Conducted RFIEC 61000-4-6Radiated RFIEC 61000-4-3	3 Vrms150 kHz to 80 MHz3 V/m1.4 GHz to 2,7 GHz10 V/m26MHz to 1GHz	3Vrms3V/m10V/m	Portable and mobile RF communications equipment should be used no closer to any part of the Compex stimulator, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance d = 1.2 √P d = 1.2 √P 80 MHz to 800 MHz d = 2.3 √P 800 MHz to 2,5 GHz where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site surveya, should be less than the compliance level in each frequency rangeb. Interference may occur in the vicinity of equipment marked with the following symbol: ( )NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
Note 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
aField strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Compex stimulator is used exceeds the applicable RF compliance level above, the Compex stimulator should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Compex stimulator. bOver the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND THE COMPEX STIMULATOR
The Compex stimulator is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Compex stimulator can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Compex stimulator as recommended below, according to the maximum output power of the communications equipment.
RATED MAXIMUM OUTPUT POWER OF TRANSMITTER W	SEPARATION DISTANCE ACCORDING TO FREQUENCY OF TRANSMITTER M
	150 KHZ TO 80 MHZ D = 1.2 √P	80 MHZ TO 800 MHZ D = 1.2 √P	800 MHZ TO 2,5 GHZ D = 2.3 √P
0,01 0,12 0,12	0,23
0,1 0,38 0,38	0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

COMPEX®

Fit1.0

Fit3.0

sp2.0

sp4.0

MODE D'EMPLOI

TABLE DES MATIÈRES

GUASTO AGLI ELETTRODI

BESCHRIJVING VAN HET APPARAAT

ON: awhile, perhaps a moment of relief.

OFF: awhile, perhaps a bit.

5. PROBLEEMOPLossing

ELEKTKRODESTORING

PROGRESSO DO PROGRAMA

PeryIINPOBKa HHTeHCHBHOCTe CTMyJIaUN 186

BbIOJIHeHne IpoIpaMMbI 187

OkoHuaHne IpoIpaMMbI 188

UpoBHeH 3apJa H IOJ3apJaKa 6aTapeu 188

5.Ionck H yctpaHHe HeHCpabHocTei 190
6. YxoI 3a npH6opom 193
7. TexHHueckne xapaKtepHCTKN 194
8. Ta6JIncbI 3Mc 196

HaTeJIbHO peKomeHdyetcIpeEHCIOJIb3ObaHHem CTMyJrTopa H3yHTb 3Ty HHCTpyKIuO, CINCOK IpOTnBOIokaAHm I MepbI TEXHKn 6e3oNaCHOCTN.

1. PA3bЯCHEHNE CnMBOJOB

yBEnuHTb HHTeHCNBHOCTb HECKOJIbKnx KaHApOB OOnHOBpeMeHHO;
BbI3BaTb NocneHnE 5 nporpaMM.

E IHe3do dIra 3apAnHoro yCTpoiCTBa (TTO6bI OTKpbITb pa3beM, cDINHBte KpaCHyIO KpbIikky BnpaBO)
F BaTapeiHbI OTeK
G KpenneHne 3axma Ha noaC

YCTAHOBKA BATAPEN

OtkpoTe KpbIuKy 6aTapeHoro OTceKa n yctahOBITE 6aTapeHo 3TuKeTkoB BBepx, YTO6bl KJIeMMbl + n - OKa3aIINcB HnPoTbV KOHTaKTOB npnbopa. 3aTeM yCTAHOBITE KpbIuKy Ha MeCTo. Ecnn np6op He 6ydet NcNoIb3OBaTbcR B 6bnkauiue 3 Mecra nn 60one, y6eINTecb, YTO 6aTapeN oNHOCTbIO 3apJxHe. Ecnn np6op He 6ydet NcNoIb3OBaTbcR B 6bnkauiue 6 MecraueB nn 60one, y6eINTecb, YTO 6aTapeN oNHOCTbIO 3apJxHe, n 3BneKtte ee nn 3 CTmUyIaTOPa. Ipeed n3BneUeHem 6aTapeN oTKInouHTe CTmUyIaTOP.

ПОДКЛЮЧЕНЯ

NODKJIIOUeyHE 3APJADHOYUCTPOICTBA

Ipeed no3apqkO tKIOHHTe OT CTmUJTAOPa BCE uHpybI 3JIeKTPoIDOB. IODKnIOHTe 3apdHoe yCTPOICTBO K p03ETke n IOKIOCHTE CTmUJTAOP, CDBINHyB KpachyIO KpbIiKy BnpaBO, YTO6bl NOnyHTb DOCTyn K rHe3dy dny 3apqdkn. HAcToTEnbHO peKOMeHdyETcN ONHOCTbIO 3apqDITb 6aTaapeIO nepei nepBBIM nCNOJB3OBAHNEM, YTO6bl yBEJIInHTb ee OTDAUY i cPOK cIyK6bl.

IOnKJIIOUeHNE UHYPOB

UHpyI CTmMyJrTopa NOkNIOuAOTcK 4 rHe3dAm B nepeDHe uactn np6opa. UHyp daTnka MI-sensor (ecn OH BXoITB KOMPJIeKT NocTbKNMOxHO NOkNIOuHTb K IIObOMy rHe3dy CTmMyJrTopa.

PNEBAPNTIELHAR HACTPOIKA

Ipei npBbIM nCIOJIb3OBAHnEM Bbl MOxTe yCTaHOBtB pa3NlUHbIe IapAmETpbI. 3TOT kpaH hAcTpoek MoXHO Bbl3BaTb, OTKIIouHb IIpIbOp, a 3aTeM Haxab N ydepxNBa KONky BkIoUeHn He MeHee 2 cekyHd.

ABCDE

B UTo6bI BbIbpaTb Ra3bIK, HaxMnte KhONky +/- KaHaJa 1.

C DnpeRyHnOBoKoHtPaTcTHocTn 3KpaHa HaxMnTe KhoNk +/- KaHaJa 2.

D pyerynipOBn rpoMKeCTn Haxmnte KhoNky +/- kaHaJa 3.

EДЯнHACTPOKINIOCDCBETKNHAXMNTe KHOJIky+/- kaHaJa4.

ON (BKJ): NOДСВЕТКA BCERДа BKJIIOUЧЕHA.

OFF (BbIK): NoDCBeTka BcERda BbIKIOueHa.

AUTO (ABTO): NOCDBETKa BKNIOHuaeTcR npn HauKATn Ha JIO6yU KHOIky.

A Haxmnte Ha KhoNky BkIIOHeHn, YTO6bI NOITBepINb BbI6Op n COxpaHnTb napaMeTpbl. N3MeHnBCTynaiOT B cnIy cpa3y Jze.

BbIBOP KATETOPIN

MAX = MaKcMaJIbHaI INTeHCNBHOCTb, IOCTnHryTaB KaHaJIe BΦa3e COKpaUeHna

AVG = cpeHnI INTEHCNBHOCTb IINBcex KaHaIOB BO BpeM φa3 COKpaUeHnI

BCDE Pa3nHbIe INTeHCINBHOCTN,IOCTnHyTbie BO BpeMg pa3bl cokpaueHna,OTobpaxaIoTc pIdom Yephbx CTOn6IKOB; INTeHCINBHOCTb pa3 OTdbixa OTobpaxkaetc 3aUtpnxObaHHbIMN CToJbKAMN.

3aMeTbTe, yTO INHTeHCNBHOCTb CTmUyIaIuB B φa3e AKTNBHOrO OTdbIxA aBTOMaTHueCKN yCTaHaBJIINBaETcRa Ha ypoBHe 50% OT INHTeHCNBHOCTn COKpaIeHn. Ee MoXHo IN3MeHITb BO BpeM φa3bl OTdbIxA. Pocne IN3MeHENr OHa cTAHOBNTcR COBepSeHn He3aBNCIMoT ON INHTeHCNBHOCTn COKpaIeHn.

OKOHUAHNE IPOPGPAMMbI

B KOHcE ceaHca OTo6paKaTcra CneDyUoUsn 3KpaH. YTO6bIOCTaHOBNTb CTmMyJrTOP, HAXMnte Ha KhoNky BKNIOueHn.

ПРИМЕЧАН.ВЗвсимости OTnpогамьMOжETOTOBpaЖаТбССТАNTСТИКИSCПОЛБЗОВАнг（CM.npeыдушп радел «Вынолнене npогамь»）

YPOBEHb 3APRAIa I IOJ3APRkA BATAPEI

Otdua 6batae 3abncnt OT nCNOJb3yemOn nporpaMMbl INHTehCNBHOCTN CTmMyJznn. HactoTeJIbHo peKOMeHdyETcra NnHOCTbIO 3apAINTb 6bataeIO neped nepBbIM nCNOJb3OBaHNEM, YTO6bl yBeJIuHTb ee otDaHy i cpoK cnyk6bl. Ina noD3apAdkn 6batae Bcerda nCNOJb3yIte 3apAHDoe ycTPOIcTBo Compex, BXODJaee B KOMJIeKT.

Ecn np6op He 6ydt nCnObl3OBaTbcB 6bnjkaWne 3 Meca a nn 60nee, y6eHntecb, YTO 6atapea noHocTbIO 3apJxKeHa. Ecn np6op He 6ydt nCnObl3OBaTbcB 6bnjkaWne 6 Mecae b nn 60nee, y6eHntecb, YTO 6atapea noHocTbIO 3apJxKeHa, n N3BleKInTe ee n3 CTImyIaTopa. Ipeed n3BleueHneM 6atapen OTKnIOUHTe CTImyIaTop.

YPOBEHb 3APyda BATAPEN

UpoBHe 3apJa 6aTapeo OTo6paKaetc PnKToPamMo 6aTapeu B JIeBOM HxHem yIpy 3kpaHa. Korda 6bTapeo nonHocTbO pa3pJKeHa, ee NKTorpamMa Mraet. B TAKOM cnyae npOdoJkaTb nOlb30BaTbc npi6obopm HeNb3r. 3apAnTe 6aTapeio HemeDneHNo.

3APJKA

Ipeed no3aprakon OTKIOHTe OT CTmUJrTopa BCE uHypbI 3neKtpoOB. IodKnIOHTe 3aprAHOe yCTPOCTBO K po3ETke IN IOkNIOHTe CTmUJrTOp, CdBnHyB KpaCHyIO KpbIshky BnpaBO, YTO6bl IOnyHTb DOCTyn K rHe3dy dnn 3aprAKn.

MeHIO 3apAKn, noka3aHHoe BnH3y, oTo6pa3ntc aBTOMaTnueckn.

Ha 3kpahe 6ydeT OTo6paxaTbC npoOJXnTeIbHocTb 3apAkn. KaK ToIbKO 3apAka 3aBepuNTcra,
H3o6paxeHne 6aTapen NaHET MngTb. OTKnIOChTe 3apAnHOe yCTpoiCTBO, CTmMyJrTOp BBIKIOHTcra
ABTomATUHeCKN.

5. ПОИСК И YYSTPAHEHNE HENCSРABHOCTeI

OTKA3 3JIeKTPoDA

CTMMyJrTOP HE PABOTAET

EcIIN BO BpeM IcNoIb3OBaHnOTo6paXaETcCoo6JeHne O6 OUn6Ke, 3aONMHTe Homep OUn6Kn (B npimepe - OUn6ka 1/0/0) n o6paTntecb B aBtOpN3OBaHHb peMOHTbI ueHtp Compex. BaTape cnilbHo pa3prjKeHa

Ecnn noaBnaTcA kpaH, noka3aHHb HHXe, OTKnOHTe np6op nnoKNOHTe 3apJHOe yCTpoCTBO.

Ecni 6aTape enbno pa3pXeHa, NaHHeTc nKn pereHepaun, npdoJkaouuicra 2 MInHytbl.

Ecn no ero okohuaHn 6aTape ra6oTaet HopMaIbHo, OHa NaHcT 3apXkaTbc; B 3Tom cnyae HactoTeIbHO peKOMeHdyETc npOBecTu zIKN 3apJdkn/pa3pJdkn 6aTapeu, Haxab dIra 3TOrHa KhoNky KaHana 4 , KOToBIM MoKeT npOdoJkaTbcra do 12 YacOB. Ecn Jx e 6aTapey OkajEtc HncnpabHoi, oTo6pa3ntcra cneDyUoUs n 3kpan. B 3Tom cnyae 6aTapeIO Heo6xoDIMO 3ameHHTb.

REPLACE BATTERY !!!

6. yXoI 3A pNbOPOM

TAPAHTN

CM. npnilaraiooienca nCT-BknaadbiI.

yXoD

IpoTnpaIte YNCTOJ TKAHbIO CO CnnpTOBbIM MOUzIM CpeDCTBOM, He CoDEpKAsIM pACTBOpHTeJIe.
IcnoJb3yIte dIa OunCTKn PnIBopa KaK MoJHO MeHbIe XnIDKOCTN. He pa3bpaIte HN CTmUyIaTOp, HN 3apJdHoe yCTPOIcTBO, T. K. IMeJOuNEcB B HIX BBICOKOBJbTHbIe KOMNOHeHTbI MOrY T cTaT b IpnuHoi
nopaxHe NJIeKTPnueCKM TOKOM. 3Tm DOnJXHbI 3aHNMaTbcra cepTnΦnIPoBaHhIe CneuaJIncTbI
Compex IIIN peMOHTbIe opraHn3aZnn. BaW CTmUyIaTOp He HxKdaETcB KAn6PobKe. EcII nOTdeNbHbIe
chaTn CTmUyIaTOpa HeNCnPabHbI INI IN3HOWeHbI, o6paITTeCb B 6InXaIshN cepBVCbI ueHTp Compex.

UCIOBNA XPAHEHNA/TPAHCNOPTNPOBKN INCNOJIb3OBAHNA

	ХраHEнUE I ТРАHCПОТИPOВКА	ИСПОЛьЗОВАНЕ
STEMПЕРATУРа 0T -20 °C до +45 °C OТ 0°C до +40 °C
MAKСИМАЛьHЯ OTHOCINTEЛьHЯ ВЛAJЖHOCTы	75% OT 30%do 75%
ATMOSCФЕPHOE ДÁВLEHЯ经 0T 700 rПа до 1060 rПа oT 700 rПа do 1060 rПа

He nCnoJIb3yIte BO B3pbIBOONaCHO6CTaHOBKe.

YTNIN3ALIN

BaTape nCpeDyET yTNIN3NPOBAbTB COOTBeTCTBnC DeIcTByIOUIM rOcydapCTBeHHbIMN NOCTaHOBNeHnA M. IIO6oe N3deJIne C 3TNKeTko WEEE (pepeepKHytbM MycOpHbKOHTeHep) cIeNyET OTDeJNTb OT 6bITOBOro Mycopa n CdaTb B CpeuNaIN3NPOBaHHOe ppePnTne no c60py u TtIN3aunn.

7. TEXHnueCKne XAPAKTEPNCNIKNI

OBUINE CBEDEHNA

AkkymyIaTOpHaN HnKeJIb-MeTaIIJIoNdPnIHa (NiMH) 6aTape8 94121x (4,8 B / ≥ 1200 mA u).

3apHbIe yCTpoiCTBa: dOnyckaetc HcNoIb3ObaTb CO CTmMyJrTOpOM TOnbKO 3apHbIe ycTPOiCTBa C Homepom no KaTanory 6830xx.

HEIPOCTMUYLAICIA

Bce 3neKtpnueckne xapaKTepeNCTnKn npuBeHbI dIra coPOnTbNeHnO r 500 do 1000 OMaKaHaJI.

KaHaJIbI:YeTbIpe He3aBnCmMbIX, INDINBnDyaJIbHO HAcTpAnBaEmbIX KaHaJa, 3JIeKTpUHeCKN 130JInpOBAHHbIX Dpyr OT dpyra.

ΦopMa NMnyIbca: NOCTOaHHbI INPRAMOyROJIbHbI TOK C NMNyJIbCHOKOMNeHCAuNEB BO N36exaHHe OCTaTOUHO NoJpRn3aCUn Ha yPOBHe KOxN CO CTOpOHbI JIO6bIX KOMNOHEHTOB NOCTOaHHORo TOKa.

MaKcImaJIbHaI INHTeHCINBHOCTb IMnYJbca: 120 mA.

Iar Bo3pactaHn IHTeHCNBHOCTn:pyuHaerpeyInpOBka IHTeHCNBHOCTn CTmUyIaun O 0do999 (3Heprna) C MInHMaJIbHbIM Iarom 0,5 mA.

Динан Импуньа:OT60do400MKC.

MaKcImaJIbHbI 3JIeKTpUYeCKn pa3pId mNpyJbca: 96 MmKpOkyIHOB (2 x 48 MKKn, CKOMpeHCnpOBaHHbI).

CTaHdapTHoe BpeMa HapacTaHnI MmnyIbCa: 3 MkC (20-80% ot MaKcImaJIbHoro ToKa).

Yactota mnybcob:1-150T.

CBEENH NOSEJKTPOMAHHTHOOBMECTIMOCTN (3MC)

Дань CTИМуЛЯТОР пeДиA3HаЧЕн ДлЯ ИСПОЛБ3ОВАнь В ТИПИЧБIX ДOMaSHINX yCIOBnIX n ceTpIФИцЮВан B COOTBETCTBи CO CTaHДapTOM 6e3OпаСHOCTn EC 60601-1-2 (ЗлЕКТрмaГнIThaя COBMeCTIMOCtB).

FÖRDELAR MED ELEKTROSTIMULERING
