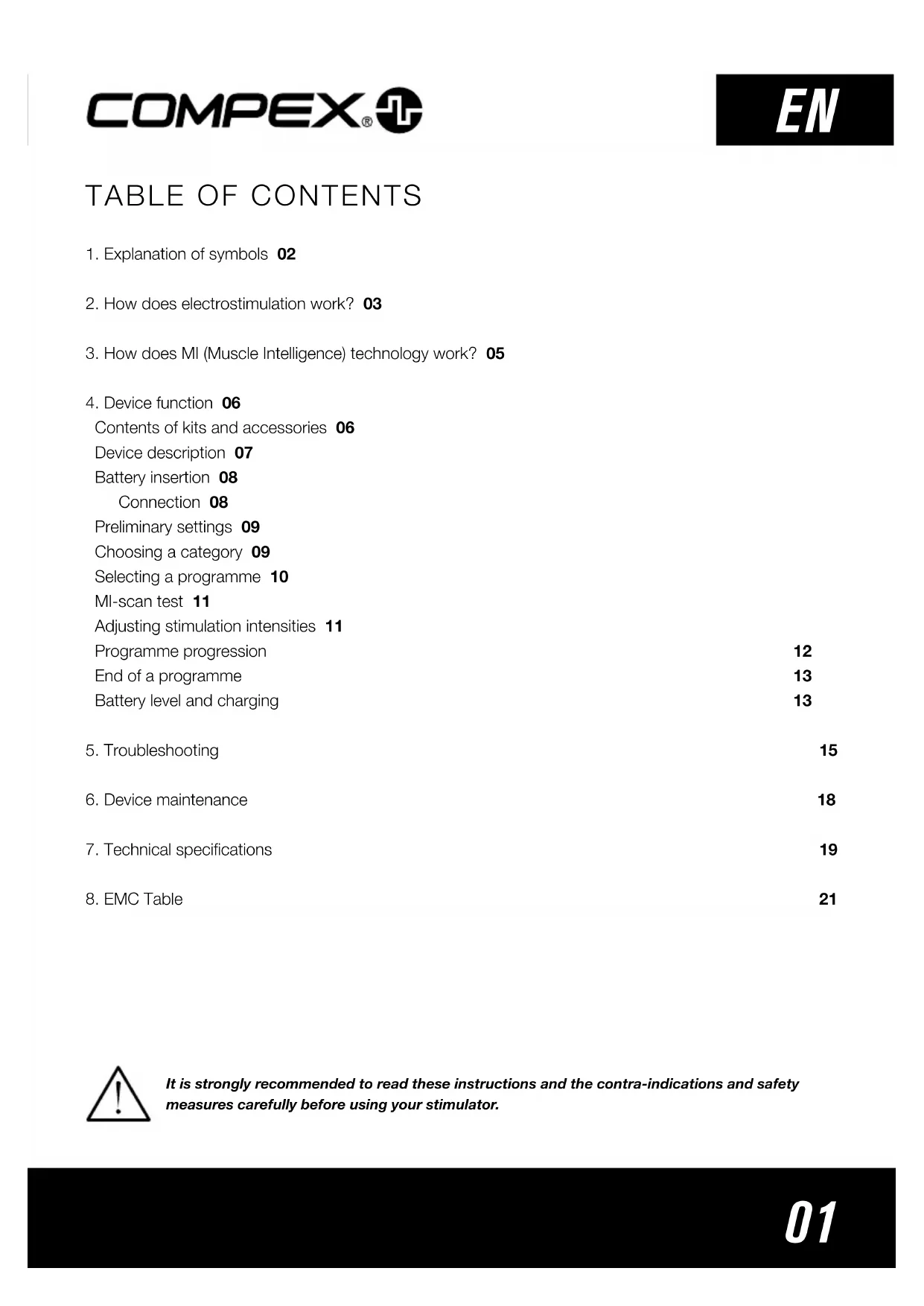

USER MANUAL Fit 1.0 COMPEX

1. Explanation of symbols 02
2. How does electrostimulation work? 03

3. How does MI (Muscle Intelligence) technology work? 05

4. Device function 06

Contents of kits and accessories 06

Device description 07

Battery insertion 08

Connection 08

Preliminary settings 09

Choosing a category 09

Selecting a programme 10

MI-scan test 11

Adjusting stimulation intensities 11

Programme progression 12

End of a programme 13

Battery level and charging 13

1. Troubleshooting 15
2. Device maintenance 18
3. Technical specifications 19
4. EMC Table 21

It is strongly recommended to read these instructions and the contra-indications and safety measures carefully before using your stimulator.

1. EXPLANATION OF SYMBOLS

	See the instructions		Reference number
	The stimulator is a category II device with built-in power supply and type BF applied parts.		Batch number
	Manufacturer's name and address		Medical device
	Name and address of approved representative in the European Union		Serial number
	This device must be separated from household waste and sent to special collection facilities for recycling and recovery		Unique Device Identification
	The stand-by button is multi-functional	[H0ZY]	Best used by
	Protect from sunlight	[0STST]	Origin and date of manufacture
	Store in a dry place		Relative humidity
on the unit	This is an indication for protection against ingress of water and particulate matter. The mark IP20 on your unit means: your unit is protected against solid foreign objects of 12.5mm dia and greater. Not protected against water		Temperature
on the case	IP02 on the carrying case means: Protected from the ingress of water droplets from a shower of rain.		Atmospheric pressure
	Latex-free		CE mark with notify body number

2. HOW DOES ELECTROSTIMULATION WORK?

Electrostimulation involves stimulating nerve fibres by electrical impulses transmitted by electrodes. The electrical impulses produced by Compex stimulators are high-quality impulses that are safe, comfortable and effective and stimulate various types of nerve fibres:

1. Motor nerves to stimulate a muscular response, referred to as electrical muscle stimulation (EMS).
2. Certain types of sensitive nerve fibres to obtain analgesic effects or pain relief.

1. STIMULATION OF MOTOR NERVES (EMS)

With voluntary activity, the brain orders muscles to contract and a command is then sent to nerve fibres in the form of an electrical signal. This signal is then sent to muscle fibres, which contract. The principle of electrostimulation accurately reproduces the process involved in a voluntary contraction. The stimulator sends an electrical impulse to nerve fibres to excite them. This excitation is then transmitted to muscle fibres and results in a basic mechanical response (= a twitch). This is the basic requirement for muscular contraction. The muscular response is to all intents and purposes identical to the muscular work controlled by the brain. In other words, the muscle does not distinguish between a command sent by the brain or the stimulator.

Programme settings (number of impulses per second, duration of contraction, rest time, total programme duration) subject the muscle to various types of work, depending on the muscle fibre. Various types of muscle fibres can be identified according to their respective contraction speeds: slow, intermediate and fast fibres. A sprinter clearly has more fast fibres and a marathon runner has more slow fibres. With good knowledge of human physiology and full control of stimulation settings of the various programmes, muscular work can be specifically pinpointed to achieve the desired objective (muscular strengthening, increased blood circulation, firming, etc.).

2. STIMULATION OF SENSORY NERVES

Electrical impulses can also excite sensory nerve fibres to obtain analgesic effects or pain relief. Stimulating tactile sensory nerve fibres blocks pain being transmitted to the nervous system. Stimulating another type of sensory fibre increases the production of endorphins and therefore reduces pain. With pain relief programmes, electrostimulation can be used to treat acute or chronic localised pain and muscle pain.

Caution: Do not use pain relief programmes for an extended period without medical advice.

BENEFITS OF ELECTROSTIMULATION

Electrostimulation is a very effective method for making muscles work:

• With a significant improvement in various muscular qualities
• With no cardiovascular or mental fatigue
• With limited stress exerted on joints and tendons. Electrostimulation thereby enables more muscular work than voluntary activity.

For optimum results, Compex recommends supplementing your electrostimulation sessions with other commitments, such as:

• Regular physical exercise
• A balanced and healthy diet
• A balanced lifestyle

3. HOW DOES MI (MUSCLE INTELLIGENCE) TECHNOLOGY WORK?

To access MI functions the MI-sensor cable (not available on all devices) must be connected to the stimulator.

MI-SCAN

Just before starting a work session, the MI-scan function probes the chosen muscle group and automatically adjusts the stimulator settings to the excitability of this area of the body, depending on your physiology.

This function results in a short test sequence at the start of the programme, during which measurements are taken.

At the end of the test, the intensity has to be increased to start the programme.

MI-TENS

The MI-tens function limits unwanted muscle contractions in painful areas.

With each intensity increase applied by the user, a test phase occurs, and if a muscular contraction is detected, the device automatically reduces the intensity of the stimulation.

This function is only accessible in the TENS, Epicondylitis and Tendinitis programmes.

MI-RANGE

The MI-range function indicates the ideal range for adjusting stimulation intensity, to be followed in the following programmes: recovery, massage, capillarisation or even muscle pain.

When the device has detected the ideal intensity range, check mark will appear on the screen. For optimum work, intensity should be kept within this range.

Not all devices have MI technology. The table below shows which functions are available with each device.

	SP 2.0 SP 4.0	FIT 1.0 FIT 3.0
MI-SCAN	√	√	-	√
MI-TENS -		√	-	-
MI-RANGE -		√	-	-

4. DEVICE FUNCTION

CONTENTS OF KITS AND ACCESSORIES

	SP 2.0 SP 4.0 FIT 1.0 FIT 3.0
	REF QTY REF QTY REF QTY REF QTY
STIMULATOR 001096	1 001095	1 001098	1 001097	1
CHARGER 6830XX	1 6830XX	1 6830XX	1 6830XX	1
SET OF 4 SNAP CABLES	001119	1 001119	1 001119	1 001119	1
MI-SENSOR CABLE 601	160	1 601	1 N/A	N/A 601160	1
BAG OF SMALL 5X5 ELECTRODES	42215-8	1	42215-8	1	42215-8	1	42215-8	1
BAG OF LARGE 5X10 ELECTRODES	42216-4	1	42216-4	1	42216-4	1	42216-4	1
QUICK START GUIDE	885624	1 885624	1 885624	1 885624	1
CARRY CASE	680029	1 680029	1 680029	1 680029	1
BATTERY PACK	94121X	1 94121X	1 94121X	1 94121X	1
ELECTRODE PLACEMENTS POSTER	880310/880311	1	880310/880311	1	880310/880311	1	880310/880311	1
USER MANUAL	4528181	1	4528181	1	4528181	1	4528181	1

Only use this device with cables, electrodes, battery, power adaptor and accessories recommended by Compex.

DEVICE DESCRIPTION

COMPEX. A E D F B C

Line drawing of a rectangular device with labeled buttons H and G (no text or symbols beyond labels)

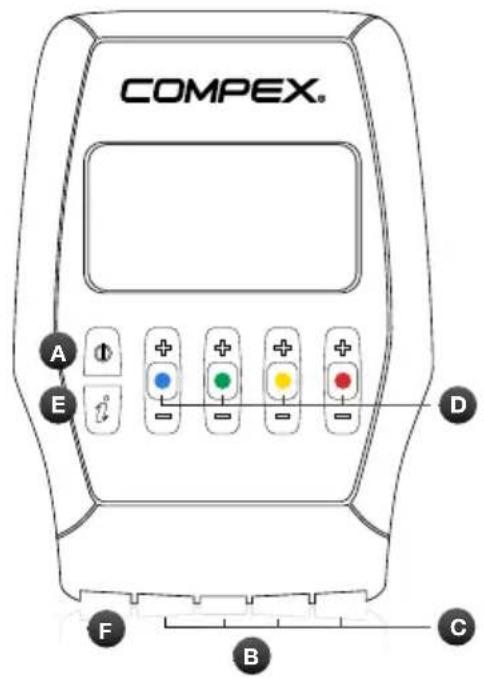

A Standby button
B Sockets for the 4 stimulation cables
C Stimulation cables
D +/- buttons for the 4 stimulation channels
E I-button, which allows:

• The intensities to be increased on several channels at the same time
  • The last 5 programmes used to be accessed

F Charger socket (slide the red cover to the right to reveal the charger connector)

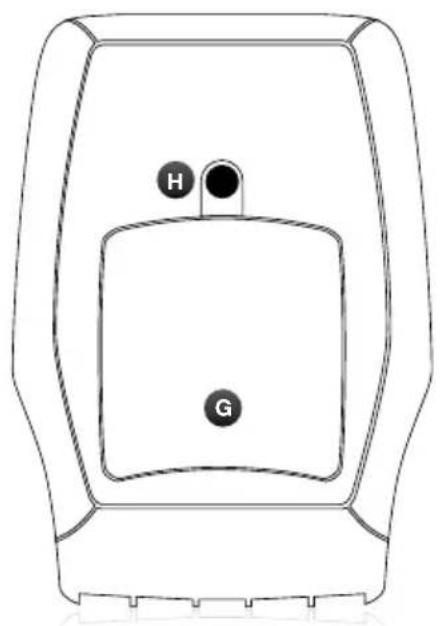

G Battery compartment
H Socket for belt clip

BATTERY INSERTION

Open the battery compartment cover and insert the battery, with the label pointing upwards so that the + and - terminals are opposite the device's contacts. Then replace the cover. If the device is not going to be used for over 3 months, ensure that the battery is fully charged. If the device is not going to be used for over 6 months, ensure that the battery is fully charged and remove it from the stimulator. Switch the stimulator off before removing the battery.

CONNECTIONS

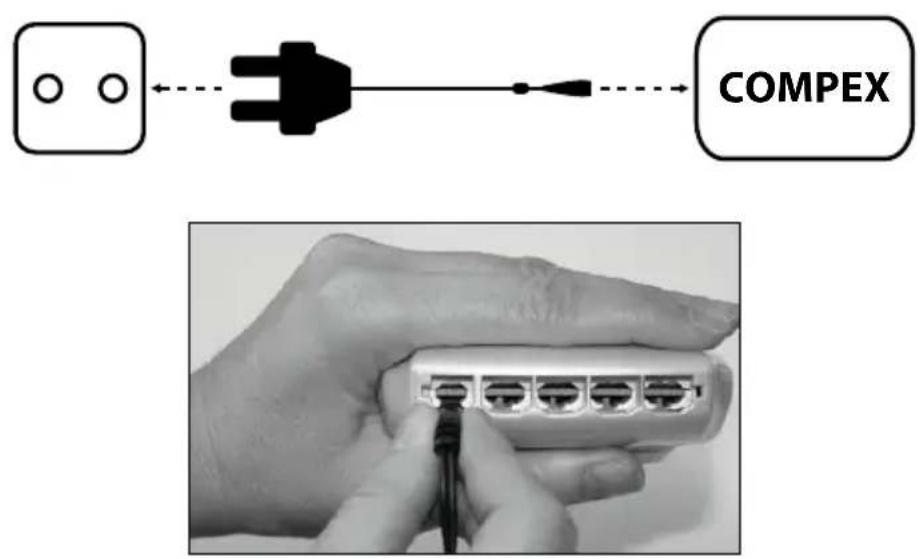

CHARGER CONNECTION

COMPEX

Remove all stimulation cables from the stimulator before recharging it. Connect the charger to a wall socket and connect the stimulator by sliding the red cover to the right to reveal the charger connector. It is strongly recommended to fully charge the battery before its first use to improve its performance and life span.

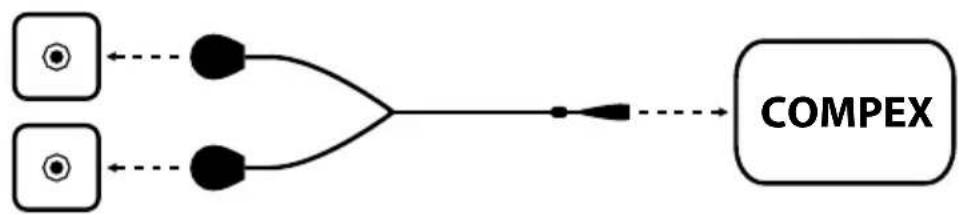

CONNECTING THE CABLES

The cables of the stimulator connect to the 4 sockets at the front of the device. The MI-sensor cable (if available with the device) can be connected to any socket on the stimulator.

PRELIMINARY SETTINGS

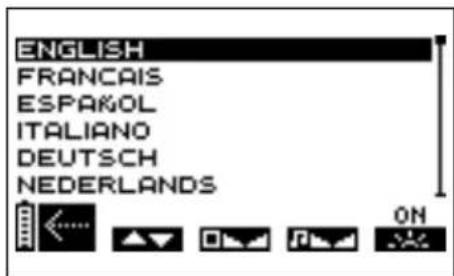

Before your first use, you can define various settings. This options screen can then be displayed by switching the device off and by pressing and holding the on/off button for at least 2 seconds.

ENGLISH FRANÇAIS ESPAKOL ITALIANO DEUTSCH NEDERLANDS ON

ABCDE

B Press the +/- button of channel 1 to select the language to be used.

C Press the +/- button of channel 2 to adjust screen contrast.

D Use the +/- button of channel 3 to adjust the volume.

E Press the +/- button of channel 4 to adjust the backlighting.

ON: backlighting always active.

OFF: backlighting always inactive.

AUTO: backlighting activated every time a button is pressed.

A Press the on/off button to confirm and save your selections. Settings are immediately applied.

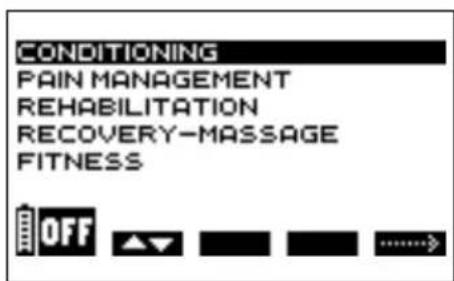

CHOOSING A CATEGORY

N.B. The following screens are generic examples but they work in the same way regardless of the device that you have.

To switch the stimulator on, briefly press the on/off button.

Before selecting a programme, you should select the desired category.

CONDITIONING PAIN MANAGEMENT REHABILITATION RECOVERY-MASSAGE FITNESS OFF

ABE

A Press the on/off button to switch the device off.

B Press the +/- button of channel 1 to select a category.

E Press the +/- button of channel 4 to confirm your selection.

TOP 5

To access the last 5 programmes used press the I-button. From there, select the desired programme and start it.

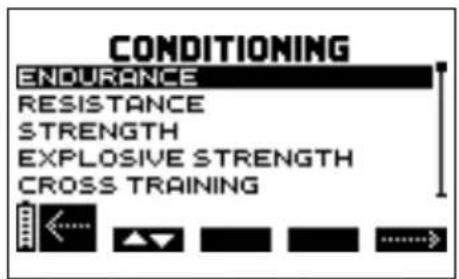

SELECTING A PROGRAMME

CONDITIONING ENDURANCE RESISTANCE STRENGTH EXPLOSIVE STRENGTH CROSS TRAINING

ABE

A Press the on/off button to return to the previous screen.
B Press the +/- button of channel 1 to select a programme.
E Press the +/- button of channel 4 to confirm the selection and start the stimulation session.

N.B. After selecting a programme an additional screen may appear, requesting the programme cycle to be selected. Select the desired cycle and then press the +/- button of channel 4 to confirm the selection and start the stimulation session.

It is recommended to start with the 1st cycle and to change cycle when it is complete, normally after 4 to 6 weeks of stimulation based on 3 sessions per week. It is also important to have reached significant stimulation intensities during the sessions before progressing to another cycle.

At the end of the cycle you can either start a new cycle or carry out maintenance training based on one session per week.

MI-SCAN TEST

N.B. See the chapter "How MI technology works".

If the MI-sensor cable is connected, the MI-scan test starts immediately after the programme is selected.

mi SCAN STOP mi

A

A Press the on/off button to stop the test

The +/- buttons of the 4 channels are inactive throughout the test.

ADJUSTING STIMULATION INTENSITIES

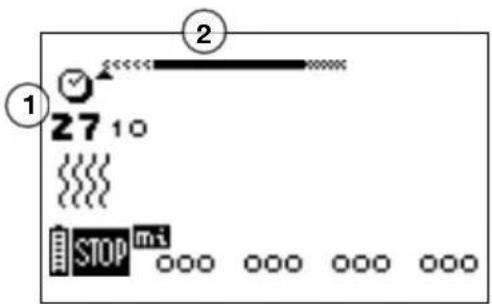

When you start a programme, you are asked to increase the stimulation intensities.

This step is essential for a successful session.

1 27 10 STOP mi

ABCDE

1 Programme duration in minutes and seconds

2 Programme progression bar. For details of how it works, see the following paragraph: "Programme progression"

A Press the on/off button to switch the unit into Pause mode.

B C D E The four channels flash, going from + to 000. The stimulation intensity must be increased to be able to start stimulation. For this, press the + buttons of the relevant channels until the desired setting is reached. N.B. To increase the intensities on several channels simultaneously, press the I-button and then increase the intensities. The interdependent channels are displayed in white on a black background.

PROGRAMME PROGRESSION

Stimulation starts properly once the stimulation intensity has been increased.

The examples below explain the general rules. Depending on the programme, there may be slight differences.

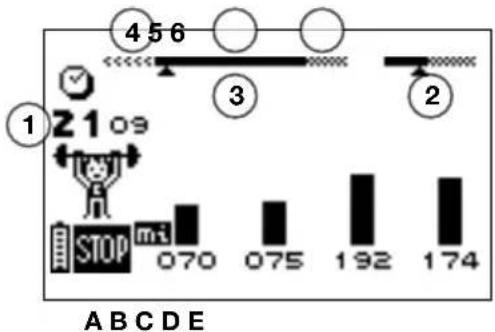

1 Time remaining (in minutes and seconds) until the end of a programme
2 The duration bar showing the duration of the contraction and duration of active rest is only shown during the work sequence
3 Session sequences
4 Warm-up
5 Work period
6 Relaxation

A Press the on/off button to temporarily interrupt the programme. To resume, simply press the +/- button of channel 4. The session will resume at 80% of the intensity level being used before it was interrupted.

N.B. In pause mode, the 🎨 button switches directly to the next sequence.

N.B. In pause mode and depending on the programme, usage statistics may be displayed:

MAX = the maximum intensity reached per channel during contraction phases

AVG= the average intensity for all channels applied during the contraction phases

B C D E The various intensities reached during the contraction phase are shown by a series of black vertical bars; the intensities of the rest phase are illustrated by hatched bars.

Please note that the stimulation intensities for the active rest phase are automatically set to 50% of the contraction intensities. They can be changed during the rest phase. Once changed, they are completely independent of the contraction intensities.

END OF A PROGRAMME

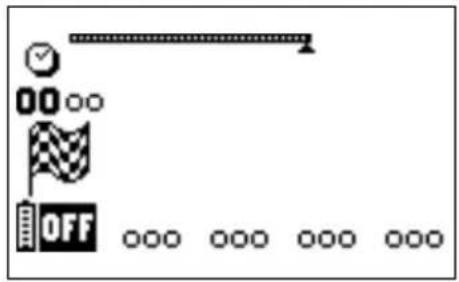

At the end of a session, the following screen is displayed. To stop the stimulator, press the on/off button.

Game control panel with checkmark, flag, and OFF button icons

N.B. Depending on the programme, usage statistics may be displayed (see previous chapter "Programme progression").

BATTERY LEVEL AND CHARGING

Battery performance depends on the programme and the stimulation intensity applied. It is strongly recommended to fully charge the battery before its first use to improve its performance and life span. Always use the charger supplied by Compex to recharge the battery.

If the device is not going to be used for over 3 months, ensure that the battery is fully charged. If the device is not going to be used for over 6 months, ensure that the battery is fully charged and remove it from the stimulator. Switch the stimulator off before removing the battery.

BATTERY LEVEL

The battery charge level is shown by a battery icon in the bottom left of the screen. The battery icon flashes when the battery is completely flat. The device can then no longer be used. Recharge it immediately.

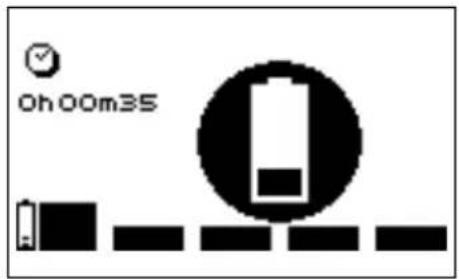

RECHARGING

Remove all stimulation cables from the stimulator before recharging it. Connect the charger to a wall socket and connect the stimulator by sliding the red cover to the right to reveal the charger connector.

The charging menu shown below appears automatically.

Oh 00m35

The charging duration is displayed on the screen. As soon as charging is complete, the battery flashes. Disconnect the charger: the stimulator will switch off automatically.

5. TROUBLESHOOTING

ELECTRODE FAULT

21 19 START

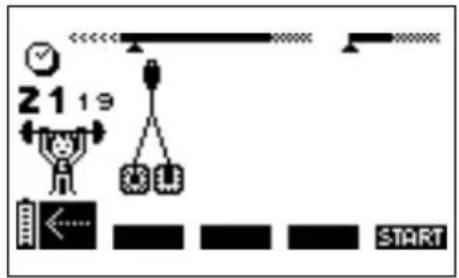

The device emits a tone and alternately displays the pair of electrodes symbol and an arrow pointing towards the channel on which a problem has been detected. In the above example, the stimulator has detected an error on channel 1.

Check that the electrodes are connected to this channel.

If electrodes are old, worn and/or if the contact is poor: try using new electrodes.

Try using the stimulation cable on a different channel. If the cable is still faulty, replace it (www.compexstore.com).

STIMULATION DOES NOT PRODUCE THE USUAL SENSATION

Check that all settings are correct and check electrodes are properly positioned.

Change the position of the electrodes slightly.

STIMULATION CAUSES DISCOMFORT

Electrodes lose their adhesive capacity and no longer provide suitable contact with skin.

Electrodes are worn and must be replaced.

Change the position of the electrodes slightly.

THE STIMULATOR IS NOT WORKING

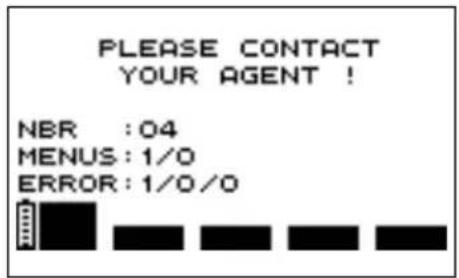

PLEASE CONTACT YOUR AGENT ! NBR :04 MENUS: 1/0 ERROR: 1/0/0

When an error screen is displayed during use, note the error number (in the example, the error number is 1/0/0) and contact the Compex-approved customer service centre.

THE BATTERY IS VERY FLAT

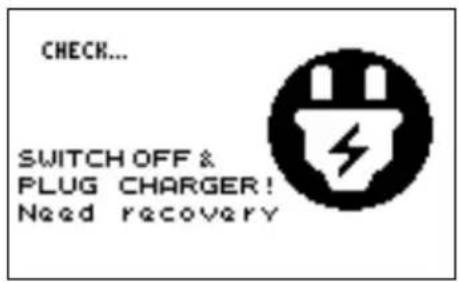

If the following screen appears, switch the device off and connect the charger.

CHECK... SWITCH OFF & PLUG CHARGER! Need recovery

If a battery is very flat, a recovery cycle will start, lasting 2 minutes.

CHARGING... wait 2 min /

When this has finished, if the battery is working properly, it will start charging; in this case, it is strongly recommended to perform a charge/discharge cycle for the battery by pressing on the channel 4 button to launch this cycle, which may take up to 12 hours. If, however, it proves to be faulty, the following screen appears and the battery must be replaced.

REPLACE BATTERY !!!

6. DEVICE MAINTENANCE

GUARANTEE

See the attached leaflet.

MAINTENANCE

Your stimulator does not require neither calibration nor periodic maintenance. However when needed clean with a soft cloth and solvent-free alcohol-based detergent. Use as little liquid as possible to clean the device. Do not disassemble the stimulator or the charger as they contain high-voltage components which could cause electrocution. This must be carried out by Compex-approved technicians or repair services. If your stimulator contains parts that appear to be worn or faulty, please contact the closest Compex customer service centre.

CONDITIONS FOR STORAGE/TRANSPORT AND USE

	STORAGE AND TRANSPORT USE
TEMPERATURE -20°C to 45°C 0°C to 40°C
MAXIMUM RELATIVE HUMIDITY 75% 30% to 75%
ATMOSPHERIC PRESSURE from 700 hPa to 1060 hPa from 700 hPa to 1060 hPa

Do not use in areas at risk of explosion.

DISPOSAL

Batteries must be disposed of in accordance with national regulatory requirements in force. Any product bearing the WEEE label (a crossed-out wheeled bin) must be separated from household waste and sent to special collection facilities for recycling and recovery.

7. TECHNICAL SPECIFICATIONS

GENERAL INFORMATION

94121x rechargeable Nickel-metal hydride (NiMH) battery (4.8 V / ≥ 1200 mA/h).

Battery chargers: only battery chargers with the part number 6830xx can be used to recharge the batteries supplied with the stimulator.

Product and accessories expected service life: 5 years

Electrode shelf life: refer to electrodes bag

NEUROSTIMULATION

All the electrical specifications are supplied with an impedance from 500 to 1000 ohms per channel.

Channels: four independent and individually adjustable channels, electrically isolated from each other. Impulsion form: constant rectangular current with pulse compensation to eliminate any direct current component to prevent residual polarisation at skin level.

Maximum pulse intensity: 120 mA.

Pulse intensity increments: manual adjustment of stimulation intensity from 0 to 999 (energy) by minimum increments of 0.5 mA.

Pulse amplitude: from 60 to 400~ s .

Maximum electrical charge per pulse: 96 microcoulombs (2 x 48 μC, compensated).

Standard pulse ramp-up time: 3 μs (20 %-80 % of maximum current).

Pulse frequency: 1 to 150 Hz.

INFORMATION ABOUT ELECTROMAGNETIC COMPATIBILITY (EMC)

The stimulator is designed to be used in typical domestic environments approved in accordance with the safety standard EMC EN 60601-1-2.

This device emits very low levels in the radio frequency (RF) interval and is therefore not likely to cause interference with nearby electronic equipment (radios, computers, telephones, etc.).

The stimulator is designed to withstand foreseeable disturbances originating from electrostatic discharge, magnetic fields from the power supply or radio frequency emitters.

However, it is not possible to guarantee that the stimulator will not be affected by powerful RF (radio frequency) fields originating, for example, from mobile phones.

For more detailed information about electromagnetic emissions and immunity, please contact Compex.

STANDARDS

To ensure your safety, the stimulator has been designed, manufactured and distributed in accordance with the requirements of the amended European Directive 93/42/CEE covering medical devices.

The stimulator also complies with the CEI 60601-1 standard covering general safety requirements for electromedical devices, with the CEI 60601-1-2 standard covering electromagnetic compatibility and the CEI 60601-2-10 standard covering special safety requirements for nerve and muscle stimulators.

In accordance with current international standards in force, a warning must be given about applying electrodes to the thorax (increased risk of cardiac fibrillation).

The stimulator also complies with Directive 2002/96/CEE covering waste electrical and electronic equipment (WEEE).

8. EMC TABLE

The Compex stimulator needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided.

Portable and mobile RF communications equipment can affect the Compex stimulator.

The use of Accessories, transducers, and cables other than those specified by the manufacturer, may result in increased Emissions or decreased Immunity of the Compex stimulator.

The Compex stimulator should not be used adjacent to or stacked with other equipment and if adjacent or stacked use is necessary, the Compex stimulator should be observed to verify normal operation in the configuration in which it will be used.

GUIDANCE AND MANUFACTURER'S DECLARATION – ELECTROMAGNETIC EMISSIONS
The Compex stimulator is intended for use in the electromagnetic environment specified below. The customer or the user of the Compex stimulator should assure that it is used in such an environment.
EMISSION TESTS COMPLIANCE		ELECTROMAGNETIC ENVIRONMENT – GUIDANCE
Radiated Emissions CISPR 11 Group 1		The Compex uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
Conducted Emissions CISPR 11 Class B
Harmonic emissions IEC 61000-3-2 Class A		The Compex is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Voltage fluctuations IEC 61000-3-3 Complies

GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC IMMUNITY
The Compex stimulator is intended for use in the electromagnetic environment specified below. The customer or the user of the Compex stimulator should assure that it is used in such an environment.
IMMUNITY TEST	IEC 60601TEST LEVEL	COMPLIANCE LEVEL	ELECTROMAGNETIC ENVIRONMENT -GUIDANCE
Electrostatic discharge(ESD) IEC 61000-4-2	±6kV contact±8kV air	±6kV contact±8kV air	Floors should be wood, concrete or ceramictile. If floors are covered with synthetic material, the relative humidity should be at least 30%.
Electrical fast transient/burstIEC 61000-4-4	±2kV for power supply lines±1kV for input/output lines	±2kV (power lines)Not Applicable(I/O lines)	Mains power quality should be that of a typical commercial or hospital environment.
SurgeIEC 61000-4-5	±1kV Line to Line (or Neutral)±2kV line(s) to earth	±1kV Line to LineNot Applicable(Line to Earth)	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input linesIEC 61000-4-11 a	<5% UT(>95% dip in UT) for 0,5 cycle40% UT(60% dip in UT) for 5 cycles70% UT(30% dip in UT) for 25 cycles<5% UT(>95% dip in UT) for 5 sec	<5% UT(>95% dip in UT) for 0,5 cycle40% UT(60% dip in UT) for 5 cycles70% UT(30% dip in UT) for 25 cycles<5% UT(>95% dip in UT) for 5 sec	Mains power quality should be that of a typical commercial or hospital environment.If the user of the Compex stimulator requires continued operation during power mains interruptions, it is recommended that the Compex stimulator be powered from an uninterrupted power supply or a battery.
Power frequency(50/60Hz) magnetic field IEC 61000-4-8	3 A/m 3 A/m		Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.
a UT is the a.c mains voltage prior to application of the test level.
Conducted RFIEC 61000-4-6Radiated RFIEC 61000-4-3	3 Vrms150 kHz to 80 MHz3 V/m1.4 GHz to 2,7 GHz10 V/m26MHz to 1GHz	3Vrms3V/m10V/m	Portable and mobile RF communications equipment should be used no closer to any part of the Compex stimulator, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance d = 1.2 d = 1.2 80 MHz to 800 MHz d = 2.3 800 MHz to 2,5 GHzwhere P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site surveya, should be less than the compliance level in each frequency rangeb.Interference may occur in the vicinity of equipment marked with the following symbol:[IMAGE]
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
^a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Compex stimulator is used exceeds the applicable RF compliance level above, the Compex stimulator should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Compex stimulator. ^b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND THE COMPEX STIMULATOR
The Compex stimulator is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Compex stimulator can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Compex stimulator as recommended below, according to the maximum output power of the communications equipment.
RATED MAXIMUM OUTPUT POWER OF TRANSMITTER W	SEPARATION DISTANCE ACCORDING TO FREQUENCY OF TRANSMITTER M
	150 KHZ TO 80 MHZ D = 1.2 √P	80 MHZ TO 800 MHZ D = 1.2 √P	800 MHZ TO 2,5 GHZ D = 2.3 √P
0,01 0,12 0,12	0,23
0,1 0,38 0,38	0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

COMPEX®

Fit1.0

Fit3.0

SP2.0

SP4.0

MODE D'EMPLOI

TABLE DES MATIÈRES

Line drawing of a rectangular device with labeled buttons H and G (no text or symbols beyond labels)

Game control panel with checkmark, flag, and OFF button icons

REPLACE BATTERY !!!

6. ENTRETIEN DE L'APPAREIL

GARANTIE

Consulter la notice jointe.

MAINTENANCE

Line drawing of a rectangular device with labeled buttons H and G (no text or symbols beyond labels)

Diagram with icons including checkmark, flag, and 'OFF' label arranged in a row

REPLACE BATTERY !!!

Line drawing of a rectangular device with labeled buttons H and G (no text or symbols beyond labels)

PROGRESSIONE DEL PROGRAMMA

Diagram with icons including checkmark, flag, and 'OFF' label arranged in a row

GUASTO AGLI ELETTRODI

21 19 START

REPLACE BATTERY !!!

6. MANUTENZIONE DEL DISPOSITIVO

GARANZIA

Line drawing of a rectangular device with labeled buttons H and G (no text or symbols beyond labels)

Diagram with icons including checkmark, flag, and 'OFF' label arranged in a row

REPLACE BATTERY !!!

BESCHRIJVING VAN HET APPARAAT

COMPEX. A E D F B C

Line drawing of a rectangular device with labeled buttons H and G (no text or symbols beyond labels)

Game control panel with checkmark, flag, and OFF button icons

5. PROBLEEMOPLOSSING

ELEKTRODESTORING

21 19 START

REPLACE BATTERY !!!

6. ONDERHOUD VAN HET APPARAAT

GARANTIE

Zie bijsluiter.

ONDERHOUD

Line drawing of a rectangular device with labeled buttons H and G (no text or symbols beyond labels)

Close-up of a hand inserting a network switch into a USB port (no text or symbols visible)

PROGRESSO DO PROGRAMA

Game control panel with checkmark, flag, and OFF button icons

REPLACE BATTERY !!!

Line drawing of a rectangular device with labeled buttons H and G (no text or symbols beyond labels)

Game control panel with checkmark, flag, and OFF button icons

INNEHÅLLSFÖRTECKNING

FÖRDELAR MED ELEKTROSTIMULERING

Line drawing of a rectangular device with labeled buttons H and G (no text or symbols beyond labels)

Game control panel with checkmark, flag, and OFF button icons

REPLACE BATTERY !!!
