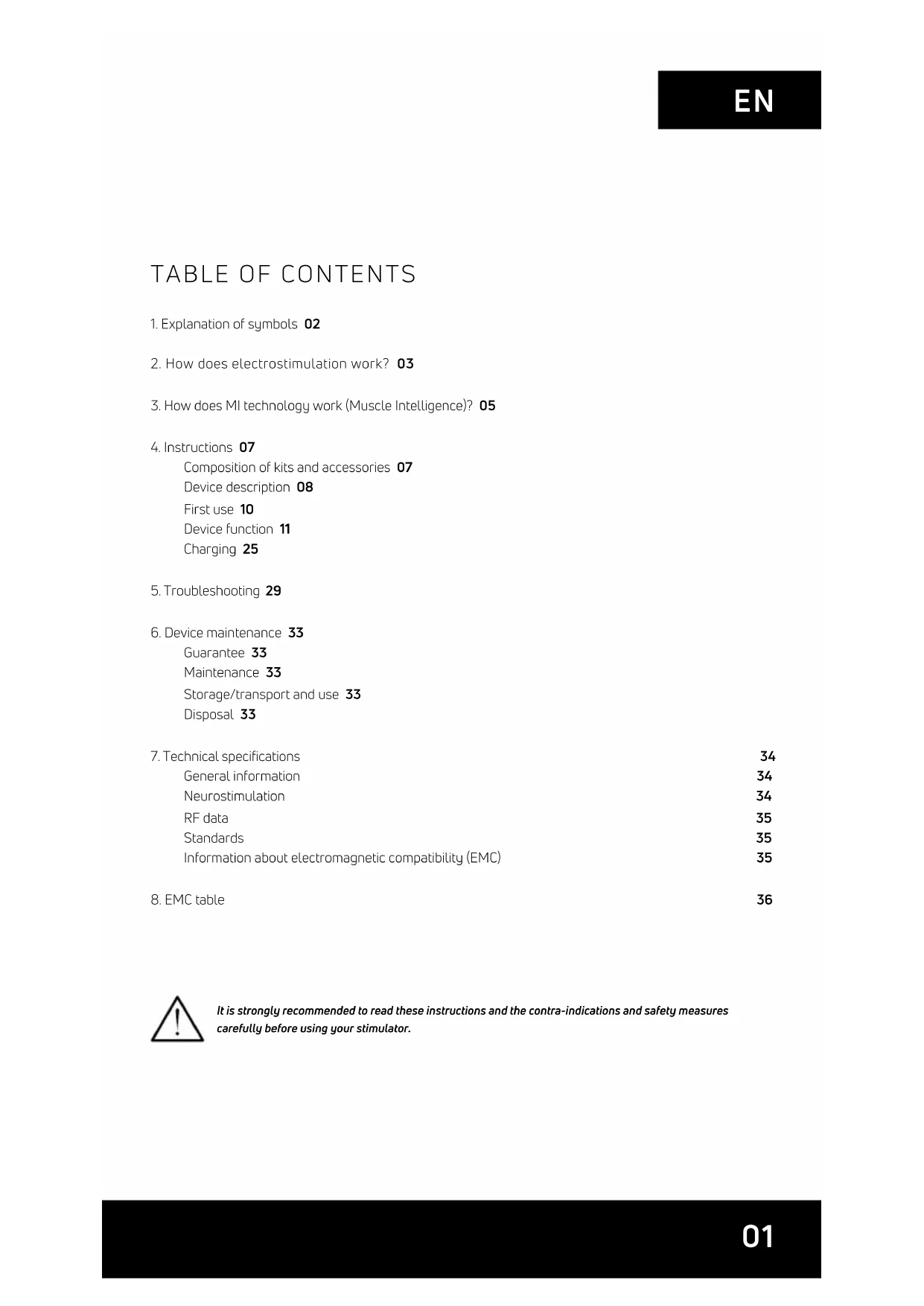

1. Explanation of symbols 02
2. How does electrostimulation work? 03
3. How does MI technology work (Muscle Intelligence)? 05
4. Instructions 07

Composition of kits and accessories 07

Device description 08

First use 10

Device function 11

Charging 25

1. Troubleshooting 29
2. Device maintenance 33

Guarantee 33

Maintenance 33

Storage/transport and use 33

Disposal 33

1. Technical specifications 34

General information 34

Neurostimulation 34

RF data 35

Standards 35

Information about electromagnetic compatibility (EMC) 35

1. EMC table 36

It is strongly recommended to read these instructions and the contra-indications and safety measures carefully before using your stimulator.

1. EXPLANATION OF SYMBOLS

	See the instructions	MD	MD medical device
	The stimulator is a category II device with built-in power supply and type BF applied parts.		SN Serial number
	Manufacturer's name and address and date of manufacture		UDI Unique Device Identification
	Name and address of approved representative in the European Community		Best used by
	This device must be separated from household waste and sent to special collection facilities for recycling and recovery		Origin and date of manufacture
	The stand-by button is multi-functional		Relative humidity
	Protect from sunlight Temperature	[WWB=]
	Store in a dry place Atmospheric pressure
[0Z47]	IP 22 on the unit means the protection is effective against ingress of foreign solid objects (diameter greater than 12.5 mm) and against ingress of dripping water (when tilted up tp 15°).		CE mark with notify body number
	Latex-free
	Reference number
	Batch number

2. HOW DOES ELECTROSTIMULATION WORK?

Electrostimulation involves stimulating nerve fibres by electrical impulses transmitted by electrodes. The electrical impulses produced by Compex stimulators are high-quality impulses that are safe, comfortable and effective and stimulate various types of nerve fibres:

1. Motor nerves to stimulate a muscle response referred to as electrical muscle stimulation (EMS).
2. Certain types of sensitive nerve fibres to obtain analgesic effects or pain relief.

1. STIMULATION OF MOTOR NERVES (EMS)

With voluntary activity, the brain orders muscles to contract and a command is then sent to nerve fibres in the form of an electrical signal. This signal is then sent to muscle fibres, which contract. The principle of electrostimulation correctly reproduces the process involved in a voluntary contraction. The stimulator sends an electrical impulse to nerve fibres to excite them. This excitation is then transmitted to muscle fibres and results in a mechanical response (= a twitch). This is the basic requirement for muscular contraction. The muscular response is to all intents and purposes identical to the muscular work controlled by the brain. In other words, the muscle does not distinguish between a command sent by the brain or the stimulator.

Programme settings (number of impulses per second, duration of contraction, rest time, total programme duration) subject the muscle to various types of workout, depending on the muscle fibre. Various types of muscle fibres can be identified depending on their respective contraction speeds: slow, intermediate and rapid fibres. A sprinter clearly has more rapid fibres and a marathon runner has more slow fibres. With good knowledge of human physiology and perfect control of stimulation settings in the various programmes, muscular workout can be very accurately directed to achieve the desired objective (muscular strengthening, increased blood circulation, firming, etc.).

2. STIMULATION OF SENSORY NERVES

Electrical impulses can also excite sensory nerve fibres to obtain analgesic effects or pain relief.

Stimulating tactile sensory nerve fibres blocks pain being transmitted to the nervous system. Stimulating another type of sensory fibre increases the production of endorphins and therefore reduces pain. With pain relief programmes, electrostimulation can be used to treat acute or chronic localised pain and muscle pain.

Note: Do not use pain relief programmes for an extended period without medical advice.

BENEFITS OF ELECTROSTIMULATION

Electrostimulation is a very effective method for making muscles work:

• with a significant improvement in various muscle qualities
• with no cardiovascular or mental fatigue
• with limited stress exercised on joints and tendons. Electrostimulation thereby enables more muscular workout than voluntary activity.

For optimum results, Compex recommends supplementing your electrostimulation sessions with other exercise, such as:

• regular physical exercise
• balanced and healthy diet
• balanced life style

3. HOW DOES MI TECHNOLOGY WORK (MUSCLE INTELLIGENCE)?

N.B.: The activation/deactivation of MI functions is performed via the Settings menu

MI-SCAN

Just before starting a workout session, the MI-scan function probes the chosen muscle group and automatically adjusts the stimulator settings to the excitability of this area of the body, depending on your physiology.

This function results in, at the start of the programme, a short test sequence during which measurements are taken.

At the end of the test, intensities must be increased to start the programme.

MI-TENS

The MI-tens function limits unwanted muscle contractions in painful areas.

With each intensity increase, a test phase occurs and if a muscular contraction is detected, the device automatically reduces the intensity of the stimulation.

This function is only accessible in the TENS, Epicondylitis and Tendinitis programmes.

MI-RANGE

The MI-range function allows the user to select the ideal level of stimulation intensity for recovery, massage, capillarisation or even muscle pain programmes.

At the beginning of the programme, the device prompts the user to increase stimulation intensity. During this increase, the device analyses the response of each stimulated muscle, and deduces their optimal level. As soon as a muscle reaches its optimal level, the related channel is automatically deselected and the stimulation intensity cannot be increased. To recover control, simply re-select the channel in question and raise or lower the stimulation intensities.

MI-AUTORANGE

The MI-autorange function pursues the same objective as MI-range except that in this case everything is done automatically.

At the beginning of the programme, a single press of the up key of the multifunction pad allows the device to automatically increase the stimulation intensities until it detects the ideal level of intensity. Pressing the down key of the multifunction pad cancels the MI-autorange function. The device then goes into manual mode and intensities must be managed by the user.

MI-ACTION

The MI-action function allows you an electro-induced contraction to be initiated by means of a voluntary action. Thus the electro-induced contraction is perfectly controlled, the workout becomes more comfortable, more thorough and more complete.

At the end of each active rest phase the remote control emits a beep. From this point the start of voluntary contraction is possible. If no voluntary contraction has occurred after a certain period of time, the device will automatically pause.

This work mode is available only for programmes inducing powerful muscle contractions.

N.B.: To function properly, the MI-action function needs good muscle twitches during the active rest phase. If they are not significant enough, the device emits beeps and a + sign appears on the channels. Similarly, in order to render these twitches possible, it is imperative that muscles be well relaxed during the rest phase. At the end of each contraction phase, it is necessary to ensure that you return to a position allowing for best muscle relaxation.

The table below shows which functions are available with each device.

SP 6.0 SP 8.0 FIT 5.0

MI-SCAN	√	√	√
MI-TENS	-			√	-
MI-RANGE	√			-	√
MI-AUTORANGE	-			√	-
MI-ACTION	-			√	-

4. INSTRUCTIONS

COMPOSITION OF KITS AND ACCESSORIES

	SP 6.0 SP 8.0 / WOD FIT 5.0
	REF QTY	REF QTY	REF QTY
REMOTE CONTROL	001047 1		001046 /001046CF	1 001048 1
MODULES	001061 4		001061 /001061CF	4 001055 2
DOCKING STATION	001068 1 001068 1 001073 1
CHARGER	64902X 1 64902X 1 64902X 1
BAG OF SMALL 5X5 ELECTRODES	42215-8 1 42215-8 1 42215 1
BAG OF LARGE 5X10 ELECTRODES, 2 SNAP	42216-4 1 42216-4 1 42216 1
BAG OF LARGE 5X10 ELECTRODES, 1 SNAP	42222-4 1 42222-4 1 42222-4 1
QUICK START GUIDE	885625 1 885625 1 885625 1
CARRY CASE	680043 1		680042 /680043 +680042	1 680043 1
REMOTE CONTROL PROTECTION SLEEVE	NA NA 001094 1 NA NA
USB CABLE	601163 1 601163 1 601163 1
USER MANUAL	4528182 1 4528182 1 4528182 1

Only use this device with cables, electrodes, battery, power adaptor and accessories recommended by Compex.

DEVICE DESCRIPTION

A B C D E

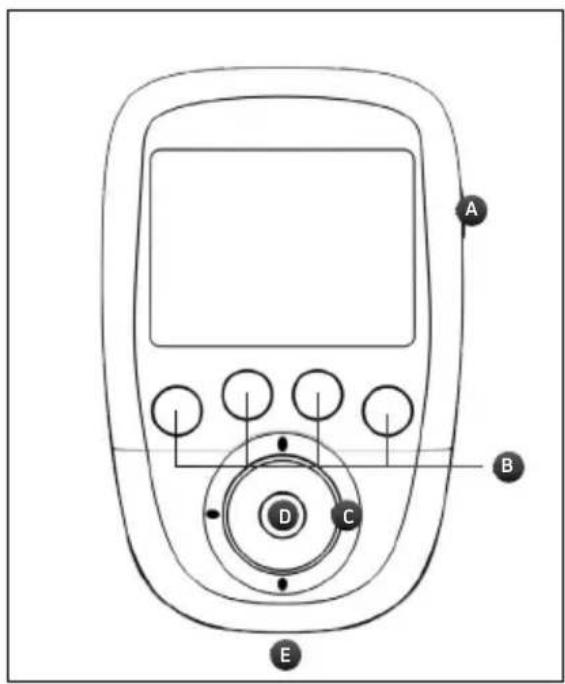

REMOTE CONTROL

A - On/Off button (press briefly to turn on, hold down for more than 2 sec. to turn off)
B - 4 buttons for the selection/deselection of the stimulation channel
C - Multifunction pad (up-down-left-right) to navigate the interface and increase or decrease the level of stimulation intensity of the selected channels
D - Confirm button
E - Plug for the USB cable or the docking station connector

Simple line drawing of two circular devices connected by a cable, labeled A and B (no text or symbols on the devices themselves)

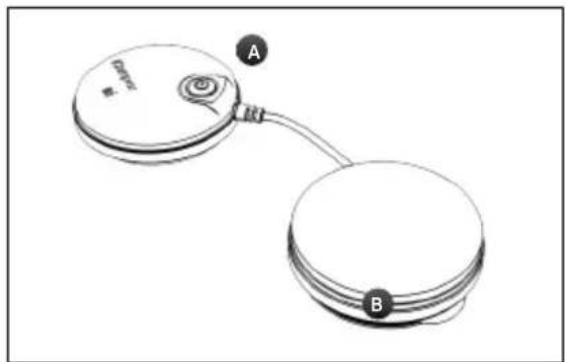

MODULE

A - On/Off button (press briefly to turn on, press and hold down to turn off)

Flashing green LED: Ready

Flashing yellow LED: In stimulation

B - Groove for winding the cable

DEVICE DESCRIPTION

A B C D

Technical line drawing of a device casing with labeled components A and B (no text or symbols beyond labels)

Line drawing of a handbag with two side handles and a handle, labeled D (no text or symbols present)

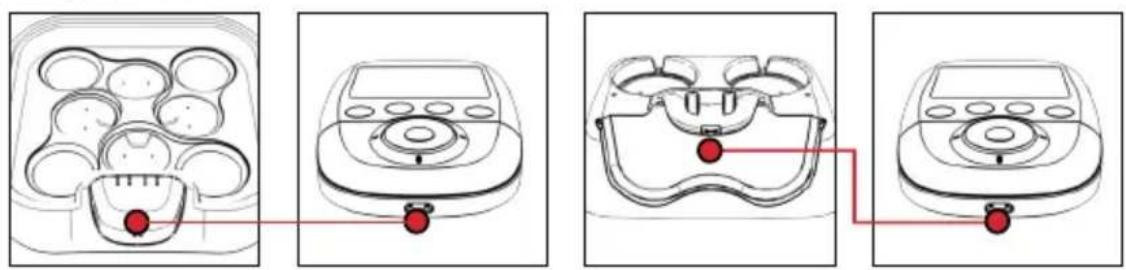

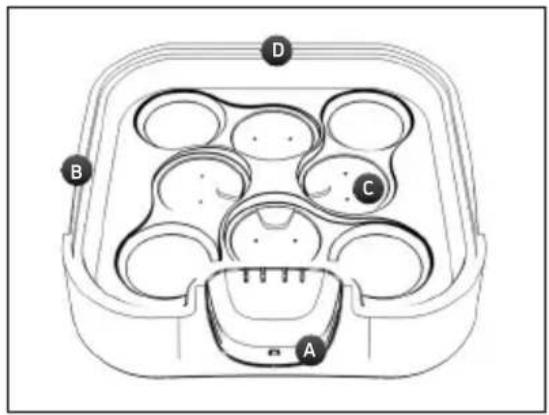

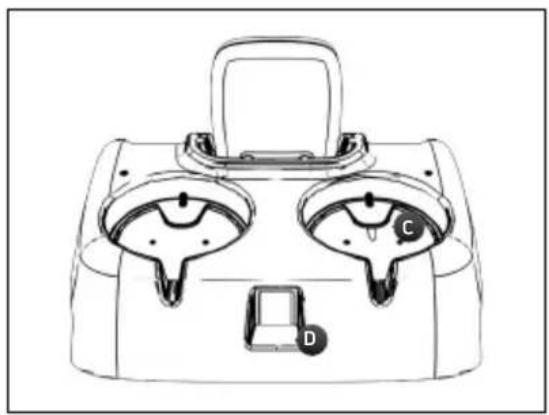

SP 6.0 AND 8.0 DOCKING STATION

A - Remote control charging connector
B - Notch to open the lid of the docking station
C - Location for positioning the modules to be recharged
D - Charger plug

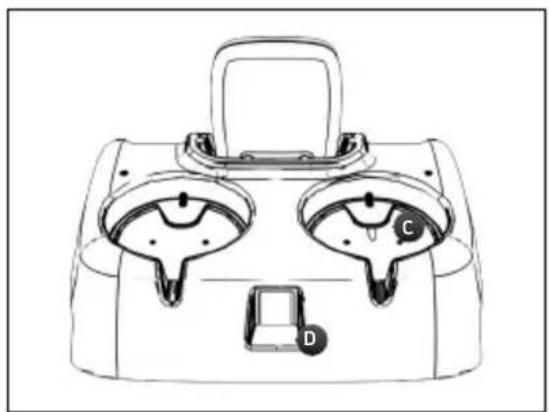

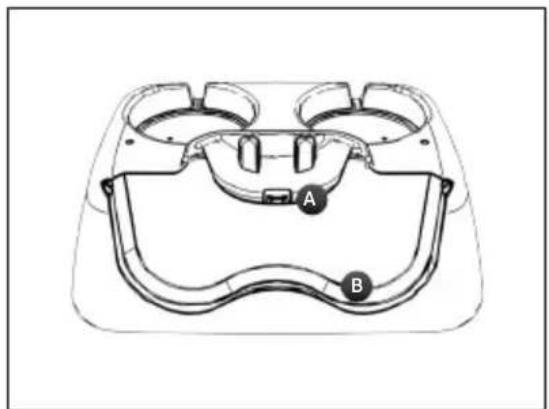

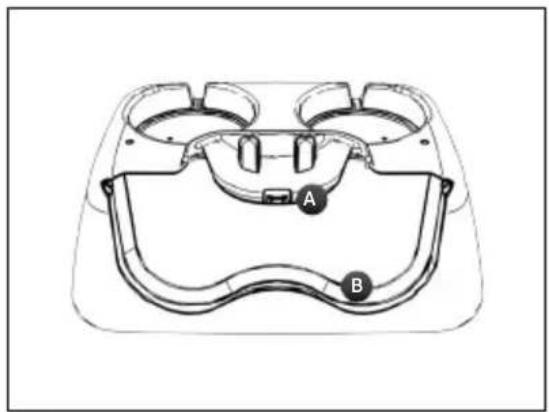

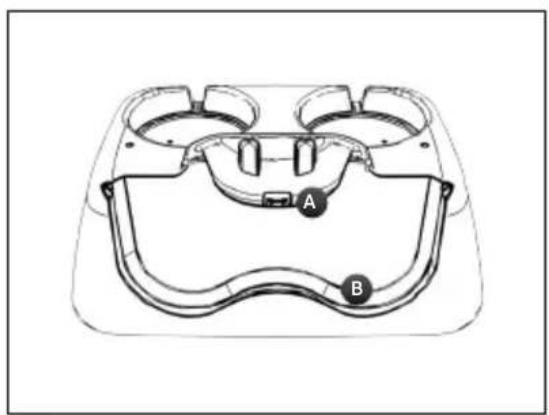

FIT 5.0 DOCKING STATION

A - Remote control charging connector
B - Location for positioning the modules
C - Location for positioning the modules to be recharged
D - Charger plug

FIRST USE

When using the device for the first time, the following steps must be followed:

1. Select language

English

2. Turn on all modules in order to pair them with the remote control.

Turn on ALL your modules mi

Once a module is turned on and recognized by the remote control, a check appears on the module.

Turn on all your modules Mi

When all modules are paired all check marks appear.

Turn on ALL your modules mi

N.B.: This pairing procedure is to be performed only once.

DEVICE FUNCTION

N.B.: The following screens are generic examples but they work in the same way regardless of the device that you have.

HOW TO ACCESS FAVOURITES

The Favourites menu displays the last programmes done. You need only have one programme in the Favourites menu to become directly accessible after turning on the device.

Favourites Pain management TENS Reduce muscle soreness Warm up

A Select the Favourites menu
B Confirm your selection

The programmes done will automatically be placed in the Favourites menu. The Favourites menu can contain up to 10 programmes. If new programmes are done, the old ones will automatically be removed from the list of favourites.

1. SELECT A PROGRAMME

Select a favourite Pain management TENS To alleviate all types of localised pain Reduce muscle soreness Warm up

A Select the desired favourite programme
B Confirm your selection
C Return to the previous step

2. SELECT ELECTRODE PLACEMENT

Select a placement Pain manag... Reduce muscl... Warm up

A Select the desired electrode placement
B Confirm your selection
C Return to the previous step

The placement of electrodes selected during the programme appears. It is possible to scroll through other electrode placements.

3. CONNECT THE MODULES TO THE ELECTRODES

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Stick the electrodes to your skin. The module is attached to the electrode from the side. Slide the module onto the electrode's snap until it clips into place.

4. TURN ON THE MODULES

Turn on your module(s) mi

A Return to the previous step

B Confirm your selection

To launch the programme, see the section entitled "Start a stimulation programme."

HOW TO ACCESS PROGRAMMES

For more information on programmes, connect to: www.compex.info

The Programmes menu displays the programme categories.

Programmes Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A B A

A Select the Programmes menu
B Confirm your selection

1. SELECT A CATEGORY

Select a category Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A C B A

A Select the desired programme category
B Confirm your selection
C Return to the previous step

2. SELECT A PROGRAMME

Select a programme Warm up To prepare muscles before a competition Potentiation Endurance Resistance Strength

A C B A

A Select the desired programme
B Confirm your selection
C Return to the previous step

3. SELECT ELECTRODE PLACEMENT

Select a placement Warm up Potentiation Endurance Resistance Strengthn

A C B A

A Select the desired electrode placement
B Confirm your selection
C Return to the previous step

4. CONNECT THE MODULES TO THE ELECTRODES

Close-up of a circular object with a red arrow pointing downward, next to a magnified view of a small circular object (no text or symbols visible)

Stick the electrodes to your skin. The module is attached to the electrode from the side. Slide the module onto the electrode's snap until it clips into place.

5. TURN ON THE MODULES

Turn on your module(s) mi

A Return to the previous step
B Confirm your selection

To launch the programme, see the section entitled "Start a stimulation programme."

HOW TO ACCESS OBJECTIVES

The Objectives menu displays the objectives downloaded from your personal account (see section entitled "Creating your personal account").

N.B.: The Objectives menu is only available for the SP 8.0 device.

Objectives Prepare my marathon Treat my torticollis

A B A

A Select the Objectives menu
B Confirm your selection

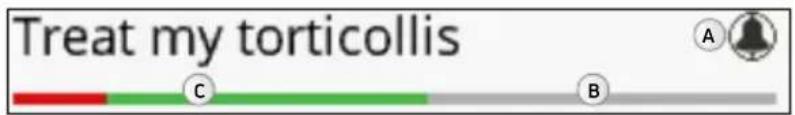

The progress bar under the objective shows the progress of the objective and what remains to be done. The bell indicates that there is an element of the objective to perform today.

Treat my torticollis A B C

A Indicates an element of the objective to perform today
B What remains to be done
C What has already been accomplished:

• What has been completed appears in green
• What has not been completed appears in red

1. SELECT AN OBJECTIVE

Select an objective Prepare my marathon Treat my torticollis

A C B A

A Select the desired objective
B Confirm your selection
C Return to the previous step

1. SELECT AN ELEMENT TO DO


Select an item Running Running Long run optimisation Planned today! Endurance Running

A B A

A Select the desired element
B Confirm your selection
C Return to the previous step

The element to do can be a programme or a task. The element to do is selected by default, but it is possible to select another.

The ☑ next to a programme or a task signifies that it has been done.

1. SELECT ELECTRODE PLACEMENT


Select a placement Running Running Long run opti... Endurance Running 21°

A C B A

A Select the desired electrode placement
B Confirm your selection
C Return to the previous step

N.B.: In most cases a different electrode placement cannot be selected because it is directly linked to the objective.

1. CONNECT THE MODULES TO THE ELECTRODES


Close-up of a circular object with a red arrow pointing downward and a magnified inset showing a small circular feature (no text or symbols)

Stick the electrodes to your skin. The module is attached to the electrode from the side. Slide the module onto the electrode's snap until it clips into place.

1. TURN ON THE MODULES


Turn on your module(s) mi

A Return to the previous step
B Confirm your selection

To launch the programme, see the section entitled "Start a stimulation programme."

HOW TO ACCESS SETTINGS

The Settings menu enables certain elements to be configured such as backlighting, volume, language, etc. Some settings are not available in all devices.

Settings Language mi-Autorange mi-Scan mi-TENS mi-Action English ON ON ON OFF

A B A

A Select the Settings menu
B Confirm your selection

1. SELECT A SETTING

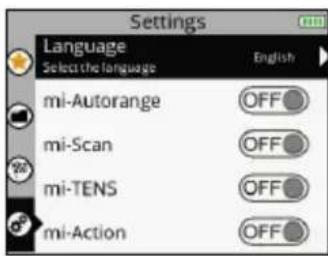

Settings Language Select the language English mi-Autorange OFF mi-Scan OFF mi-TENS OFF mi-Action OFF

A C B A

A Select the desired setting
B Confirm your selection
C Return to the previous step

Language: Allows you to change the device's language

MI-autorange: Turns the MI-autorange function on (ON) or off (OFF)

MI-range: Turns the MI-range function on (ON) or off (OFF)

MI-scan: Turns the MI-scan function on (ON) or off (OFF)

MI-tens: Turns the MI-tens function on (ON) or off (OFF)

MI-action: Turns the MI-action function on (ON) or off (OFF)

N.B.: For an explanation of MI functions see the section entitled "3. How does MI technology work?".

Cycles: Turns the Cycles function on (ON) or off (OFF)

The Cycles function is for people who are already accustomed to electrostimulation and want to perform several training cycles. If the Cycles function is turned on (ON) an additional screen will appear for certain programmes (programmes inducing powerful muscle contractions) enabling the training cycle to be selected.

The cycle logic refers to the workload performed by electrostimulation. And just like a normal workout, one has to start with an amount of work then increase it over the course of the cycles. Thus, it is recommended starting with the 1st cycle and going on to the next level when the cycle is finished, normally after 4 to 6 weeks of stimulation based on 3 sessions per week. It is also important to have reached significant stimulation intensities in sessions before going on to another cycle.

Power saving: Turns the Power saving function on (ON) or off (OFF). Decreases the intensity and the backlighting time.

Sound: Turns the Sound function on (ON) or off (OFF).

Contraction sound: Turns the contraction arrival warning sound on (ON) or off (OFF).

Set time: Allows you to set the time on the device.

Set date: Allows you to set the date on the device.

Pair a new module: Enables a new module to be paired to the remote control.

Reset the device: Enables the device to be re-set and return to the basic settings (Favourites deleted, Objectives cleared, Default settings).

System info: Enables information related to the device to be viewed.

START A STIMULATION PROGRAMME

Before beginning any stimulation programme, you must turn the modules on.

Turn on your module(s) mi

A Return to the previous step

B Confirm your selection and start the programme

To turn on the modules, press their respective On/Off button. As soon as the module is turned on, its battery level appears on the screen. Turn on the number of modules desired according to the electrode placement selected. As soon as a sufficient number of modules is turned on, a small arrow appears on the right of the screen.

If the MI-scan function is activated, the programme starts with a short sequence during which measurements are taken. For the duration of the measurement test, it is important to stand still and be perfectly relaxed. Once the test is completed, the programme can start. Stimulation always starts at 000.

Potentiation 4' miS mi-Scan ongoing, please wait...

Endurance 45 miA Increase intensity up to your maximum A E 2/220 B C D 006 029 019 006

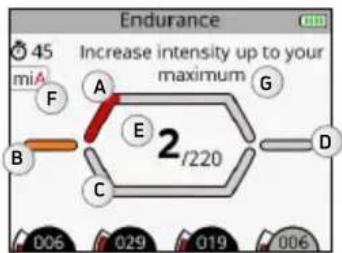

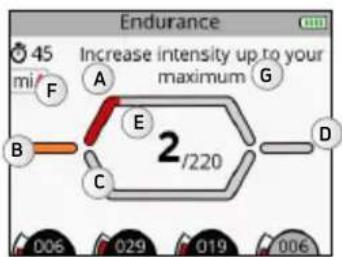

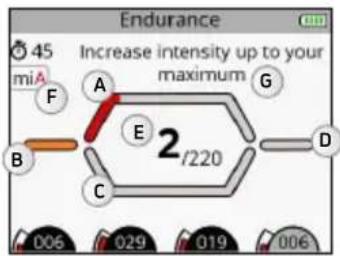

A Contraction phase

B Warm up phase

C Active rest phase

D Relaxation phase

E Number of contractions performed / Total number of contractions

F Indication of the active MI function

G Pop-up help indicating information or actions to be taken

A A A C B C

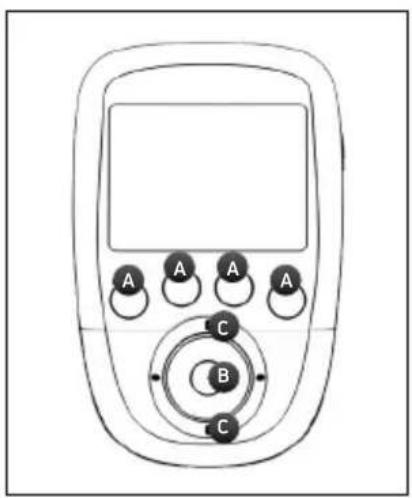

A Select the channels on which to act. When a channel is active the LED button emits a strong blue light.

B Pause

C Increase or decrease the stimulation intensities on the selected channels

Increase the stimulation intensities on the selected channels.

By default, all of the channels are active at the beginning of the session. To deselect a channel, simply press the corresponding button.

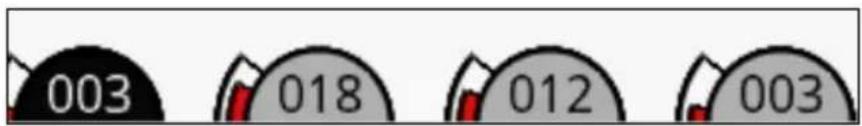

003 018 012 003

In this case only channel 1 is active. Any change of intensity will only be performed on channel 1.

Depending on the programme, the diagram on the middle of the screen can change.

CONTRACTION/ACTIVE REST PROGRAMME

These programmes always begin with a warm-up phase. After this warm-up phase, a contraction cycles phase followed by active rest occurs (the number of cycles depends on the programme) and when all cycles are completed, the programme ends with a relaxation phase.

A Warm up phase
B Active rest phase
C Relaxation phase
D Contraction phase
E Work phase which consists of a contraction/active rest cycle

MASSAGE, RECOVERY TYPE PROGRAMME

These programmes consist of a single phase and have no contraction/active rest cycle. These are recovery, massage, capillarisation, or even pain type programmes. During this type of programme, frequency variations can occur.

A

A Work phase

CONTINUE A STIMULATION PROGRAMME

Endurance 45' miA 3/220 A 38 15 B 38 28 38 23 38 15

A Skip the current phase or exit the programme
B Resume the stimulation session
C Skip the current phase or exit the programme

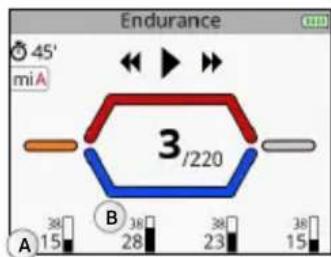

A Average stimulation intensity
B Maximum stimulation intensity

By pressing on the central button of the remote control or on the On/Off button of one of the modules during the stimulation, the device goes into pause. At this point it is possible to skip the current phase or exit the programme.

Depending on the programme, maximum and average intensities statistics may appear.

N.B.: The session restarts with intensities equal to 80% of those used prior to the interruption.

END A STIMULATION PROGRAMME

Endurance Programme completed 2.25 /220 m8 m2 m1 100% 100% 100% 100%

At the end of the session a screen with a check mark appears. Pressing on any button returns you to the Favourites menu. To turn off the device, hold down the remote control's On/Off button for 2 seconds. This will also result in turning off all modules.

Depending on the programme, maximum and average intensities statistics may appear.

CHARGING

BATTERY LEVEL INDICATION

Turn on your module(s) A B mri

A Module battery level
B Remote control battery level

Module battery levels appear just prior to launching the stimulation session. The remote control battery level is always visible in the top right corner.

CONNECT THE DOCKING STATION

Connect the AC adapter supplied with your device to the docking station and then plug it into a power outlet. It is strongly recommended that you fully charge the remote control batteries and modules before first use in order to improve its performance and life expectancy.

CHARGE THE REMOTE CONTROL AND THE MODULES

At the end of the stimulation session, it is strongly recommended that you store the remote control and modules in the docking station to charge the elements.

SP 6.0, 8.0 FIT 5.0

Four-panel line drawing showing a dental appliance with red dots indicating points of interest, no text or symbols present.

In order to do so, place the remote control on its connector.

Technical diagram showing four views of a device's internal components with labeled points and connections

Then place the modules in the slots provided for this purpose.

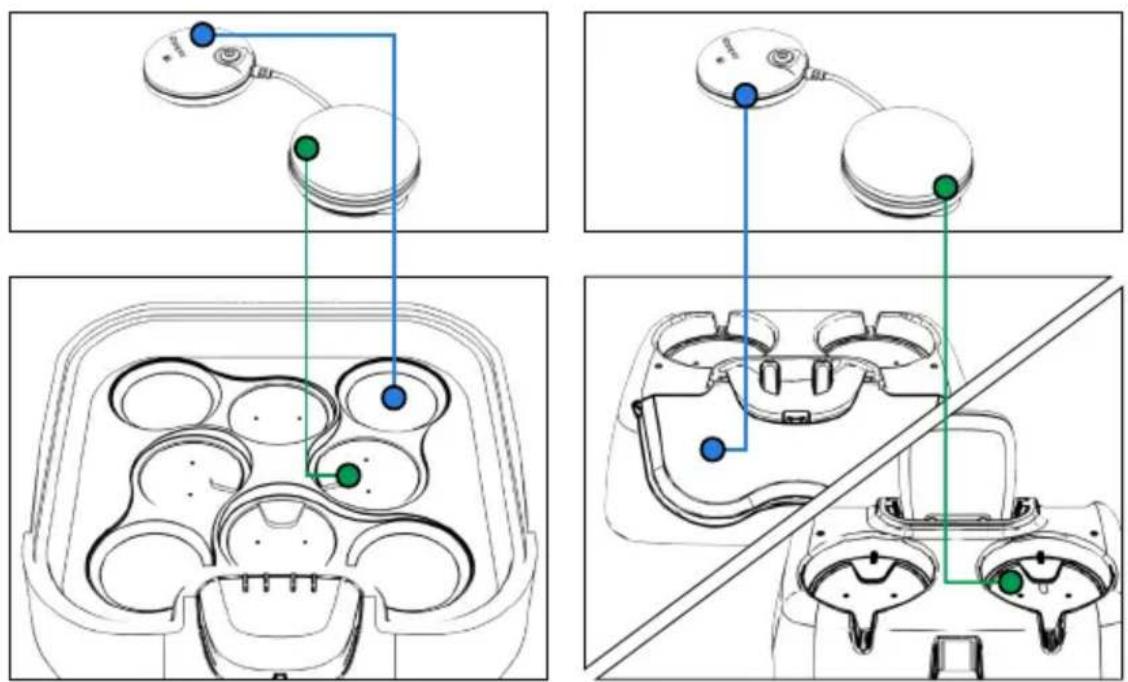

To do so, place the pod without the On/Off button (the green one in the figure) in the location indicated in green and the other pod in the location indicated in blue. Do the same for the other modules.

Diagram showing a magnified view of cellular structures with colored dots and connecting lines, alongside a magnified view of a biological sample (no text or symbols)

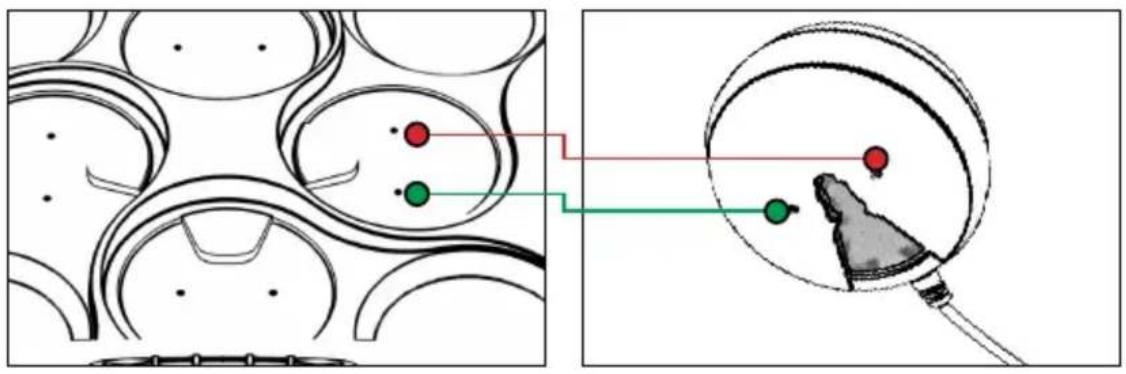

The pod without the On/Off button must fit on the small connectors. A magnet as well as the small vertical mark on the hull of the pod helps to position the pod correctly in its slot. When it is positioned correctly you should hear a click.

SP 6.0, 8.0 FIT 5.0

A Remote control battery charging
B Module charging
C Module charged
D No module present

Battery icon with label 'A' and time '08:12' (no additional text or symbols)

A Remote control battery charging

LED flashing: Module charging
LED full: Module charged

When a module is placed on the docking station it appears on the remote control's screen.

As soon as the remote control and modules are fully charged, they go into standby mode.

When a module is placed on the docking station, the green LED indicates the module's status.

As soon as the remote control and modules are fully charged, they go into standby mode.

N.B.: If the device is not used for an extended period, we recommend that you charge the batteries to 50% of their capacity every 3 months.

CREATE YOUR PERSONAL ACCOUNT

To take advantage of all of your device's capabilities you must first create an account at the following address www.compexwireless.com and follow the instructions on the website.

Functions associated with the SP 8.0

• Access a training schedule
• Download preset objectives directly into the device
• Create your own objectives and download them directly into the device
• Upload the device's history (stimulation programmes done) to the website

As soon as an objective is downloaded into the remote control, the first screen that appears when the device is switched on displays the daily tasks to be performed.

Today's tasks Long run optimisation Prepare my marathon Decontraction

Functions associated with the SP 6.0 and FIT 5.0

• Access a training schedule
• Upload the device's history (stimulation programmes done) to the website

5. TROUBLESHOOTING

ELECTRODE FAULT

Endurance 5° 2.2 2.20

The remote control displays the symbol of an electrode and a disconnected module and an arrow flashes on the channel in question (in this case, channel 1).

• Ensure that the electrodes are properly connected to the module.
• Check to see if electrodes are old, worn and/or if contact is poor: try using new electrodes.

MODULE OUT OF RANGE

Endurance 4' 22/220

The remote control displays the out of range symbol and an arrow flashing on the channel where the problem was detected (in this case, channel 1).

• Check to make sure that the module and the remote control are less than 2 metres away from each other.
  • Make sure you are not in an isolated area with no obstacle to reflect the signal from the remote control.
• Make sure you are in an area that enables the signal to be reflected from the remote control.

SYNCHRONIZATION PROBLEM

Code: 0x0000006

If the synchronization process was discontinued or cannot run successfully for any reason (remote control, disconnected, power failure, etc.) the remote control may, in some cases, display this screen.

- Reconnect the remote control to the computer and restart the synchronization process.

BEHAVIOUR OF THE MODULE'S LED

The LED alternately flashes green and red: the module is out of range or not recognized by the remote control.

• Ensure the remote control is on.
• Ensure that the module and the remote control are less than 2 metres away from each other.
  The LED is still red.
• Ensure the module is charged.
• Try to restart the remote control and modules.
• If despite this the LED is still red, contact customer service provided and approved by Compex.
  The LED does not turn on.
• Ensure the module is charged.
• If despite this the LED still does not turn on, contact customer service provided and approved by Compex.

MODULE UNCHARGED

Resistance 9° 3 42

During the stimulation a module may be uncharged. In this case the symbol for an uncharged battery appears and an arrow flashing on the channel where the problem was detected (in this case, channel 1).

• Stop the stimulation and recharge the uncharged module.
• Abandon the uncharged module and continue the stimulation session without it.

THE MODULE WILL NOT PAIR WITH THE REMOTE CONTROL

Error One of your modules is defective. Please refer to the user manual

At the time of first use, if the remote control is unable to pair all modules, an error message may appear.

• Ensure that the module is charged, and repeat the pairing step.
• If despite this the message returns, contact customer service provided and approved by Compex.

STIMULATION DOES NOT PRODUCE THE USUAL SENSATION

• Check that all settings are right and check electrodes are properly positioned.
• Change the positioning of the electrodes slightly.

STIMULATION CAUSES DISCOMFORT

• Electrodes lose their adhesive capacity and no longer provide adequate contact with skin.
  • Electrodes are worn and must be replaced.
• Change the positioning of the electrodes slightly.

THE DEVICE IS NOT WORKING

• Ensure that the remote control and modules are charged.
• Try to restart the remote control and modules.
• If despite this the device still does not work, contact customer service provided and approved by Compex.

6. DEVICE MAINTENANCE

GUARANTEE

See the attached leaflet.

MAINTENANCE

Your stimulator does not require any calibration or periodic maintenance. Use a soft cloth and solvent-free alcohol-based detergent to clean your device. Use as little liquid as possible to clean the device. Do not dismantle the stimulator or the charger because they contain high voltage components which could cause electrocution. This must be carried out by Compex-approved technicians or repair services. If your stimulator contains parts that appear to be worn or faulty, please contact the closest Compex customer service centre.

STORAGE/TRANSPORT AND USE

	STORAGE AND TRANSPORT USE
TEMPERATURE	-20°C to 45°C 0°C to 40°C
MAXIMUM RELATIVE HUMIDITY	75% 30% to 75%
ATMOSPHERIC PRESSURE	from 700 hPa to 1060 hPa from 700 hPa to 1060 hPa

Do not use in areas at risk of explosion.

DISPOSAL

Batteries must be disposed of in accordance with national current regulations. Any product bearing the WEEE label (a bin crossed out with a cross) must be separated from household waste and sent to special recycling plants.

7. TECHNICAL SPECIFICATIONS

GENERAL INFORMATION

Remote control battery: Rechargeable 3.7[V] / ≥ 1,500[mAh] lithium polymer (LiPo) battery.

Module battery: Rechargeable 3.7[V] / ≥ 450[mAh] lithium polymer (LiPo) battery.

SP 6.0, 8.0, FIT 5.0 AC power adapter: Only 5[V] / 3.5 [A] AC power adapters bearing reference number 64902X can be used to recharge your device.

Product and accessories expected service life: 5 years

Electrode shelf life: refer to electrodes bag

NEUROSTIMULATION

All the electrical specifications are supplied for an impedance from 500 to 1000 ohms per channel.

Outputs: four independent and individually adjustable channels, electrically insulated from one another. Impulsion form: constant rectangular current with compensated impulses to eliminate any direct element of continuous current to avoid any residual polarisation from the skin.

Maximum impulse intensity: 120 mA.

Impulse intensity increments: manual adjustment of stimulation intensity from 0 to 999 (energy) by minimum increments of 0.25 mA.

Duration of impulses: from 50 to 400 s.

Maximum quantity of electricity per impulse: 96 microcoulombs (2 x 48 μC, compensated).

Typical impulse rise time: 3 s (20%-80% of maximum current).

Frequency of impulses: 1 to 150 Hz.

RF DATA

Transmission frequency band: 2.4[GHz] ISM

The characteristics of the type and frequency of modulation: GFSK, +/-320[kHz] deviation

Effective emission power: 4.4 [dBm]

STANDARDS

To ensure your safety, the stimulator has been designed, manufactured and distributed in accordance with the requirements of the amended European Directive 93/42/CEE covering medical devices.

The stimulator also complies with the CEI 60601-1 standard covering general safety requirements for electromedical devices, with the CEI 60601-1-2 standard covering electromagnetic compatibility and the CEI 60601-2-10 standard covering special safety requirements for nerve and muscle stimulators

In accordance with current international standards, a warning must be given about applying electrodes to the thorax (increased risk of cardiac fibrillation).

The stimulator also complies with Directive 2002/96/CEE covering electrical equipment and electronic waste (WEEE).

INFORMATION ABOUT ELECTROMAGNETIC COMPATIBILITY (EMC)

The Compex is designed to be used in typical domestic approved environments in accordance with the safety standard EMC EN 60601-1-2.

This device emits very low levels in the radiofrequency interval (RF) and is therefore not likely to cause interference with electronic equipment nearby (radios, computers, telephones, etc.).

The Compex is designed to support anticipated disturbance originating from electrostatic discharge, magnetic fields for the power supply or radiofrequency emitters.

However, it is not possible to guarantee that the stimulator will not be affected by powerful RF fields (radiofrequency) originating from other sources.

For more information about electromagnetic emission and immunity, please contact Compex.

8. EMC TABLE

The Compex Stimulator requires special precautions regarding EMC and needs to be installed and put into service according to the information provided on the EMC in this manual.

All RF wireless transmission devices can affect the Compex Stimulator. The use of accessories, sensors, and cables other than those specified by the manufacturer, may result in greater emissions or reduce the immunity of the Compex Stimulator.

The Compex Stimulator should not be used beside or stacked on other equipment, if adjacent or stacked use is necessary, one must check the correct functioning of the Compex Stimulator within the context of the configuration used.

RECOMMENDATIONS AND DECLARATION BY THE MANUFACTURER CONCERNING ELECTROMAGNETIC EMISSIONS
The Compex Stimulator is intended for use in the electromagnetic environment specified below.The customer or user of the Compex Stimulator should ensure that it is used in this environment
EMISSIONS TEST COMPLIANCE		ELECTROMAGNETIC ENVIRONMENT - GUIDE
RF emissionsCISPR 11	Group 1	The Compex Stimulator uses RF energy only for its internal operation.Consequently, its RF emissions are unlikely to interfere with any adjacent electrical device (radios, computers, telephones etc.).
RF emissionsCISPR 11	Class B	Compex Stimulator is suitable for use in any establishment, other than a private dwelling or a place connected directly to the low voltage mains supply which powers residential buildings.
Harmonic emissionsIEC 61000-3-2	Class A
Voltage fluctuations/ emission oscillationsIEC 61000-3-3	Not applicable

RECOMMENDATIONS AND DECLARATION BY THE MANUFACTURER CONCERNING ELECTROMAGNETIC IMMUNITY
Compex Stimulator is designed for use in the electromagnetic environment stipulated below. The buyer or user of the Compex Stimulator must ensure it is used in this recommended environment.
IMMUNITY TEST TEST LEVEL IEC 60601 OBSERVANCE LEVEL			ELECTROMAGNETIC ENVIRONMENT - RECOMMENDATIONS
Electrostatic discharge (DES)CEI 61000-4-2	±6 kV at the contact±8 kV in air	±6 kV at the contact±8 kV in air	Floors must be wood, concrete or ceramic tile.If floors are covered with synthetic material the relative humidity must be maintained at a minimum of 30%.
Fast transient electrical burstsCEI 61000-4-4	±2 kV for power supply lines±1 kV for input/output lines	±2 kV for power supply linesNot Applicable for input/output lines	The quality of the electrical power supply should be that of a typical commercial or hospital environment.
SurgeCEI 61000-4-5	±1 kV differential modeN/A	±1 kV differential mode±2 kV joint mode	The quality of the power supply should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply linesCEI 61000-4-11	<5 % VT (dips >95 % de UT) for 0.5 cycle<40 % VT(dips >60 % de UT)for 5 cycles<70 % VT(dips >30 % de UT)for 25 cycles<5 % VT (dips >95 % de UT)for 5 seconds	<5 % VT (dips >95 % de UT) for 0.5 cycle<40 % VT(dips >60 % de UT)for 5 cycles<70 % VT(dips >30 % de UT)for 25 cycles<5 % VT (dips >95 % de UT)for 5 seconds	The quality of the power supply should be that of a typical commercial or hospital environment. If the Compex Stimulator user requires continuous operation during mains power cuts, it is recommend that the Compex Stimulator is powered by a UPS or a battery.
Magnetic field at grid frequency (50/60 Hz)CEI 61000-4-8	3 A/m 3 A/m		Magnetic fields at the mains frequency should be at a level characteristic of a typical location in a typical commercial or hospital environment.
NOTE :VT is the AC supply voltage before application of the test level.
IMMUNITY TEST	TEST LEVEL IEC60601	OBSERVANCELEVEL	ELECTROMAGNETIC ENVIRONMENT - RECOMMENDATIONS
Conducted RF IEC61000-4-6Radiated RFIEC61000-4-3	3 Vrms150 kHz to 80 MHz3 V/m80 MHz to 2.5 GHz	3 Vrms3 V/m	Portable and mobile RF communication devices must only be used relative to the Compex Stimulator and its wiring at a distance which is not less than the spacing recommended and calculated using the appropriate equation for the transmitter's frequency.Recommended spacingd = 1.2 vPd = 1.2 vP 80 MHz to 800 MHzd = 2.3 vP 800 MHz to 2.5 GHzwhere P is the maximum output power of the transmitter in watts (W) set by the manufacturer's specifications and where d is the recommended spacing in metres (m).The field intensity of RF fixed transmitters, as determined by an electromagnetic survey a must be less than the observance level to be found in each frequency rangeb.Interference may occur close to any appliance identified by the following symbol:
NOTE 1 At 80 MHz and at 800 MHz ,the high frequency amplitude is appliedNOTE 2 These guidelines may not be appropriate for some situations. Electromagnetic wave propagation is modified by absorption and reflection due to buildings, objects and persons.
a The field intensity from fixed transmitters, such as radio telephone base stations (cellular/wireless) and a mobile radio, amateur radios, AM and FM radio transmissions and TV transmissions cannot be predicted with any accuracy. It may therefore be necessary to consider an analysis of the electromagnetic environment of the site to calculate the electromagnetic environment coming from fixed RF transmitters. If the field intensity measured in the environment where the Compex Stimulator is located exceeds the appropriate RF observance level above, the Compex Stimulator should be monitored to ensure it is operating properly. In the event of abnormal operation, new measures may then be imposed, such as realignment or movement of the Compex Stimulator.b Above the frequency amplitude from 150 kHz to 80 MHz, the field intensity must be < 3 V/m.
RECOMMENDED SPACING BETWEEN A PORTABLE AND MOBILE COMMUNICATION DEVICEAND THE COMPEX STIMULATOR
The Compex Stimulator is designed for use in an electromagnetic environment in which radiated RF waves are controlled. The buyer or user of the Compex Stimulator can contribute to preventing electromagnetic interference by maintaining a minimum distance between portable and mobile RF communication devices (transmitters) and the Compex Stimulator according to the table of recommendations below and according to the maximum output power of the telecommunication device.
MAXIMUM TRANSMITTER OUTPUT POWER W	SPACING ACCORDING TO THE FREQUENCY OF THE TRANSMITTER M
	FROM 150 KHZTO 80 MHZD = 1.2 √P	FROM 80 KHZTO 800 MHZD = 1.2 √P	FROM 800 MHZTO 2.5 GHZD = 2.3 √P
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
In the case of transmitters whose maximum output power is not shown in the table above, the recommended spacing of d in metres (m) can be calculated using the appropriate equation for the transmitter frequency, where P is the maximum output power of the transmitter in watts (W) as set by the transmitter manufacturerNOTE 1 At 80 MHz and at 800 MHz ,the spacing for high frequency amplitude is applied.NOTE 2 These guidelines may not be appropriate for some situations. Electromagnetic wave propagation is modified by absorption and reflection due to buildings, objects and persons.

Fit5.0

SP6.0

SP8.0

MODE D'EMPLOI

TABLE DES MATIÈRES

Simple line drawing of two circular devices connected by a cable, labeled A and B (no text or symbols on the devices themselves)

MODULE

Technical line drawing of a device casing with labeled components A and B (no text or symbols beyond labels)

Line drawing of a handbag with two side handles and a handle, labeled D (no text or symbols present)

STATION DE CHARGE SP 6.0 ET 8.0

Favourites Pain management TENS Reduce muscle soreness Warm up

Select a favourite Pain management TENS To alleviate all types of localised pain Reduce muscle soreness Warm up

Select a placement Pain manag... Reduce muscl... Warm up

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

Programmes Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A B A

Select a category Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A C B A

Select a programme Warm up To prepare muscles before a competition Potentiation Endurance Resistance Strength

A C B A

Select a placement Warm up Potentiation Endurance Resistance Strengthn

A C B A

Close-up of a circular object with a red arrow pointing downward, next to a magnified view of a small circular object (no text or symbols visible)

Turn on your module(s) mi

COMMENT ACCÉDER AUX OBJECTIFS

Objectives Prepare my marathon Treat my torticollis

A B A

Select an objective Prepare my marathon Treat my torticollis

A C B A

Select a placement Running Running Long run opti... Endurance Running

A C B A

Close-up of a circular object with a red arrow pointing downward and a magnified inset showing a small object (no text or symbols visible)

Turn on your module(s) mi

Turn on your module(s) mi

Potentiation 4' miS mi-Scan ongoing, please wait...

Endurance 45 miA Increase intensity up to your maximum A E 2/220 B C D 006 029 019 006

A Phase de contraction

D Phase de relaxation

PROGRAMME CONTRACTION/REPOS ACTIF

Endurance Programme completed 2.25 /220 m8 m2 m1 100% 100% 100% 100%

Turn on your module(s) A B mri

Four-panel line drawing showing a dental appliance with red dots indicating points of interest, no text or symbols present.

Technical diagram showing four different views of a device's internal components with labeled points and connections.

Diagram showing a magnified view of cellular structures with colored dots and connecting lines, alongside a magnified view of a biological sample (no text or symbols)

Battery icon with label A, displayed in a window frame (no text or symbols on the battery itself)

Today's tasks Long run optimisation Prepare my marathon Decontraction

Endurance 4' 22/220

Code: 0x0000006

Resistance 9° 3 42

Error One of your modules is defective. Please refer to the user manual

Simple line drawing of two circular devices connected by a cable, labeled A and B (no text or symbols on the devices themselves)

MODUL

Technical line drawing of a device casing with labeled components A and B (no text or symbols beyond labels)

Line drawing of a mechanical device with two ports and a handle (no text or symbols)

SP 6.0 UND 8.0 LADESTATION

Favourites Pain management TENS Reduce muscle soreness Warm up

Select a favourite Pain management TENS To alleviate all types of localised pain Reduce muscle soreness Warm up

Select a placement Pain manag... Reduce muscl... Warm up

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

Programmes Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A B A

Select a category Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A C B A

Select a programme Warm up To prepare muscles before a competition Potentiation Endurance Resistance Strength

A C B A

Select a placement Warm up Potentiation Endurance Resistance Strengthn

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

Objectives Prepare my marathon Treat my torticollis

A B A

Select an objective Prepare my marathon Treat my torticollis

A C B A

Select an item Running Running Long run optimisation Planned today! Endurance Running

A B A

Close-up of a circular object with a red arrow pointing downward, next to a magnified view of a dark object (no text or symbols visible)

Turn on your module(s) mi

Turn on your module(s) mi

Potentiation 4 mi-Scan ongoing, please wait... miS

Endurance 45 mi/ F Increase intensity up to your maximum G E 2/220 B C D 006 029 019 006

A Kontraktionsphase

B Aufwärmphase

Endurance Programme completed 2.25 /220 m8 m2 m1 100% 100% 100% 100%

Turn on your module(s) A B mri

Diagram showing four stages of a dental appliance with red dots indicating points of interest, connected by lines to the final panel.

Technical diagram showing four views of a device's internal components with labeled points and connections

Diagram showing a magnified view of cellular structures with colored dots and connecting lines, alongside a magnified view of a biological sample (no text or symbols)

Battery icon with label 'A' and time '08:12' (no additional text or symbols)

Today's tasks Long run optimisation Prepare my marathon Decontraction

Endurance 4' 22/220

Code: 0x0000006

Resistance 9° 32°

Error One of your modules is defective. Please refer to the user manual

Simple line drawing of two circular devices connected by a cable, labeled A and B (no text or symbols on the devices themselves)

MODULO

Technical line drawing of a device casing with labeled components A and B (no text or symbols beyond labels)

Line drawing of a handbag with two side handles and a handle, labeled D (no text or symbols present)

Favourites Pain management TENS Reduce muscle soreness Warm up

Select a favourite Pain management TENS To alleviate all types of localised pain Reduce muscle soreness Warm up

Select a placement Pain manag... Reduce muscl... Warm up

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

4. ACCENSIONE DEI MODULI

Turn on your module(s) mi

Programmes Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A B A

Select a category Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A C B A

Select a programme Warm up To prepare muscles before a competition Potentiation Endurance Resistance Strength

A C B A

Select a placement Warm up Potentiation Endurance Resistance Strength

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

5. ACCENSIONE DEI MODULI

Turn on your module(s) mi

Objectives Prepare my marathon Treat my torticollis

A B A

Select an objective Prepare my marathon Treat my torticollis

A C B A

Select an item Running Running Long run optimisation Planned today! Endurance Running

A B A

Select a placement Running Running Long run opti... Endurance Running

A C B A

Close-up of a circular object with a red arrow pointing downward, next to a magnified view of a small object (no text or symbols visible)

1. ACCENSIONE DEI MODULI


Turn on your module(s) mi

Turn on your module(s) mi

Potentiation 4' miS mi-Scan ongoing, please wait...

Endurance 45 miA Increase intensity up to your maximum A E 2/220 B C D 006 029 019 006

Simple diagram of a horizontal bar with a green segment and a labeled circle 'A' (no text or symbols beyond the label)

A Fase di lavoro

Endurance Programme completed 2.25 /220 m8 m2 m1 100% 100% 100% 100%

Turn on your module(s) A B mri

Diagram showing four stages of a dental appliance with red dots indicating points of interest, connected by lines to the final panel.

Technical diagram showing four views of a device's internal components with labeled points and connections

Diagram showing a magnified view of cellular structures with colored dots and connecting lines, alongside a magnified view of a biological sample (no text or symbols)

Battery icon with label A, no text or symbols present

Today's tasks Long run optimisation Prepare my marathon Decontraction

GUASTO AGLI ELETTRODI

Endurance 5° 2.2 2.20

Endurance 4' 22/220

Code: 0x0000006

Error One of your modules is defective. Please refer to the user manual

Simple line drawing of two circular devices connected by a cable, labeled A and B (no text or symbols on the devices themselves)

MÓDULO

A - Botón de encendido/apagado (pulse brevemente para encender, mantenga pulsado para apagar)

Diagram of a dental appliance with labeled parts A, B, C, and D for classification or assembly.

Technical line drawing of a device casing with labeled components A and B (no text or symbols beyond labels)

Line drawing of a handbag with two side handles and a handle, labeled D (no text or symbols present)

Favourites Pain management TENS Reduce muscle soreness Warm up

Select a favourite Pain management TENS To alleviate all types of localised pain Reduce muscle soreness Warm up

Select a placement Pain manag... Reduce muscl... Warm up

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

CÓMO ACCEDER A LOS PROGRAMAS

Programmes Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A B A

Select a category Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A C B A

Select a programme Warm up To prepare muscles before a competition Potentiation Endurance Resistance Strength

A C B A

Select a placement Warm up Potentiation Endurance Resistance Strengthn

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

Objectives Prepare my marathon Treat my torticollis

A B A

Select an objective Prepare my marathon Treat my torticollis

A C B A

Select an item Running Running Long run optimisation Planned today! Endurance Running

A B A

Select a placement Running Running Long run opti... Endurance Running

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small object (no text or symbols visible)

Turn on your module(s) mi

Turn on your module(s) mi

Potentiation 4' miS mi-Scan ongoing, please wait...

Endurance 45 miA Increase intensity up to your maximum A E 2/220 B C D 006 029 019 006

Endurance Programme completed 2.25 /220 m8 m2 m1 100% 100% 100% 100%

Turn on your module(s) A B mri

Diagram showing four stages of a dental appliance with red dots indicating points of interest, connected by lines to the final panel.

Technical diagram showing four views of a device's internal components with labeled points and connections

Diagram showing a magnified view of cellular structures with colored dots and connecting lines, alongside a magnified view of a biological sample (no text or symbols)

Battery icon with label A, no text or symbols present

Today's tasks Long run optimisation Prepare my marathon Decontraction

Endurance 4' 22/220

Code: 0x0000006

Resistance 9° 32°

Error One of your modules is defective. Please refer to the user manual

BESCHRIJVING VAN HET APPARAAT

A B C D E

AFSTANDSBEDIENING

Simple line drawing of two circular devices connected by a cable, labeled A and B (no text or symbols on the devices themselves)

MODULE

BESCHRIJVING VAN HET APPARAAT

A B C D

Technical line drawing of a device casing with labeled components A and B (no text or symbols beyond labels)

Line drawing of a mechanical device with two ports and a handle (no text or symbols)

SP 6.0- EN 8.0-DOCKING-STATION

Favourites Pain management TENS Reduce muscle soreness Warm up

A B A

Select a favourite Pain management TENS To alleviate all types of localised pain Reduce muscle soreness Warm up

A C B A

Select a placement Pain manag... Reduce muscl... Warm up 20°

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

Programmes Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A B A

Select a category Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A C B A

Select a programme Warm up To prepare muscles before a competition Potentiation Endurance Resistance Strength

A C B A

Select a placement Warm up Potentiation Endurance Resistance Strength

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

Objectives Prepare my marathon Treat my torticollis

A B A

Select an objective Prepare my marathon Treat my torticollis

A C B A

Select a placement Running Running Long run opti... Endurance Running

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small object (no text or symbols visible)

Turn on your module(s) mi

Turn on your module(s) mi

Potentiation 4' miS mi-Scan ongoing, please wait...

Endurance 45 miA Increase intensity up to your maximum A E 2/220 B C D 006 029 019 006

Endurance Programme completed 2.25 /220 m8 m2 m1 100% 100% 100% 100%

Turn on your module(s) A B mri

Four-panel line drawing showing a dental appliance with red dots indicating points of interest, no text or symbols present.

Technical diagram showing four views of a device's internal components with labeled points and connections

Diagram showing a magnified view of cellular structures with colored dots and connecting lines, alongside a magnified view of a biological sample (no text or symbols)

Battery icon with label 'A' and time '08:12' (no additional text or symbols)

Today's tasks Long run optimisation Prepare my marathon Decontraction

5. PROBLEEMOPLOSSING

ELEKTRODESTORING

Endurance 5° 2.2 2.20

Endurance 4' 22/220

Code: 0x0000006

Resistance 9° 3 42

Error One of your modules is defective. Please refer to the user manual

Simple line drawing of two circular devices connected by a cable, labeled A and B (no text or symbols on the devices themselves)

MÓDULO

Technical line drawing of a device casing with labeled components A and B (no text or symbols beyond labels)

Line drawing of a mechanical device with two ports and a handle (no text or symbols)

Favourites Pain management TENS Reduce muscle soreness Warm up

A B A

Select a favourite Pain management TENS To alleviate all types of localised pain Reduce muscle soreness Warm up

Select a placement Pain manag... Reduce muscl... Warm up

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

Programmes Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A B A

Select a category Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A C B A

A Seleccionar a categoría de programa pretendida
B Confirmar a sua selecção
C Regressar ao passo anterior

2. SELECCIONAR UM PROGRAMA

Select a programme Warm up To prepare muscles before a competition Potentiation Endurance Resistance Strength

A C B A

Select a placement Warm up Potentiation Endurance Resistance Strength

A C B A

Close-up of a circular object with a red arrow pointing downward, next to a magnified view of a small circular object (no text or symbols visible)

Turn on your module(s) mi

Objectives Prepare my marathon Treat my torticollis

A B A

Select an objective Prepare my marathon Treat my torticollis

A C B A

Select a placement Running Running Long run opti... Endurance Running

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small object (no text or symbols visible)

Turn on your module(s) mi

MI-scan: liga (ON) ou desliga (OFF) a função MI-scan.

MI-action: liga (ON) ou desliga (OFF) a função MI-action.

Turn on your module(s) mi

Potentiation 4' mi5 mi-Scan ongoing, please wait...

Endurance 45 miA Increase intensity up to your maximum G A E 2/220 B C D 006 029 019 006

Endurance Programme completed 2.25 /220 m8 m2 m1 100% 100% 100% 100%

Turn on your module(s) A B mri

Diagram showing four stages of a dental appliance with red dots indicating points of interest, connected by lines to the final panel.

Para tal, coloque o telecomando no conector correspondente.

Technical diagram showing four views of a device with labeled components and connection lines, including a close-up of internal compartments.

Diagram showing a magnified view of cellular structures with colored dots and connecting lines, alongside a magnified view of a biological sample (no text or symbols)

Battery icon with label A, no text or symbols present

Today's tasks Long run optimisation Prepare my marathon Decontraction

Endurance 4' 22/220

Code: 0x0000006

Resistance 9° 3 42

Error One of your modules is defective. Please refer to the user manual

Simple line drawing of two circular devices connected by a cable, labeled A and B (no text or symbols on the devices themselves)

МОДУЛЬ

Technical line drawing of a device casing with labeled components A and B (no text or symbols beyond labels)

Line drawing of a mechanical device with two ports and a handle (no text or symbols)

ДОК-СТАНЦИЯ SP 6.0 И 8.0

Turn on all your modules fri

Favourites Pain management TENS Reduce muscle soreness Warm up

A B A

Select a favourite Pain management TENS To alleviate all types of localised pain Reduce muscle soreness Warm up

Select a placement Pain manag... Reduce musd... Warm up 20°

ИЕ ЭЛЕКТРОДОВ A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

Programmes Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A B A

Select a category Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A C B A

Select a programme Warm up To prepare muscles before a competition Potentiation Endurance Resistance Strength

A C B A

Select a placement Warm up Potentiation Endurance Resistance Strength

A C B A

Close-up of a circular object with a red arrow pointing downward, next to a magnified view of a dark object (no text or symbols visible)

Turn on your module(s) mi

Objectives Prepare my marathon Treat my torticollis

A B A

Select an objective Prepare my marathon Treat my torticollis

A C B A

Select a placement Running Running Long run opti... Endurance Running

A C B A

Close-up of a circular object with a red arrow pointing downward, next to a magnified view of a small electronic device (no text or symbols visible)

Turn on your module(s) mi

Turn on your module(s) mi

Potentiation 4' miS mi-Scan ongoing, please wait...

Endurance 45 miA Increase intensity up to your maximum A E 2/220 B C D 006 029 019 006

Endurance Programme completed 2.25 /220 m8 m2 m1 100% 100% 100% 100%

Diagram showing four different types of medical devices with red dots indicating specific points on the device's internal structure.

Technical diagram showing four views of a device's internal components with labeled points and connections

Diagram showing a magnified view of cellular structures with colored dots and connecting lines, no text or symbols present.

Battery icon with label 'A' and time '08:12' (no additional text or symbols)

Today's tasks Long run optimisation Prepare my marathon Decontraction

Endurance 4' 22/220

Code: 0x0000006

Resistance 9° 3 42

Error One of your modules is defective. Please refer to the user manual

INNEHÅLLSFÖRTECKNING

FÖRDELAR MED ELEKTROSTIMULERING

Simple line drawing of two circular devices connected by a cable, labeled A and B (no text or symbols on the devices themselves)

MODUL

Technical line drawing of a device casing with labeled components A and B (no text or symbols beyond labels)

Line drawing of a mechanical device with two ports and a handle (no text or symbols)

SP 6.0 OCH 8.0 DOCKNINGSSTATION

Favourites Pain management TENS Reduce muscle soreness Warm up

A B A

A Välj menyn Favoriter
B Bekräfta ditt val

Select a favourite Pain management TENS To alleviate all types of localized pain Reduce muscle soreness Warm up

Select a placement Pain manag... Reduce muscl... Warm up

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

A Återgå

B Bekräfta ditt val

Programmes Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A B A

A Välj menyn Program

B Bekräfta ditt val

1. VÄLJ EN KATEGORI

Select a category Conditioning Recovery/Massage Pain management Rehabilitation Fitness

A C B A

Select a programme Warm up To prepare muscles before a competition Potentiation Endurance Resistance Strength

A C B A

A Välj önskat program

B Bekräfta ditt val

C Återgå

1. VÄLJ ELEKTRODPLACERING


Select a placement Warm up Potentiation Endurance Resistance Strengthn

A C B A

Close-up of a circular object with a red arrow pointing downward, and a magnified inset showing a small circular object (no text or symbols)

Turn on your module(s) mi

A Återgå
B Bekräfta ditt val

Objectives Prepare my marathon Treat my torticollis

A B A

Select an objective Prepare my marathon Treat my torticollis

A C B A

Select a placement Running Running Long run opti... Endurance Running

A C B A

Close-up of a circular object with a red arrow pointing downward, next to a magnified view of a small object (no text or symbols visible)

Turn on your module(s) mi

A Återgå

B Bekräfta ditt val

Turn on your module(s) mi

A Återgå

Potentiation 4' miS mi-Scan ongoing, please wait...

Endurance 45 miA Increase intensity up to your maximum A E 2/220 B C D 006 029 019 006

Endurance Programme completed 2.25 /220 mR mR mR mR 100% 100% 100% 100%

Diagram showing four stages of a dental appliance with red dots indicating points of interest, connected by lines to the final panel.

ning ning

Battery icon with label A, shown at bottom right (no text or symbols on the battery itself)

A Stimulatorns batteri laddas

Blinkande lampa: Modul laddas Lampa som lyser med fast sken: Modul laddad

Today's tasks Long run optimisation Prepare my marathon Decontraction

Endurance 4' 22/220

Code: 0x0000006

Resistance 9° 3 42

Error One of your modules is defective. Please refer to the user manual
