USER MANUAL SAVA 1031 VOGELS

1 Table of contents....3
2 Safety instructions....4
3 Your product....5
3.1 Introduction 5
3.2 Package contents....5
4 Advantages....6
5 Getting started....6
5.1 Installation....6
6 Usage 7
7 Product details ....7
7.1 Technical specifications....7
8 Frequently asked questions (FAQs) 7
9 Notification 8
9.1 Declaration of Conformity 8
9.2 Recycling 8
9.3 Copyrights....9

2 Safety instructions

Please read these instructions thoroughly before you use the device and keep them for future reference.

• Only for indoor use.
• Do not use the product in a damp environment or near water.
• Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight.
• This product is not a toy. Keep out of reach of children.
• Connect the adapter to the mains only after you have verified that the line voltage corresponds to the value specified on the type plates.
• Never connect a power adapter if it's damaged. In such cases, please contact your supplier.
• Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time.
• Never open the product: the device may contain parts with deadly voltage.
• Repairs or service should only be performed by qualified personnel.
• Improper use, self-installed modifications or repairs will void any and all warranties.
• Vogel's does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended.
• Vogel's does not accept liability for any consequential damage other than the legal product responsibility.

3 Your product

3.1 Introduction

Congratulations on the purchase of your Vogel's SAVA 1031! This converter converts a digital Toslink audio signal into a digital Coaxial audio signal (or vice versa). As a result, it allows you to easily and quickly connect your Audio Source to your Audio Amplifier.

Vogel's products are manufactured with the utmost care and are exceptionally high quality. Please read this manual carefully and follow the instructions in order to get the best from this product.

3.2 Package contents

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Simple line drawing of a tool or connector with two ends and a central shaft (no text or symbols)

A. 1x smart AV converter coax to slink

B. 1 × Power cable, 1 ~m

Line drawing of a three-pin electrical plug (no text or symbols)

Simple line drawing of a straight rod with two ends and a central vertical line (no text or symbols)

C. 1 × Power adapter

D. 1 x Digital coax cable, 3 m

Simple line drawing of a straight rod with evenly spaced ends and a central cross (no text or symbols)

E. 1 × Toslink cable, 50 ~cm

1 2

F. 1 x User manual

4 Advantages

• Converter changes a digital Toslink audio signal into a digital Coaxial audio signal (or vice versa).
• Ideal if your Audio Source has a different audio digital output than your Audio Amplifier, for example.
• Amplifies the digital audio signal and thus extends the maximum cable length (optical/coaxial)
• Supports the most common 2 to 5.1 channel digital audio signals.
• The digital audio signal provided is simultaneously reproduced on both outputs (both Toslink and Coaxial).

5 Getting started

5.1 Installation

Note:

• We recommend that you switch off your equipment before connecting cables in order to prevent any of the devices being damaged.
• At all times, avoid bending the optical (Toslink) cable as it is very delicate.

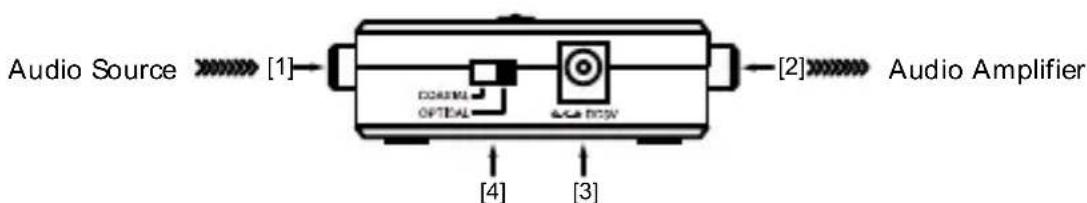


1. Connect the Audio Source to one of the digital audio inputs [1] on the SAVA 1031 using the optical or coaxial audio cable.

2. Connect the Audio Amplifier to one of the digital audio outputs [2] on the SAVA 1031 using the optical or coaxial audio cable.

3. Connect the power adapter [3] and plug into the electrical socket.
4. Use the switch [4] to select which digital audio input (Coaxial or Optical) is connected to the SAVA 1031.
5. Switch your device on and check that the audio connection works.

6 Usage

If the audio connection does not work (properly), consult the instructions for the Audio Source and/or the Audio Amplifier for the correct settings.

7 Product details

7.1 Technical specifications

Inputs and outputs

Audio input Ix optical (Toslink), Ix coaxial (RCA)

Audio output lx optical (Toslink), lx coaxial (RCA)

Supported Audio Format All audio formats supported by optical/coaxial connections

Housing

Dimensions (H x W x D) 80 x 51 x 23mm

Weight 45 g

Power

External Power adapter Input 100-240VAC @ 50-60Hz

Output 5VDC CO 500mA

Specifications may change without prior notice.

8 Frequently asked questions (FAQs)

Please go to www.vogels.com if you have any questions.

9 Notification

9.1 Declaration of Conformity

Hereby, Vogel's BV, declares that this SAVA 1031 ^TM is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC.

Directive 2011/65/eu of the European parliament and of the council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to eco-design requirements for no-load condition electric power consumption and average active efficiency of external power supplies.

You can read the full Declaration of Conformity at http://www.vogels.com

9.2 Recycling

Environmental Information for Customers in the European Union. European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

9.3 Copyrights

SAVA 1031 ^™ is a trademark of Vogel's B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate. Vogel's is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Vogel's B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Vogel's is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Vogel's assumes no responsibility with regard to the performance or use of these products.

Vogel's BV – Hondsruglaan 93 – 5628 DB Eindhoven - The Netherlands
