Operating Instructions

BATTERY CHARGER

Thank you for purchasing Panasonic product.

Please read these instructions carefully before using this product, and save this manual for future use.

Contents

Information for Your Safety 2

Precautions 7

Accessories and Intended battery pack 7

Charging the Battery 9

Cautions for Use 10

Specifications. 10

Limited Warranty (ONLY FOR U.S.A.) 11

Limited Warranty (ONLY FOR CANADA) 14

Information for Your Safety

WARNING:

To reduce the risk of fire, electric shock or product damage,
- Do not expose this unit to rain, moisture, dripping or splashing.
- Use only the recommended accessories.
-Do not remove covers.
- Do not repair this unit by yourself. Refer servicing to qualified service personnel.

The socket outlet shall be installed near the equipment and shall be easily accessible.

Product identification marking

Product Location
Battery Charger Bottom

CAUTION

Battery pack (Lithium ion battery pack)

• Use the specified unit to recharge the battery pack.
• Do not use the battery pack with equipment other than the specified unit.
• Do not get dirt, sand, liquids, or other foreign matter on the terminals.
• Do not touch the plug terminals (+ and -) with metal objects.
• Do not disassemble, remodel, heat or throw into fire.

If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with water.

If any electrolyte should come into contact with your eyes, never rub the eyes.

Rinse eyes thoroughly with water, and then consult a doctor.

CAUTION

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

• When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60^ (140°F) or incinerate.

About the battery charger

CAUTIONS

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.

• The battery charger is in the standby condition when the AC power supply cord is connected. The primary circuit is always "live" as long as the power cord is connected to an electrical outlet.

(For the U.S.A. and CANADA)

Battery charger

This battery charger operates on AC between 110 V and 240 V.

But

• In the U.S.A. and Canada, the battery charger must be connected to a 120 V AC power supply only.
• When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to suit the AC outlet configuration.
• When connecting to a supply of greater than AC 125 V, ensure the cord you use is suited to the voltage of the AC supply and the rated current of the battery charger.
• Contact an electrical parts distributor for assistance in selecting a suitable AC plug adaptor or AC cord set.

About the AC mains lead with a moulded three pin plug

Caution for AC mains lead

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

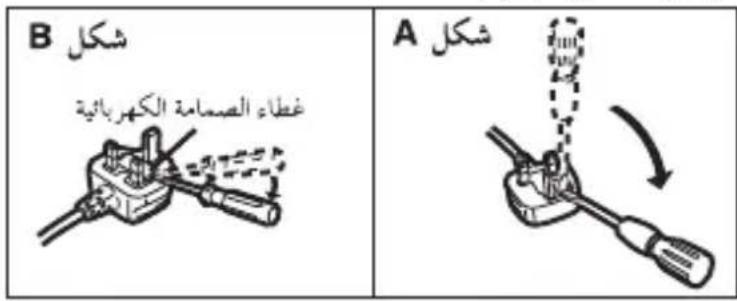

1. Open the fuse cover with a screwdriver.

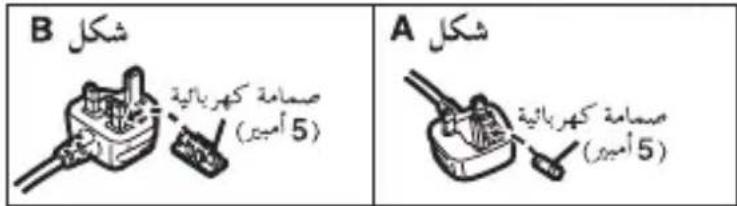

1. Replace the fuse and close or attach the fuse cover.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

Support Contact: http://www.panasonic.com/contactinfo

THE FOLLOWING APPLIES ONLY IN CANADA.

This Class B digital apparatus complies with Canadian ICES-003.

IS 13252 (Part 1)/

IEC 60950-1

R-41068624

-If you see this symbol

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save

valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Precautions

• This battery charger 1 is dedicated for Panasonic battery pack 2. Please use genuine Panasonic batteries.
  1 Indicated as battery charger or charger in the text.
  2 Indicated as battery pack or battery in the text.
• Please also read the manual of your digital camera.

Accessories and Intended battery pack

Check that all the accessories are supplied before using the product. Product numbers correct as of October 2012. These may be subject to change.

DMW-BTC10 Battery Charger AC Cable

DMW-BTC10PP K2CA2CA00025

• Intended battery pack:

DMW-BLF19PP (U.S.A. and CANADA)/

DMW-BLF19E (For Other Countries)

DMW-BTC10 Battery Charger AC Mains Lead AC Cable

DMW-BTC10E K2CT3YY00034 K2CQ2YY00082

• Intended battery pack: DMW-BLF19E

DMW-BTC10 Battery Charger AC Cable DMW-BTC10G K2CT3YY00034 K2CQ2YY00082 In Saudi Arabia, always use A.
• Intended battery pack: DMW-BLF19E
DMW-BTC10 Battery Charger DMW-BTC10G	AC Cable K2CJ2YY00052
• Intended battery pack: DMW-BLF19E
DMW-BTC10 Battery Charger DMW-BTC10G	AC Cable K2CA2YY00130
• Intended battery pack: DMW-BLF19GK
DMW-BTC10 Battery Charger DMW-BTC10G	AC Cable K2CR2YY00026
• Intended battery pack: DMW-BLF19E
DMW-BTC10 Battery Charger DMW-BTC10GT	AC Cable K2CA2YY00129
• Intended battery pack: DMW-BLF19E or DMW-BLF19GT

Charging the Battery

Always use genuine Panasonic batteries (P7, 8).
- If you use other batteries, we cannot guarantee the quality of this product.

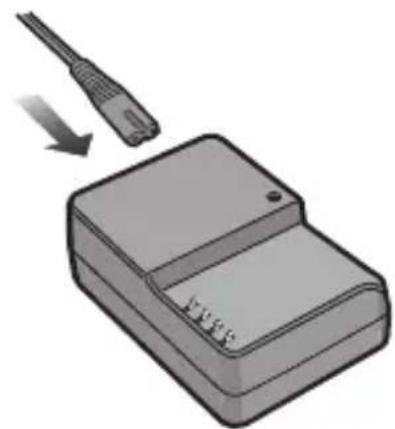

1 Connect the AC cable (AC mains lead).

• Do not use any other AC cables (AC mains leads) except the supplied one.
• The AC cable (AC mains lead) is dedicated for this unit. Do not use it with other devices.

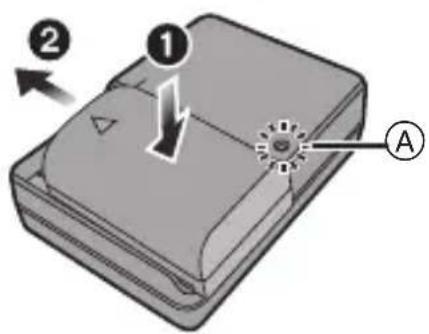

2 Attach the battery by paying attention to its direction, then slide the battery in until it is secure.

• The [CHARGE] indicator (A) lights up and charging begins.

About the [CHARGE] indicator

The [CHARGE] indicator turns on:

The [CHARGE] indicator is turned on during charging.

The [CHARGE] indicator turns off:

The [CHARGE] indicator will turn off once the charging has completed without any problem. (Disconnect the AC cable (AC mains lead) from the electrical socket and detach the battery after charging is completed.)

• When the [CHARGE] indicator flashes

• The battery temperature is too high or too low. It is recommended to charge the battery again in an ambient temperature of between 10^ and 30^ (50 F and 86 F).

• The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.

Removing the battery

Slide the battery in the reverse order of insertion and remove.

Charging time

Charging time rox. 220 min

• The indicated charging time is for when the battery has been discharged completely. The charging time may vary depending on how the battery has been used. The charging time for the battery in hot/cold environments or a battery that has not been used for a long time may be longer than normal.

Note

• The battery becomes warm after using it and during and after charging. The charger also becomes warm during charging. This is not a malfunction.
• The battery can be recharged even when it still has some charge left, but it is not recommended that the battery charge be frequently topped up while the battery is fully charged. (Since characteristic swelling may occur.)

Cautions for Use

• The charger may generate whirring sounds when it is being used. This is not a malfunction.
• Keep the charger 1 m (3.3 feet) or more away from radio.
• Do not put heavy objects or step on this unit.

Specifications

Specifications are subject to change without notice.

Battery Charger

Input: 110 V - 240 V 50/60 Hz 0.2 A

Output: 8.4 V 0.65 A

Dimensions Approx. 65.0 mm (W)×28.0 mm (H)×91.5 mm (D)

[2.56''(W)×1.10''(H)×3.60''(D)]

(excluding the projecting parts)

Mass (weight) Approx. 78 g /0.172 lb

The symbols on this product (including the accessories) represent the following:

AC

DC

Class II equipment (The construction of the product is double-insulated.)

For the U.S.A.

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://www.panasonic.com

For CANADA

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

Printed in Japan
