SBCSC366 - Baby monitor PHILIPS - Free user manual and instructions

Product type	Baby monitor
Brand	PHILIPS
Model	SBCSC366
Baby unit power supply	9V DC 200mA mains adapter or 4 LR6 1.5V batteries (not included)
Parent unit power supply	9V DC 200mA mains adapter via charging cradle or rechargeable NiCad batteries (included)
Baby unit battery life	Up to 30 hours on batteries
Parent unit battery life	Up to 5 hours on batteries
Transmission frequencies	40.670 MHz / 40.695 MHz (2 selectable channels)
Maximum range	150 meters in open field
Voice activation mode	Yes (VOICE) – automatic sound-activated transmission
Intercom function	Yes – TALK button on parent unit
Temperature indicator	Yes – built-in thermometer on baby unit
Visual sound indicator	Yes – sound level lights on parent unit
Rechargeable cradle	Yes – for parent unit, charging time 12 to 14 hours
Belt clip	Yes – removable on parent unit
Batteries included	4 NiCad 1.2V batteries for parent unit
Batteries not included	4 LR6 1.5V batteries for baby unit
Package contents	Baby unit, parent unit, charging cradle, 2 mains adapters, belt clip, 4 NiCad batteries
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Keep out of reach of children. Do not place in the crib or playpen. Replace parent unit batteries only with rechargeable NiCad batteries.

Frequently Asked Questions - SBCSC366 PHILIPS

How to install the PHILIPS SBCSC366 baby monitor?

Connect the mains adapter to the baby unit and the charging cradle for the parent unit. Set the baby unit to VOICE mode near the baby's bed, and the parent unit to ON with volume adjusted. Make sure the channel selectors are on the same position.

How to use the voice activation mode?

Set the baby unit selector to VOICE. The built-in microphone detects sounds and automatically transmits to the parent unit. The green TRANSMIT light turns on during transmission. This mode saves batteries by only activating transmission when sound is present.

What to do if reception is poor?

Try changing the channel by setting both selectors to the other position (channel 1 or 2). Move the parent unit closer to the baby unit. The maximum range is 150 meters in ideal conditions, but may be reduced by obstacles.

How to use the intercom function?

Make sure the baby unit is in ON mode (not VOICE). Press and hold the TALK button on the parent unit and speak into the microphone. The sound is transmitted through the baby unit's speaker. Release the button to listen again. Set the baby unit back to VOICE after use to save batteries.

How to recharge the parent unit?

Place the parent unit in its charging cradle plugged into the mains. The red CHARGE light turns on. A full charge (from discharged batteries) takes 12 to 14 hours. The unit can be used on mains even with batteries in place.

What is the maximum range of the baby monitor?

The maximum range is 150 meters in open field, without obstacles. Walls, doors, and other interference can reduce the range. For better reception, move the units closer together.

How to change the batteries of the baby unit?

Open the battery compartment of the baby unit (see fig. 3 of the manual). Insert 4 LR6 1.5V batteries (alkaline type) respecting polarity. Batteries are not included. Use only PHILIPS LR6 POWER LIFE batteries for optimal performance.

How to clean the baby monitor?

Disconnect the adapters and remove the batteries. Clean the surfaces with a soft, dry cloth. Do not use abrasive products, solvents, or a damp cloth. Avoid any water entering the openings.

Why is the red POWER light flashing and a beep sounding?

This indicates that the batteries are low and need to be recharged or replaced. Plug the parent unit into its charging cradle or replace the baby unit batteries with new ones.

Can I use batteries other than NiCad in the parent unit?

No, the parent unit must use exclusively rechargeable NiCad batteries (type R6). Using other types of batteries may damage the device. The supplied NiCad batteries are rechargeable via the cradle.

USER MANUAL SBCSC366 PHILIPS

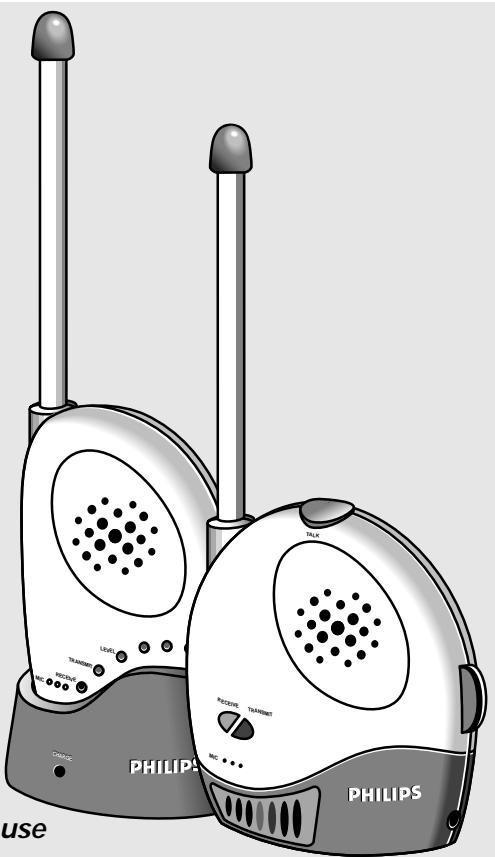

SBC SC 366 - Baby phone

Illustration of Philips radio antennas with visible signal lights and control knobs (no text or symbols on main device)

Instructions for use

Mode d'emploi

Technical specifications....34-35

English

Français ...... page 7

Illustrations 3

Spécifications techniques....34-35

Français

Diagram of a handheld device with battery pack and antenna, showing internal components (no text or symbols)

2 PHILIPS PHILIPS PHILIPS

Illustration of a person using a smart speaker to interact with a wall-mounted antenna, no text or symbols present

Technical illustration of a handheld device with a vertical pole and handle (no text or symbols)

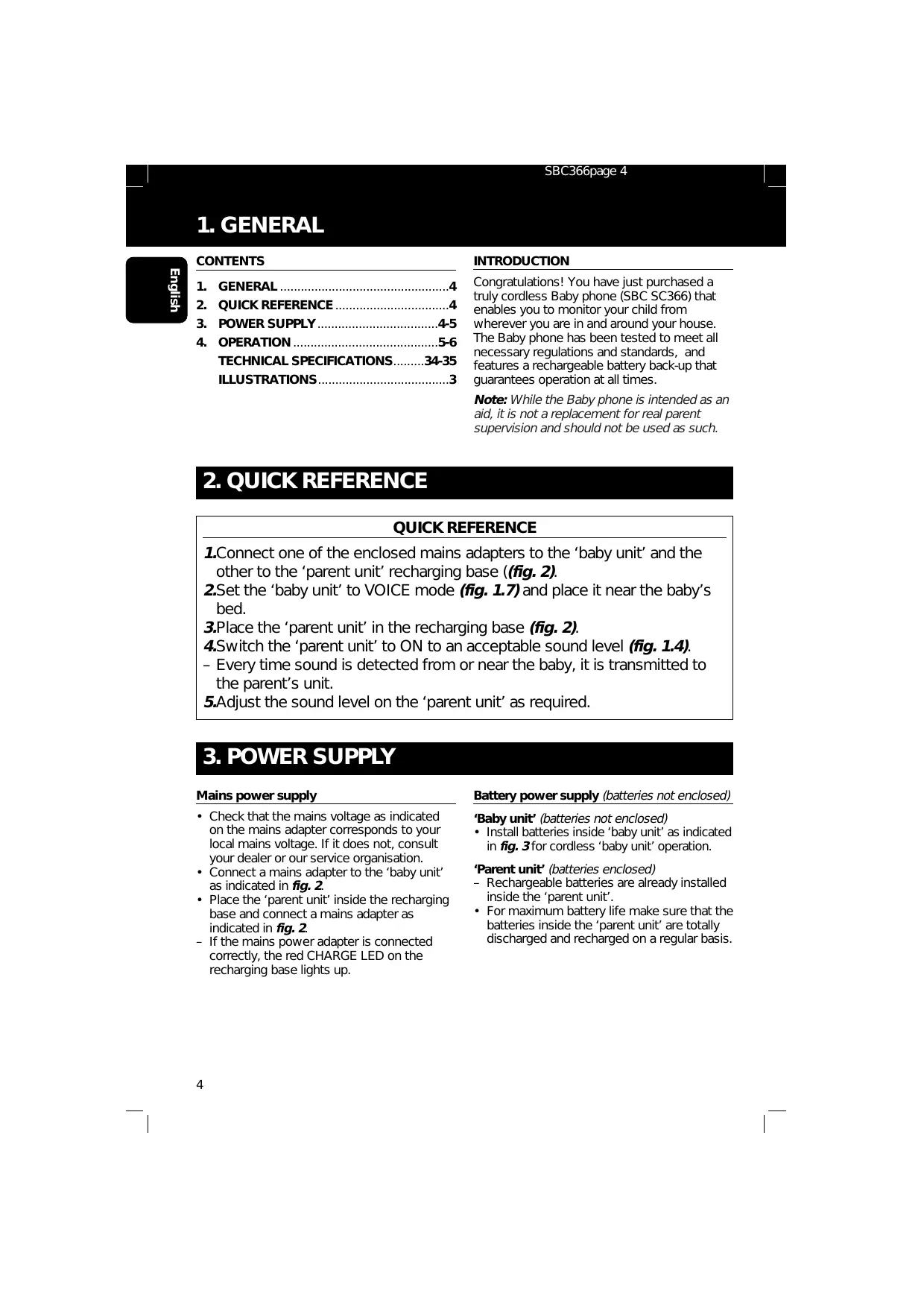

1. GENERAL

English

CONTENTS

1. GENERAL 4
2. QUICK REFERENCE 4
3. POWER SUPPLY 4-5
4. OPERATION....5-6 TECHNICAL SPECIFICATIONS....34-35 ILLUSTRATIONS....3

INTRODUCTION

Congratulations! You have just purchased a truly cordless Baby phone (SBC SC366) that enables you to monitor your child from wherever you are in and around your house. The Baby phone has been tested to meet all necessary regulations and standards, and features a rechargeable battery back-up that guarantees operation at all times.

Note: While the Baby phone is intended as an aid, it is not a replacement for real parent supervision and should not be used as such.

2. QUICK REFERENCE

QUICK REFERENCE

1. Connect one of the enclosed mains adapters to the 'baby unit' and the other to the 'parent unit' recharging base ((fig. 2).
2. Set the 'baby unit' to VOICE mode (fig. 1.7) and place it near the baby's bed.
3. Place the 'parent unit' in the recharging base (fig. 2).
4. Switch the 'parent unit' to ON to an acceptable sound level (fig. 1.4).
5. Every time sound is detected from or near the baby, it is transmitted to the parent's unit.
6. Adjust the sound level on the 'parent unit' as required.

3. POWER SUPPLY

Mains power supply

• Check that the mains voltage as indicated on the mains adapter corresponds to your local mains voltage. If it does not, consult your dealer or our service organisation.

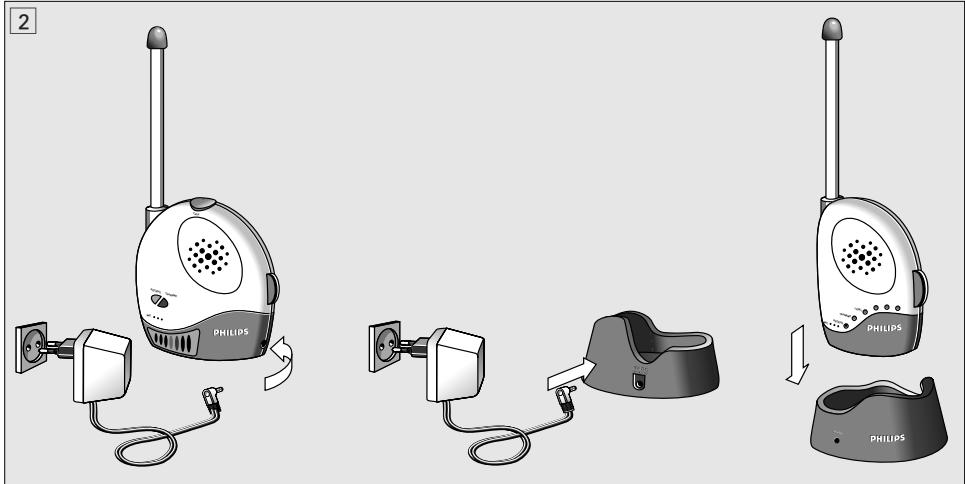

• Connect a mains adapter to the 'baby unit' as indicated in fig. 2.
• Place the 'parent unit' inside the recharging base and connect a mains adapter as indicated in fig. 2.
• If the mains power adapter is connected correctly, the red CHARGE LED on the recharging base lights up.

Battery power supply (batteries not enclosed)

'Baby unit' (batteries not enclosed)

- Install batteries inside 'baby unit' as indicated in fig. 3 for cordless 'baby unit' operation.

'Parent unit' (batteries enclosed)

- Rechargeable batteries are already installed inside the 'parent unit'.

- For maximum battery life make sure that the batteries inside the 'parent unit' are totally discharged and recharged on a regular basis.

3. POWER SUPPLY

Notes

• Both the 'baby unit' and 'parent unit' have a 'battery low' indication. If the batteries are low the unit beeps and the red POWER LED starts flashing.
• To conserve batteries, connect the units to the mains by using the enclosed mains adapters.
• If batteries are installed and the mains power adapters are connected, the units operate on mains power. In the event of a mains failure, the batteries will take over.

IMPORTANT

• Replace batteries inside the 'baby unit' with original PHILIPS LR6 POWERLIFE batteries only.
• Batteries inside the 'parent unit' are already installed. Replace these batteries with rechargeable NICAD (R6) batteries ONLY. DO NOT INSTALL ANY OTHER TYPE OF BATTERIES INSIDE THE 'PARENT UNIT'!

4. OPERATION

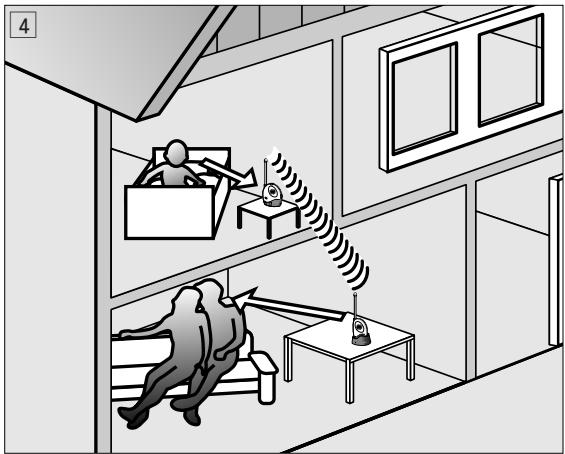

OPERATION (fig. 4)

'Baby unit'

• Make sure the mains power adapter is connected correctly, or batteries are installed.
• Place the 'baby unit' near the baby's bed, making sure that the microphone is placed in the best position for picking up baby's sounds.

IMPORTANT!

Make sure that the 'baby unit' is always out of reach of the baby; never place the 'baby unit' inside baby's bed or playpen!

• Select the VOICE mode using the mode switch (fig. 1.7).
• If sound is picked up by the built-in microphone, the 'baby unit' starts transmitting automatically. The transmission stops when no sound is picked up any more. During transmission the green TRANSMIT LED lights up.

- The 'baby unit' also has a button for manual transmission (TALK fig. 1.8). This function operates both during VOICE and OFF-mode. For manual transmission:

- Keep the TALK button pressed and speak into the microphone.

- The green TRANSMIT LED light up.

- Spoken sound is transmitted until the TALK button is released.

'Parent unit'

• Make sure that the mains power adapter is correctly connected to the recharging base, or that batteries are installed.
• If batteries are installed, the 'parent unit' uses rechargeable battery power only in the event of a mains failure, or when the unit is not placed inside the standing base.
• Place the 'parent unit' inside the recharging base, near to the parent's location.
• If the mains power adapter is connected correctly, the red CHARGE LED on the recharging base lights up.
• Switch the 'parent unit' to ON to an acceptable sound level (fig. 1.4).
• If a sound signal is received from the 'baby unit', it is heard via the built-in speaker.
• Adjust the sound level as required.

The ‘parent unit’ checks the received sound signal. If the quality is too poor, the signal is blocked. In this case:

• Move the 'parent unit' closer to the 'baby unit' to restore sound reception again.

- The maximum operating distance is 150 m in ideal conditions.

Notes

• For baby monitoring make sure the 'baby unit' is in VOICE mode!
• Do not place 'baby unit' and 'parent unit' too close to each other while operating. Otherwise the units will start resonating (high-pitch sound).

4. OPERATION

English

IMPORTANT!

Before using the Baby phone, check the sound transmission. This checks whether a unit is broken, or whether units are placed out of range of each other. After this first check, sound transmission should be checked on a regular basis as follows:

Have an adult softly speak into the 'baby unit'. Sounds transmitted from the baby room should be heard clearly via the 'parent unit' in another room.

CHANNEL SELECTION

• The Baby phone can use 2 different channels for radio signal transmission. If sound reception is very poor, or other radio signals are being picked up, please try the other transmission channel as follows:
• Move the channel selector on both units to the other channel (fig. 1.2 and fig. 1.6).

Note: Always make sure the channel switches on both units are set to the same position. This ensures optimum reception.

VISUAL SOUND INDICATION

The ‘parent unit’ has a sound level indicator, which visually alerts parents to their baby’s crying, but no sound is heard via the speaker. To operate the sound level indicator:

• Make sure the 'baby unit' is operational in VOICE mode.
• Switch the 'parent unit' to ON to the minimum sound level by adjusting the volume control (fig. 1.4).
• If a sound signal is received from the 'baby unit', the green sound LEVEL LEDs (fig. 1.5) light up. The louder the sound, the more LEDs light up.

ROOM TEMPERATURE INDICATION

The ‘baby unit’ has a built-in thermometer to check the temperature inside baby's room. The temperature which is shown in green is the current room temperature.

RECHARGEABILITY

The ‘parent unit’ has a recharging function. If the rechargeable batteries are empty they can be recharged easily via the recharging base. To recharge batteries:

• Make sure that the mains power adapter is correctly connected to the recharging base.
• If the mains power adapter is connected correctly, the red CHARGE LED on the recharging base lights up.
• Place the ‘parent unit’ inside the recharging base; batteries start to recharge.
• Totally empty batteries will take up 12-14 hours to fully recharge.

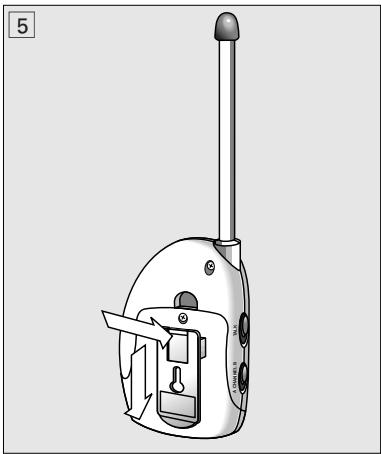

BELT-CLIP

With completely charged batteries, the 'parent unit' can be used as a truly cordless product. The unit can be carried in and around the house, using the easy belt-clip. This clip can easily be attached to and removed from the 'parent unit' (fig. 5).

TALK-BACK POSSIBILITY

The ‘parent unit’ also has a talk-back possibility. Parents can talk to their children via the ‘parent unit’. This means the Baby phone has full intercom capabilities. To set up the talk-back facility:

• Switch the receiver on the 'baby unit' to ON to an acceptable sound level using the volume control (fig. 1.9).
• Keep the TALK button (fig. 1.3) pressed on the 'parent unit' and talk clearly into the microphone (fig. 1.1).
• The signal is transmitted by the 'parent unit' and the received signal is heard on the 'baby unit' speaker.
• Adjust the sound level as required.

Notes:

• Talking back via the 'parent-unit' is only possible if the 'parent-unit' is not receiving a signal!
• The 'baby unit' only receives a signal if it is not already transmitting sounds.
• Switch the receiver on the 'baby unit' to OFF using the volume control (fig. 1.9) again after using talk-back possibility. This conserves power.

1. GENERALITES

SOMMAIRE

1. GENERALITES......7
2. GUIDE D'UTILISATION......7
3. ALIMENTATION....7-8
4. FONCTIONNEMENT....8-9 FICHE TECHNIQUE....34-35 ILLUSTRATIONS....3

INTRODUCTION

• Batteries 4 x 1.5V; LR6 (not included);
• Batteries 4 x 1.2V; NICAD (not included);
• Mains power adapter, DC 9V, 200mA (2 x included).

Operating voltage: DC 6-9 Volt

Battery back-up time:

- upto 30 hours (transmitter)

- upto 5 hours (receiver)

Transmission frequencies:

- 40.670 MHz / 40.695 MHz

FICHE TECHNIQUE

Alimentation:

Transmissionsfrekvenser:

- 40,670 MHz / 40,695 MHz
