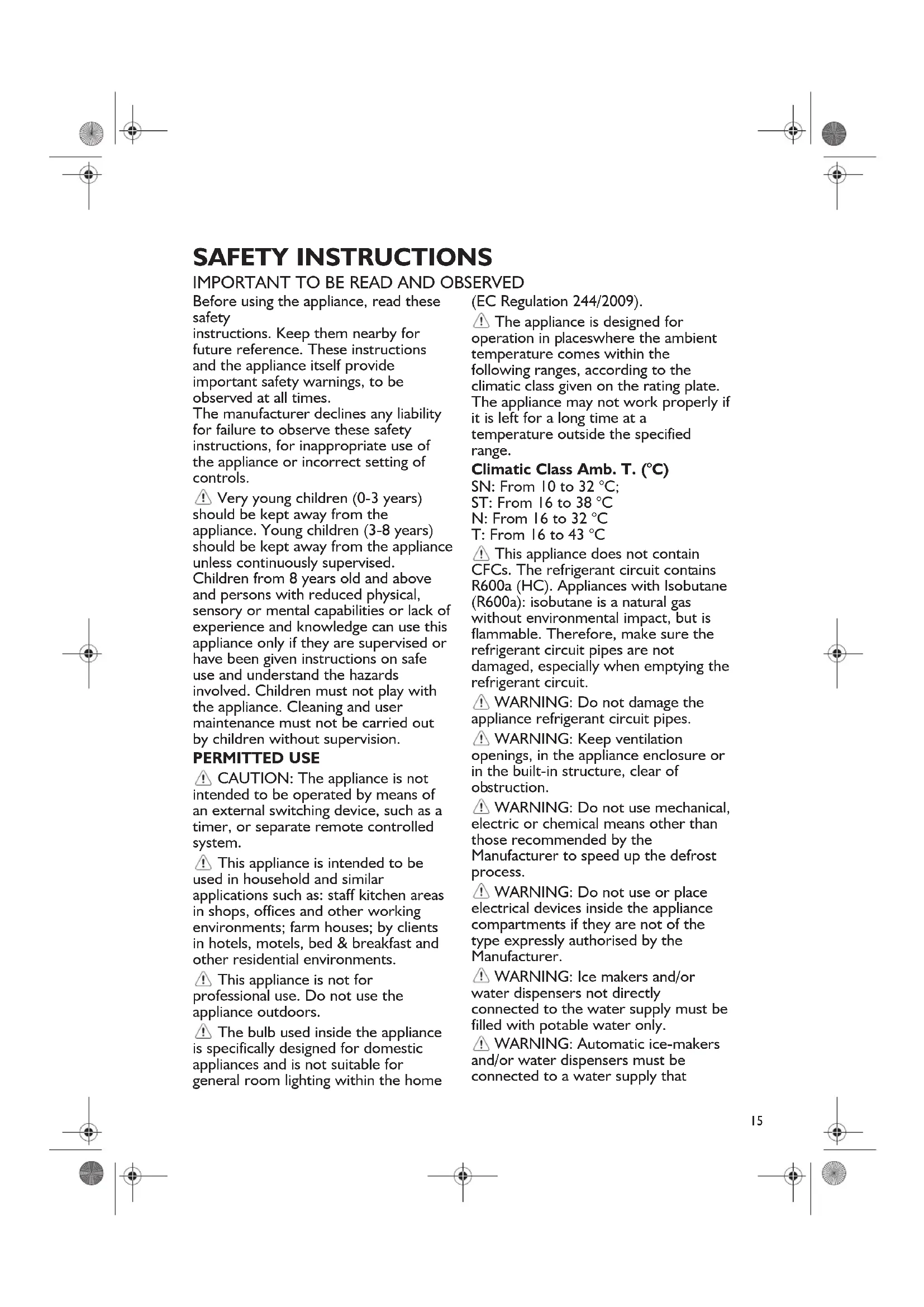

Before using the appliance, read these safety

instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times.

The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

PERMITTED USE

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.
This appliance is not for professional use. Do not use the appliance outdoors.
The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home

(EC Regulation 244/2009).

The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.
Climatic Class Amb. T. (^)
SN: From 10 to 32^
ST: From 16 to 38^
N: From 16 to 32^
T: From 16 to 43^
This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.
WARNING: Do not damage the appliance refrigerant circuit pipes.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.
WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.
WARNING: Ice makers and/or water dispensers not directly connected to the water supply must be filled with potable water only.
WARNING: Automatic ice-makers and/or water dispensers must be connected to a water supply that

delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar).

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
1 Do not swallow the contents (nontoxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.
For products designed to use an air filter inside an accessible fan cover, the filter must always be in position when the refrigerator is in function.
Do not store glass containers with liquids in the freezer compartment since they may break. Do not obstruct the fan (if included) with food items. After placing the food check that the door of the compartments closes properly, especially the freezer door.
Damaged gaskets must be replaced as soon as possible.
Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.

Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box, etc.). Unless specified in the specific booklet of product, they can be removed, maintaining equivalent performances.

C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.

INSTALLATION

The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.

Installation, including water supply (if any) and electrical connections, and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.
! Be careful not to damage the floors (e.g. parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.
WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions. It is forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil). All dimensions and spacing needed for installation of the appliance are in the Installation instruction booklet.

ELECTRICALWARNINGS

It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.
1 Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.
SIf the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.
1 Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol. The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is
marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The symbol in the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

To guarantee adequate ventilation follow installation instructions. Insufficient ventilation at the back of the product increases energy consumption and decreases cooling efficiency. Frequent door opening might cause an increase in Energy Consumption. The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance. Temperature setting should take into consideration these factors. Reduce door opening to a minimum. When thawing frozen food, place in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance. Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept). You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf. Do not worry about noises coming from the compressor which are described as normal noises in this product's Quick Guide.

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

Switching on the appliance

Starting up the appliance

The appliance features internal controls.

Plug in the appliance.

When the appliance is connected to the mains, the inside light switches on each time the door is opened. The thermostat, located inside the refrigerator compartment, is used to adjust the temperature of both the refrigerator compartment and low temperature compartment (if fitted).

Appliance temperature adjustment:

The thermostat automatically adjusts the temperature inside the refrigerator compartment and the apartment.

The thermostat knob can be turned from position I to 7 (coldest setting) to make the internal temperature colder.

When set to 0 the appliance is switched off.

To store food for a short period of time, set the thermostat between 1 (Min) and 3 (Med).

-To store food for long periods of time in the compaTment, set the thermostat to 3 or 4.

Note:

The ambient air temperature, frequency of door opening and the position of the appliance can affect internal temperatures. These factors must be taken into account when setting the thermostat.

How to use the refrigerator compartment

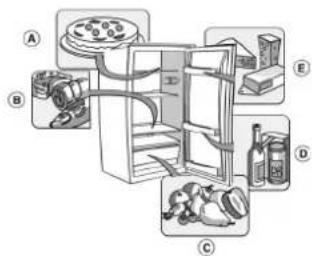

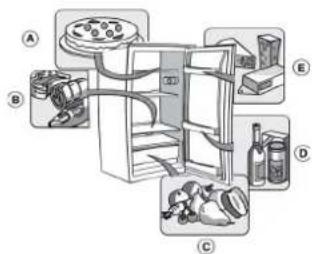

Position the food as shown in the figure.

A Cooked food

B Fish, meat

C Fruit and vegetables

DBottles

E Cheese

Notes:

• The space between the shelves and the rear wall of the refrigerator compartment must be unobstructed to allow circulation of air.

• Do not place food in direct contact with the rear wall of the refrigerator compartment.

• Do not place hot food in the refrigerator.

• Store liquids in closed containers.

Important

Storing vegetables with high water content can cause condensation to form on the glass shelf of the crisper drawer: this will not affect the correct operation of the appliance.

HOW TO OPERATE THE LOW TEMPERATURE COMPARTMENT

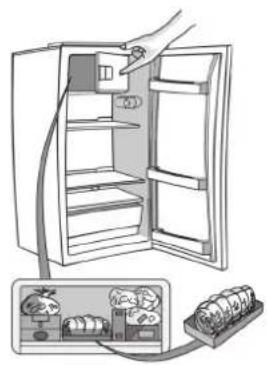

The low temperature compartment is

Frozen food can be stored in the compartment for the period of time indicated on the pack, and also fresh food can be frozen.

The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate.

Note:

In the event of a power cut, the low temperature compartment will maintain a sufficiently low temperature for food storage. However, it is advisable to avoid opening the compartment door during such periods.

Freezing fresh food (only in compartments marked Important

Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
- Arrange the fresh food in the top compartment, leaving sufficient space around each pack for the air to circulate.
- For optimum freezing, turn the thermostat down by half a point when placing fresh foods in the freezer compartment.
The food will be completely frozen in 24 hours.

For appliances with compartments marked * The table alongside shows the recommended ma storage time for frozen fresh foods.

When purchasing frozen food products:

• ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Place the items in the low temperature compartment as soon as you get home.
  If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.
• Always observe the storage information on the package.

Making ice cubes

• Fill the ice cube tray 2/3 full and place it in the low temperature compartment
• Do not use sharp or pointed instruments to detach the tray if it is stuck to the low temperature compartment bottom.
• Bend the ice tray slightly to remove the cubes.

MONTHS FOOD

1-3
4-7
8-12

HOW TO DEFROST AND CLEAN THE REFRIGERATOR

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Defrosting of the refrigerator compartment is completely automatic.

Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress.

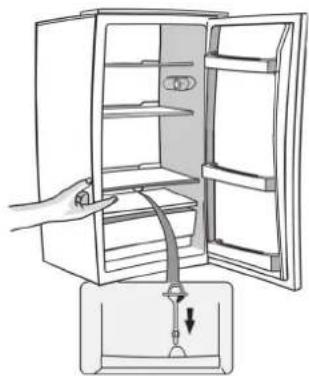

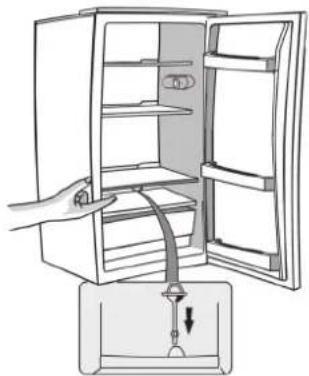

The defrost water is automatically routed to a drain outlet and into a container from which it evaporates.

Regularly clean the inside of the defrost water drain hole in order to guarantee the constant and correct flow of defrost water.

Defrosting the low temperature compartment

Defrost the low temperature compartment once or twice a year or when the ice formation is excessive.

It is perfectly normal for ice to form. The amount of ice which forms and the rate at which it accumulates will depends on room temperature and humidity, and on the frequency with which the door is opened. Ice formation is concentrated at the top of the compartment and does not affect the efficiency of the appliance.

If possible, defrost the freezer when it is nearly empty.
- Remove the food from the freezer, wrap in newspaper and group together in a cool place or in a portable cooler.
- Leave the door open to allow the frost to melt.
- Clean the interior with a sponge soaked in warm water and/or neutral detergent. Do not use abrasive substances.
- Rinse the interior and dry thoroughly.
- Put the food back into the freezer.
- Close the door
- Plug in the appliance once again.
- Switch the appliance on.

CARE AND MAINTENANCE

Periodically clean air vents and the condenser at the rear of the appliance with a vacuum cleaner or a brush.
Clean the outside using a soft cloth.

Prolonged disuse

1. Empty the refrigerator.
2. Disconnect the appliance from the power supply.
3. Defrost and clean the interior.
4. In the event of prolonged disuse, leave the door open to prevent the formation of mould, odours and oxidation.
5. Clean the appliance.
6. Clean the inside of the low temperature compartment (where fitted) when defrosting.
7. Periodically clean the inside of the refrigerator compartment with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products.
   Clean the outside with a soft damp cloth. Do not use abrasive products, scourers, stain-removers (e.g. acetone, trichloroethylene) or vinegar.

Replacing LED:

When replacing LED, proceed as follows:

Unplug the appliance from mains

I. Take out the screw cover with Slotted screwdriver (Pic I)
2. Unscrew the screw with Cross screwdriver (Pic 2)
3. Take out control box (Pic 3)
4. Remove LED with slotted screwdriver (Pic 4)
5. Take out LED and replacing a new LED (Pic 5)
6. Fix the new LED with slotted screwdriver (Pic 6)
7. Fix the control box (Pic 3, 2, 1)
8. Wait 5 minutes before plugging the appliance back into mains.

TROUBLESHOOTING GUIDE

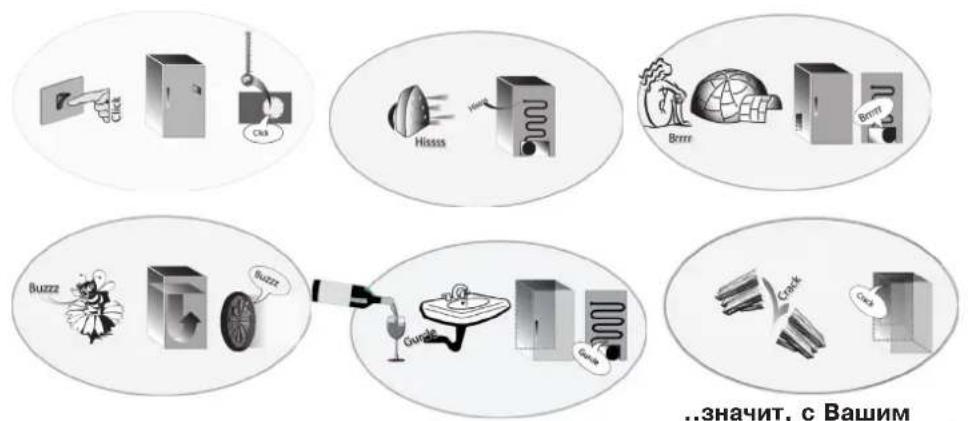

When you hear these noises

I. The appliance is not working.

• Is there a power failure?
• Is the plug properly inserted in the socket?
  Is the double-pole switch on?
• Has the fuse blown?
  Is the power cord damaged?
• Is the thermostat set to (Stop)?

2. Temperature inside the compartments is not low enough.

Is the door shut properly?
- Is food obstructing proper door closure?
- Is the appliance installed near a heat source?
Is the thermostat setting correct?
- Are the air circulation vents blocked?

3. Temperature inside the refrigerator compartment is too low.

Is the thermostat setting correct?

4. The appliance is excessively noisy.

• Has the appliance been installed correctly?
• Are the pipes at the back touching or vibrating?

5. Water collects at the bottom of the refrigerator compartment.

Is the defrost water drain blocked?

6. Excessive frost build-up in the low temperature compartment.

• Is the door shut properly?
  Is food obstructing proper door closure?

Notes:

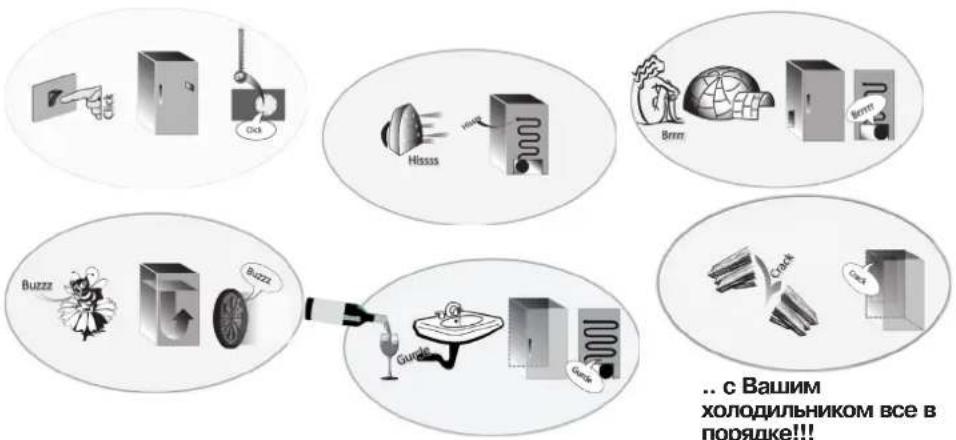

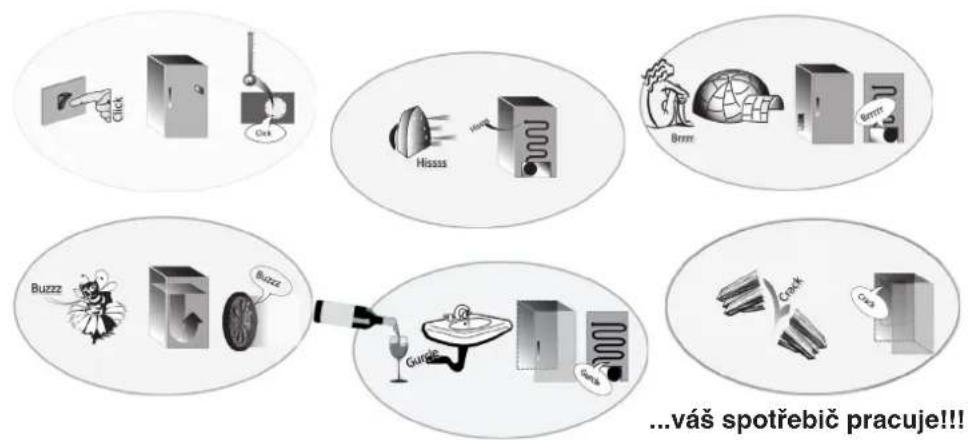

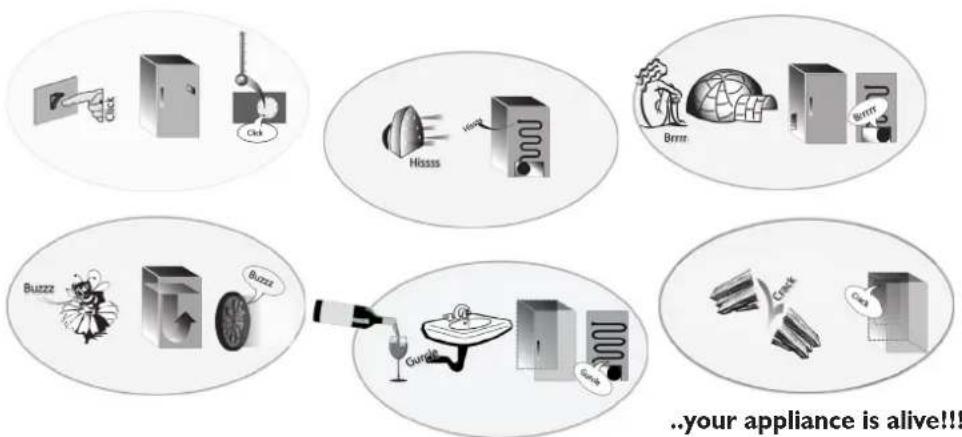

Gurgling and hissing noises due to expansion in the refrigerant circuit are normal.

AFTER-SALES SERVICE

Before contacting After-Sales Service:

1. See if you can solve the problem yourself with the help of the "Troubleshooting guide").

2. Switch the appliance on again to see if the problem has been solved. If it has not, disconnect the appliance from the power supply and wait for about an hour before switching on again.

3. If the problem persists after this course of action, contact After-sales Service.

Specify:

the nature of the problem
the model
- the Service number (the number after the word SERVICE on the rating plate on the inside of the appliance)
- your full address
- your telephone number and area code.

SERVICE

0000 000 0000

INSTALLATION

• Install the appliance away from heat sources. Installation in a hot environment, direct exposure to the sun or installation near heat sources (heaters, radiators, cookers) will increase power consumption and should therefore be avoided.

• If this is not possible, the following minimum distances must be respected:

• 30 cm from coal or paraffin stoves;

• 3 cm from electric and/or gas stoves.

• To optimize appliance efficiency, leave a 5 cm gap above the appliance and make sure that adjacent kitchen units are sufficiently distanced to allow air circulation.

• Install the appliance in a dry, well-ventilated place, and ensure it is level, using the front adjustment feet if necessary.
  Clean the interior.
• Fit the accessories.

Electrical connection

• Electrical connections must be made in accordance with local regulations.
• Voltage and power consumption are indicated on the rating plate inside the appliance.
• Regulations require that the appliance is earthed. The Manufacturer declines all liabilities for injury to persons or animals or damage to property resulting from failure to observe these regulations.
• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.
• Do not use extension leads or adapters.

Disconnecting the appliance

It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket.

Door Swing Reversal

Reversing the door swing

The refrigerator has the capability of opening the door from either the left or the right side.

The unit is delivered to you with the door opening from the left side. To change the opening direction, please follow these instructions.

Note: Before reversing the door swing, unplug the appliance from the mains or disconnect the electrical power supply.

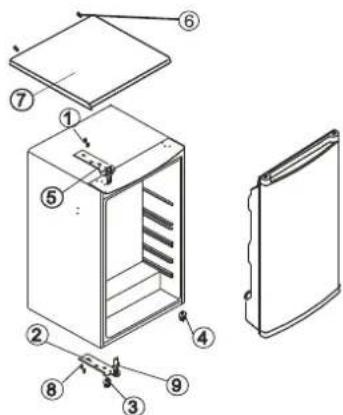

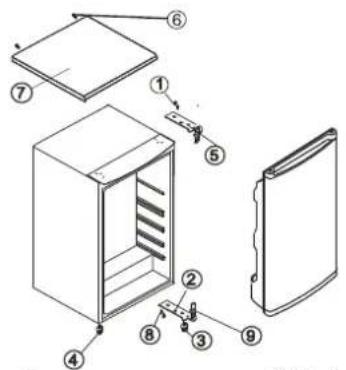

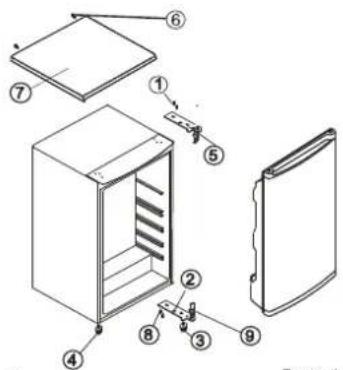

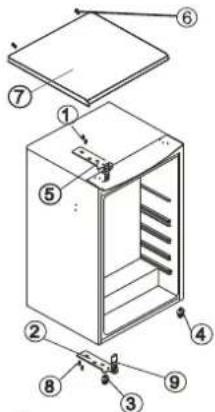

1. Remove the screws (6) holding the top panel (7) to the unit. Remove the top panel
2. Remove the two screws (I) holding the top hinge (5) (right side) to the frame. Remove the top hinge (5).
3. Lift the door off the bottom hinge pin and place it on a nonscratching surface.
4. Remove the two screws (8) holding the bottom hinge (2). Remove the bottom hinge (2).
5. Remove the left front leg (4) and transfer it to the right side.
6. Before replacing the bottom hinge (2), remove the hinge pin (9) and reverse the direction of the hinge (2). Reassemble the bottom hinge (2) on the left hand side using the two screws (8).
7. Refit the hinge pin (9) into the bottom hinge (2).
8. Lower the door onto the bottom hinge pin (9).
9. While holding the door in the closed position, reassemble the top hinge (5) on the left hand side using the two screws (1). Do not tighten the screws (1) until the top of the door is level with the counter top.
10. Refit the top panel using the screws (6).

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

Reversing the Inside Compartment Door Swing

1. Remove the door support pin screw at the bottom right;
2. remove the cap on the left part;
3. remove the two screw caps on the left part;
4. undo the two screws;
5. refit everything on the opposite side.

Door opening from left side
fig.1

Door opening from right side
fig. 2

TOP REMOVABLE

REFRIGERATION TABLE TOP 54 CM

HOW TO REMOVE THE TOP BEFORE TO PLACE THE APPLIANCE IN BUILT IN POSITION

Operation n°I

To dismount the 2 screws on the back side of the product

Operation n°2

To lift up from rear the top, and remove it from front fixation

Operation n°3

To dismount the 10 screws on the front plastic frame and metal hinge

Operation n°4

To move out the hinge and the plastic frame

Operation n°5

To replace and to refit the metallic hinge with 2 screws

screws

screws

screws

ELECTRICAL CONNECTION

1) For Great Britain only

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS I363A I3amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS I362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B).
2. Fit replacement I3A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.

MESURES DE SECURITE

IL EST IMPORTANT DE LIRE ET OBSERVER

GUIDA RICERCA GUASTI

RENHOLD OG VEDLIKEHOLD

RENGJØRING OG VEDLIKEHOLD

Rengjor jevnig ventilasjonsapnningene og kondensatoren som sitter bak pa apparatet med stvsguer ell ermed en børste.
Rengjor utsiden med en myk klut.

Ved lengre fravaer

Kdyz uslysite tvto zvuky

1. Spotbrebic nefunguje.

YnakoBouhbiMATEpHnHa100%npiroeHdI nepepaOtK, OcEHCBnTebCTByET COOTBETCYIOUIN CMBON

Pa3JINHbIe yactn ynakOBKn DoJNkhbI bItb yTNIMIOBAbHb I N0THOM COOTBTCTBN C DeETByOuMM MeCTbHMn PpABINAMn NO yTINN3aun OTXoDob.

YDAJIHHE B OTXOdbI CTAPOI 3JEKTPObITOBOI TEXHNK

DAnHHn npN6Op n3rTOBnEH n3 MaTePnAnOB,
npRHObHbIX K nepepa60Tke nn NOBtOPHomy
mONn3oBaHnIO. YTNIN3pHyIe npN6Op B COOTBcTCTBn
mCMeTHbIMnpABnAMnNO yTNIN3aUIn OTxOoB.
DonOnnHeTbHbNO HnOpMaUIO npABnAaX ObpauHn
c3NeKtpo6bToBbIMn pN6opamn, INy TYNIN3aUIn
nepepa60TKe MOnxHO NOnyUHTB CCOOTBEcTBYouuN
rocApdCTBeHbIx opraHax, cnyk6e c6opa 6blTObBix
OTxOoB INN B Mara3Hne, Ie 6bl npiOpBeTeH np6Op.
DaHHn npN6Op HeceT MapKnPOBky B COOTBcTCTBn C
EBponekO DnpeKTHBO 2012/19/EU no yTNIN3aUIn
3NeKTPnEckRo n3NeKtpnoHOrO o6OpDobHnA (WEEE).
ObecneuB npAbnHyNo yTNIN3aUIn DaHORo n3dEInna,
BbI NOMoxETe npEDOTbPaTntb HeraTnHBIIe NoCNEcTbN
dn OkpyKaioue CpeDb n 3doPoBBya YenOBeka.

Cnmbon Ha cAmOM n3denn HIN B cOnpoBOnTeHbHOI DOKyMeHTaun yKa3bBaET O TOM, YTO npN yTNiHaUN DaHnHO n3denn C HIM HeNb3aOBpaTaBC KaK C obhHbIMN bTobBMn OTXdAMn. BmecTo 3TOrO, erO cneDeYe cTaB Ha nepepa60Ky B COOTBeCTbYIOuH NHyKT pNHeMa 3NeKTPueckORo H 3NeKTPoHORO o6OpyDobAHn.

COBETbI NO 3KOHOMN 3HEPmN

Ia oBecneeyHn Hndnexaue BHTnlae Cndeyte yka3AHmN NO yCTAHOBKe. Heoctatoohn BERTINRAuC 3aedn CTOpBOh np6opa Beet K NObIweHIO 3HepronotpeBHeHn NCHXeHNO aFpEKTNBHOCTN OxNAkJdHn.

Yactoe OTKpbBaHne DBepeB MoKeT BcTn K NOBbIeHHOMy NtPe6BeHNO 3AnkTPO3HePmN. Ha BYHTpeHHIO TemepaTy pnp6opA n 3HeprONOTpeBHeHne MOKe TOBnMBy TEMepaTypa OkpyKaOne CpeBIM MeCToNoJoxE Hne np6oPa. PnHaCTpOKe TEMepaTyb CnDyET YuHTbBAbT 3TN pKaTOpbl.

CTapaIteCbCECTN K MHNIMMY NPODOJKNTEbHOCTb OTKpbIBAHIN DBePbI.

ДЯ OTТАВАнHA 3AMOPOЖEHHbIX NpOyKTOB, NOMeUaJIte nx B xOLOINbHoe OTeJENHe. HnAKA TEmNepaTypa 3AMOPOЖEHHbIX pOyDyKTOB 6yDET CNOcO6CTBOBaTb OXnAnXDeHnIO npOyKTOB, HaxOJaIuXcR B XoLOINbHOM OTdEHNII. PpeXJe Yem NOMeUaTb B nPbOp TEnNyko edy HnANrKn, dAaTe NM OCTbTb.

PacnoonKeHne NoKOB XoNoDnBnHe He BnIeR Ha 3ΦΦeKTHMBOCTb MCNoJIb3OBAHIN 9NEKTPO3HEpTNI.

Pacnonarate npodkytbl Ha noIkax TaK, YTo6bI o6ceueHb npabunbHyo upknyaun 803dyxa (npodyktbl He doJNkbcOpknKaCAtcbdpyr Cdpyrom n c3aHHe CTekHK KaMepbl).

IpoctpaHCTBO DnI xpaHeHHaMOpOeHHbIX npOdyKTOB MOxHO paCmIPNTb, BbHyB KOp3HbI N, pN HAnHH, Notok Stop Frost.

He 6eCnKoNtEcb O 38yKaX, CbIiHbX IN KOMnPecccopa, B kPaTKM C npAoyOHm pykoBOdCTBE OH ONIOnCaHb KaK HopMaJIbHbIe WJMbI.

Aa3aMeHbCBeToaNoDa BbINOJHnTe CJeDyUOuNe

DeiCTBnA:

OTKIOUHTe npu6op OT 3neKTpoCeTn

I. CHIMITE KpbuHKy BNHTa C NOMOUBIO WJINUEBOI OTBepTKN (pnc.1)
2. OTBnHTTE BnHT C nOMOuIbIO KpeCTOBOJ OTBeptK (pnc. 2)
3. N3BnKeKnte 6Iok ynpaBHeHn (pnc.3)
4.N3BJIeKNTe CBeTOJNOc NOMOuHbU JINueBOI OTBePTKN (pnc. 4)
5. BbHbTe CBeToOnIOu N yCTaHOBnTe HObBi (pnc. 5)
6. 3aKpeIe HOBbI CBETOIdoC NOMOuHO WInueBOI OTBeptKn (PNC.6)
7.3akpenTe 6nok ynpabJeHHa (pnc.3,2,1)
8. PpeKJe Yem ChOBA NOkNIOuHTb np6Op K cETn, NOoXdTe 5 MNHyT.

6

3

187

PYKOBODCTBO NO NONCKY HENCPABHOCTEIN

Korda cnblhblrakne 3Bykn

1. Pn6op He pa6oTaet.

-EcTB nn HanpaeHne B cetn?
-Праиьньно Ль ВКлочен пибор в розету?
BKnIOueHnnceTeBOINDbYxNIOCHbI pyuNbHnK?
-He nperopel nn npedoxpahntenb?
He nobpekdeHn KaebnbntaHna?
He HaxoDITcJn pyka TepMoCTaTa B noLoXeHn (CtOn)?

1. Temnepaotypa BHytpn Kaemep HEOCTaTOHNO HN3KaJ.

-Праьиьно Ли 3akpbitaDbepb?
-He MeMaIOT JIN pOdyKbI npaBnHOMy 3aKpbBaHmIO DBePn?
He yctahOBJIeH JIN npu6Op B6n3n NCTOCHNA TENJa?
HaxoNTcTJI TepMOCTaB IpaBnblHom NOIOXeHN?
CBo6oIHOJINzIpKynpyeTO3dyx?

1. TemnepaTpa BHyTpnxOJnIbHou KAMEpbCNIWKOM HN3Ka.

HaxoDITcI IN TepMOCTa I npabINbHOM nOJKeHn?

1. NobbiueHHbI yM npn pa6ote np6opa.

-Праьиьно Ль ВылонHeHa yCTaHOBKa npiбopa?
-HeTnnKacAHnNnBnBpaunn Tpybok B 3aHneHuaCTn npnbopa?

5.HaDHeXoIoNJIbHOJ KAmepbckanIIBaETcB ODA.

-He3acopennCnB TaioB Odbi?

1. Oba3OBaHHe N3bIToCHoro KOHcECTBa HHER B OTdJeHn H3KoTEmNepatypbl.

-ПаьиьнолзakpbitaDbepb?
He Meuaiot IIN npOyKbI npaBnHOMy 3aKpbBaHHIO DBepn?

Приимechanical:

3ByKn 6yIbKaHbN HmneHbB XOIOINbHom KOHTpeYBIAOTcH HOPMaJIbHbIM RAJEHNEM.

ПОСЛЕПОНДАЖНОБСЛУЖИBAHAнE

PpeXd Yem ObaaTaBcB B cepBnchbIeHTp:

1. Nonpobyte yctpaHtB HenoJaKN CAMOCTaTeJIbHO (CM.p3JeT "PykoBOcTBO NO NOKCY HEuCnpabHcOeT"）
   2.BHOB BKIOHTE np6op nI npOBepKn yCTpaHEHn HENONAdKn, EcN yCTpaHnB HENONAdKy He ydaIocb, OTKIOHNT np6Op n I NOOXdTe npMmEPHo hac, a 3aTEM CHOBA BKIOHTE.
   3.Ecni CHObA BByBRAETC HANHHe HENOIAKNI, 6OBATITIECB BCEPINCHBI UeHTP.

Co06uHTe:

TIN HENOJAKN
MOdJIb
- cepnbchbHomep (Hopme, cIeJyOuHnncn oocne cnoba SERVcHRe NaacnpoTHou Ta6mue.
HaxoJueeBHTn np6opa)
Baw noHbAaPeo
BawHOMepTeJefoHaNkoD rOpOa.

SERVICE

0000 000 00000

YCTAHOBKA

He yctahabmbaTe np60b 6blmN nCTOHHKa Tnla. YctaHOBa B XkapKOM NOMEUHIM, NOI pRMBIM COJIHEHBM JyHaAMN INB6bl3N ONT CTOHHKOB Tnla (6atapen, ropelkn) nPMBoNT K yBeJIuHHeHIO NOTpe6JREMOuHOCn. TaKx ycNoB JxelaTeNbHO m36erTaB.
Bcnyae ecnn 3to HeBO3MOxHO,Heo6xoJIMo CO6nOdaTb CJeNyIOUne MHHMaJIbHbIe pacCTOHaHNA:

-30 CM OT yrOJIbHbIX NIN KepocnHOBbIX PNTT;
-3 CM OT 3NEKTPUeCKnX n/nn r3OBbIX pINT.

IOnTImaIbHoi pa6oI np6opa OCTabTe HaH Hm He MeHee 5cm CBO6OHOHO npocTpaHCTBa n pa3MeCTne OCTaHyO KYOHHyIO MeBn TaK,TObi ObecNeHTb DOCTaTOHO MecTa IINPKyIaUM BO3Dxa.

YCTAHOBNTe np6Op B cyXOM, XOPOU npOBETpNBaEMOM NOMeueHn, Ha POBHO NOBepxHOCTn, peryIpyr, ecnn Tpe6yeTcN, nepedne HooKKn.
BbMoTe np6Op n3HyTpN.

• YcTaHOBnTe npHnaRaembIe npHaADnEaXHOCTN.

IopKIOUoyHHe XoIoDJIbHNka K 3JeKTpUeCKOc CETn

I OIOKIIIOHHe N K3JIeKTPnueckO CcTeN DOJXHO BbINOJHrTbcB COOTBETCTBN C MECTHBIMN HOpMaMNI.
JaHbIeNoHaNpJxKeHmIOHOTpe6JIeMOMOuHocTynKa3aHbHa nacnpoTHoT a6nue,paCnoJonoKeHHoB BHTpn npn6opa.
3a3eMHeHne xoOndbHnka RABTcR O63aTeNbHbIM Tpe60BaHm 3aKHOdaTeJIbCTBa. Ipn3BODInTeJb CHMaet C Ce6B BCkyIO OTBeTCTBEHOCtB 3a TpaMbI IOJe, XJBOTHbIX NIN MaTePnaIbHbY uep6, KOTOpbly MOryt 6blr npuHHeHb B pe3yIbTaTe HecO6IOJeHn BHIeYKa3AHbIX HOPM.

EcnBnKn npo3eKa HE COOTBeTCTBYOT dpyr dpnyr,TO 3aMeHHe pOsetKY.3aMeHa DOnJXHa BbIbBbINONHeHa KBaHnFpUPOBaHbIM 3NEKTPKnOM.
He noIb3yIteCb yDInHHTeJAMn nn

nepexoHkamn-pa3BETBNTeJrMa

OTKIOUeyHNEOT3JEKTPnueckoCETN

DIOxHO 6bIbTOB3MOKHO TOCOEINHEHEM BUNKOT PO3ETKN NIN Pnnpomou DByXnIOCHORcTeBOrO pyBnBnKa, yCTaHaNBAEMORepeepo3etKo.

H3meHeHHe Habeckn DBepebl

H3MeHeHHe Habeckn DBepuB

BepuyxonoDnHbNkaMOXHO nepeBeuNBaTbCTEM,TO6bOHA OKpbBaJacb CneBaNJnCnpaba.

B COCTOHNIOCTABKN DBepua OTKpbBaETC CNEBA. YTObI nepeBecNTb DBepuy, Heo6xOIMBO BInONHtB CNeDyUOpne onepaunu.

PnmeaHne: IpeTe TM, KaK npNCtynaTb K nepeBeeuBaHHIO DBepu, OTKNIOHTe XOJIOINBHNK OK TcETN NNN BbIKIOHNTe pyBnBHK 3JIeKTPOPTAHNI.

1. CHINMITE BHTBI (6), INPIMMAI BEPXHIOI NaHEB (7) KOPINCY. CHINMITE BEPXHIOI NaHEB.
2. CHIMITE DBA BINTA (1), npnKmABeBPXHIO NETIIO (5) (c npaBOI CTOPHOI) K KopnyCy. CHIMITE BEPHXIO NETIIO (5).
3. CHNMTe DBepu, npnIOHReB ee BOnb naIbua HxKHei neTIN, n noLOXnTe ee Ha noBepxHoCTb, He 6oayioC aapanHH.
4. CHIMITE IBA BnHTA (8), npupepkmba HxHIO nTIO (2). CHIMITE HXHIO IO nTIO (2).
   5.CHIMITE neByIO nepeDHO HOxKy (4) n nepeCTaBte ee Ha npabyIO CTOPHY.
5. Npeed Tem, Kac yctahabnBaTb HxHIOIO neTIO (2), CHIMTE naeue nTeIN (9) n NOMEHNIE HA opbaTHOE HANpABHENE YCTAHOBKN NETIN (2). YCTAHOBITE HXHIOIO NETIO (2) Ha JEBYIO CTOPOHy C NOMOUBIO DByx BINTOB (8).
   7.YcTaHOBnTe naleu nettn (9) B HnXHIO IO netTIO (2).
6. Hanehbe TBepu Ha naneu HnXHe nTm (9).
   9.Дерра Деруь В ЗakрытOM NOLOXeHIN,ycTaHOBnTe BepxHIOI NENTIO（5）HaJIeByO CTOpOHy C NOMOUsbO DByX BNHTOB(1)He 3aTIRBaNTe BNHTb（1）DToTexnop，NOKa DBepua He OKaxetcBbIpOBHeHHo OTHCInTeMbHO ONOpHOJ NOBepxHOCTN.
   10.YCTaHOBNTe Ha MecTO BepXHIOI NaHEJIb C NOMOUIBOBHTOB (6).

Pnmeyane:

CTOPOH YABECKN DBePcbl MOKHO N3MEHNTb; ODHaKO, cJIN 3Ta ONEpaun BbIOnJIHReTc CepBnCHbIM YeHTpOM, OHa He nokpbaeTc rapahtne.

N3MeHeHHe Habeckn DBepn BHyTppeHHeRo OTdeJeHn

1. CHINMTE BHT ONOPHORO nJIbua DBepn, paCIOLOXeHHbI BHN3y Cnpaba;
2. CHIMMTE 3aIyUky C JEBOCTOPHOHbI;
   3.CHIMMTE DE BcKpBbIK BNHTOB CJIeBOI CTOpOHbI;
   4.OTKpyTTE 06a BnHTa;
3. yCTaHOBtBE BCE CHrTbIe 3JIemEHTbI Ha IpoTnBOIOnIOXHyIO CTOPHY.

Dbepua,OTKpbBaIOUaRc CneBa

Pnc.1

Dberpa,OTKpbBaiouaaC npaba

Pnc.2

②
①

CbeMHaIaHEJIb

ONOPHAR NAHIELXOJIOHNKAK54CM

CHRTNE PAHEJIIN PEPEBCTPANBAHEM XOJIOJIbHnKA B HnU

Onepaun No 1

OTkpyTnte 2 BnHTa c 3aDne CTOpObI npnbopa

Onepaun No 2

PpInnoDHHMnTE NaHeJIb C 3aJHNe CTOpOHbI N CHIMnTe ee C npeDnHex ToeK KpeNneHn

Onepaun No 3

OTkpyTHe 10 BnHTOB Ha nepeDnei nnactIKOBo pame n MetaJIInuecko neTJe

Onepaun No 4

CHIMMTE NETIIO INIaCTIKOByo paMy

Onepaun No 5

YCTaHOBnTE Ha MeCTO MetaJIInueckyIO neTIO, 3aKpeINB ee 2 BuHTAMN

BNUHTbl

191

INHCTPYKUN 3A BE3OJACHOCT

BAKHO E DA I N PPOYETETE IN DA I N CNA3BATE

Ipeu n3non3BaHeto Ha ypea npoetete HnCTpyKunTe 3a 6e3onacnoct. 3ana3eTn 3a 6bJdeu CnpabKn. B Teu nHCTpyKunu Ha camna ype, ca npedctabeHN BaxHn IpeDynpexkJeHHN 3a 6e3onacHOCTTa, KOHT Tp6Ba Da ce npoehaT NaCe Cb6JIODaBAt BInHa. Ipou3BOIDnteHr OTka3Ba BCRAKBA OTROBOPHOCT Pn Hecna3BaHe Ha Teu yka3AHN 3a 6e3onacHOCTTa, BB Bp3Ka C HenoXOJa uNoTpeBa Ha ypea UIN HEnpaBUNHa HAcTPOKa Ha opraHte 3a ynpabJIeHne.

M Horo MaKn Dea (0-3 roDHH) TpBbA da CTOT daney OT ypea. MaKnte Dea (3-8 roDHH) TpBbA da CTOT daney OT ypea,OCBEH aKO He ca NOD NOCTOHe HAD3Op OT Bb3pacteH. To3n ypeD MoKeJa CE h3NOJ3Ba OT Dea Ha 8 roDHH IIOrOJIEMN, KAKTOIOT JINCA C ORpaHHeH QIN3UeCKN, CETNBHN NNNYMCTBeHN Bb3MOXHOCTN INN C HeIOCTaTBueH ONIT IN NO3HaHnCAMO aKO Ca NOD HA3Op INN Ca IM DaJeHN IHCTpyKuIN 3a YNOTpe6bata Ha ypea No 6eONACEN NaHn IN Pa3bnpAT Bb3MOXHnTE OnaCHOCTN. DeuaTHe TpBbA da CNrPaarT cypea. POnHcTBaHETO INoDPbXkKaTA OT Ntpe6bTeJI He TpBbDa ce n3BbpBa OT Deua 6e3 HAd3Op.

I03BOJIeHA YIOTPE6A

BHIMAHHE:YpeBt He e npedHa3HaueH da Ce n3non3Ba C BbHweH TaImePnCOTdEHa CnCTema C nCTaHIOHO ynpabJeHne.
To3n ypeI e npEHa3HaueH 3a ynotpe6a BDOMaWHN YCNOBNI NOIO6HN
PpIOJxKeHH, KATO: KxHNI 3a CnyKNTeINB MaRa3HN, Ofncn IN pyrnpa60THN CpeIN; B CTOnaHCTBa; OT KJIneHTN B XOTeINMOTeIN, XOCTeIN N DpyrMeCTa 3a HactaHBAhe.
To3n ypei He e npedha3HaueH 3a npocepnoHaHa yNoTpe6a.He n3non3BaIteypeHa Ha OTkpnto.
KpykKaTa, n3nOJ3BaHa B ypeJa, e CneuHaNHO pOeKTnpaHa 3a DOMaWHI ypei N He e NOxOJa7a 3a OCBeTBAHe Ha NOMeueHnB Doma (PerJament Ha EK 244/2009).
！ypeBt e npEHa3aHueh 3a ynoTpe6a Ha MeCTa, KbTeOTempepatyatae B CNeHNTE Dnana3OH B CbOTBetCTBneC

KINMaTnHnKaIac, nocOeyHa TaBeNkTaC HOMHaHnHTe DaHH. YpeBt MoKe Da He cyHKUHOHnpa npaBUNHO, aKO 6bJe OCTaEB3a npoDbJnxTeHe nepoD npi TEMepaTypa, n3BbH yKa3aHn Dnana3OH.

KImMaTnueH KIac npa6oTHa TEM. (^) SN:IOrN10 doN32 ^ C ST:IOrN16 doN38 ^ C N:IOrN16 doN32 ^ C T:IOrN16 doN43 ^ C

To3n ypeI He cbIbpxa
xlopoPnyopOBByrIepOu (CFC).
XlaIINHaTc CnCTema CbIbpxKa R600a (HC).
YcTPOiCTBa C n3o6yTAH (R600a):
n3o6yTaHbTe npnpOdeH ra3 6e3
Bb3dEInCTBne Bbpyk OkJHaTa CpeJa, Ho e
3aIaNIM. IpopaTTOBa ce yBepraite, Ye
Tp6bnte Ha XlaIINHaTc CnCTema He ca
NoBpeDeH, OCO6eHO NO Bpeme Ha HeHHTO
n3npa3BaHe..
I PEPENPPEKDEHNE: BnMaBaTe Da He NOBpeNTe Tp6nte Ha XnaJInHaTa CnCTema Ha ypeJa.
I PEPENPPEKDEHNE: He 3anyuBaHTe BEHTINaONHOHTe OTBOPN B KOpnyCa Ha ypeDa Nn BB BrpaDeHaTc KOHCTpyKUHa.
！PENyPEXKDEHNE:He n3no3BaTeMexaHnHn，eNEKTpueeCKn HnXmHneCKnCpeCTBa，pa3nHnOT npenopbBaHnTeOTnpo3BOIDTeJI，3aYckopraBeHa npouecaHa obes3ckpekxaBaHe.
！PPEUYIPEXKDEHNE:He n3no13BaTne HnIOCTaBnTEeJNEKTpuueCKn yCTPOIcTBa BOTJeHnraHaYpeDa,akoTe He ca OT Bnda，n3pnuHOo6pehOT npou3BODNTeJIa.
I PEPYIPPEKDEHNE: YCTPOINCTBaT3a JeN NNN DnCnEHCBPNTe 3a BOa, KONTO He Ca IINPEKTHO CBp3AHN KbM BOOCHa6DnTEHaTAPpeKa, Tp6Ba Da ce TbNHATcMoC CnTeHaBOa.
！PPEyIPEXKDEHNE：ABTOMaTHNIEJeDorehepaTopuWnIIN DUCHECbpnte3aBOda TprBaJa6bDat CBpb3AHKMBBOOCHa6DNTeHa MPexKa,KoTO NODaBCAMOnTeHa BODa C HAnraHe MeKdy0,17U0,81MPa(1,7n8,1bar).
He cBxpaHraBaIte eKcnIIO3NBH BWeueCTBa, KaTO aepo3OJIHN KEHOBE CbC 3aapanMO rOpBO B TO3N ype.

He norltbauTe cbdbpKaHneTo (HETOKNUHO)Ha onaKOBkTe3aJeI( npHHKOIMoJeI). HeKOHcympaTe JeDeHn Ky6yTa IJI neHn 6bn3AnKu BeDHara CJIeN N3BaXdAHeTO NM OT pPn3epa, TbN KATO TOBA MOKe Da npeDn3BnKa CTyeHn 13rapAHn.
3a npOyKTHn, npOeKTPpaHn 3a
n3noN3BaHe Ha Bb3DyWeH eINTbp,
HAMIPAu CE NOI DOCTbNEH KAnak Ha
BEHTnAToPA, cINITbPbT BnHaR Tp6Ba Da
eIOCTaBeH, KORATO XJaUNIHKnBt paBOTn.
He cbxpaHbAite CTbKlen H KOHTeHepn, CbIbPkaun TeuHOCTN, B OTdJeHneTo Ha pIn3epa, Tb KaTO Te MORat Da ce CuynT. He 3akpmbaiTe BEHTnataTopa (ako mTaKbB) C xpaHn. Cnei noCTabAHeto Ha xpaHn npOBepe TaII BpTuKaTa HA OTdJeHnTA Ce 3aTBapr DObpe, OcOBeHo Ta3n Ha pIn3epa.
！NoBpeHHeTe yIbTHHeHnTaPbBa Da ce IOdMeHr Bb3MOxHO HAI-CKOPO.
I3noJI3BaIte OTJeIeHHeTo Ha XlaIINHka cMo 3a CbXpaHBAHe Ha XpaHn IOTJeIeHHeTo HaΦpI3epa cMo 3a CbXpaHBAHe Ha 3ampa3eHn XpaHn, 3aMPa3BaHe Ha npeCHn XpaHn nPapBeHe Ha JeIeEH Ky6YeTa.
136BaTe CbXpaHBAHeTo Ha HeoBHTn XpaHN B nPak KOHTc BbTpewHnTE NOBpXHOCTn Ha XlaaHnHnKa nnΦpN3epa.YpeNTe MoKe Da pa3NoIarat CbC CneuaHn OTdJeHnna (OTdeHnE 3a IpeCHn XpaHN, KyTn 3a Hya rpaDyca n dp.).Ako He e yka3aHo dpyro B cBoTBehTa 6poWypa 3a npOdykTA, TE MORaJa Ce OTcPaHBA TcBc 3ana3BaHe Ha ekBnBaIeHTHe XapAKTePncTKn.
！C-NEHTAH CE 3N0N3Ba KaTO ra3006pa3yBaU aReHT B N3OlaUNOHHaTnRAH e 3anaNM ra3.

MOHTNPAHE

!БopabHeTo MOnTnpaHTo Ha ypea Tpr6Ba Da CE n3BbPwBA OT DBe NIN NOBEe Iuca -IMa ONaCHOCT OT HapaHBAHNA. 13no3BaIte npedna3HN pbKaBUN npn pa3oNaKOBaHTo mOHTaxa -IMa ONaCHOCT OT nopra3BaHNA.
MOHTaXbT, BKJIOHNTeJIHO BOIOnOJaBaUaTa CnCTema (aKO IMa) N

eIektpnuecknte Bp3kn, n pemOHHTne
deHOCTN CNEBA Da CE N3BbPWBAT OT
KBaINDnupan Texnik. He nonpaBnTe n
He NOmEnHnTE qACTn OT ypeA, aKO TOBa
He e IN3pnHNO NOCOeHO B pKOBODCTBOTO
Ha Notpe6nTeJ. DeaTa He 6NaBa Da CToT
6N30 DO MCTOTO 3a MOHTax. CnEi
pa3OnakOBaHe Ha ypeA ce ybePeTe, ye He
e 6bnIOBpeDen npn TpaHCnOPTupaHeto. B
Cnyau HA npoblemn, CBpxKeTe Ce C
dNCTp6yTopa nn Hn Han- 6n3Knr OTden 3a
cNeIPOdaX6BeHO 6cnYkBaHe. CnEi
KATO ypeBT 6bJe MOHTnpaH, OTnaDbuNTe
OT ONAKOBkata (PiactMaCa, CTIpONOp n
dp.) Tpr6Ba DA CToT DAJIeU OT o6cera Ha
Deua - IMA ONACHOCT OT 3aDuWabaHe.
YeBt Tpr6Ba Da e IN3KnUoyen OT
eIektpnueckata MPexa PpeDN 3BbPwBaHe
Ha KaKBInTo n Da 6blIO MOHTAXHN DEHOCTN
- IMA ONACHOCT OT eIektpnueckn Udap. IIO
BpeMe HA MOHTaxa Ce ybePeTe, ye ypeBt
He NOBpeKDa 3axpaHbaun Ka6en - Ima
ONACHOCT OT eIektpnueckn Udap.
AKTbnpaTe ypeDa eEDa Cnei
3abbpwBaHe Ha MOHTaxa.
BnHmBaIte Da He NOBpeNITe
NoOBInTe HAcTNIKn (HanpIMep napketa),
Korato IpemecTBaTe ypeDa. MoTHnpaIte
ypeDa Bbpxy NOD, KOIOE IOCTaTbUHO
3dpa 3a NoDlbpxKaHe Ha TeXeCtTa, Na HA
MRCTO, NOxOJaIO 3a pa3MePa I
yNTope6bata Ha ypeDa. Pn MOHTaxa Ce
yBepTe, Ye ypeBt He e 6bn30 Do
N3TOHnK Ha TOnIIHa n YetIpnte KpaYea
ce ONIpa TNbTHo Ha NODa, KaTO npi
Heo6XoDMocT rHnHacTe, n CneI TOBa
npOBepTe dAnl ypeBt E HnBeJInpaH
6e3ynpeHc NOMOHTa Ha HnBEnP.
N3aKaaiTe NOHE DBA Yaca, PpeDi Da
BKIOuHTe ypeDa, 3a Da CE rapaHTnpa, Ye
XlaDNIHATA CNTema e HnBJIHO
fYHKUHOHaHa.
！PPEyIPEXKDEHNE:3aN36rBaHeHa
onachOCT,dbJxkaaCeHaHEctabuHOCCT,
NOCTABAHEToNNnΦNKcnpaHETOHa ypeTa
TPBbDaCe N3BpWBA B CbOTBETCTBNE C
INHTpykUInTe Ha IPOIN3BODITeY
3a6paHEnO eJa Ce NOCTABXnaDnHKnBT
Taka,Ye METaHATA Tpb6aHa ra30Ba
6yTNKn,MeTaNTH Pb6n 3ra Ra3 INN BOda,
INN eEKeTPNeCKNaBeN Da Ca B KOHTAKT
Cb3aHaTcEHa HA XnaDnHnKa
(HAMOTkata Ha KOHeH3aTopa).BCNUK

pa3Mepn npa3CTOHHN,HEo6xOuMM 3a MOHTaKa Ha ypeJa, Ca IIOCOHeH B KHIXKkata C INCHTPYKUN 3a MOHTaX.

PNEyIPEXJEHNA BbB BPb3KA C EJEKTP03AXPAHBAHETO

TPr6Ba Da e Bb3MOxHO ypeBt Da ce 13KJIIOUOT 3aXpaHBAHEO Upe3 N3BaXJaHe Ha uencena, aKO E IOCTbNEH, INI Ype3 DOCTbNEH MHOROONOCEH INPEBKNIOYBaTeJ, MOHTupAH CNeI KOHTAKTa, KaKTO IypeBt Da e 3a3EMEH CBOTBTCTBneC HauNoHaHnHTe CTaHdApTN 3a eNKeKtpuecka 6e3OnaHcct.
He n3no3BaTe yDJIxNtEn,
pa3KnOHTeNN C HRAKONKO THe3Da Nn
aAnTepn.Cne npNKIOUcBAHe Ha
MOHTnpaHETo eNEKTPuCeCKNe KOMNOHEHTN
Bue He Tp6Ba Da ca DOCTbHN 3a
notpe6NTen. He n3no3BaIte ypeNa, aKO CTc c MOKpn nn bocn Kpaka.He
n3no3BaIte TO3n ypeA, aKO 3axpaHbaunrT
My Ka6e nn uenceJ e NOBpeH, aKO He
paBOTn npabINHO nn aKO e 6nn NOBpeH
nNn n3nyckaH.
Ako3axpaHbauT Ka6eI e NOBpeDeH, TOI TpRABa Da CE CMEHN OT pON3BODHTENH, HEROBCEPBUN3EH aREHT NIN NIIc C anaIorNHa KBaINΦKAcUHA, 3a Da CE n36erHe onacha cTuyaun - ONAHOCT OT eNEKTPnueckn ydap.

NouHCTBAHE NIOAPbXKA

I PEPENPPEKDEHNE: YBepete ce, ye ypeBt E n3KNIOyeh OT 6yTOHa NOT 3axpaHbAHeto, ppeDn Da npncTbNITE KBM KaKBaTO N da 6nIO NOdPbXka; He n3no3BaHTe NOC06n 3a NoCHCTBaHe C npapa - onachOCT OT eNEKTPuyeckn ypeD.
He n3non3BaIte a6pa3nBHN nI npybn
noCTBaun cpeCTBa, kato cnpeNoBE 3a
npo3opu, CTpRanKn, 3anaJIMN TeHocTN,
noCTBaun BaKCN, KOHcHTnpaHn
npenapatn, 6eINHa nIN NOcTBAUN
cpeCTBa, CbDpXkaUN netpONH nPOdyKTn,
Bbpx NIactMACOBNTe qACTn,
BbTpewHOCTTa uynbTHehHrta uIN
n30JIauHrta Ha BpatNUkata. He
n3non3BaTe xapTneH NkpN, CTpRanKn
nI IN dpYrN rpybn noCTBaun cpeCTBa.

N3XBbPJIaHE HA ONAKOBbHInTE MATEPNJIM

OnakOBbHnT MaTePnAn e 100% roeH 3a

peuKnnpaH n MapKnpaH CbC Cmmbola 3a

peuzklnpapanHe

Pa3nHHTe qactn ot onakobkata Tpr6Ba da 6bdaT n3XbBpNeHn OTOBOPHO N B CbOTBETCTBne C HapeD6He Ha MeCTHnE OpraHn 3a N3XBpNHe Ha OTNAbU.

N3XBbPJIaHE HA EJEKTKPOYPeDN

To3n ypeI e npOImBeDEH C MaTePnaJI, roHN 3a peUKNIPNAe HINN 3a NOBTOPOH NIOJNBAHe. PpN 1X3xBpJIHETo MY cna3BaHTe MEcTHNTe pa3npope6n 3a 1X3XBpJIHHe HA OTNaIbIu. 3a OOpblHNTeHa NHfOPMAHr OHOCHO TepnAPHeT, ONON30TBOPBAHETo IpeUKNIPNAHTo HA DOMAKHNCKn ENEKTPOpei Ce o6bPHTe KIM KOMNETEHTHIne MecTHNI OPAHN, CNY6bATA 3a 6bTOBUN OTNaIbIu INN MaRa3NHa,OT KbTeO CTe 3akynnnyypeA.To3n ypeE mapKpAH B cOITBETCTBne C Ebponeckata DnpeKTNBA 2012/19/EO OTHCNO OTNaIbIu OT eNEKTPUHEKO n eNEKTPoHNO 6OpyDAhe (WEEE). Kato ce NorpIXNte TOBA n3dJeNe Da 5bDe N3xBpNEHO No npaBnEN HaHH, Bne ue NmOrHete 3a NpeDToBpaTHBaHa H b3MOXHtE HeraTINHn NCNECTBnA 3a OKONHATA CpEDA n 3dpABeTO Ha Xopata.

CmBolbI Mbpxy ypea nn npdpjxabaata ro dokymentauia noka3Ba, ye To3n ype1 He Tp6Ba da Ce TpeTnpa Kato bntob OTnaBk, a da 6bde npedeAen B CbotBeTHra CbnpaTeHn NHTK, npedHa3Naueh 3a peuKnipae H enektpnuecka n enektpoHa anapatya.

CbBETN3AIKOHOMNAHA EHEPTRA

3a da ce rapaHTnpa npabINHaTa BeHTnlaunna, CneBauIe NCHpyKUnIte 3a MOHTnpaHe. HeOCTaBHTnAbeHTnlaunna B3aHata Yact Ha ypeDa yBeNnuBa KOHCyMaunrTa H eEHPriu HAAMANBA eFekTMBHOCTTA HoXIAkDaHETo.

YeCTOTO OTBaRHe Ha BpaTnKkTa MoKe Da yBEnuH KOncymaunrHa hEepnB. BtpeuHata Tempepatya Ha ypeA u KOHCyMaunrHa eHepnMoKe Da ce NOBnIRe o OKoHATA Tempepatya, KaT0 n ot pa3noJooKeHneTo Ha ypeA. PnH aCtpoBaHeto Ha Tempepatyata Tp6Ba da ce imat pedeBn Te3n fakTopn.

HamaIeTo MmHmMy MTbapHeTo Ha BpaTuKata. Korato paampa3Bate 3ampa3Enx paxn, Tn noCTabete B xlaDlnHka. Hmcata TempeTaHa 3ampa3EHte npodykTN oxnaJda xpHNTB XlaDInHka. Octabe To tonHite xpanu H anHTKn Da ce OXlaDnT, npdei Da nnoCTabente Bypea. POnuOnHpaHTo Ha paFTobete B xlaDInHka He OKa3Ba BnIaHme Bbpxy eEeKTHBHO tN3oN3BaBe Ha eHepr. XpAHnte Tpr6Ba Da ce NOCTABt HA paFTobeTe no TaKB HauH, Ye Da Ce rapaHTnpa npabHna UpkynuaHn Ha B3dUn (XpaHnte HE Tp8Ba Da ce DoNipat EaH DApyra NTPBA da Ce OCTaBp a3ctOaHme MeKdy XpAHnte u 3aHATA cTeHa).Moxete Da yBelenHte KanaUTeTa Ha CbxaHne Ha 3ampa3EHn xpaHn, KaTO CBanITE KoUHmUte n ppaTb Stop Frost, Ako ImMa taKb. He bBa Da CE pPiTEChRaBe OT WMOBeTe, INDaBAHNOT KOMPecopa, KOINTCa ONncAHH KATO HopMaJIHN WMOBE B pkbOcDtBOTo 3a 5bp3 CTAP HA TO3n ypeI.

KAKФУнкционирА OTДЕЛECHNETO HA Xладилнka

BkIIOUcBaHe Ha ypeDa

BkIIOUBaHe Ha ypeDa

YepeBte cHa6eH C BbTpewHn OprAHn 3a ynpabHeHne.

Bknioyte OTHOBO ypea.

Korato ypeBt E BkIIOeH B MPekaT, BbTpEHIOT OCBETHeHcE BkIIOyBa NpO tOBaPBeHa BpaTAtA H xlaadinHnHa.

TepMOCTaTb, KOIO CE HAmpa B OTDeHNEHNO HA XlaNlHnka, NO3BOJRA perynnpaHE TEmNEpATypaHa OTDeHNEHNO Ha XlaNlHnka,KaKTo IN TempePAtypaHa OTDeHNEHNO 3a HnCKn TEMpePtpn (Korato NMa TaKObA).

PerynnpaHa TemnepaTypaHa ypea:

TePmoCTaTbpeyHnpaBbPeHnata TmpeHpatyaHa OtdeJeHneHo Ha xndAnHHNka H otDeJeHneHO

ПиЗаырта He KaHNeTO OT NOJOKeHne 1 Na 7 MoKE da ce NOCTHAT No-HMCKI TEMNEPATVD.

B noJoxKeHne OypeNbT He pa60Tu.

3a cbxpaHraBaHe Ha xpaHrTe 3a KpaTbK cpoK KonYeTo Ha

TePMoCTaMoKe Da Ce NoCTaBm MExdy 1 (MnH.) n 3 (CpeDho).

-3a DbIg CPOKOBe Ha CbXpaHHeHnE Ha XpaHnTe B OTdJIeHmTo

，noCTaBeTe KOnHTeTo Ha 3 mnn 4.

3a6eJekka:

TemnepaTpaTHa OOKHATA CpeDa, YecToTaHa OTBapRe Ha BpataNIOJoxEHNEHOypeNaMOxE Da B3JeNCTBaT BpybBtpeuHNHTemnpaTpy. NIOJoxEHNA HATepMOCTa TpOBA Da CE npOMeHRT Bc0TBetCTBne TcTeiФakTOPi

Kak ce cbxpaHbAT xpaHntHn npOdykTu B OTdeneHneTo Ha XnaJnHnKa

NoctabryTe npdykTne KaKTo e NIOCTpnpaHo Ha fHypaTa.

A TOrBeHn npOdyKTn

B Pn6a, Meco

C PnOdoBe n 3eNeHcyu

DByTnKn

ECnpeHne

3a6eJekn:

Pa3cTOnHHeTo MeKdy paTOBete n 3aHaTa CTeHa Ha XlaMnIHnKa OcnIgpyBa CB0bOHa CuPKyJaun Ha Bb3dyxa.
He NoctabTne npOkyTnTE B nPKo CbPnKOCHOBEHc cdoJHaTcTeHA OtJeNEHmEO HxJaINIHnKA.
He noctabayte B OTdeneHMeTo Ha xJaunnHka oue ToPnnxpanu.
CbxpaHraBaTe TeHOCHTe B 3aTbOpeHN CbIOBe.

BHHMaHHe

CbxpaHbBaHTo Ha 3eneHcyu, CbIbpxaun MHOro BOda, MOKe Da npdeMBAKUo ObpazyBaHTo Ha KOHeH3auN NO CTbJIeHN paFT NIN B YekMeJxeto 3a IIOOBe H 3eJeHuyu: TOBa He npeu Ha npabInHOTO fHyKnOnHpAne Ha ypeia.

KAKФУнкционира OTдЕленьETO 3A HNCKN TEMПЕРATYPN

OTdeneHneTo 3a Hncka TemnepaType e c

B OTDJIENHnTo MOKe Da ce CbXpaHrBaT 3aMpa3eHN XpaHn 3a cpoK, NocOeH Ha ONaKOBKaTa, N MoKe CbUcO da ce 3aMaP3RaBt PneCHn XpaHn.

KoJIueCTBOTo HnpeCHIne XpaHn, KoETo MoXe Da ce 3aMPa3Ba B npoDbIIXKeHne Ha 24 yaca, e noka3aHo Ha Ta6eKnTa C dAnHn.

3a6eJexka:

OTdeneHneto 3a HnCKN Tempeatyp MoKe Da NODbPka CbOTBtHa TEMepaTpa 3a CbXpAHBaHe Ha XpAH, DOpn n B CnyaHa Na CnpaHa Ha eEkeTpueckn ToK. PpenopbHTeHNo e np3 TOBa Bpeme Da ce N36Ra OTBapAHe To Ha BpataHa OTdeneHneto.

Kac ce noctbna 3a 3ampa3BaHe Ha npechn xpaHn (cAmO B OTdJeHne

Baxkho

YBnBaIe N 3aTbApRte IpeCHnte XpaHn 3a 3aMPa3BaHe B: anyMnHBeO FOJIO, np03paHO FOJIO, HENPOMOKaEMn NaCTMACOBN ONAKOBN, NOJIeTNIEHOBN CbIOBe C KaNaK, CbIOBe 3a 3aMPa3BaHe, npu YcIOBne Ye ca npeHa3HaueHn 3a 3aMPa3BaHe Ha xpaHn.
IopDekJaTe XpAHInHJNHe IPOyKTH3a 3aMPa3BaHE BROPHOOTOEJENHe, KATO OCTABATEOCTAHTHO MRCTOOKOIANaKETIE, 3a DaIOBONITE CBOODNAUKNKYJAAUM HA B3dYx.
3a ONTIMAJHa npOeDpya Ha 3ampa3BaHe, KOrato NOCTABITE XpaHNTe B OTDeENHeTO Ha pOn3epa, HarnaceTe KOHTHO HA TepMOCTATA HA MEKdINHsA CToHOCCT KbM NO-HNCKNTe YnCna.
- CnEД 24 yaca 3ampa3BaHEnTo e 3aBbPseHo.

3a ypeDn c oTdJeHne

3a MeecuHTe Ha cxbxaHHe H a 3ampa3eHN pncn XpaHn ce npndpkaTe KbM TaBnuaTa, nokaana OTCpaHn. Korato KynbTa e 3ampa3eHN xpaHn, npopepe TaHn:

Onakobkata nni nakeTbT ca cen, TbN KaTO npOdyKTte MOKe Da ce pa3BaJIaT. Ako nakeTbTe HADyI Nn NO Hero IMa BlaJHH neTHa TOBA O3HaYBa, Ye He e 6bn CbXpaHbAH npn ONTNAMHn YcNoBn mMOKe da e 3anoHah Ja ce pa3Mpa3Ba.
KynyBaIte 3aMPa3eHnTe XpaHn NocEJHn 3a npEhacrHTo mN H3noJI3BaTe XnaJIINHa YaHTa.
Korato CTnHETe BkBun, BeDnHa NoCTaBeTe 3aMpa3eHInTe npOdyKTn B OTdEnHeHnTo 3a HnCKa TEMIepaTypa.
He 3ampa3BaIte NOBtOHO npOyKTH, KOITo Ca 3anoHann da ce pa3mpa3BaT, a Tn KOHCympaIte B cpoK OT 24 haca.
H368raIte HnHamaJIaBaeTe DO MUNHMMy TEMNepatyHITe npomEni. CnaBaIte cpoKa Ha KOHCymua, yka3aH Bbpxy ONAKOBkata.
BnHaHn CnAs3BaITe HNCTpyKuIte, yka3aHN Bbpxy onakOBkTa 3a cbxpaHraBaHe Ha 3ampa3eHn npOdykTN.

Noyuabahe Ha ky6yetae

HantblhHeTe 2/3 OΦOpMMKaTa 3a JeIc BoJa nOCTabete BOTJENHEIeTO 3a HNCKn TEMNEPATyN.
AkoΦopMnKkata 3aJIenHe 3a ΜbHOTo HA OTdJIeHNMeTo 3a HmCKn TempepaTpy, He I3noI3BaIte OcTpN pPeIMeTn 3a OTdJIeHETO H.
3a da ylechnte n3BaXdaHTo Ha neDeHnTe ky6yeta OT FOPMNUkata, Jekr Ofhe.

MECEU XPAHNI

1-3
4-7
8-12

OBE3CKPEXKABAHE I IOYNCCTBAHE HA XIAIJIHNUKA

Ppei Da n3BbpWnte KaKbTo n da 6HNo onepaunr no
OcbNyXbaHe n NoUcCTBaHe, N3BaTe UenCeJa ot
KoHTaTt Annn H3KnIOyTe ypeDa ot EneKtpueckata
Mpexa.

063ckpexaBAheTo HA OTDeIeHMeTo XHaJIaUNHMKa e HAnbJHO ABOTMATNHO.

NepnoDnHOTOn NOBRAHHe BA ODo H KAnK BbPxy 3aHATA BbTpeHsA CTeHa HA OTDeJeHHeTO HA XNaIINHka e CBnDETECTBO 3a Fa3aTa HA ABToMaTHNo BOEeCKPeXabaHE BoDATA OT OE63CKeXabaHcEO CTBeKJa ABToMaTHNo KbM OTBOP 3a OTtHae, CNeD KOeTO Ce CbBupa B EeIH NcBd, OTKBETO CE INapraBA.

NoCTBaIe peoBHO BbTpEHHOCTT ha OTbopa 3a OTTuHaHe Ha BOATAOT Ob63CKPexAbaHe, 3a da ce rapaHTnpa NOCTOHHOTnPaBUNHO N3TuHa He BAODaT O Ob63CKPexAbaHe.

06e3ckpekabae Ha oTdehenHeTo 3a HnCKn TemnepaTyPi npenopbVbame 06e3ckpexabaHa oTdehenHTo 3a HnCKn TemnpaTyPi 1 Nn 2 nTbN B rOdnHa Tn KOrato ckpebt DoCTHne PneKOMepHa De6bnHa.

06pa3yBaHTo Ha cKpEx e HopMaHHO RBLHeHne. KoIyueCTBOTo H 6bp3nHata Ha HATpyNbaHe Ha cKpEx Bapnpa B 3aBnCmOCT OT OKOIHTe ycIOBn N YcCTOTATA HA OTBAPHe HA BpataTAt, KATO cKpEx ce HATpyNba NOBeue Bbpy No-BnCOKO pa3noJoxHeHte peWetKn.

ΦρMnPaHETO ha ckpx, npéπ BCNUKOB ropHaTa Yact Ha OTdJeHeMeTo, e HopMaJHO He npeyn Ha npabunHOTO ΦyHKUOHNpaHene Ha ypea.

IpnopobyBa ce 063ckpexabaHe da ce n3bpbwa, KORATO 3anaCte ca MHNAMHJI.

• OTBOPeTe BpaTata N IN3BaTe TE BCNUKxpaHn, KATO IN ONAKOBATE BBB BECTHMK IN NOCTABITE DOnpeHN EHa DO npyra H BA3MOXHO HA-NCTUDEHO MRCTO INN B XNAIDINHA qHTa.
  Octabete bpata OTBoPeHa, 3a Da no3BONITE pA3TONIbAHeto H JaJa.
  NoCTeBtpeWnOCTTaB6a,Hanoeha Bpa3TBOPHa XnJaKa BOa n/nn HeyTpanen MmneH npenapat. He mnoJ3BaTe a6pa3MnBEueCTBa.
  BHIMATEHNO 3NJIaKHeTe N3CyWeTe.
• NOCTABETe xpaHnTe.
  3aTBOPeBpata.
  Bknioyete wencena B KOHTaKaTa.
  BkHIOHeTe OTHOBO ypega.

ПОЧECTBAHE И OБСЛУХBAHE

• PepnoHNO noHCTBaHTe BENTnlaaONHOHTe OTBOpu KOnHeH3aTopa,pa3NoJIOxEH B 3aHaTata cact Ha ypea, C NOMOHTa H npaxOCMyKaHa Nn YETka.
  -Почистваite Вьншату acт c Meka Kbpna.

Pnp npoBnKntEnH OTCbCTBm

1. N3npa3Hete HanbIHO XnaIHHNka.
   2.ИЗкючeteурдаot eilektpnueckatampexka.

2. 06e3ckpekete IN NOHnCTe TBtpeHHocTTa.
   4.3a da n36eHHe 06pa3yBaHTo Ha Myxbl, HENprrTHMnpu3MN n OKncIbAhe, BpaTata Ha ypeDa Tpr6Ba Da ceOCTABr OTBOpHa, KOrato ypeBt He pa6OTN.

3. NohcTeTe ypea.

-Почстete BtpeWIOCTTа HTeJIeHHeTO 3a HUCKn TEMepaTypn (3a MoTeNITE, B KOHTO NMA TaKOBa) ppeBpeMe Ha Oe6eCKpeXkABaHTo.
-Почистаит eрнодунно OTденинeto Ha xnaДИннka C r6ba, hanoeha BToNa BOda n/NnH HeytpaneH npenapat. 3nIaKHTe n 36bpoWTe C Meka Kbpna. He n3non3BaTte a6pa3nBnBEUcECTBA.
IOnHCTBaIte BbHnHaTc TpaHa C MeKa Kbpna, HABJaXHeHa C BOJa. He 3nON3BaTe a6pa3aBnN nactn nn KbpnuKn, paapeDnte (Hanp.aetOH, trxNnpTeHNn) nn Oet.

CMHa Ha CBETOIOH:

3a da cmeHnte CBETOIOH, HAnpaBte CneHOTO:

N3KIOUeTe ypea OTeEKeTpueCKataMpexka

I. C nOMOuTa Ha nIOCKa OTBepTKa CBaNETe KANAKa HA BNHTa (n306paXKeHne 1)
2. Pa3BnTe BnHTa C KpbCTaTa OTBepTKa (N306paXeHne 2)
3. ɪЗbaɪdTe Ta6Ito 3a упраьленье (ɪзɔррахене 3)
4. 13BaTe CBeToDnOda C nlocka OTbePtka (1306paXeHne 4)
5.CMeHeTe CBeToIOnOa C HOB (U306paXeHne 5)
6. 3akpenete HOBn CBetoNOc C nIOCKa OTBePTKa (u3o6paXeHne 6)
7. 3akpenete Ta5noTo 3a ynpabHeHne (n3o6paKeHHn 3,2,1)
8.ИЗчakайтse 5MHHTN,прдОТНОВа CBpbxeTe ypeda KBm eJektpnueckKaTApMpeka.

OTCTPAHЯBAHE HA HEN3ПРABHOCTN

Korda cnblhbl taekn3Bykn

1. YpeBt n3o6u He pa60tn.

He en cnprn enektpnuecknTOK?
LcncenbI dope n e noctabeh B KOHTAKTa?
Bknouen nne Bynonocnrt npekcbay?
-ПпсдзnteЯн He e nu3ropan?
-He en npekbchat 3axpaHbauonr Kaen?
- TepmoctatbT He e Jn B noJoxKeHne (Cron)?

2. Temnepatypata BbB BBtpeuHocCTTa Ha OTdJeHnra Ta He e DocTaTbHNO HNCka.

Bpaata npabnHno n ce 3aTbapra?
XpaHnTe He npeyat nn Ha 3aTbapnHTo Ha Bparata?
-YepeBt He nn HCTanIpaH B 6nn3OCT Do n3TOHHK HA TOINIIHa?
- TepmoctaTbT B npabnHNOLOXKeHne Jn e?
Hama JI npueK 3a LpckylaamraHa bB3dXpE3 BEHTNALAONOHMT OEBOTPn?

..3HaHT, c BaumM

XOJIOJIbHnKOM BCE B nopAKe!!

3. TemnepaTypaTa BbB BbTpewHocCTTa Ha OTdeJeHMeTo Ha XlaIINHnKa e TBbpDe HnCKa.

-TePmoCTaTbT B npabnHNO NOXKeHne n e?

4. YpeBt e npeKaJeHo WymeH.

-Праин Ho n e n3BbPseHo nHcTaInpaHTo Ha ypeDa?
Tp6bnte Ha 3aHaTata CtpaHa He ce JIN DOnnpat N BnBpupat?

5. Ima Boda Ha nbHOTo Ha OTdeJeHneTo Ha Xnaunnka.

KaHant3aBoDataOTObe3ckpeXabaHToe 3anyuhen?

6.П配电МбОобауBaHeHaСКрБВ OТдЕнETo 3a HNCKI TemPepaTyPn.

Bpata npabnno n ce 3aTbap?
XpaHHTe HnepeaT NHa 3aTbapAHeTo Ha bPataTa?

3a6eJexKn:

BbIb6ykaun3BvUuN uWM OT N3n3aHe Ha Bb3dyx No Bpeme Ha XlaHINHn UKKn TpRbBa da Ce CHTAT 3a HOpMaHH.

CEPBN3 3A ПОДдРьжKA

Ppeu da ce o6bphete KbM CepBua 3a noDpBxxka:

1. YBepete CE He He Bb3MOxHO DaOTcTaPAHHe HEM3npABHOCTa CAMn (BXO) "OTcTaPAHBAHe HAEM3npABHOCTn"
   2.BKIOHETOHOBOyepa3aInpOBepnTe DANHHEIMBpABHOCTTAHeIpeoJOnHa.AKO pe3yITATbEOTPNUATEeH,NKIOHETe yepa OTHOBONCLEDENHACNOBTOpeT ONEpaunrta.
   3.Ako pe3yntaTbT OTHOBo e OTPuataTeHe, 0baTeCe B CepBn3a 3a noDpBjKa.

Cb06eTe:

TnHa HEn3npaBHOCT
MOneJa
CepBnHnH HOMEP (HOMepa CneI yMATA SERVICE HA TaBeJIkata C daHHN Bbyte Bype)
-ньнгсадрс
TeTOnEOHn Cn HOmeP n KOJ,3a MEXDyRpaDCKo N3OpNaHe.

NHCTAJINPAHE

• HCTaIpaTne ypeDaIaNeOT n3ToHnIHa TOnnHa. HcTaIpaHeTO B ToIIa CpeDa, n3NaIarAHeTo Ha dIpeKTHa CbHueBa CBeTmHa Nn pazIOnaRaHeTo Ha ypeDa B 6In3OCT Do n3ToHnIHa TOnnHa (KaIopnpepn, neKn) YBENuBa Notpe6NeHTo EA eJIeKTPOeHepRn I TpRbA da CE n36RBA.
  Bcnya,ye TOBa He e Bb3MOxHO,Cna3BaTe CneHnTe MNHMajnHpa3CTOHHN:

-30 cm OT neky 3a Bbrlnua nn HaΦTa;

-3 CM OT eNEKTPnueckn n/nn rA3OBn neKn.

3a ONTUMHa paOToTa Tp6Ba Da ce IpeBnMIMHMAHOPa3CTOHNHe OT 5 CM HAD ypeDa N da CE OcINpy CbCeHNHTe KXHEHCKy npEi Da ca Ha TAKOBa pa3CToHNHe, Ye da NO3BOJHbAT UnkPknuaNn HA Bb3Dyxa.
- NoctabaIte Ha MRCTo, Koeto e cyxo I do6pe npoBeTpnoBO, XOpN3OHTaHNO, KATO npn Heo6xOuIMOC peryLnpate npedHne Kpaeta.
- NounCTe BbTpewHOCTTa.
- NocTabete npedBnDHeHnTe npHaJnHexHOCTN.

Cbbp3BaHe B eJektpnueckaTmpeka

Cbpb3BaHTo KbM eJektpnueckata Mpeka Tp6ba Da ce N3BbpWBA B CbOTBeTCTBNE C MeCTHHe HOpMN.
- DAnHHnTe NO OTHoWeHHe Ha HAnpeXeHnETo MOnuHocTtHa NoTpe6bIeHne Ca DaeneHn Ha TaBeKkata C DaHHn, NoCTaBeHa BbTpE Bypeda.
3a3eMBAHTo Ha ypea e 3aIbJIKNTeJIHO NO 3aKOH. PnO3BOJTeJr HcHcN HUKKaBb OTROBPOCT npn EBeHTyAHH HapaHBAHn NII uETn Ha Xopa, JKBOTHN NII npEdmTe, PpO3TEKJIOn OT HeCna3BaHTo Ha Yka3aHInTe No-rope HopMN.
Ako 电cnbT He e OT NOxOJaTu TIN, TOI Tp6Ba Da 6bJe 3aMeHr OT KBaNnPhiuPaH TEXHk.
He n3non3BaIte ydbxnteinnn pa3knHHTeIN.

PpeKbcBaHe Ha eJekTpo3aXpaHbAHeTo

PpeKbcbaHTo Ha eNektpo3axpaHbAHeT Tp6Ba Da 6bJe Bb3MOxHO ype3 N3BaXkaHae Ha uenceTa OT KOHTa HnIype3 DBynoIOcEH PpeKbCBAH, Cbbp3AH pepiKOHTa.

06pbzaneHaBpata

06pbuaneHaBpaTaTa

BpataHa xnauiHnka MoKeJa ce OTbapr OTraCHO NnO TOnBa.

PnOocTbKaTbApataHa YpeDa ce OTbapr OToJIbHO.3a Da 06bHETe NocOKaTa Ha OTBapRHe, INbJIHETe CneDbauNTe HHTPYKUM.

3a6eJekx: Ppei Da o6bPHeTe OTBapHrETo Ha BpataTa, NkKIOeHte Yepe Da ot ENEKTpyHeckaTa MPeka nn ppekbChEt ENEKTPO3aXPAHBAHETO.

1.CBane BnHTOBete (6),KATO DpXnTe rOpHTo TaNo (7) npTnCHato Do ypea. CBane rOpHTo TaNo
2.CbaneTe Dbata BnHTa (1),KATO Ibpxnte rohpata naHTa (5) (ACha CtpaHa) npNTCHATA DO pAMkata. CBaneTe rohpata naHTa (5).
3. NOBINHETe BpataToI ΣΦTa HA DOnHaTa NaHTa I ONPteBbpxy NOBbpxHOCT, Bbpyx KOrTO HMA Da CE Odpacka.
4.CbaneTe BnAHTa (8),KATO IbpxHITe DoJIHaTa NaHTa (2).CbaneTe DoJIHATA naHTa (2).
5.CbaneTe npHToI JIABO Kpaue (4) Iro npMeCteTe OT DaCHaCTcPHaA.
6. Ipei Da NoctabHe Ha MRCTo DOnHata NaHTa (2), N3BaTe E AnPTo OT NaHTa (9) N O6bpHete NocKaTa Ha NaHTa (2). NoCTabe He MaRCTo DoHata NaHTa (2) Ha JnBaTa CTPaHa, KaTO INoJbATE DbTa BnHTA (8).
7. NoctabeTe HA MCTO UNTaTOn NaHTATA (9) HA ONHATA NaHTA (2).
8. CbaTe Bpatata Bbpy Ha DonHaTa nHaT (9).
9. KATO Ibpxnte Bpata TBA 3aTBCPOH NOIOXEHNE, MOHTnpaTe OTHOBO rOpHaTa NaHTa (5) Ha JnBaTa CtpaHa, KATO N3NO3BaTe DbTa BnHTa (1). He 3aTgAraTe BNHTOBete (1), DOkato Bpata THe 3actane Ha eHa NIOCKOCT C onopata.
10.MoHTnpaIte OTHOBO FOPHOTo Ta6No, KaTO I3NO3BATE BBNTOBETe (6).

3a6eJekka:

Ako Mcke O6pbuaheTo Ha BpaTne Ha ypeDa Ja 6bJe H3Bbpweo OT CepBn3a 3a NoDpBxka, Ta3n ycnyr He ce CcHTa 3ra rapauHIOHHa.

06pbzaneHa BpaTnKkata Ha BbTpewHOTO OTdelenHe

1.CBaIeTe BnHTOBete Ha uΦTa 3a noDlbpxAHe HbPaTATA DONYBANCHO.
2.ИЗБАДЕТANATAOTЯВATAHACT
3. CbaTe kanaeTaHa BnHTOBeTe OT JnBaTayact.
4. Pa3BnHTeTe DbaTa BnHTa.
5. NocTaBete BCnUko no-rope Ha OTCpeuHaTa CTeHa.

OTBaprHe Ha BpataTa OT JIbBaTcPpHa

OTBaprHe Ha BpataOT DcHATA CtpaHa

201

ПОДВИЖЕН ПЛOT

ONOPEH NLOT HA XJADNJHNA 54 CM

KAK CE CBAJIA IJOTbT INPOEINIOCTABRHE HA YPEDA B MRCTO 3A BRPAXDAHE

Onepaun No 1

CbaIe 2-Ta BnHTa OT 3aHaTa CteHa Ha ypeDa

Onepaun No 2

IobHHeTe IIOta OT 3aHaTa CtpaHa N ro n3BaTeOT npedHnTE TOKn Ha 3akpenBaHe

Onepaun No 3

Cbaene 10-Te BnHTa Ha npedHaTa nlaCTmacoBa paMaKa mEtAnHata NaHTa

Onepaunr No 4

I3BaTe nHTata n INaCTMaCobata paMka

Onepaun No 5

IpeMeCTe mOHTnpaTe OTHOBo MetaJIHaTa paMka c2BnHTa

BUHTOBE

BNUHTOBE

BNUHTOBE

INSTRUCTIONS DE SIGURANTA

IMPORTANT: TREBUIE CITITE SI RESPECTATE
