(7b) Adapter C 12x142mm Configuration (Adapter D) 12x148mm Configuration (Adapter D) (8b)* These items come preinstalled on the KICKR PROTIP: Save all packaging and protective material for transportation and storage.

(3)* SCALE 0.750 (2) (1) (5) (4) Thank you for purchasing the Wahoo KICKR! LEARN MORE: For instructional videos, compatible apps, FAQs, or to submit a support request please visit: www.wahoofitness.com/support

PLEASE CONTACT US WITH

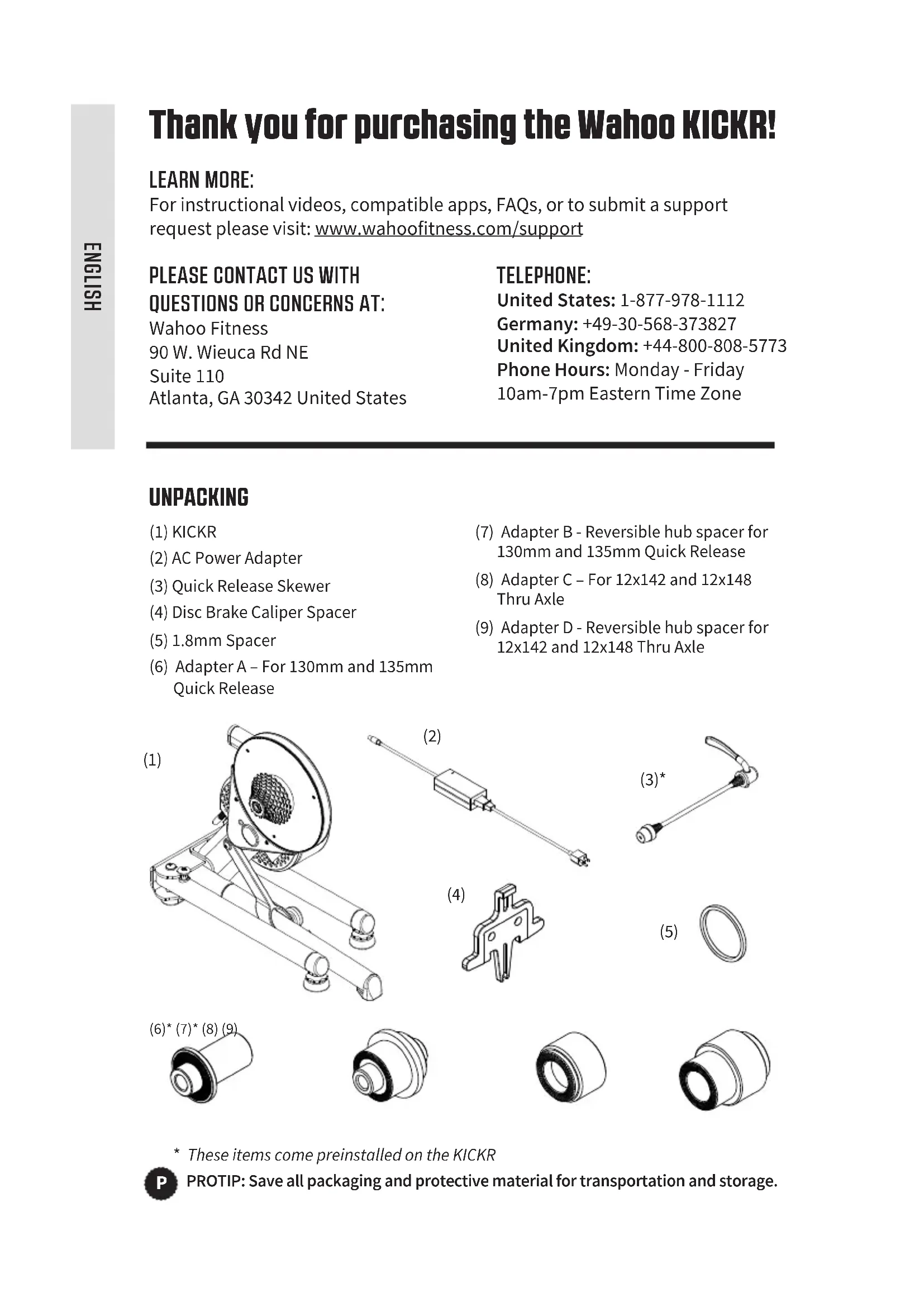

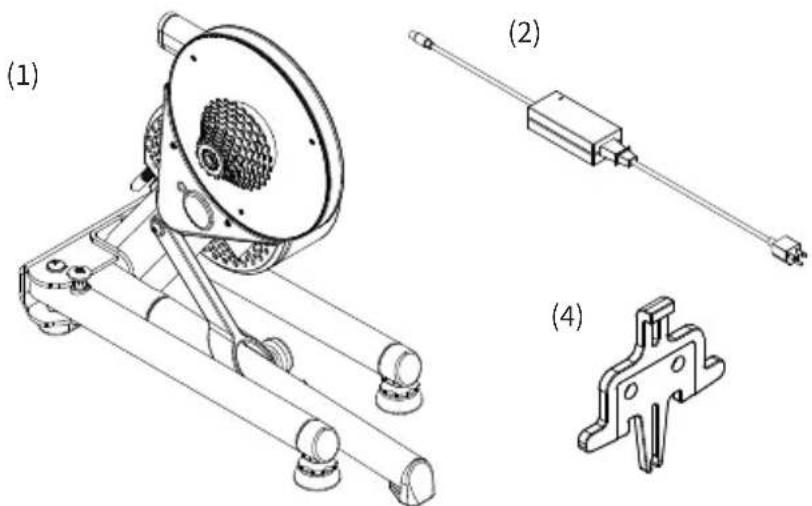

QUESTIONS OR CONCERNS AT: Wahoo Fitness 90 W. Wieuca Rd NE Suite 110 Atlanta, GA 30342 United States TELEPHONE: United States: 1-877-978-1112 Germany: +49-30-568-373827 United Kingdom: +44-800-808-5773 Phone Hours: Monday - Friday 10am-7pm Eastern Time Zone UNPACKING (1) KICKR (2) AC Power Adapter (3) Quick Release Skewer (4) Disc Brake Caliper Spacer (5) 1.8mm Spacer (6) Adapter A – For 130mm and 135mm Quick Release (7) Adapter B - Reversible hub spacer for 130mm and 135mm Quick Release (8) Adapter C – For 12x142 and 12x148 Thru Axle (9) Adapter D - Reversible hub spacer for 12x142 and 12x148 Thru Axle (6)* (7)* (8) (9) ENGLISH4 (2)

• Before beginning or modifying any exercise program please consult your physician.

• Do not put hands or objects near moving parts of the KICKR.

• The KICKR may become hot to the touch when used for extended periods of time.

• Do not attempt to dismount the bicycle while the flywheel is in motion.

• Keep children and pets away from the KICKR while in use.

• Only use the KICKR on a stable, level surface with properly adjusted leveling feet.

• Use caution when standing while riding on the KICKR.

• Keep the KICKR away from water.

• Only use the power adapter that comes with the KICKR.

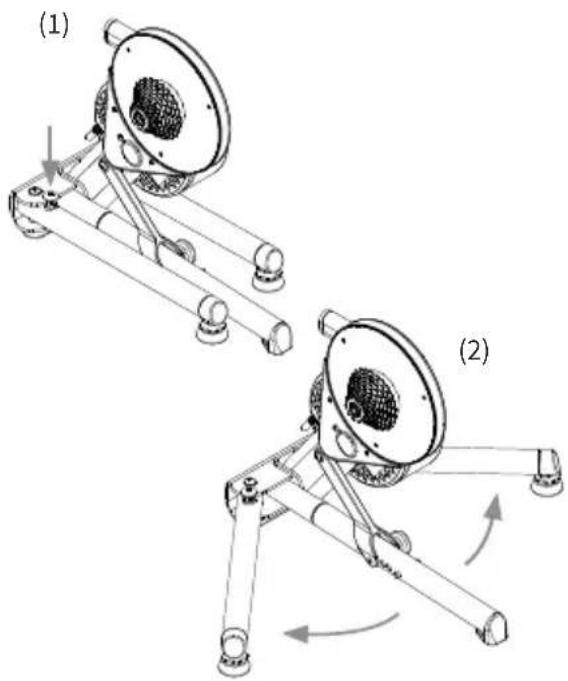

• Check to make sure the bicycle is properly secured to the KICKR before every ride. CAUTION! KICKR SETUP Place your KICKR on a stable, level surface and open the legs by (1) pressing down on the blue leg-lock tabs and (2) pivoting the legs outward until they snap in place. (NOTE: Ensure the leg-lock tabs have popped back up and secured the legs in an open position.) (3) Use the included AC power adapter to connect the trainer to a standard wall outlet. Download the Wahoo Fitness app for free from the Apple App Store or from the Android Google Play Store. Follow the in app setup guide to complete your profile and to pair sensors. To stabilize the trainer, adjust the two leveling feet (4) by twisting them left or right until the trainer is level and (5) lock them into place by tightening the blue locknuts against the KICKR leg frame. (NOTE: Check that your trainer is stable before every ride; if needed re-adjust the leveling feet.) Adjust the height of the trainer to fit your specific wheel size by (6) relocating the height adjustment knob on the center leg to the appropriate setting. If you are unsure of your wheel size, check the tire sidewall or consult your local bike shop. (1) (6) (4) (5) (3)Adapter C12x142mm Configuration (Adapter D)12x148mm Configuration (Adapter D)

FOR 142MM OR 148MM THRU AXLE

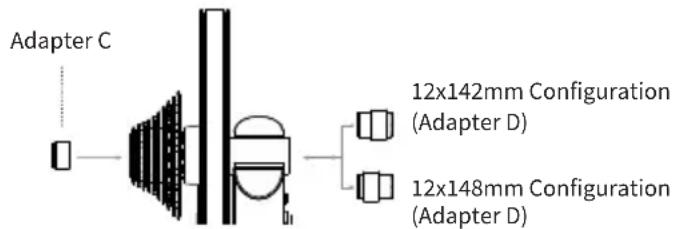

Adapters Needed: C and D To be used with the 12mm thru axle supplied with bicycle. SCALE 0.500 SCALE 0.500 (1) (2)

ATTACHING YOUR BICYCLE

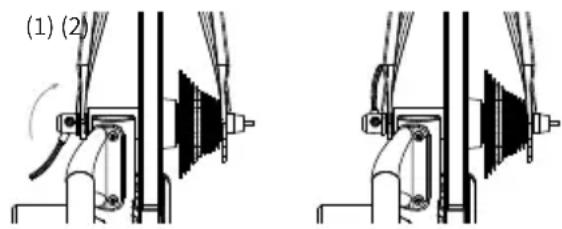

Shift your bicycle chain into the smallest sprocket in the front and rear, then remove your rear wheel. Install your bicycle on the KICKR by aligning the chain with the smallest sprocket on the KICKR and pressing down to fully seat the dropouts on the KICKR’s axle. For bicycles with quick release - Secure your bicycle by tightening the quick release acorn nut and clamping the quick release lever shut. The quick release lever is “open” when it curves away from the bicycle frame (1); the lever is “closed” when it curves towards the bicycle frame (2). The handle of the quick release skewer is always on the non-drive (non cassette) side of the KICKR. Only use the provided quick release skewer while using the KICKR. For bicycles with thru axle - Secure your bicycle by reinstalling your bicycle’s thru axle (3) and tightening to manufacturer specifications (4). CAUTION! Failure to properly tighten the quick release skewer or thru axle may result in property damage or personal injury. If you are unsure of the proper tension, please consult your local bike shop or contact Wahoo Fitness for assistance. Do NOT ride the KICKR until the quick release skewer or thru axle is tightened. PROTIP: Lift the front wheel up while pressing down on the saddle to ensure the bicycle is fully seated on the trainer.

(3) (4)Adapter A 130mm Configuration (Adapter B)135mm Configuration (Adapter B)

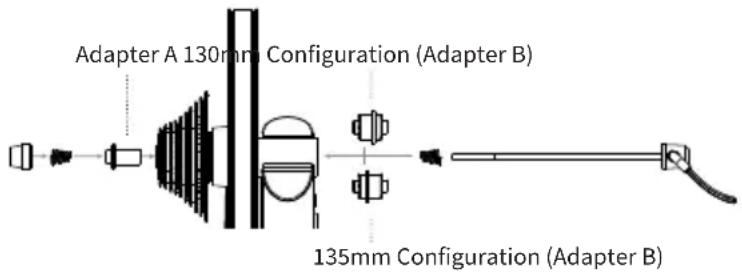

Adapters Needed: A and B KICKR comes pre-configured out of the box for bicycles with 130mm quick release spacing. If you have a bicycle with 130mm spacing proceed to “Attaching your Bicycle”. For 135mm spacing, remove quick release skewer, reverse Adapter B and reinstall quick release skewer. ENGLISH6 COMPATIBILITY From your phone, tablet or laptop to your bike computer, heart rate monitor or bike sensors, KICKR Smart Trainers offer the widest range of compatibility and connectivity.

• iOS must be running version 8 or newer

• Windows PC when paired with ANT+ USB Stick or BLE enabled For a full list of KICKR compatible apps visit: www.wahoofitness.com/fitness-apps#kickr COMPLETE YOUR SETUP USING THE WAHOO FITNESS APP SPINDOWN: Before using the KICKR for the first time you should perform a spindown to calibrate your device. Additionally, a spindown should be repeated approximately every 2 weeks through the Wahoo Fitness App to ensure the most accurate power data. START A WORKOUT: From the workout screen select the green “Start” button to begin the workout. Swipe right to view the KICKR page. This page enables you to view your workout and control the KICKR. KICKR WORKOUT MODES: The Wahoo Fitness App has the following workout modes that you can use to control your KICKR: LEVEL: Just like riding on a fluid or wind trainer, the faster you go, the harder it gets. The level you select determines the progression of your power curve. RESISTANCE: This allows you to set the resistance of the brake anywhere from 0 to 100%. Regardless of speed, the brake will remain set until you decide to change it. ERG: Set your desired power, the KICKR will increase or decrease the resistance to maintain a constant power output, regardless of speed. SIM: Enter your weight, bike type, riding position, headwind, and grade and the KICKR will accurately model the power curve just as if you were riding outdoors.* Estos elementos vienen preinstalados en la KICKR PIEZAS PEQUEÑAS: guarde todo el material de embalaje y de protección para transporte y almacenamiento.
