USER MANUAL KICKR Axis Wahoo

Exterior view of a Wahoo stationary exercise machine (no signage or text visible on the device body)

For safety, read this manual and all safety information thoroughly before assembly and use.

• Full setup instructions, videos, and information about app compatibility can be found on our website at www.wahoofitness.com/instructions/kickraxis.
• Assemble the KICKR AXIS Feet only as stated in the information contained in this manual.
• Do not modify the KICKR AXIS Feet.
• Images may not reflect final product exactly.

The following instructions must be observed at all times in order to prevent personal injury and physical damage to equipment and surroundings. The instructions are classified according to the degree of danger or damage which may occur if the product is used incorrectly:

DANGER

Failure to follow the instructions will result in death or serious injury.

WARNING

Failure to follow the instructions will result in death or serious injury.

CAUTION

Failure to follow the instructions could cause personal injury and/or physical damage to equipment or surroundings.

KICKR AXIS Quick Start Guide

For expanded instructions please visit our website by scanning this QR code:

QR code image containing encoded data, no visible human-readable text

CAUTION

• Before beginning or modifying any exercise program please consult your physician.
• Do not attempt to dismount the bicycle while the flywheel is in motion.

• Keep children and pets away from the KICKR while in use.

• Only use the KICKR on a stable, level surface with properly adjusted leveling feet.

• Use caution when standing while riding on the KICKR.
• Keep the KICKR away from water.
• Only use the power adapter that comes with the KICKR.

Thank you for purchasing the Wahoo KICKR AXIS!

LEARN MORE:

For instructional videos, compatible apps, FAQs, or to submit a support request please visit: www.wahoofitness.com/support

PLEASE CONTACT US WITH

QUESTIONS OR CONCERNS AT:

Wahoo Fitness

90 W. Wieuca Rd NE

Suite 110

Atlanta, GA 30342 United States

TELEPHONE:

United States: 1-877-978-1112

Germany: [phone]

United Kingdom: [phone]

Phone Hours: Monday - Friday

10am-7pm Eastern Time Zone

UNPACKING

1. (2) Small AXIS Top Caps
2. (2) Middle AXIS Top Caps
3. (2) Large AXIS Top Caps

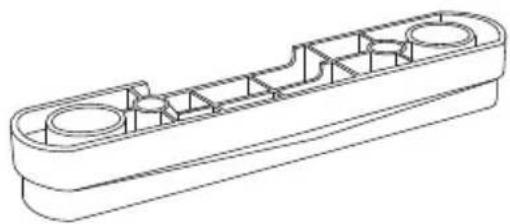

4. (1) Rear AXIS Foot

5. (1) Front AXIS Foot

6. (2) Older Generation KICKR Outrigger Bolts (these will look like the existing bolt that threads them in but slightly different pitch)

1.4.

Technical line drawing of a mechanical component with multiple circular holes and internal cavities (no text or symbols)

6.

2.

5.

Line drawing of a dome-shaped container or housing with a rectangular base (no text or symbols)

3.

PROTIP: Save all packaging and protective material for transportation and storage.

INSTALLING AXIS FEET

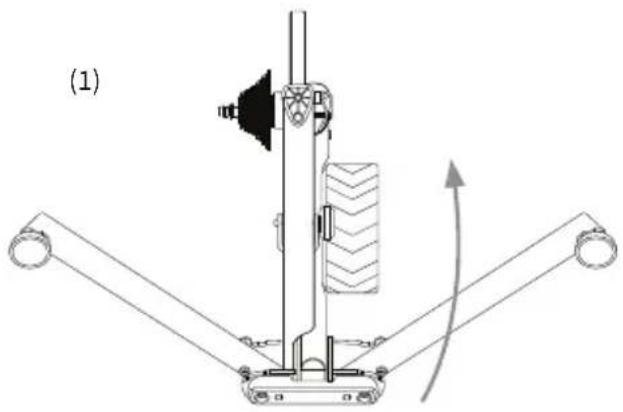

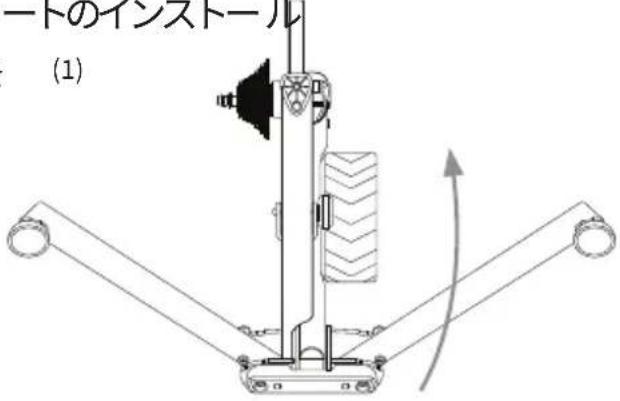

(1) Set the KICKR on the edge of the rear base foot

Replace the Rear Base Foot

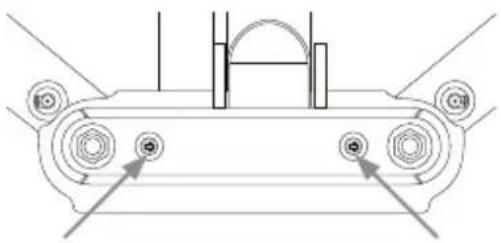

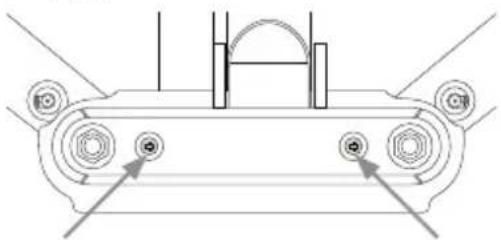

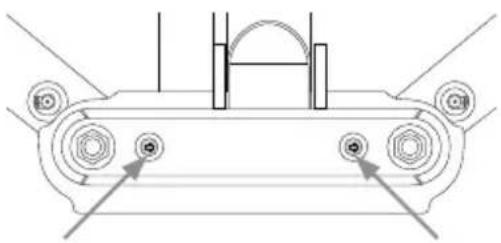

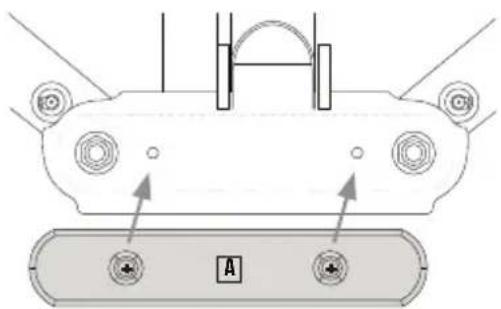

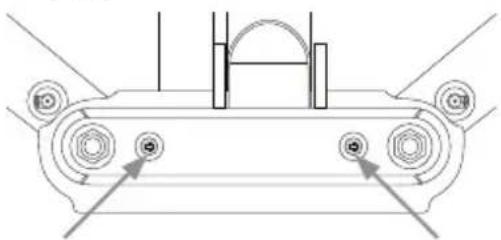

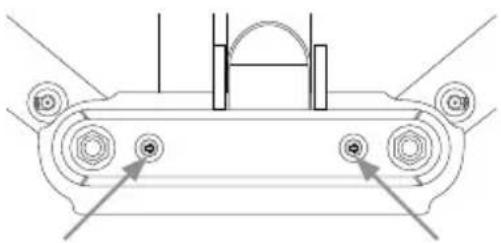

(2) Remove the existing bolts

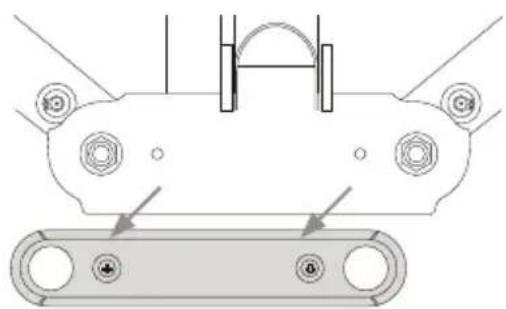

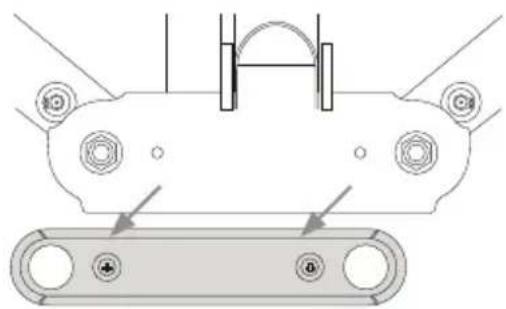

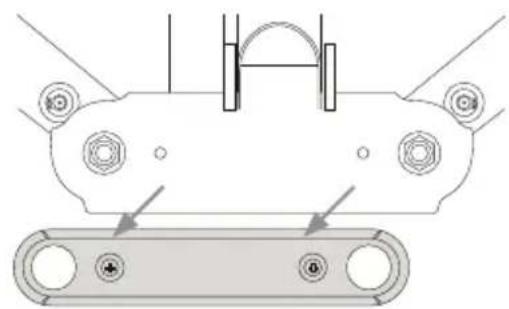

(3) Remove the existing base

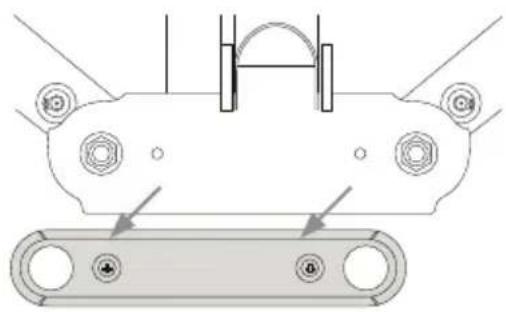

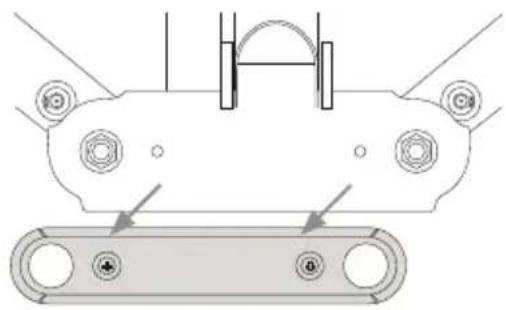

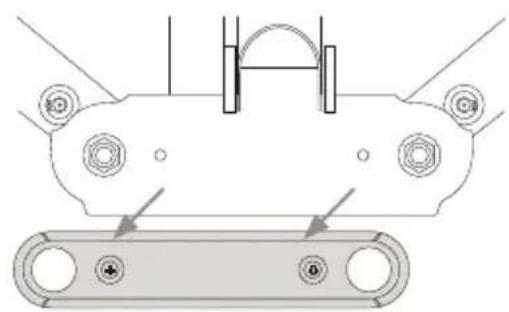

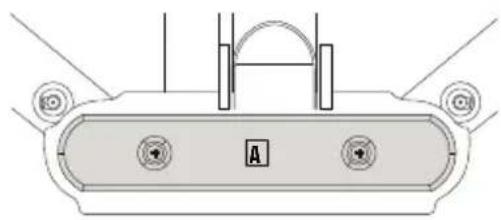

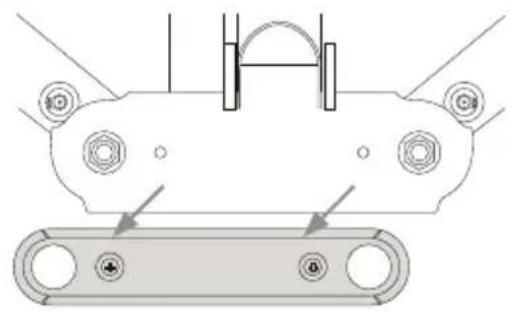

(4) Install the new AXIS base foot

Mechanical device diagram showing a lever mechanism with a speaker and rotating arm (no text or symbols)

(2) (3)

Technical line drawing of a mechanical component with two circular ports and directional arrows indicating movement (no text or symbols)

Technical diagram of a mechanical assembly with two circular components and alignment lines (no text or symbols)

(4)

Technical diagram of a mechanical component with labeled parts (no readable text or symbols)

Technical diagram of a mechanical component with two circular ports and a central labeled section (no text or symbols)

Replace the Front Foot

(5) Unscrew the existing front foot bolt
(6) Remove existing foot

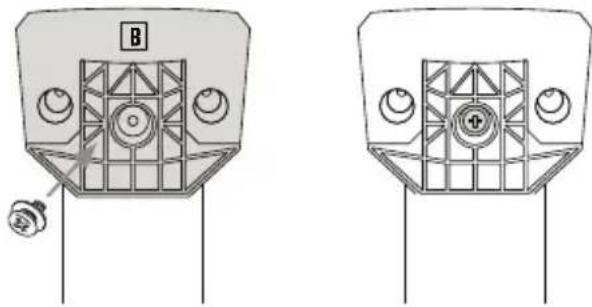

(7) Install new AXIS front foot with existing bolt

Replace the Outrigger Feet

(8) Unscrew the existing KICKR feet
(9) Remove the lock ring from the existing KICKR foot

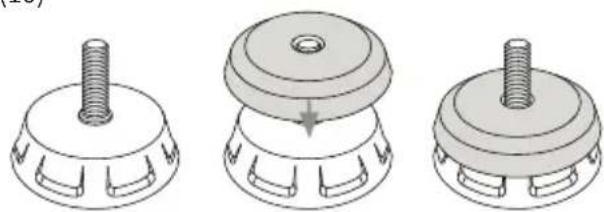

(10) Install the desired AXIS cap on the outrigger foot. Note: If you have a KICKR gen 1, 2 or 3 then use the alternate bolts. Refer to the chart below for starting AXIS Cap.

(11) Install the lock ring on the AXIS foot

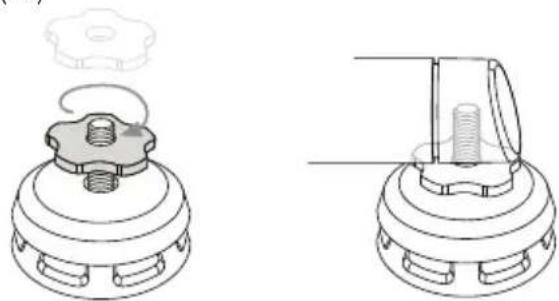

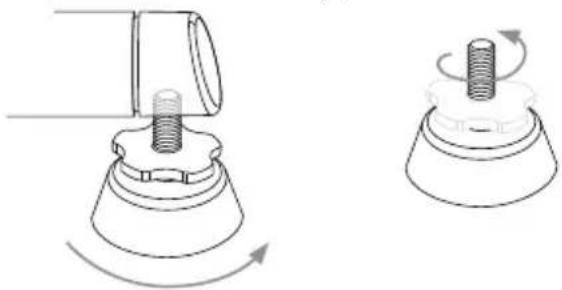

(12) Thread in the new AXIS foot

0-140 lbs (0 - 63 kg) Use smallest diameter cap

141-180 lbs (63 - 81 kg) Use middle cap (installed by default)

181 lbs + Use largest diameter cap

(5) (6)

Pure electrical circuit lines without any symbols

Diagram showing two mechanical components with arrows indicating motion or assembly (no text or symbols)

(7)

Diagram of a device front panel with labeled component B and connector pin (no text or symbols beyond basic labels)

Line drawing of a mechanical component with triangular grid pattern and two circular ports (no text or symbols)

(8)

Diagram of a mechanical component with a rotating base and threaded shaft, showing rotational motion (no text or symbols)

(9)

(10)

Technical line drawing of a mechanical component with a central hub and side slots (no text or symbols)

(11) (12)

Mechanical component diagram showing a gear and adjustment knob (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and a central threaded feature (no text or symbols)

QR code image containing encoded data, no visible human-readable text
