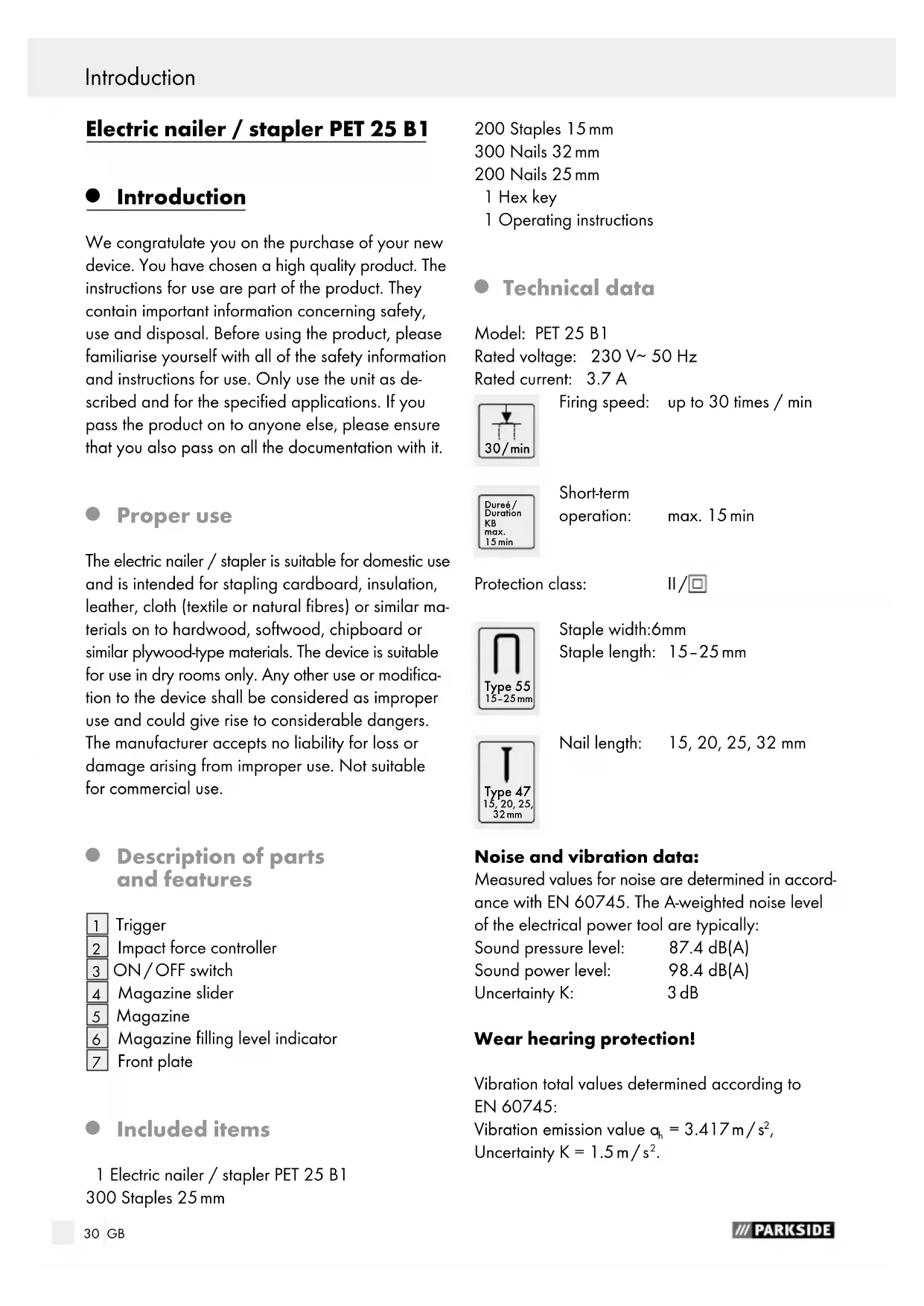

Electric nailer / stapler PET 25 B1

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

The electric nailer / stapler is suitable for domestic use and is intended for stapling cardboard, insulation, leather, cloth (textile or natural fibres) or similar materials on to hardwood, softwood, chipboard or similar plywood-type materials. The device is suitable for use in dry rooms only. Any other use or modification to the device shall be considered as improper use and could give rise to considerable dangers. The manufacturer accepts no liability for loss or damage arising from improper use. Not suitable for commercial use.

Description of parts and features

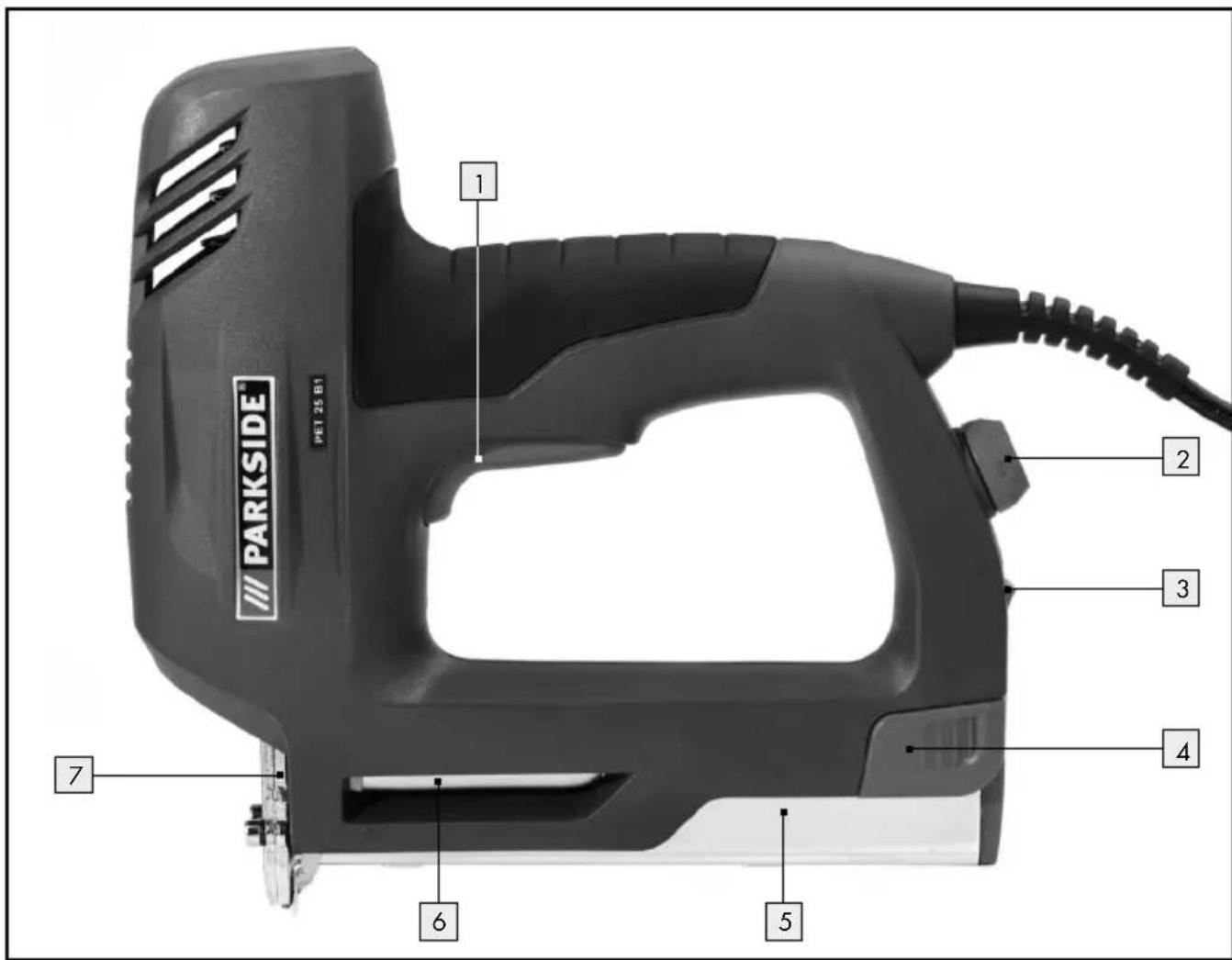

Trigger
2 Impact force controller
3 ON/OFF switch
4 Magazine slider
5 Magazine
6 Magazine filling level indicator

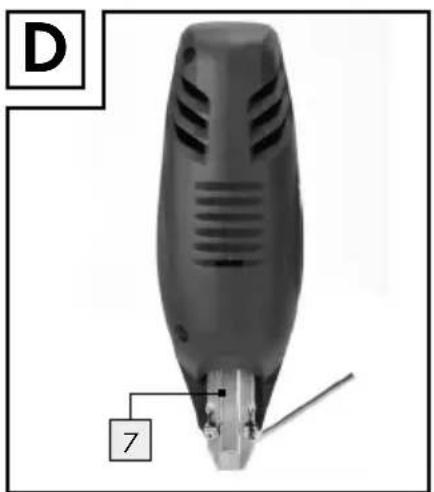

7 Front plate

- Included items

1 Electric nailer / stapler PET 25 B1 300 Staples 25mm

200 Staples 15 mm

300 Nails 32mm

200 Nails 25 mm

1 Hex key
1 Operating instructions

Technical data

Model: PET 25 B1

Rated voltage: 230V 50Hz

Rated current: 3.7 A

Firing speed: up to 30 times / min

Short-term

operation: max. 15 min

Protection class:

Staple width:6mm

Staple length: 15 - 25mm

Nail length: 15, 20, 25, 32 mm

Noise and vibration data:

Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically:

Sound pressure level:

87.4 dB(A)

Sound power level:

98.4 dB(A)

Uncertainty K:

3 dB

Wear hearing protection!

Vibration total values determined according to EN 60745:

Vibration emission value _n = 3.417m / s^2

Uncertainty K = 1.5 m/s^2 .

WARNING! The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure.

The vibration level will change according to the application of the electrical tool an in some cases may exceed the value specified in these instructions. Regularly using the electric tool in such a way may make it easy to underestimate the vibration.

Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.

- General power tool safety warnings

WARNING: Read all safety warnings and all instructions.

Failure to follow the warnings and in

structions may result in electric shock, fire and / or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) D not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective

equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and / or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Safety instructions for tackers

Tacker safety warnings

Always assume that the tool contains fasteners. Careless handling of the tacker can result in unexpected firing of fasteners and personal injury.
Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge the fastener causing an injury.
Do not actuate the tool unless the tool is placed firmly against the workpiece.

If the tool is not in contact with the workpiece, the fastener may be deflected away from your target.

Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the tacker may be accidentally activated if it is plugged in.
Use caution while removing a jamme fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.
Do not use this tacker for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.
- Safety advice relating specifically to Electric nailer / staplers
DANGER OF INJURY! Never point the device at yourself or at other people or animals. Ensure that no people or animals are on the other side of the workpiece.
PROTECT YOUR EYES! Wear eye protection or goggles. This also applies to people who may be helping with the work by supporting or holding the workpiece.
Make sure the device is switched off before you load the magazine. Set the ON/OFF switch to position "0" and pull the mains plug out of the mains socket!
Do not use the device to fix electrical cabling in place.
- Secure the workpiece. A workpiece held in a clamp or vice is kept more securely in place than one held by your hand.
Always work with the mains lead leading away from the rear of the device.
DANGER OF INJURY! Use the device with only the staples and nails specified above. Ensure that the staples or nails do not project from the surface of the workpiece or penetrate through to the other side.
Short-term operation time: Let the device cool down after 15 minutes of continuous operation.

DANGER OF INJURY! Keep your fingers and other body parts away from the front plate 7.
- Never fire staples or nails through the air. At short range the shot staples or nails could lead to serious injury.
Only soft materials such as wood or textiles should be joined using the device. Otherwise the device could be damaged.

CAUTION! Connect the device to the mains only when it is switched off. Set the ON/OFF switch 3 to position "0".

A WARNING! DANGER OF INJURY!

Switch the device on just before you intend to use it. If you are not using the device, switch it off to prevent unintentional firing.

Before use

- Loading the magazine

Squeeze the end of the magazine slider (see Fig. A).
Pull the magazine slider 4 out of the magazine 5 (see Fig. B).

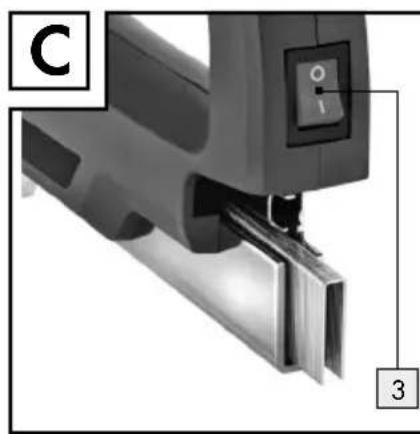

- Fill the magazine 5 with staples or nails (see Fig. C).

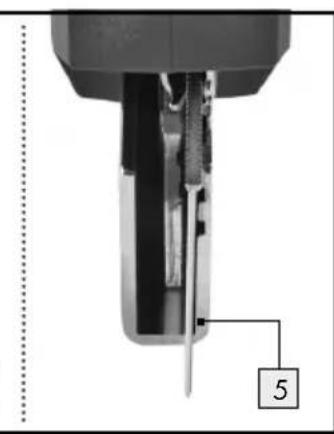

Note on filling with nails: Use the right-hand slot for filling with nails as shown in the detailed image in Fig. C. Ensure that the nail heads are all at the top.

NOTE: Observe the maximum capacity of approx. 85 staples or approx. 75 nails when filling.

□ After filling, push the magazine slider 4 into the magazine 5 as far as it will go until you hear and feel it engage.

NOTE: The magazine filling level indicator 6 allows you to see whether there are still staples in the magazine.

- Setting the impact force

NOTE: Select the lowest impact force necessary for your stapling.

Take into account the length of the staples or nails to be used and the strength of the materials to be joined.

Impact force controller 2

Increase impact force:

Turn the impact force controller 2 anticlockwise.

Decrease impact force:

Turn the impact force controller 2 clockwise.

Use

- Switching on and off

Set the ON/OFF switch 3 to position "1" to switch on the device.
Set the ON/OFF switch 3 to position "0" to switch off the device.

- Stapling/nailing

• Switch the device on by setting the ON/OFF switch 3 to position "I".

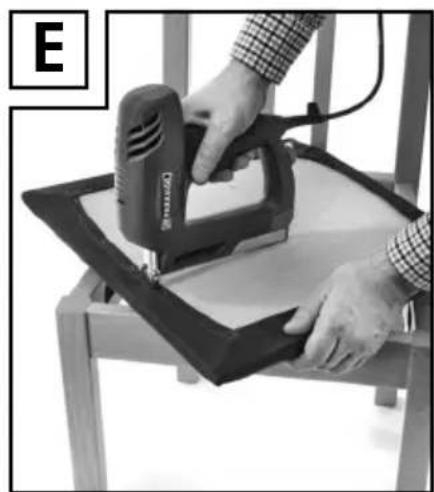

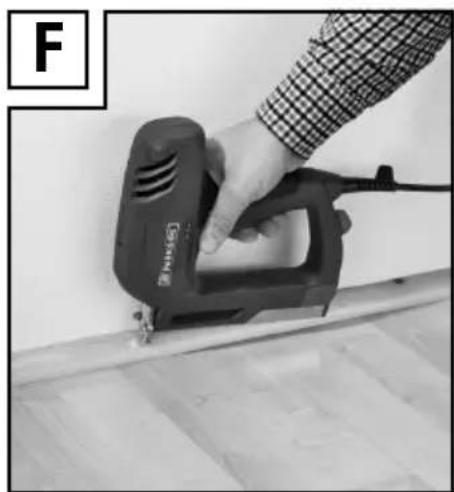

  Press the device with its front plate 7 at the point on the surface of the material where you wish to staple or nail.
  Press the trigger 1.

NOTE: The integral safety lock in the front plate prevents unintentional firing.

Troubleshooting

Cause:

A staple or nail is blocking the device.

Solution:

Open the magazine slider 4. This releases the pretension. Release the screws on the front plate using the hex key (Fig. D).
Remove the staple or nail.

- Maintenance and cleaning

WARNING! DANGER OF INJURY! Pull

the mains plug out of the mains socket before you clean or maintain the device.

The electric nailer / stapler is designed to be maintenance-free.

Always keep the device clean, dry and free from oil or grease.
Clean the device immediately after you have finished using it.
Do not allow any liquids to enter the device.
Use a cloth to clean the housing. Never use petrol, solvents or cleaning agents that might attack plastic.

Service

AWARNING! Have your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
WARNING! If the plug or lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre.

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB

Service Great Britain

Tel.: [phone]

(£0.10 / minute)

e-mail: [e-mail]

IAN 273474

Disposal

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical power tools with the household rubbish!

In accordance with European Directive 2012 / 19 / EU (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Translation of the original declaration of conformity / Manufacturer (€

We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURG-STRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006/42/EC)

Electromagnetic Compatibility (2004/108/EC)

RoHS Directive (2011/65/EU)

Applicable harmonized standards

EN 60745-1/A11:2010

EN 60745-2-16:2010

EN 55014-1/A2:2011

EN 55014-2/A2:2008

EN 61000-3-2/A2:2009

EN 61000-3-3:2008

Type/Device description:

Electric nailer / stapler PET 25 B1

Date of manufacture (DOM): 12-2015 Serial number: IAN 273474

Bochum, 31.12.2015

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical modifications in the course of further development.
