USER MANUAL WS53GDA HAIER

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

Warning - Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Doors and seals must be removed before disposal, so that children don't lock themselves in.

RNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the shelves and water box as well as the door lock and seals, to prevent children and pets from getting locked in the appliance.

1-Safety information. 4
2- Intended use 7
3- Product description .8
4- Control panel. 9
5- Installation 10
6-Use 13
7 - Energy saving tips 15
8 - Equipment 16
9-Care and cleaning 17
10- Troubleshooting 19
11- Technical data 22
12- Customer Service 23

1- Safety information

Before switching on the appliance for the first time read the following safety hints!

RNING!

Before first use

Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.

If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in.
- Handle the appliance always with at least two persons because it is heavy.

Installation

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10cm around the appliance. It is designed for free-standing installation only, not for built-in installation.
- Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
- Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc. Your wine cellar was not designed to operate in ambient temperature below 16^ C .
- Do not install the appliance in direct sunlight or near heat sources (e.g. stoves, heaters).
Install and level the appliance in an area suitable for its size and use.
- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
- Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage the temperature control or compressor, or an abnormal noise when operating. In such a case, an automatic regulator shall be mounted.
- Use a separate, easily-accessible, earthed socket for the power supply. The appliance must be earthed.
- Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
Do not use multi-plug adapters and extension cables.
- Ensure that the power cable is not trapped by the wine cellar. Do not step on the power cable.

RNING!

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Keep children under 3 years of age away from the appliance unless they are constantly supervised.
  Children must not play with the appliance.
• If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the wine cellar or any other appliance.
• Notice that the appliance is set for operation at a specific ambient range between 16^ and 38^ . The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
• Do not place unstable articles (heavy objects, containers filled with water) on top of the wine cellar to avoid personal injury caused by falling or electric shock caused by contact with water.
• Open and close the doors only with the handles. The gap between the doors and between the doors and the cooler is very narrow. Do not put your hands in these areas to avoid pinching your fingers. Open or close the wine cellar doors only when there are no children standing within the range of door movement.
• Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
• Do not store explosive substances, such as e.g. aerosol containers with flammable propellant in this appliance.
• Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
  For proper wine cooling, do not overload the appliance.
  Do not damage the refrigerant circuit.
  Do not set an unnecessarily low temperature in the wine cellar.
• Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

1- Safety information

RNING!

Daily use

Maintenance/cleaning

• Do not use electrical devices inside the compartments of the appliance, unless they are recommended by the manufacturer.
• Make sure children are supervised if they carry out cleaning and maintenance.
• Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
  Hold the plug, not the cable, when unplugging the appliance.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not try to repair, disassemble or modify the appliance yourself. In case of repair please contact our customer service.
• Eliminate the dust on the back of the unit at least once a year to avoid hazard by fire, as well as increased energy consumption.
• Do not spray or flush the appliance during cleaning.
  Do not use water spray or steam to clean the appliance.
• Do not clean the cold glass doors with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

RNING!

The appliance contains the flammable refrigerant ISO BUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep open fire sources away from the appliance, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case eyes get into contact with the refrigerant, rinse immediately under running water and call an eye specialist immediately.

2.1 Intended use

This appliance is intended to be used exclusively for the storage of wine. It has been designed exclusively for use in dry-interior households. It is intended strictly for household use. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig. 2.2):

2 keys

Energyable

Warranty card

User manual

2.2

Notice: Differences

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

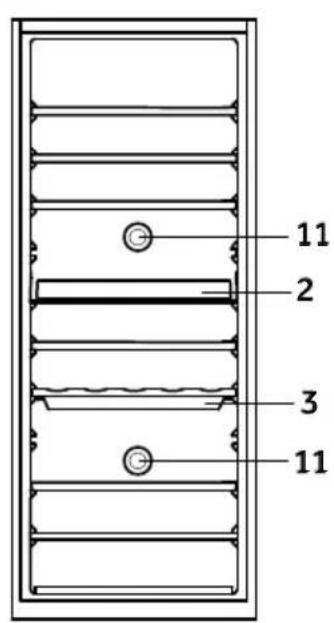

Picture of appliance (Fig. 3.1 and Fig. 3.2)

3.1

3.2

1 Interior shelves
2 Middle partition
3 Water storage box
4 Shorter shelves
5 Adjustable leveling feet
6 Display (on front of the door)
7 LED lamp
8 Door
9 Light and fan switch
10 Lock
11 Carbon filters/deodorizer

Control panel (Fig. 4)

4

A Temperature adjust button: up
B Temperature display
C Temperature adjust button: down
D Temperature set button
E Interior light button and ^ C / F -switch
F Power button

5.1 Unpacking

WARNING!

The appliance is heavy. Always handle with at least two people.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.
Take the appliance out of the packaging.
- Remove all packaging materials including the foam base and all adhesive tape holding the accessories.

5.2 Environmental conditions

The room temperature should always be between 16^ and 38^ , since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

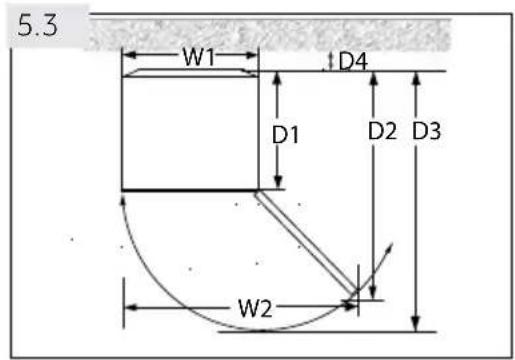

5.3 Space requirements

Required space to open the door (Fig. 5.3):

Width in mm	Depth in mm	Distance to wall in mm
W1 W2 D1 D2 D3 D4
500 830 495 890 1015 100

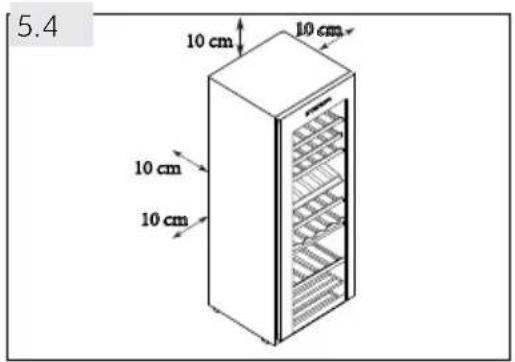

5.4 Ventilaton space

For safety and energy reasons, the required ventilation distance of 10cm in all directions must be observed (Fig. 5.4).

WARNING!

• Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.

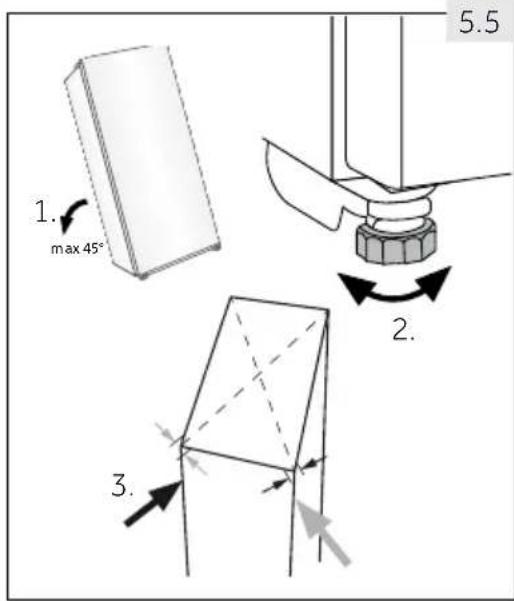

5.5 Aligning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the appliance slightly backwards (Fig. 5.5).
2. Set the adjustable front feet to the desired level by turning them.
3. The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.

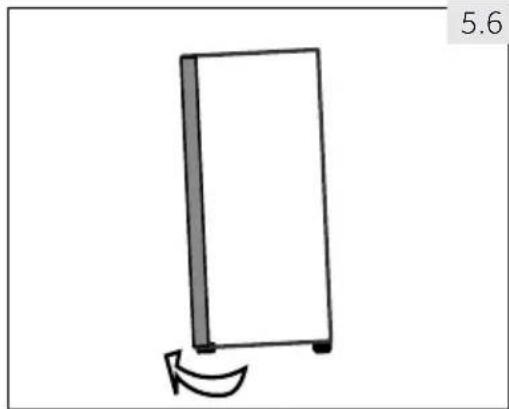

5.6 Fine tuning of the door

The appliance closes more easily if the levelling feet on the front are used:

Rotate the adjustable feet (Fig. 5.6) to turn them up or down:

• Turning the feet clockwise raises the appliance.
  Turning the feet counterclockwise lowers the appliance.

WARNING!

Do not lift the appliance by its door handles.
- Never place the appliance horizontally on the ground.

After tilting the appliance more than 45^ , wait for 24 hours before plugging it in.

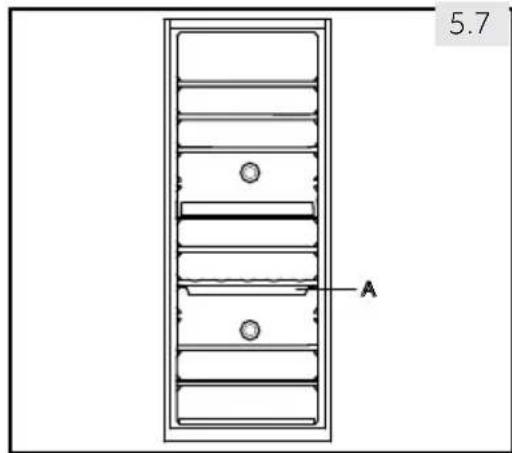

5.7 Filling the water storage box

The water storage box (A in Fig. 5.7) should always be filled to keep up the humidity in the wine cellar. Please add the water before turning the wine cellar on. The water should always cover the bottom of the box when the wine cellar is in use.

1. Take out the water box.
2. Add water. It should fill about 2/3 of the box.
3. Put the water box back underneath the second shelf of the lower compartment.

WARNING!

Before moving the wine cellar, remove the water storage box to avoid spilling.

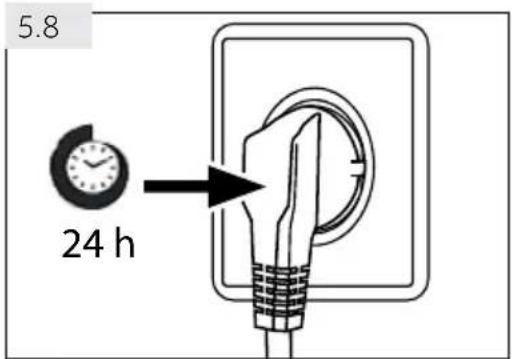

5.8 Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during transport if the appliance is tilted. Before connecting the appliance to the power supply, wait 24 hours (Fig. 5.8) so that the oil runs back into the capsule.

5.9 Electrical connection

Before each connection check if:

power supply, socket and fusing are appropriate to the rating plate.

• the power socket is earthed and no multi-plug or extension.

the power plug and socket are fit properly.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

6.1 Before first use

• Remove all packaging materials. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside. Keep them out of children's reach and dispose them in an environmentally friendly manner.
  Clean the inside and outside of the appliance with water and a mild detergent before putting any wine in it.
  After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in. See section INSTALLATION.
  Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimatize itself before making any adjustments.
  The temperature is automatically set to 12^ for both compartments. If desired, you can change the temperature manually. Please see TEMPERATURE.

6.2 Touch keys

The buttons on the control panel are touch keys, which respond when lightly touched with the finger.

6.3 Switching the appliance on/off

To turn the appliance on, press the power button (F) for 3 seconds. To turn it back off, press the power button again.

RNING!

To prolong the service life of the appliance, avoid turning it off.
- Wait at least 5 minutes to reconnect the power after the power has been disconnected.

When the appliance is powered on for the first time, the actual temperature of the compartment (B) is displayed.

Notice: Presettings

• Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimatize itself before making any adjustments
• When the appliance is switched on after disconnection from the main power supply, it may take several hours for the correct temperatures to be reached. The exact time varies depending on the environment and the temperature setting.

Notice: Memory function during power interruption

After restoration of power, the appliance continues with the temperature setting that was set before the power failure.

6.4 Standby-mode

The display screen is dimmed automatically 35 seconds after the last key has been pressed. It lights up automatically when any key is touched or the door is opened.

6.5 Temperature

The temperature of the wine cellar is preset to 12^ . It can be changed to any temperature between 5^ and 20^ for the compartments individually.

6.5.1 Setting the temperature (Fig. 6.5-1)

1. Hold the button for about 3 seconds. The temperature display for the upper compartment starts to flash.
2. Press the or button to increase or decrease the temperature. When the desired temperature has been reached, press the button.
3. The temperature for the upper compartment has been set and the temperature for the lower compartment starts to flash.
4. Repeat step 2 to set the temperature for the lower compartment. Instead of pressing the button at the end, it is possible to wait 5 seconds without touching the display.
5. When display stops flashing, it goes back to showing the current temperature inside the wine cellar. It will take some time to reach the set temperature.

6.5.2 Switching between Celsius and Fahrenheit

To change the displayed measurement unit, press the button for about 3 seconds. The displayed temperature will switch from Celsius to Fahrenheit and back.

6.5.3 Low temperature compensation function

The wine cellar has a low temperature compensation function to ensure the stability of the temperature: When the ambient temperature is lower than the set temperature, the wine cellar automatically starts the low-temperature compensation function, heating the application. When the temperature in the application reaches the set temperature, the low temperature compensation function is automatically turned off.

Notice: Influences on temperatures

The temperature inside the appliance is influenced by the following factors:

Ambient temperature

Amount of stored bottles

Frequency of door opening

Installation of the appliance

6.5.4 Recommended temperature settings for wine

The following drinking temperatures are recommended for the different types of wine.

Red wine +14 °C to +20 °C	Sparkling wine, Prosecco	+7 °C to +9 °C
Rosé wine	+10 °C to +12 °C Champagne +5 °C to +7 °C
White wine	+8 °C to +12 °C

If you store wine for long periods of time, it should be stored at a temperature between +10^ and +12^ .

rgy saving tips

Make sure the appliance is properly ventilated (see INSTALLATION).
- Do not install the appliance in direct sunlight or near heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
- Open the appliance door as little and as briefly as possible.
Do not exceed the designed amount of bottles to avoid obstructing the air flow.
- Keep door seals clean so that the door always closes correctly.

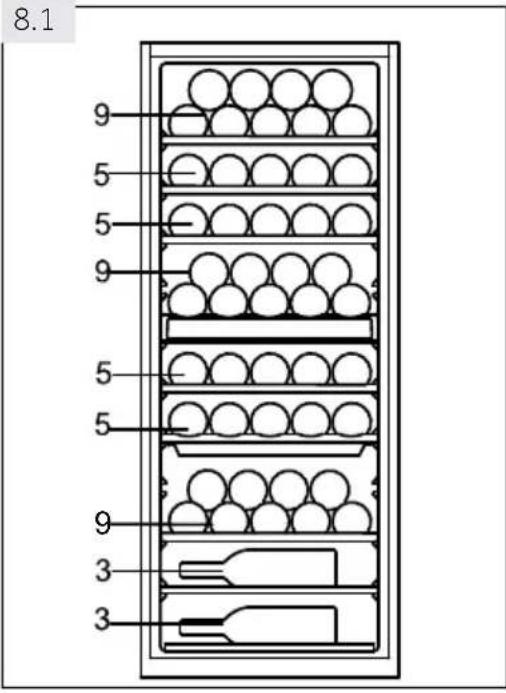

8.1 Shelves

1. The shelves are designed for easy storage and easy removal of the wine. They can be cleaned with a soft towel.
2. Regular bottles with a diameter of 78mm can be stacked (Fig. 8.1).
3. Magnum bottles can be stacked on the bottom shelf.
4. The quantity can vary from the depicted number of bottles if they are stacked in a different way.

8.2 The light

The LED interior light comes on when the door is opened. To turn on the light while the door is closed, touch the button. To turn the lights off, touch the button again.

To increase the energy efficiency, the lights should be turned off when the wine cellar is not being viewed.

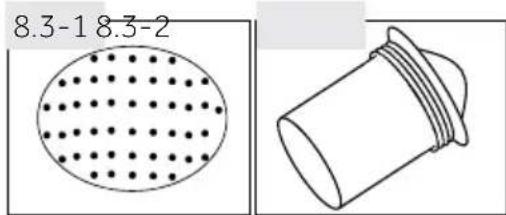

8.3 Deodorizer

The deodorizer holes (Fig. 8.3-1) on the back of the unit help remove stale, unwanted odours through a carbon filter (Fig. 8.3-2).

8.4 The lock

To lock the wine cellar, close the door and put the key in the lock:

Lock the door by turning the key counterclockwise:
Unlock the door by turning the key clockwise.

RNING!

The keys must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked inside the appliance.

8.5 Water storage box

The water storage box should always be filled to maintain the humidity inside the wine cellar. The water should cover the bottom of the box whenever the wine cellar is in use. Please see INSTALLATION.

WARNING!

Disconnect the appliance from the power supply before cleaning.

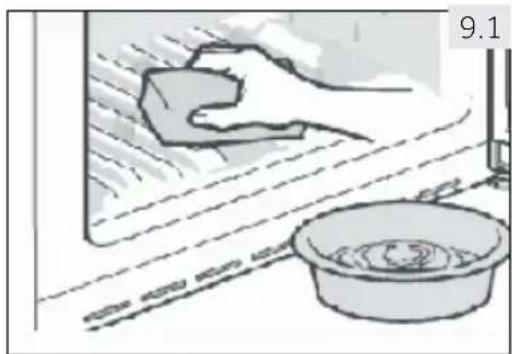

9.1 General

Clean the appliance when only little or no wine is stored. It is only necessary to clean it when it is dirty.

WARNING!

• Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
  Do not spray or flush the appliance during cleaning.
  Do not use water spray or steam to clean the appliance.
• Do not clean the cold glass doors with hot water. Sudden temperature change may cause the glass to break.
  Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent (Fig. 9.1).
  A cleaning solution of 3 to 4 tablespoons of baking soda mixed with warm water can be used.
  Rinse with clean warm water and dry with soft cloth.
  Do not clean any of the parts of the appliance in a dishwasher.
• Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.
  The door gaskets should be cleaned every 3 months to assure a proper seal.

9.2 Cleaning the shelves

All shelves can be taken out for cleaning.

1. Take out all bottles.
2. Lift each shelf a little and take it out.
3. Clean the shelf with a soft towel
4. Wait until the shelves are dry before putting them back in.

WARNING!

Wait at least 5 minutes to reconnect the power after the power has been disconnected.

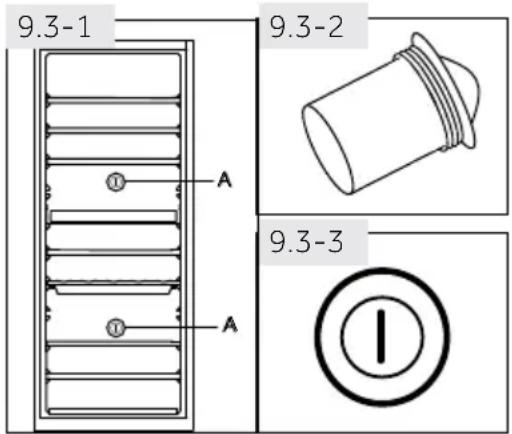

9.3 Changing the deodorizer

The carbon filter should be changed every 3 to 5 years.

1. Take the carbon filter (A) by its handle (Fig. 9.3-1).
2. Turn it to the left and remove it.
3. Insert the new filter (Fig 9.3-2) with the handle in a vertical position (Fig 9.3-3).
4. Turn it to the right until it locks into place.

9.4 Defrosting

The defrosting of the wine cellar is done automatically; no manual operation is needed.

9.5 Replacing the LED lamp

The lamp uses LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

RNING!

Do not replace the LED lamp yourself. It must only be replaced by either the manufacturer or the authorised service agent.

Parameters of LED lamp:

Voltage 12 V; Max power: 0.72 W

9.6 Non-use for a longer period

Unplug the power cord.
Clean the appliance and door gaskets as described above.

• Keep the door open to prevent the creation of bad odours inside.

9.7 Moving the appliance

1. Remove all bottles and unplug the appliance.
2. Secure shelves and other moveable parts in the wine cellar with adhesive tape.
3. Remove the water storage box to avoid spilling.
4. Do not tilt the wine cellar more than 45^ to avoid damaging the refrigerating system.

NING!

Do not lift the appliance by its door handles.
Never place the appliance horizontally on the ground.
After moving the appliance, wait for 24 hours before plugging it in.

You can solve many occurring problems yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before contacting an after sales service. See CUSTOMER SERVICE.

NING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
- Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

10.1 Troubleshooting with display code

Te: Troubleshooting

If an error code appears, please press the power button to get rid of it. If it keeps appearing, pull out the power plug and contact customer service.
In case you are asked to contact the customer service: Note the troubleshooting message and refer to "CUSTOMER SERVICE".

Error code	Cause Solution
E1	Short or broken circuit of the low temperature sensor.	Please contact the after sales ser-vices to change the sensor.
F4	Short or broken circuit of the sensor in the upper compartment.
F5	Short or broken circuit of the sensor in the lower compartment.
H1	The appliance gives a high-temperature warning when the upper compartment's temperature has been higher than 25 °C for 3 hours.	Ambient temperature is too high. The appliance working temperature should be between 16 °C and 38 °C.
H2	The appliance gives a high-temperature warning when the lower compartment's temperature has been higher than 25 °C for 3 hours.
L1	The compressor stops working when the temperature of the upper compartment is lower than 0 °C. The low-temperature warning is given when the temperature has been lower than 0 °C for 2 hours.	Ambient temperature is too low. The appliance working temperature should be between 16 °C and 38 °C.
L2	The compressor stops working when the temperature of the lower compartment is lower than 0 °C. The low-temperature warning is given when the temperature has been lower than 0 °C for 2 hours.

10.2 Troubleshooting without display code

Problem Possible Cause Possible Solution
The compressor does not work.	·Mains plug is not connected to the mains socket.	·Connect the mains plug.
The appliance runs frequently or runs for a too long period of time.	·The indoor or outdoor temperature is too high. ·The appliance has been off power for a period of time. ·A door of the appliance is not tightly closed. ·The door has been opened too frequently or for too long. ·The door gaskets are dirty, worn, cracked or mismatched. ·The required air circulation is not guaranteed. ·The temperature is set too low. ·The problem will resolved itself when the desired temperature has been reached.	·In this case, it is normal for the appliance to run longer. ·Normally, it takes a while for the appliance to cool down completely. ·Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door. ·Do not open the door too frequently. ·Clean the door gasket or replace them by the customer service. ·Ensure adequate ventilation. ·The problem will be resolved itself when the desired temperature has been reached.
The inside of the wine cellar is dirty and/or smells.	·The inside of the wine cellar needs cleaning.	·Clean the inside of the wine cellar.
It is not cold enough inside the appliance.	·The temperature is set too high. ·Reset the temperature. ·Bottles have been added recently. ·A door of the appliance is not tightly closed. ·The door has been opened too frequently or for too long. ·The door gaskets are dirty, worn, cracked or mismatched.	·Allow time for recently added bottles to reach desired temperature. ·Close the door. ·Do not open the door too frequently. ·Clean the door gasket or replace them by the customer service.
It is too cold inside the appliance.	·The temperature is set too low. ·Reset the temperature.
Moisture formation on the inside of the wine cellar compartment.	·The climate is too warm and too damp. ·A door of the appliance is not tightly closed. ·The door has been opened too frequently or for too long.	·Increase the temperature. ·Close the door. ·Do not open the door too frequently.

Problem Possible Cause Possible Solution

Moisture accumulates on the wine cellar's outside surface

• The climate is too warm and too damp.
• The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.
• The appliance is not located on level ground.

• The appliance touches some object around it.
  This is normal.

• This is normal in damp climate and will change when the humidity decreases.

• Ensure that the door is shut tightly and that the gaskets seal properly.
• Adjust the feet to level the appliance.
• Remove objects around the appliance.

The appliance makes abnormal sounds.

A slight sound is to be heard similar to that of flowing water.

The interior lighting or cooling system does not work.

• Mains plug is not connected to the mains socket.

• The power supply is not intact. - Check

• Connect the mains plug.
  the electrical supply to the room. Call the local electricity company!

• Please call the service for changing the lamp.

The sides of the cooler and door strip get warm.

The door does not shut properly.

This is normal.
The appliance is not level.
- The door is blocked. Check for blockages like bottles or shelves.

11- Technical data

11.1 Product fiche according to regulation EU No. 1060/2010

Trade mark Haier
Model identifier	WS53GDA
Category of the model	Wine cellar
Household refrigeration category	2
Energy efficiency class A
Annual energy consumption (kWh/year)1)	135
Storage volume cooling (L)	-
- of wine storage compartment 172
Storage volume freezing (L)	-
Star rating -
Lowest storage temperature of wine compartment	5 °C
Frostfree system	-
Climate class: This appliance is intended to be used at an ambient temperature between 16 °C and 38 °C.	ST
Airborne acoustical noise emissions (db(A) re 1pW)	40
Construction type	Freestanding
This appliance is intended to be used exclusively for the storage of wine.	Yes

1) based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.

11.2 Additional technical data

Net volume (L) 172
Voltage / Frequency 220-240 V~/50 Hz
Input power (W)	70
Input current (A)	0.5
Main fuse (A)	0.4
Coolant R600a
Dimensions (D/W/H in mm)	560/500/1270

11.3 Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶your local dealer or

• the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model

Serial No.

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find our addresses in Europe below:

European Haier addresses
Country*	Postal address	Country* Postal address
Italy	Haier Europe Trading SRL Via De Cristoforis, 12 21100 Verese ITALY	France	Haier France SAS 3-5 rue des Graviers 92200 Neuilly sur Seine FRANCE
Spain Portugal	Haier Iberia SL Pg. Garcia Faria, 49-51 08019 Barcelona SPAIN	Belgium-FR Belgium-NL Netherlands Luxembourg	Haier Benelux SA Anderlecht Route de Lennik 451 BELGIUM
Germany Austria	Haier Deutschland GmbH Hewlett-Packard-Str. 4 D-61352 Bad Homburg GERMANY	Poland Czechia Hungary Greece Romania Russia	Haier Poland Sp. zo.o. Al. Jerozolimskie 181B 02-222 Warszawa POLAND
United Kingdom	Haier Appliances UK Co.Ltd. One Crown Square Church Street East Woking, Surrey, GU21 6HR UK

*For more information please refer to www.haier.com

Haier

Návod k použití

Chladnička na vino

WS53GDA

Ovladaci panel (obr. c. 4)

4

The appliance should be placed on a flat and solid surface.

Pipv aTnV TpWtn Xpno
