Product Type	Infrared (IR) Wireless Headphone System
Brand	Philips
Model	SBCHC130
Transmission	Infrared (IR) with Frequency Modulation (FM)
Maximum Range	7 meters (under direct line-of-sight conditions)
Transmitter Power Supply	AC adapter 12 V DC / 200 mA (Philips SBC CS030/00)
Headphone Power Supply	2 AAA 1.5V batteries (non-rechargeable, supplied)
Carrier Frequency	2.3 MHz (left channel), 2.8 MHz (right channel)
Signal-to-Noise Ratio	> 55 dB (A-weighted)
Total Harmonic Distortion	< 1% THD
Channel Separation	> 30 dB
Audio Input Level	300 mVrms (1 kHz sine wave)
Connectivity	3.5 mm stereo audio input (6.3 mm adapter supplied)
Equipment Contents	1 IR transmitter SBC HC132, 1 IR headphone SBC HC135, 1 AC adapter, 2 AAA batteries, 1 3.5 mm to 6.3 mm jack adapter
Maintenance	Clean with a slightly damp cloth; avoid alcohol, solvents, and abrasive products
Safety	Do not expose to moisture, rain, or excessive heat; use only the supplied adapter; do not open the device
Hearing Protection	Prolonged use at high volume may damage hearing

Frequently Asked Questions - SBCHC130 PHILIPS

What should I do if there's no sound?

Check that the AC adapter is properly plugged in and the transmitter is powered on. Ensure the headphone batteries are charged and the audio source is turned on and at a sufficient volume. Use the supplied HC132 transmitter, as some third-party transmitters may be incompatible.

How to resolve sound distortion?

Distortion can be caused by low batteries, excessive volume, too great a distance from the transmitter, or interference (neon lamps, other IR sources). Replace the batteries, reduce the volume, move closer to the transmitter, or relocate the setup.

What is the maximum range of the headphone?

The maximum range is 7 meters in direct line of sight with the transmitter. Obstacles or strong ambient light may reduce this range.

How to replace the headphone batteries?

Open the headphone battery compartment, remove the old batteries, insert two new AAA batteries respecting the indicated polarities, then close the compartment.

Can I use multiple headphones with the same transmitter?

Yes, it is possible to use multiple IR headphones on a single transmitter if they operate on the same frequency. Check the specifications to verify compatibility.

How to connect the transmitter to my TV?

Connect the supplied stereo audio cable (3.5 mm plug) to your TV's headphone output. If the output is 6.3 mm, use the supplied stereo adapter. Turn on the TV, transmitter, and headphone, then adjust the volume.

How to clean the headphone and transmitter?

Use a slightly damp cloth (not wet) to clean the casing. Never use alcohol, thinner, ammonia, or abrasive products that could damage the surface.

Why is the sound disturbed by interference?

Interference can be caused by intense light (sun, halogen lamps) or other infrared devices. Place the transmitter in a more shaded area or away from direct light sources.

Can I use a different AC adapter?

No, use exclusively the supplied Philips SBC CS030/00 (12 V / 200 mA) adapter. Using a non-compliant adapter may damage the device or pose a safety risk.

How to store the device when not in use?

Remove the headphone batteries and unplug the AC adapter. Store the device in a dry place, away from dust, excessive heat, and direct sunlight.

USER MANUAL SBCHC130 PHILIPS

Cordless IR Stereo Headphone

Figure 1

Figure 2

Figure 3

Figure 4

Index

English	English-4	Svenska-44	Svenska
Français	Français-9	Norge-49	Norge-
Espanol	Espanol-14	Suomi-54	Suomi-
Deutsch	Deutsch-19	Pussckn-59	Pussckn-
Nederlands	Nederlands-24	Polski-64	Polski-
Italiano	Italiano-29	Magyar-69	Magyar-
Portugues	Português-34	Türkçe-74	Türkçe-
Dansk	Dansk-39	Еλληνικá-79	Еλληνικá-

Introduction

General information

Congratulations!

You have just bought the most sophisticated InfraRed (IR) cordless stereo sound system. This system uses the latest IR cordless technology, which gives you complete freedom of movement* while enjoying your favorite music and movies. Without the inconvenience of cables or headphone wires! To ensure you get the best performance from your IR cordless stereo sound system please read this manual carefully.

*) 7 m. max. range, depending on ambient conditions and restricted to line of sight with relation to the transmitter.

IMPORTANT

Read these instructions. All the safety and operating instructions should be read before using the wireless headphone system.

Check if the voltage indicated on the type plate of the adapter corresponds to the local mains voltage before connecting to the mains power supply.

Remove the batteries from the headphone's battery compartment and disconnect the adapter from the mains if the system is not in use for a long period.

Prevent fire or shock hazard: do not expose this equipment to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.

Benefits of Philips latest cordless technology

Cordless transmission

The IR transmitter transmits the stereo audio signal from your audio or video source to your IR headphone without wires.

Wide transmission range

Your IR headphone can receive signals up to a maximum of 7 meters away. The headphone however needs to be within the line of sight of the transmitter.

Easy transmission

High frequency IR waves carry the audio signal to ensure clear and sharp reception.

Multiple headphones with one transmitter

An additional number of headphones can be used with a single transmitter if they operate on the same frequency.

Please consult the appliance's electrical specification sheets for confirmation on compatibility.

Kit contents

This IR headphone system consists of the following accessories:

1 × SBC HC132 IR transmitter

1×SBC HC135 IR headphone

1 x SBC CS030/00 12 Volt/200 mA AC/DC adapter (for UK: SBC CS030/05 12 Volt/200 mA AC/DC adapter)

2 × non-rechargeable batteries R03/AAA (ZnCl)

1× 3.5mm plug to 6.3mm stereo adapter plug

Controls

Installation

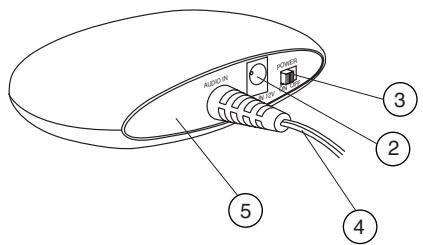

Transmitter (figure 1)

1 IR transmitting LEDs - transmit audio signal to IR headphone.
2 DC power - connect to the 12 Volt/ 200 mA AC/DC adapter.
3 Power switch - power on/off switch.
4 3.5 mm stereo headphone audio input - connects your IR transmitter to an audio source.
5 Controls plate

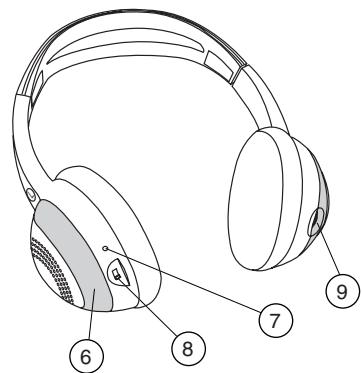

Headphone (figure 2)

6 IR sensors - to receive IR waves from the transmitter.
7 Power indication - lights up when in use.
8 Power On/Off - slide the switch to the on or off position to switch the headphone on/off.
9 Volume - adjust volume to your desired listening level.

Transmitter power supply

IMPORTANT Use only Philips SBC CS030/00 12 Volt/200 mA AC/DC adapter. (For UK, use only Philips SBC CS030/05)

1 Make sure the adapter's rated voltage corresponds to the mains socket voltage.
2 Connect the DC connector of the AC/DC adapter to the 12 Volt DC power input connector located at the rear of the transmitter.
3 Connect the 12 Volt/200 mA AC/DC adapter to the mains socket. Always disconnect the AC/DC adapter if the transmitter is not to be used for a long period of time.

Headphone power supply

1 Check if the power button of the IR headphone is in the on position.
2 Ensure the batteries are put in the battery compartment correctly according to the engraved polarity symbols.

Note:

Always remove the batteries if the headphone is not to be used for a long period of time.

Batteries contain chemical substances, so they should be disposed of properly.

Environmental Information

All redundant packing material has been omitted. We have done our best to make the packaging easily separable into two materials: cardboard and polyethylene.

Your unit consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Installation

Audio Connections

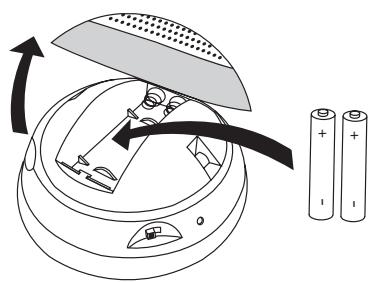

Headphone battery replacement (figure 3)

1 Open the headphone's battery compartment.
2 Take out the batteries and dispose of them properly.
3 Insert new batteries.
4 Make sure the batteries are correctly inserted as indicated by the engraved symbols in the battery compartment.
5 Close the battery compartment.

Audio Connections

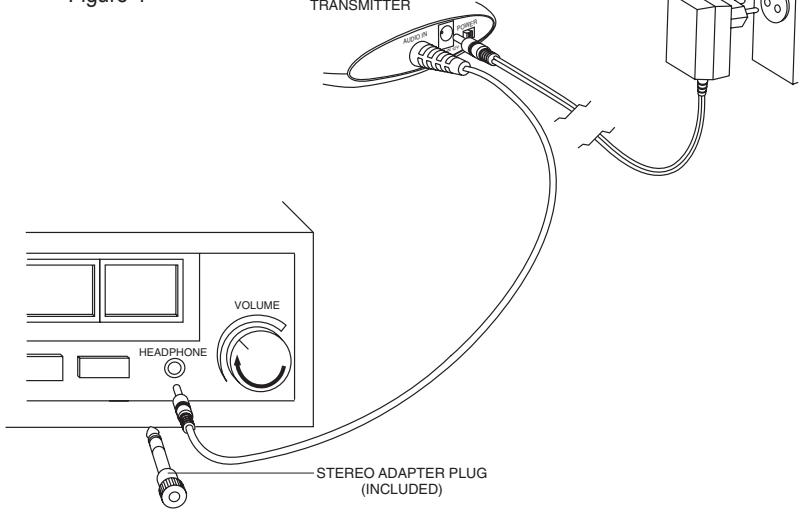

Connecting the FM transmitter to a headache output of an audio source (figure 4)

1 Connect the 3.5mm stereo plug of the stereo audio cable to the headphone output of an audio source, such as TV, HiFi or PC.
In case your audio source has a 6.3 mm headphone output, use the supplied 3.5mm to 6.3 mm stereo adapter plug.
2 Switch on your audio source and carefully increase the volume of the audio source.
3 Switch on the headphone and the transmitter:
4 Adjust the volume to the desired level with the headphone volume control.

Basic operation

When the IR transmitter is connected to a.
headphone output of an audio source.

1 Switch on your IR transmitter and place it at the same height or slightly higher than the reception height of the IR headphone.
2 Position the LED's towards the listening area, ensuring that there are no obstacles in between transmitter and headphone.
3 Switch on the headphone.
4 Switch on your audio source and carefully increase the volume of the audio source.
5 Adjust the volume of the IR headphone to the desired level with the headphone volume control.

IMPORTANT

Because IR light travels in a straight line, place the IR transmitter at the same height, or slightly higher than the reception height of the IR headphone.

High IR light content such as sunlight and bright incandescent indoor lighting may degrade the audio signal and cause interference. If you experience such problems, simply move the system to a darker area.

Troubleshooting

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Under no circumstances should you try to repair the set yourself, as this would invalidate the warranty.

Problem	Remedy
No sound	- Check if the AC/DC adapter is fully inserted into the AC outlet and that its DC connector is properly inserted into the 12 Volt DC input connector located at the rear of the transmitter.- Check if the headphone's on/off switch is in the on position.- Headphone batteries running low. (See Headphone power supply)- Check if the audio source is switched on.- Volume not adjusted. Adjust the volume on the audio source/ headphone to a higher level.- Make use of the HC132 transmitter. Some transmitters already built into other equipment may not be compatible with the HC135 headphone because of the advanced technologies used in the HC135 headphone.
Distorted sound	- Headphone batteries running low. (See Headphone power supply)- Check the volume on audio source/ headphone is not set at too high a level. Reduce the volume.- Distance from the transmitter is too large. Move closer to the transmitter.- Interference from fluorescent lamps/ other radio sources. Move transmitter or headphone elsewhere.- Make use of the HC132 transmitter. Some transmitters already built into other equipment may not be compatible with the HC135 headphone because of the advanced technologies used in the HC135 headphone.

Troubleshooting

Specifications*

Maintenance

• If the headphone will not be used for a longer time, please remove the batteries to prevent leakage and corrosion.
• Do not leave the headphone near heat sources. Do not expose to direct sunlight, excessive dust, moisture, rain or any kind of mechanical shock.
• Do not use alcohol, thinner or petroleum-based substances to clean the headphone or transmitter. Use a slightly dampened chamois cloth to clean the housing.
• Do not use cleaning agents containing alcohol, spirits, ammonia or abrasives as these may harm the housing.

Hearing Safety! Continuous use at a high volume may permanently damage your hearing.

System:	Infra Red (IR)
Modulation:	Frequency Modulation (FM)
Effective Transmission Range:	7 meters max. range (depending on ambient conditions and restricted to line of sight with relation to the transmitter)
Input level:	300 mVrms (1 kHz sine wave)
Power supply – transmitter:	12 Volt / 200 mA DC, centre positive
Power supply – headphone:	2 × 1.5 V AAA batteries
Carrier Frequency (Headphone):	2.3 MHz (L), 2.8 MHz (R)
Signal/Noise ratio:	> 55 dB (1 kHz sine wave , A-weighted)
Distortion:	< 1% THD
Channel separation:	> 30 dB

*) All specifications are subject to change without prior notice.
