USER MANUAL GSXP24FR SHARP

• Plasmacluster is a trademark of SHARP Corporation.

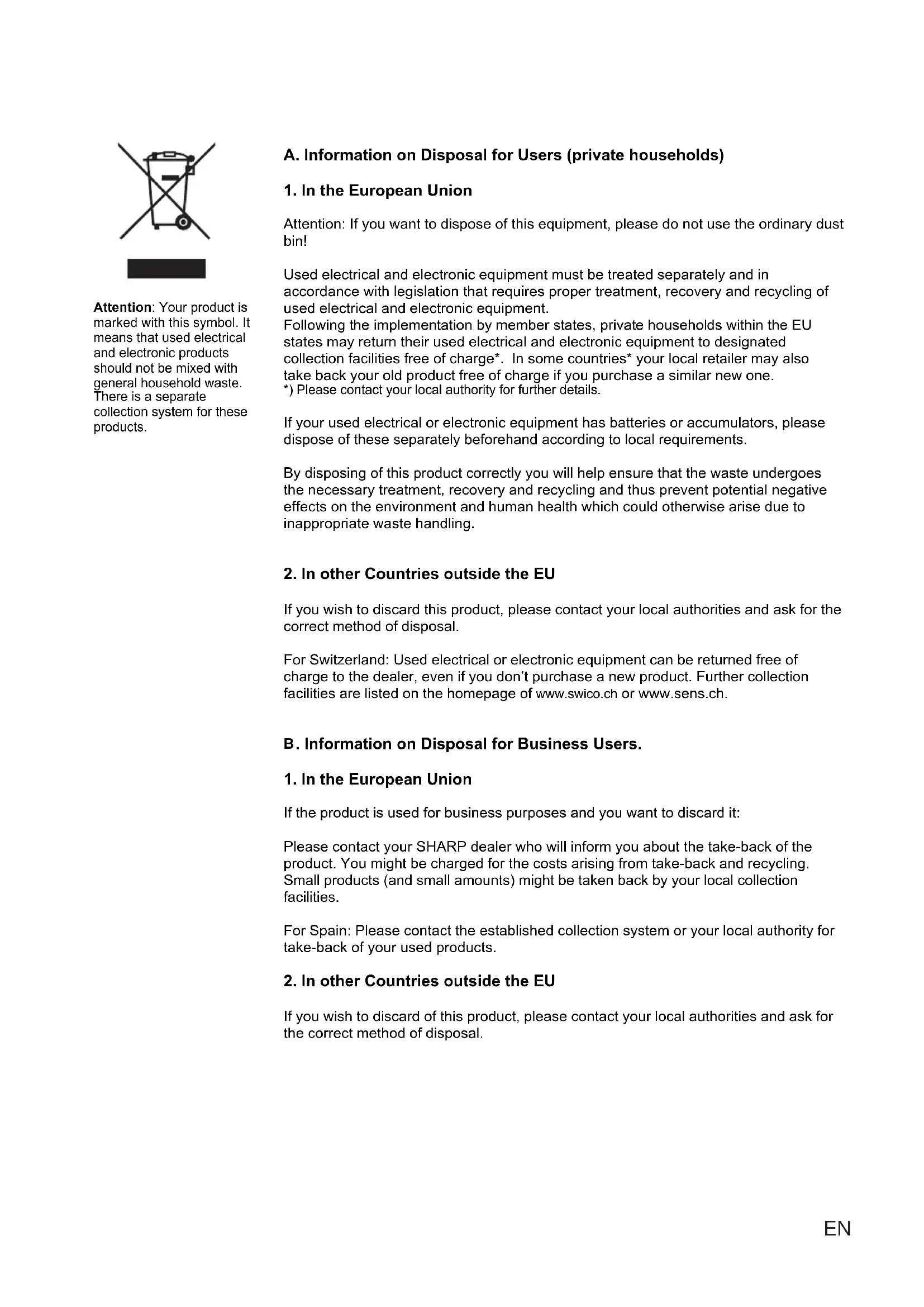

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one. *) Please contact your local authority for further details. If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities. For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.ENGLISH E-1 ENGLISH Thank you for purchasing a SHARP air conditioner. Please read this manual carefullybefore operating the product.• IMPORTANT SAFETY INSTRUCTIONS .....E-1 ADDITIONAL NOTES ON OPERATION ............. E-3

Do not pull or deform the power supply cord. Pulling and misuse of the power supply cordcan result in damage to the unit and cause electrical shock. Be careful not to expose your body directly to the outlet air for a long time. It may affectyour physical conditions. When using the air conditioner for infants, children, elderly, bedridden, or disabled peoplemake sure the room temperature is suitable for those in the room. Never insert objects into the unit. Inserting objects can result in injury due to the highspeed rotation of internal fans. Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,water pipe, lightning rod or telephone grounding wire. Incomplete grounding may causeelectric shock. If anything is abnormal with the air conditioner (ex. a burning smell), stop the operationimmediately and turn the circuit breaker OFF.

The appliance shall be installed in accordance with national wiring regulations. Improper cable connection can cause the power supply cord, plug and the electrical outlet tooverheat and cause fire. If the supply cord is damaged, it must be replaced by the manufacturer or its service agentor a similarly qualified person in order to avoid a hazard. Use only the manufacture-specified power cord for replacement.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

• Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electricshock, water leak, fire etc. Consult your dealer or other qualified service personnel for theinstallation/removal/repair of the unit.

Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage.

Do not operate the buttons with wet hand. It may cause electric shock.

For safety, turn the circuit breaker off when not using the unit for an extended period of time.

Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place.

Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.

This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.

Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.

Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.

Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and frequency. Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.

• Do not install the unit in a place where inflammable gas may leak. It may cause fire. Install the unit in a place with minimal dust, fumes and moisture in the air.

• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.

• Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock. E-2 GS-XP07FR_Eng.p651 06.3.29, 8:14 AM4ENGLISH

This air conditioner has a memory function to store settings when a power failure occurs. After power recovery, the unit will automatically re-start in the same settings which were active before the power failure, except for timer settings. If the timers were set before a power failure, they will need to be re-set after power recovery. PREHEATING FUNCTION In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent cold air from blowing out of the unit. DE-ICING FUNCTION

• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop operating.

• After de-icing is completed, the unit automatically resumes operation in the HEAT mode. HEATING EFFICIENCY

• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside air temperature therefore greatly affects the heating efficiency.

• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.

• It takes time to warm up and heat the entire room because of the forced air circulation system. E-3

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1°C higher than the desired temperature in the COOL mode and 2°C lower in the HEAT mode will save approximately 10 percent in power consumption.

• Setting the temperature lower than necessary during cooling operation will result in increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

• Blocking direct sunlight during cooling operation will reduce power consumption.

• Close the windows and doors during cooling and heating operations. SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR CIRCULATION KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION MAKE MOST OF THE TIMER OFF FUNCTION DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN

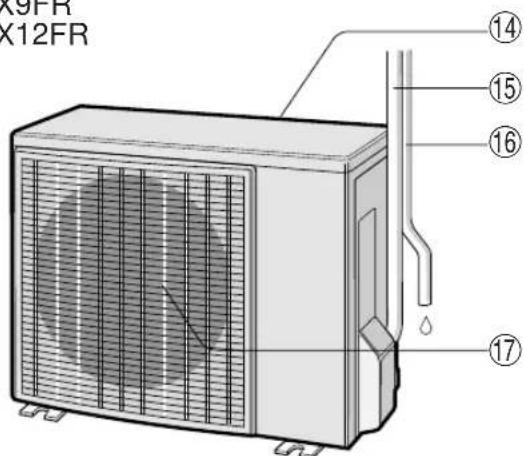

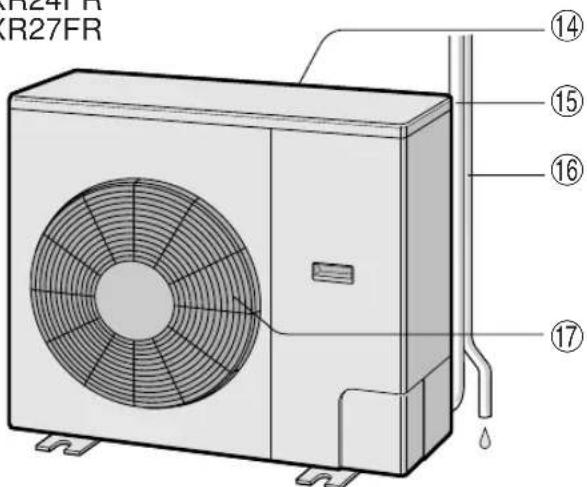

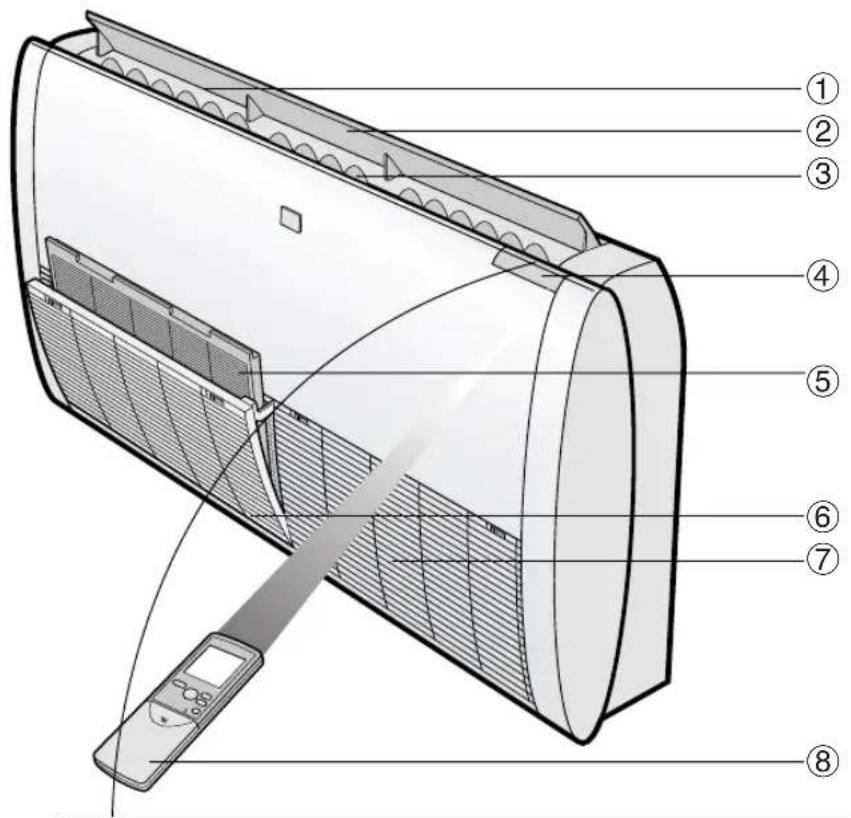

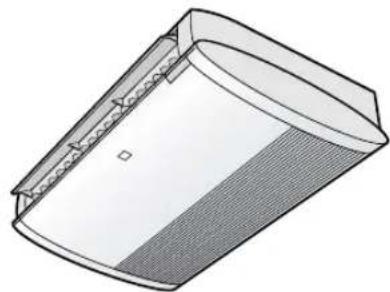

• The built-in protective de-vice may prevent the unitfrom operating when usedout of this range.• Condensation may form onthe air outlet if the unit op-erates continuously in theCOOL or DRY mode whenhumidity is over 80 percent. D.B. = Dry-bulb W.B. = Wet-bulb Cooling operation is available during the winter season by the built in winter cool function. Lower limit of outdoor temperature range is -10°C D.B. (Note : Built-in protect device may work when outdoor temperature falls below 21°C D.B.,depending on conditions.) HEATING GS-XP07FR_Eng.p651 06.3.29, 8:14 AM5PART NAMES 1 Outlet (Air) 2 Vertical Adjustment Louvres 3 Horizontal Adjustment Louvres 4 Indicator Panel 5 Air Filters 6 Intake Grille 7 Inlet (Air) 8 Remote Control 9 OPERATION Lamp (red ) 0 TIMER Lamp (orange ) q PLASMACLUSTER Lamp (blue) w RECEIVER Window e AUX. Button r Inlet (Air) t Interconnecting Cord and Refrigerant Tube y Drainage Hose u Outlet (Air) AE-X7FR AE-X9FR AE-X12FR INDOOR UNIT (When installed on the floor) E-4 OUTDOOR UNIT NOTE: Actual units might vary slightly from those shown above. GU-XR18FR GU-XR24FR GU-XR27FR (When installed on the ceiling)

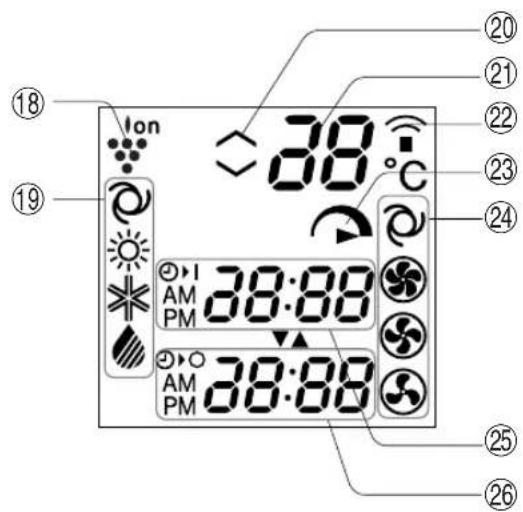

SWING FAN MODE SET/C

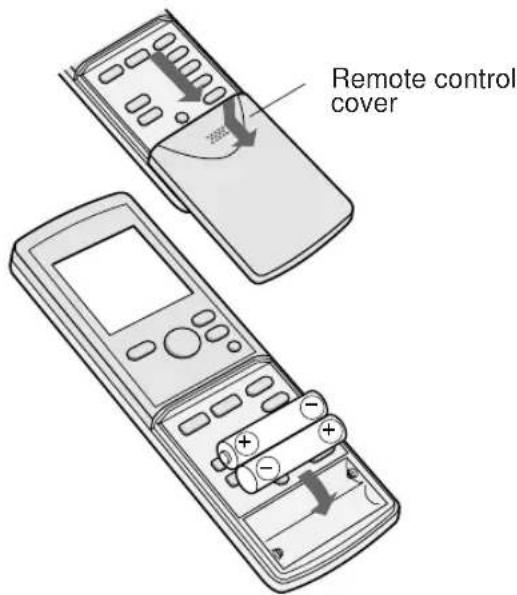

GS-XP07FR_Eng.p651 06.3.29, 8:14 AM71 Remove the remote controlcover. Insert batteries in the compart-ment, making sure the ± and— polarities are correctlyaligned.• The display indicates "AM6:00" when batteries are prop-erly installed. Reinstall the cover.

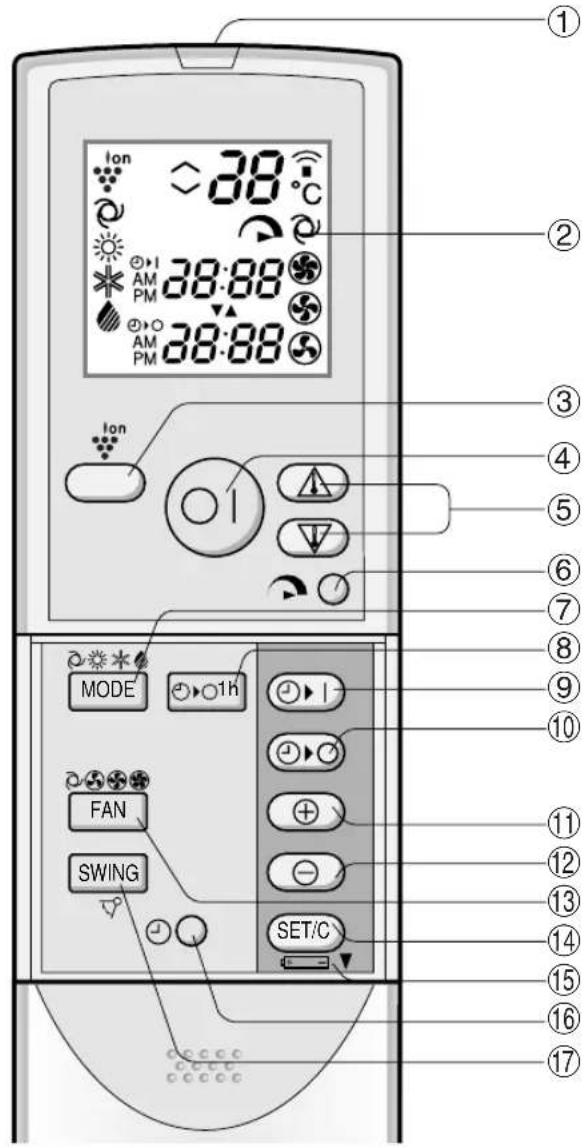

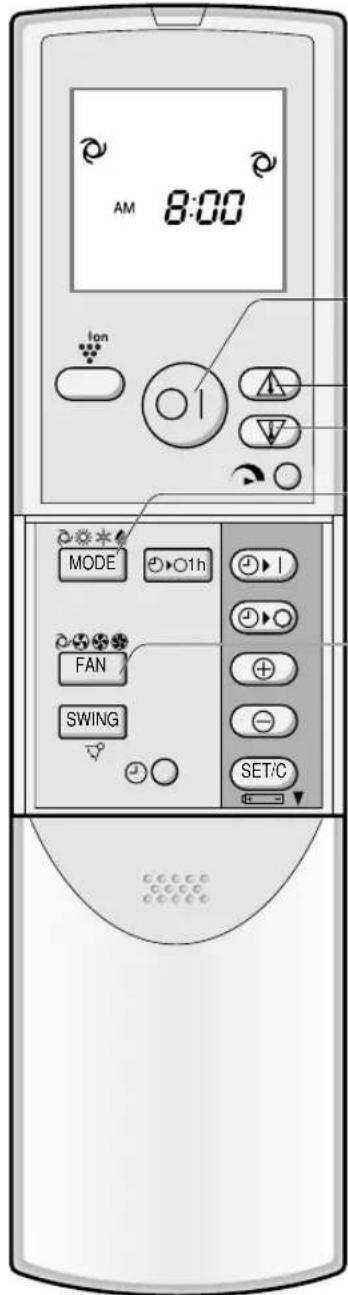

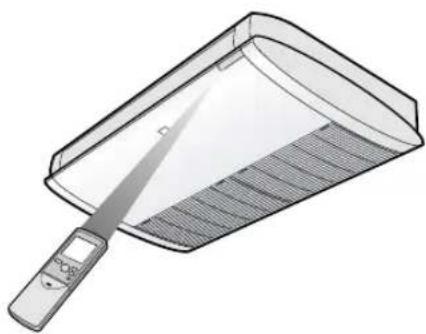

USING THE REMOTE CONTROL

• The battery life is approximately one year in normal use.• When you replace the batteries, always change both batteries, and make surethey are the same type.• If the remote control does not operate properly after replacing the batteries, takeout the batteries and reinstall them again after 30 seconds.• If you will not be using the unit for a long time, remove the batteries from theremote control. Point the remote control towards the unit’s signal receiver window and press the desired button. The unit generates a beep when it receives the signal.

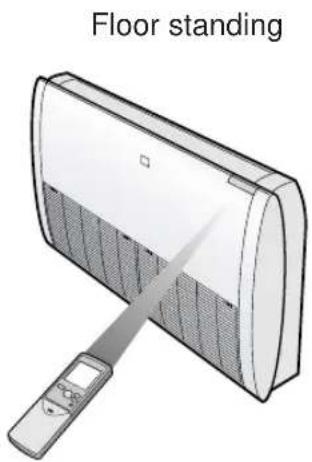

• Make sure there is nocurtain or other objectbetween the remote controland the unit.• The remote control cansend signals from up to 7metres away. LOADING BATTERIES Use two size-AAA (R03) batteries.

• Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.

• Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.

• The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.

• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

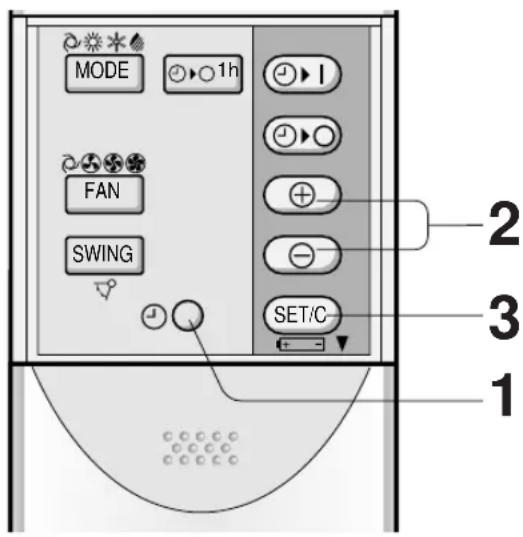

SET CURRENT CLOCK TIME

There are two clock modes: 12-hour mode and 24-hour mode.

To set to the 12-hour mode, press the CLOCK button once in the first step. To set to the 24-hour mode, press the CLOCK button twice in the first step.

Press the TIME ADVANCE or REVERSE button to set the current time.

• Keep the button pressed to advance or reverse the time display quickly.

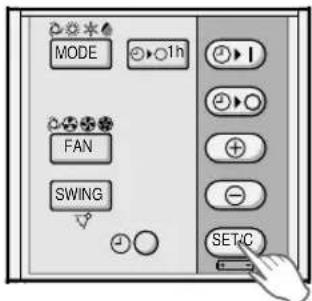

Press the SET/C button.

• The colon (:) blinks to indicate that the clock is functioning. NOTE:

• The current time cannot be set when the timer is operating.

Example: 5 o'clock in the afternoon Clock Display 12-hour mode PM 5:00 24-hour mode 17:00 SWING FAN MODE SET/C

GS-XP07FR_Eng.p651 06.3.29, 8:14 AM9SWING FAN MODE SET/C

Press the THERMOSTAT button to set the desired temperature.

• In the AUTO andDRY modes, the tem-perature can bechanged in 1°C incre-ments within therange of 2°C higherto 2°C lower from thetemperature auto-matically determinedby the air conditioner.• In the COOL and HEAT modes, the tempera-ture can be set within the range of 18 to 32°C

• The red OPERATION lamp ( ) on the unitwill light.

• In the DRY mode, the fan speed is preset toAUTO and cannot be changed. To turn off the unit, press the ON/OFF but- ton again.
• The red OPERATION lamp ( ) on the unitwill turn off. Press the FAN button to set the desired fan speed. AUTO SOFT LOW HIGH(Example: 1°C higher)(Example: 2°C lower)

GS-XP07FR_Eng.p651 06.3.29, 8:14 AM10ENGLISH E-9 During operation, if the outdoor temperature changes, the temperature settings will automatically slide as shown in the chart. MODE CHANGEOVER During seasons when you need COOLING at daytime and HEATING at night, or if the room temperature should become extremely higher than the temperature setting, due to supplementary heating equipment, the mode will automatically switch between HEAT and COOL mode to keep the comfortable room temperature.

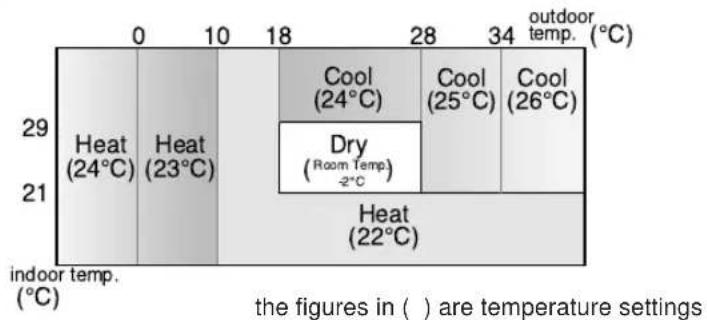

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically se- lected according to the room temperature and outdoor temperature when the unit is turned on. Modes and Temperature Settings the figures in ( ) are temperature settings

GS-XP07FR_Eng.p651 06.3.29, 8:14 AM11E-10

ADJUSTING THE AIR FLOW DIRECTION

VERTICAL AIR FLOW DIRECTION

HOW TO ADJUST THE AIR FLOW DIRECTION HEAT mode COOL and DRY modes The adjustment range is narrower theSWING range in order to prevent con-densation from dripping.The range is wide so the air flow can bedirected toward the floor. Hold the horizontal adjustment louvre as shown in the diagram and adjust the air flow direction. Press the SWING button on the remote control once.

• The vertical adjustment louvre will change its angle continuously. Press the SWING button again when the vertical adjustment louvre is at the desired position.
• The louvre will stop moving within the range shown in the diagram.• The adjusted position will be memorized and will be automatically set to the same positionwhen operated the next time. Adjustment range CAUTION Never attempt to adjust the vertical adjustment louvres manually.
• Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when theremote control is used for adjustment.• When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY modefor an extended period of time, condensation may result. Do not adjust the horizontal adjustment louvre to the extreme left or right in the COOL mode with the fan speed set to "SOFT( )" for an extended period of time. Condensation may form on the louvres.

In this operation, the air conditioner works at maximum power to makes the room cool or warm so rapidly that you can use it just after you come home.

• The remote control displays “ ”.• The orange TIMER lamp ( ) on the unit will light up.• The unit will stop operating after one hour. TO CANCEL Press the TIMER CANCEL (SET/C) button.
• The orange TIMER lamp ( ) on the unit will turn off. Alternatively, turn the unit off by pressing the ON/ OFF button.
• The red OPERATION lamp ( ) and the orangeTIMER lamp ( ) on the unit will turn off.

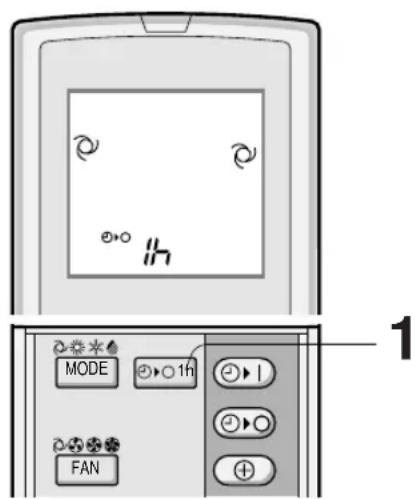

When the ONE-HOUR OFF TIMER is set, the unit will automatically turn off after one hour.

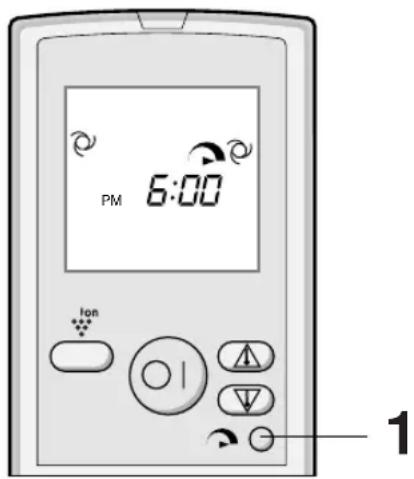

To activate the FULL POWER operation, press the FULL POWER button during operation.

• The remote control will display .• The temperature display will go off. TO CANCEL Press the FULL POWER button again.
• FULL POWER operation will also be cancelled whenthe operation mode is changed, or when the unit isturned off. NOTE:
• You cannot set the temperature or fan speed during the FULL POWER operation. NOTES:
• The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFFoperations.• If the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will operate foran hour at the formerly set condition.• If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER isactivated, press the ONE-HOUR OFF TIMER button again during operation.• If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.

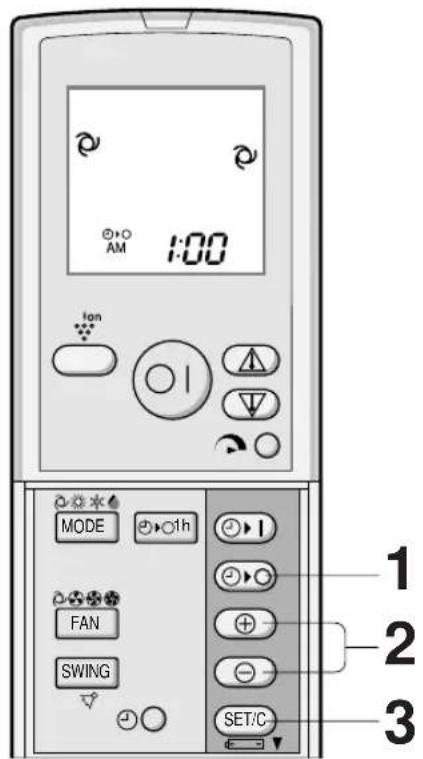

GS-XP07FR_Eng.p651 06.3.29, 8:14 AM131 Press the TIMER OFF ( ) button. The TIMER OFF indicator will blink; press theTIME ADVANCE or REVERSE buttons to setthe desired time. (The time can be set in 10-minute increments.) Point the remote control at the signal receiverwindow on the unit and press the TIMER SET(SET/C) button.• The orange TIMER lamp ( ) on the unit willlight.• The unit will generate a beep when it receives thesignal. NOTE: Before setting the timer, make sure the clock is properly set with the current time. TIMER OPERATION TIMER OFF Cancel the TIMER setting first, then set itagain.TO CHANGE TIME SETTINGTO CANCEL TIMER MODEPress the TIMER CANCEL (SET/C) button.• The orange TIMER lamp ( ) on the unit willturn off.• The current clocktime will be dis-played on the re-mote control.TIPS ABOUT TIMER OFF OPERATIONWhen the TIMER OFF mode is set, thetemperature setting is automaticallyadjusted to prevent the room frombecoming excessively hot or too coldwhile you sleep. (Auto Sleep function) COOL/DRY MODE:

• One hour after the time operation begins,the temperature setting rises 1°C higherthan the original temperature setting. HEAT MODE:
• One hour after the timer operation begins,the temperature setting drops 3°C lowerthan the original thermostat setting.

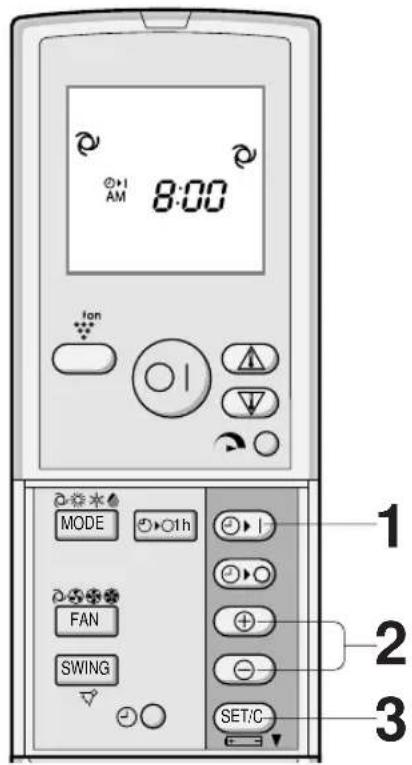

GS-XP07FR_Eng.p651 06.3.29, 8:14 AM14ENGLISH Press the TIMER ON ( ) button. The TIMER ON indicator will blink; press the TIMEADVANCE or REVERSE buttons to set the de-sired time. (The time can be set in 10-minuteincrements.) Point the remote control at the signal receiverwindow on the unit and press the TIMER SET(SET/C) button.• The orange TIMER lamp ( ) on the unit will light.• The unit will generate a beep when it receives thesignal.

Select the operation condition.

• The unit will turn on prior to the set time to allow theroom to reach the desired temperature by the pro-grammed time. (Awaking function) Example: To stop operation at 11:00 p.m. and resume opera-tion (With the same mode and temperature settings)to turn on the unit by 7:00 a.m. Set the TIMER OFF to 11:00 p.m. during opera-tion. Set the TIMER ON to 7:00 a.m.The arrow ( or ) between the TIMER ONindicator and the TIMER OFF indicator shows whichtimer will activate first. E-13 NOTES:
• You cannot programme the ON-TIMER and OFF-TIMER to operate the unit at differenttemperatures or other settings.• Either timer can be programmed to activate prior the other.You can use the ON and OFF timers in combination.COMBINED USE OF ON AND OFF TIMERS

TIMER ON SWING FAN MODE SET/C

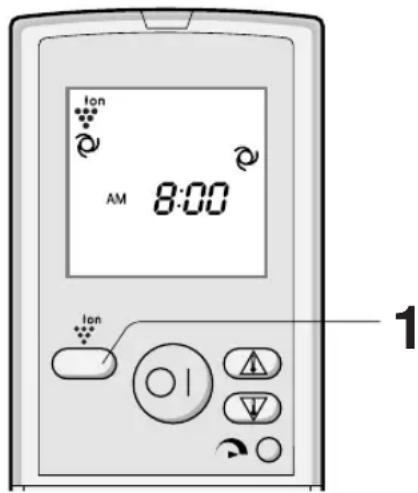

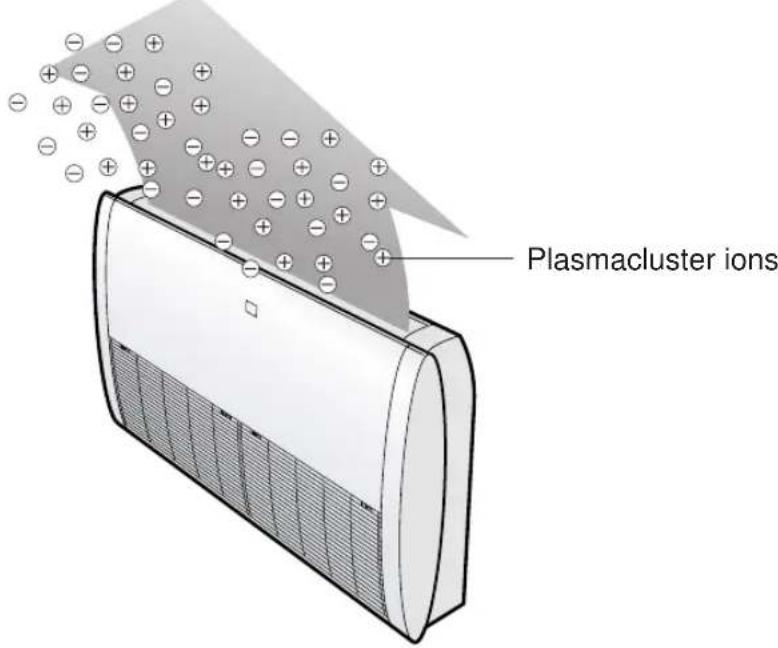

The Plasmacluster ion generator inside the air conditioner will release positive and negative Plasmacluster ions into the room. Approximately the same numbers of positive and negative ions released into the air will reducesome airborne mold. PLASMACLUSTER OPERATION

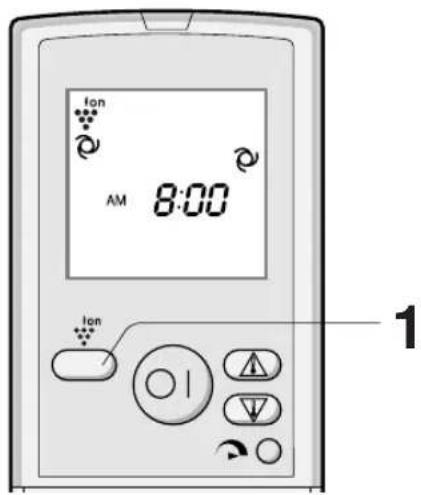

During operation, press the PLASMACLUSTER button.

• The remote control will display " "• The blue PLASMACLUSTER lamp on the unit will light up. TO CANCEL Press the PLASMACLUSTER button again.
• The PLASMACLUSTER lamp on the unit will turn off. NOTES:
• Use of the PLASMACLUSTER operation will be memorized, and it will be activated the nexttime you turn on the air conditioner.• When the PLASMACLUSTER button is pressed while the unit is not operating, thePLASMACLUSTER operation will be performed without accompanying air conditioning mode(eg, HEATING or COOLING). The mode symbol of the remote control will go off and the fanspeed can not be set AUTO.Plasmacluster ions GS-XP07FR_Eng.p651 06.3.29, 8:14 AM16ENGLISH MAINTENANCE Be sure to disconnect the power cord from the wall outlet or turn off the circuitbreaker before performing any maintenance.

MAINTENANCE AFTER AIR

Operate the unit in the COOLmode, temperature setting 32°C,for about half a day to allow themechanism to thoroughly dry. Stop the operation and unplugthe unit. Turn off the circuitbreaker, if you have one exclu-sively for the air conditioner. Clean the filters, then reinstallthem. MAINTENANCE BEFORE

AIR CONDITIONER SEASON

Make sure that the air filters arenot dirty. Make sure that nothing obstructsthe air inlet or outlet. Check the outdoor mounting rackperiodically for wear and to makesure it is firmly in place. CLEANING THE UNIT AND THE REMOTE CONTROL

• Wipe them with a soft cloth.• Do not directly splash or pour water on them. We can cause electrical shock orequipment damage.• Do not use hot water, thinner, abrasive powders or strong solvents. E-15 AUXILIARY MODE Use this mode when the remote control is not available.

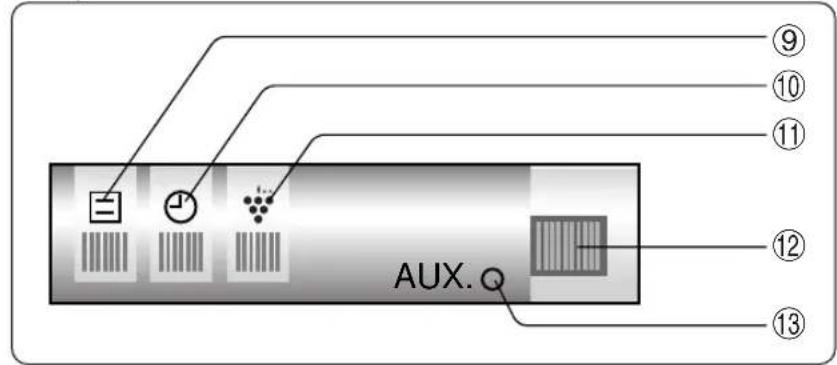

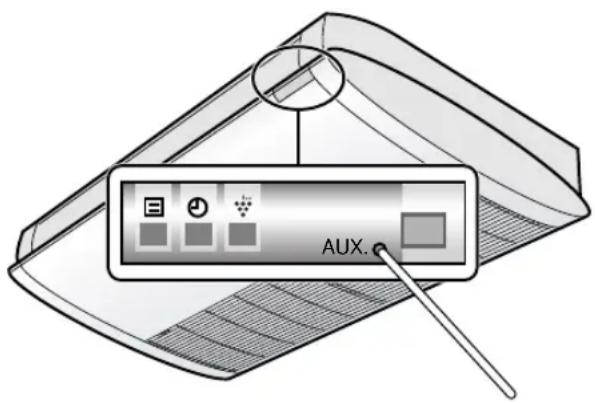

Press the AUX. button using a thin stickon the indicator panel.• The red OPERATION lamp ( ) on theunit will light and the unit will start operatingin the AUTO mode.• The fan speed and temperature setting areset to AUTO.

Press the AUX. button again.• The red OPERATION lamp ( ) on theunit will turn off. NOTE: If the AUX. button is pressed during normal operation, the unit will turn off. AUX. GS-XP07FR_Eng.p651 06.3.29, 8:14 AM17CLEANING THE FILTERS E-16 MAINTENANCE The air filters should be cleaned every two weeks.

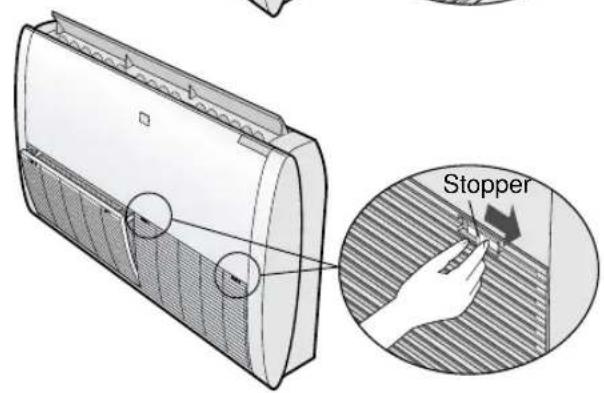

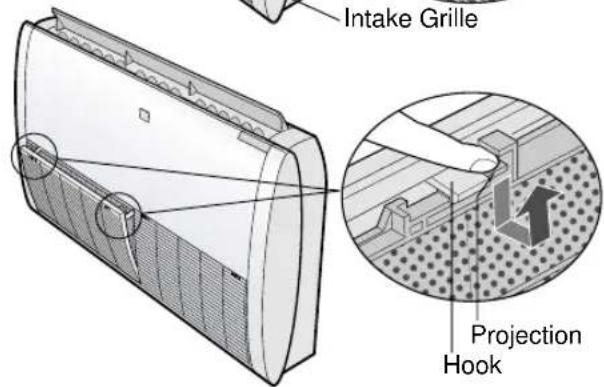

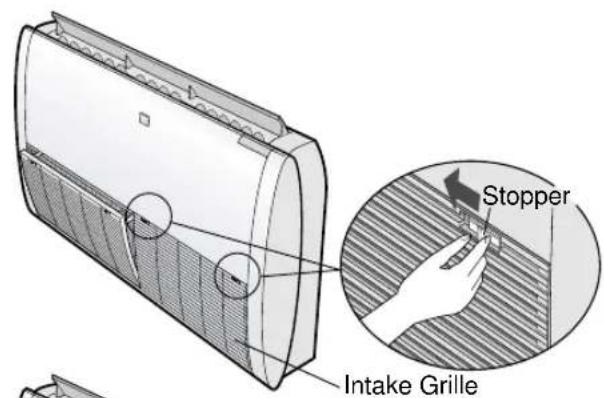

1 Slide the stoppers to the left ( OPEN

Two stoppers are provided for each the intake grille. 2 Gently pull and open the intake grille.

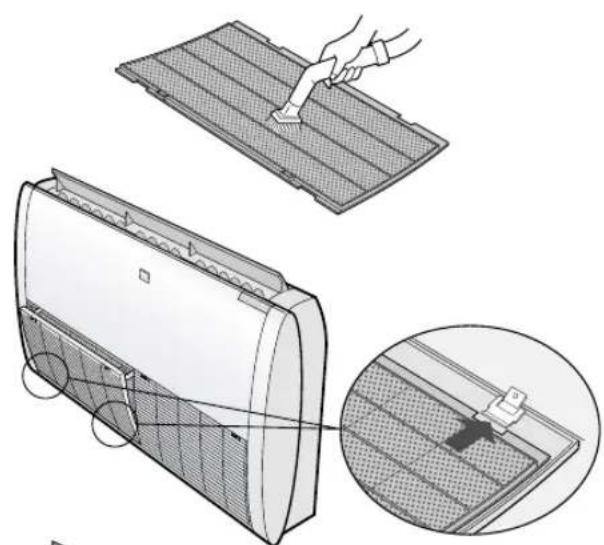

Push both projections on the air fil- ters slightly and unhook the filters.

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

Face front side down and reinstall the filters in the original positions. Push in the hooks securely.

Slide the stoppers to the right ( CLOSE ) and the lock the intake grille. StopperIntake GrilleProjectionStopper Hook GS-XP07FR_Eng.p651 06.3.29, 8:14 AM18ENGLISH IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL Check whether the remote con-trol batteries have become oldand weak.Try to send the signal again withthe remote control pointed prop-erly towards the unit’s signal re-ceiver window.Check whether the remote con-trol batteries are installed withthe polarities properly aligned. E-17

BEFORE CALLING FOR SERVICE

The following conditions do not denote equipment malfunctions

UNIT DOES NOT OPERATE

The unit will not operate if it is turned on immediatelyafter it is turned off. The unit will not operateimmediately after the mode is changed. This is toprotect the internal mechanisms. Wait 3 minutesbefore operating the unit. UNIT DOES NOT SEND OUT WARM AIR The unit is preheating or de-icing. CRACKING NOISE The unit may produce a cracking noise. This soundis generated by the friction of the front panel andother components expanding or connecting due to atemperature change. If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE

Check to see if the circuit breaker has tripped or the fuse has blown. IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY Check the filters. If dirty, cleanthem.Check the outdoor unit to makesure nothing is blocking the air in-let or outlet.Check the thermostat is propersetting.Make sure windows and doorsare closed tightly.A large number of people in theroom can prevent the unit fromachieving the desired tempera-ture.Check whether any heat-gen-erating appliances are operat-ing in the room. ODORS Carpet and furniture odors that entered into theunit and the air conditioner's inner componentodors at the early stage of installation may be sentout from the unit. Please call for service when OPERATION Lamp and TIMER Lamp on the indicator panel blink.

A LOW BUZZING NOISE EMITTED

This is a sound emitted when the unit is generatingPlasmacluster ions. SWISHING NOISE The soft, swishing noise is the sound of the refrig-erant flowing inside the unit. WATER VAPOUR

• In the COOL and DRY operation, water vapourcan sometimes be seen at the air outlet due tothe difference between the room air tempera-ture and the air discharged by the unit.• In the HEAT operation, water vapour may flowout of the outdoor unit during de-icing.

THE OUTDOOR UNIT DOES NOT

STOP After stopping the operation, the outdoor unit willrotate its fan for about a minute to cool down theunit.

ODOR EMITTED FROM THE

PLASMACLUSTER AIR OUTLET

This is the smell of ozone generated from thePlasmacluster ion generator. The ozone concen-tration is very small, posing no adverse effect onyour health. The ozone discharged into the airrapidly decomposes, and its density in the roomwill not increase. GS-XP07FR_Eng.p651 06.3.29, 8:14 AM19ES
