SHARP AY-XP9FR - Air conditioner
📄 144 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice SHARP AY-XP9FR - page 2
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Wall-mounted split air conditioner
Brand Sharp
Model AY-XP9FR
Indoor unit dimensions (W x H x D) Approximately 79.5 x 26.5 x 20.5 cm
Outdoor unit dimensions (W x H x D) Approximately 72.0 x 42.5 x 27.0 cm
Indoor unit weight Approximately 8.5 kg
Outdoor unit weight Approximately 26.0 kg
Power supply 220-240 V ~ 50 Hz, single-phase
Cooling capacity 2.6 kW (9,000 BTU/h)
Heating capacity 2.8 kW (9,600 BTU/h)
Energy class (cooling) A++
Refrigerant R32
Main functions Air conditioning, heating, dehumidification, ventilation, auto mode, 24h timer, silent mode, louver oscillation (up/down, left/right), turbo function, sleep mode
Remote control included Yes, with LCD display
Air filter Anti-allergen filter, washable
Maintenance and cleaning Clean filter every 2 weeks, vacuum grilles, call a professional for annual maintenance
Indoor unit noise level (max) Approximately 22 dB (silent mode)
Outdoor unit noise level (max) Approximately 48 dB
Safety Automatic overheating trigger, overvoltage protection, automatic shutdown in case of failure, self-diagnosis
Spare parts and repairability Filters, remote control, electronic board available; repairability index 7.8/10
Legal warranty of conformity 2 years

Frequently Asked Questions - AY-XP9FR SHARP

How to clean the filter of my Sharp AY-XP9FR air conditioner?
Turn off the appliance and unplug it. Open the front panel, remove the filter, vacuum the dust or rinse it with warm soapy water. Dry it completely before replacing it. Clean the filter every two weeks.
What to do if the air conditioner is not cooling properly?
First check if the filter is clean. Make sure the louvers are not blocked and that the set temperature is lower than the room temperature. If the problem persists, contact a technician.
The remote control does not work, what to do?
Check the remote control batteries and replace them if necessary. Make sure you are aiming directly at the receiver on the indoor unit. If nothing works, reset the remote control by removing the batteries for 30 seconds.
How to use sleep mode?
Press the 'SLEEP' button on the remote control. The air conditioner automatically adjusts the temperature and fan to ensure a comfortable sleep while saving energy. The temperature will increase by 1°C after the first hour, then by an additional 1°C after the second hour.
What is the power consumption of the Sharp AY-XP9FR?
In cooling mode, the consumption is about 0.8 kW and in heating 0.9 kW. The energy class is A++, which guarantees excellent efficiency.
Can I use the air conditioner without the remote control?
Yes, the indoor unit has a manual control panel with buttons for basic functions: on/off, mode, temperature, fan speed. However, some advanced functions require the remote control.
How to set the timer?
Press the 'TIMER' button on the remote control. Use the arrows to set the start or stop time. Confirm with 'SET'. You can program up to 24 hours in advance.
What do the error codes on the display mean?
The error codes indicate malfunctions. For example, E1: ambient temperature sensor fault, E2: evaporator sensor fault. Consult the manual for the full list and contact a professional if a code appears.
The air conditioner smells bad, what to do?
This may be due to a dirty filter or moisture buildup. Clean the filter and spray with a specific air conditioner cleaner. Make sure the appliance has run in dry ventilation mode before turning it off.
What refrigerant is used and is it dangerous?
The Sharp AY-XP9FR uses R32 refrigerant, which has a low global warming potential and is less harmful to the environment. However, in case of leakage, the gas is flammable. Any intervention must be carried out by a professional.

User questions about AY-XP9FR SHARP

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Air conditioner in PDF format for free! Find your manual AY-XP9FR - SHARP and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AY-XP9FR by SHARP.

USER MANUAL AY-XP9FR SHARP

AY-XP7FR AY-XP9FR AY-XP12FR

Line drawing of a cylindrical air conditioner unit (no text or symbols)

Eco inverter

Air Conditioner

on Plasmacluster™

New Refrigerant

R410A

SHARP AY-XP9FR - AY-XP7FR AY-XP9FR AY-XP12FR - 3

INDOOR UNIT

UNITE INTERIEURE

UNIDAD INTERIOR

UNITÀ INTERNA

UNIDADE INTERIOR

İÇ ÜNİTE

ВНУТРЕННИЙ БЛОК

OUTDOOR UNIT

UNITE EXTERIEURE

UNIDAD EXTERIOR

OUTDOOR UNIT

OUTDOOR UNIT

OUTDOOR UNIT

OUTDOOR UNIT

AY-XP7FR

AY-XP9FR

AY-XP12FR

AE-X7FR

AE-X9FR

AE-X12FR

*Plasmacluster is a trademark of Sharp Corporation.

SPLIT TYPE

ROOM AIR CONDITIONER

OPERATION MANUAL

SPLIT-TYPE ROOM AIR CONDITIONER

INSTRUCTIONS

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling.

Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

PbSHARP AY-XP9FR - In other Countries outside the EU - 1

The battery supplied with this product contains traces of Lead.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste!

There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.

For Switzerland: The used battery is to be returned to the selling point.

For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.

ENGLISH

This manual explains the proper use of your new air conditioner. Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference.

CONTENTS

• IMPORTANT SAFETY INSTRUCTIONS ....E-1 • PART NAMES ...... E-3 - SETTING DEODORANT DUST COLLECTING FILTER ....E-5 • USING THE REMOTE CONTROL .....E-6 • BASIC OPERATION.....E-8 • ADJUSTING THE AIR FLOW DIRECTION.....E-10 • PROGRESSIVE AIRFLOW.....E-11 • FULL POWER OPERATION ......E-11

  • PLASMACLUSTER OPERATION ......E-12
  • SELF CLEAN OPERATION ......E-13
  • ONE-HOUR OFF TIMER ......E-13 • TIMER OPERATION ......E-14 • AUXILIARY MODE ....E-16
  • MAINTENANCE ......E-16 • ADDITIONAL NOTES ON OPERATION .....E-18 • TIPS ON SAVING ENERGY ......E-18
  • BEFORE CALLING FOR SERVICE ......E-19

IMPORTANT SAFETY INSTRUCTIONS

WARNINGS FOR USE

1 Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord can result in damage to the unit and cause electrical shock. 2 Be careful not to expose your body directly to the outlet air for a long time. It may affect your physical conditions. 3 When using the air conditioner for infants, children, elderly, bedridden, or disabled people make sure the room temperature is suitable for those in the room. 4 Never insert objects into the unit. Inserting objects can result in injury due to the high speed rotation of internal fans. 5 Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe, water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause electric shock. 6 If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation immediately and turn the circuit breaker OFF. 7 The appliance shall be installed in accordance with national wiring regulations. Improper cable connection can cause the power supply cord, plug and the electrical outlet to overheat and cause fire. 8 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Use only the manufacture-specified power cord for replacement.

WARNINGS FOR INSTALLATION/REMOVAL/REPAIR

- Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the installation/removal/repair of the unit.

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS FOR USE

1 Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage. 2 Do not operate the buttons with wet hands. It may cause electric shock. 3 For safety, turn the circuit breaker off when not using the unit for an extended period of time. 4 Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place. 5 Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury. 6 This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants. 7 Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock. 8 Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles. 9 Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured. 10 Do not splash or pour water directly on the unit. Water can cause electrical shock or equipment damage. 11 This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. 12 This appliance is unfit for use in Nordic region.

CAUTIONS FOR LOCATION/INSTALLATION

  • Make sure to connect the air conditioner to power supply of the rated voltage and frequency. Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.
  • Do not install the unit in a place where inflammable gas may leak. It may cause fire. Install the unit in a place with minimal dust, fumes and moisture in the air.
  • Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.
  • Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock.

INDOOR UNITDiagram of an air conditioner unit with numbered parts for identification and assembly reference.

ION ION SIGN ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑧ ⑨

OUTDOOR UNIT ⑳ ②1 ②2 ②3

NOTE: -Actual units might vary slightly from those shown above.

① AUX. Button ②Inlet (Air) ③Open Panel ④Deodorant Dust Collection Filter (non-washable) ⑤Air Filters ⑥Indicator ⑦Receiver Window ⑧Vertical Adjustment Louvres ⑨Horizontal Adjustment Louvres ⑩ Outlet (Air) ⑪ Power Supply Cord ⑫ Remote Control

⑬PLASMACLUSTER Lamp (blue) ⑭ TEMPERATURE INDICATOR ⑮ OUTDOOR Temp. Lamp (green ⬆) ⑯ROOM Temp. Lamp (green ⬆) ⑰FULL POWER Lamp (green ⑱TIMER Lamp (orange Ⓥ) ⑲OPERATION Lamp (red ☐) ⑳Inlet (Air) ②1Refrigerant Tube and Interconnecting Cord ②Drainage Hose ②3 Outlet (Air)

REMOTE CONTROL① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉴ ㉵ ㉶ ㉇ ㉈ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉟ ① ② ③ ④ ⑤ ⑥ ⑦ DISPLAY DISPLAY MODE 1h CLEAN FAN SWING SET/C

① TRANSMITTER ② DISPLAY (Liquid Crystal Display) ③ PLASMACLUSTER Button ④ DISPLAY Button ⑤ ON/OFF Button ⑥ THERMOSTAT Button ⑦ FULL POWER Button ⑧ PROGRESSIVE AIRFLOW Button ⑨ MODE Button ⑩ TIMER ON Button (for setting the timer) ⑪ TIMER OFF Button (for setting the timer) ⑫ ONE-HOUR OFF TIMER Button ⑬ TIME ADVANCE Button ⑭ TIME REVERSE Button ⑮ SELF CLEAN Button ⑯ TIMER SET/CANCEL Button ⑰ Indicates BATTERY COMPARTMENT is below this mark ⑱ CLOCK Button ⑲ FAN Button ⑳ SWING Button

L.C.D. REMOTE CONTROL DISPLAY

②1 PROGRESSIVE AIRFLOW SYMBOL ② SELF CLEAN SYMBOL ②3 PLASMACLUSTER SYMBOL ⑳ MODE SYMBOLS

: AUTO : DRY

SHARP AY-XP9FR - L.C.D. REMOTE CONTROL DISPLAY - 1

SHARP AY-XP9FR - L.C.D. REMOTE CONTROL DISPLAY - 2

SHARP AY-XP9FR - L.C.D. REMOTE CONTROL DISPLAY - 3

⑲ THERMOSTAT SETTING FOR AUTO AND DRY MODES ②6 TEMPERATURE INDICATOR ⑳ TRANSMITTING SYMBOL ⑳ FULL POWER SYMBOL ⑲ FAN SPEED SYMBOLS

: AUTO : LOW

SHARP AY-XP9FR - L.C.D. REMOTE CONTROL DISPLAY - 4

SHARP AY-XP9FR - L.C.D. REMOTE CONTROL DISPLAY - 5

SHARP AY-XP9FR - L.C.D. REMOTE CONTROL DISPLAY - 6

②1 ②2 ②3 ②4 Ion 38°C DC AM PM 38:88 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③1 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③0 ③1

③0 TIMER ON INDICATOR/CLOCK

Indicates the on timer preset time or current time.

③1 TIMER OFF INDICATOR

Indicates the preset time for off timer or one-hour off timer.

SETTING DEODORANT DUST COLLECTION FILTER

The deodorant dust collection filters are packed as accessory of this unit. During operation of the air conditioner, the filters remove dust and tobacco smoke from the air and discharges clean air.

Diagram of a car air conditioner unit with labeled components and airflow direction arrows

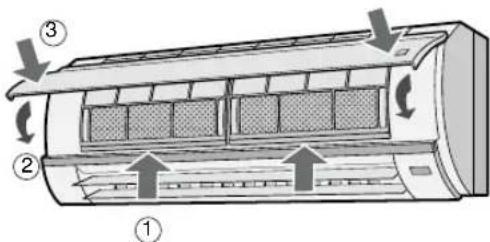

1 Take out the air filters.

① Open the open panel. ② Push the air filters up slightly to unlock them. ③ Pull the air filters down to remove them.

Filter stopper Deodorant dust collection filter Air filter

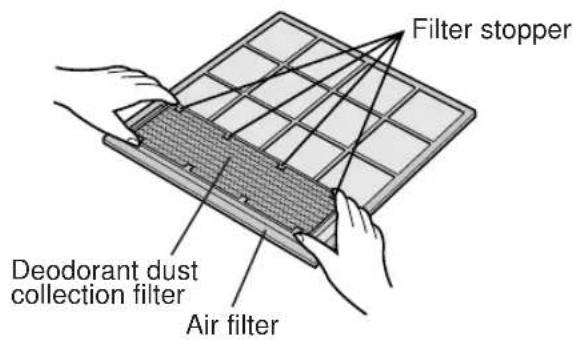

2 Set the deodorant dust collection filter under the filter stoppers located on the air filter.

Diagram of a car air conditioner unit with numbered parts and airflow indicators

3 Reinstall the air filters

1. Reinstall the air filters in their original positions. 2. Close the open panel. 3. Push the arrow-marked part of the panel firmly to lock it in place.

Precautions

  • The filters are sealed in a plastic bag to preserve their dust collection effectiveness. Do not open the bag until you are ready to use the filters. (Otherwise, the filters' lifespan may be shortened.)
  • Do not expose the filters to direct sunlight. (Otherwise, they may deteriorate.)

LOADING BATTERIES Use two size-AAA (R03) batteries.

1. Remove the remote control cover. 2. Insert batteries into the compartment, ensuring the ⊕ and ⊖ polarities are correctly aligned.

- The display shows "AM 6:00" when batteries are properly installed.

3. Reinstall the cover.

Remote control cover

NOTES:

  • The battery life is approximately one year under normal use.
  • When replacing the batteries, always replace both batteries, and ensure they are of the same type.
  • If the remote control does not operate properly after replacing the batteries, remove the batteries and reinstall them after 30 seconds.
  • If you will not be using the unit for an extended period, remove the batteries from the remote control.

HOW TO USE THE REMOTE CONTROL

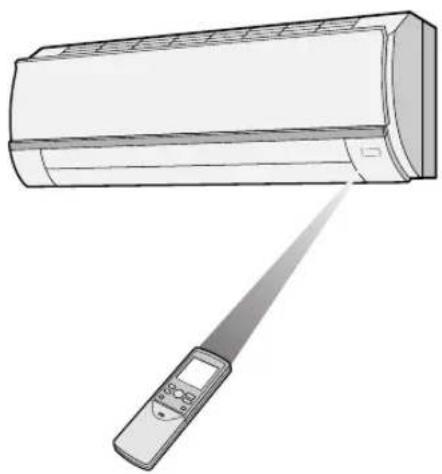

Point the remote control towards the unit's signal receiver window and press the desired button. The unit generates a beep when it receives the signal.

  • Make sure there is no curtain or other object between the remote control and the unit.
  • The remote control can send signals from up to 7 metres away.

Line drawing of a wall-mounted air conditioner with a handheld remote control (no text or symbols)

SHARP AY-XP9FR - HOW TO USE THE REMOTE CONTROL - 2

CAUTION

  • Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.
  • Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.
  • The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.
  • Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

SET CURRENT CLOCK TIME

There are two clock modes: 12-hour mode and 24-hour mode.

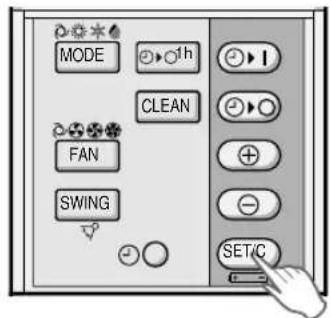

MODE 1h CLEAN FAN SWING SET/C 1 2 3

Example: 5 o'clock in the afternoon

Clock Display
12-hour mode PM 5:00
24-hour mode 17:00

1 To set to the 12-hour mode, press the CLOCK button once in the first step. To set to the 24-hour mode, press the CLOCK button twice in the first step.

2 Press the TIME ADVANCE or REVERSE button to set the current time.

- Keep the button pressed to advance or reverse the time display quickly.

3 Press the SET/C button. • The colon (:) blinks to indicate that the clock is functioning.

NOTE:

- The current time cannot be set when the timer is operating.

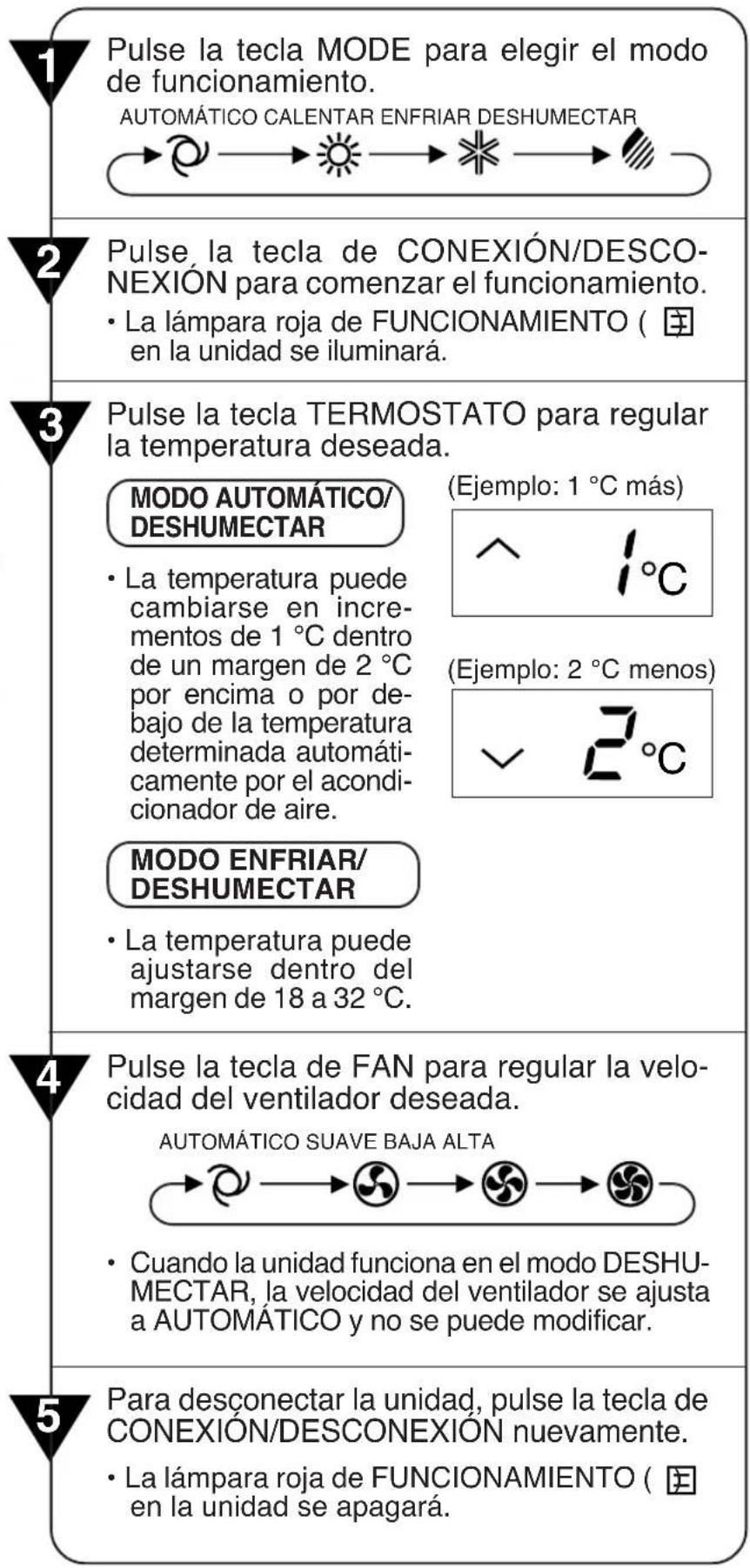

Press the MODE button to select the operation mode.

AUTO HEAT COOL DRY

Press the ON/OFF button to start operation.

- The red OPERATION lamp ( ) on the unit will light.

Press the THERMOSTAT button to set the desired temperature.

DISPLAY

MODE 1h

CLEAN

FAN

SWING

SET/C

AUTO/DRY MODE

(Example: 1° C higher)

- The temperature can be changed in 1°C increments within the range of 2°C higher to 2°C lower from the temperature automatically determined by the air conditioner.

C

(Example: 2°C lower)

C

COOL/HEAT MODE

- The temperature can be set within the range of 18 to 32°C.

Press the FAN button to set the desired fan speed. AUTO SOFT LOW HIGH

- In the DRY mode, the fan speed is preset to AUTO and cannot be changed.

To turn off the unit, press the ON/OFF button again.

- The red OPERATION lamp ( ) on the unit will turn off.

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to the room temperature and outdoor temperature when the unit is turned on.

Modes and Temperature Settings| Temperature Range | Outdoor temp. (°C) | Indoor temp. (°C) | | :--- | :--- | :--- | | 0-10 | 28 | 29 | | 10-18 | 34 | 21 | | 18-26 | 34 | 21 | | 26-34 | 34 | 21 | The chart displays a single bar representing the total temperature range for each category. The 'Cool' and 'Dry' categories are labeled…

the figures in ( ) are temperature settings

During operation, if the outdoor temperature changes, the temperature settings will automatically slide as shown in the chart.

-TIPS ABOUT INDICATOR PANEL-

The indicator panel will change each time you press the DISPLAY button in the following manner.

Ion DISPLAY D

The room temperature is displayed. The outdoor temperature is displayed. No display.

NOTES:

• The displayed temperatures are rough estimates and may vary from the actual temperatures. • Temperature display ranges

Room temperature: 0° C \~ 40° C (L is displayed when less than 0° C and when higher than 40° C)

Outdoor temperature: -9°C 45°C (L is displayed when less than -9°C and when higher than 45°C )

  • -- is displayed during the first 60 seconds of operation while the temperatures are being detected.
  • Only the room temperature can be displayed for 5 seconds when the unit is not in operation.
  • During SELF CLEAN operation, the indicator panel will display remaining time of the operation. Room and outdoor temperature will not be displayed even if you press the DISPLAY button.

VERTICAL AIR FLOW DIRECTION

The air flow direction is automatically preset in each mode as follows for optimum comfort:

COOL and DRY modes Horizontal air flow

HEAT mode Diagonal air flow

HOW TO ADJUST THE AIR FLOW DIRECTION

Press the SWING button on the remote control once.

The vertical adjustment louvres will change their angle continuously.

Press the SWING button again when the vertical adjustment louvres are at the desired position.

  • The louvre will stop moving within the range shown in the diagram.
  • The adjusted position will be memorized and will be automatically set to the same position when operated the next time.

Adjustment range

COOL and DRY modes

HEAT mode

SHARP AY-XP9FR - Adjustment range - 1

The adjustment range is narrower than the SWING range in order to prevent condensation from dripping.

SHARP AY-XP9FR - Adjustment range - 2

The range is wide and air flow can be directed toward the floor.

HORIZONTAL AIR FLOW DIRECTION

Hold the horizontal adjustment louvre as shown in the diagram and adjust the air flow direction.

Illustration of a hand inserting a spring into a wall-mounted air conditioner (no text or symbols present)

SHARP AY-XP9FR - HORIZONTAL AIR FLOW DIRECTION - 2

CAUTION

Never attempt to adjust the vertical adjustment louvres manually.

  • Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when the remote control is used for adjustment.
  • When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY mode for an extended period of time, condensation may result.

Do not adjust the horizontal adjustment louvre to the extreme left or right in the COOL mode with the fan speed set to "SOFT ( 🔍 )" for an extended period of time.

Condensation may form on the louvres.

PROGRESSIVE AIRFLOW

Press the PROGRESSIVE AIRFLOW button during cooling or dry operation when you do not want to feel cold air. Vertical adjustment louvres are set obliquely upward to deliver cool air to the ceiling.

Press the button during heating operation. Vertical adjustment louvres are set downward to deliver the warm air down to the floor and warm you.

DC AM 8:00 Ion DISPLAY 1

1 During operation, press the PROGRESSIVE AIRFLOW button.

• The remote control will display

SHARP AY-XP9FR - PROGRESSIVE AIRFLOW - 2

TO CANCEL

Press the PROGRESSIVE AIRFLOW button.

NOTES:

- The PROGRESSIVE AIRFLOW setting is cancelled when you press FULL POWER button while PROGRESSIVE AIRFLOW is set.

- If you want PROGRESSIVE AIRFLOW operation in FULL POWER mode, press PROGRESSIVE AIRFLOW button during FULL POWER operation.

In this operation, the air conditioner works at maximum power to makes the room cool or warm so rapidly that you can use it just after you come home.

AM 8:00 Ion DISPLAY ON 1

1 To activate the FULL POWER operation, press the FULL POWER button during operation.

• The remote control will display

SHARP AY-XP9FR - NOTES: - 2

• The temperature display will go off.

- The green FULL POWER lamp ( ) on the unit will light up.

TO CANCEL

Press the FULL POWER button again.

- FULL POWER operation will also be cancelled when the operation mode is changed, or when the unit is turned off.

- The green FULL POWER lamp ( ) on the unit will turn off.

NOTE:

- You cannot set the temperature or fan speed during FULL POWER operation.

PLASMACLUSTER OPERATION

The Plasmacluster Ion generator inside the air conditioner will release positive and negative plasmacluster ions into the room.

Approximately the same numbers of positive and negative ions released into the air will reduce some airborne mold.

Ion AM 8:00 Ion DISPLAY 1

1. During operation, press the PLASMACLUSTER button.

  • The remote control will display “
  • The blue PLASMACLUSTER lamp on the unit will light up.

To cancel:

Press the PLASMACLUSTER button again.

The PLASMACLUSTER lamp on the unit will turn off.

NOTES:

  • Use of the PLASMACLUSTER operation will be memorized, and it will be activated the next time you turn on the air conditioner.
  • To turn off the PLASMACLUSTER lamp, press the DISPLAY button.
  • When the PLASMACLUSTER button is pressed while the unit is not operating, the PLASMACLUSTER operation will be performed without accompanying air conditioning mode (e.g., HEATING or COOLING). The mode symbol of the remote control will go off and the fan speed cannot be set to AUTO.

SELF CLEAN operation will provide effect to reduce the growth of mold fungus, and to dry inside of the air conditioner unit with Plasmacluster ions. This operation is accompanied by FAN or HEAT mode. Utilize the operation at seasonal changeover terms.

Mold fungus already grown cannot be eliminated by this operation.

C AM 8:00 MODE 1h CLEAN FAN 1

NOTE:

1. Press the SELF CLEAN button when the unit is not operating.

  • The remote control displays “©”.
  • The blue PLASMACLUSTER lamp on the unit will light up.
  • The unit will stop operation after forty minutes.
  • The remaining operation time will be indicated on the TEMPERATURE INDICATOR of the indoor unit in minute decrements.

TO CANCEL

Press the SELF CLEAN button.

Alternatively, turn the unit off by pressing the ON/OFF button.

- The blue PLASMACLUSTER lamp on the unit will turn off.

- You cannot set the temperature, fan speed, air flow direction or timer setting during the SELF CLEAN operation.

ONE-HOUR OFF TIMER

When the ONE-HOUR OFF TIMER is set, the unit will automatically turn off after one hour.

MODE 1h CLEAN FAN 1

NOTES:

  • The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF operations.
  • If the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will operate for an hour at the formerly set condition.
  • If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER is activated, press the ONE-HOUR OFF TIMER button again during operation.
  • If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.

TIMER OPERATION

NOTE:

Before setting the timer, make sure the clock is properly set with the current time.

TIMER OFF

1:00 ON DISPLAY MODE 1h CLEAN FAN SWING SET/C 1 2 3

1 Press the TIMER OFF ( ⏻ button. 2 The TIMER OFF indicator will blink; press the TIME ADVANCE or REVERSE buttons to set the desired time. (The time can be set in 10-minute increments.) 3 Point the remote control at the signal receiver window on the unit and press the TIMER SET (SET/C) button.

- The orange TIMER lamp ( ⏻ on the unit will light.

- The unit will generate a beep when it receives the signal.

When the TIMER OFF mode is set, the temperature setting is automatically adjusted to prevent the room from becoming excessively hot or too cold while you sleep. (Auto Sleep function)

COOL/DRY MODE:

- One hour after the time operation begins, the temperature setting rises 1°C higher than the original temperature setting.

HEAT MODE:

- One hour after the timer operation begins, the temperature setting drops 3°C lower than the original thermostat setting.

TO CANCEL TIMER MODE

Press the TIMER CANCEL (SET/C) button.

  • The orange TIMER lamp ( ⏻ on the unit will turn off. • The current clock time will be displayed on the remote control.

MODE C1h CLEAN FAN SWING SET/C

NOTE:

- If any TIMER ON, TIMER OFF and ONE-HOUR OFF TIMER are set, the TIMER CANCEL button cancels all settings.

TO CHANGE TIME SETTING

Cancel the TIMER setting first, then set it again.

TIMER ON

8:00 AM Ion DISPLAY MODE 1h CLEAN FAN SWING SET/C 1 2 3

1 Press the TIMER ON (⏻) button. 2 The TIMER ON indicator will blink; press the TIME ADVANCE or REVERSE buttons to set the desired time. (The time can be set in 10-minute increments.) 3 Point the remote control at the signal receiver window on the unit and press the TIMER SET (SET/C) button.

- The orange TIMER lamp (☑) on the unit will light.

- The unit will generate a beep when it receives the signal.

4 Select the operation condition.

- The unit will turn on prior to the set time to allow the room to reach the desired temperature by the programmed time. (Awaking function)

COMBINED USE OF ON AND OFF TIMERS

You can use the ON and OFF timers in combination.

⑦+I AM 7:00 ⑦+O 1:00 PM

Example:

To stop operation at 11:00 p.m. and resume operation (with the same mode and temperature settings) to bring the room temperature to the desired level by 7:00 a.m.

1 Set the TIMER OFF to 11:00 p.m. during operation. 2 Set the TIMER ON to 7:00 a.m.

The arrow (▼ or ▲) between the TIMER ON indicator and the TIMER OFF indicator shows which timer will activate first.

NOTES:

  • You cannot program the ON-TIMER and OFF-TIMER to operate the unit at different temperatures or other settings.
  • Either timer can be programmed to activate before the other.

AUXILIARY MODE

Use this mode when the remote control is not available.

TO TURN ON

Lift the front panel of the indoor unit and press the AUX. button on the operation panel.

  • The red OPERATION lamp (☐) on the unit will light and the unit will start operating in the AUTO mode.
  • The fan speed and temperature setting are set to AUTO.

TO TURN OFF

Press the AUX. button on the operation panel again.

The red OPERATION lamp (☐) on the unit will turn off.

Illustration of a hand pointing at a computer monitor (no text or symbols visible)

NOTE:

If the AUX. button is pressed during normal operation, the unit will turn off.

MAINTENANCE

Be sure to disconnect the power cord from the wall outlet or turn off the circuit breaker before performing any maintenance.

CLEANING THE FILTERS

The air filters should be cleaned every two weeks.

Diagram of a car air duct with labeled components and airflow direction arrows

Illustration of two hands cutting a grid on a tray (no text or symbols)

Diagram of a car air conditioner unit with labeled parts and airflow direction arrows

1 TURN OFF THE UNIT 2 REMOVE THE FILTERS

①Lift the open panel.

②Push the air filters up slightly to unlock them.

③Pull the air filters down to remove them.

3 TAKE OFF THE DEODORANT DUST COLLECTION FILTERS FROM THE AIR FILTERS 4 CLEAN THE FILTERS

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

5 REINSTALL THE DEODORANT DUST COLLECTION FILTERS 6 REINSTALL THE FILTERS

①Reinstall the filters in the original positions.

②Close the front panel.

③Push the arrow-marked part of the panel firmly to lock it in place.

CLEANING THE UNIT AND THE REMOTE CONTROL

  • Wipe them with a soft cloth.
  • Do not directly splash or pour water on them. This can cause electrical shock or equipment damage.
  • Do not use hot water, thinner, abrasive powders or strong solvents.

MAINTENANCE AFTER AIR CONDITIONER SEASON

1 Operate the unit in the SELF CLEAN OPERATION to allow the mechanism to thoroughly dry. 2 Stop the operation and unplug the unit. Turn off the circuit breaker, if you have one exclusively for the air conditioner. 3 Clean the filters, then reinstall them.

MAINTENANCE BEFORE AIR CONDITIONER SEASON

1 Make sure that the air filters are not dirty. 2 Make sure that nothing obstructs the air inlet or outlet. 3 Check the outdoor mounting rack periodically for wear and to make sure it is firmly in place.

CHANGING THE DEODORANT DUST COLLECTION FILTER

The filter should be changed every 3 \~ 6 months

Filter stopper

1 REMOVE THE AIR FILTER 2 CHANGE THE DEODORANT DUST COLLECTION FILTER

1 Take off the old deodorant dust collection filter from the air filter. 2 Set the new deodorant dust collection filter, under the filter stoppers located on the air filter.

3 REINSTALL THE AIR FILTER

NOTE:

- The dirty deodorant dust collection filter is not washable for reuse. The new filter is available at your nearest dealer.

Replacement filter: Type AZ-F920F

Disposal of Filters

Please dispose of replaced filters according to the local disposal laws and regulations.

DEODORANT DUST COLLECTION Filter materials:

  • Filter: Polypropylene
  • Frame: Polyester

ADDITIONAL NOTES ON OPERATION

- The built-in protective device may prevent the unit from operating when used out of this range.

- Condensation may form on the air outlet if the unit operates continuously in the COOL or DRY mode when humidity is over 80 percent.

D.B. = Dry-bulb W.B. = Wet-bulb

Cooling operation is available during the winter season by the built in winter cool function.

Lower limit of outdoor temperature range is -10° C D.B.

(Note : Built-in protect device may work when outdoor temperature falls below 21°C D.B., depending on conditions.)

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs.

After power recovery, the unit will automatically re-start in the same settings which were active before the power failure, except for timer settings.

If the timers were set before a power failure, they will need to be re-set after power recovery.

PREHEATING FUNCTION

In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent cold air from blowing out of the unit.

DE-ICING FUNCTION

  • When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop operating.
  • After de-icing is completed, the unit automatically resumes operation in the HEAT mode.

HEATING EFFICIENCY

  • The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside air temperature therefore greatly affects the heating efficiency.
  • If the heating efficiency is reduced due to low outside temperatures, use an additional heater.
  • It takes time to warm up and heat the entire room because of the forced air circulation system.

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

  • Setting the thermostat 1°C higher than the desired temperature in the COOL mode and 2°C lower in the HEAT mode will save approximately 10 percent in power consumption.
  • Setting the temperature lower than necessary during cooling operation will result in increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

  • Blocking direct sunlight during cooling operation will reduce power consumption.
  • Close the windows and doors during cooling and heating operations.

Set proper air flow direction to obtain the best air circulation.

Keep filter clean to ensure the most efficient operation. Make most of the timer off function.

Disconnect the power cord when the unit is not used for an extended period of time.

- The indoor unit still consumes a small amount of power when it is not operating.

Before calling for service

The following conditions do not denote equipment malfunctions.

UNIT DOES NOT OPERATEThe unit will not operate if it is turned on immediately after it is turned off. The unit will not operate immediately after the mode is changed. This is to protect the internal mechanisms. Wait 3 minutes before operating the unit.SWISHING NOISEThe soft, swishing noise is the sound of the refrigerant flowing inside the unit.
WATER VAPOURIn the COOL and DRY operation, water vapour can sometimes be seen at the air outlet due to the difference between the room air temperature and the air discharged by the unit.In the HEAT operation, water vapour may flow out of the outdoor unit during de-icing.
UNIT DOES NOT SEND OUT WARM AIRThe unit is preheating or de-icing.
ODORSCarpet and furniture odors that entered into the unit and the air conditioner's inner component odors at the early stage of installation may be sent out from the unit.
CRACKING NOISEThe unit may produce a cracking noise. This sound is generated by the friction of the front panel and other components expanding or connecting due to a temperature change.
A LOW BUZZING NOISE EMITTEDThis is a sound emitted when the unit is generating Plasmacluster ions.
THE OUTDOOR UNIT DOES NOT STOPAfter stopping the operation, the outdoor unit will rotate its' fan for about a minute to cool down the unit.
ODOR EMITTED FROM THE PLASMACLUSTER AIR OUTLETThis is the smell of ozone generated from the Plasmacluster Ion generator. The ozone concentration is very small, posing no adverse effect on your health. The ozone discharged into the air rapidly decomposes, and its density in the room will not increase.

If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE
Check to see if the circuit breaker has tripped or the fuse has blown.
IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY
Check the filters. If dirty, clean them.Check the outdoor unit to make sure nothing is blocking the air inlet or outlet.Check the thermostat is proper setting.
Make sure windows and doors are closed tightly.A large number of people in the room can prevent the unit from achieving the desired temperature.Check whether any heat-generating appliances are operating in the room.
IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL
Check whether the remote control batteries have become old and weak.Try to send the signal again with the remote control pointed properly towards the unit's signal receiver window.Check whether the remote control batteries are installed with the polarities properly aligned.

Please call for service when TEMPERATURE INDICATOR on the indicator panel blinks.

SHARP AY-XP9FR - The following conditions do not denote equipment malfunctions. - 1

Line drawing of a wall-mounted air conditioner with a handheld remote control (no text or symbols)

SHARP AY-XP9FR - The following conditions do not denote equipment malfunctions. - 3

Attention

2 5 3 1 4

Ion DISPLAY

SHARP AY-XP9FR - Attention - 4

Attention

Progressive air flow

MODE 1h CLEAN FAN 1

MODE 1h CLEAN FAN 1

Note:

Maintenance

Illustration of two hands cutting a grid on a tray (no text or symbols)

Diagram of a car air conditioner unit with numbered parts and airflow arrows indicating airflow direction

1. Turn off the unit. 2. Remove the filters.

SHARP AY-XP9FR - Maintenance - 3

Caution

Ion Display

SHARP AY-XP9FR - Caution - 3

CAUTION

MODE 1h CLEAN FAN 1

MODE 1h CLEAN FAN

NOTE:

Example:

NOTE:

Illustration of hands using a tool to cut a grid on a tray (no text or symbols)

Diagram of a car air conditioner unit with numbered parts and airflow arrows indicating airflow direction

1 DISCONNECT THE UNIT 2 REMOVE THE FILTERS

SHARP AY-XP9FR - NOTE: - 3

PRECAUTIONS

2

5

3

1

4

1

Illustration of a hand pressing down on a wall-mounted air conditioner, showing the process with no text or symbols.

SHARP AY-XP9FR - PRECAUTIONS - 2

PRECAUTIONS

NOTE:

MAINTENANCE

Illustration of two hands using a tool on a grid-patterned surface (no text or symbols).

Diagram of an air conditioner unit with numbered parts and airflow indicators.

1 TURN OFF THE UNIT 2 REMOVE THE FILTERS

TEMP. INTERNATEMP. ESTERNA
RINFRESCAMENTOlimite sup.32°C B.A. 43°C B.A.23°C B.B.-
limite inf.21°C B.A. 21°C B.A.15°C B.B.-
RISCALDA-MENTOlimite sup.27°C B.A. 24°C B.A.-18°C B.B.
limite inf.20°C B.A.-8,5°C B.A.-9,5°C B.B.

ION ION SIGN ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑧ ⑨

UNIDADE EXTERIOR ⑳ ②0 ②1 ②2 ②3

NOTES:

SHARP AY-XP9FR - NOTES: - 1

WARNING

2

5

3

1

4

1

SHARP AY-XP9FR - WARNING - 2

WARNING

NOTE:

TO DEACTIVATE

Illustration of two hands using a tool on a grid-patterned surface (no text or symbols)

Diagram of a car air conditioner unit with numbered parts and airflow indicators

1 TURN OFF THE UNIT 2 REMOVE THE FILTERS

①Lift the panel.

SHARP AY-XP9FR - TO DEACTIVATE - 3

CAUTION

2 5 3 1 4

Ion DISPLAY

Illustration of a hand pressing down on a wall-mounted air conditioner, showing the process with a magnified view (no text or symbols present)

SHARP AY-XP9FR - CAUTION - 4

WARNING

AUTO-OFF SETTING AFTER ONE HOUR

NOTE:

MAINTENANCE

Illustration of two hands cutting a grid with a knife (no text or symbols)

Diagram of a car air conditioner unit with numbered parts and airflow indicators.

1 TURN OFF THE UNIT 2 REMOVE THE FILTERS

①Open the front panel.

SHARP AY-XP9FR - MAINTENANCE - 3

CAUTION

2

5

3

1

4

1

NOTES:

SHARP AY-XP9FR - NOTES: - 1

CAUTION

MODE 1h CLEAN FAN

NOTE:

MAINTENANCE

Illustration of hands using a tool to cut a grid on a 3x3 grid (no text or symbols)

Diagram of a car air conditioner unit with numbered parts and airflow indicators

1 TURN OFF THE DEVICE 2 REMOVE THE FILTERS

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SHARP

Model : AY-XP9FR

Category : Air conditioner
