Technical Specifications	Be Cool BC18ST2402 fan, 50W power, 3 fan speeds, 40 cm diameter.
Usage	Ideal for home or office use, height adjustable and tiltable.
Maintenance and Repair	Regular cleaning of grills and blades, checking the power cable.
Safety	Overheat protection, safety grill to prevent accidents.
General Information	2-year warranty, low energy consumption, modern and quiet design.

Frequently Asked Questions - BC18ST2402 Be Cool

How do I assemble the Be Cool BC18ST2402 fan?

The fan comes with a manual detailing the assembly steps. Please follow the instructions step by step for proper installation.

Why won\u0027t my fan turn on?

First, check that the fan is properly plugged into a working electrical outlet. Also, make sure the power switch is in the \"ON\" position.

The fan is making a strange noise, what should I do?

A strange noise may indicate that something is blocking the fan blades. Turn off the device, unplug it, and check for obstructions or debris around the blades.

How do I clean my Be Cool BC18ST2402 fan?

First, unplug the fan. Use a damp cloth to wipe the blades and casing. Avoid using corrosive chemicals.

The fan isn\u0027t running at the set speed, what should I do?

Check the speed setting on the control panel. If the problem persists, it may be an electrical issue or a faulty motor. Contact customer service for assistance.

Does the Be Cool BC18ST2402 consume a lot of energy?

The Be Cool BC18ST2402 fan is designed to be energy efficient. Its consumption depends on the selected speed but is generally low compared to other air conditioning devices.

Where can I find spare parts for my fan?

Spare parts can be ordered from Be Cool customer service or authorized dealers. Make sure to have the model and serial number handy.

The fan emits a strange smell, is this normal?

A strange smell may occur during first use due to burnt dust. If the smell persists, unplug the device and contact customer service.

USER MANUAL BC18ST2402 Be Cool

Gumbi SWIVEL FUNCTION:

Da bi se ventilator premikal vodoravno, kratko pritisnite gumb "Funkcija nihanja".

Čeželite, da se ventilator premika navpično, pritisnite gumb "Funkcjja nihanja" nekoliko dlje.

BE COOL

Čeželite izklopiti navpično funkcjio nihanja, ponovno pritisnite gumb "Funkcjija nihanja" in ga držite nekoliko dlje.

THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL.

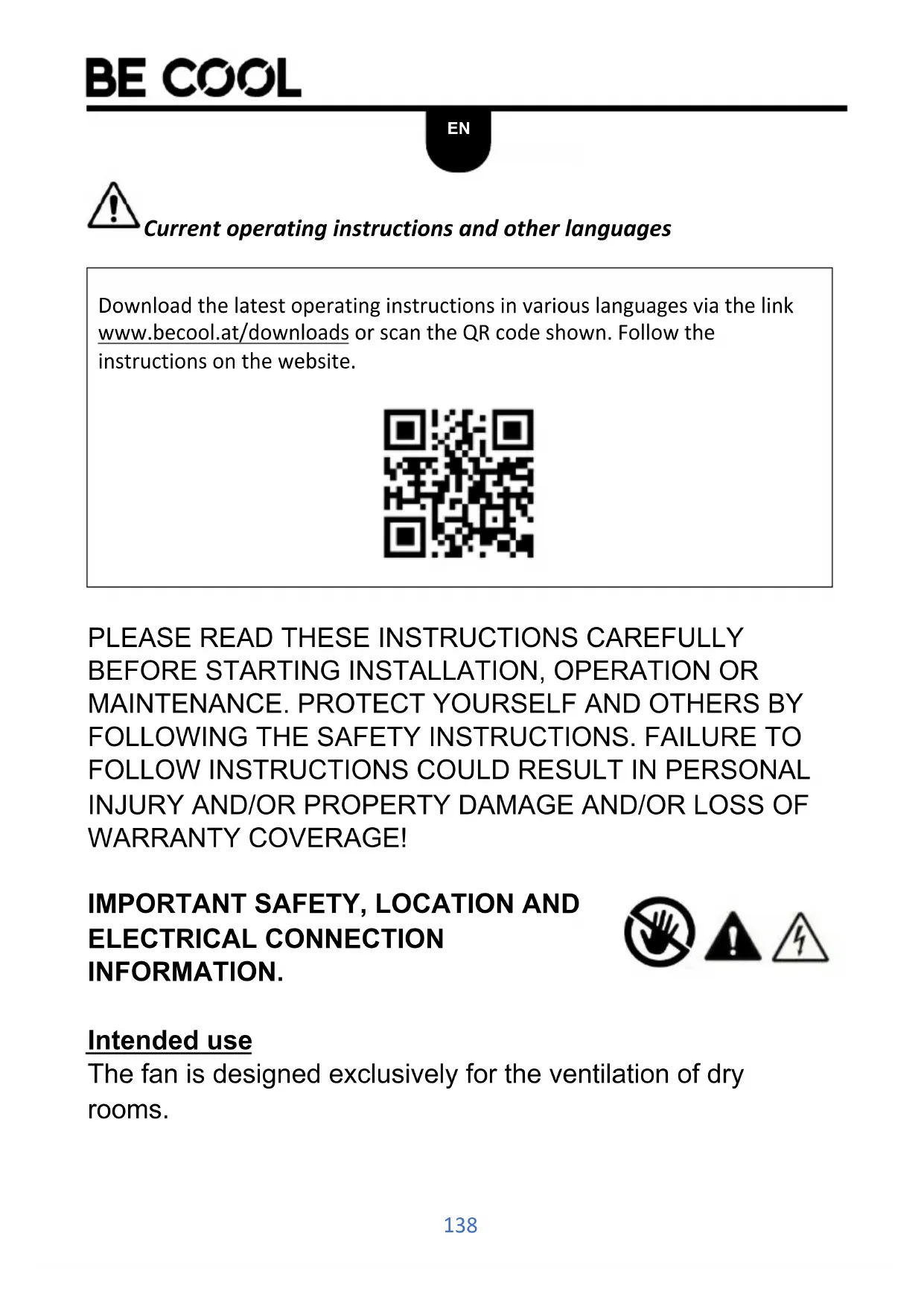

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY COVERAGE!

IMPORTANT SAFETY, LOCATION AND ELECTRICAL CONNECTION INFORMATION.

Intended use

The fan is designed exclusively for the ventilation of dry rooms.

It is intended for private use only and is not suitable for commercial use.

Only use the fan as described in these operating instructions.

1. Only use this appliance in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
2. Remove the packaging and make sure that the unit is not damaged. If in doubt, do not use the unit and contact the service centre or your dealer.
3. Keep children away from packaging materials. There is a danger of choking if swallowed!
4. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre in order to avoid all possible risks.
5. Before connecting the appliance to the mains, check that the type of current and mains voltage correspond to the specifications on the appliance type plate.
6. The electrical socket in which you connect the unit must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.
7. Avoid using an extension cord as it could overheat and cause a fire.
8. It is forbidden to adapt or modify the characteristics of this appliance in any way and use only spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).

9. If the unit has a defect, switch it off and contact your dealer or the customer hotline.

10. Always and only contact customer service centres authorised by the manufacturer for any repairs to the appliance, mains plug or cable. You can find the service centres online at www.becool.at.

11. Children under the age of 8 and persons with reduced physical, mental, sensory or spiritual capabilities or lack of experience and knowledge should not use this appliance unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
12. Do not operate the unit unattended. If you leave the room, always switch off the unit.
13. Children must not play with the appliance.
14. Do not twist or bend the mains cable.
15. Do not use the appliance with wet hands.
16. Do not use the unit outdoors.
17. Never operate the unit in rooms where gas, oil or sulphur are present.
18. Do not use the unit near water or high humidity, e.g. in damp basements, next to swimming pools, bathtubs or showers. Make sure that no water enters the unit.
19. Do not place any objects on the unit.
20. Place the unit on a stable and level surface.
21. Never cover the unit.
22. Never insert fingers, pens or other objects into the unit and make sure that the air inlet and outlet are never blocked.

23. Always switch off the appliance before unplugging it from the mains.

24. Do not pull on the mains cable to disconnect the appliance from the mains power. Always pull on the plug to unplug the mains cable.

25. Do not handle the plug with wet hands to avoid electric shock.
26. Unplug the appliance when you are not using it, before cleaning it, when it needs maintenance or when it is moved from one place to another.
27. Keep the unit in good condition by maintaining and cleaning the unit. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.
28. Keep and store the appliance in a safe, dry place out of reach of children when not in use.

Recycling, disposal, declaration of conformity

RECYCLING The packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.

DISPOSAL The symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will help to protect resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU

BATTERY DISPOSAL In accordance with Legislative Decree 188 of 20 November 2008 transposing Directive 2006/66/EC on batteries, accumulators and related waste, the crossed-out wheeled bin symbol on the battery indicates that it is prohibited to dispose of waste batteries in household waste.Batteries and accumulators contain highly polluting substances. The user is obliged to dispose of used batteries at the collection points in the municipality or in the appropriate containers. The service is free of charge. In this way, the legal requirements are met and the environment is protected. You will find these signs on batteries: Li = battery contains lithium Al = battery contains alkali Mn = battery contains manganese CR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)

DECLARATION OF CONFORMITY We hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link: https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

Technical information

If the fan has to be stored for a long time and is not used regularly, place the fan in its original packaging in a dry place. When using it for the first time after a long period of inactivity, make sure that the fan is clean and the motor blades are unrestricted (unit not powered).

Scope of delivery:

• 1x base
• 1x steel tube
• 1x remote control
  1x instruction manual

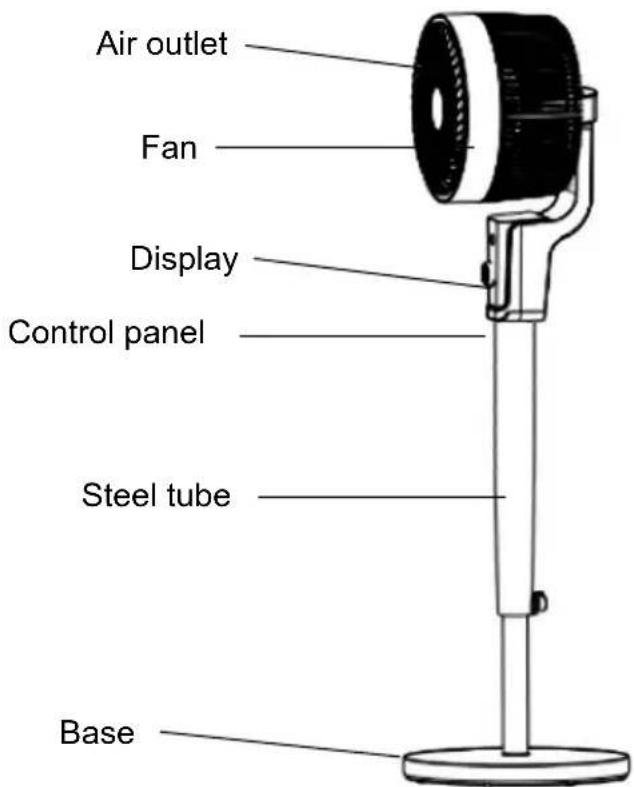

Product description

Preparation

Estimated assembly time: 30 minutes
- Required tools for assembly: Phillips screwdriver (not included).

Assembly

Open the packaging and take out all the parts.

(1) Adjust the steel tube to the desired height, tighten the screw and remove the screw at the bottom of the steel tube with a screwdriver.
(2) Insert the steel tube into the steel tube hole of the stand.
(3) Use a screwdriver to fix the lower screw previously removed.

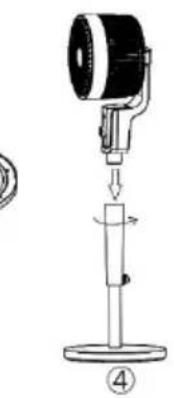

(4) Turn the upper and lower column cylinders anticlockwise and tighten them.

Note: When assembling and disassembling, the connecting tube should be screwed down to prevent damage to the motor. The vertical swivel function cannot be adjusted manually to avoid damage to the swivel structure.

Remote control

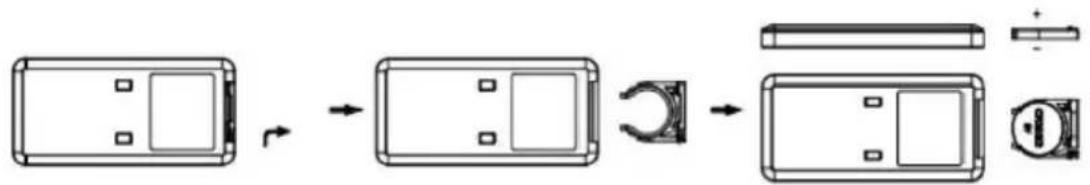

Preparing the remote control - Inserting or replacing the battery

Please follow the instructions below:

Initial operation:

To operate the remote control for the first time, please pull out the plastic protector from the battery compartment on the back of the remote control.

Change battery:

Pull out the battery holder on the back of the remote control and remove the old battery from the holder:

Now insert a new CR2025 battery, always paying attention to the polarity markings (+/-) on the battery and the battery holder.

Then push the battery holder fully back into the remote control.

Note: If you do not use the remote control for a longer period of time (4 weeks or more), remove the batteries from the remote control.

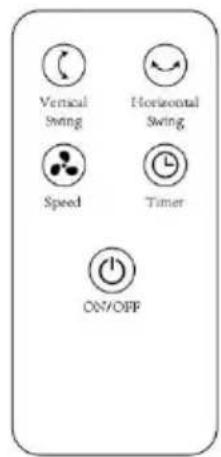

Functions and operation

Timer

Speed button

Vertical swivel function Horizontal swivel function

long press to switch the vertical swivel function

On/off button

Here are the instructions for using the fan:

• Insert the plug into the power socket. The unit is in standby mode and the power indicator lights up.

ON/OFF button:

Press the button to switch the fan on. Press it again to put it in standby mode.

Speed button:

Press the "Speed" key to set the fan speed from 1 to 3. The corresponding indicator light is switched on or off.

When using the remote control: Press the "SPEED" button to set the fan speed from 1 to 3. The corresponding indicator light is switched on or off.

SWIVEL FUNCTION button:

To pivot the fan horizontally, briefly press the "Swivel Function" button.

If you want the fan to move vertically, hold down the "Swivel Function" button a bit longer.

To turn off the vertical swing function, press the "Swivel Function" button again and hold it down a bit longer.

If you want to deactivate the vertical swing function, press the "Swivel Function" button again.

TIMER button:

Press the "TIMER" key to set the timer function from 1-12 hours. The corresponding time display is shown on the control panel.

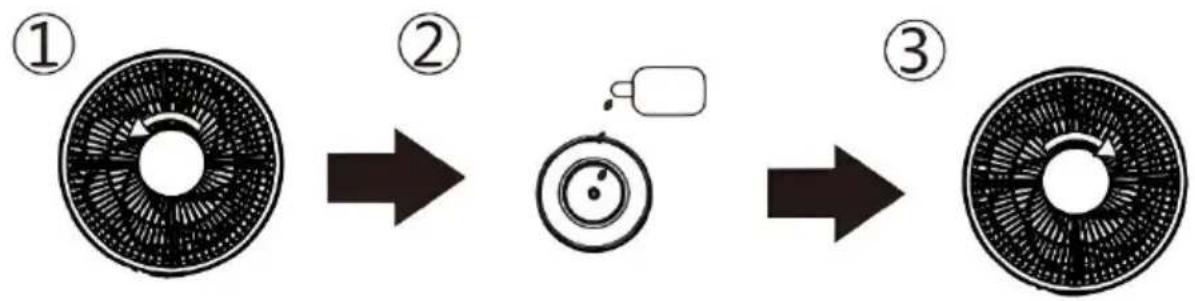

Using the Aroma Box

(1) Turn the cover counterclockwise OPEN to remove the cover.
(2) Put the aroma oil on the aromatherapy cotton ball.
(3) Replace the cover clockwise.

Care and cleaning

IMPORTANT NOTICE:

Always switch off the appliance before cleaning and always disconnect the mains plug from the socket.

DO NOT immerse the unit in water or spray it with other liquids.
- DO NOT use solvents or other chemical products for cleaning. Store the fan in a dry place when not in use.
- When you stop using the fan at the end of the season, wipe off the dust to keep it in good condition for the next season. If necessary, dismantle the grille and remove the fan; clean it with a soft, damp cloth.

Technical information
Rated voltage	220V - 240 V
Frequency	50-60 Hz
Nominal power	50 Watt
Sound level	59 dB(A)
Dimensions	330 x 1050 x 330 mm
Weight	4 kg
Information requirements of Regulation (EU) No. 206/2012
Article	BC18ST2402, BC18ST2403
Nominal voltage	220 – 240 V
Protection class	II
Power consumption when switched off (POFF)	-
Seasonal power consumption (Q)	16.5 kWh/a
Designation	Symbol	Value	Unit
Maximum volume flow	F	31.4	m³/min
Fan power consumption	P	32.8	W
Service ratio	SV	1	(m³/min)/W
Power consumption in standby mode	PSB	0.46	W
Fan sound power level	LWA	64	dB(A)
Maximum air velocity	c	6.2	m/s
Measurement standard for determining the service ratio()	IEC 60879:2019
Contact addresses for further information and service line:	Schuss Home Electronic GmbH Scheringgasse 3, A-1140 Vienna Tel: [phone] - 0 www.becool.at Company register no.: 236974t Commercial Register Court: Vienna

GUARANTEE

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BECOOL appliance we grant a warranty period of 2 years from the date of purchase valid in Austria!

If, contrary to expectations, service work should nevertheless be necessary on your device during this period, we hereby guarantee to repair the device free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a credit note for the current value.

In the case of air conditioners, please contact the customer hotline as a first step (see sticker on the unit or cover page of the operating instructions), in the case of fans, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

We do not accept any liability for consequential damage in the event of improper use.
Repair or replacement of parts due to normal wear and tear
- Damage due to non-observance of the operating instructions
Devices that are used - even only partially - for commercial purposes
equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
Equipment that has been improperly handled
- Units that have not been opened by our authorised service workshop.
- Damage caused as a result of improperly closed condensation drain valves of air conditioners or improperly inserted water tank.
- Consumer expectations not met.
- Damage caused by force majeure, water, lightning, overvoltage.
Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the warranty certificate, only the legal warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy your BE COOL appliance!

ADDRESS

Distribution BE COOL:

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:

In the event of a warranty claim, this warranty certificate must be handed over to the authorised service centre together with the unit.
