BC78TUST2201 - Fan Be Cool - Free user manual and instructions

Technical Specifications	Be Cool BC78TUST2201 fan, 50W power, 3 speeds, 30 cm diameter.
Usage	Ideal for home or office use, easy to move thanks to its light weight.
Maintenance and Repair	Regularly clean the grills and blades for optimal operation. Check the power cable for signs of wear.
Safety	Equipped with overheat protection, do not use near water.
General Information	2-year warranty, CE compliant, available in several colors.

Frequently Asked Questions - BC78TUST2201 Be Cool

The Be Cool BC78TUST2201 fan won't turn on, what should I do?

Check that the fan is properly plugged into a working power outlet. Also ensure the switch is in the 'ON' position.

The fan is making noise, is this normal?

A slight noise is normal, but if the noise is loud or unusual, check if objects are blocking the blades or if the fan is improperly assembled.

How do I clean the Be Cool BC78TUST2201 fan?

Unplug the fan, then use a damp cloth to wipe the blades and casing. Avoid using harsh chemicals.

The fan is not running at the desired speed, what should I do?

Make sure you have selected the appropriate speed using the speed controller. If the problem persists, check if the blades are dirty.

Can I use the fan outdoors?

The Be Cool BC78TUST2201 is designed for indoor use. Avoid using it outdoors to prevent electrical damage.

The fan emits a strange smell, what should I do?

This may be due to overheating. Unplug it immediately and let it cool down. If the smell persists after use, contact customer service.

How do I adjust the fan angle?

Most models are equipped with a tilt mechanism. Hold the base and adjust the blade angle until you reach the desired position.

Does the Be Cool BC78TUST2201 fan consume a lot of energy?

This fan is designed to be energy efficient. Check the technical sheet for its specific power consumption.

Is there a warranty for the fan?

Yes, the fan typically comes with a two-year warranty. See the user manual for more details.

USER MANUAL BC78TUST2201 Be Cool

Technical line drawing of a vertical cylindrical device with internal striped pattern (no text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Technical diagram of a vertical cylindrical device with labeled components, showing internal structure and wiring connections.

Diagram of a battery with a wire and terminal outlet, labeled 'Abb. 1:' (no other text or symbols)

Abb. 2:

Abb. 3:

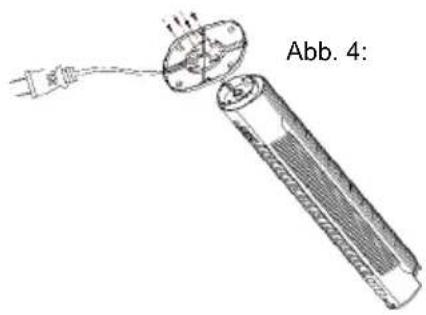

Abb. 4:

BE COOL

BEDIENUNG

1 2 3 D 1 2 3 D

GESCHWINDIGKEIT

Technical line drawing of a vertical cylindrical device with internal grating and a top cap (no text or symbols)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT CE MANUEL D'INSTRUCTIONS AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON- RESPECT DES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES OU DES DOMMAGES AUX PERSONNES ET/OU AUX BIENS ET/OU INVALIDER LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT ET LA CONNEXION ÉLECTRIQUE.

Technical line drawing of a vertical cylindrical device with internal grating and a top cap (no text or symbols)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE IL PRESENTE MANUALE DI ISTRUZIONI PRIMA DI INIZIARE L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI O DANNI A PERSONE E/O COSE E/O INVALIDARE LA GARANZIA!

INFORMAZIONI IMPORTANTI SULLA SICUREZZA, L'UBICAZIONE E IL COLLEGAMENTO ELETTRICO.

Technical line drawing of a vertical cylindrical device with internal grating and a top cap (no text or symbols)

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

LEES DEZE GEBRUIKSAANWIJZING ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT LETSEL OF SCHADE AAN PERSONEN EN/OF EIGENDOMMEN EN/OF HET VERVALLEN VAN DE GARANTIE!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Labeled diagram of a vertical cylindrical device with numbered components and wiring, likely illustrating a scientific or engineering setup.

Illustration of a cylindrical battery with a power outlet and cable, no text or symbols present

Fig. 2:

Illustration of a test tube with liquid and bubbles, labeled Fig. 2 (no text or symbols on the diagram itself)

Diagram of a battery with an open socket and plug, labeled as Fig. 3 (no text or symbols on the diagram itself)

Diagram of a handheld device with a cable and power outlet, labeled as Fig. 4 (no text or symbols on the device itself)

BE COOL

OMGAAN MET HET APPARAAT

1 2 3 0 6 3 2 1 1

SNELHEID

Technical line drawing of a vertical cylindrical device with internal ribbed structure (no text or symbols)

FELICIDADES!

GRACIAS POR ELEGIR UN PRODUCTO DE BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

Illustration of a cylindrical device with a power outlet and cable, labeled 'Fig. 1:' (no text or symbols on the device itself)

Illustration of a test tube with a leaf-like extension, labeled Fig. 2 (no text or symbols on the tube itself)

Diagram of a battery with a plug inserted, showing internal components and wiring (no text or symbols)

Diagram of a handheld device with a cable and light source, labeled Fig. 4 (no text or symbols on the device itself)

BE COOL

OPERACIÓN

1 2 3 4 5 6 7 8 9 10 11 12

VELOCIDAD

Technical line drawing of a vertical cylindrical device with internal grating and a top handle (no text or symbols)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE TENTO NÁVOD K POUŽITÍ. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRAŇTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE VÉST KE ZRANĚNÍ NEBO POŠKOZENÍ OSOB A/NEBO MAJETKU A/NEBO KE ZTRÁTĚ ZÁRUKY!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Labeled diagram of a vertical cylindrical device with numbered parts, likely illustrating a scientific or engineering concept.

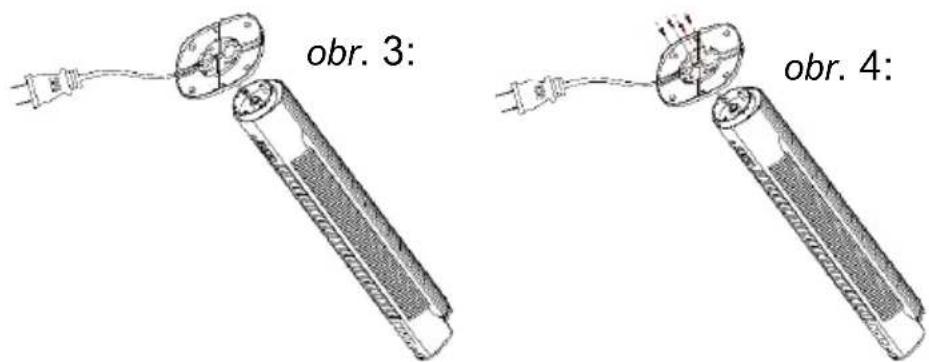

obr. 1: obr. 2:

obr. 3: obr. 4:

BE COOL

MANIPULACE SE SPOTŘEBIČEM

1 2 3 0 0 3 2 3 1

SPEED

Technical line drawing of a vertical cylindrical device with internal grating and a top cap (no text or symbols)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE TENTO NÁVOD NA OBSLUHU. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE VIESŤ K ZRANENIU ALEBO POŠKODENIU OSÔB A/ALEBO MAJETKU A/ALEBO K STRATE PLATNOSTI ZÁRUKY!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJEN

obr. 1: obr. 2: obr. 3: obr. 4:

BE COOL

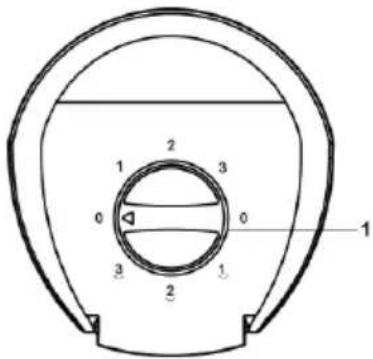

MANIPULÁCIA SO SPOTREBIČOM

1 2 3 0 0 3 2 1 1

RÝCHLOŠŤ

Technical line drawing of a vertical cylindrical device with internal ribbed structure (no text or symbols)

FELICITĂRI!

VĂ MULTUMIM CĂ ATI ALES UN PRODUS BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE ACEST MANUAL DE INSTRUCTIUNI ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTRETINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR POATE DUCE LA RĂNIREA SAU LA DETERIORAREA PERSOANELOR ȘI/SAU A BUNURILOR ȘI/SAU LA INVALIDAREA GARANȚIEI!

INFORMATII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA ŞI CONECTAREA ELECTRICĂ.

Three black-and-white warning symbols: a hand holding a prohibition, an exclamation mark, and a lightning bolt symbol.

Technical diagram of a vertical scientific apparatus with numbered components and labeled parts

Technical line drawing of a vertical cylindrical device with internal ribbed structure (no text or symbols)

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PRZED ROZPOCZĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ OBSŁUGI. NALEŻY CHRONIĆ SIEBIE I INNYCH POPRZEZ PRZESTRZEGANIE INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE SKUTKOWAĆ OBRAŻENIAMI CIAŁA I/LUB USZKODZENIEM MIENIA I/LUB UTRATĄ GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI I POŁĄCZEŃ ELEKTRYCZNYCH.

Technical diagram of a vertical cylindrical device with labeled components and wiring, showing internal structure and grounding connections.

Technical line drawing of a vertical cylindrical device with internal ribbed structure (no text or symbols)

ČESTITAMO!

HVALA, KER STE IZBRALI IZDELEK BE COOL.

BE COOL

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PRED ZAČETKOM NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE NAVODILA ZA UPORABO. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJSKEGA KRITJA!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNE PRIKLJUČKU.

Technical diagram of a vertical cylindrical device with labeled components and numbered parts

Technical line drawing of a vertical cylindrical device with internal ribbed structure (no text or symbols)

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI BE COOL PROIZVOD.

Aktualni korisnički priručnici i drugi jezici

Preuzmite aktualne upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS, PAŽLJIVO PROČITAJTE UPUTE ZA KORISNIKE PRIJE UGRADNJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI I ELEKTRIČNOM POVEZIVANJU.

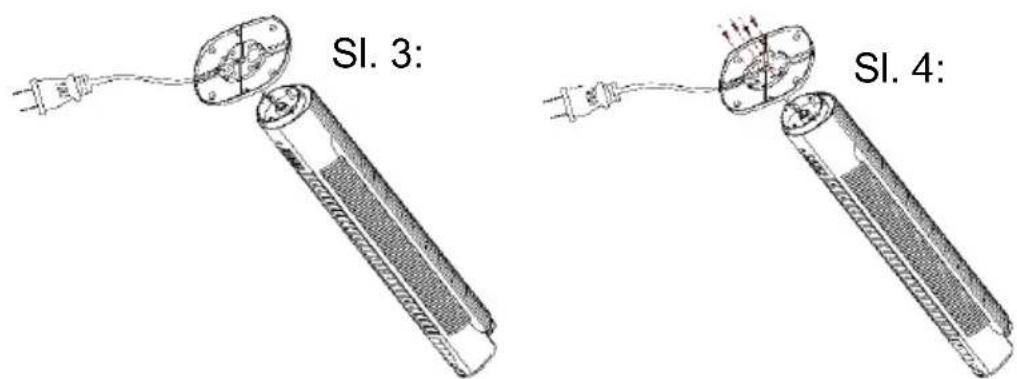

Sl. 1: Sl. 2:

SI. 3: SI. 4:

BE COOL

SERVIS

1 2 3 0 0 3 1 2 1

UBRZATI

• Okrenite prekidače (1) za odabir brzine sa ili bez oscilacije.
  • 3 brzine po izboru: (niska - srednja - visoka)

UPUTE ZA ČIŠĆENJE

Technical line drawing of a vertical cylindrical device with internal grating and a top cap (no text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL.

BE COOL

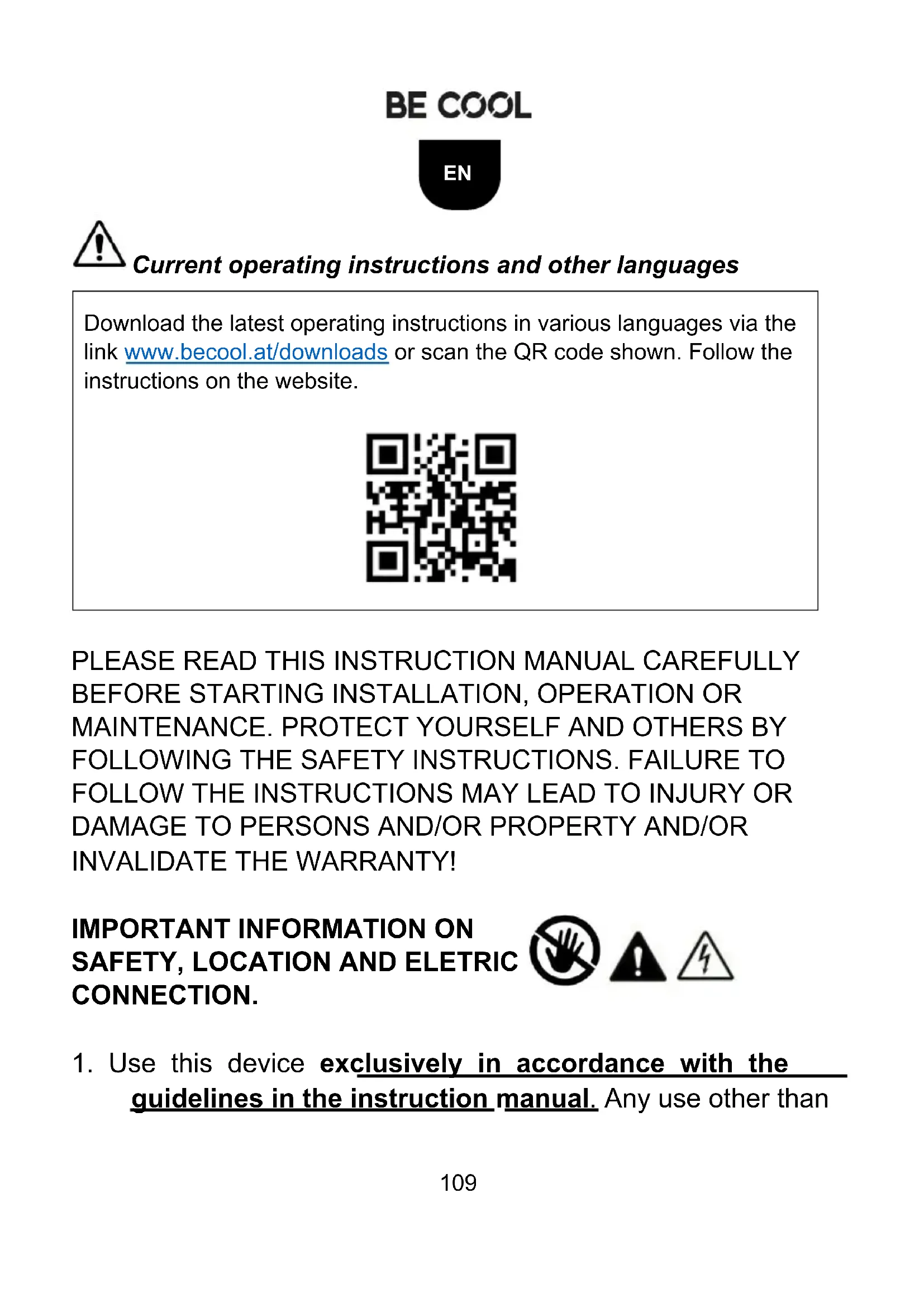

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS MAY LEAD TO INJURY OR DAMAGE TO PERSONS AND/OR PROPERTY AND/OR INVALIDATE THE WARRANTY!

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELETRIC CONNECTION.

1. Use this device exclusively in accordance with the guidelines in the instruction manual. Any use other than

BE COOL

that recommended by the manufacturer, may result in fire, electrical shock or injury to persons.

1. Remove the packaging and ensure the device is not damaged. In case of any doubt do not use the device and contact the service point or your dealer.

2. Keep children away from packaging materials. There is a risk of choking if swallowed!

3. If the power cable is damaged it must be replaced by the manufacturer or an authorised service point, in order to avoid all potential risks.

4. Check whether current type and grid voltage match the specifications on the device's type plate before plugging the device in.

5. The electrical plug socket, into which the device is connected, must not be defective or loose, must be suitable for the required current load and, above all, must be properly earthed.

6. Avoid the use of an extension cable, as this may overheat and cause a fire.

7. It is strictly forbidden to modify the properties of this device in any form or manner and you must only use replacement parts or accessories recommended by the manufacturer (failure to do so will invalidate the warranty and guarantee).

8. If the device has a defect, switch it off and contact your dealer or the customer hotline.

9. For any possible repairs to the device and the mains plug or power cable you must always refer exclusively to the customer service points recommended by the manufacturer.

BE COOL

You can view our customer service points online at www.becool.at.

1. Children under the age of 8 and persons with limited physical, psychological, sensory or mental abilities and lack of experience and knowledge may only use this device under appropriate supervision and if comprehensively briefed on the safe use of the device and the associated hazards.

2. Do not use the device without supervision. Always switch the device off when leaving the room.

3. Children must not be allowed to play with the device.

4. Do not twist or kink the power cable.

5. Do not use the device with wet hands.

6. Do not use the device outdoors.

7. Never use the device in rooms in which gas, oil or sulphur are present.

8. Do not use the device in the proximity of water or strong moisture, e.g. in damp cellars, close to pools, bathtubs or showers. Make sure no water can enter the device.

9. Do not place any objects on the device.

10. Place the device on a stable and level subsurface.

11. Never cover the device.

12. Never put fingers, pens or other items into the device and make sure that air in- and outlets are never blocked.

13. Always switch the device off before pulling the power plug.

14. Do not pull on the power cable to unplug the device. Always pull on the plug to unplug the device.

15. Do not touch the plug with wet hands to avoid electrical shocks.

BE COOL

1. Pull the plug if you are not using the device, if you want to clean it, if it has to be serviced or if it is moved from one location to another.

2. Keep the device in good shape by cleaning and maintaining it. If you have any questions regarding maintenance you can contact the manufacturer's authorised customer hotline / service point.

3. Keep and store the device at a safe and dry place out of reach for children when you are not using it.

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BE COOL

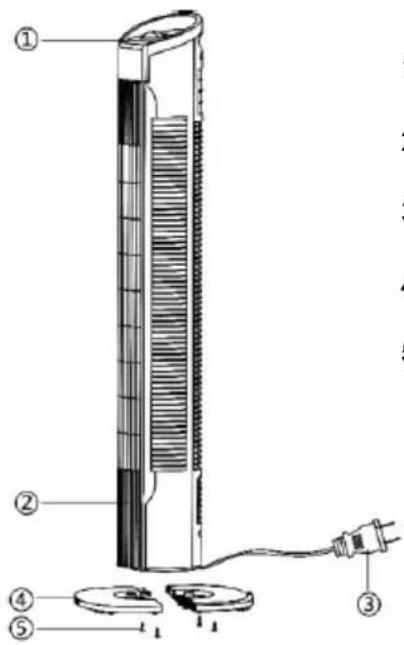

TECHNICAL DESCRIPTION

Technical diagram of a vertical cylindrical device with labeled components and wiring, showing internal structure and grounding.

1. Control dial
2. Front
3. Power Plug
4. Baseplate
5. Screws

ASSEMBLING THE STAND

1. Take all of the appliance parts out of the packaging and remove all packaging materials and inserts.
2. Turn the fan upside down (Fig.1).
3. Take the power cord and put it through the two parts of the baseplate (4) (Fig.2).

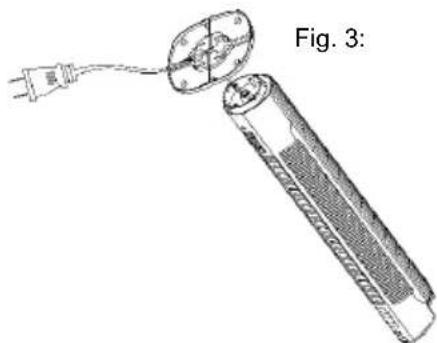

4. Fasten the parts (4) and press it into the outlet hole. (Fig.3)

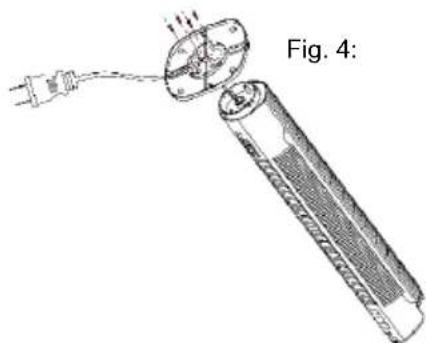

5. Use 4 pieces of screw to tight up (Fig.4).

Fig. 1:

Illustration of a cylindrical device with a cable extending from its tip, labeled 'Fig. 1' (no text or symbols on the device itself)

Simple line drawing of a cylindrical object with a pointed tip and a label 'Fig. 2:' (no text or symbols on the object itself)

Diagram of a battery with a plug inserted, showing internal components and wiring (no text or symbols)

Fig. 4:

BE COOL

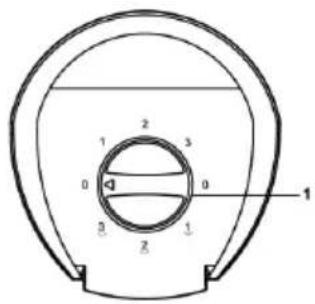

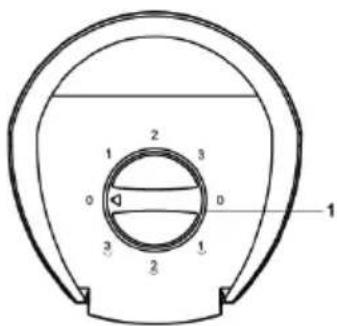

HANDLING THE APPLIANCE

1 2 3 0 d 0 3 2 1 1

SPEED

• Turn the button (1), to select the speed with or without oscillation.
  • 3 different speed options: (Low - Mid - High)

CLEANING INSTRUCTIONS

• Caution! Let the device come to a full stop before cleaning and disconnect it from the outlet.
  • Use a soft cloth to clean the device.
  • If dirt and contamination should not come off easily, you may use warm soapy water.
• Do not use solvents and scrubbing agents (thinners), metal cutlery or stiff brushes since these may damage the plastic housing.
• Do not immerse the fan in water or other liquids. Water must not drop onto or into the fan's motor housing.
  • Dry all components thoroughly before storing them.
• Store the device in a cool, dry and clean environment.
• Store the device out of reach for children and animals.

BE COOL

Technical information
Rated voltage	220-240V
Frequency	50Hz
Rated input power	50 Watt
Height	78 cm
Weight	1,76kg
Sound power level	56.1 dB (A)
Information requirements of Regulation (EU) No. 206/2012
Article	BC78TUST2201
Rated	220 – 240 V
Protection	II
Power consumption when switched off (POFF)	0 W
Seasonal power consumption (Q)	11.62 kWh/a
Designation	Symbol	Value	Unit
Maximum volume flow	F	7.38	m3/min
Fan power consumption	P	36.6	W
Service ratio	SV	0.20	(m3/min)/W
Power consumption in standby mode	PSB	0.15	W
Fan sound power level	LWA	56.10	dB(A)
Maximum air velocity	c	0.68	m/s
Measurement standard for determining the service ratio	ISO 5801:2017
Contact address for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] – 0www.becool.atCommercial register no.: 236974 t /Commercial register court: Vienna

BE COOL

WARRANTY

By purchasing a BE COOL quality product you have acquired an innovative, long lasting and reliable item.

For this BECOOL device we grant a warranty of 2 years from the date of purchase, valid in Austria only.

In the unlikely event that service work is required on your device in this period we warrant free repair (spare parts and labour) or (subject to Schuss's decision) to replace the product. In the event that neither repair nor exchange make sense from an economical perspective we reserve the right to issue a credit based on current value.

When dealing with air conditioning devices you should always contact the customer hotline first (see label on the device or the title page of the instruction manual), in case of fans contact your dealer or us directly. Please note that repair not performed by the authorised workshop in Austria immediately renders this warranty void.

This warranty does not include:

• Repair of replacement of parts due to normal wear
• Damage due to non-compliance with the instruction manual
• Devices that are used commercially – even in part
• Devices damaged by external forces (falling, impact, cracking, improper use etc.) as well as aesthetic wear
• Devices that have been used improperly
• Devices that were not opened by our authorised workshop.

• Unfulfilled customer expectations.

• Damage caused by force majeure, water, lightning and overvoltage.

• Devices on which type denomination and/or serial number on the device have been erased, rendered illegible or removed.

• Service work not performed by our authorised workshops, transport costs to an authorised workshop or us and back as well as associated risks.

Please note that within the warranty period we charge a flat rate of 60 € (indexed as per consumer price index 2010, June 2015) in case of operating errors or if no fault can be found.

The total warranty period of 2 years is not extended if warranty service is performed (repair or device replacement).

The 2 year warranty is only valid if the original invoice (must contain name and address of the dealer as well as full device name) and the respective warranty certificate are produced, on which the device type and serial number (can be found on the box and the device's rear or bottom) are to be noted! Only the statutory warranty coverage applies if the warranty certificate cannot be produced! Please note that the statutory warranty coverage is not altered by this warranty and that it applies in full regardless.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in case of gross negligence or intent. Liability for loss of profit, expected but not incurred savings, consequential damages and damages from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you will enjoy using your BE COOL device!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:......

Serial number: ....

Together with the device, this warranty certificate must be handed to the authorised workshop or dealer you bought the device from in the event of a warranty claim!
